The makers at Hexabitz have been busy piecing together their hexagonal-shaped modules into this awesome Raspberry Pi scale project. It's totally wireless and provides real-time weight readout using load cell sensor data.

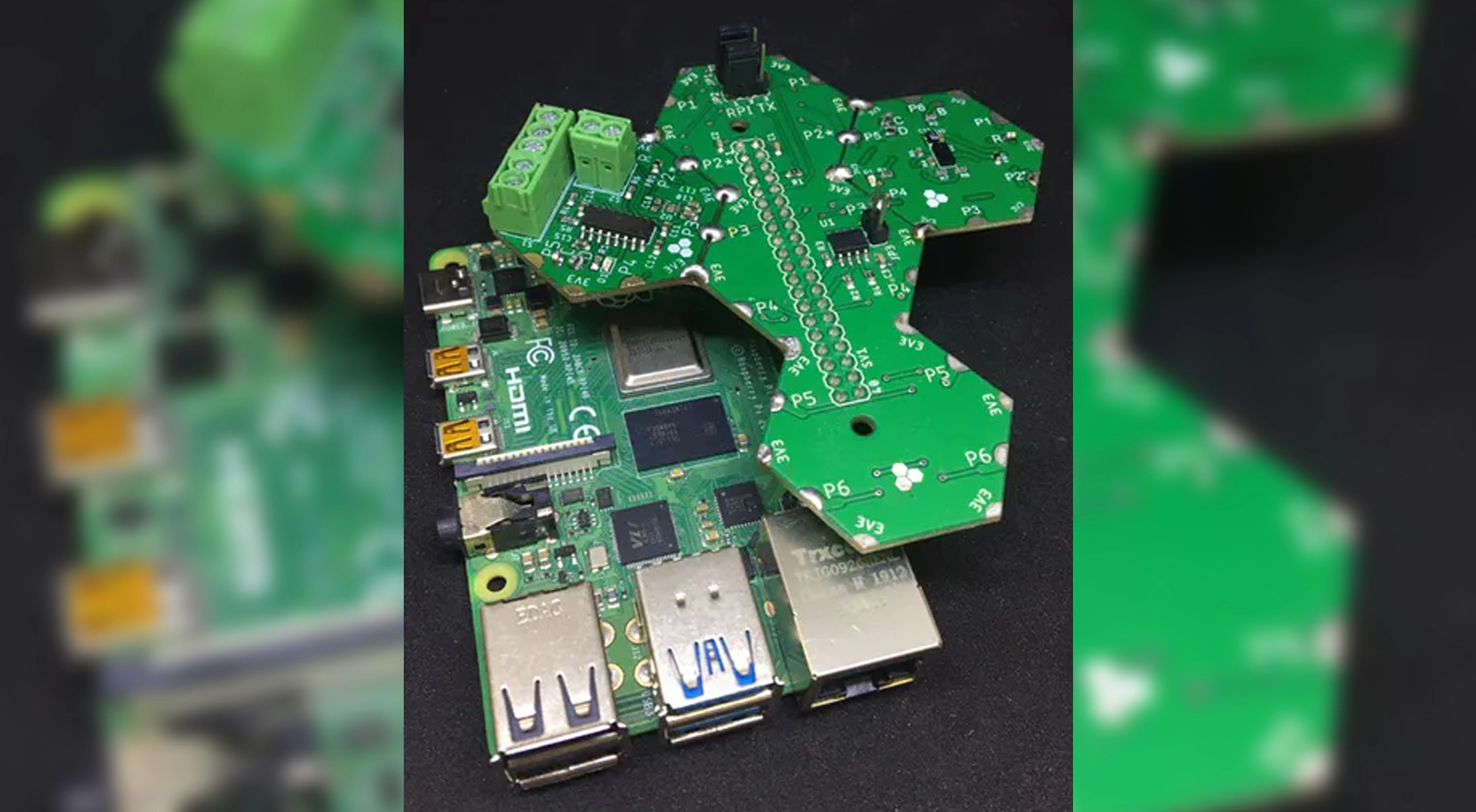

The project uses a Raspberry Pi with the Hexabitz Raspberry Pi Interface Kit. This PCB plugs directly into the Raspberry Pi GPIO and can support additional Hexabitz add-on boards like the load cell sensor interface module used in this project.
Building a #wireless #digital @Raspberry_Pi Scale with our #loadcell sensor interface module and #raspberrypi interface kit ⚖️✨😀 We can using it to weigh objects in gram, kilogram, pounds & ounces#technology #coding #Linux #edtech #IoT #100DaysOfCode #smarthome #IndustrialIoT https://t.co/7OwNaKYIsu pic.twitter.com/vs66N0b1HOJanuary 25, 2021
The load cell sensor interface module connects directly to a strain gauge load cell which is used to detect pressure between the two plates used in the scale. The system can be programmed to output either metric or imperial units.
As we mentioned, the project is wireless and sends the weight information to a cloud server. Users can receive data from the Pi via SMS or access the custom weight tracking dashboard using a browser window.
