MSI MEG X870E Godlike Motherboard Review: Seven USB-C and M.2 sockets, $1100 price

A Godlike number of Type-C Ports, M.2 Sockets, with the looks and price to match

Reviews
By published
MSI X870E Godlike
Editor's Choice
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Firmware

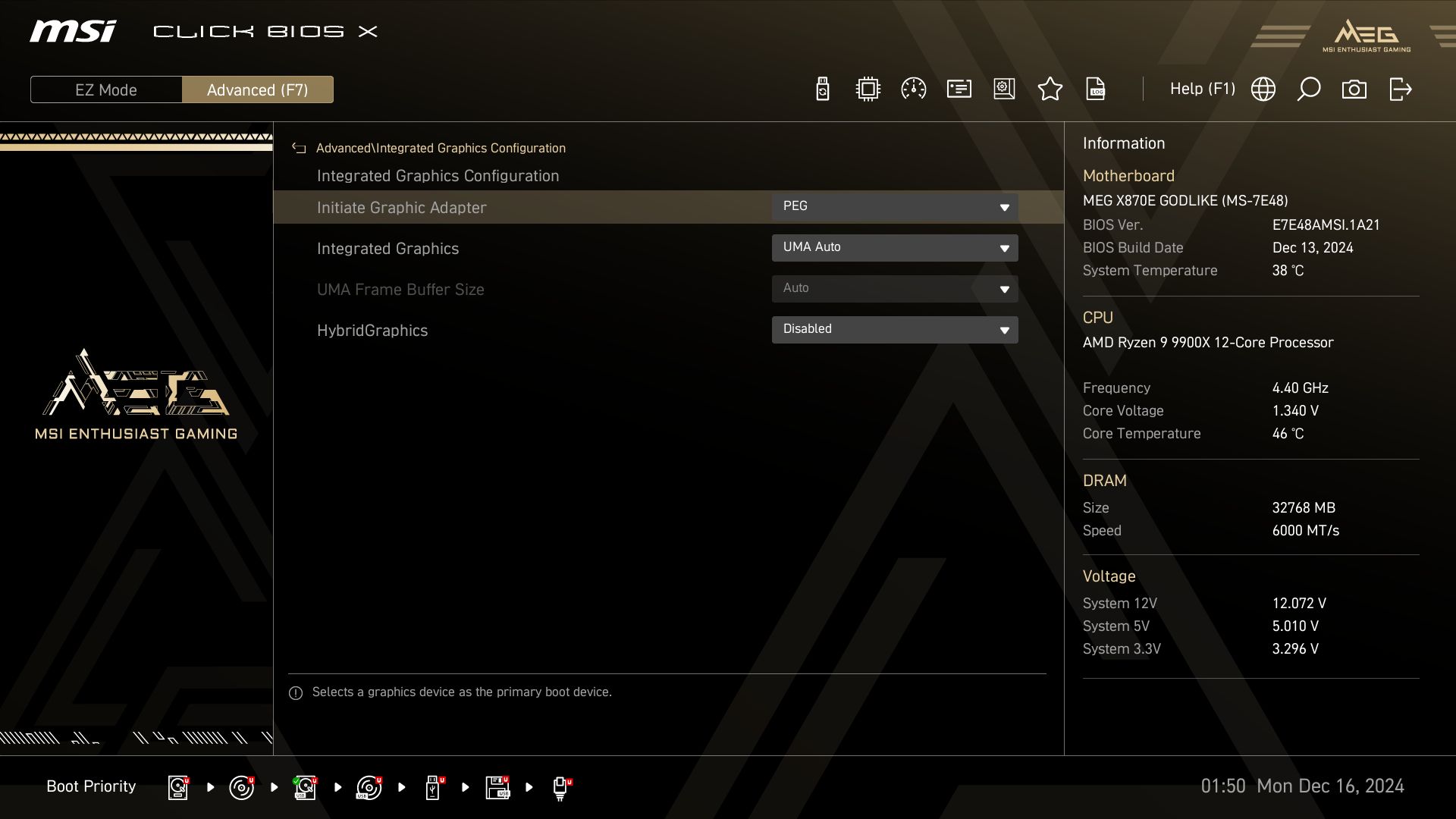

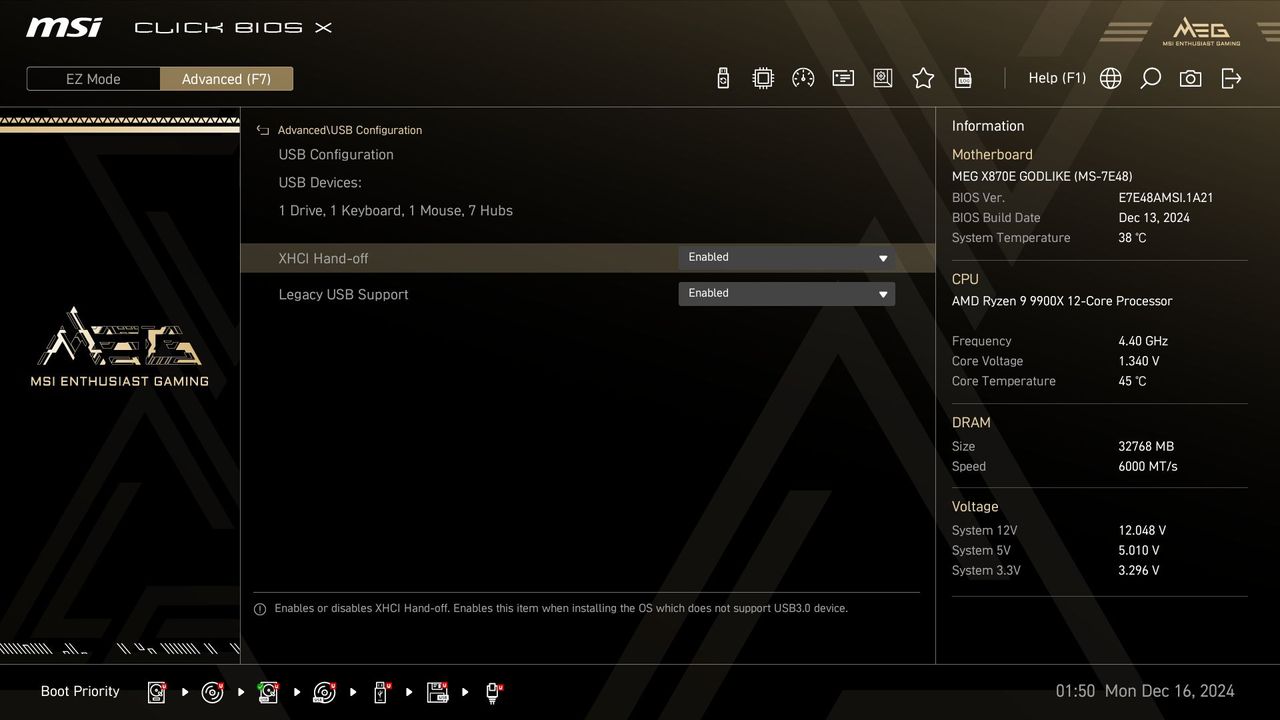

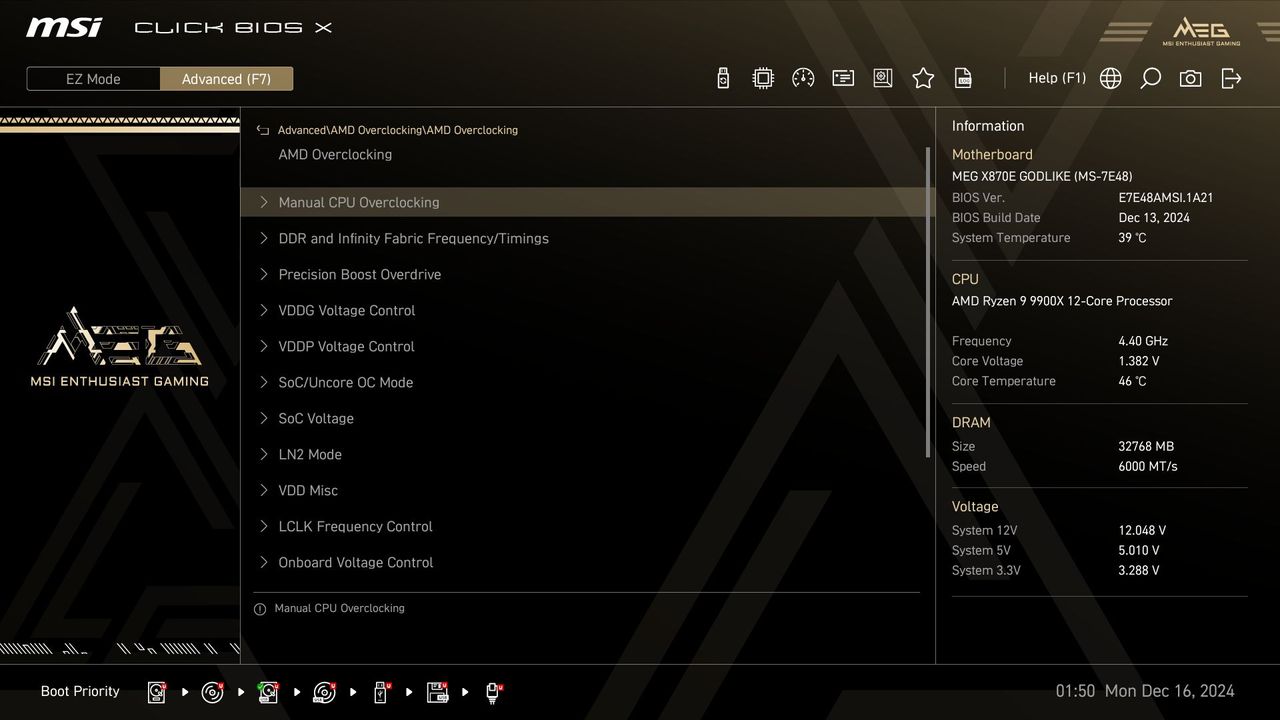

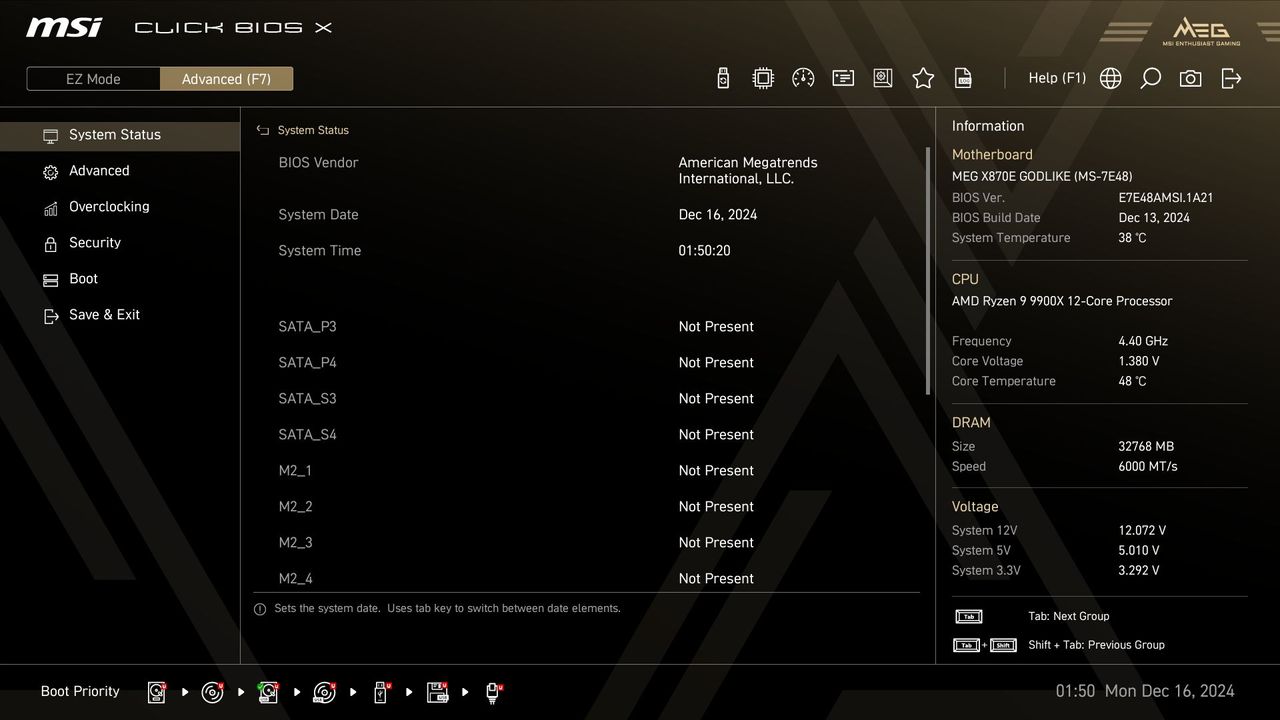

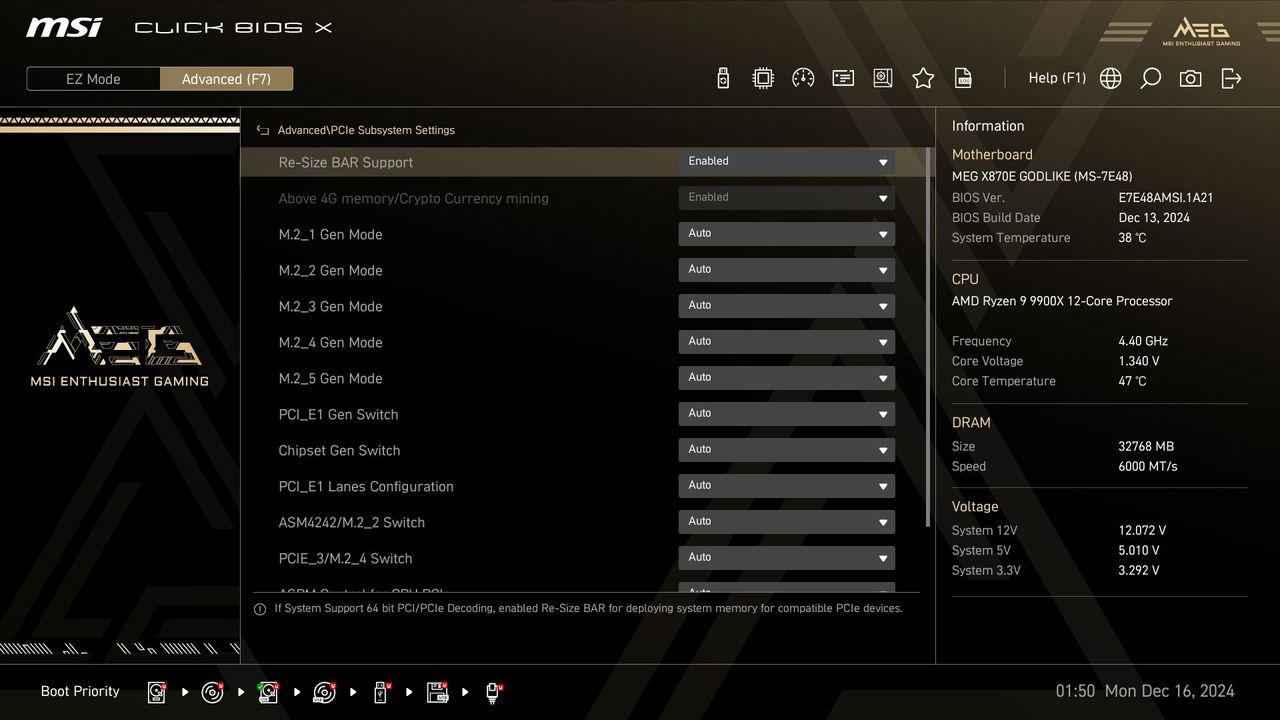

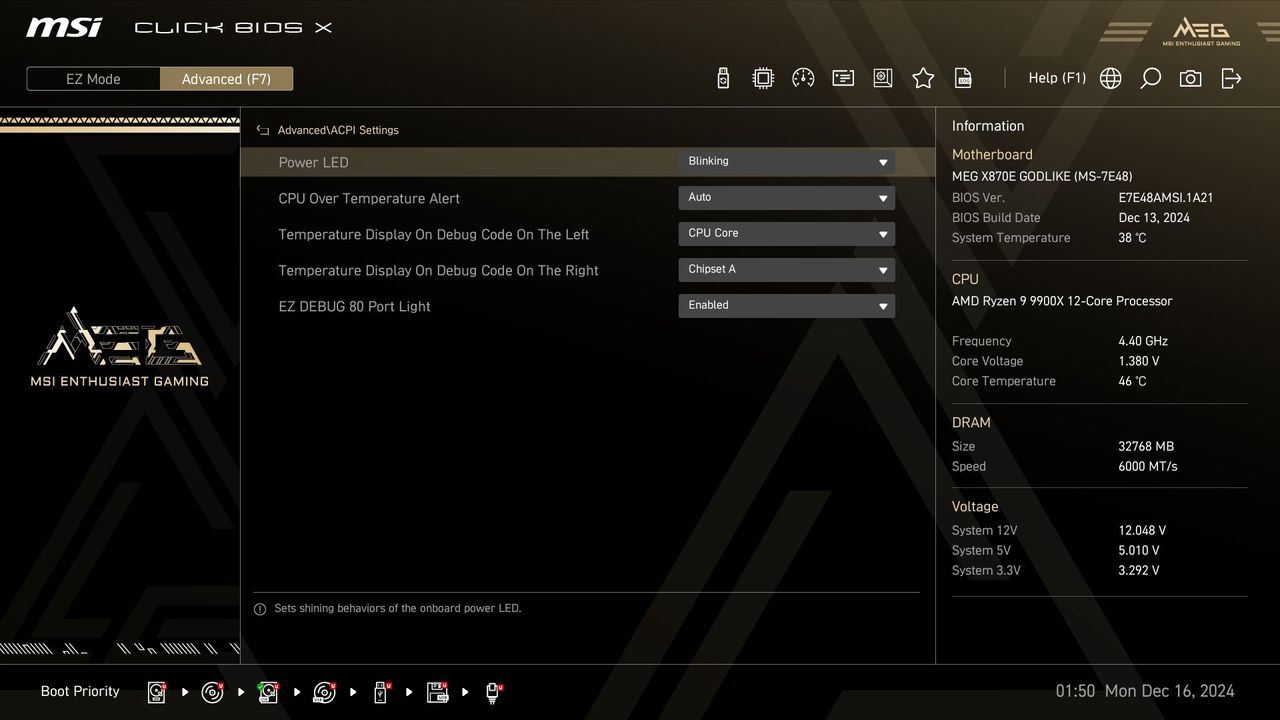

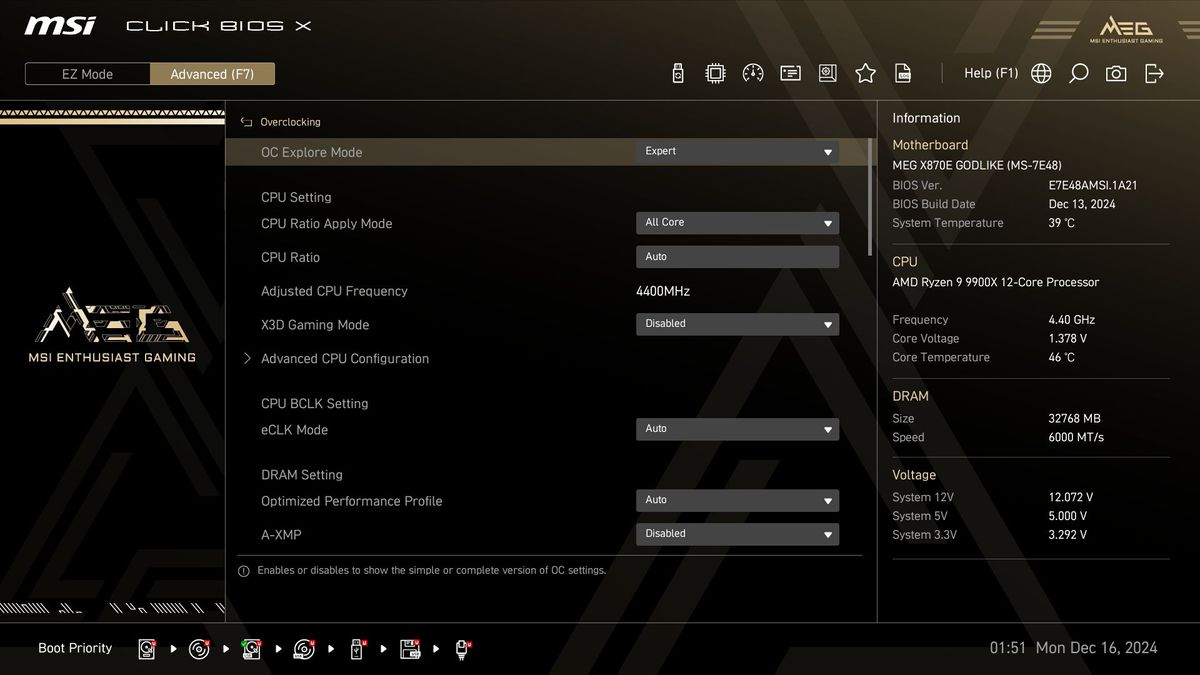

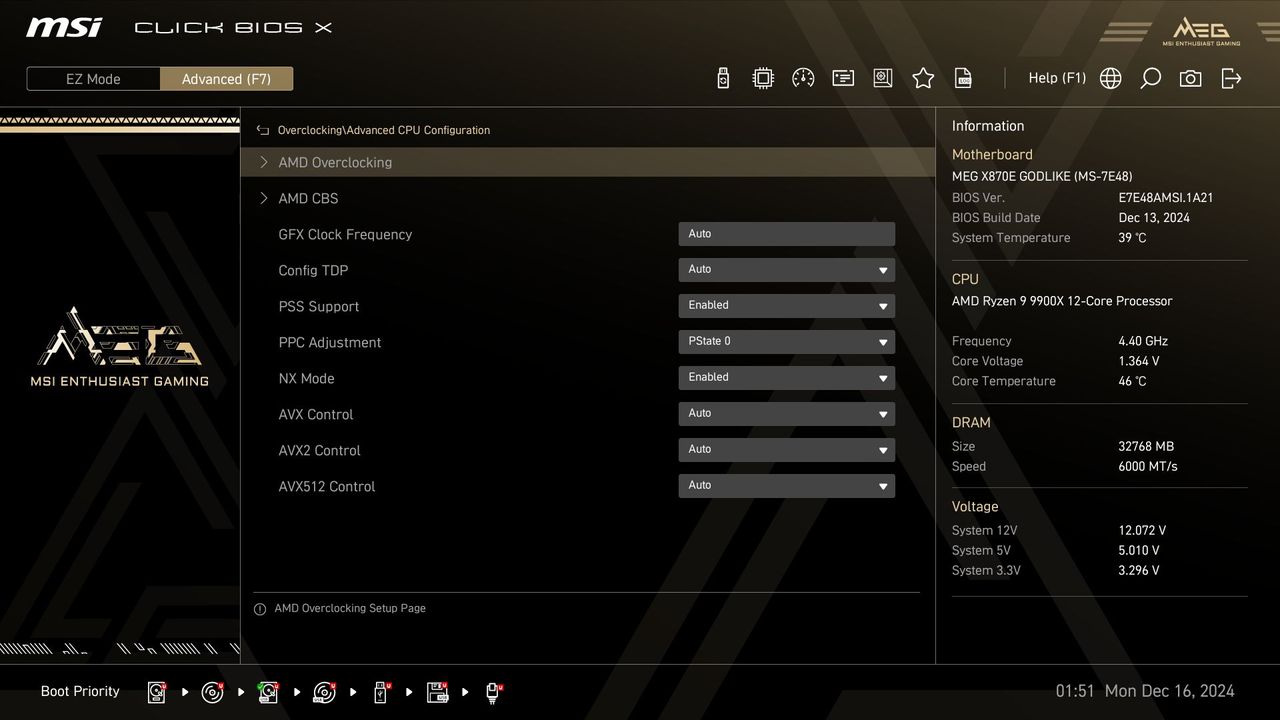

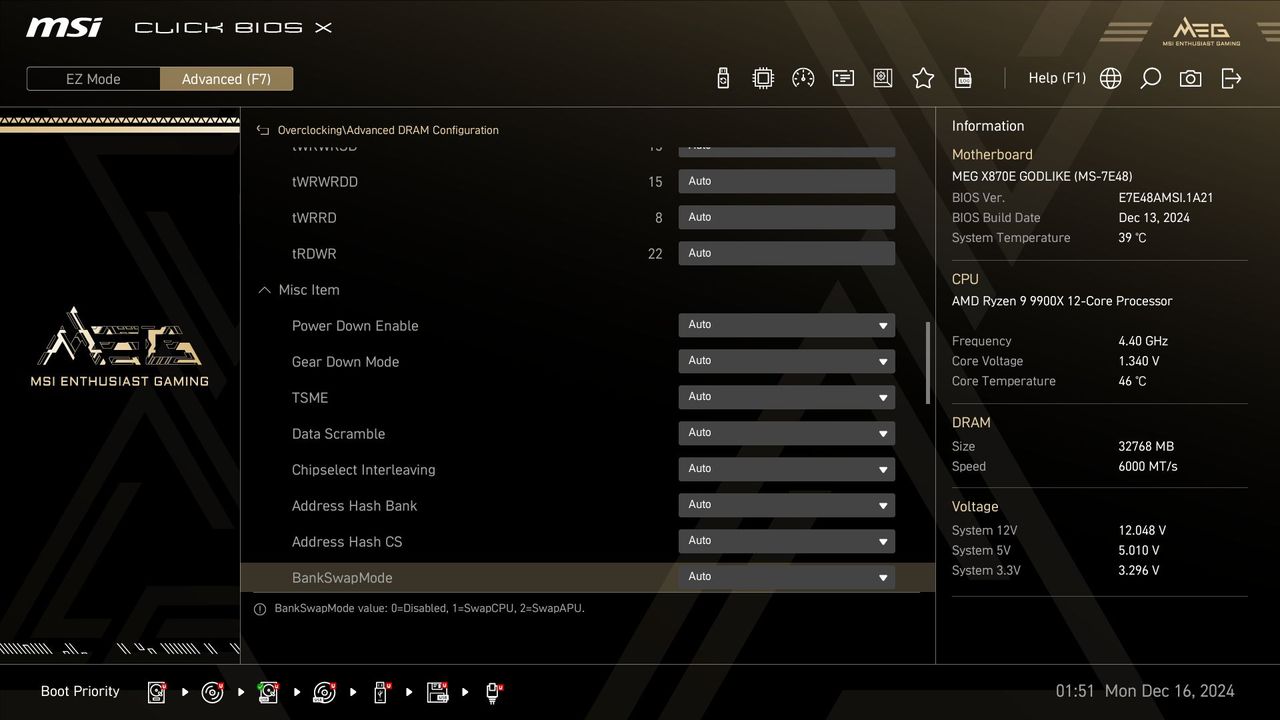

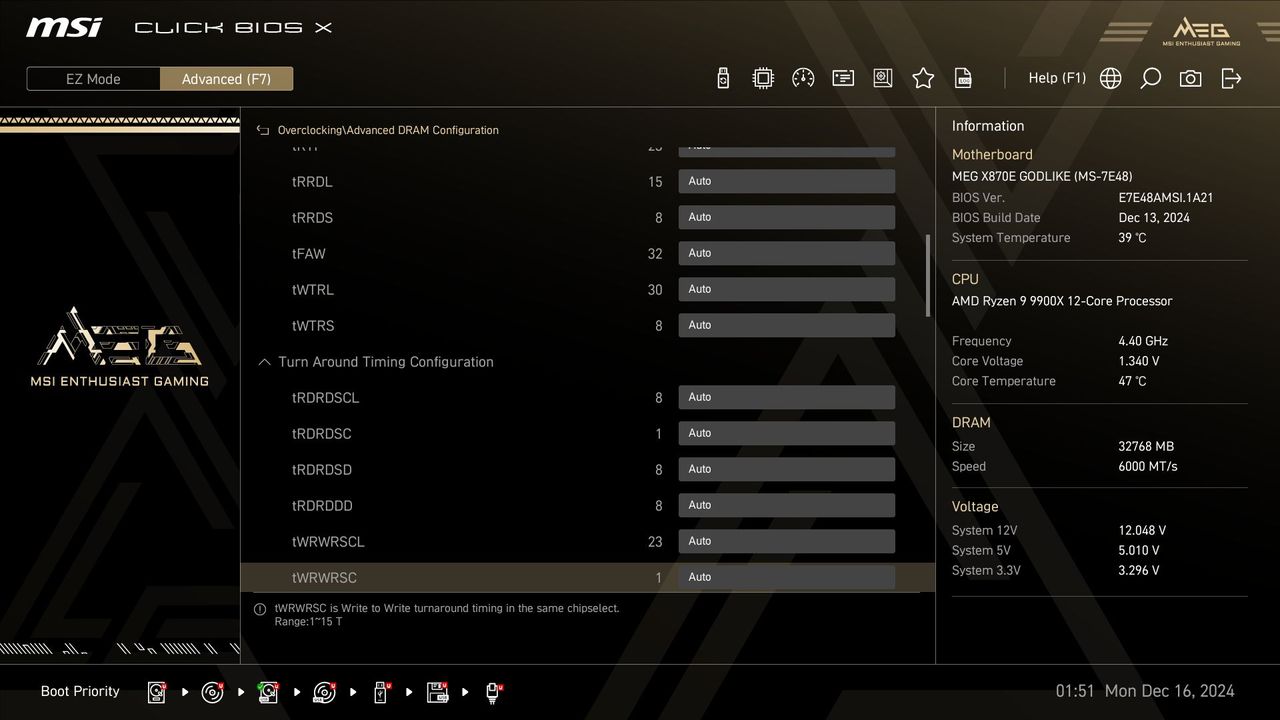

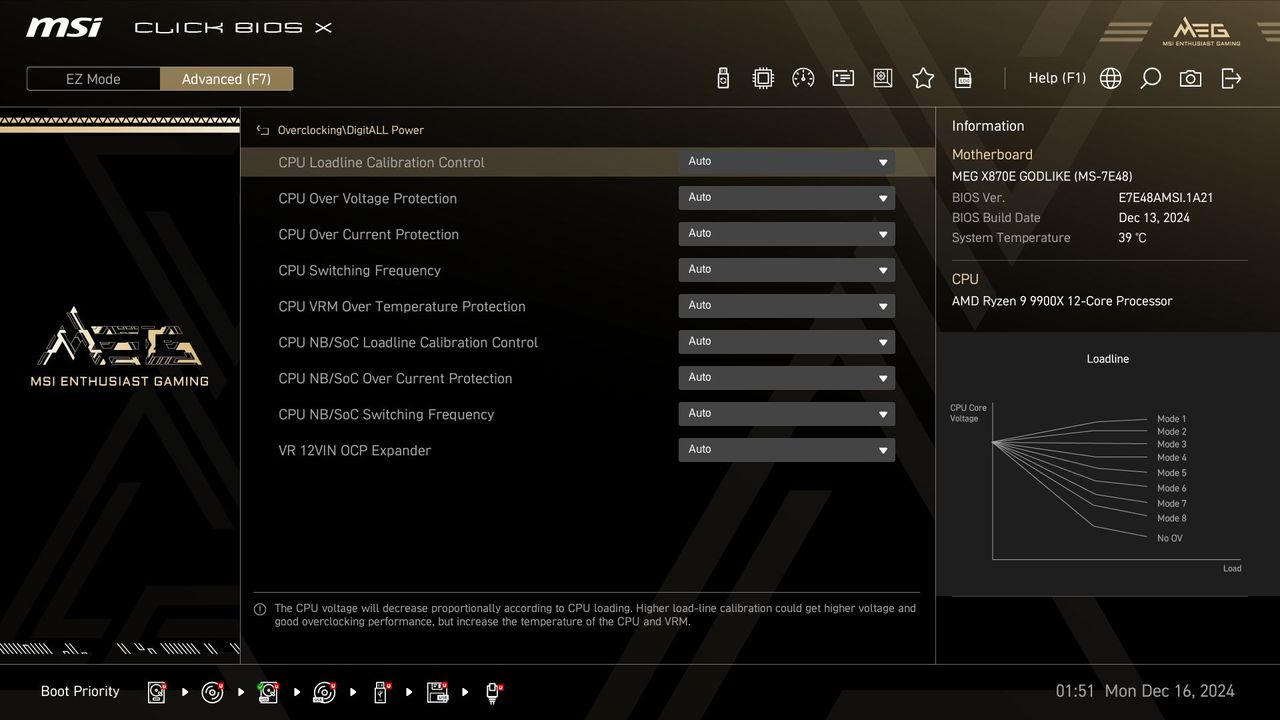

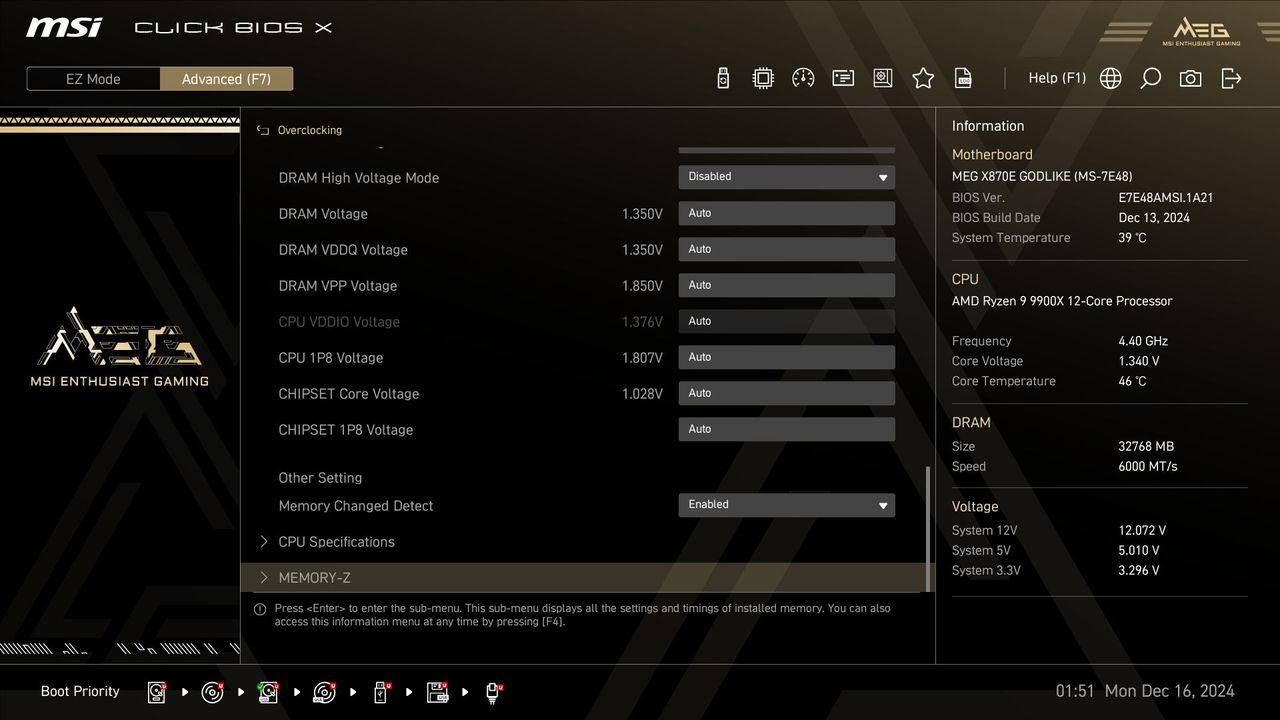

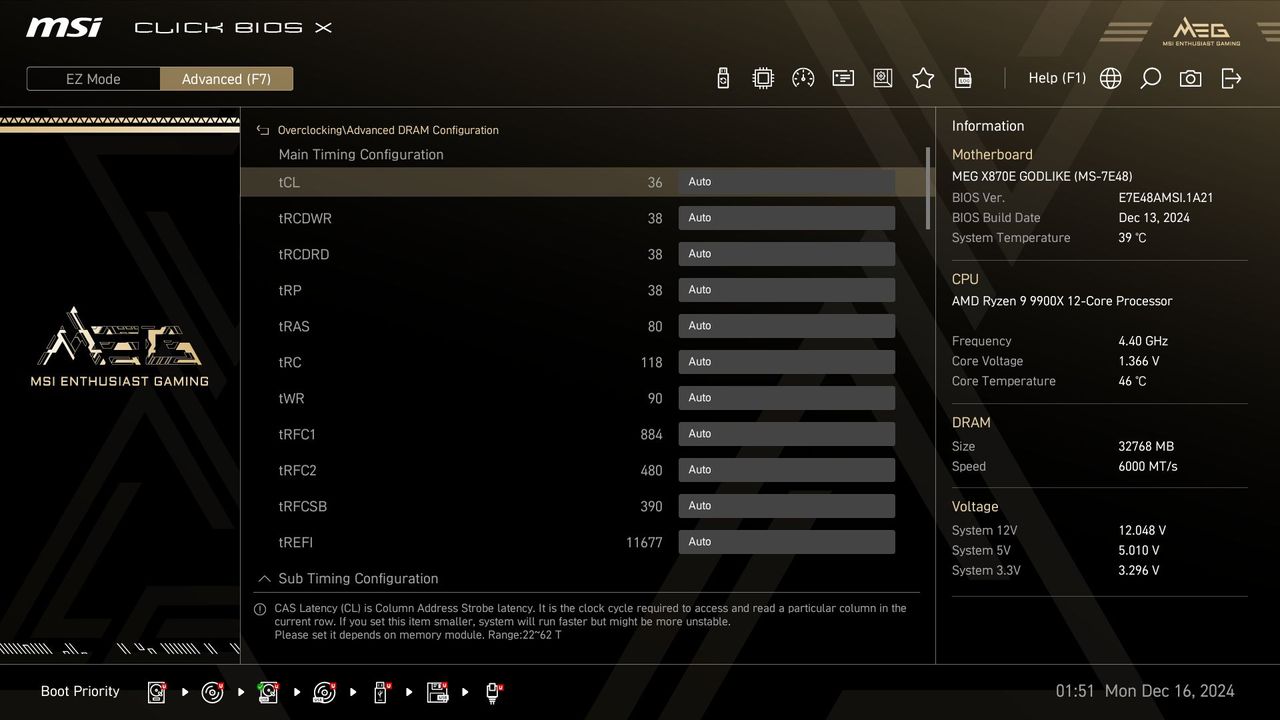

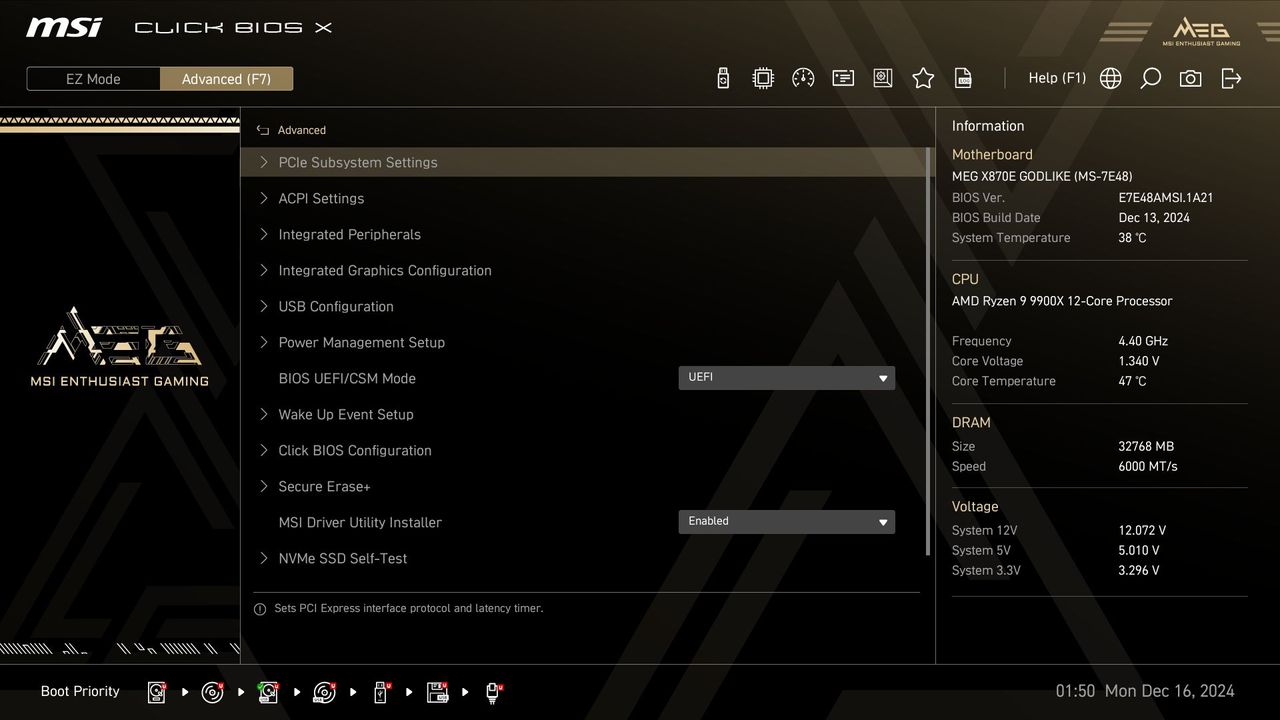

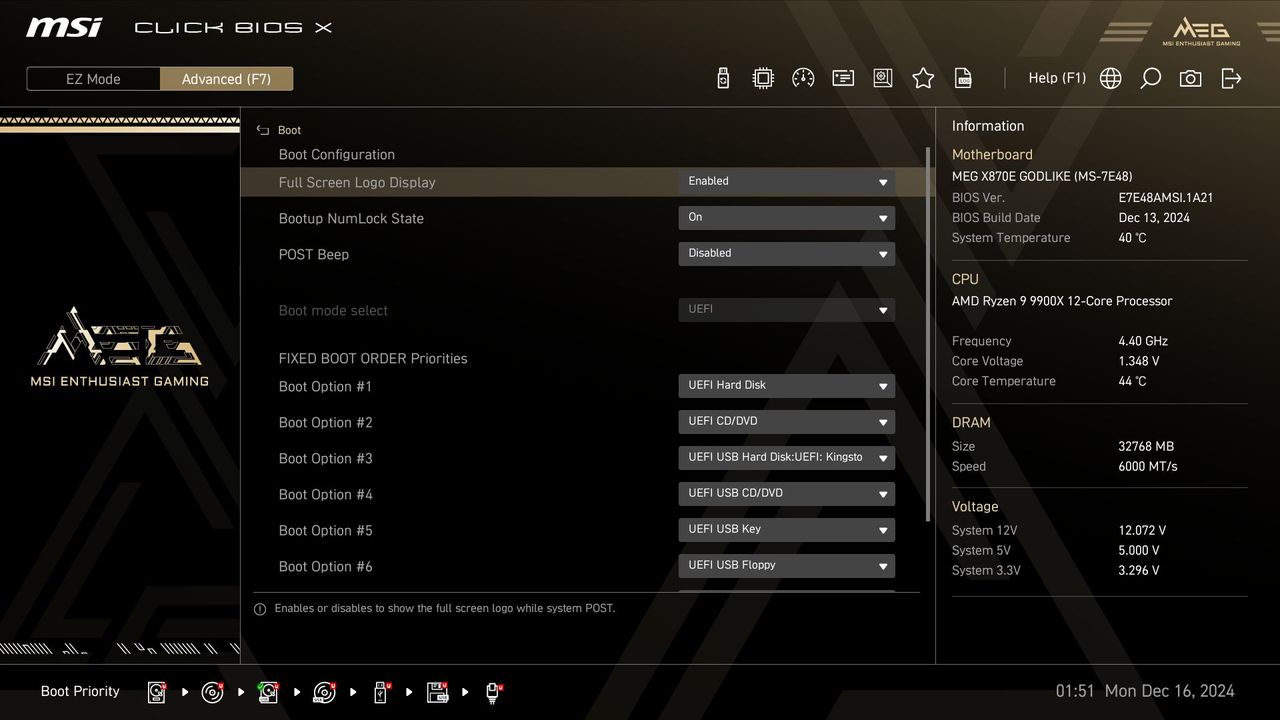

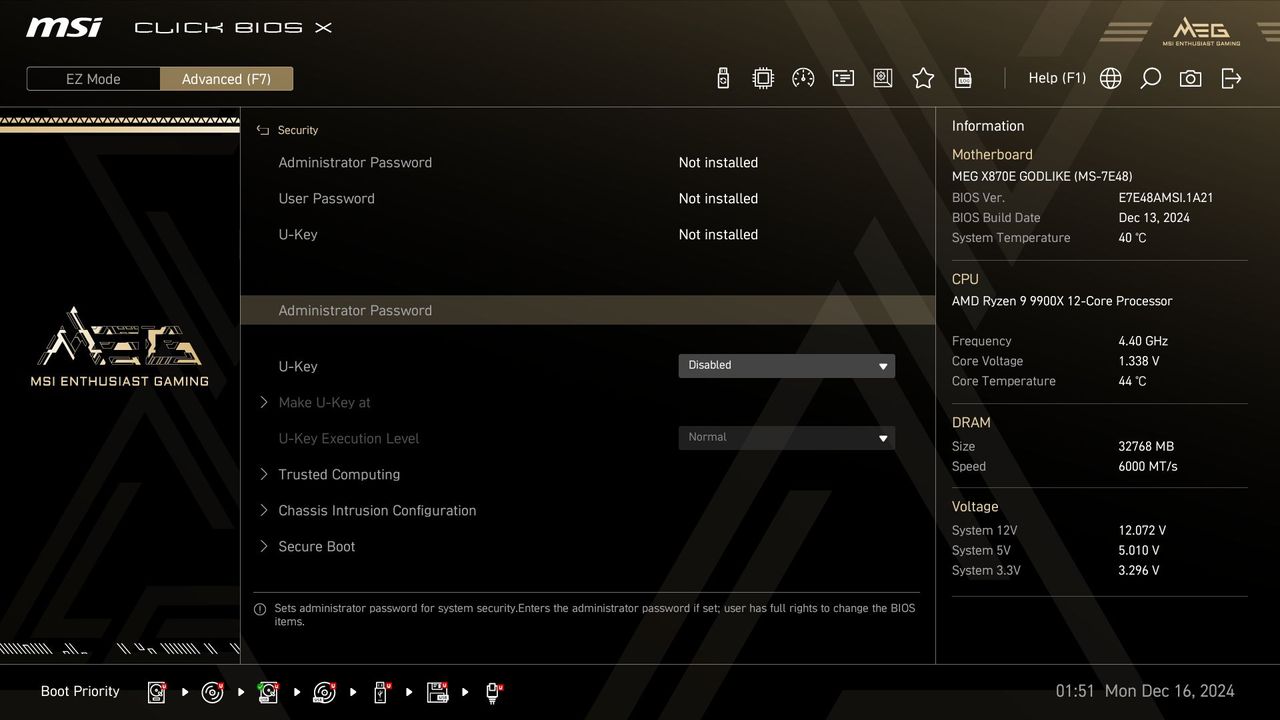

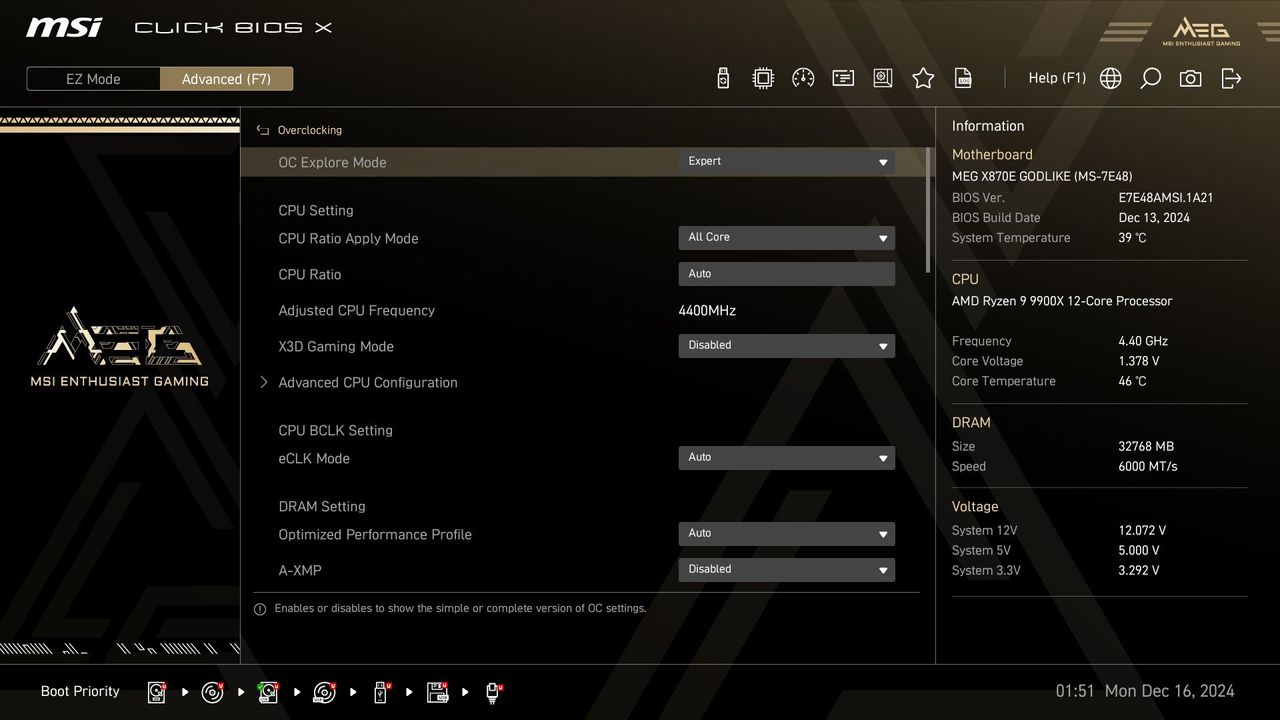

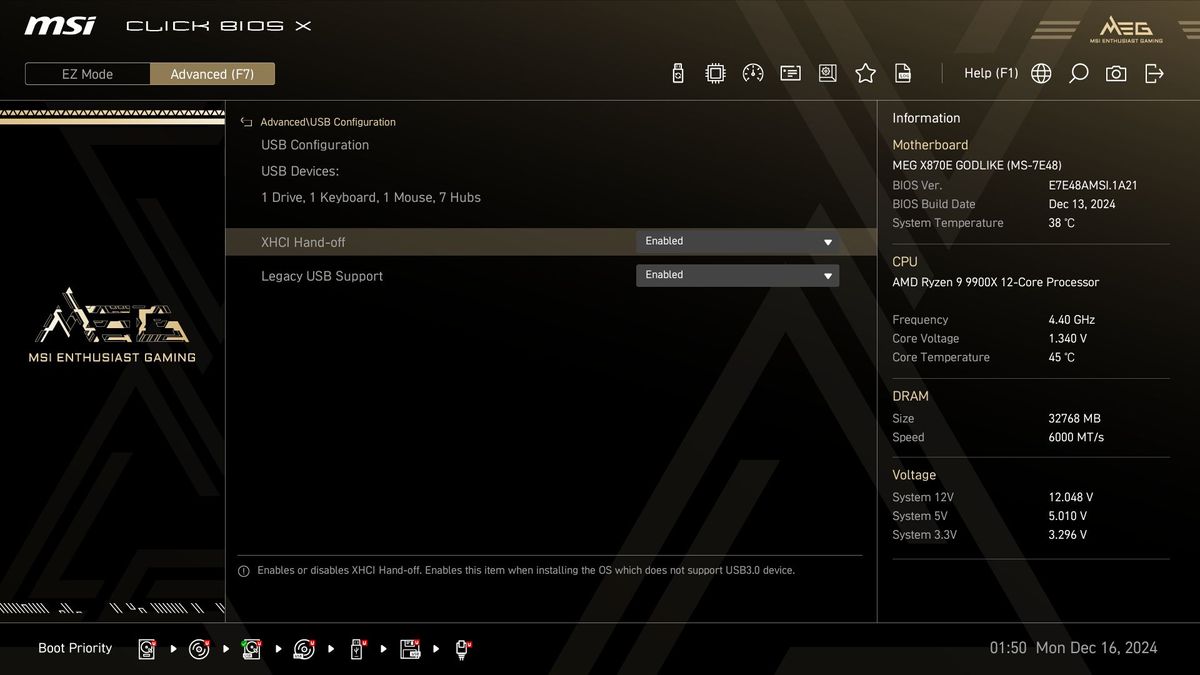

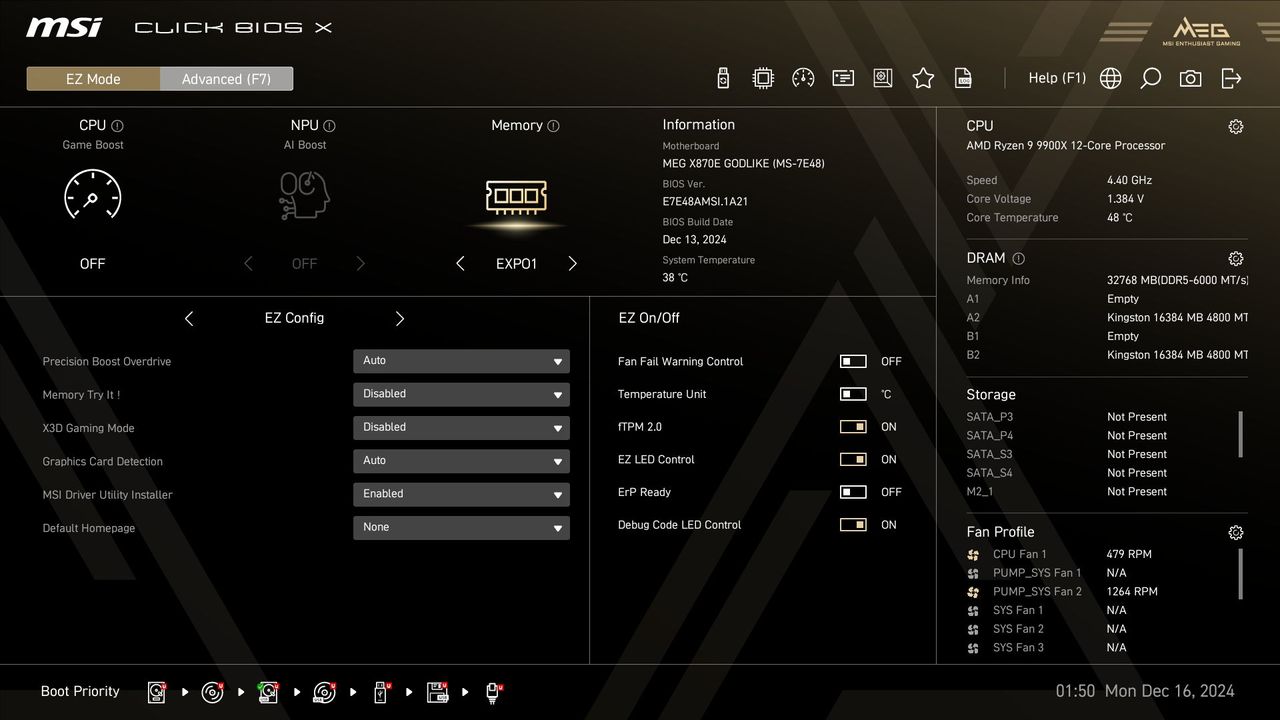

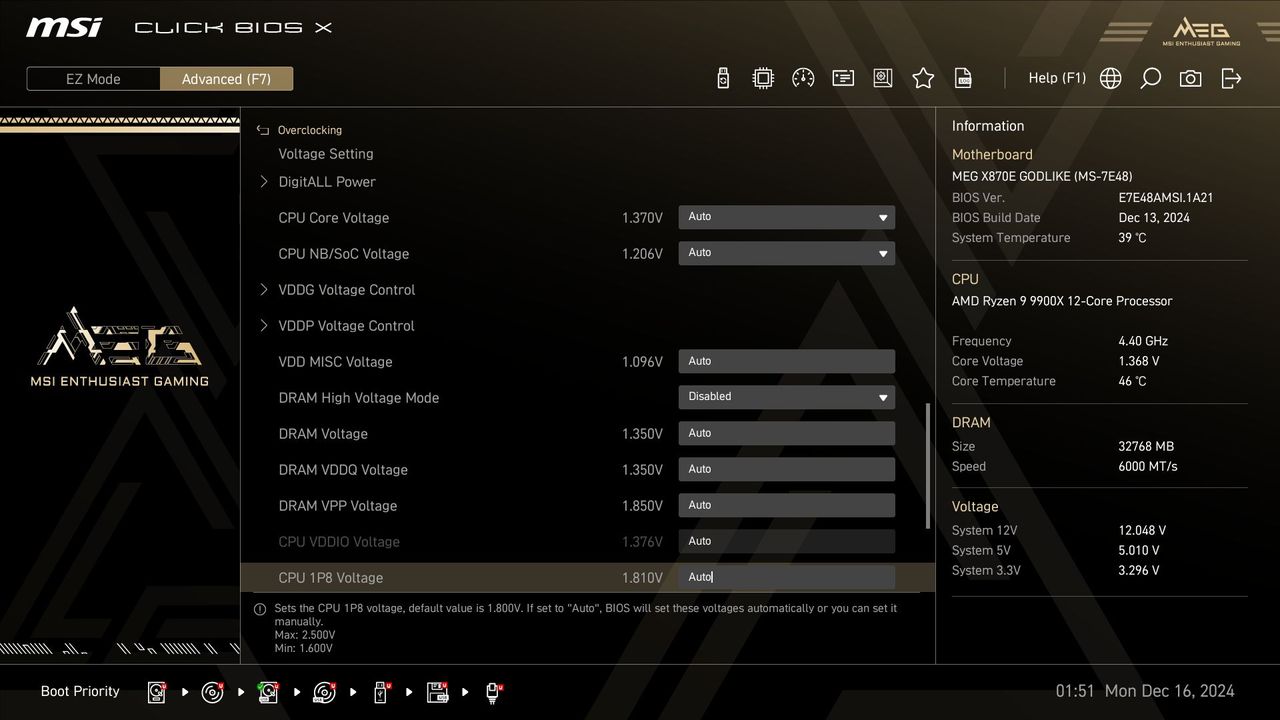

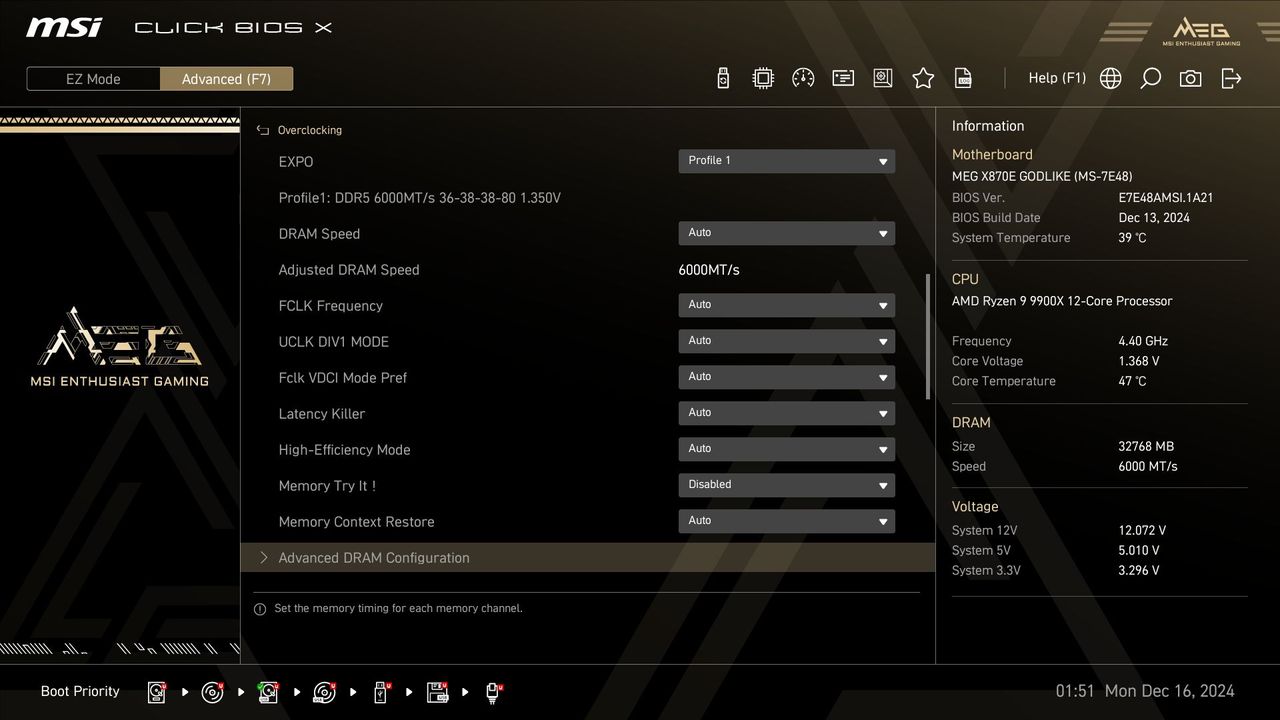

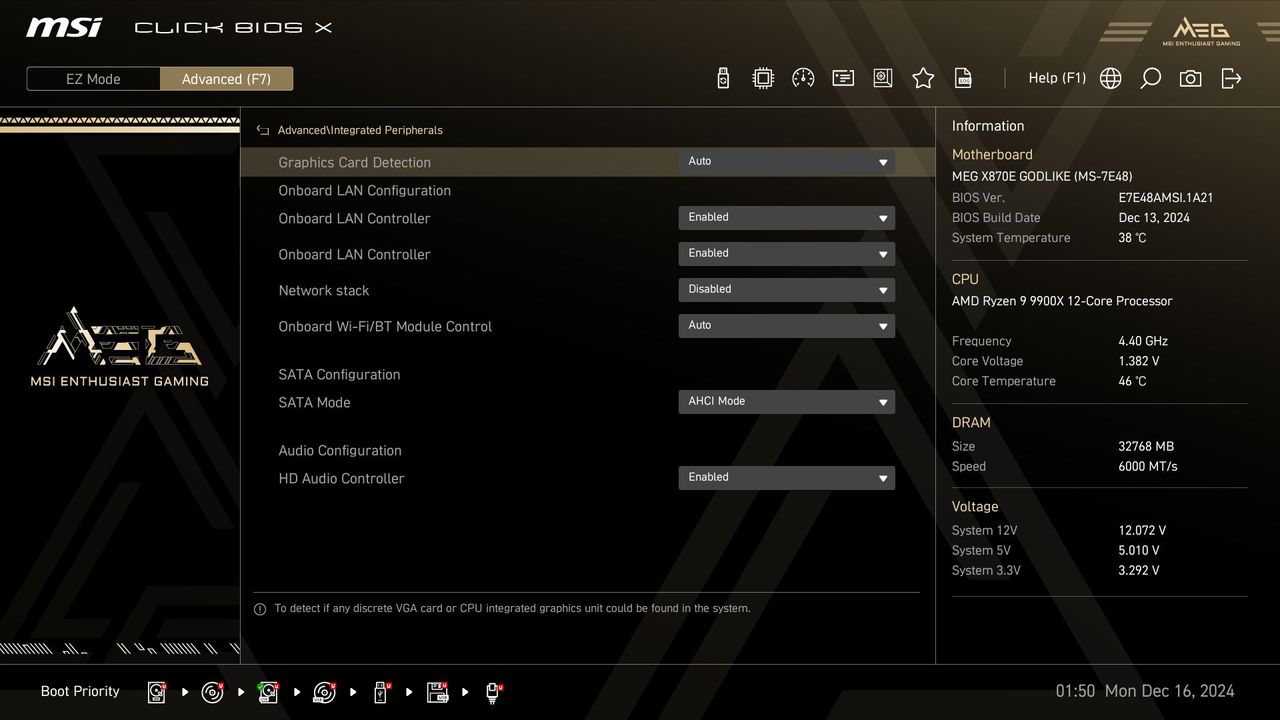

With X870, MSI has updated its BIOS, renaming it “Click X,” and improved the aesthetic and functionality in the process. The company changed up the format with the headings on the left side, details in the middle, and system status information on the right side. Like most other board partners, it has an informational EZ Mode that allows for limited functionality, such as Game Boost, PBO, and more. Overall, I like the new layout, and maneuvering around is intuitive after a short time, though it does take some getting used to. The dark, fading gold background and white labeling are easy to read, and most of what you need is at your fingertips.

Image 1 of 39
MSI X870E Godlike
(Image credit: Tom's Hardware)

Software

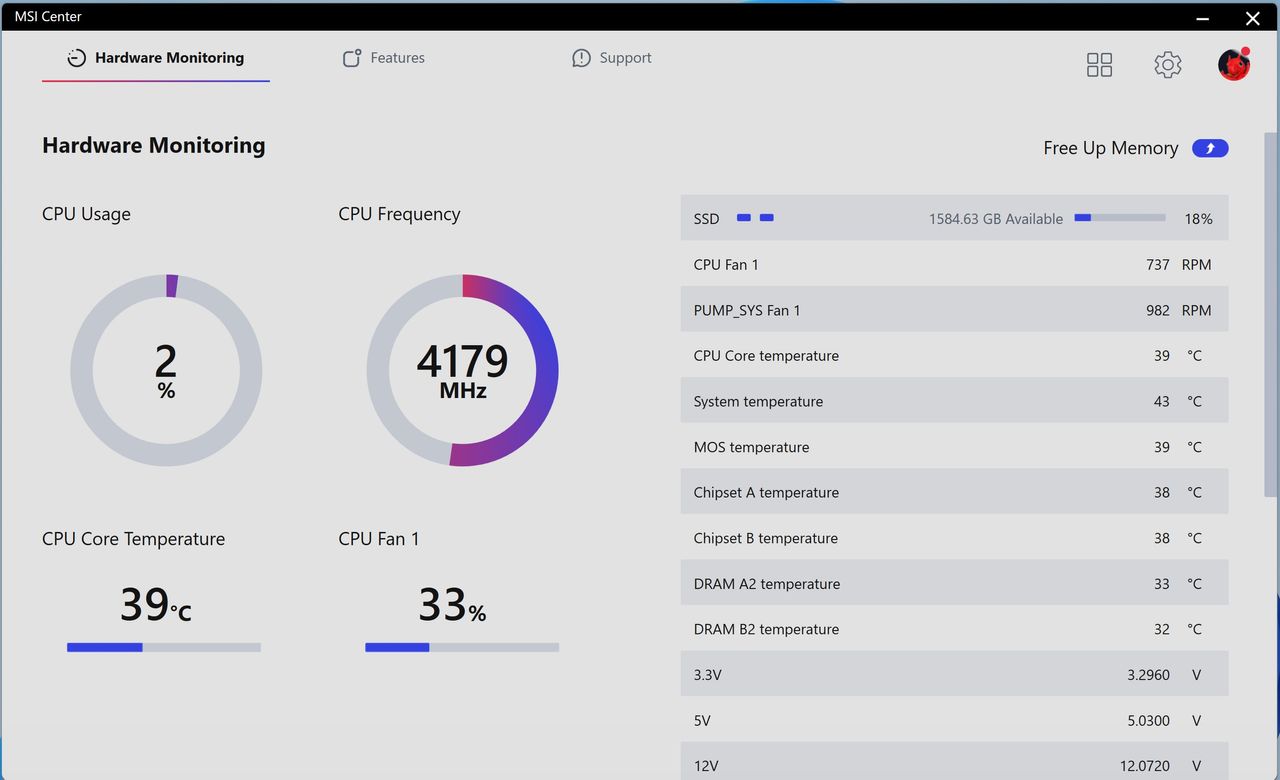

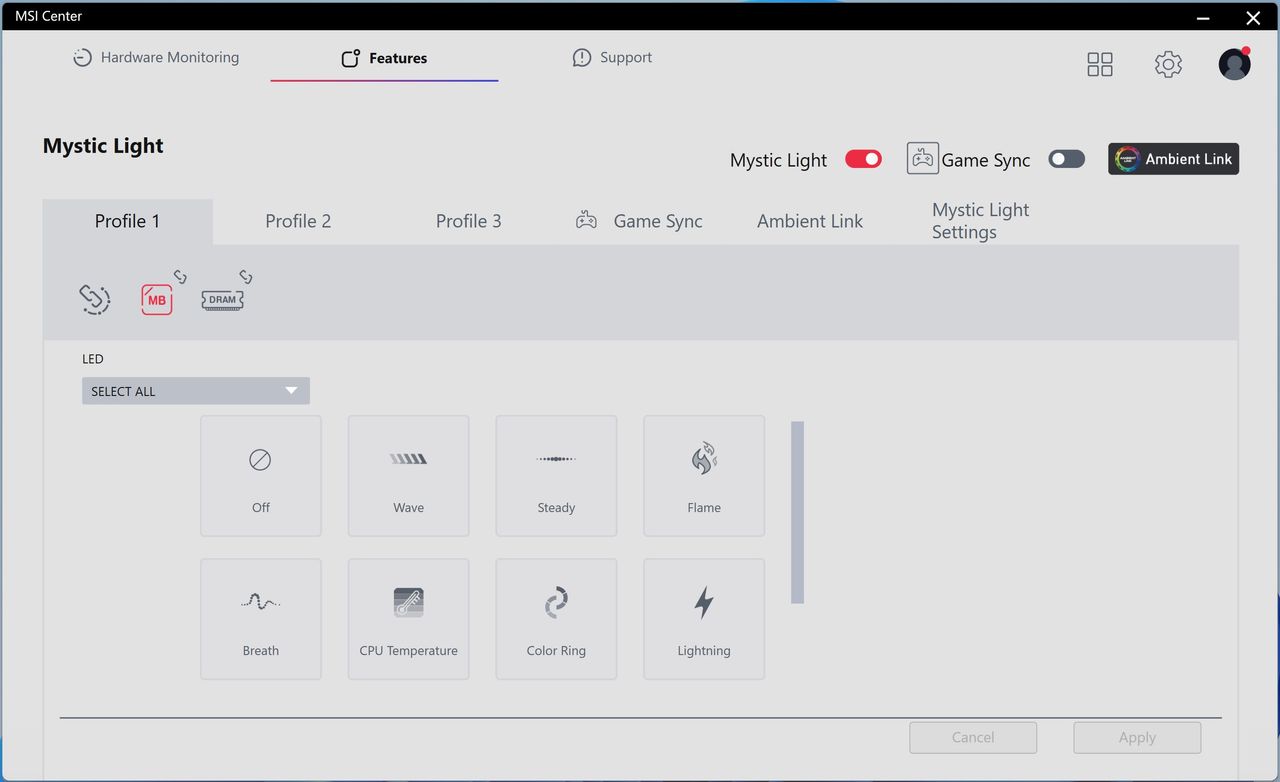

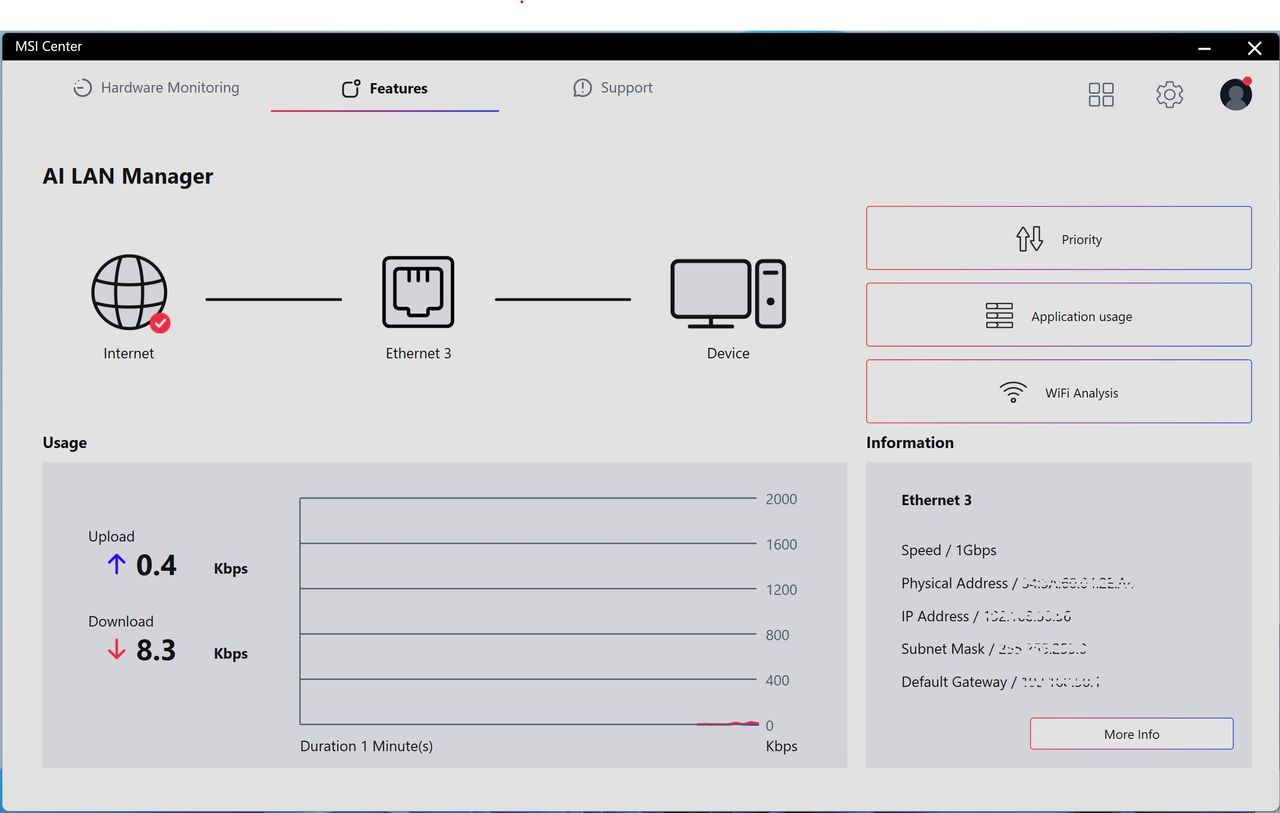

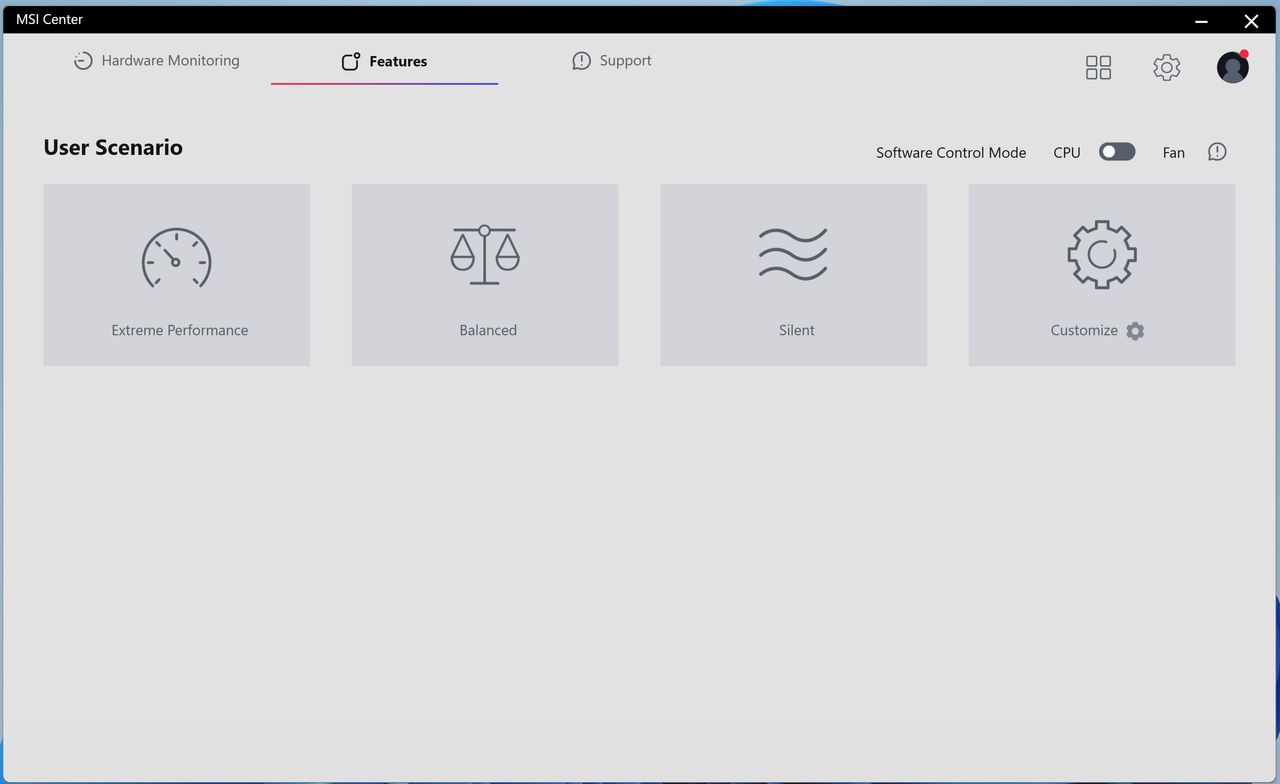

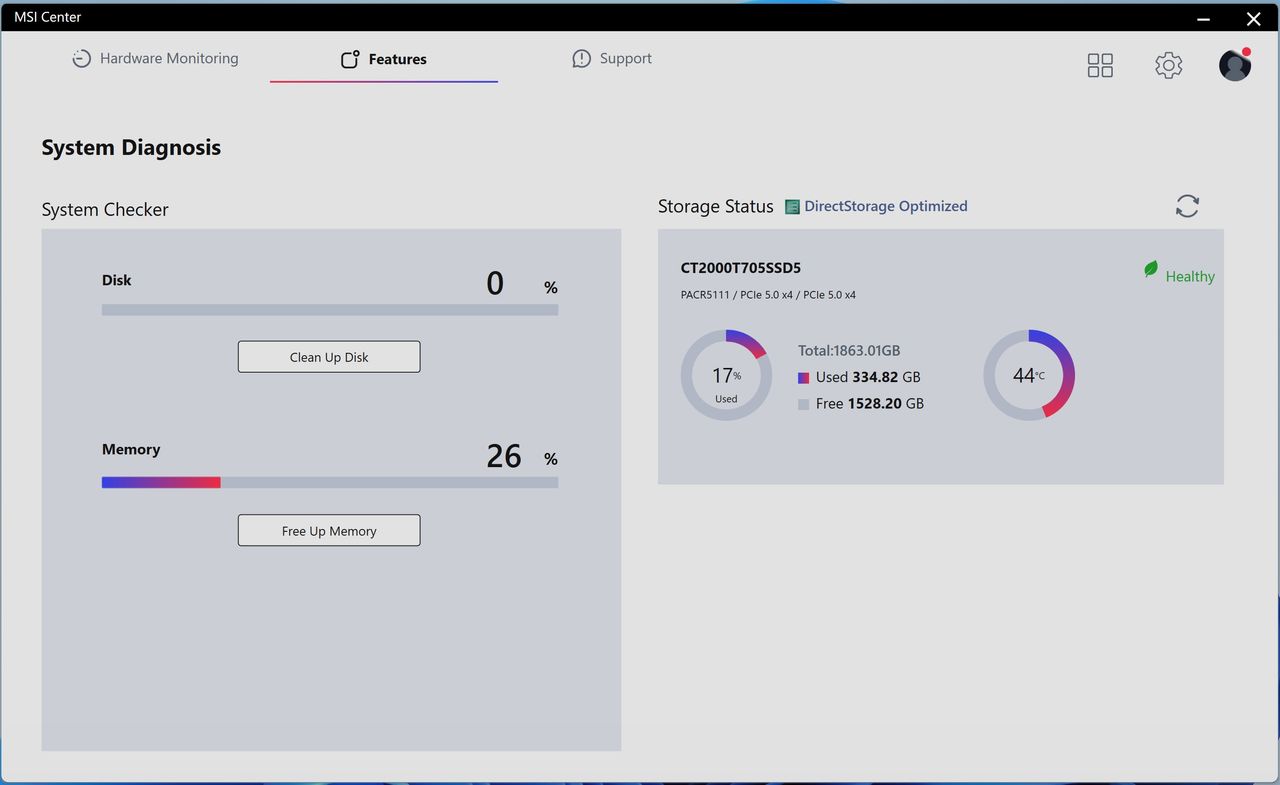

MSI Center is a single utility that offers a wide range of functionality. From hardware monitoring to RGB control with Mystic Light, the software has many applets and is a one-stop shop for downloading other utilities, including overclocking and fan control. Those looking to use the Gamebar feature, Super Charger, or any other utilities MSI offers will find them all in MSI Center.

Image 1 of 5
MSI X870E Godlike
(Image credit: Tom's Hardware)

Test System / Comparison Products

We’ve updated our test system to Windows 11 (23H2) 64-bit OS with all updates applied as of late September 2024 (this includes the Branch Prediction Optimizations for AMD). Hardware-wise, we’ve updated the RAM kits (matching our Intel test system), cooling, storage, and video card. Unless otherwise noted, we use the latest non-beta motherboard BIOS available to the public. Thanks goes out to Asus for providing the RTX 4080 TUF graphics card and Crucial for the 2TB T705 SSDs in our updated testbed. The hardware we used is as follows:

Test System Components

Swipe to scroll horizontally
CPUAMD Ryzen 9 9900X
CoolingArctic Liquid Freezer II 420
Storage Crucial 2TB T705 M.2 PCIe 5.0 NVMe SSD
RAM Kingston Fury Beast DDR5-6000 CL36 (KF560C36BBEAK2-32)
RAM Teamgroup T-Froce Delta DDR5-7200 CL34 (FF3D518G7200HC34ABK)
RAM Klevv Cras XR5 RGB DDR5-8000 (KD5AGUA80-80R380S)
GPUAsus TUF RTX 4080 16G
PSUEVGA Supernova 850W P6
SoftwareWindows 11 64-bit (23H2 - 22631.4169)
Display DriverNVIDIA Driver 561.09
SoundIntegrated HD audio
NetworkIntegrated Networking (GbE to 10 GbE)
Graphics DriverGeForce 561.09

MSI X870E Godlike

(Image credit: Tom's Hardware)

Benchmark Settings

Swipe to scroll horizontally
Synthetic Benchmarks and SettingsRow 0 - Cell 1
ProcyonVersion 2.8.1352 64
Row 2 - Cell 0 Office 365, Video Editing (Premiere Pro 24.6.1), Photo Editing (Photoshop 25.1.2, Lightroom Classic 13.5.1)
3DMarkVersion 2.29.8294.0 64
Row 4 - Cell 0 Speed Way and Steel Nomad (Default)
Cinebench R24Version 2024.1.0
Row 6 - Cell 0 Open GL Rendering Benchmark - Single and Multi-threaded
BlenderVersion 4.2.0
Row 8 - Cell 0 Full benchmark (all three tests)
Application Tests and SettingsRow 9 - Cell 1
LAME MP3Version SSE2_2019
Row 11 - Cell 0 Mixed 271MB WAV to mp3: Command: -b 160 -- (160Kb/s)
HandBrake CLIVersion: 1.8.2
Row 13 - Cell 0 Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)
Corona 1.4Version 1.4
Row 15 - Cell 0 Custom benchmark
7-ZipVersion 24.08
Row 17 - Cell 0 Integrated benchmark (Command Line)
Game Tests and SettingsRow 18 - Cell 1
Cyberpunk 2077Ultra RT Preset - 1920 x 1080,  DLSS - Balanced.
F1 2024Ultra High Preset - 1920 x 1080, 16xAF/TAA, FPS Counter ON, Great Britain (Clear/Dry)

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: All Motherboard Content

Joe Shields
Joe Shields
Motherboard Reviewer

Joe Shields is a Freelance writer for Tom’s Hardware US. He reviews motherboards.
