Sharkoon Shoves Four SSDs in a 5.25-inch Drive Bay

By - Source: Sharkoon | B 15 comments

Sharkoon has announced a simple accessory that would make empty optical drive bays useful.

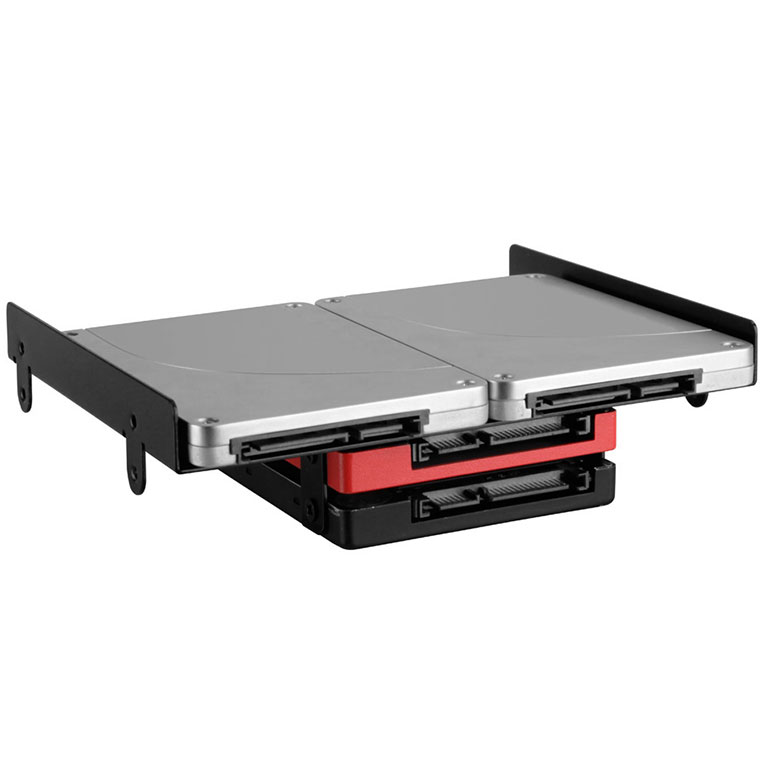

Sharkoon has introduced a rather simple but clever accessory that should put those unused optical drive bays to good use for some users. It's called the 5.25" Bay Extension that is simply a steel construct that allows users to place either two 2.5" drives and a single 3.5" drive or four 2.5" drives.

As it is intended that any 2.5" drive installed would be an SSD, those mounting holes do not have anti-vibration grommets; however, the 3.5" drives do. The bracket measures 116 x 146 x 37 mm and weighs roughly 150 grams.

Sharkoon's 5.25" Bay Extension will be available in black, red, blue and green, with no word on pricing or availability yet.



Contact Us for News Tips, Corrections and Feedback

Display 15 Comments.
This thread is closed for comments
  • 0 Hide
    edogawa , April 16, 2013 10:45 AM
    Can it fly too? :p
  • 0 Hide
    chadbry , April 16, 2013 10:57 AM
    Im a big fan, i always have 5.25 drive bays open. and currently am out of room for hard drives!
  • 3 Hide
    dalethepcman , April 16, 2013 11:04 AM
    Wouldn't it have made more sense to mount the 2.5" drives two deep and two wide on the bottom, and use peg's in the middle to hold the drives in place?

    Seems like a stupid design to me...
  • 0 Hide
    ubercake , April 16, 2013 11:06 AM
    Good idea eliminating the need for separate drive bays in a case. If I were a case designer, I'd be working with these guys on integrating these brackets somehow into ITX and mATX cases.

    I would also look at removing standard drive bays in mid and full towers while using these in the 5.25" drive bays.

    Great front-to-back airflow anyone?!
  • -1 Hide
    twelve25 , April 16, 2013 11:28 AM
    Quote:
    Wouldn't it have made more sense to mount the 2.5" drives two deep and two wide on the bottom, and use peg's in the middle to hold the drives in place?

    Seems like a stupid design to me...


    I'm thinking two drives side by side facing down and two side by side facing up, mounted with the bottom screw holes of the drive.

    Although this does also allow a 3.5" so maybe it's more intelligent than it appears at first glance.
  • 1 Hide
    ddpruitt , April 16, 2013 11:55 AM
    This is great except that I've seen a number of other devices like this that are hot swappable and fit up to 6 2.5" drives. I'm considering using one of these to setup a compact raid array.
  • 0 Hide
    Rogier van der Velde , April 16, 2013 11:58 AM
    This can actualy be done in a better way, SuperMicro offers this for a long time; search their website for: Mobile Rack M14T... it's hot swappable as well, but arguably not looking that nice
  • 0 Hide
    dalethepcman , April 16, 2013 11:58 AM
    Quote:
    I'm thinking two drives side by side facing down and two side by side facing up, mounted with the bottom screw holes of the drive.

    Although this does also allow a 3.5" so maybe it's more intelligent than it appears at first glance.


    Yes but the 3.5" drive is on the top, not the bottom, Additionally if you were using a side by side two deep approach, you could use either 6x 2.5" drives or 4x 2.5" drive + 1 3.5" drive.

    Looking at the pictures, the bottom mounted drives are very inefficient at using space.

  • 0 Hide
    g-unit1111 , April 16, 2013 12:01 PM
    Quote:
    Wouldn't it have made more sense to mount the 2.5" drives two deep and two wide on the bottom, and use peg's in the middle to hold the drives in place?

    Seems like a stupid design to me...


    Yeah you'd think at least one or more of the power cables would get blocked by the drive cage which means you'd have to find some way to keep said cables from constantly getting unplugged.
  • 0 Hide
    shadowfamicom , April 16, 2013 12:56 PM
    I use a 3.5inch to 2.5 inch bracket and put to drives in it by twisting the SSDs on there side. This design could benefit from making the SSD's vertical instead of horizontal. I wouldn't take just on 5.25 bay but I would give much better airflow to the drives. And could possibly fit about 6 SSD's
  • 0 Hide
    ubercake , April 16, 2013 1:01 PM
    Quote:
    Quote:
    Wouldn't it have made more sense to mount the 2.5" drives two deep and two wide on the bottom, and use peg's in the middle to hold the drives in place?

    Seems like a stupid design to me...


    Yeah you'd think at least one or more of the power cables would get blocked by the drive cage which means you'd have to find some way to keep said cables from constantly getting unplugged.

    I thought the same thing initially, but if you look at the exploded view of the top image, it appears the lower set of drives is set back a bit within the bracket. This would solve the problem of anything being blocked.
  • 0 Hide
    wysir , April 16, 2013 2:36 PM
    I have better designs for a 5.25" hard drive conversions than that in my head. This is all they could manage?
  • 1 Hide
    dalethepcman , April 16, 2013 5:19 PM
    Quote:
    I thought the same thing initially, but if you look at the exploded view of the top image, it appears the lower set of drives is set back a bit within the bracket. This would solve the problem of anything being blocked.


    The two bottom SSD drives need to be staggered in depth(with the top one's connector panel protruding father than the bottom one) or the cables, which are mostly right angle connectors (for data and power) would not fit into both drives at the same time.
  • 0 Hide
    ubercake , April 17, 2013 2:44 AM
    Quote:
    Quote:
    I thought the same thing initially, but if you look at the exploded view of the top image, it appears the lower set of drives is set back a bit within the bracket. This would solve the problem of anything being blocked.


    The two bottom SSD drives need to be staggered in depth(with the top one's connector panel protruding father than the bottom one) or the cables, which are mostly right angle connectors (for data and power) would not fit into both drives at the same time.


    True. While you can easily find SATA data connectors with 2 straight ends, the power connectors would be a problem.

    They should have just set the bottom back similar to the top setup where there are four SSDs attached.
  • 0 Hide
    coloradoleo76 , April 18, 2013 9:52 AM
    Agreed that this is a good use of an optical bay. I had thought if someone could build in a RAID controller with a single SATA interface to the motherboard, it would be a good way to saturate a SATA III (or the next iteration) port with mechanical drives.
