Rambus Outs HBM3 Details: 1.075 TBps of Bandwidth, 16 Channels, 16-Hi Stacks

HBM3
(Image credit: Rambus)

Future GPUs are about to get a whole lot faster. Details of HBM3 have trickled out slowly, with the first vague specs coming from SK hynix. But Rambus' announcement that the company has developed a new HBM3-ready combined PHY and memory controller brings much more information to light. That includes a potential for HBM3 to reach up to 8.4 Gbps-per-pin, 1.075 TB/s of throughput, and support for up to 16 channels of memory and 16-Hi memory stacks. That's more than twice the capacity and bandwidth offered with HBM2E, portending potential radical speedups for tomorrow's GPUs and SoCs.

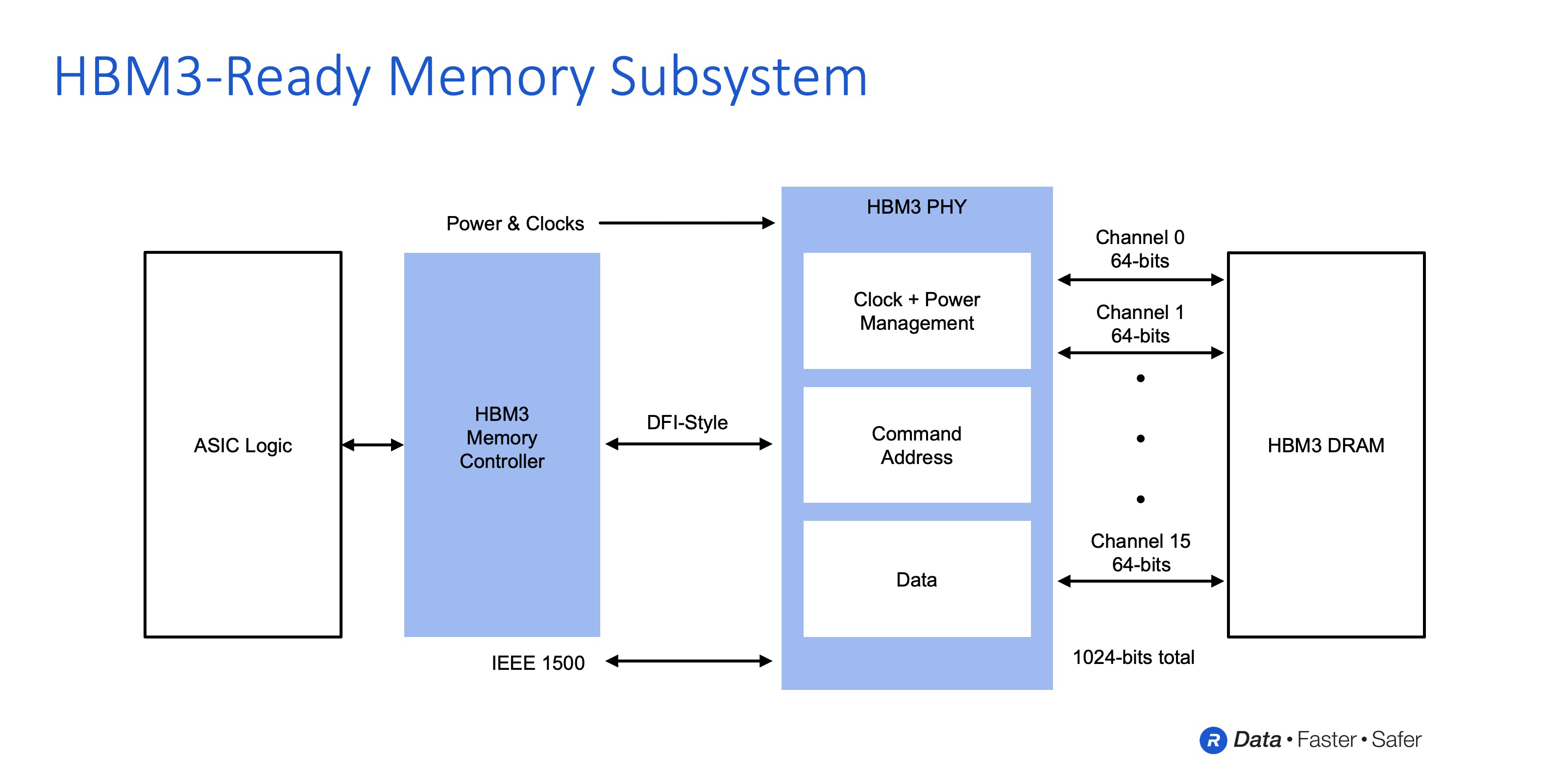

Like HBM2E, the new HBM3 standard utilizes a 1024-bit wide interface with 64 bits per channel. However, HBM3 supports 16 channels. That's twice the number of channels with HBM2, resulting in the lion's share of the performance improvements, including the more than doubled throughput. Additionally, the architecture also supports a pseudo channel for each channel (up to 32 pseudo channels), allowing for fine-tuning traffic based on the size of memory accesses, which is particularly helpful for AI workloads.

HBM3 based on Rambus Peak PerformanceHBM3HBM2 / HBM2E HBM
Max Pin Transfer Rate (I/O Speed)8.43.2 Gbps / 3.65 Gbps1 Gbps
Maximum Die Per Stack4 (4-Hi)8 (8-Hi) / 12 (12-Hi)16 (16-Hi)
Max Package Capacity64 GB24 GB4 GB
Max Bandwith1075 GBps410 / 460 GBps128 GBps

The increased number of memory channels supports more memory die, thus supporting up to 16-Hi stacks (supports up to 32 Gb per channel) that deliver up to 32GB of total capacity, with 64GB of capacity possible in the future.

Image 1 of 8

HBM3

(Image credit: Rambus)
Image 2 of 8

HBM3

(Image credit: Rambus)
Image 3 of 8

HBM3

(Image credit: Rambus)
Image 4 of 8

HBM3

(Image credit: Rambus)
Image 5 of 8

HBM3

(Image credit: Rambus)
Image 6 of 8

HBM3

(Image credit: Rambus)
Image 7 of 8

HBM3

(Image credit: Rambus)
Image 8 of 8

HBM3

(Image credit: Rambus)

Paired with SK hynix's PHY and memory controller, the company says it plans to hit 1.075 TB/s of throughput and 8.4 Gbps/pin with HBM3. That's more than a doubling of HBM2E's metrics, which weigh in at 460 GB/s and 3.2 Gbps/pin. Notably, these specifications match the heights of the PHY and memory controller's capabilities, but it will take some time for memory vendors to evolve their products to support such speeds. As a result, we should expect somewhat lower performance from the leading-edge products.

Rambus also provides its customers with reference 2.5D packaging designs (including both interposers and packages) to speed the integration of its PHY and memory controllers into an SoC. These feature what we should consider rather standard interposer designs connected to the memory package via microbumps.

The Rambus offering fully supports the JEDEC spec, so it doesn't support the (for now) exotic HBM-PIM (Processing in Memory) tech that has embedded in-die processing power. Those memories are still in the early stages of industry adoption from several memory manufacturers but are largely thought to be a shoo-in for JEDEC support in the future.

Many details of the actual JEDEC HBM3 spec are still fuzzy, as the standards body hasn't officially made the details public yet. However, the picture is becoming a bit clearer as the ecosystem continues to evolve and players like Rambus and SK hynix begin sharing the preliminary details.

Rambus tells us that the first SoCs that leverage its design will land either late next year or early 2023, so we expect the formal spec reveal in the coming months.
