RP2040 Launches Rocket Flight Computer

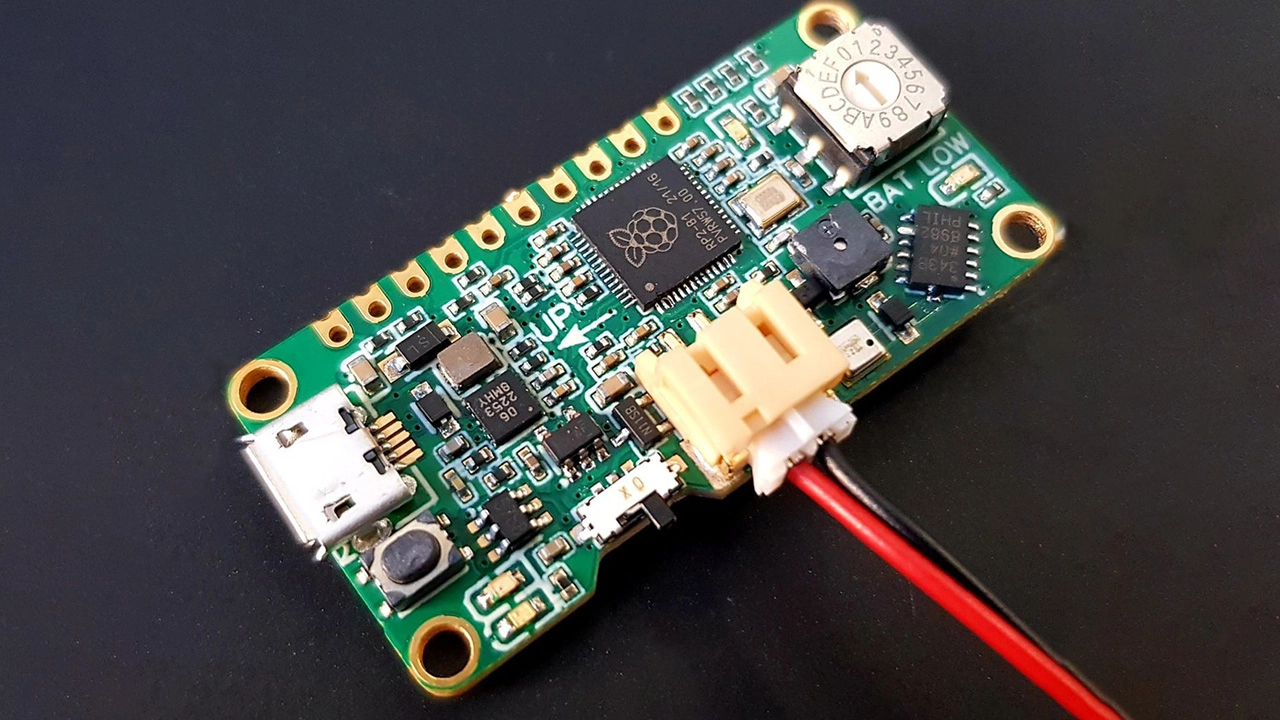

The Rockit board
(Image credit: Dan Invents)

Putting Raspberry Pi boards into space (opens in new tab) is nothing new, but the method of achieving orbit often differs. While the Astro Pi computers headed for the final frontier onboard a SpaceX Falcon 9 rocket, there are some decidedly lower-tech approaches including, as detailed on the Tindie blog (opens in new tab), this $45 RP2040 (opens in new tab) flight computer from Finnish designer Dan Invents (opens in new tab).

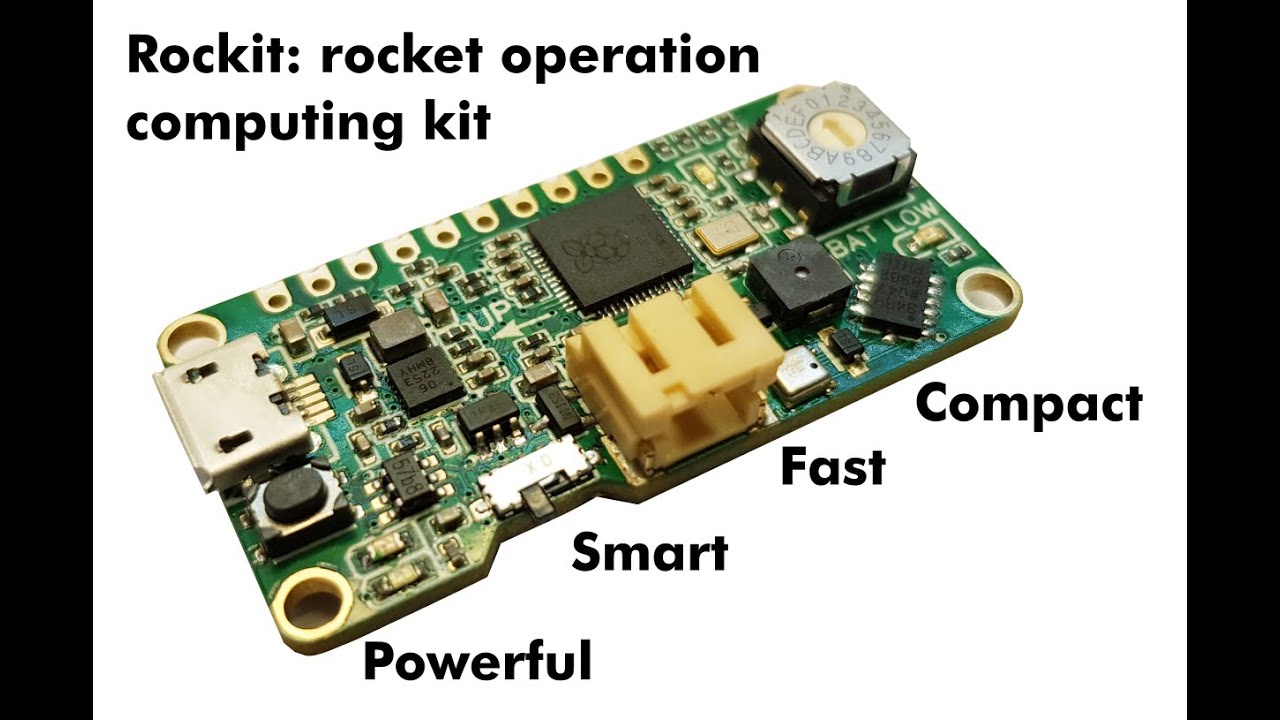

Combining the RP2040 controller with an altimeter, accelerometer, temperature sensor, and enough juice to power two servo motors (for parachute deployment on the way down), the Rockit (opens in new tab) (rocket operation computing kit) weighs just 0.18oz (5g) and measures 1.73 x 0.9 x 0.35 inches (44 x 22 x 9 mm). It comes with an open-source firmware pre-installed, and can be tinkered with and updated over micro USB. There's a 16-position rotary switch for adjusting parameters such as start and end positions for the servos, and also a buzzer, so you can more easily find your rocket after a successful landing.

Compared to the 2MHz Apollo guidance computer that deposited Neil Armstrong on the Moon, the RP2040 is a powerhouse, and should be more than capable of altitude-based parachute opening and logging flight data from the sensors to a micro SD card. The kit, which costs $44.99, comes with just the board and its pin headers - you need to supply your own battery, servos, cabling, micro SD card and space suit.

There's also a note on the page that the device hasn’t been tested in an actual flight, but we’re sure that’s nothing to worry about. The source code, documentation and design files are also available for perusal on GitHub (opens in new tab).
