Science Journal Says LK-99 Superconductor Dream is Over

LK-99

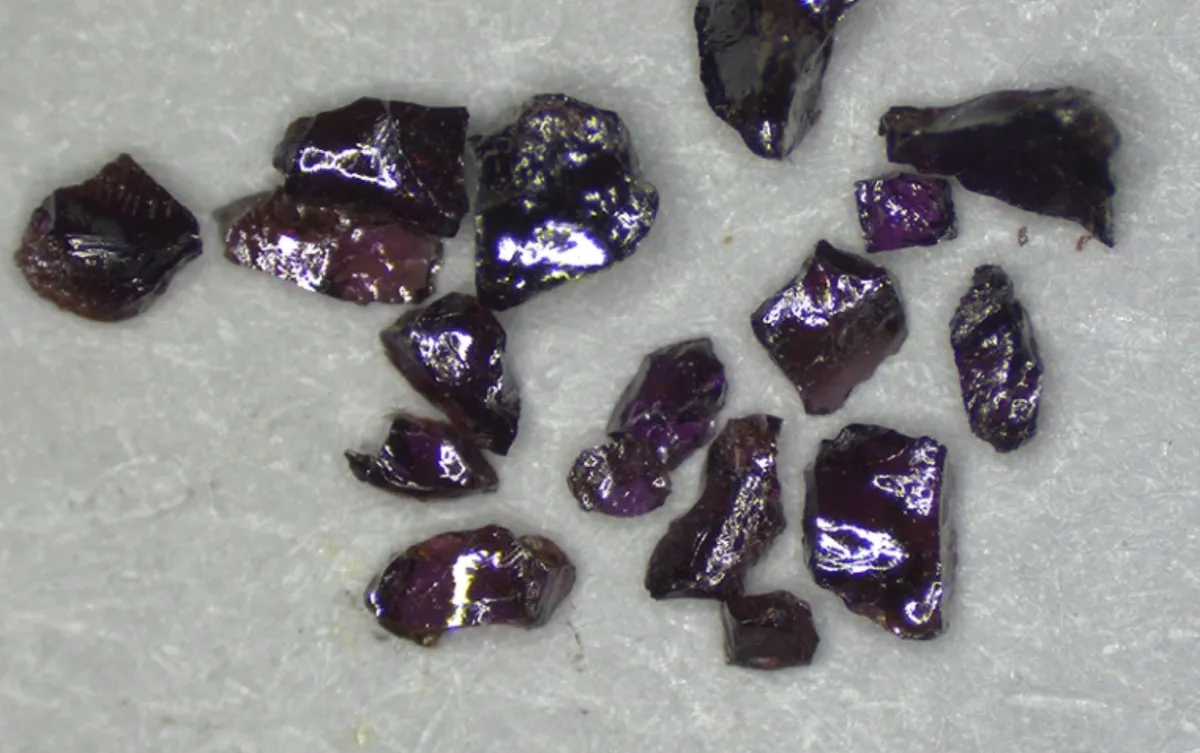

Pure LK-99 samples synthesised at the Max Planck Institute for Solid State Research in Stuttgart, Germany seem to be a definitive answer to LK-99's superconductivity claims. (Image credit: Pascal Puphal)

A new article published in the science journal Nature aims to be the last word for theories regarding LK-99 as a superconductor. Penned by science reporter Dan Garisto, the article is a post-mortem of sorts on the scientific research surrounding LK-99 and the replication efforts that are attempting to separate hype from fact. But Science does as Science does, and different people looking at the same information routinely reach differing (but not necessarily opposite) conclusions.

The article runs through accumulated evidence presented for and against LK-99 being (or not being) the room-temperature, ambient-pressure superconductor to usher humanity into an unrecognizable (and extremely energy-efficient) future.  The debate keeps circling around the same issues: the fact that condensed-matter researchers are dealing with quantum effects (of which there's still racing research and troves of knowledge to be processed into scientific reality) only throws an additional wrench at the already tool-laden, insufficiently-clear recipe posted in the original Korean paper.

The rabbit hole scientists have been following around LK-99 pertains to copper sulfide (Cu2S) impurities. The specificity of the temperature at which the Korean authors detected a tenfold drop in resistivity (from 0.02 ohm-centimeters to 0.002 ohm-cm) seems have been the definitive thread. Prashant Jain, a chemist at the University of Illinois Urbana–Champaign, said that that was the detail that most caught his eye. The thing is that Jain had seen that specific temperature before: it's the temperature at which copper sulfide (one of the impurities that results from the LK-99 synthesis process) undergoes a phase transition. below the temperature needed for that phase transition to occur, in a way that's almost identical to the same transition towards superconductivity the original authors attributed to LK-99.

Jianlin Luo, a physicist with the Chinese Academy of Sciences (CAS) and his team performed two experiments that aimed to bring clarity to the prevalence of copper sulfide. The second sample out of those experiments saw its resistivity dive near 112 degrees C (385 Kelvin), which was a match to the Korean team's observations.

But the documentation penned by the original paper's authors (led by Lee Suk-bae, the lead author) is only part of the problem: there's currently no way that scientists currently know of to properly guide the synthesis process in order to increase the number of lead atoms that end up being replaced by copper atoms (note, not copper sulfide) within LK-99 itself (in an extremely simplified manner, that's the reason the Korean authors attributed to the emergent room-temperature and ambient-pressure superconductivity in their sample). As unclear and disappointing that might be, that's one of the factors that has to be taken into account when looking into LK-99. It's the scientific equivalent to the salt we're used to sprinkle on leaks and unconfirmed reports in our hardware world.

As to the theoretical front, which used simulations to understand whether or not LK-99's structure was conducive to superconductive behavior, new research from a US-European group too performed precision X-ray imaging of their LK-99 samples. Their observations led them to conclude that despite those initial papers and their promising (if not definitive) outlook, LK-99's flat bands (through which electrons can zip through losslessly) weren't conducive to superconductivity after all.

More recently, a team with the Max Planck Institute for Solid State Research in Stuttgart, Germany reported they had synthesized pure, single crystals of LK-99. Using a technique termed "floating zone crystal growth", the researchers managed to grow LK-99 crystals that were absent of the copper sulfide impurities. The resulting pure LK-99 (with the formula Pb8.8Cu1.2P6O25) showcased behavior in-line with other studies and replication attempts: it behaved like an insulator, not a superconductor. These pure, purple samples too showcased ferromagnetism (expectedly from Fe impurities which weren't able to be fully eliminated) as well as diamagnetism. That led them to conclude that when separated from impurities, LK-99 isn't a superconductor; as they wrote in the paper, the data led them to conclude that LK-99 isn't a superconductor, period.

While the title of the DOI-infused Nature piece unapologetically reads "LK-99 isn’t a superconductor", the first sentence in the article's body presents leaves room for the possibility. "Researchers seem to have solved the puzzle of LK-99." (Emphasis ours.) Nature, apparently, isn't beyond punchy headlines, but in science, there's always more studying to be done. The full article is worth a read, if only to go over all of the evidence involved in the saga.

And perhaps that's for the better. Owing to the gaps in the original paper's data and the difficulty in replicating LK-99, there are still holdouts in the scientific community that don't think the LK-99 saga is over yet.

Francisco Pires
Freelance News Writer

Francisco Pires is a freelance news writer for Tom's Hardware with a soft side for quantum computing.

  • A Stoner
    The catch 22. Spending time researching a dead end theory costs research in possibly fruitful theories. But, if it is not really a dead end theory, then abandoning it too soon could end the potential for the breakthrough it could have provided.

    I am not sure how much time they should spend pursuing this. If they truly have created LK-99 in pure form and it does not in fact have superconductive properties, it might be the right time to move on.
    Reply
  • elforeign
    Given all the AI hype with these large models, why don't we just throw the book at the problem and let AI figure out for us what compounds might work?

    No idea on materials science or how to model the chemical composition of things re: superconductivity
    Reply
  • InvalidError
    LK-99 being a ceramic-like material greatly limits its usefulness for anything superconductors are typically needed for. Even if it got proven, its fickle synthesis would ruin its economic viability for most applications that could benefit from it.

    Why are nearly all superconducting applications using LHe-temperature superconductors when LN2-temperature superconductors exist? Because LHe-range superconductors are simple metallic elements or alloys that can easily be made into whatever shapes are necessary while LN2-range superconductors are ceramics, much harder to work with.
    Reply
  • deesider
    InvalidError said:
    LK-99 being a ceramic-like material greatly limits its usefulness for anything superconductors are typically needed for. Even if it got proven, its fickle synthesis would ruin its economic viability for most applications that could benefit from it.

    Why are nearly all superconducting applications using LHe-temperature superconductors when LN2-temperature superconductors exist? Because LHe-range superconductors are simple metallic elements or alloys that can easily be made into whatever shapes are necessary while LN2-range
    I don't think it's entirely fair to say that ceramic high temperature superconductors aren't used because of the ceramic properties alone (although that is clearly an issue), but also the current and magnetic properties.

    The critical current and critical magnetic field of any superconductor is greatest at 0 Kelvin and decreases as temperature increases - so to achieve the strongest magnetic field in an instrument like an NMR or MRI it needs to be liquid helium cooled. In which case a high-temperature ceramic has no advantages at all over a low temperature alloy (only disadvantages).
    http://hyperphysics.phy-astr.gsu.edu/hbase/Solids/scbc.html
    There have been improvements in thin film deposition for the ceramics, and for BSCCO in particular https://en.wikipedia.org/wiki/Bismuth_strontium_calcium_copper_oxide
    - It does make me wonder though, if a room temperature superconductor did exist, at such a high temperature it's critical magnetic and current properties may be so low as to make it worthless for power transmission and the like.
    Reply
  • purpleduggy
    clickbait title to cause argumentative discussion to drive traffic. please put more effort into your articles we expect better of you tomshardware
    Reply
  • derekullo
    purpleduggy said:
    clickbait title to cause argumentative discussion to drive traffic. please put more effort into your articles we expect better of you tomshardware
    The servers won't power themselves ... even with LK99 !
    Reply
  • elforeign
    Francisco Alexandre Pires said:
    I'm genuinely curious and trying to understand. What in the title would you classify as clickbait?

    "Science paper" refers to "Nature". The title of that paper says "LK-99 isn't a superconductor". Is it the "dreams" part you take issue with?


    They need technicians and viewers, not magicians =)
    Ignore the troll, I enjoyed reading through your coverage of the LK-99 Saga. I find Tomshardware to provide dependable information with which to reflect about these events and inspire curiosity about the topics covered.
    Reply
