ASRock Z790 Livemixer Review: Unique and Affordable

Unique black/purple graffiti appearance, 14 USB ports, five M.2 sockets, and a wallet-friendly price?

ASRock Z790 Livemixer
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.


ASRock’s firmware for Z790 keeps the same general format as we saw in the Z690 model. The major changes are the updated options/functions for Raptor Lake CPUs. The Livemixer’s background is just as unique as the board, sporting the purple and blue theme against light grey/white labels. You start in Easy Mode, which is mostly informative but lets you change a few options (XMP, profiles, boot order, Fan-Tastic Tuning, etc.).

Advanced mode displays headings across the top with details below. Here you can tweak everything that can be tweaked, as ASRock includes basically every option you can think of. Overclocking is easy, with most options on the same page, although some power options are in a different section. It’s a logical layout. The movement is smooth, and it’s easy to read. No complaints from us about the ASRock firmware.

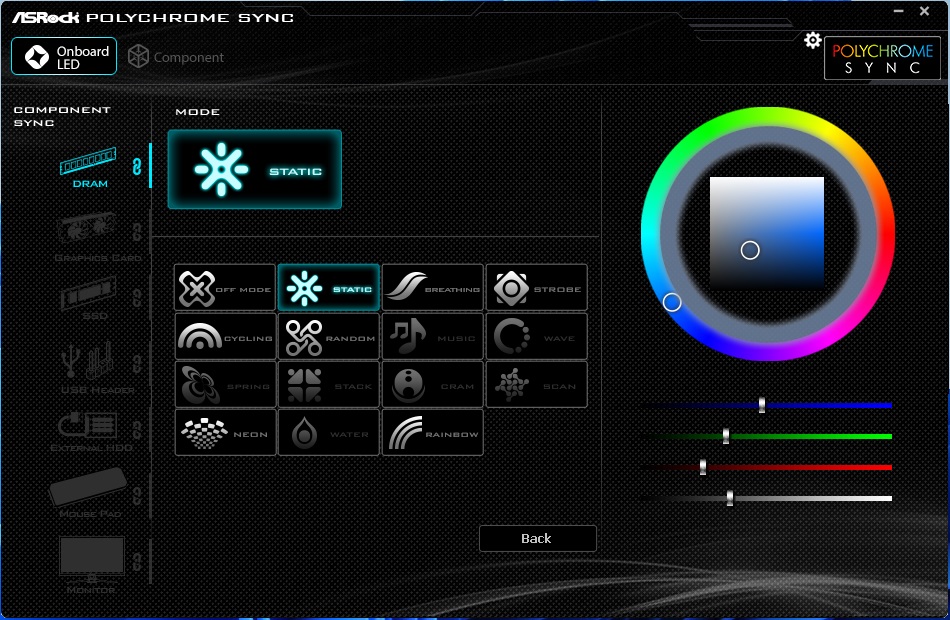

For software, ASRock provides several different options. It has the App Shop to install drivers and software, the Nahimic 3 audio control panel, and the A-Tune application that overclocks your system, controls fans, and more. There’s even a pop-up to install drivers when you first boot the system. ASRock’s software provides everything a user needs to manage and tweak their system.

Test System / Comparison Products

We’ve updated our test system to Windows 11 64-bit OS with all updates applied. We kept the same Asus TUF RTX 3070 video card from our previous testing platforms but updated the driver. We also updated to F1 22 for our games and kept Far Cry 6. We use the latest non-beta motherboard BIOS available to the public unless otherwise noted. The hardware we used is as follows:

Swipe to scroll horizontally
CPUIntel Core i9-13900K
MemoryGSkill Trident Z DDR5-5600 CL36 (F5-5600U3636C16GX2-TZ5RK)
Row 2 - Cell 0 Kingston Fury Beast DDR5-6000 CL36 (KF560C36BBEAK2-32)
GPUAsus TUF RTX 3070
CoolingCooler Master MasterLiquid PL360 Flux
PSUEVGA Supernova 850W P6
SoftwareWindows 11 64-bit (22H2, Build 22622.601)
Graphics DriverNvidia Driver 522.25
SoundIntegrated HD audio
NetworkIntegrated Networking (GbE or 2.5 GbE)

(Image credit: Tom's Hardware)

EVGA supplied our Supernova 850W P6 power supply (appropriately sized and more efficient than the 1.2KW monster we used previously) for our test systems, and G.Skill sent us a DDR5-5600 (F5-5600U3636C16GX2-TZ5RK) memory kit for testing.

Benchmark Settings

Swipe to scroll horizontally
Synthetic Benchmarks and SettingsRow 0 - Cell 1
ProcyonVersion 2.1.459 64
Row 2 - Cell 0 Office Suite (Office 365), Video Editing (Premiere Pro, Photo Editing (Photoshop 23.5.1, Lightroom Classic 11.5)
3DMarkVersion 2.22.7359 64
Row 4 - Cell 0 Firestrike Extreme and Time Spy Default Presets
Cinebench R23Version RBBENCHMARK330542
Row 6 - Cell 0 Open GL Benchmark - Single and Multi-threaded
BlenderVersion 3.3.0
Row 8 - Cell 0 Full benchmark (all 3 tests)
Application Tests and SettingsRow 9 - Cell 1
LAME MP3Version SSE2_2019
Row 11 - Cell 0 Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)
HandBrake CLIVersion: 1.2.2
Row 13 - Cell 0 Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)
Corona 1.4Version 1.4
Row 15 - Cell 0 Custom benchmark
7-ZipVersion 21.03-beta
Row 17 - Cell 0 Integrated benchmark (Command Line)
Game Tests and SettingsRow 18 - Cell 1
Far Cry 6Ultra Preset - 1920 x 1080, HD Textures On
F1 2022Ultra Preset - 1920 x 1080, Ultra High (default) Bahrain (Clear/Dry), FPS Counter On
