Tom's Hardware Verdict
Focals offer a highly comfortable, snug fit and unprecedented style and design for smart glasses. It has basic apps like texting, directions and calendar, plus Amazon Alexa. But the AR display could be sharper.
Pros
- +
Only wearer can see AR display
- +
Looks and works like stylish prescription glasses
- +
Menu control via included plastic ring
- +
Amazingly snug fit, thanks to customized fittings
- +
Convenient apps like Spotify, Amazon Alexa, Uber, weather and directions
- +
Included clip-on sunglasses lens bring versatility
Cons
- -
Image quality could be better
- -
Calendar only show today and tomorrow's activities
- -
iPhone texts have to go through a different number than your own
- -
Right arm gets warm near the temple
Why you can trust Tom's Hardware
Editor’s note: This article was originally published on February 1, 2019. It was updated in September to reflect software updates and features added since and the Focals Showroom app.
Smart glasses have had a tough time going mainstream. Even with the backing of major brands, attempts like Google Glass have failed to open up the market, partially due to their alienating looks. Focals smart glasses from North address this by looking, fitting and working like traditional prescription glasses (prescription lenses start shipping spring this year). Plus, your tech addiction is your little secret with an augmented reality (AR) display only the wearer can see. The commitment to stealth continues with Loop, a plastic ring that lets you control the glasses discreetly through its five-way joystick.
Focals are currently only available after two in-person fittings (for more on North’s detailed fitting process, see our first hands-on with Focals) in their Brooklyn, New York or Toronto, Canada stores or via the Focals Showroom app for iPhone X or newer. It's tempting as Focals cross a huge smart glasses barrier by offering functionality in a form that stands a good (but not perfect) chance of passing for regular glasses. However, while we enjoy apps like Spotify and Weather, better image quality would make the $599 / $799 CAD price tag more forgivable.
Focals Smart Glasses and Loop Ring Specs
Processor | Qualcomm APQ8009w with Arm Cortex A7 (32-bit) at 1.09GHz and Qualcomm Adreno 304 GPU |
Companion App Compatibility | Android 5.0 and neweriPhone 5S and newer with iOS 11+ and newer |
Resolution | Roughly 200x200 (varies by frame) |
Sensors | 9-axis IMU, ambient light sensor, proximity sensor |
Audio | Integrated microphone, speaker |
Connectivity | Focals smart glasses: Bluetooth 4.2Loop ring: Bluetooth LE |
Measurements (Length x Width x Bridge) | 164 x 132-160 x 16-22mm6.5 x 5.2-6.3 x 0.6-0.9 inches |
Battery | Focals: 700 mAhLoop: 0.8mAh |
Weight | Focals: 0.16 pounds (72.57g)Loop: 0.02 pounds (9.07g) |
Extra | Charging casePower adapterMicrofiber clothClip-on sunglass lenses |
Warranty | 1 year |
Price (starting) | Without prescription: $599 USD / $799 CAD With prescription: $799 / $999 CAD |
Focals use a Qualcomm APQ8009w system-on-a-chip (SoC), which runs on four Arm Cortex A7 CPU cores at a clock speed of up to 1.09GHz. The SoC is marketed for smartwatches, with features like Bluetooth and WiFi connectivity and a Qualcomm Adreno 304 GPU.
North designed Focals with IP55 certification in mind. This standard calls for dust-resistance and the ability to withstand water from a nozzle. That means Focals should endure splashes without breaking. North doesn’t recommend wearing them in the shower or pool.
The Loop is made for IP66 certification and is therefore more dust- and water-resistant than the glasses. That specification calls for the ability to handle “water from heavy seas or water projected from jets.” North says the Loop is suitable for washing your hands but not swimming. It’s available in 10 sizes ranging from 6 to 15.
Design: Stealthy Yet Stylish
Focals are by far the most fashionable smart glasses I’ve seen. Many smart glasses and mixed reality (MR) headsets have tried to improve their appearance, and public perception, by cutting size down and bringing in more traditional designs. Some, like the Vuzix Blade and nreal light, reduce the computer-on-your face look by mirroring sunglass designs.
Focals, however, are in their own category, looking like regular prescription glasses and come in various styles: classic shape in black, or for $100 extra tortoise or gray fade (our review sample is classic in tortoise). Round-style frames are "coming soon," according to North. Focals could very nearly pass for regular glasses if it wasn’t for their chunky arms and the small projector near the right lens that’s visible to people looking at you.
Focals are primarily made of die-cast aluminum and Swiss Grilamid, which is supposed to be a strong and flexible -- yet shape-retaining -- polymer. That’s likely why Focals are so bendy. I can hold them by their arms and twist them disturbing the lens alignment or tug on the arms and pull them pretty far apart. The material is also supposed to make them more comfortable long-term.
Copper accents connect the rubber nose pads, and both arms fold in half thanks to stainless steel springs.
Speaking of those arms, the halves closest to the temples are quite thick. At their thickest point they’re about twice the width of those of my regular glasses. This isn’t an automatic tell that you have a computing machine on your face, but Focals do look chunkier than your average pair of glasses.
The left arm of my review sample is bare black on the outside, while the inside subtly reads “Focals by NORTH” near the temple and “CLASS 1 LASER PRODUCT” near the tip. The right arm is also bare on the outside.
The inside, however, holds the holographic display projector, which uses a display technology called retinal projection to project photons, or light, or raster graphics, onto the retina. When the projector is activated, it’s not visible from the outside. It projects images onto the right eye only. This advanced retina display also calls for precise measurements in the aforementioned fitting process.
On the bottom of the right arm is a small square area for connecting the charger, a small speaker/microphone and the power button.
The Loop controller ring comes in black and is mostly made of polycarbonate with gold-plated charging contacts. You’ll hear a clicking noise in the glasses every time you use the joystick, unless you turn all sound off.
Both the Focals and Loop charge via the included case, which has a USB-C port in the back for plugging in the included power adapter. The adapter comes in smooth gray to match the case, and can also serve as a portable charger for the devices. The case, a smooth, soft, felt-like gray box, is larger than a traditional glasses case. Its handy internal lights illuminate when your devices are charging.
Focals don’t just look like prescription glasses, they're also available with prescription lenses (-4 to +2SPH and 0 to -2CYL) for an extra $200. North won’t offer eye exams, so you’ll have to know your prescription beforehand. This is a bit of a drawback because that means one more appointment and/or phone call if you don’t know your prescription offhand (more on availability and insurance in the Availability section below).
My Most Comfortable Glasses Ever
I wore my Focals and Loop around California for a week, meeting with friends, getting dinner and going to the beach. They stayed snug on my face, even more so than my real glasses, which tend to slide down my nose. North has a two-part fitting process, which includes a 3D face scan and fitting, followed by some final physical tweaking, such as on the nose pads, when you pick them up. This, indeed, led to a pair of specs that fit perfectly, perhaps my most comfortable specs ever. This is also helpful in keeping the AR visible on command without needing to adjust the glasses.
Weighing less than a fourth of a pound, Focals didn’t feel heavy on my face. They are certainly the most lightweight and cozy XR glasses I’ve tried yet.
For even more versatility, North includes a pair of clip-on sunglass lenses with each Focals. They’re available in black with gold or black rims and claim to block 100 percent of UVA and UVB rays.
And the Loop, while a bit chunky and plastic-y for my taste and not the jewelry style I’d typically buy, did not bother my hands long-term. However, I did occasionally push the joystick in unintentionally when doing common tasks like picking things up from the ground.
Focals Apps
Focals wearers must download North’s free companion app on iOS or Android. The app is simple and easy-to-use. It displays the battery status of the Focals and Loop and allows you to calibrate the Focal’s display. It’s also where you log into Amazon for Alexa and Uber, store up to seven contacts for easy texting and two locations for easy directions or Ubers and contact support.
Note that your smartphone also has to connect to the glasses via Bluetooth at all times and allow location tracking and numerous other privacy permissions. North says Focals and Loop can work from up to 9 feet (2.7m) away from your phone.
Home Screen and Notifications
The Focals home screen comes up whenever you press the Loop’s joystick in. It’s a colorful display of the time and date and also has options for adjusting the volume to four settings, including off, toggling sound on or off (a little redundant) and switching between three brightness settings. If you have a meeting coming up soon in your smartphone’s calendar, a reminder shows here underneath the time.
Scrolling to the left brings the notifications screen, which displays any new notifications coming to your phone, including texts, emails, reminders and anything else that would pop up on your phone. Typically, you can read the first few lines of an incoming text or email here; however, you can’t click on any links or view media. There’s an option to clear all notifications at once.
As far as usefulness goes, this was quite handy on the go. I was able to do things like read messages while online for lunch, holding my wallet in one hand and a water bottle in the other. I was able to determine if incoming notifications were important enough to put down my food (they rarely were).
Spotify
Spotify control is one of the best features of the Focals, especially for a daily rider of the New York City’s overstuffed subways. Without having to free or raise your hands, I could easily play/pause and change tracks on Spotify with the Loop ring (up to play/pause, left and right to change songs). If you’re You can even do this without the Focals’ display turning on, saving you battery. Moving the Loop’s joystick down is also supposed to let you control volume, but I couldn’t get this to work with a Samsung Galaxy S10. North’s reliable in-app support (or luck) should help you fare better.
Also disappointing was that the Focals’ Music ID feature, which pretty much works like Shazam and is supposed to identify the song that’s playing aloud, wouldn’t work for me either. I tried with three songs, Michal FK’s “Pulsar,” Kendrick Lamar’s “DNA.” and a song everyone should know, Britney Spears’ “... Baby One More Time.” No luck. All I got was a “Thinking” message with no results.
Health and Fitness
Focals take a page out of one of the most successful modern-day wearables, smartwatches, by incorporating health-related apps, Google Fit and, if you have an Android phone, Digital Health for screen time management.
With Google Fit, there’s plenty of reason to consider Focals as your smart health device of choice. Google Fit includes a step counter, improvements over the previous week and a calorie tracker.
Digital Health caters to growing focus on managing time spent on your phone. Interestingly, the Digital Health app doesn’t count Focals time as screen time, so you can cheat by using your Focals instead of your smartphone, encouraging users to use and depend on their Focals more (handy for North).
There’s also a feature that reminds you to drink water and lets you mark down how much you’ve water you’ve had. It sounds stupid, and I don’t deny that it is. However, it did come in handy for me once when I went downstairs for a glass of water, got distracted by something else and was on my way back up the stairs sans hydration. The pop-up coincidentally arrived just in time to save me a wasted trip down and up the stairs. Everyone should already know to drink water regularly, but if this habit is new for you, this feature could help.
Productivity
With support for Slack, EverNote and OneNote, Focals can help you get work done. Pop-up notifications and pre-written responses or speech-to-text responses for Slack mean it’s easy to do things like answer your boss on a lunch break via Slack or read a document while heading to a meeting with the glasses. However, with the clarity issues I experienced, I won’t be reading anything longer than an email on my Focals.
The Focals Rewind feature lets you record and save 30 seconds of a conversation. It’s creepy, since there’s no light on the Loop or glasses to let people know you’re recording. ANd there’s not much use to it with the recording time limited to 30 seconds. Additionally, this only works if you’re currently in a meeting that you logged in your calendar synced with Focals. And you can’t get the recording until the meting is over, according to your calendar. At least the recording sounded… JUST the words “that’s good” not even a recording.
Fun and Games
In the Maurice game, you make a cow jump on top of colored logs one-by-one by pushing in the Loop’s joystick. The game is simple -- yet colorful and potentially addictive -- and a sign of other games Focals could support in the future.
However, the Focals got warm after just a short time playing this simple game. After 10 minutes, the right arm felt warm to the touch. While it was a little warm on my face, it wasn't so hot that I needed to take them off.
Focals’ trivia game challenges with 20 new multiple-choice questions daily (at the time of writing it was The Office-themed). You can see the average score (3/20 today) and your score.
You can also caught up on the latest MLB, NBA or NHL games with real-time updates and scores with your favorite teams selected. If you’re a diehard fan who needs to see the play-by-play, your favorite smartphone app is still necessary, but for quickly checking the score during a date without getting scolded, this is great.
Amazon Alexa
Alexa is always at your beck and call with Focals. It appears any time you hold in the joystick, so it’s pretty easy to accidentally summon the voice assistant.
Alexa on Focals does what you’d expect. It can answer questions, tell jokes and list nearby restaurants, speaking via the speaker on the right arm. However, it loses some capabilities on Focals, like music and radio playback or the ability to bring up images or videos.
But Alexa also works in conjunction with Focals’ other apps. For example, I asked Alexa where the closest mall is, saw a list displayed, pushed the Loop’s joystick in on the closest one and saw an option for directions or calling an Uber to go there.
Alexa listens pretty well via Focals. I never had a problem with the TV or other background noises. However, it usually took at least 30 seconds to respond, sometimes more. And sometimes it straight up ignored me, with the blue circle flashing for 30 or more seconds before disappearing without any result or error notification.
Uber
You can call an Uber on Focals by selecting it the option from one of the two locations you’re allowed to store on the Places section in the smartphone app. If you’re going somewhere else, you can go the Places menu in the Focals and use voice command to write out an address.
Regardless of how you call your Uber, Focals will keep you up to date, displaying updates like when your car is coming and your ETA.
Texting
You can text with Focals using pre-written responses or voice-to-text by either responding to an incoming message or starting a new text to one of seven contacts you can favorite in the Focals smartphone app. You can also read your texting history, up to 12 incoming and outgoing messages, on Focals. Again, you can’t click on links or read images. Instead, it’ll say “This message has media. Check it on your phone.”

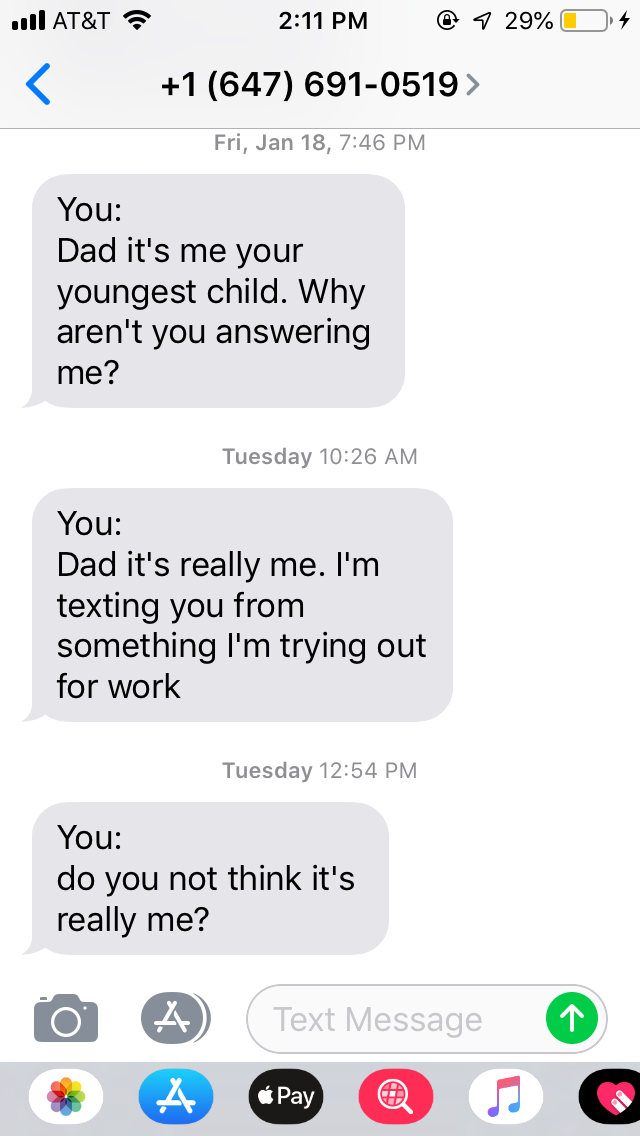

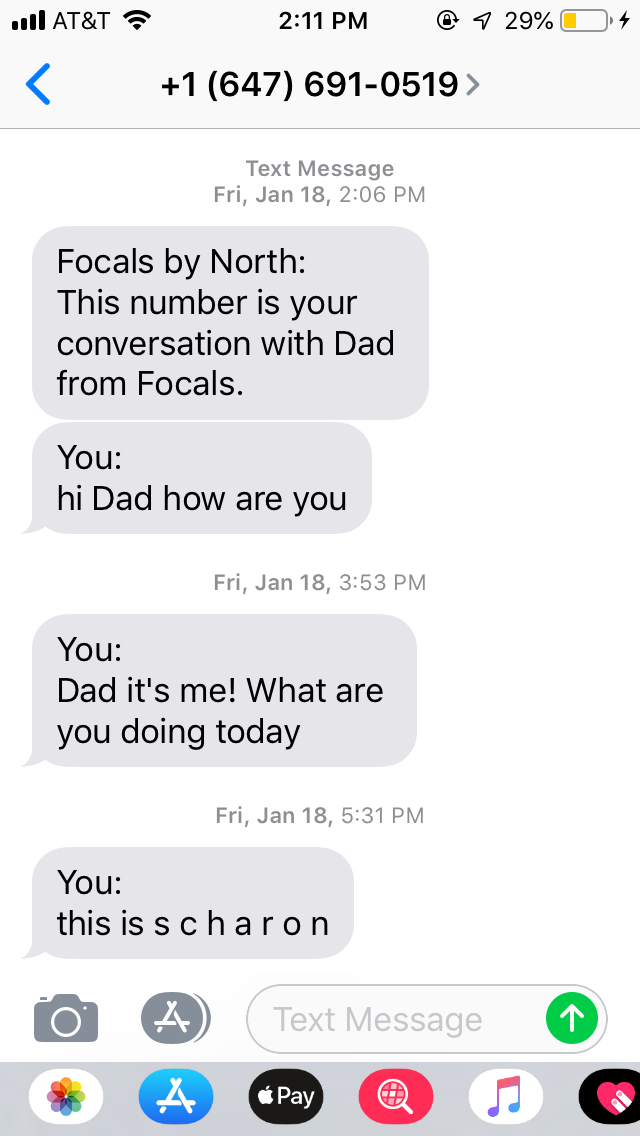

But there’s a pesky caveat for iOS users like me: Due to some restrictions Apple put in place in protection of its messaging app, Focals sends all texts from a different phone number. When texting someone with Focals for the first time, it’d first automatically send a text (from a different number than mine) saying, “Hey it’s Scharon Harding. I’m messaging you from my Focals by North.” It’d also start a new thread in my phone. My phone would go off every time someone texted me and each time I sent a text with Focals, as if Focals was texting my phone as well. This led to my phone going off at least twice as much and a messier inbox. Android users won’t have this problem because Focals can sync directly with the Android messaging app.

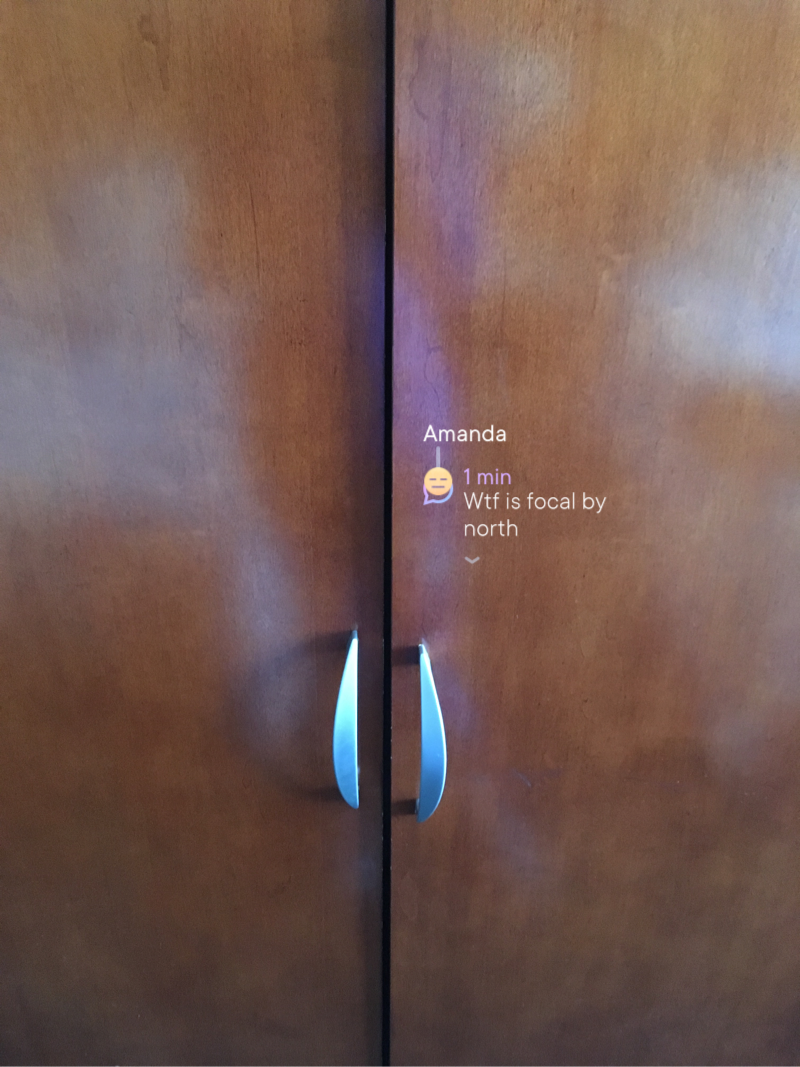

This behavior also brought a few interesting responses, as you can see. Among others, my ever-cautious father refused to answer any texts from this strange Focals number. I wasn’t surprised. Besides the number being unknown, thanks to autocorrect I could never text the words “This is Scharon”—only “This is Sharon” or “This is s c h a r o n.”
I also struggled a tad with voice-to-text. Words crawled onto the screen much slower than I speak. It autocorrected in front of me, then provided an option to send when it thought I was done speaking. But sometimes I have a lot to say in texts and don’t know what it’s all going to be when I start. And watching the Focals write out and edit my words threw me off.
Further, Focals’ display automatically goes to sleep after about 8 seconds to prevent the AR from becoming intrusive and preserve battery life. So sometimes, if I paused too long in between words the display turned off and I’d have to start my text over. This often seemed to happen in fewer than 8 seconds though, forcing me to restart my messages plenty of times.
While it was not flawless, I was still impressed with the Focals’ listening comprehension here and also got a kick out of how Focals paired incoming message alerts with an emoji based on the messages’ contents. I appreciated seeing an unimpressed smiley face next to some of my mother’s texts.
If you don’t mind the limitations of pre-written responses or the finicky behavior of voice-to-text technology, Focals’ texting app can certainly help with multitasking.
Calendar
Focals sync with your phone’s calendar to display upcoming events for the day. You can only see today’s schedule in the Focals. You can’t click on an address in an event or add new appointments through the smart glasses.
Directions

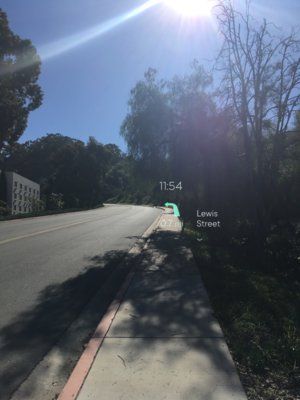

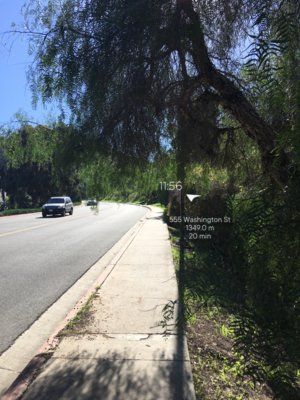

Focals has turn-by-turn and compass-based directions, powered by Mapbox customized maps, in the Places menu. You can store two addresses that’ll always show in Places, allowing for quick directions or an Uber, in the smartphone app. The Places menu also automatically displays one nearby point of interest. Alternatively, you can enter an address with voice command. Directions are not recommended for use while driving.
Helpful for city folk, the Focals also tell you where the closest public transportation location is. My Focals told me that the next buses to arrive outside my apartment were 5 and 10 minutes away. However, like many directions apps, it didn’t consider transportation lines further away, like the subway station 0.8 miles from my apartment that I walk to daily. So for the most detailed depiction of your travel options, you still can’t beat looking at a map or street smarts.
If you save your work or home address into the Focals app, the Focals’ home screen will also tell you the quickest way to get there via public transportation during rush hour. The smart glasses also let you send an ETA message based on the route by clicking on it. This is all potentially useful for those constantly rushing their commute or with multiple stops to make. But it’s forgettable for those who routine treks in and out of work daily.
Weather
The Weather app shows you the current weather in your location. Scrolling down shows you the current weather, plus three more, “Aft,” “Eve,” “Night” and “Morn” (tomorrow), depending on the current time of day. You can’t check the weather for any other day or by hour.
Like most weather apps I’ve tried, Focals’ Weather app doesn’t seem completely accurate. At one point, I could see it was raining, and even Alexa confirmed this, but Focal claimed mere “fog.”
Battery Status
By scrolling all the the way to the right, you can see the battery status of the Focals and Loop at any time, shown in individual percentages.
Image Quality
The most impressive part of Focals’ is that no one will know when you’re using apps, since the AR display is only visible to the wearer.
It works by creating red, green and blue light that is manipulated to make text and images the Focals’ projector sends out. Next, there’s a holographic lens in the right eye that’s embedded with a transparent film designed to interact with red, green and blue wavelengths only. Everything else passes through. According to North, “when our specific wavelengths of light hit the transparent film, it acts like a mirror and bounces the light back towards your eye placing the image directly in your line of sight where only you can see it.”
The first thing I noticed about Focals’ display is the lively colors. Like an ice cream parlor, the AR is filled with bright pinks, blues, yellows and green. Never a dull notification here. It makes things even more fun by adding emojis for incoming notifications. Even activating the display, which takes about a second, yields a mild animation, with the time climbing up in gradient effect and color.
In the sun, at night, or with the sunglass clip, the image remained bright and bold, but I did occasionally see ghost images, or double vision. For me, this happened occasionally indoors near sunny windows. I’d see a light green reflection of the display off to the right side. North told me this is a result of green light bouncing off a lens layer meant for red or blue light and that it tends to happen in darker environments. Turning brightness down to the minimum usually eliminated the effect.
The biggest problem, though, was the flicker effect I experienced. Images always appeared to be moving very slightly, similar to a CRT monitor. This hurt the clarity of the display, which was still legible but a touch difficult to look at for more than a couple seconds, especially for text. North told me this was likely caused by my glasses’ refresh rate being too low. After receiving a replacement pair, the image seemed sharper but at times still looked like it was quivering a tad. It’s possible I’m more sensitive to the effect than others.
Image quality stayed pretty consistent in different environments, except for when I looked directly out of a sunny window (without the sunclips on). With that much light hitting my eyes, some text on the left side faded in and out of visibility when reading text messages or the day’s weather.
Battery Life
North claims Focals last up to 18 hours and the Loop up to three days with “intermittent use.” As mentioned, you can always check the status of the Focals and Loop on the companion app or by scrolling all the way to the right on the smart glasses.
I used the Focals in lieu of my phone as often as possible — which meant a lot of texting and reading notifications, checking the weather and directions at least once and playing a game for at least 5 minutes—at max brightness and volume. They lasted 7-10 hours a day, while the Loop survived a smidge over 3 days before needing a recharge.
As mentioned earlier, the Focals and Loop’s case is also their charger. They take up to 2 hours to fully charge simultaneously. The case also fully charges in four hours, for use as a portable charger. A fully charged battery case is supposed to last for three full charges, but mine never lasted for 2 full charges of the Focals only (not the Loop). I wouldn’t recommend going on a weekend trip without the power adapter.
Heat
After 2 minutes of continuous use the Focals were warm to the touch. After 5 minutes, I felt a gentle warmth upon my face. Again, this wasn’t enough heat to make me take the glasses off but was still bothersome. Most of the warmth was on the right arm, especially on the top (the part that doesn't touch the face) by the temple.
After playing with the Focals for 5 continuous minutes at maximum brightness and volume, the right arm’s hottest point was 44 degrees Celsius (111.2 degrees Fahrenheit).
Availability
Focals can be bought in person via two fittings in their Brooklyn or Toronto stores. This ensures the glasses fit your face and the AR is properly positioned for your eye. North also offers pop-up showrooms for these services. If you can't make it to one of those locations, you can also get fitted for and buy Focals off North's Showroom app; however, that's currently only available for newer iOS phones (iPhone X or newer).
Focals cost $999 without prescription lenses. Prescription lenses adds $200 to the price tag. Those who get prescriptions, however, will be able to use their insurance to help pay, North told me. Pricing will depend on the customer’s insurance provider/plan.
Bottom Line
Focals are worth a look if you’re ready for smart glasses. With AR only you can see, they're discrete, and there’s a good chance people will mistake them for regular glasses or, with the included-clip on lenses, sunglasses.
But a lot of what you’re paying for is that look. In terms of apps, Focals has the minimum, but I’d like to see more. Control over music, a video streaming app, a voice-to-notes taker or even some games would make the $999 specs more appealing. While that price is in line with competitors, you can still get a laptop for that amount, so the more functionality, the better.
Among Focals’ current apps, there are some small, but noticeable, limitations, such as iPhone users’ texts sending from a different number and the inability to click on links or media or see the calendar or weather for upcoming days. The glasses usually alert you when you have an incoming/missed call, but a couple of times my review unit failed to do so.
The image quality also has room for improvement. In addition to the occasional ghost images, two of my review samples displayed content that was legible but looked slightly shaky, like a CRT monitor, making text in particular a little irritating to look at with mild, unwanted blur.
But if you’ve been waiting for a pair of smart glasses that offer function without obliterating your fashion cred, there’s no better choice currently than Focals. With the Vuzix Blade currently starting at $799, the Focals are $200 cheaper and much better-looking. However, the Blade’s display is much sharper. The mandatory Loop controller can be viewed as a burden, but it’s a small price to pay for subtlety. If you’re willing to pay the premium price required of smart glasses and can get to Brooklyn, Toronto or a newer iPhone, Focals promise the best style, a fun, easy-to-use (but basic) user experience and premium fitting.
