Seasonic Prime 850 W Titanium PSU Review
Seasonic made an impressive entry in the 80 PLUS Titanium category with its Prime series. This line's current flagship, offering 850W capacity, is being reviewed today. Besides high efficiency, it sports quiet operation and top performance.
Why you can trust Tom's Hardware
Ripple Measurements
To learn how we measure ripple, please click here.

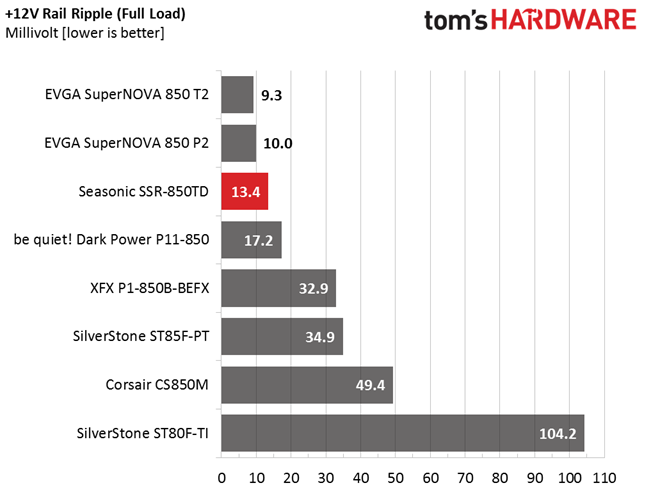

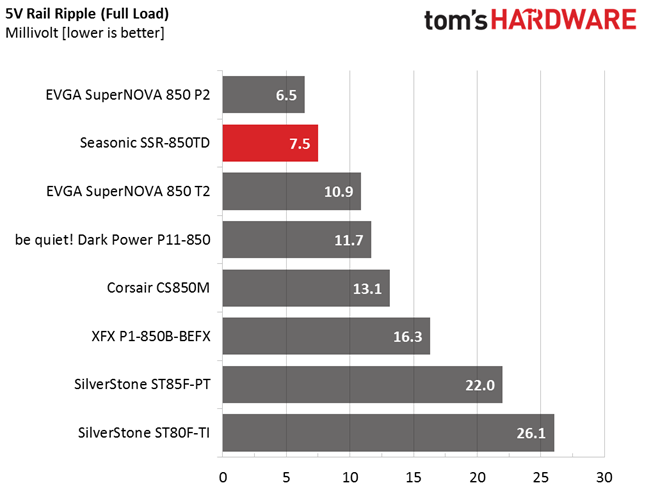

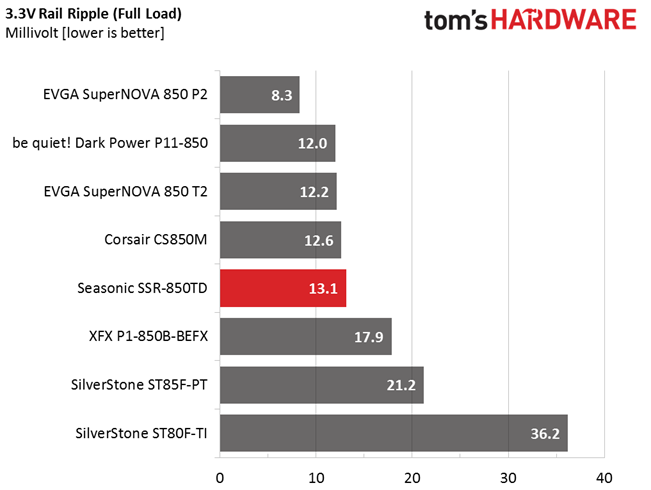

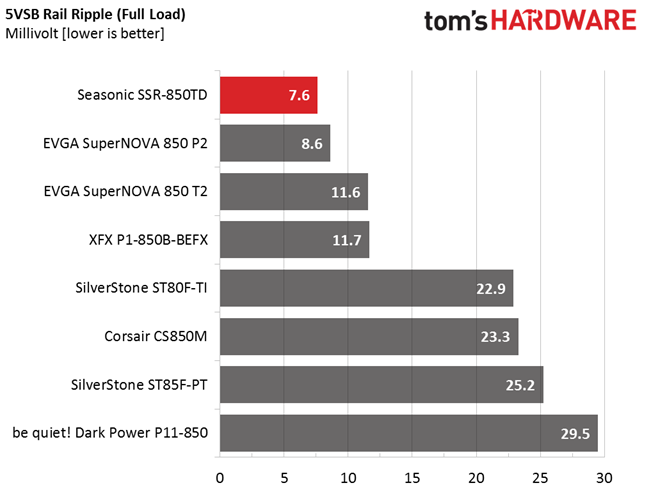

The following table includes the ripple levels we measured on the SSR-850TD's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V, and 5VSB).
Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
---|---|---|---|---|---|
10% Load | 7.4mV | 5.5mV | 7.3mV | 2.6mV | Pass |
20% Load | 9.6mV | 5.5mV | 7.5mV | 3.7mV | Pass |
30% Load | 11.5mV | 6.3mV | 7.8mV | 3.6mV | Pass |
40% Load | 8.9mV | 6.8mV | 8.3mV | 4.6mV | Pass |
50% Load | 8.8mV | 6.2mV | 9.6mV | 5.0mV | Pass |
60% Load | 9.8mV | 6.3mV | 10.0mV | 5.2mV | Pass |
70% Load | 10.9mV | 6.5mV | 10.8mV | 5.8mV | Pass |
80% Load | 11.1mV | 6.6mV | 11.2mV | 6.3mV | Pass |
90% Load | 12.6mV | 7.4mV | 12.6mV | 6.7mV | Pass |
100% Load | 13.4mV | 7.5mV | 13.1mV | 7.6mV | Pass |
110% Load | 13.8mV | 8.3mV | 14.5mV | 8.5mV | Pass |
Cross-Load 1 | 8.3mV | 6.6mV | 8.3mV | 3.6mV | Pass |
Cross-Load 2 | 13.4mV | 6.5mV | 12.1mV | 6.6mV | Pass |
The SSR-850TD's ripple suppression is absolutely fantastic, and it's accomplished without the use of extra filtering caps on the modular cables. Seasonic shows its dominance here, since even the ripple-proof Leadex-based PSUs employ additional filtering caps on their modular cables to achieve similar performance.
Ripple Oscilloscope Screenshots

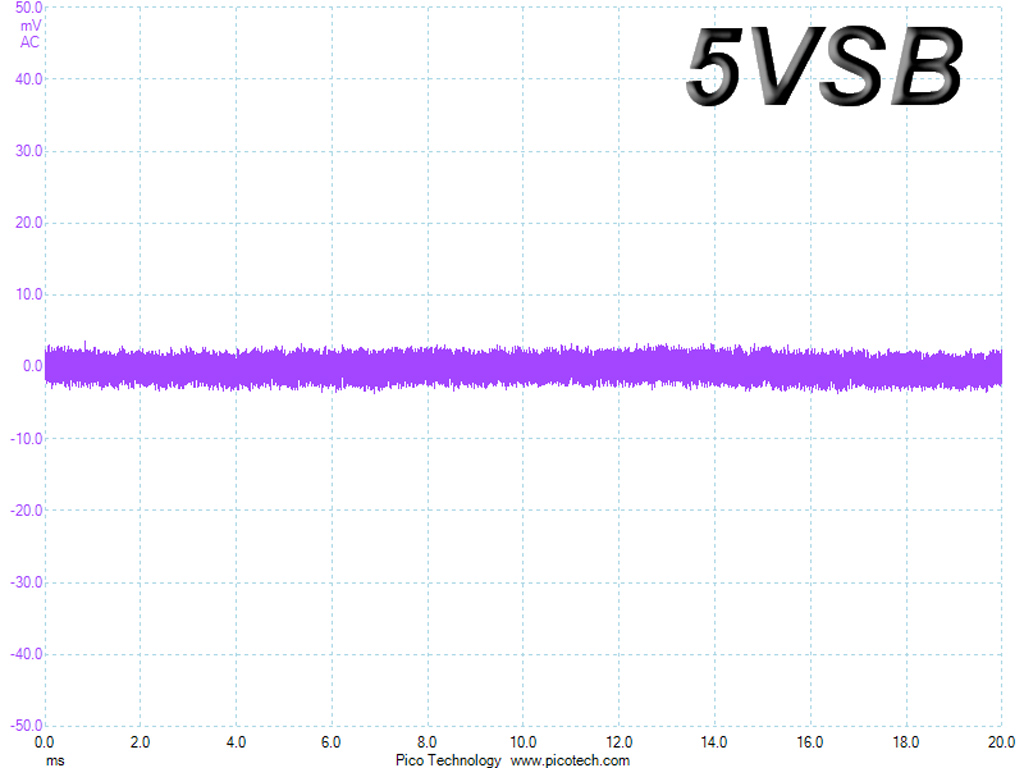

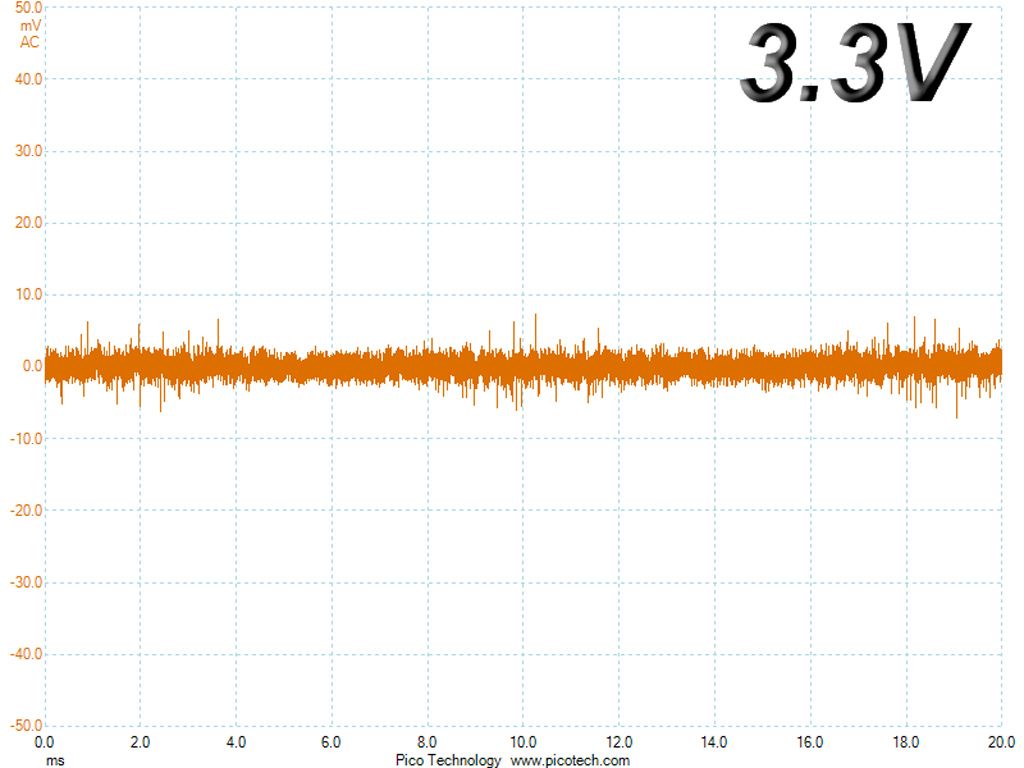

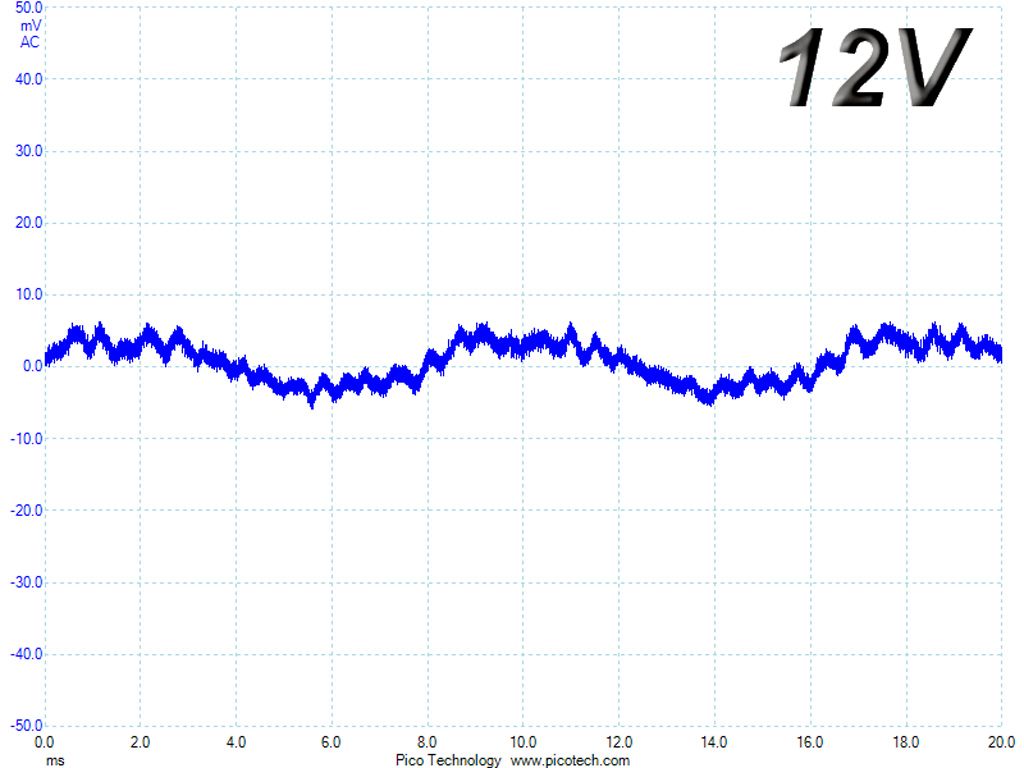

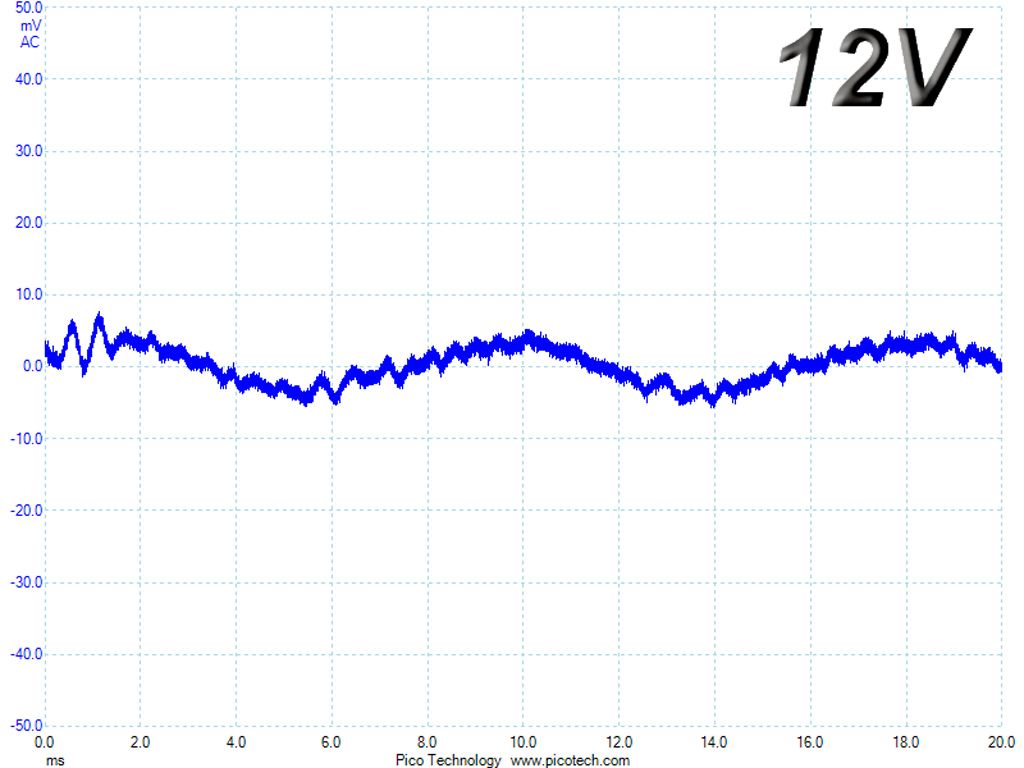

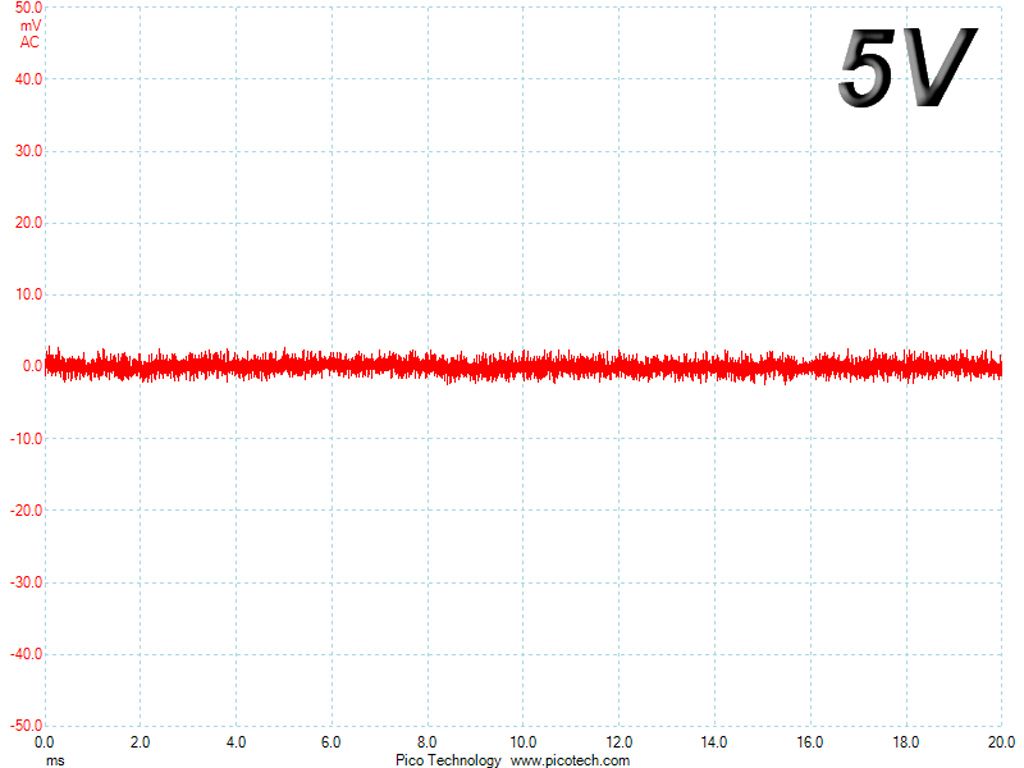

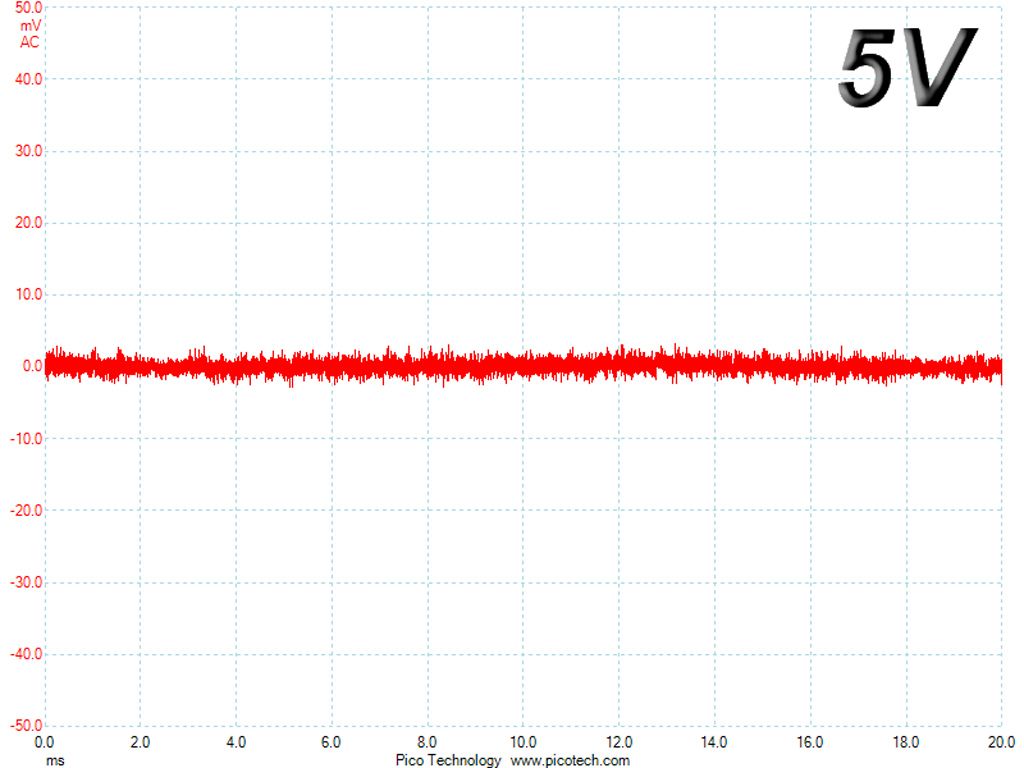

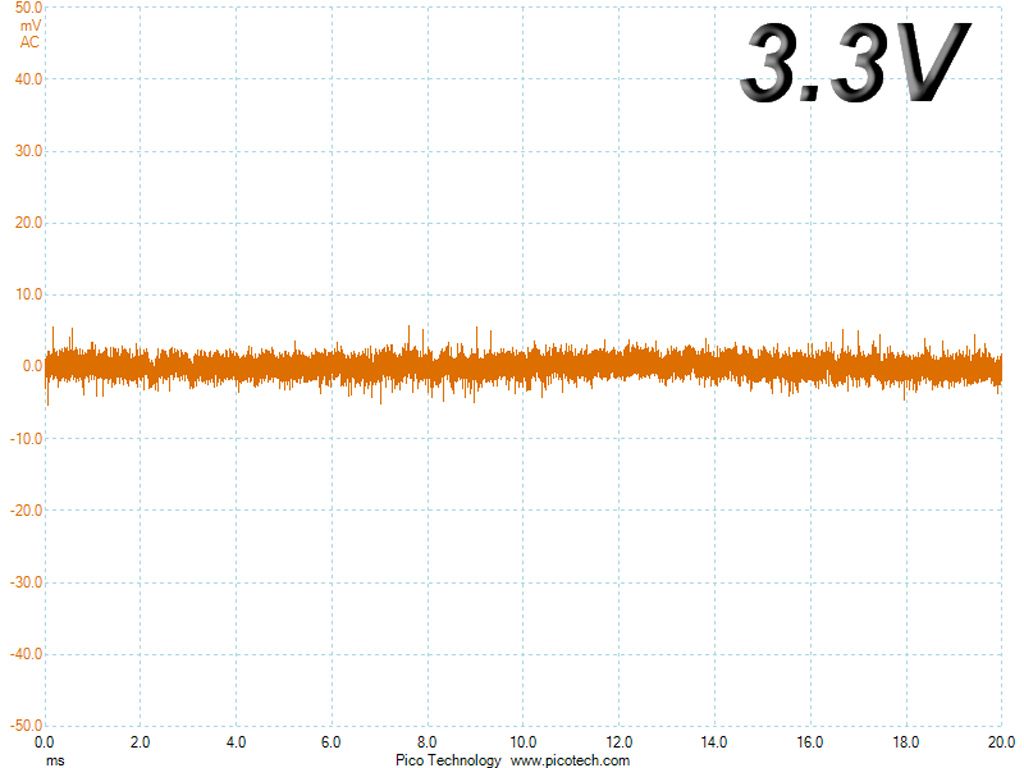

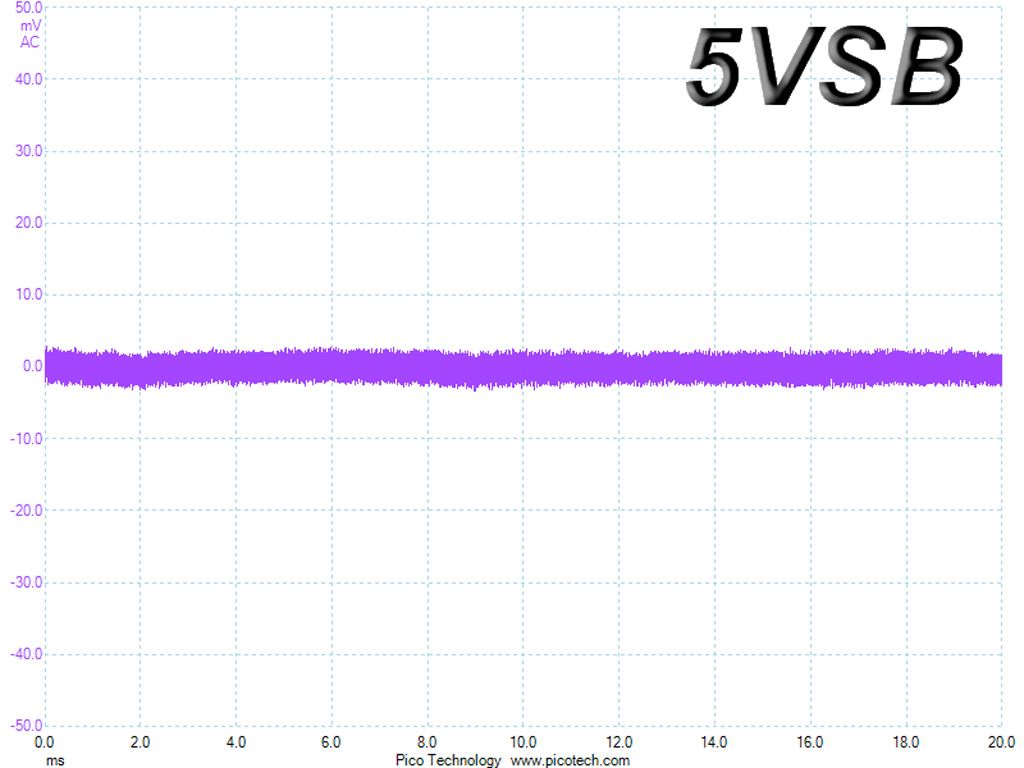

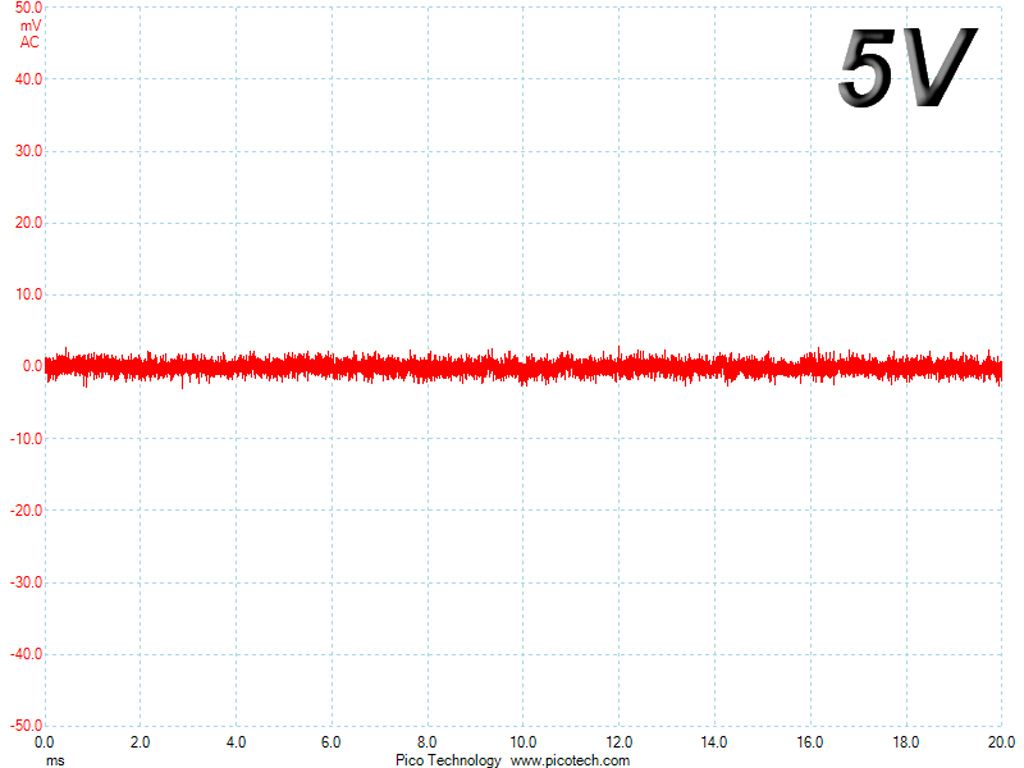

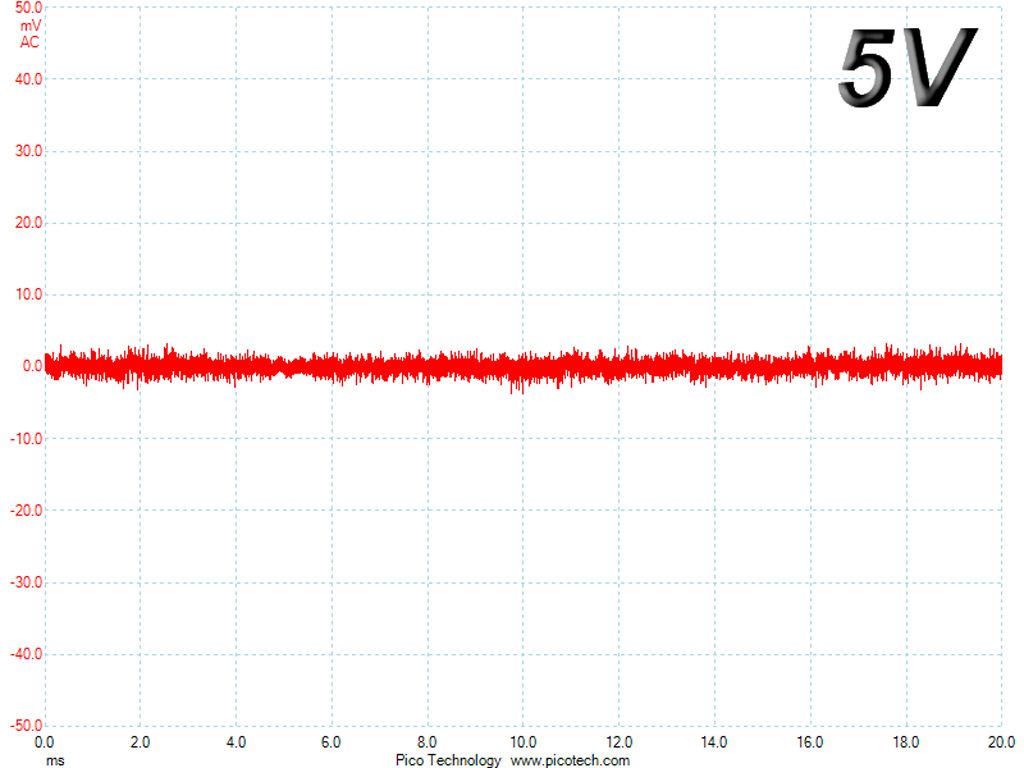

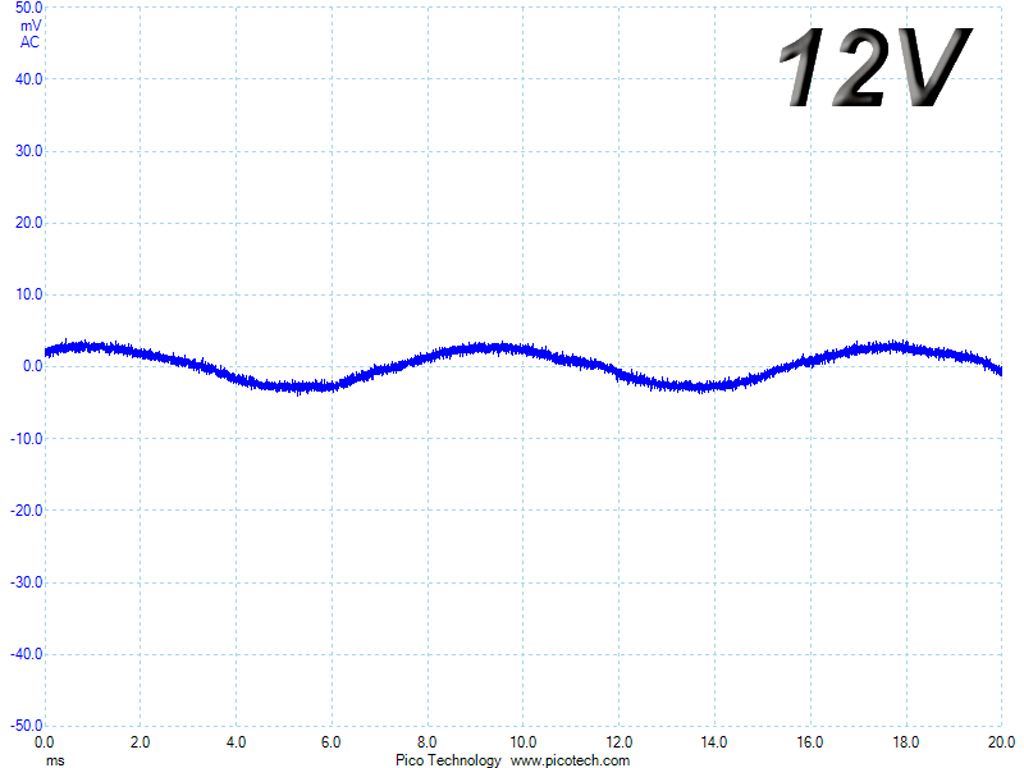

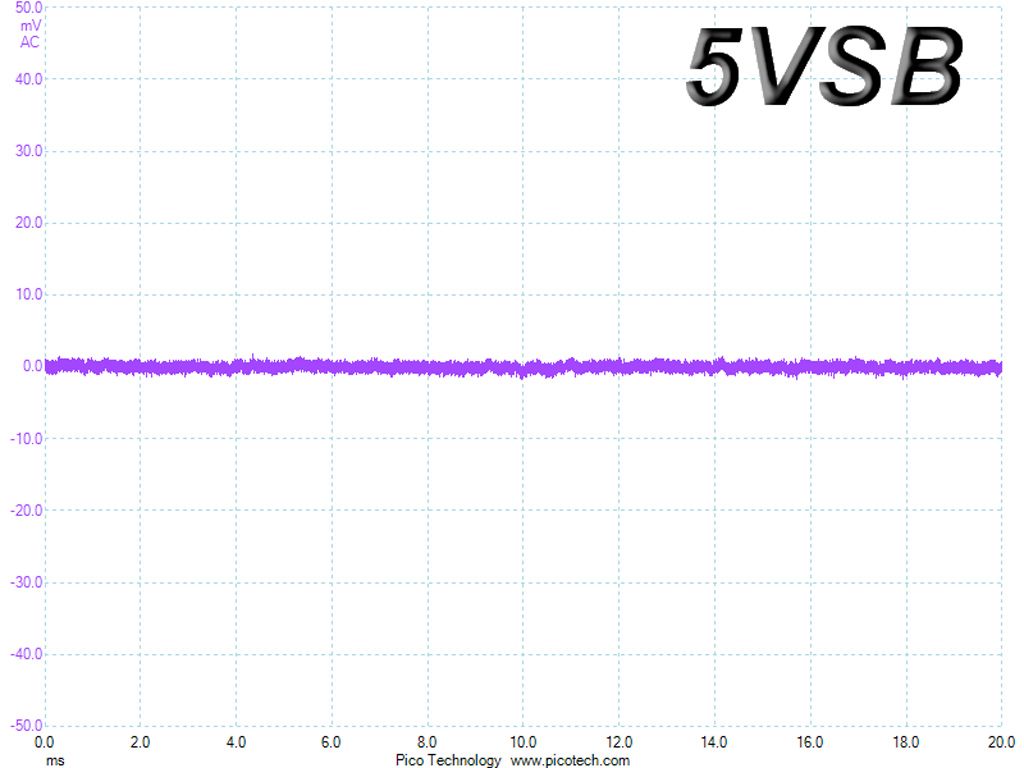

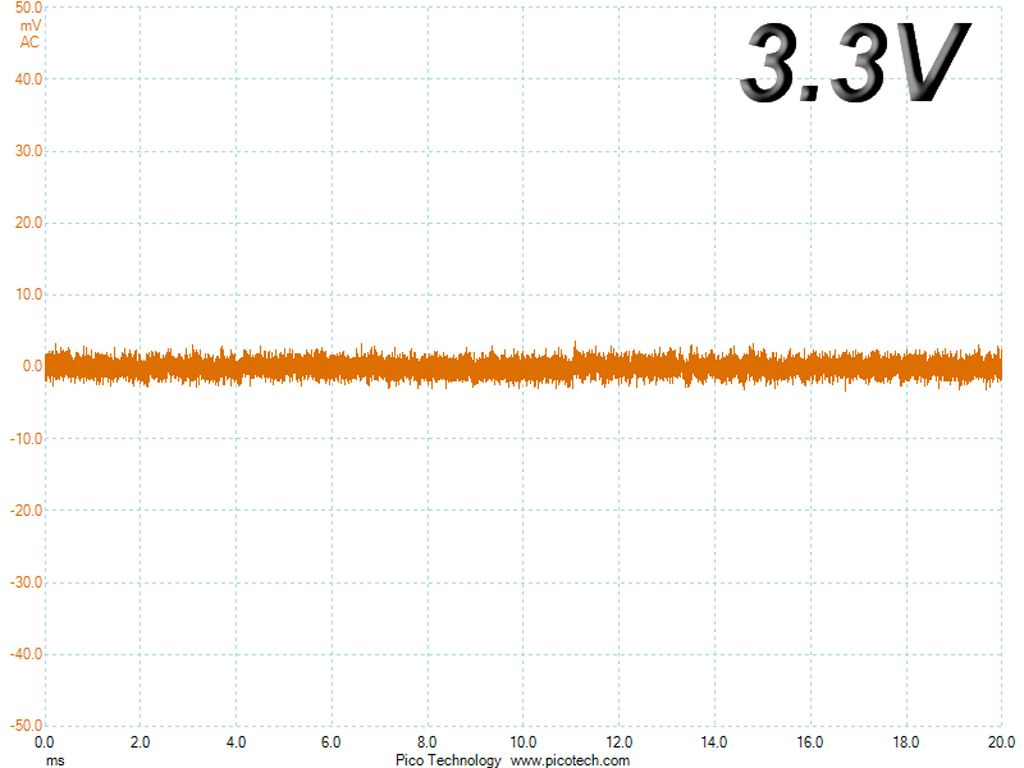

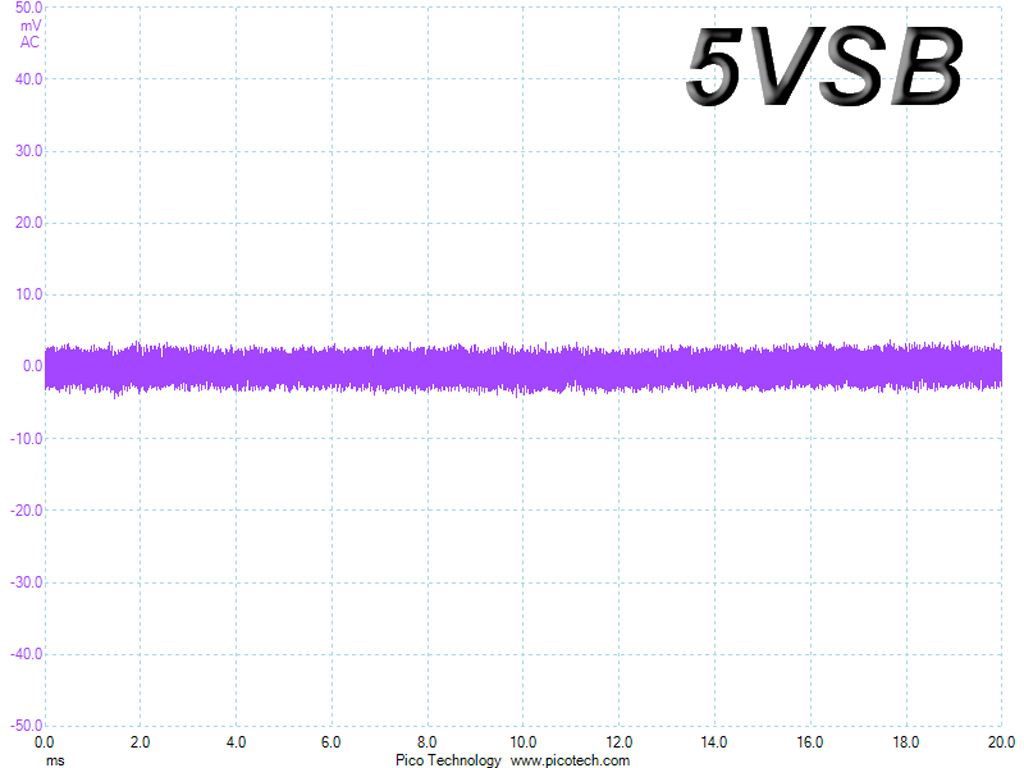

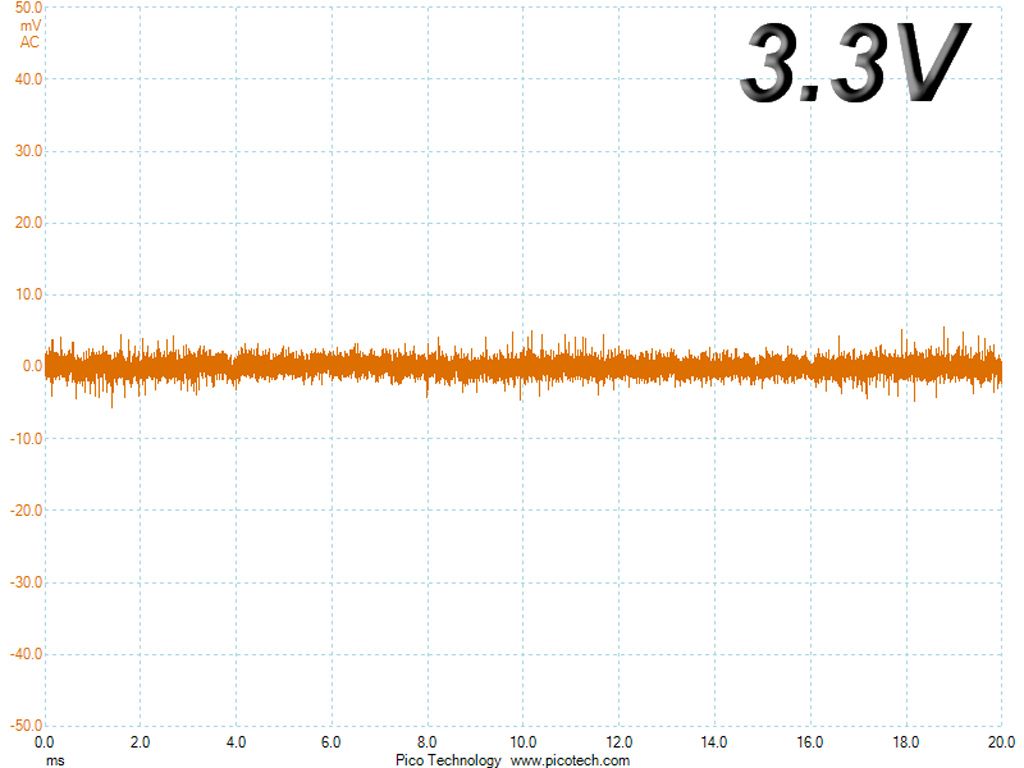

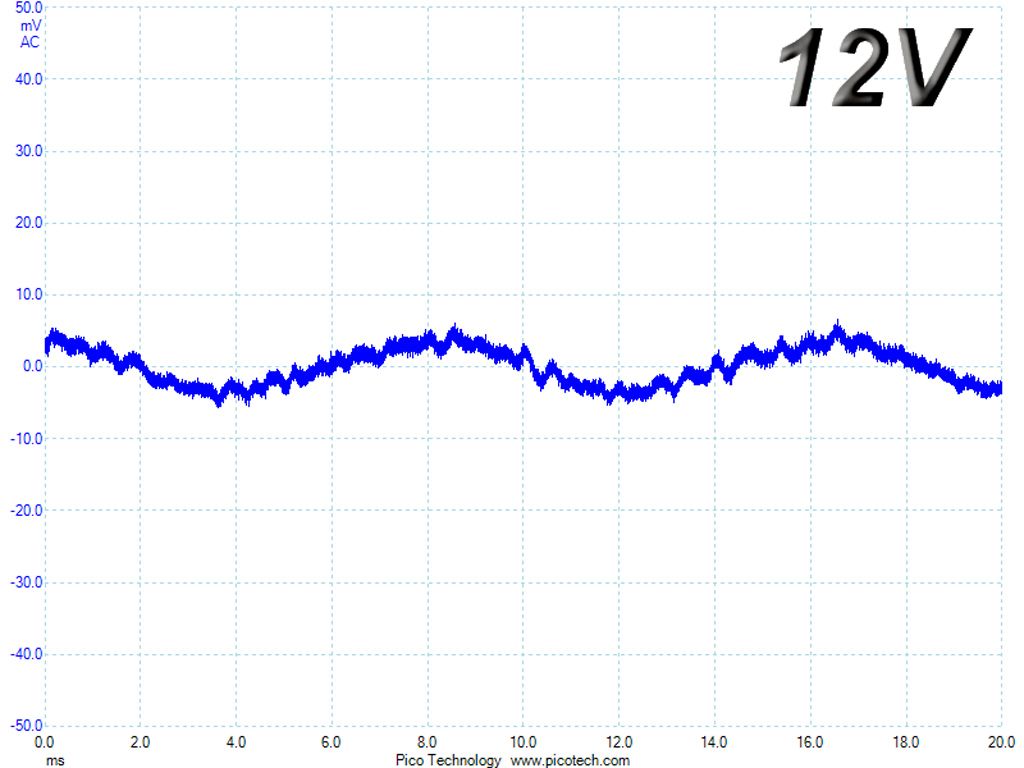

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V, and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01 V) as the standard for all measurements.
Ripple At Full Load
Ripple At 110-Percent Load
Ripple At Cross-Load 1
Ripple At Cross-Load 2
