Whoohoo! A Mini PC That Goes To The Max
Features
By Frank Völkel
published Adding Components
The SS51G's aluminum case without components.

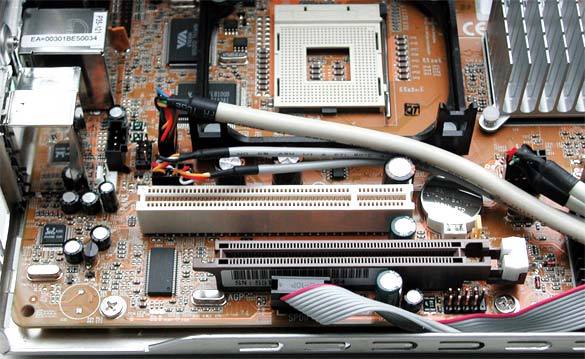

A tune-up for the box: AGP and PCI slots in conjunction with the Flex ATX Form Factor. The Socket 478 for Intel Pentium 4/ Celeron is still included.
Internal cabling: the connectors for the Shuttle system's front panel.
The overhead view of the opened Barebone System.
