MSI Launches No Fewer Than Six GeForce GT 1030 Graphics Cards
View Original
View Original
View Original
View Original
View Original
MSI revealed a half dozen GeForce GT 1030 cards, which boast a variety of features ranging from an actively cooled full-height card all the way down to a passively cooled half-height option.
All six of the cards listed are based on the recently announced GeForce GT 1030, which has 384 CUDA cores, 2GB of 6 GTps GDDR5 memory on a 64-bit memory bus, and a 30W power draw that requires no external power connectors. All the aforementioned cards offer the same clock speed and memory configurations. MSI set the core clock of its GT 1030 cards at 1,265MHz and the boost clock at 1,518MHz. Each card sports 2GB of GDDR5 memory clocked at 6,008MHz.

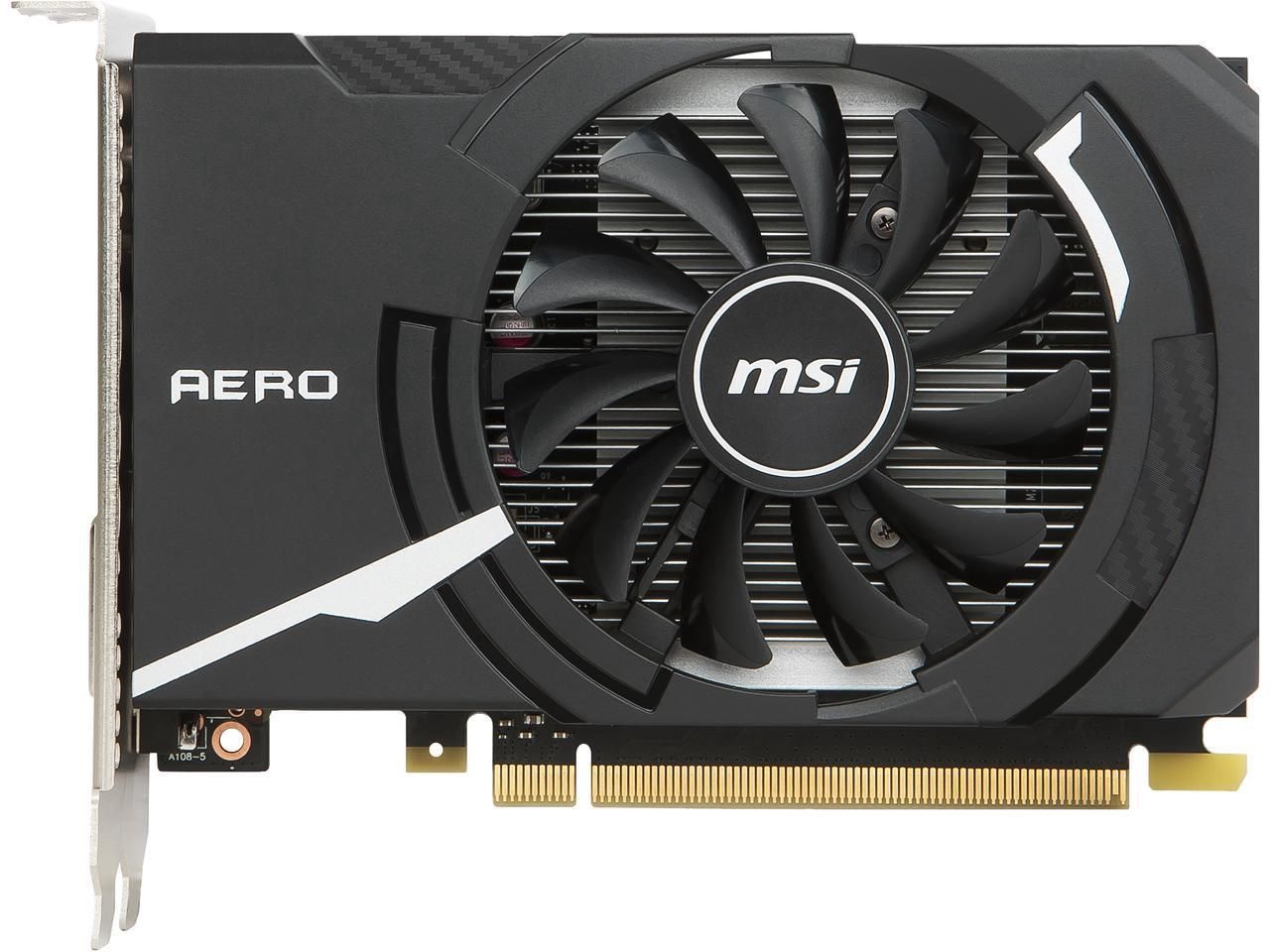

MSI has a GeForce GT 1030 for just about everyone. The company is clearly positioning its GeForce GT 1030 AERO ITX 2G OC as a budget-friendly factory overclocked multimedia card capable of powering 4K 60Hz video functionality with the ability to power a casual gaming session or two, as well.
The GeForce GT 1030 2GH OC is a full-height graphics card with a large passively cooled heatsink. This card offers all the same features as the GeForce GT 1030 AERO ITX 2G OC with the added benefit of 0dB operation.

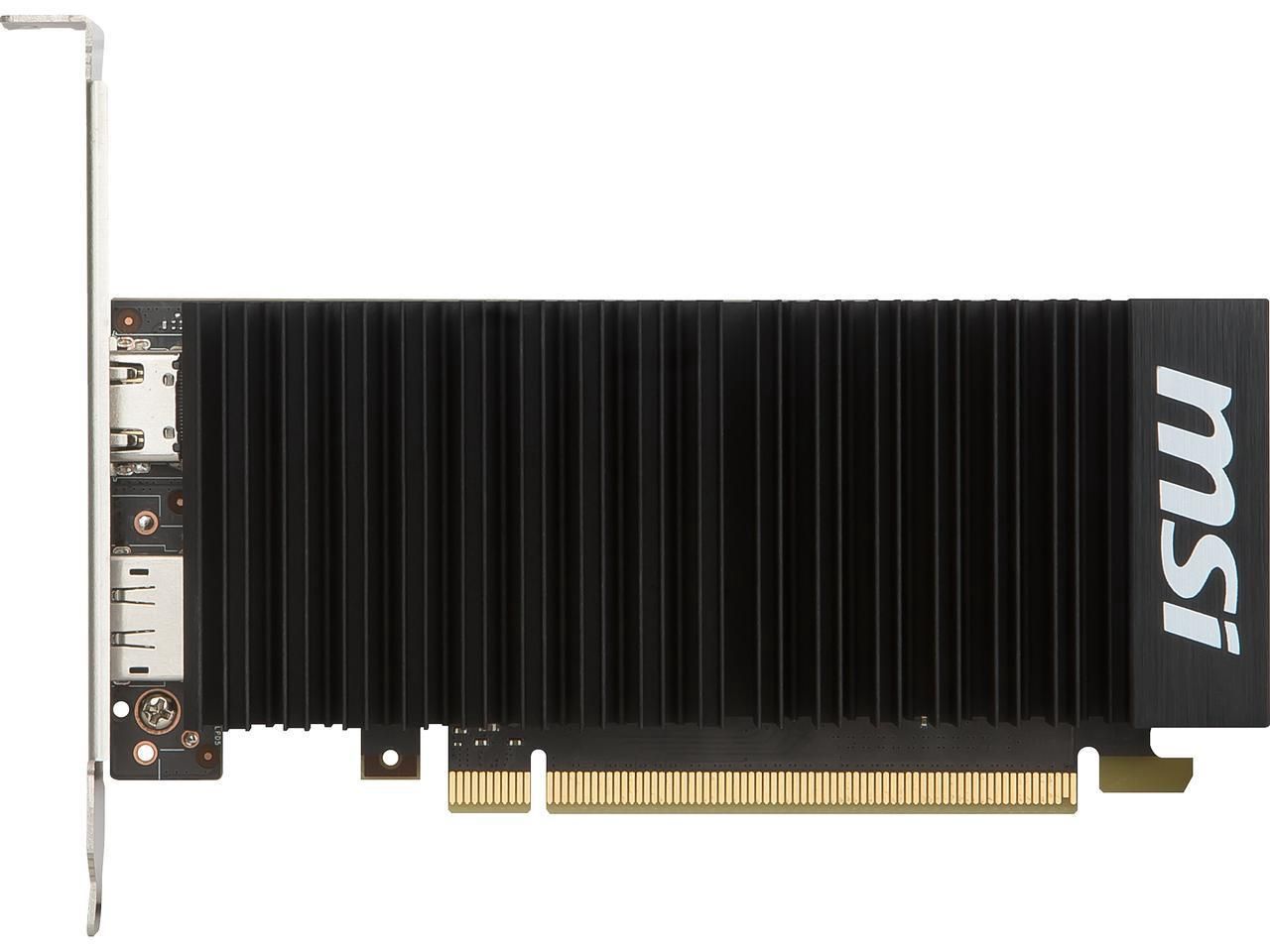

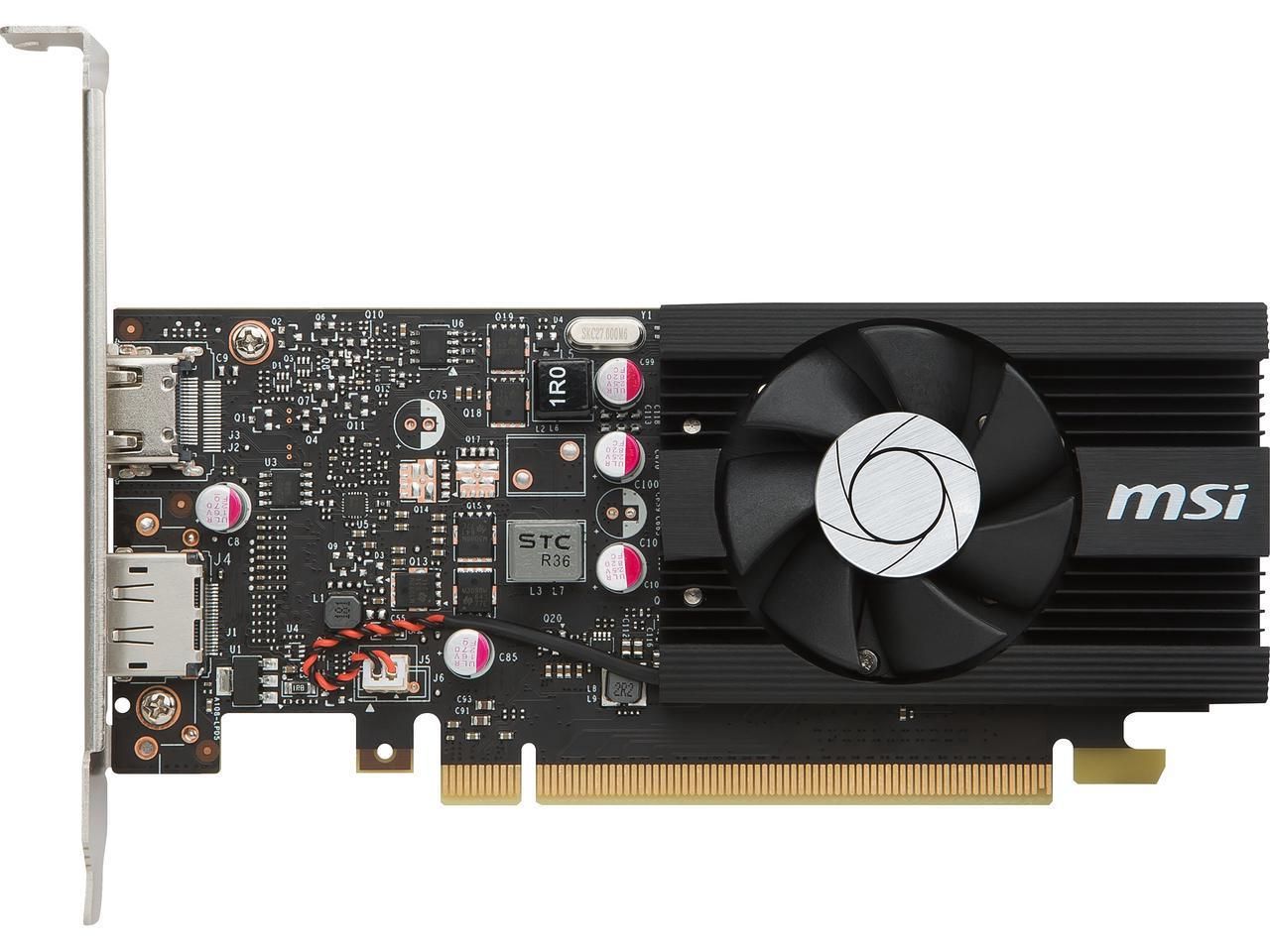

The MSI GT 1030 2GH LP OCV1 and GT 1030 2GH LP OC are essentially half-height versions of the GT 1030 2GH OC. It should be noted that both the aforementioned video cards are also available with an actively cooled heatsink.
All MSI graphics cards feature military class MIL-STD-810G certified components that the company claimed enables higher stability and reliability. MSI also bundles its Afterburner overclocking utility, an overclocking tool that also allows you to benchmark your graphics card, customize fan profiles, and capture video.
MSI's line of GT 1030 graphics cards are available now from various retailers such as Newegg, for $70-75.
Get Tom's Hardware's best news and in-depth reviews, straight to your inbox.
| Header Cell - Column 0 | All MSI GT 1030 Models |
|---|---|
| GPU | GeForce GT 1030 |
| CUDA Cores | 384 |
| Core Clock | 1,265MHz |
| Boost Clock | 1,518 MHz |
| Video Memory | 2GB GDDR5 |
| Memory Bus | 64-bit |
| Memory Clock | 6,008MHz |
| PCI Express | PCIE 3.0 |
| Display Outputs | DVI-D, HDMI 2.0b |
| HDCP Support | Yes |
| Multi Display Capability | 2 |
| Recommended PSU | 300W |
| Direct X | 12 |
| OpenGL | 4.5 |
| Slot Size | 1.5 |
| Supported OS | Windows 10 / 8 / 7 (32/64-bit) |
