Raspberry Pi Pico Powered Dosing System Keeps Fish Happy

Raspberry Pi Pico Dosing Pump
(Image credit: https://www.reddit.com/user/yojoebosolo/)

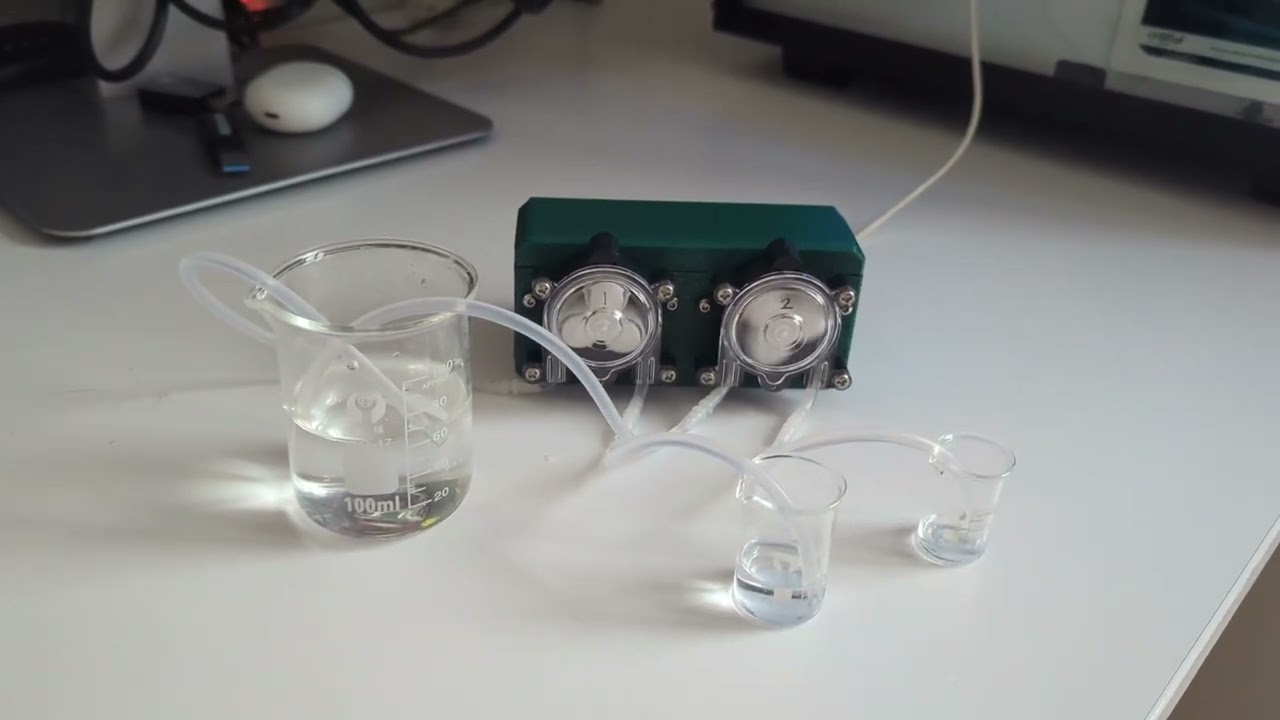

Whether you have expensive tropical fish, delicate reefs, or humble goldfish, you need to keep your tank clean for your aquatic pets, and this Raspberry Pi Pico-powered dosing pump is just the thing. Created by yojoebosolo (Joe Stiff), this $18 (£14) tiny pump project provides microdoses of a chemical that maintains a fish tank.

The pump system is a peristaltic pump that uses mechanical manipulation to move the liquid through a tube. This pump system is commonly used in medical and scientific applications where precision and hygiene are key. The tube can be easily replaced as no liquids go through the pump (they are massaged through the tube), and they can be swapped for a different liquid. Yojoebosolo uses it to micro-dose various chemicals into a fish tank.

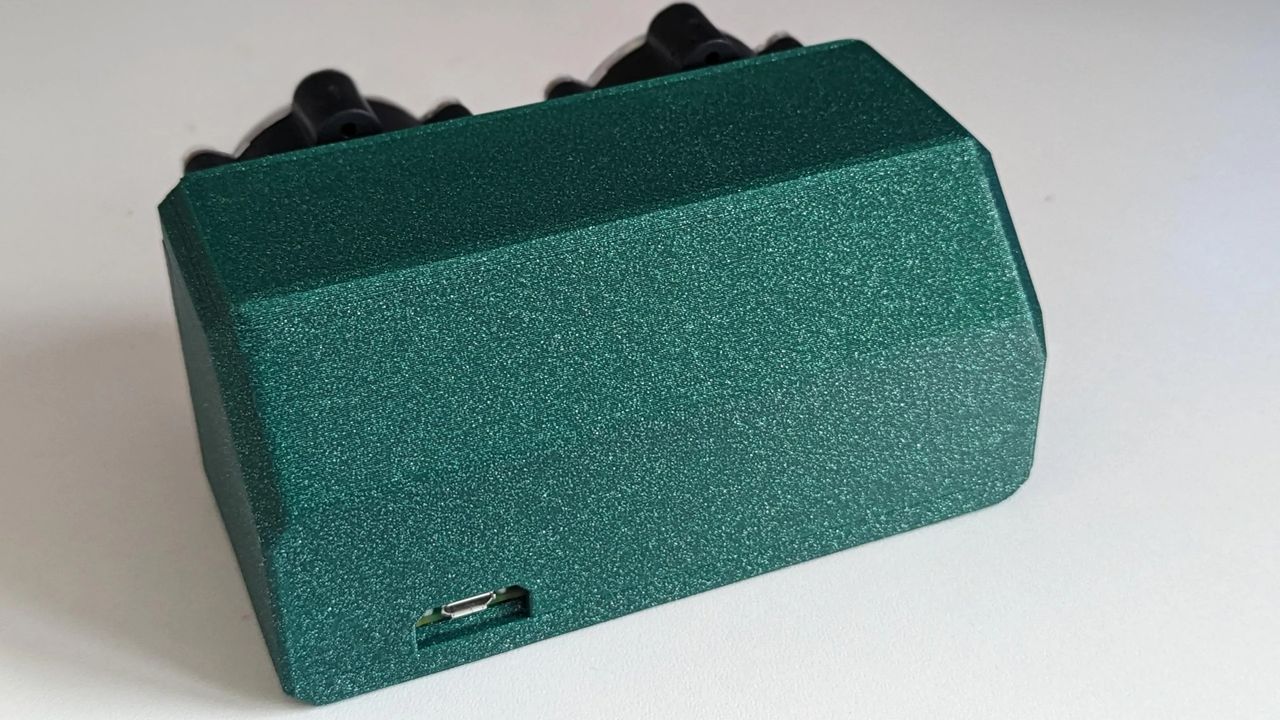

Powering the project is a Raspberry Pi Pico. Based on the low price in the Bill of Materials, we see that it was the Pico, not the Raspberry Pi Pico W. Details are dotted across the rather lengthy comments section. There we can see that a two-channel relay controls the pumps. We can only see one input, a micro USB port, on the back of the 3D-printed case. The relay is directly connected to the Pico's 5V supply, and a GPIO pin on the Pico controls the open/closed state of the relay contacts.

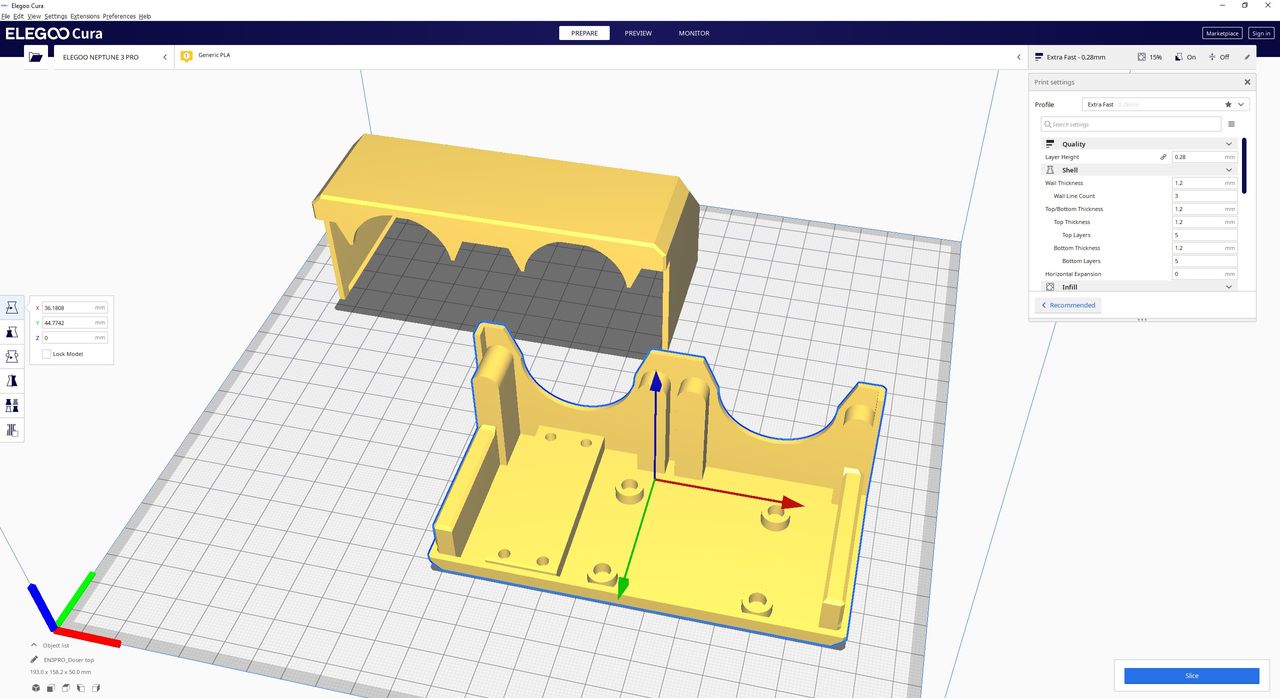

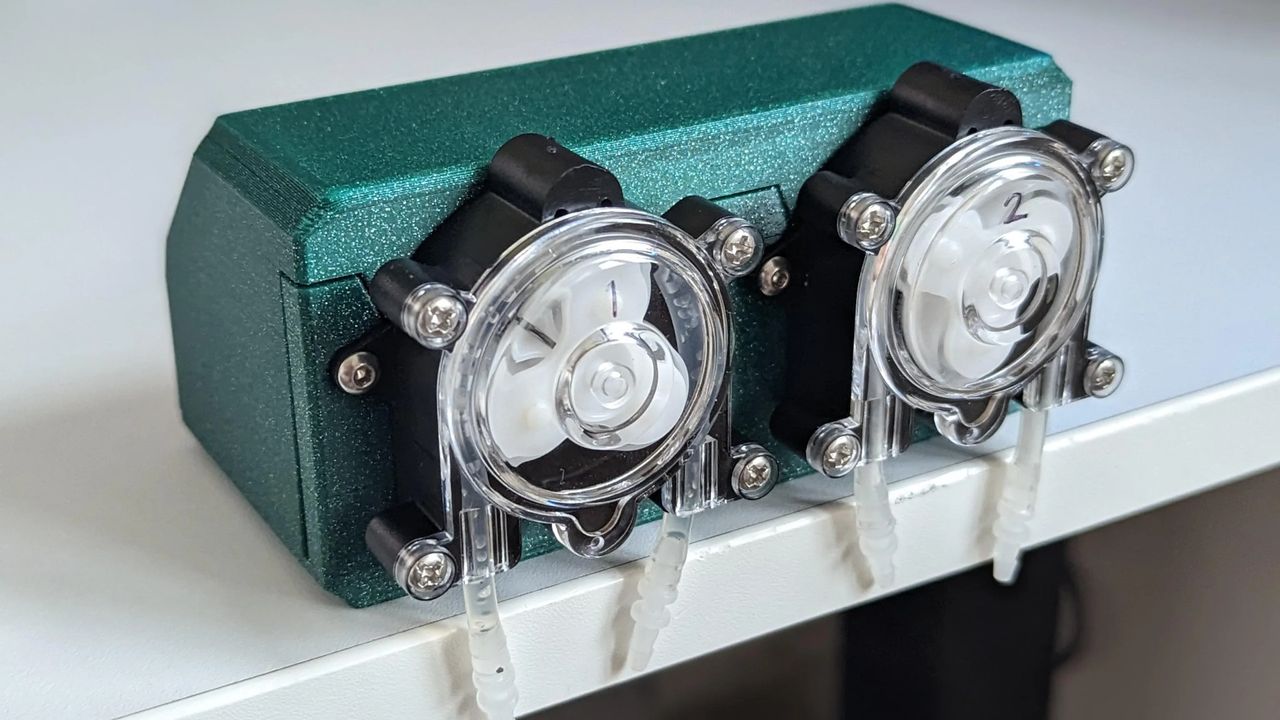

The 3D-printed case is simple but beautifully made. It must've been printed on one of the best 3D printers as it looks clean, with only a hint of stepping showing on the Glitz PLA emerald green filament. The front of the case holds the pumps, secured using machine screws. Looking inside the case, thanks to a downloadable 3D model that we sliced for our Elegoo Neptune 3 Pro, we can see where the Raspberry Pi Pico can be secured (left) and where the two channel relays are housed (right).

Other than keeping our aquatic friends happy, are there any other applications for this project? Of course! Plant watering is the most obvious application. A soil moisture sensor would report the conductivity of the soil — the drier it gets, the less it conducts. The Pico would then control the peristaltic pump to water the plant. If gardening isn't your thing, how about a drink? The same tech can be used to build a robot bartender. Using a few pumps, linked to various beverages, users can be offered a menu. After selecting a drink, the Pico would trigger the appropriate pumps to mix your favorite tipple.

All of the components, and a downloadable 3D model of the case, are in the thread. Yojoebosolo has put plenty of thought and effort into this build, so much so that it looks rather simplistic at a casual glance. However, it seems that the simplicity is the product of clear thinking.

MORE: Best RP2040 Boards

MORE: Best Raspberry Pi Projects

MORE: Raspberry Pi: How to Get Started
