Firmware, Software and Test System

Firmware

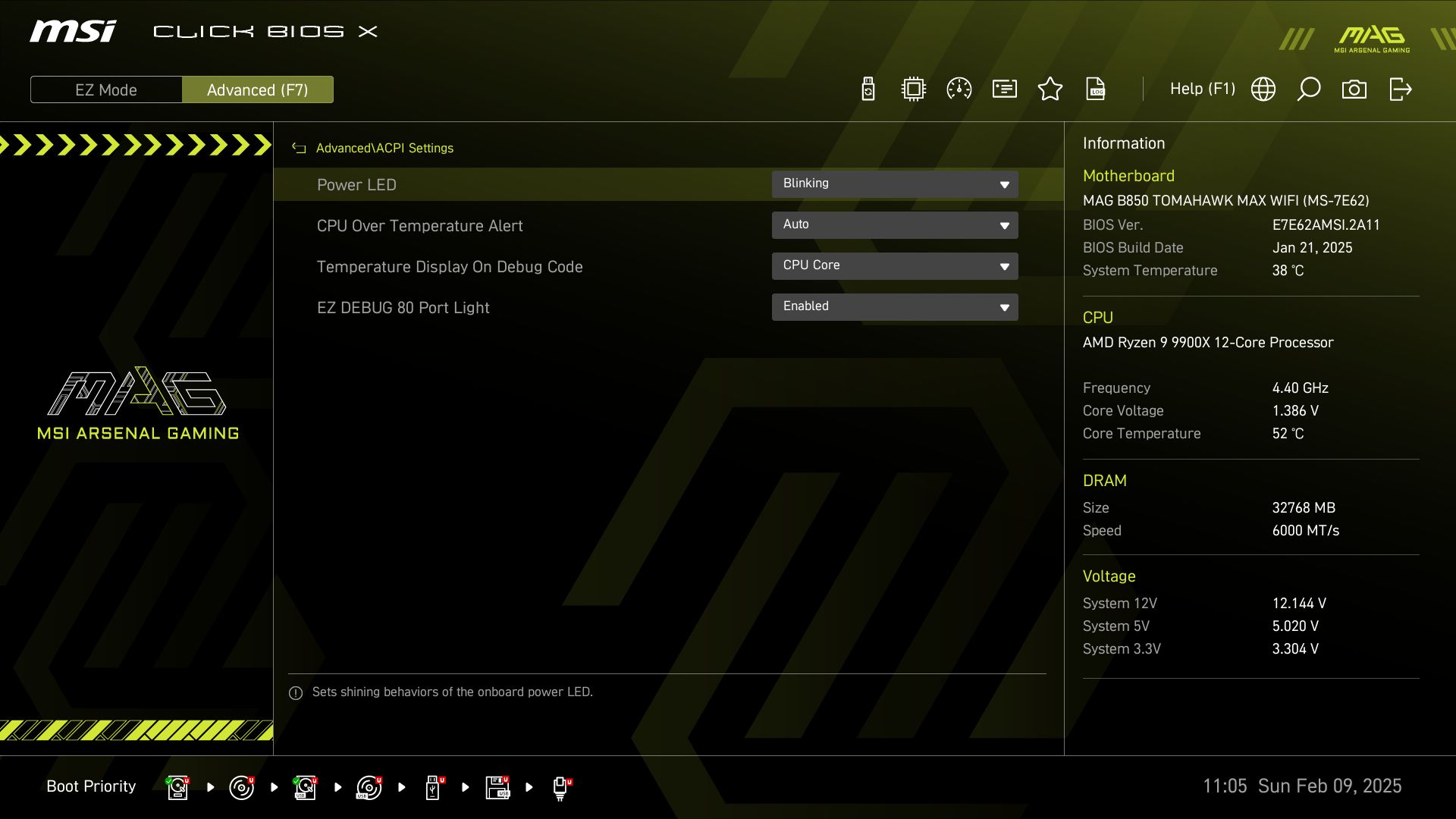

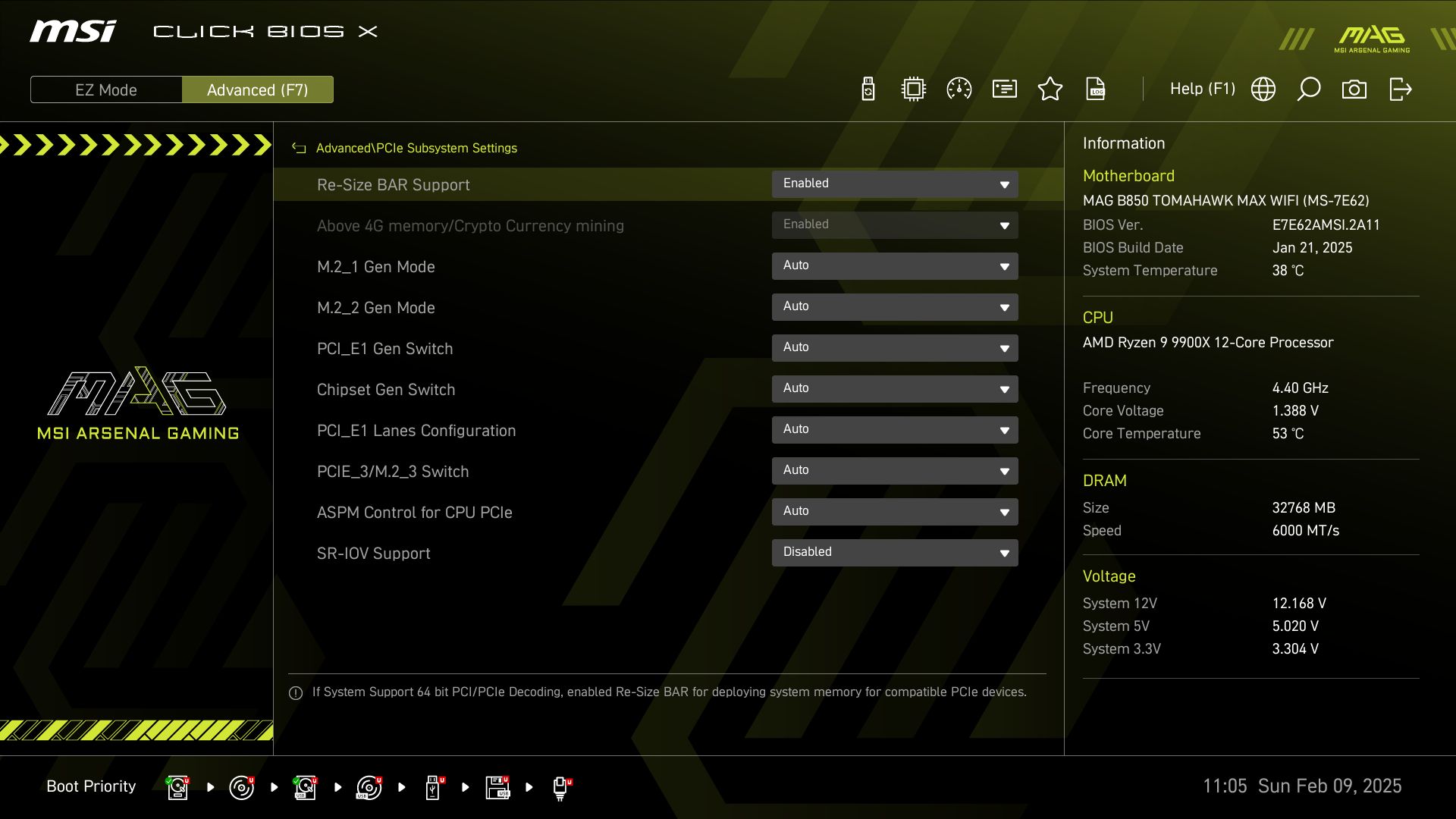

With X870, MSI has updated its BIOS, renaming it “Click X,” and improved the aesthetic and functionality in the process. Thankfully, the Click X BIOS also trickled down to the B850 platform. The company changed the format with the headings on the left side, details in the middle, and system status information on the right. Like most other board partners, it has an informational EZ Mode, allowing limited functionality, such as Game Boost, PBO, and more. Overall, I like the new layout, and maneuvering around is intuitive after a short time, though it does take some getting used to. The dark, fading yellow/green background (that matches the board’s aesthetic) and white labeling are easy to read, and most of you need are at your fingertips.

Image 1 of 23

MSI MAG B850 Tomahawk MAX Wifi — (Image credit: Tom's Hardware)

Software

MSI Center is a single utility that offers a wide range of functionality. From hardware monitoring to RGB control with Mystic Light, the software has many applets and is a one-stop shop for downloading other utilities, including overclocking and fan control. Those looking to use the Gamebar feature, Super Charger, or any other utilities MSI offers will find them all in MSI Center.

Image 1 of 5

Test System / Comparison Products

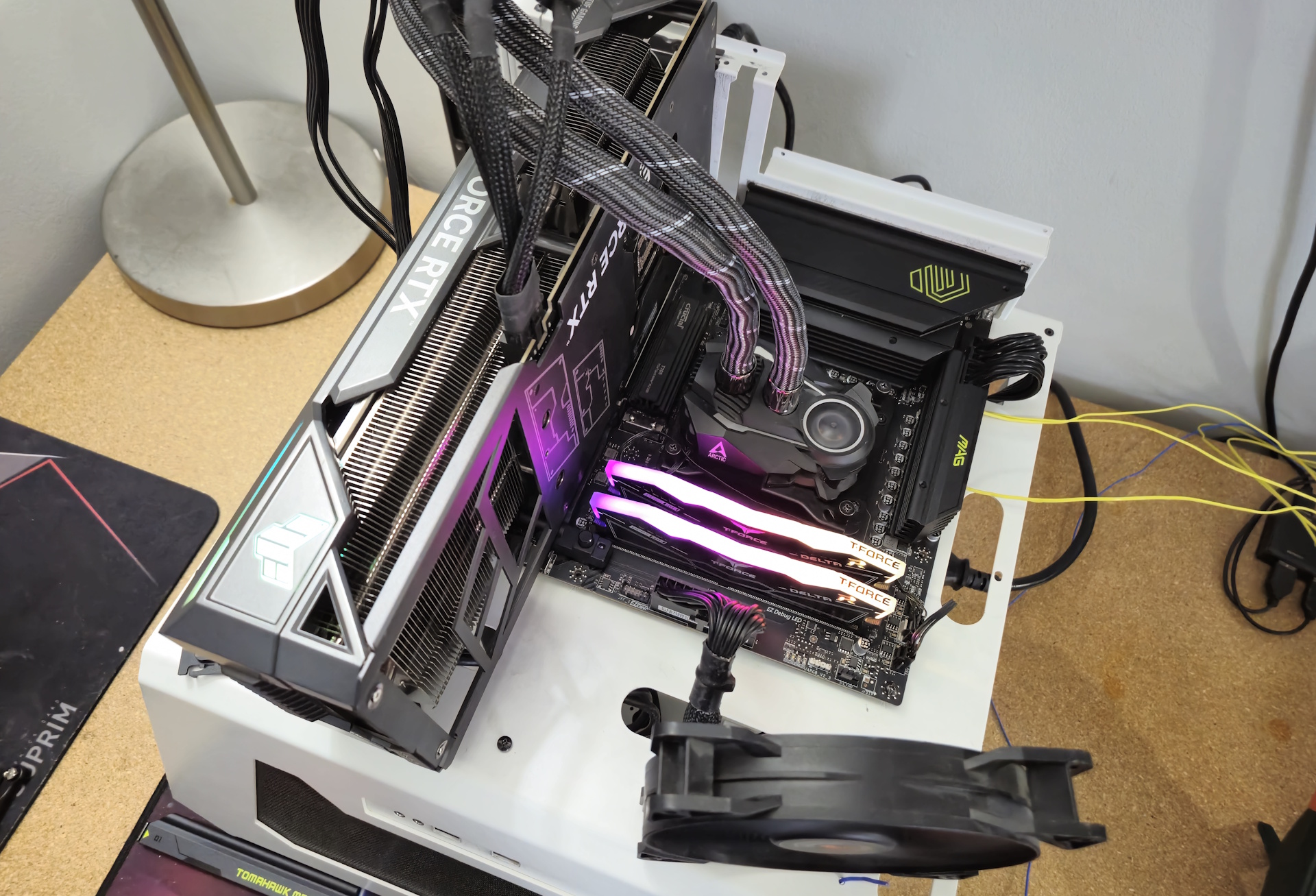

We’ve updated our test system to Windows 11 (23H2) 64-bit OS with all updates applied as of late September 2024 (this includes the Branch Prediction Optimizations for AMD). Hardware-wise, we’ve updated the RAM kits (matching our Intel test system), cooling, storage, and video card. Unless otherwise noted, we use the latest non-beta motherboard BIOS available to the public. Thanks goes out to Asus for providing the RTX 4080 TUF graphics card and Crucial for the 2TB T705 SSDs in our updated testbed. The hardware we used is as follows:

Test System Components

Swipe to scroll horizontally

CPU	AMD Ryzen 9 9900X
Cooling	Arctic Liquid Freezer II 420
Storage	Crucial 2TB T705 M.2 PCIe 5.0 NVMe SSD
RAM	Kingston Fury Beast DDR5-6000 CL36 (KF560C36BBEAK2-32)
RAM	Teamgroup T-Froce Delta DDR5-7200 CL34 (FF3D518G7200HC34ABK)
RAM	Klevv Cras XR5 RGB DDR5-8000 (KD5AGUA80-80R380S)
GPU	Asus TUF RTX 4080 16G
PSU	EVGA Supernova 850W P6
Software	Windows 11 64-bit (23H2 - 22631.4169)
Display Driver	NVIDIA Driver 561.09
Sound	Integrated HD audio
Network	Integrated Networking (GbE to 10 GbE)

Benchmark Settings

Swipe to scroll horizontally

Synthetic Benchmarks and Settings	Row 0 - Cell 1
Procyon	Version 2.8.1352 64
Row 2 - Cell 0	Office 365, Video Editing (Premiere Pro 24.6.1), Photo Editing (Photoshop 25.1.2, Lightroom Classic 13.5.1)
3DMark	Version 2.29.8294.0 64
Row 4 - Cell 0	Speed Way and Steel Nomad (Default)
Cinebench R24	Version 2024.1.0
Row 6 - Cell 0	Open GL Rendering Benchmark - Single and Multi-threaded
Blender	Version 4.2.0
Row 8 - Cell 0	Full benchmark (all three tests)
Application Tests and Settings	Row 9 - Cell 1
LAME MP3	Version SSE2_2019
Row 11 - Cell 0	Mixed 271MB WAV to mp3: Command: -b 160 -- (160Kb/s)
HandBrake CLI	Version: 1.8.2
Row 13 - Cell 0	Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)
Corona 1.4	Version 1.4
Row 15 - Cell 0	Custom benchmark
7-Zip	Version 24.08
Row 17 - Cell 0	Integrated benchmark (Command Line)
Game Tests and Settings	Row 18 - Cell 1
Cyberpunk 2077	Ultra RT Preset - 1920 x 1080, DLSS - Balanced.
F1 2024	Ultra High Preset - 1920 x 1080, 16xAF/TAA, FPS Counter ON, Great Britain (Clear/Dry)

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: All Motherboard Content

Current page: Firmware, Software and Test System

Prev Page Features and Specifications Next Page Benchmarks and Final Analysis
