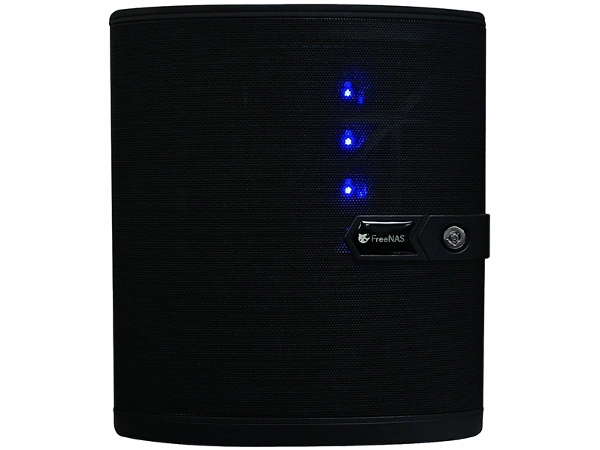

iXsystems FreeNAS Mini NAS Review

iXsystems' FreeNAS Mini incorporates enterprise features, an advanced file system and a flash cache to deliver superior performance in its price range.

Sequential Performance

Image 1 of 2

Image 2 of 2

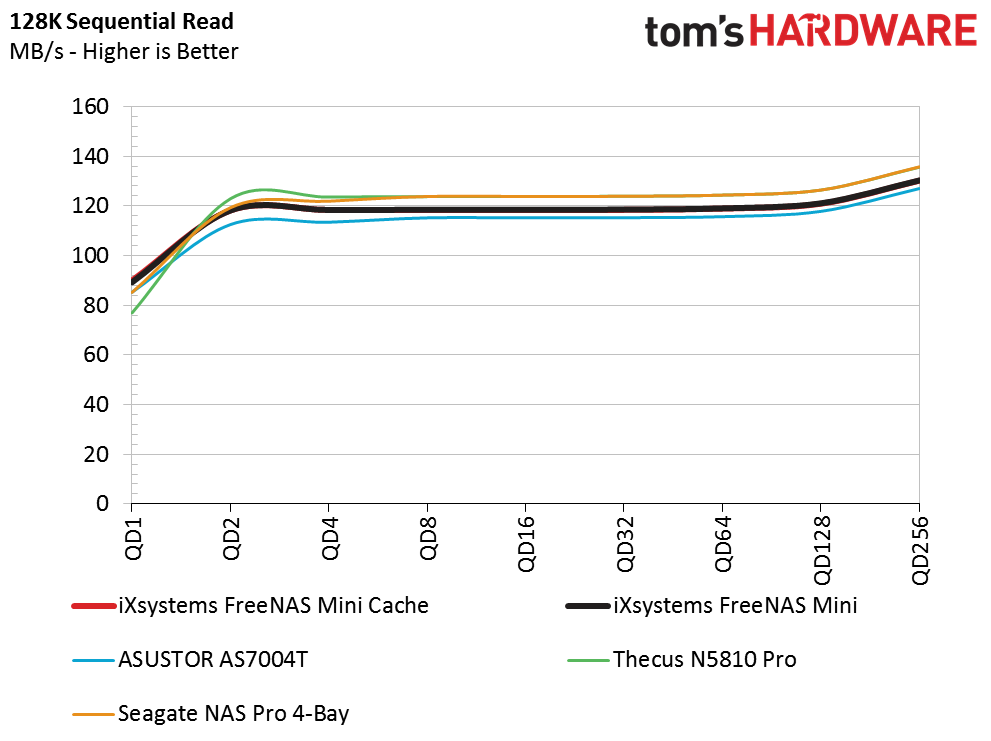

We're using two block sizes to show sequential read and write data: the traditional 128KB test and 1MB blocks.

Our host test system connects to our enterprise network with a Mellanox ConnectX-3 VPI card that transmits and receives data at up to 40Gb. We're using a Supermicro SSE-X3348SR with 48 10GbE ports and four 40GbE ports as our core. The FreeNAS Mini is also connected to the same switch. Multi-client testing runs off the same Supermicro switch as the core, but other switches are incorporated to allow us to run 120 clients. The other switches use the 40GbE backbone and everything runs at full unblocked speed. The ConnectX-3 frame buffers (as well as the switch buffers) do give us slightly inflated 1GbE numbers, but the bottleneck is always the NAS storage device in our testing.

Working through the queue depth range, we see that most of the products under test today manage to deliver solid sequential read performance with little variation between products. This will change when we get into workload testing though.

Image 1 of 2

Image 2 of 2

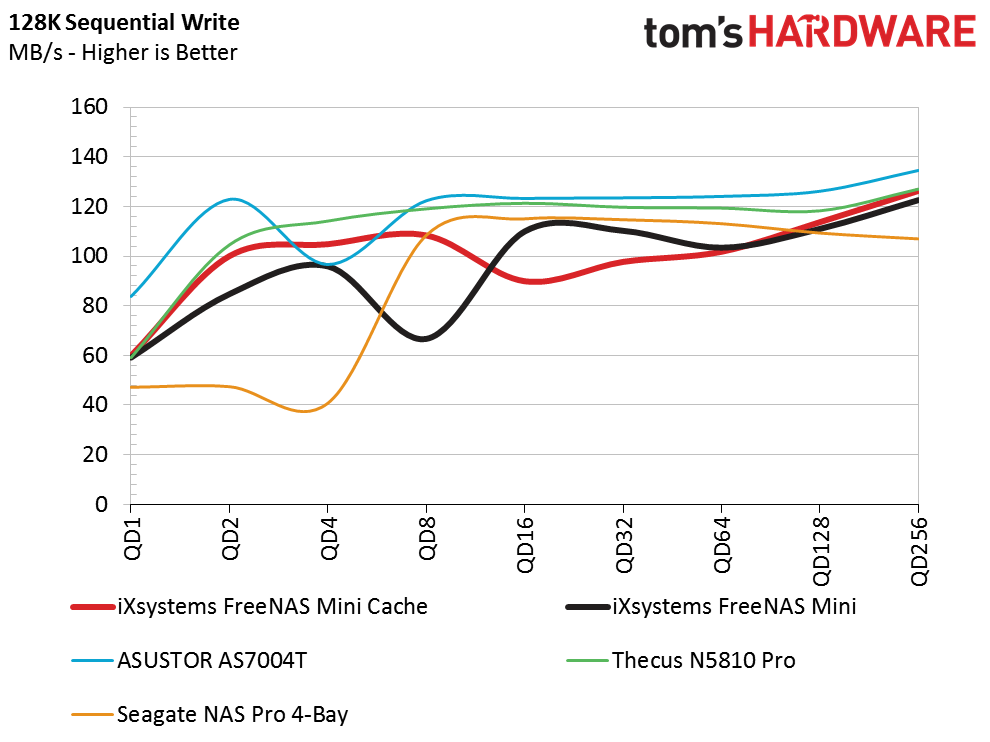

We see a lot more variation in the sequential write test. Surprisingly, the FreeNAS Mini didn't perform the best out of the test group.

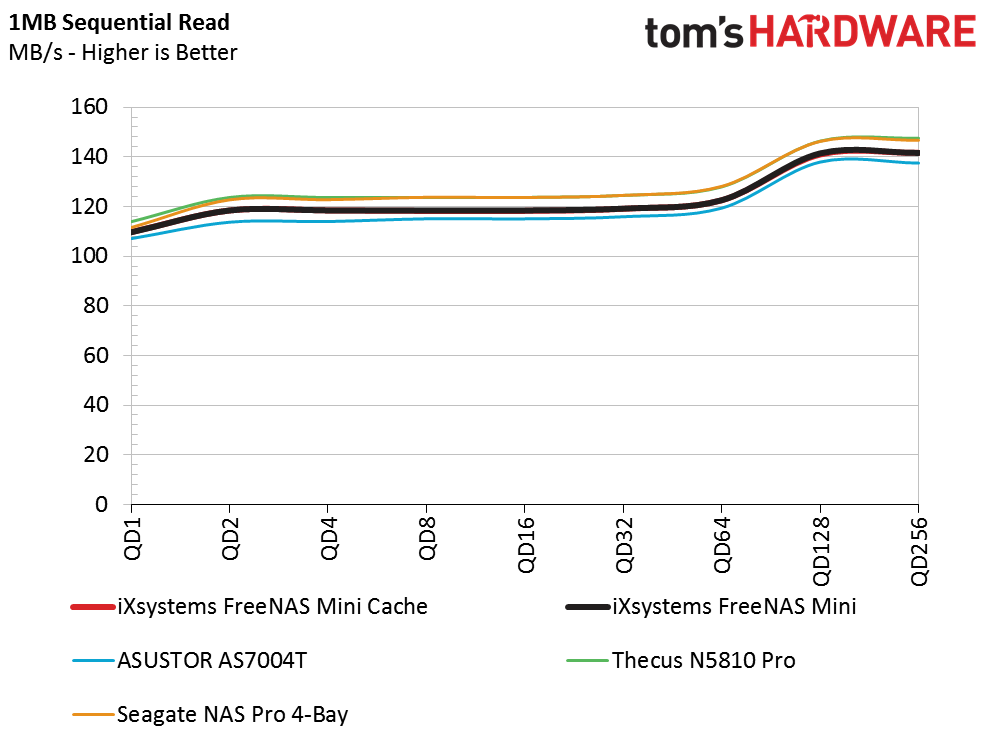

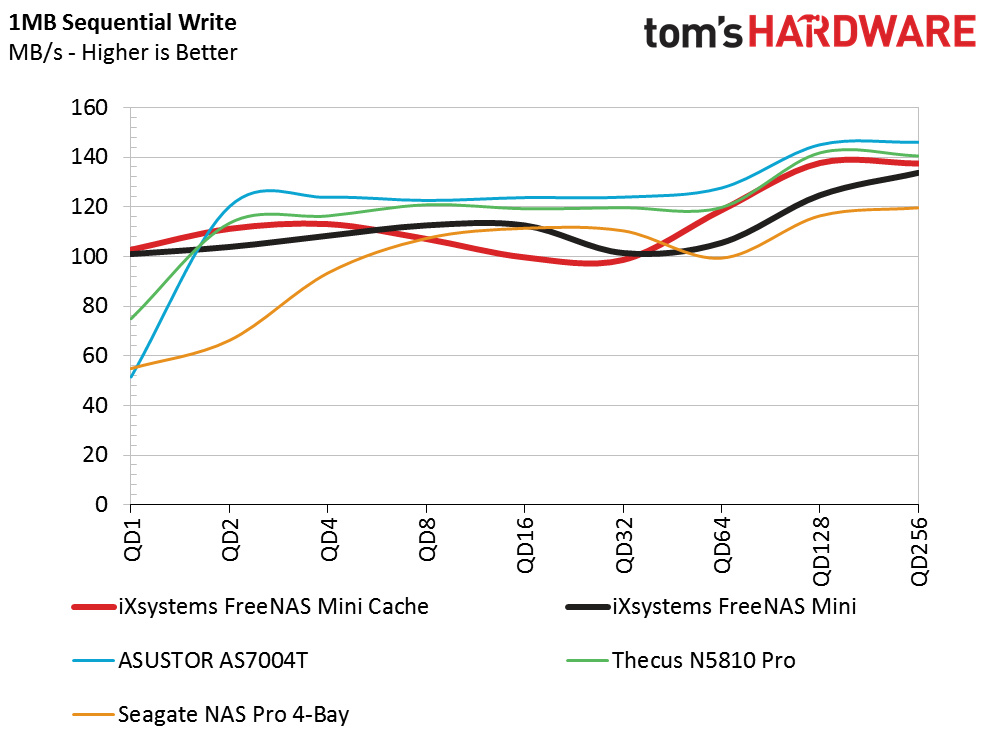

Using larger 1MB blocks to measure performance, the FreeNAS Mini managed to keep performance over 100 MB/s most of the time. It's difficult to ask for more than that, even though it's possible to reach 125 MB/s with gigabit Ethernet.

  • Thanks for this review! I've been looking at this NAS for a while, ECC ram and ZFS where two strong points.
    Reply
  • DarkSable
    $1000 for a diskless system?

    How much is the case itself? That I might be interested in, but...
    Reply
  • hmarafi
    Thank you, a great review, if you can make a review how these devices can handle transcoding (Plex) Please.
    Reply
  • colinstu
    $1000 for a diskless system?

    How much is the case itself? That I might be interested in, but...

    The case is a Supermicro CSE-721TQ-250B which is $160.
    A great motherboard would be the X10SDV-F which is $850 (dual GBe Intel nics, Xeon-D 8 core, check Anandtech they did a great review on it). Stronger CPU than the one in this review.

    Then for $1017 you can get the X10SDV-TLN4F which includes built in 2x Intel 10GBe as well as 2x Intel GBe.
    or for $?? (probably more) the X10SDV-8C-TLN4F which is the same as above but has Hyperthreading (16 threads).
    Reply
  • Lulzon
    Can someone explain what the market for these are? The form factor and limitations in expansion make it feel consumer level, but the power packed inside and price tag feel more enterprise for small teams or high workloads.
    Reply
  • ammaross
    utilizes the DRAM as a cache for in-flight data, you'll want to stick with ECC memory to protect that information from corruption.
    Just by way of correction, ZFS has memory page checksums in addition to disk block checksums so even a memory bit corruption on non-ECC RAM can be healed on-the-fly.
    Reply
  • James Mason
    Can someone explain what the market for these are? The form factor and limitations in expansion make it feel consumer level, but the power packed inside and price tag feel more enterprise for small teams or high workloads.
    Smaller businesses. I'm thinking law firms and architectural businesses, that just have a ton of documents and pictures to store. Which would fit right in at between 4-24tbs.

    The price still seems kinda high, I'd like to see "real world use" as opposed to benchmarks but that's so difficult to actually do.
    Reply
  • BulkZerker
    All that processor for a nas... Asrock's avaton board still seems like a better choice IMO. Than again, I'm more looking at max storage vs max speed., esp considering how this nas can and will be set up.
    Reply
  • photonboy
    Price is very reasonable for small business assuming someone with enough tech knowledge to setup properly.

    If the price seems high then it's not for you, but as said this is not a consumer product for home users. You want a basic, easy solution then investigate some of the WDMYCLOUD options instead. I bought a 4TB model and added a 4TB WD Elements as backup but that's for video storage and not as reliable nor as fast as a business class solution.

    $2000 with drives for business is really not bad considering the cost to run a business, loss of data costs, and the fact you can probably write of some as a business expense.
    Reply
  • Mike Bethany
    FreeNAS with ZFS is a fantastic combination but the FreeNAS Mini needs one more drive for the RAID.

    On a side note, some guy vehemently argued against using ECC memory with ZFS. He admitted it was really stupid to *not* using ECC memory but he just couldn't admit he was wrong so he kept doubling down on dumb. His major argument? I was a few dollars off on the price of ECC memory.

    You have to love the Internet.
    Reply
