Kailh Silent Box Red Mechanical Keyboard Switches Review: Smooth and Light

Kailh Silent Box Reds are quiet linear switches that actuate easily.

kailh silent box red
(Image: © Tom's Hardware)

Our Verdict

Kailh’s Silent Box Red switches are some of the lightest switches you can find for your keyboard. That makes for fun gaming and less exhaustion, but accidental inputs too.

For

  • Very little force required to actuate
  • Quiet and soft
  • Linear design’s good for gaming
  • Dust and water resistant

Against

  • Easy to press the same key twice
  • Light actuation forces can cause accidental keypresses
  • No tactility for heavy typists

Whether you’re a speedy gamer, lightweight typist or heavy-handed with a habit of bottoming out, there’s a mechanical keyboard switch these days for everyone. Selecting or making the best gaming keyboard or your next productivity workhorse is like picking the right dance partner. The keys have to be able to keep with your fingers, without overpowering or boring them.

The newest switches from Kailh are for those who don’t want the clicky showmanship of something like a Cherry MX Blue or even the tactility of Cherry MX Browns. Instead, Kailh Silent Box Red mechanical switches will win over those who like their keys to stay mum. And with only 35 grams of force to actuate and 3.6mm of total travel, these are some of the lightest actualting mechanical switches you can get.


Kailh Silent Box Red Cherry MX Silent Red Gateron ClearKailh Box Red Cherry MX Red
Type Linear, silent Linear, silent LinearLinear Linear
Total Travel 3.6mm ± 0.4mm 3.7mm ± 0.4mm 4.0mm 3.6mm ± 0.3mm4.0mm
Actuation Point 1.8mm ± 0.4mm 1.9mm ± 0.6mm 2.2mm1.8 ± 0.3mm 2.0mm
Actuation Force 35gf ±10gf45gf35gf45gf ± 10gf45gf
Lifespan (in presses)80,000,000Over 50,000,00050,000,00050,000,000Over 100,000,000
RatingIP52 IP40 N/A IP65IP40

Design

Image 1 of 3

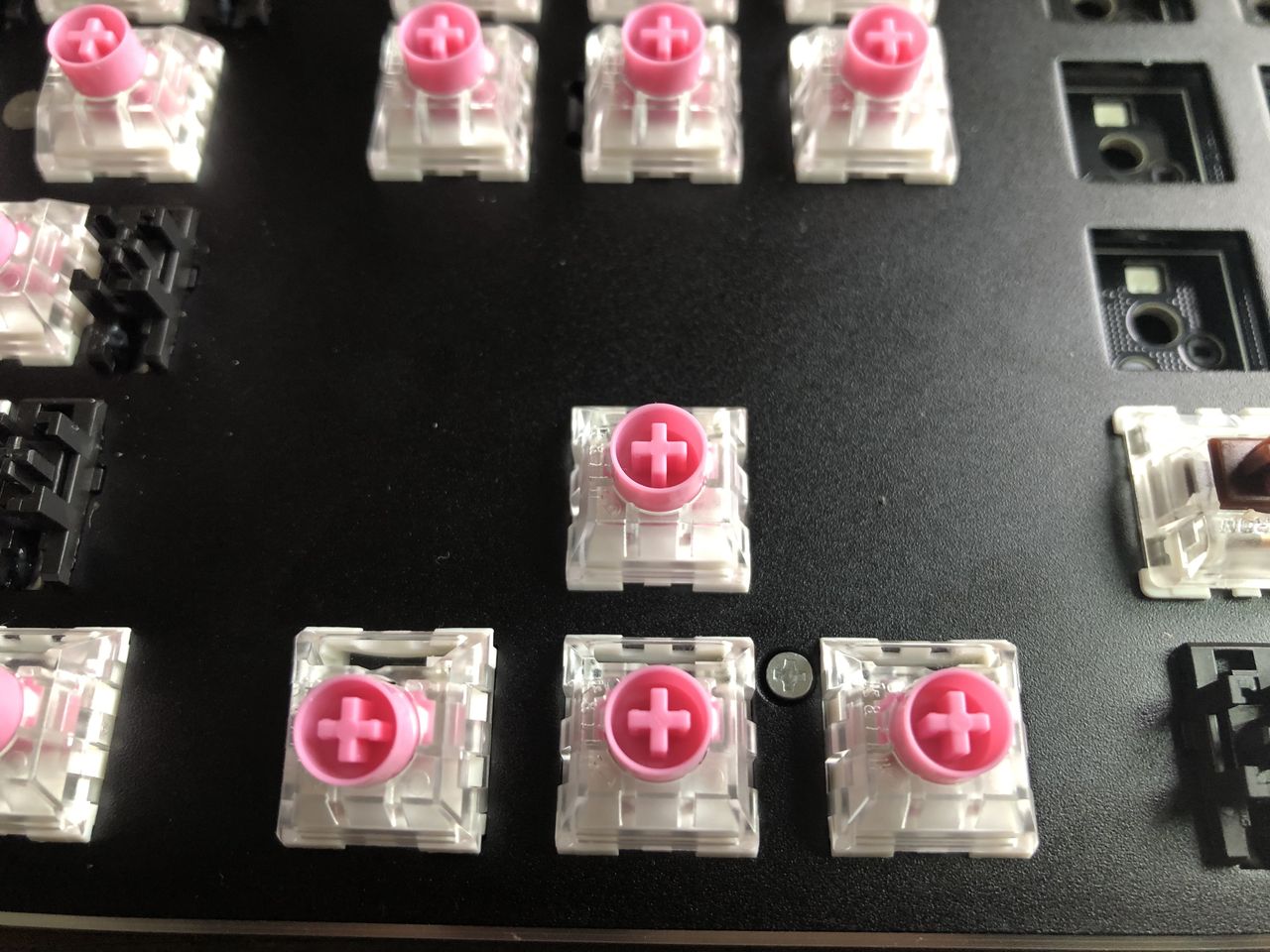

Kailh Silent Box Red Mechanical Keyboard Switches

(Image credit: Tom's Hardware)
Image 2 of 3

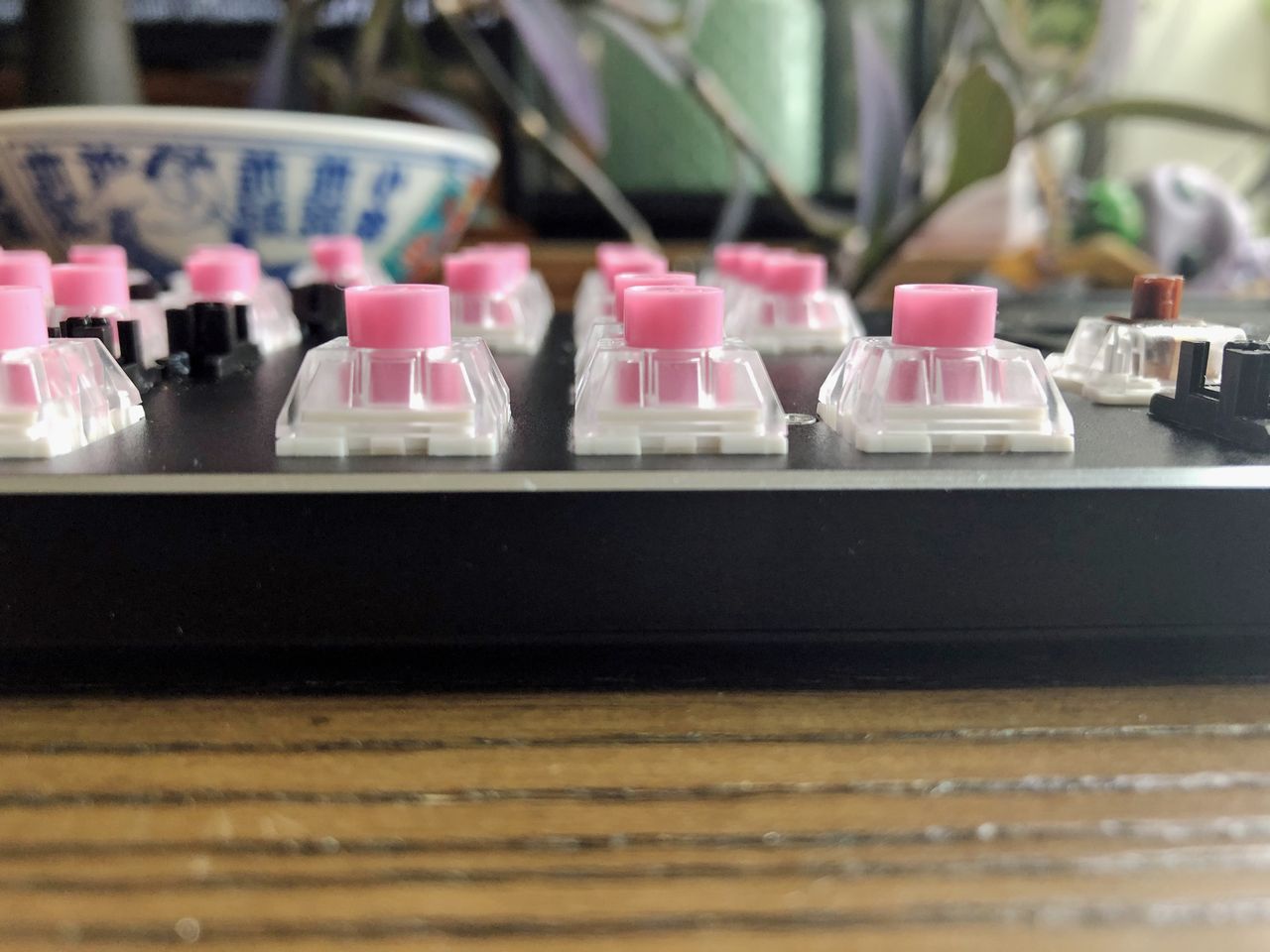

Kailh Silent Box Red Mechanical Keyboard Switches

(Image credit: Tom's Hardware)
Image 3 of 3

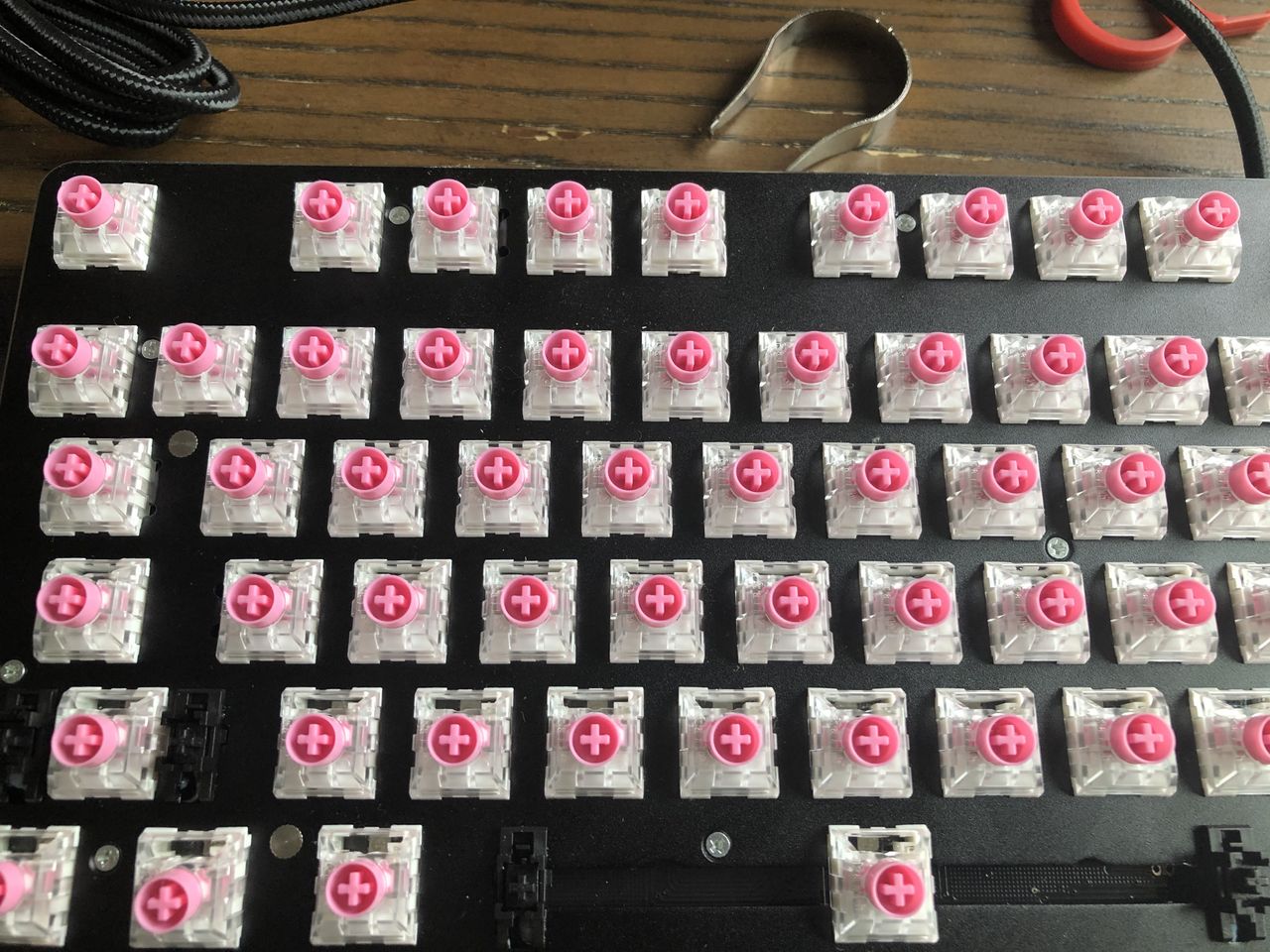

Kailh Silent Box Red Mechanical Keyboard Switches

(Image credit: Tom's Hardware)

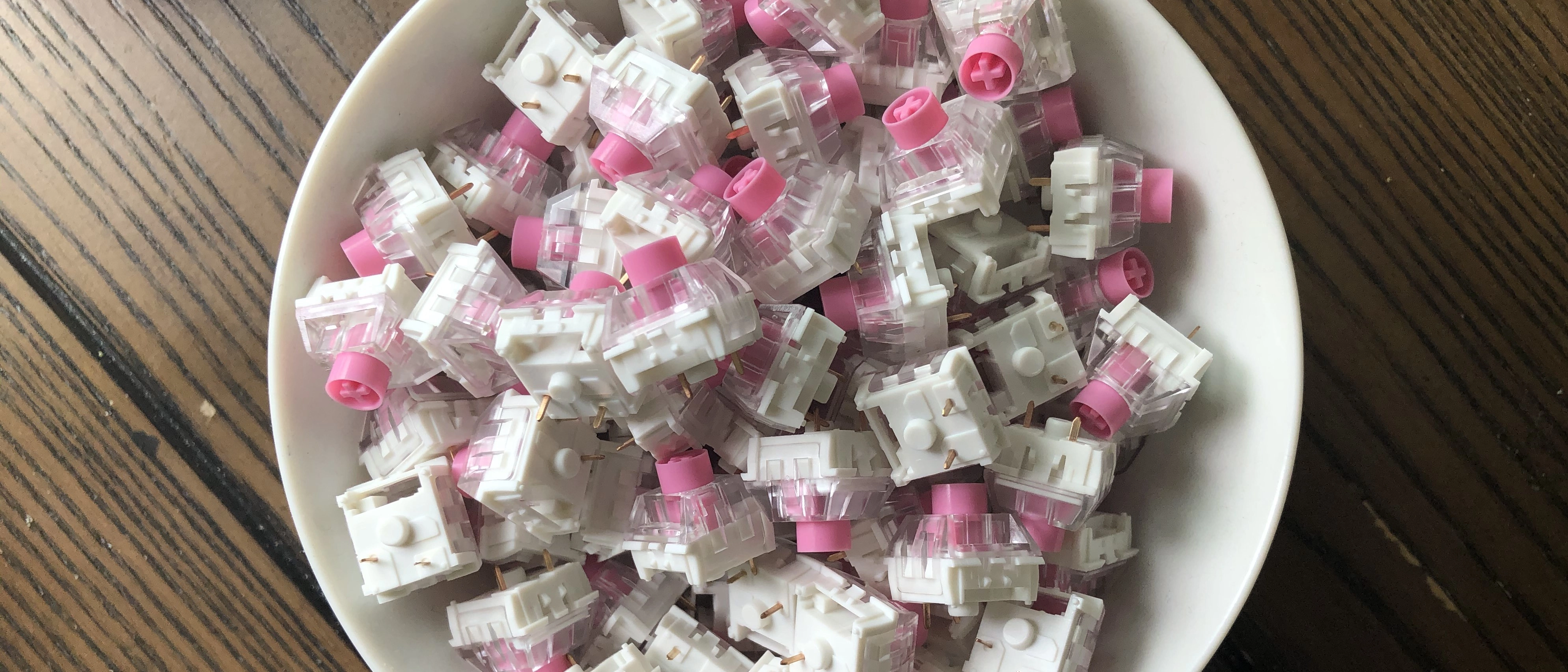

Let’s talk about the pink elephant in the room. These switches’ stems aren’t red, as the name implies. More honestly, they’re a bright pink the shade of a cartoon pig. Like many mechanical keyboard switches, they feature a plus-shaped crosstem, allowing them to fit standard keycaps that would fit on traditional Cherry MX ones. I used the Kailh Silent Box Reds with ABS double-shot injection keycaps from Glorious’ Modular keyboard for most of my testing, for example, and I also fit Razer PBT keycaps and HyperX Pudding PBT double-shot keycaps on them.

Note that Kailh’s Box switches don’t get their name from their stem shape. Instead, the ‘box’ moniker refers to the shape of the housing’s structure, which is box-like for fighting off dust and moisture. Interestingly, retailer Kono believes Kailh’s box design in general makes them more durable than Cherry MX’s bare crosstem design. The retailer claims they last “25% longer than regular MX variants during stress testing” and also are less wobbly. If you’ve ever noticed wobbly keys with any of Cherry’s Red switches, Silent Box Reds are worth considering.

In my roughly two months using a Glorious Modular keyboard with Kailh Silent Box Reds on and off, I spotted a shameful amount of dust and hair around the keycaps. Upon removing the keycaps, I saw that problem carried over to the spaces between the switches too. However, I couldn’t spot any dust in the switches or in the circle stems. And, of course, the keyboard has been functioning properly.

Kailh’s Silent Box Reds are IP52-certified. That promises that dust won’t enter in notable enough amounts to interfere with the product working. According to the DSMT, which makes the certification, this rating also assures you that “vertically dripping water shall have no harmful effect when the enclosure is tilted at an angle up to 15° from its normal position.” That’s quite specific but at least tells you that these are at least somewhat waterproof. That’s more than Cherry MX Silent Reds offer. The switches’ IP40 certification only promises that objects over 1mm won’t interfere, and doesn’t cover liquids at all.

The Silent Box Reds fight off dirt with their slider design and sealed composite gold alloy contacts. Keep in mind that Kailh says this certification applies best when “applied to products that meet the corresponding protection level.”

Kailh designed the switches to be both easy to press and quiet. According to the vendor, the switches require 35g of force to actuate, and noise is kept to under 30dB. Noise reduction purportedly occurs in each switch’s glass fiber-reinforced base.

In terms of materials, the switches are also working with copper alloy static and movable plates, a POM slide and a POM/TPE stem, a PA66 base and cover, a stainless steel spring and a buffering rubber mat.

With a transparent casing, the switch is also RGB-ready. Kailh recommends pairing the switches with a keyboard using SMD LEDs directly mounted onto the circuit board. They certainly had no problem illuminating my Glorious Modular keyboard. As far as I could see, the RGB was just as bright compared to the keys using Gateron Brown switches.

Typing Experience

These Kailhs are equipped to fight fatigue. Since they require a very small amount of force to actuate, your fingers should be able to press each key with less work than when typing on Cherry MX Silent Reds or even regular Cherry MX Reds

With a mere 35g of force (give or take 10 grams) needed to reach their 1.8mm actuation point, Kailh’s pink switches feel much different than Cherry MX Reds, which need 10 more grams of force. And if you’re being detailed, Cherry MX Silent Reds actuate further, at 1.9mm. Like our review subject, Gateron Clear switches also require 35g, but actuate at a further 2.2mm. Long story short: These may very well be the lightest mechanical switches you’ve ever used.

Image 1 of 2

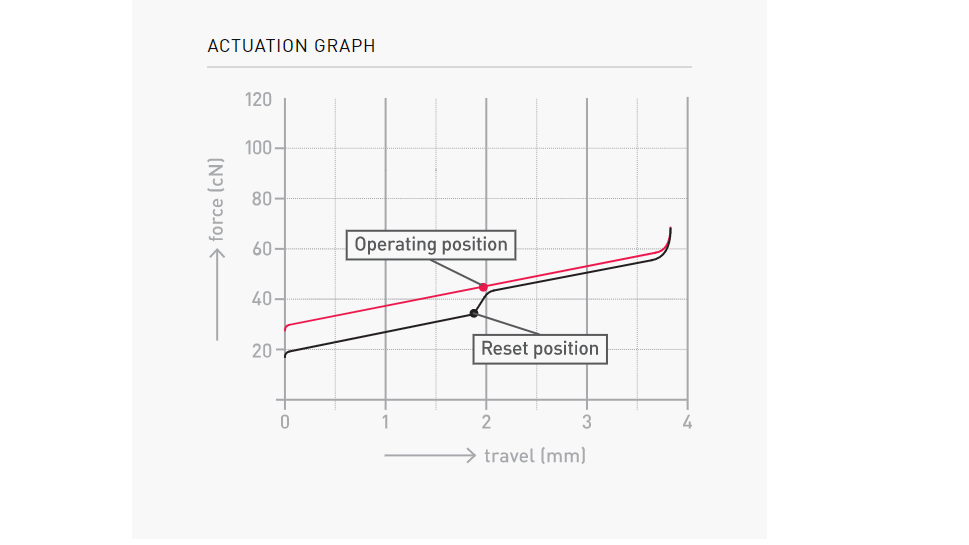

Kailh Silent Box Red Mechanical Keyboard Switches

(Image credit: Kailh)
Image 2 of 2

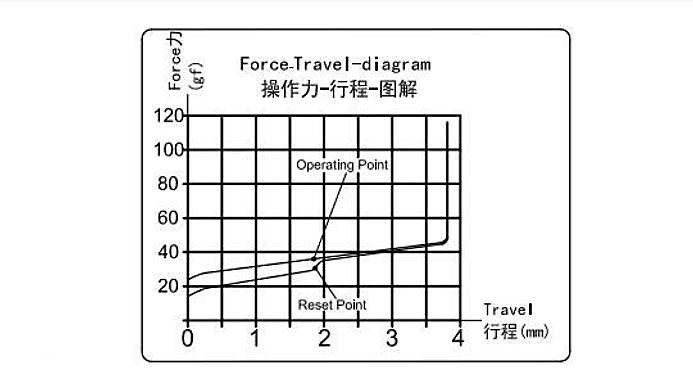

Kailh Silent Box Red Mechanical Keyboard Switches

(Image credit: Cherry)

This low actuation force makes for breezy typing, but also easier accidental presses. During long typing sessions, like when writing an article, I had a recurring issue with pressing the same key twice. I also noticed it when sending quick messages to my colleagues over Slack. The switches actuate so effortlessly that it’s easy to register an additional keypress before the switch has come back up to its original position. Ultimately, the switches made heavy typing sessions a little more arduous.

I might’ve suffered from this more because I’m a heavy typist (I’m constantly bottoming out). So if you’re a daintier typer, your experience may be smoother. To be sure, I’d recommend typists pair these switches with quality keycaps that aid in accuracy, including those that provide cozy grooves for your fingertips or PBT keycaps, which will provide more texture / resistance than your typical ABS plastic. A keyboard base with well-distanced keys may also help.

As is the case with any linear switch, there’s no bump to feel as you go down the Silent Box Red’s 3.6mm of travel. That 3.6mm wasn’t far enough from Cherry MX Silent Red’s 3.7mm for me to notice an obvious difference in a side-by-side comparison in bottoming out. Thankfully, these switches didn’t make me feel like I was typing in sand, like I did trying out Cherry MX Low Profile Reds (3.2mm total travel actuation at 1.2mm with 45g). Instead, it almost felt like I was typing on clouds -- soft, light and easy with no resistance or snappiness.

On the 10fastfingers.com typing test, I averaged 117 words per minute (wpm) and occasionally surpassed 120 wpm with Kailh’s Silent Box Reds. That’s good speed, considering my usual 110 wpm average. However, my average accuracy dropped from my usual 98% to 94.58%.

If anyone’s ever asked you to stop typing on your mechanical keyboard during a conference call or in real life, Silent Box Reds are a solution. According to Kailh, the average noise level is 28.67dB, with sound maxing out at 32.93dB and reaching a minimum of 25.41dB. Kailh got these results by testing the switches with an unspecified keycap and a microphone 5.9 inches (150mm) away and 5.3 inches (135mm) tall.

Cherry MX Silent Reds without a keycap or keyboard housing measure 42dB, Cherry told me, so that makes Kailh's rivals are already quieter. On the Corsair Strafe with plastic, textured keycaps, sound reached 44.9dB with a Cherry MX Silent Red and 54.8dB with a Cherry MX Reds, according to Cherry's testing.

Gaming Experience

(Image credit: Tom's Hardware)

Due to their linear travel, Kailh Silent Box Reds already have an advantage for gaming. Without a bump to pass through before actuating or bottoming out, linear switches are good for pressing switches repeatedly and rapidly.

But compared to your more common Cherry MX Reds and similar linear switches, Silent Box Reds are much lighter, meaning it’s ever easier to hit them repeatedly and lightly. In a very informal test, I was able to hit a key with a Kailh Silent Box Red on average 137.5 times in 20 seconds compared to an average of 131 times with Cherry MX Silent Reds.

In various games, I found that long presses, like when holding down W and Shift to sprint in Borderlands 3, were easy on my fingers. I didn’t have to press hard for the inputs to register long-term, and bottoming out didn't take much exertion either. The switches were light enough to navigate quick movements in intense battles in Overwatch and Borderlands 3 where there was limited time for thinking.

These switches are much more conducive to chatting with teammates than clicky alternatives. Again, Kailh pegs the switch’s average noise level at 28.67dB with a maximum of 32.93dB. In a side-by-side comparison with Cherry MX Silent Reds, both made very soft noises when bottoming out. The Cherry SIlent Reds have a very slightly higher pitch when coming back up, though this wasn’t always noticeable. It was most obvious when bottoming out or pressing the keys hard. With each switch inches away from a different ear, I could hear that Cherry MX Silent Reds have a mechanical sound that the Kailhs lack. But from a typical distance from the keyboard, it was pretty hard to tell them apart by sound.

Price and Availability

If you’re swapping out switches in a mechanical keyboard or building a new one, Kailh recommends buying the switches at AliExpress, where they’re selling for $9.50 for 10 switches or $59 for 70 switches.

We’ve also found these switches for $6 for 10 at Kono

For comparison, Cherry MX Silent Reds (with RGB) are $8.80 for 5, $47 for 75 and $62 for 104 at AliExpress. We’ve seen Gateron Clears go for $8.50 for 10 and $35 for 90. That makes Kailh Silent Box Reds on the pricier side.

There’s only one keyboard with Kailh Silent Box Red switches out-of-the-box. The Skyloong GK64 is $115.

Bottom Line

(Image credit: Tom's Hardware)

The Kailh Silent Box Red switches bring another quiet option to the clacky world of mechanical keyboards. Their sound profile is soft and silent and rivals Cherry’s MX Red Silent switches. Plus, they’re built for durability and are easy to actuate repeatedly and quickly, which comes in handy for gaming.

However, these are some of the lightest switches out  there. Heavy typists can expect accidental keypresses and the occasional key bounce. For the Silent Box Reds, you’ll want to use comfortable keycaps that help you avoid double presses.

You may differ, but I also find the lack of a tactile bump less enjoyable and somewhat tiring for long typing sessions. If your fingers agree, Kailh Silent Box Brown tactile switches are another option.

Those who want a quieter keyboard with a soft and light feel will find a perfect match in Kailh’s Silent Box Reds.
