Samsung Intros First 3D V-NAND-based SSD, Up to 960GB

By - Source: Tom's Hardware US | B 11 comments
Tags :

That didn't take long.

Earlier this month, Samsung announced that it was now mass producing the industry's first 3D Vertical NAND (V-NAND) flash memory, offering a 128 gigabit (Gb) density in a single chip. Speaking during a keynote address at the Flash Memory Summit 2013, Samsung VP E.S. Jung compared the 3D V-NAND and its resulting "disruptive innovation" to "a Digital Big Bang in the global IT industry," and introduced the first SSD based on its 3D V-NAND technology.


V-NAND breaks away from the floating gate-based planar structure that has been used in conventional memory over the past 40 years by utilizing the Samsung's proprietary vertical cell structure based on 3D Charge Trap Flash (CTF) technology, and vertical interconnect process technology to link the 3D cell array. By applying both of these technologies, it's able to provide over twice the scaling of 20nm-class planar NAND flash.

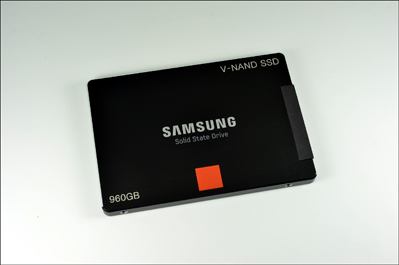

Aimed at enterprise servers and data centers, the Samsung V-NAND SSD comes in 960 GB and 480 GB capacities. The former offers a 20 percent increase in sequential and random write speeds via 64 dies of MLC 3D V-NAND flash each offering 128 Gb of storage with a 6 Gb/s SATA IC. The V-NAND also offers 35,000 program erase cycles.

Display all 11 comments.
This thread is closed for comments
  • 5 Hide
    alchemy69 , August 19, 2013 3:49 AM
    I wasn't expecting these to hit the market for another year or so.
  • 6 Hide
    CaedenV , August 19, 2013 4:30 AM
    wow, they really mean business! I wan't expecting these to come out until next calendar year at the earliest.

    I guess the real question is when we are going to see consumer models, and when we are going to see these on next gen controllers that can do 2-4TB of storage... those may take a little while.
  • -3 Hide
    IndignantSkeptic , August 19, 2013 6:04 AM
    I thought Samsung's obsoleting technology has just been preemptively obsoleted by this:,23810.html
  • -2 Hide
    aoneone , August 19, 2013 7:21 AM
    Can anyone please explain in a nutshell how this is better than the already 512 Gb SSD's out there? I'm assuming faster read/write cycles is that it? Thanks in advance!
  • 1 Hide
    CrArC , August 19, 2013 7:34 AM
    Talk about fast time to market. I can only assume they were developing this drive alongside the NAND and it was already validated and ready for production. If not, that's insane, and awesome.

    Want. When are the consumer models coming out? Can we assume "fairly flippin' quickly" based on how quickly this SSD hit the market after they announced the new NAND?
  • 2 Hide
    jonny_76 , August 19, 2013 10:16 AM
    Sounds fantastic all we know is 35k W/E cycles and density.

    What are the detailed specs ?
    -IOPS ?
    -warranty ?
    -mass prod availability
  • 1 Hide
    dalethepcman , August 19, 2013 3:15 PM
    Can anyone please explain in a nutshell how this is better than the already 512 Gb SSD's out there? I'm assuming faster read/write cycles is that it? Thanks in advance!

    The benefit of this is increased density, more data in the same physical space. This should allow for slightly higher profits for Samsung and slightly lower cost's to the consumer once yields are of the appropriate proportions . Basically they can now drop 960(1024)GB into the space they used to put 480(512)GB using the same amount of silicon at the same fabrication scale(20nm).

    Usually higher data transfer rates go hand in hand with increased data density, but SSD's already meet or exceed SATA3 specifications, so im not sure how much more performance you can expect until a faster bus becomes implemented.
  • 0 Hide
    Chris Bailey , August 20, 2013 1:07 PM
    Now if SSD prices would ever drop to the prices of harddrives
  • 0 Hide
    simmiy , September 18, 2013 1:17 PM
    What is the cost of this. If crossbar is as good as they say then Samsung will just buy it out.
  • 0 Hide
    stevejnb , September 18, 2013 1:47 PM
    Now if SSD prices would ever drop to the prices of harddrives

    "ever drop"? Yeah, because it has been so long... I've seen SSD's as common consumer items for *maybe* a year and a half now. I've been buying and using hard drives for about twenty years. Hard drives are an old, established technology with decades of R&D and production cycles that went into trying to make them big and cheap. SSD's have a tiny fraction of that kind of time and resources put into them. I'm sure they'll drop in price, but they are essentially a very young technology as a primary commercial drive.
  • 0 Hide
    rwinches , September 30, 2013 9:29 AM
    What they have done is create solid state core memory, quite brilliant.

    Article with a good slide and a little more about both V_nand RRAM

    I hope both techs take off HP is said to be in the RRAM race too.
