In Win Griffin (With Power Man PSU)
Best known for its well-made office PC cases, In Win has spent the last few years trying to win over younger buyers with an additional line of stylized cases. In Win is also a power supply provider, its Power Man units widely available in several of its other cases. Yet, until we find a seller providing today’s exact combination, we’re left considering the separate prices of its $40 Griffin case and $42 Power Man IP-S400DQ3-2 power supply. The combined $82 price is similar to those of its older factory-shipped combos (such as its C589T.D400TBL8P).
The first two things that strike us about the Griffin’s design are its 220 mm side-panel fan and its angular 5.25” drive bay covers. Hidden in the recess of the front panel is a 3.5” drive bay.

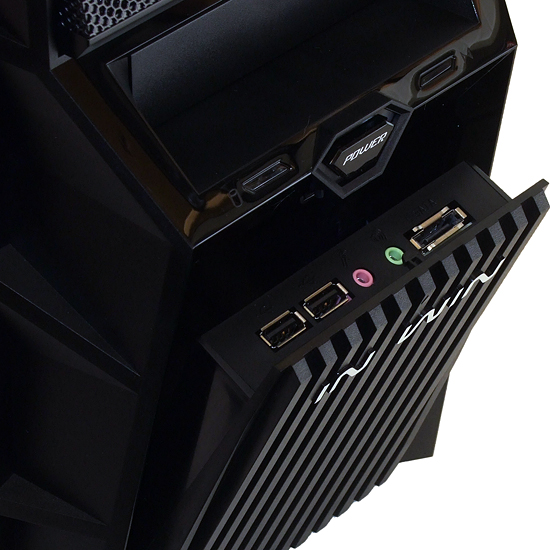

The biggest functional difference between the Griffin and In Win’s more traditional designs might be its hide-away front-panel ports. Adding eSATA allows In Win to further set the Griffin apart from similarly-priced competitors.
A look around back reveals even more differences between the Griffin and In Win’s more traditional designs. First, the 120 mm fan is missing, replaced with a 92 mm unit to make the case narrower. Second, the inset port panel is missing, replaced by a cheaper flush design. Also notice the plastic tabs, which pop out to release the side panels.
A very basic installation kit includes a brief user’s manual, a small pack of screws and standoffs, and a push-on PC speaker.
- 1 / 4
- Next
-
Latest Cases News
- 05/04 – 54 Million Enthusiast and Performance PC Gamers Globally
- 04/07 – Lian Li Announces PC-V700, Its Smallest ATX Case
- 04/06 – Corsair Adds Headset, PC Case to Vengeance Gaming Line
- 03/31 – Awesome Battlefield 3 Case Mod Also Keeps Your Soda Cool
- 03/26 – Tom's Hardware Benchmark Charts and Database Updated
Latest Cases reviews
- 05/25 – Five Gaming Cases Between $80 And $120, Reviewed
- 05/21 – In Pictures: Five Mainstream Gaming Cases, Previewed
- 04/20 – Defender 410, A Sweet Star Wars: The Old Republic Case Mod
- 03/14 – Four ATX Cases For High-Capacity Water Cooling, Reviewed
- 03/08 – In Pictures: Four ATX Cases Perfect For High-Capacity Water...
-
Latest Cooler Master News
- Cooler Master Shows Off Heatsink Computer
- Cooler Master Reveals the Silent Pro Hybrid Series PSUs
- Cooler Master Reveals Hyper 212 EVO & TX3 EVO Coolers
- Cooler Master's Heatsink With Honeycomb Fins
- Liquid-Cooled Tron Lightcycle Mod Looks Amazing
-
Latest Cooler Master reviews
- System Builder Marathon Bonus: Newegg Customer Choice PC
- System Builder Marathon, March 2012: System Value Compared
- System Builder Marathon, March 2012: $1250 Enthusiast PC
- Four ATX Cases For High-Capacity Water Cooling, Reviewed
- In Pictures: Four ATX Cases Perfect For High-Capacity Water...
Good review
yeah good review
In "Measured Test Results", first chart, temperature over ambient in degrees Celsius... even at freezing temperature of 0C, CPU would be at 67+ C.... and on a hot day of 30C your CPU would be approaching boiling... i think its a little too toasty so there gotta be a mistake in there somewhere; wrong unit or math
Good article, i really enjoy these articles about squeezing the biggest bang for the buck out of builds. We'd all like to be able to drop big $$$$ on our systems, but sometimes reality (or the wife) puts a pretty low limit on how much we can spend.
Just to confirm, are you guys using a dual channel RAM for a 920 build?
I would not only prefer not to have one if not necessary due to noise, but I would also prefer to purchase one of my choosing so this is not necessarily a bad thing.
I think in cases more people are looking at aesthetics and ruggedness over temps and acoustics as nearly all cases have acceptable values. When it comes to this NZXT and Rosewill have really seperated themselves from other cases under $50.
I agree, but as an enthusiast I'm really loving that Cooler Master case. I tend to like front to back air flow just because it helps direct noise away from me and I can cool my hard drives first and my GPU last since that seems to be the order of coolest to hottest operating temps.
I suspect with a bit higher power draw Cooler Master's PSU may perform a bit more admirably on efficiency. The only way to really know is to test the PSUs against each other and measure power draw of the PSUs themselves (until they power off preferably!) under load/idle. If you're going to make a statement about energy efficiency at all then it is my belief that you should test them.
In "Measured Test Results", first chart, temperature over ambient in degrees Celsius... even at freezing temperature of 0C, CPU would be at 67+ C.... i think its a little too toasty so there gotta be a mistake in there somewhere; wrong unit or math
No, it's an overclocked Core i7 at eight threads of Prime95, if you find those numbers shocking you're thinking of the wrong CPU.
I think in cases more people are looking at aesthetics and ruggedness over temps and acoustics as nearly all cases have acceptable values. When it comes to this NZXT and Rosewill have really seperated themselves from other cases under $50.
These are basically $40 cases in this article. Two of the cases in the review are already far better than this one:
http://www.tomshardware.com/review [...] 579-5.html
That is to say, two of these $40 cases are vastly superior to that $100 case. So you can say what you like, but words alone will not convince me.
Why in blazes you did NOT include in this... comparison the amazingly incredible HAF 922??? Its way better than any of these and costs only $90 Plenty of space, cable management space and of course AIRFLOW! it even has slots in the door so you can fit one big or two small fans... Anyways what can i say, you should have included it
... ummm sorry didn't get the WITH POWER part hehe... well i can just add that this is a great case and it is worth saving up the extra bucks for the added money you'll have to pay for the PSU
Why in blazes you did NOT include in this... comparison the amazingly incredible HAF 922??? Its way better than any of these and costs only $90 Plenty of space, cable management space and of course AIRFLOW! it even has slots in the door so you can fit one big or two small fans... Anyways what can i say, you should have included it
"Three Gaming Cases, With Power, Under $100"
While the cases are good, the review doesn't throw any light on how the included PSUs perform. Considering that these are budget PSUs, there might be a chance of having substandard PSUs being included which may not even deliver rated power. Cooler Master Extreme Power 600W is one low cost PSU that can't deliver it's rated power.
Oh, I found the review of the exact PSU being included in Cooler Master USP 100. It is RS-550-PCAR-E3 which is commercially known as Cooler Master extreme Power 550W. Here is a review at hardwaresecrets.com that clearly shows that it is a bad PSU.
Why would you put the PSU at the bottom of a case when hot air rises?
Why would you put the PSU at the bottom of a case when hot air rises?
Groupthink. Someone said it was cool and everyone else jumped aboard. It happened around three years ago, and now you're not one of the cool kids if you don't agree.
Because a PSU at the bottom provides better position for the motherboard. With PSU at the bottom, you can install 2 fans at the top which ain't possible if the PSU is at the top.
Why would you put the PSU at the bottom of a case when hot air rises?
Not to mention that hot air will rise right into the psu causing an increase in psu temps and a decrease in efficiency. I don't think using the psu to exhaust air from the case is a good idea when fans can do a much better job
are you going to put these 3 PSUs through their paces when you do the PSU testing article?
The PSU's don't even have enough AMP's / rail to power an higher end GPU..... A 5850 alone is recommended to have at minimum 25 AMP's available on its rail.
