Intel-Based Raspberry Pi Alternative UP 4000 Available For Pre Order

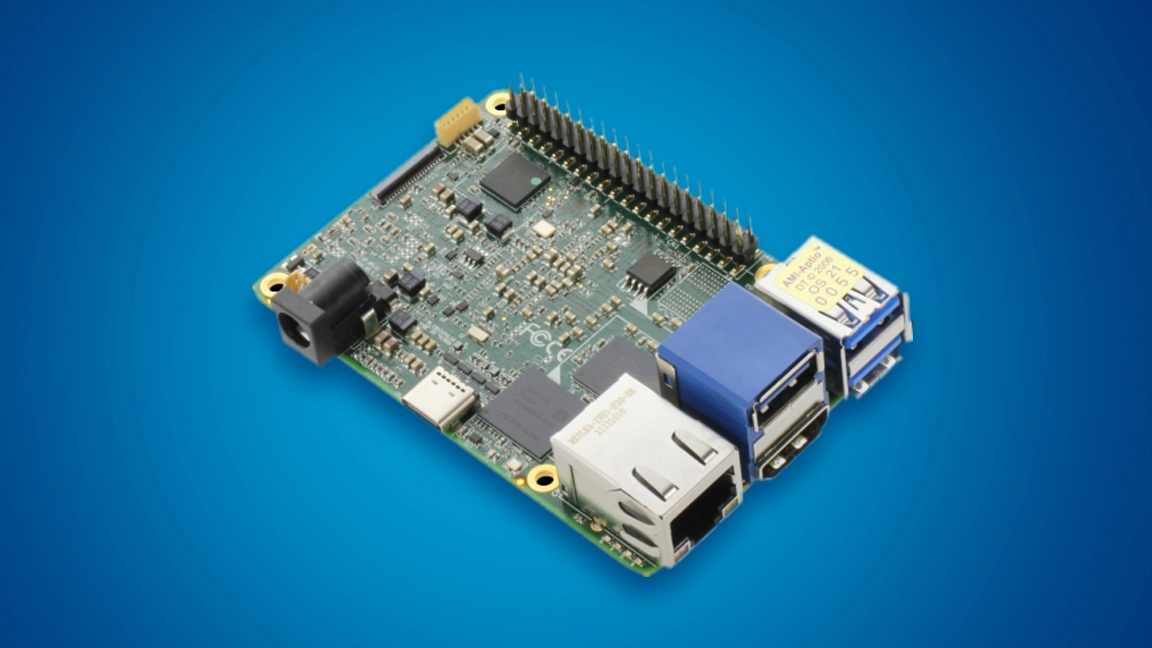

UP 4000
(Image credit: UP)

The Raspberry Pi is rather hard to get a hold of right now (we have a few tips on where to buy a Raspberry Pi and a list of best Raspberry Pi deals if you have your heart set on one) but you can still find alternatives on the market for example the Khadas VIM 4.

The latest board in the line up of UP products, is the UP 4000 board. The UP 4000 offers greater options than the previous UP boards with more memory, more IO support, and 12V power input. The processor choices are firmly based on Intel, rather than Arm. The choice of processors ranges from an Intel Atom x7-E3950 which can reach up to 2.0 GHz, the Intel Celeron N3350 reaching as high as 2.4 GHz, Apollo Lake Intel Pentium N4200 which caps out at 2.5 GHz.

UP 4000 CPU Options

There are six varieties of the UP 4000 available to purchase. As of writing, preorders are currently being accepted with a 10% discount offered until July 15th. The UP 4000 boards are planned to be shipped in August of 2022.

Swipe to scroll horizontally
CPURAMStoragePre-Order PriceRegular Price
Intel Celeron N33502GB16GB eMMC$116.10$129
Row 1 - Cell 0 2GB32GB eMMC$125.10$139
Row 2 - Cell 0 4GB32GB eMMC$152.10$169
Intel Pentium N42004GB32GB eMMC$197.10$219
Row 4 - Cell 0 8GB64GB eMMC$233.10$259
Intel Atom E39004GB 64GB eMMC$188.10$209

UP 4000 General Specifications

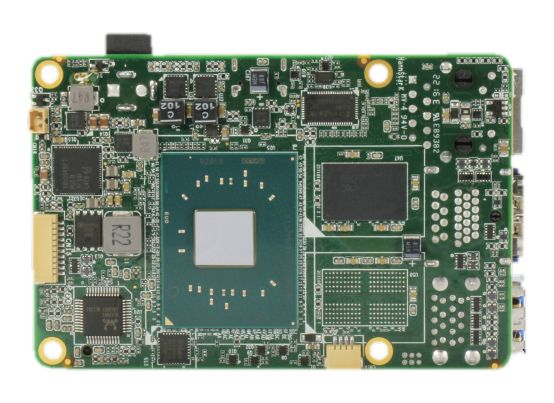

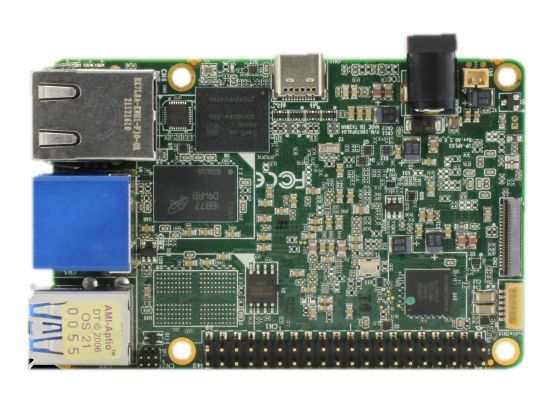

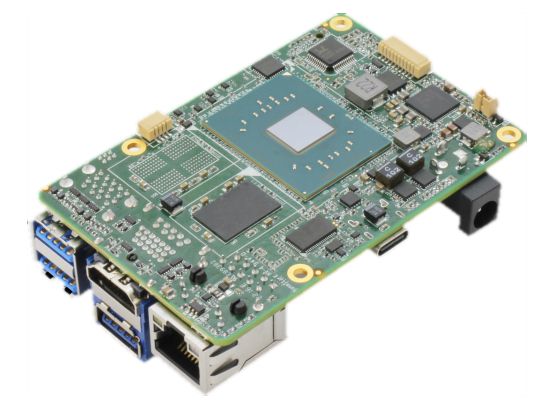

The UP 4000 board has a small form factor of 3.37 x 2.22 inch (85.6 x 56.5mm) and uses the same pin definition as a Raspberry Pi, but this does not guarantee compatibility with HATs. The UP 4000 has onboard TPM 2.0 which adds an extra layer of hardware-based security necessary for Windows 11. The team are also planning to launch a carrier board for the UP 4000 in late 2022. The carrier board brings M.2 slots for AI, 5G and Wi-Fi expansion.

Swipe to scroll horizontally
Header Cell - Column 0 Header Cell - Column 1
Size3.37in x 2.22in (85.6mm x 56.5mm)
Video OutputHDMI 1.4b, DP 1.2 via USB Type-C
Audio Support6-pin wafer (mic-in / line out)
NetworkEthernet (GbE - Realtek RTL8111G-CG), WiFi (optional M.2 2230)
USB3 USB 3.2 Gen 1 Type-A, 1 USB 3.2 Gen 1 Type-C, 2 USB 2.0 via 10-pin wafer
Power12V DC / 5A
GPIO40-pin

If you want to take a closer look at the new UP 4000 boards check out the UP 4000 product page and explore the full UP 4000 specifications. Preorders are available for purchase on the official UP shop website.
