Montech Titan PLA 1000W PSU Review

Montech, established in 2016, is a Taiwanese manufacturer focused on developing innovative and cost‐effective PC hardware solutions. Although the brand itself is relatively new, it leverages decades of industry expertise through its roots with Telon—a well‐established distributor of PSUs and PC cases in Taiwan. The company designs and produces a broad range of products, including PC cases, CPU cooling systems, and power supply units, targeting both mainstream users and gaming enthusiasts. In the PSU segment, Montech offers several series designed to meet varying system requirements that could rival the best power supplies in the market.

We looked at Montech’s Titan PLA PSU series, which is positioned as a premium line within the company’s expanding portfolio, reflecting a strategic focus on appealing to the modern gaming and enthusiast markets. Developed in collaboration with a highly established OEM, the Titan PLA series emphasizes clean aesthetics, a fully modular design for streamlined cable management, top quality, and adherence to the latest industry standards.

Specifications and Design

In the Box

The Montech Titan PLA 1000W arrives in a large cardboard box with a simple black and platinum artistic theme. The PSU is protected by a nylon pouch and secured with foam inserts to prevent damage during transit.

Montech includes a rich bundle of accessories, featuring mounting screws, an AC power cable, a jump-starting connector for PSU testing, a few white cable ties, quality white cable straps, and white cable combs, providing users with more than just the essential tools for installation and cable management.

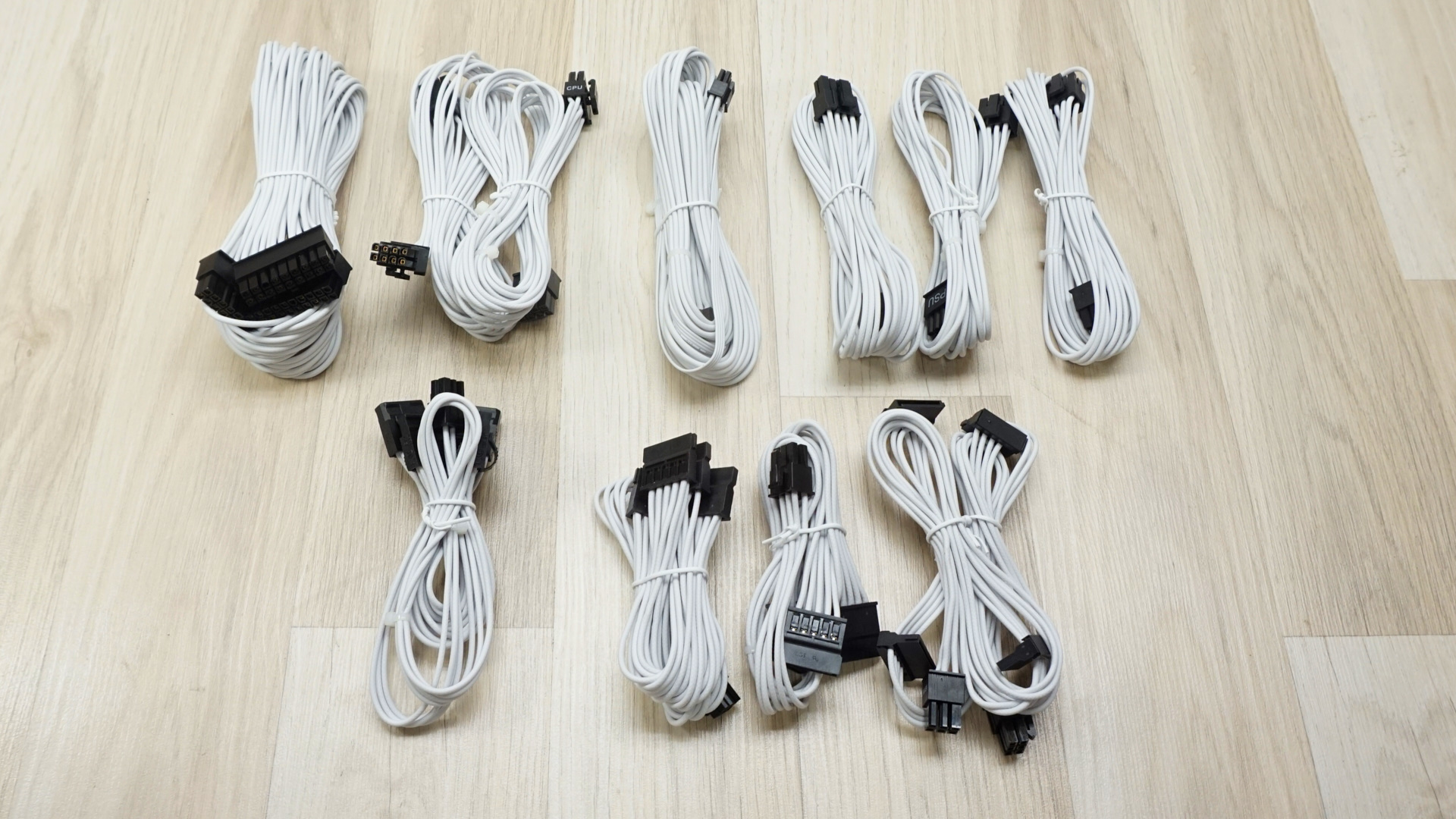

The Titan PLA 1000W features cables with individually sleeved white wires and black connectors. The cables are soft and flexible, making them easy to organize with the included cable combs for a structured visual appearance. The PSU is equipped with three 6+2 pin PCI Express connectors, a conservative configuration for a 1000W unit.

External Appearance

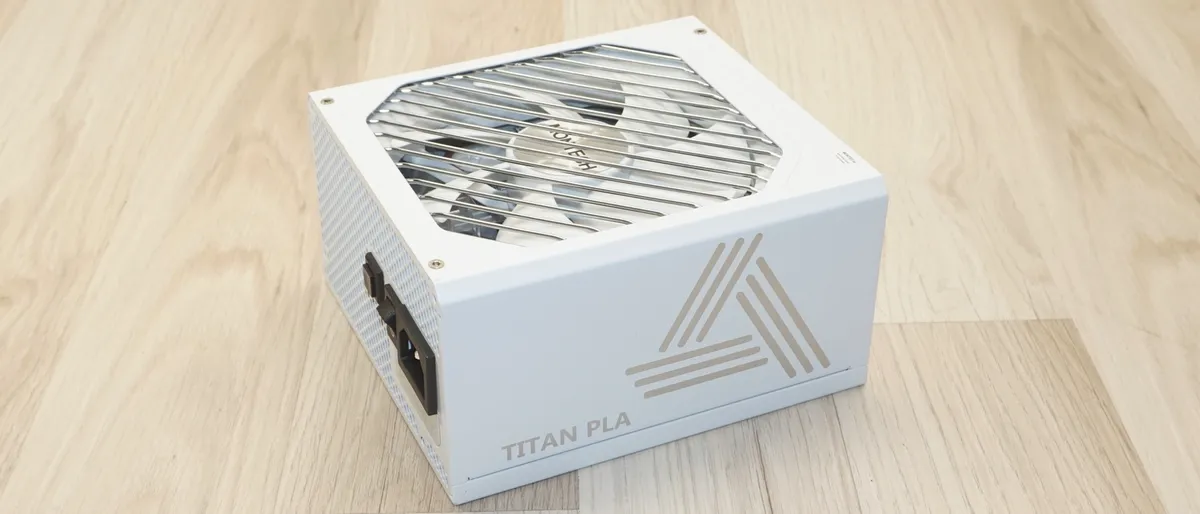

Measuring 160 mm in length, the Montech Titan PLA 1000W is slightly longer than a standard ATX PSU but remains compatible with all ATX-compliant tower cases. Only compact or specialized enclosures may have space limitations for a PSU of this size. The unit is available in both black and white, with the reviewed version featuring a satin white chassis. Chrome Montech and Titan PLA logos are placed on both sides of the PSU, while some of the chassis’ corners are chamfered for a refined appearance.

The fan is protected by a parallel wire fan grille, which is not integrated into the chassis, but its mounting screws are concealed to maintain a cleaner look. The top panel of the PSU is covered by a sticker listing the electrical specifications and certifications.

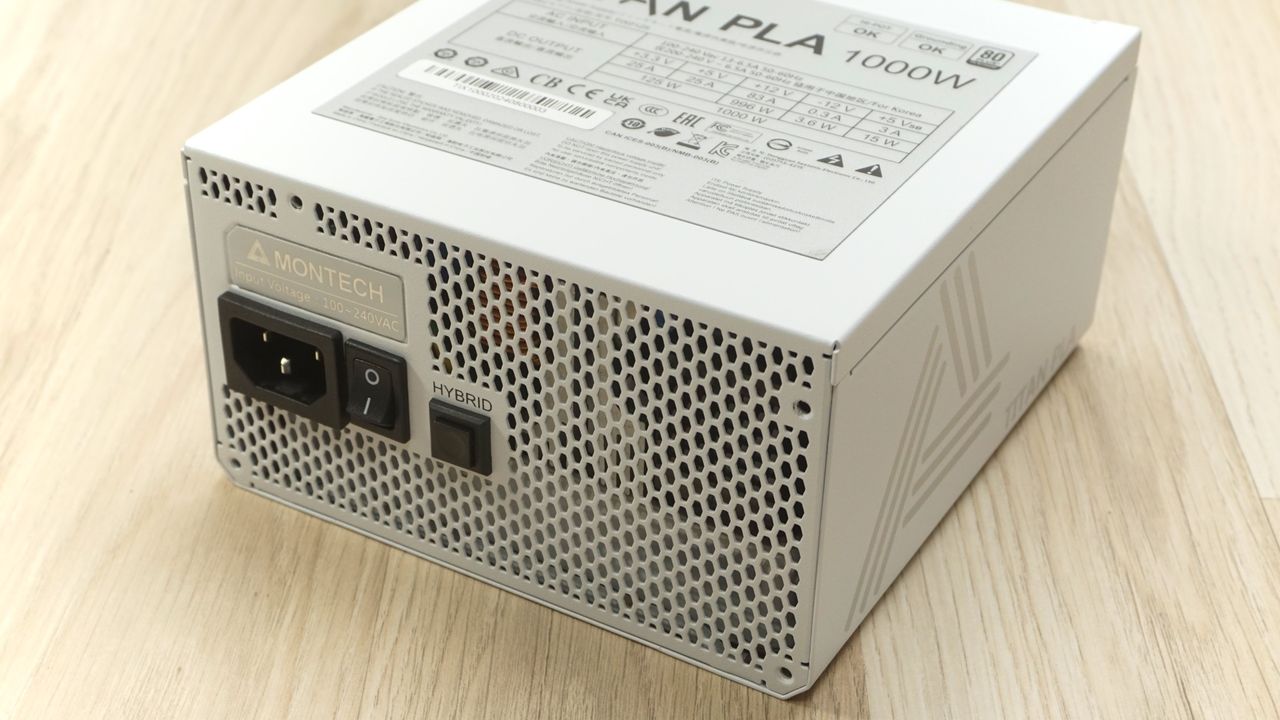

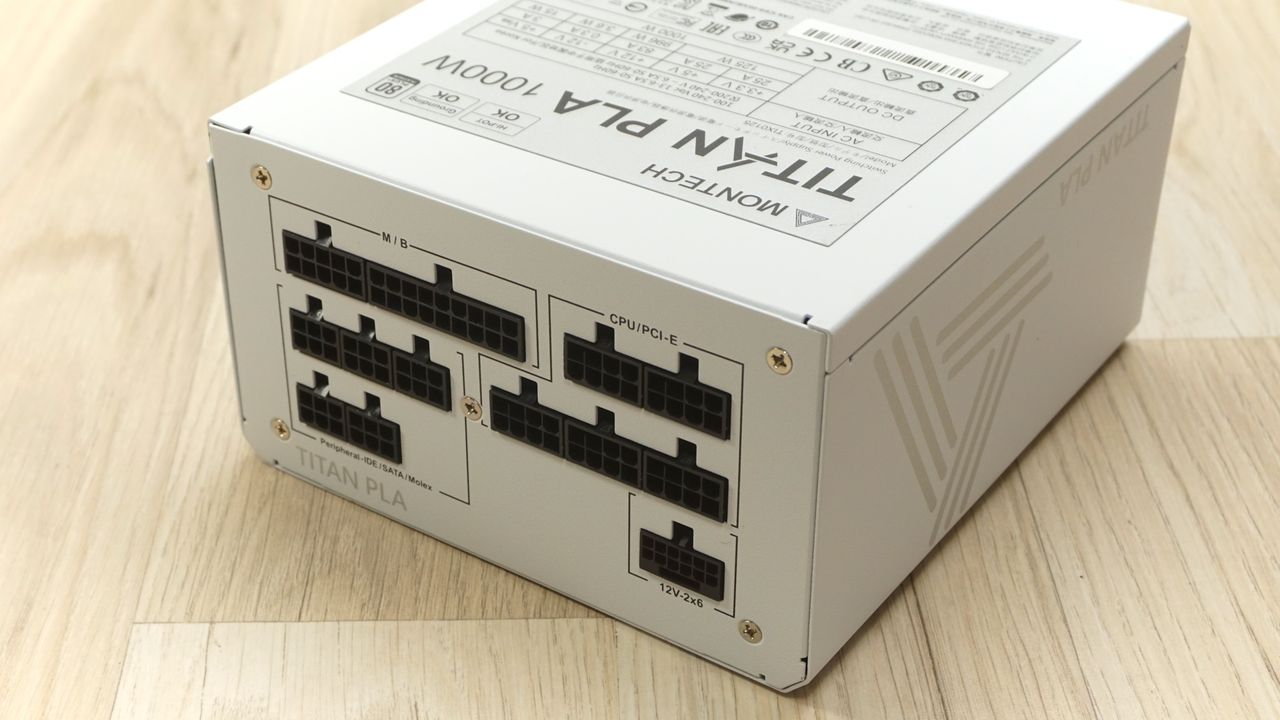

The rear panel includes the standard AC input socket, an on/off power switch, and a button for enabling or disabling the hybrid fan mode. This mode allows semi-passive operation, keeping the fan off under lower loads. The modular cable connectors are located on the front panel, with a clearly marked legend to aid in installation.

Image 1 of 2

Internal Design

The cooling system utilizes a 135mm Hong Hua HA13525H12F-Z fan, which features a fluid dynamic bearing (FDB) for increased longevity and low-noise operation. This fan has a maximum speed of approximately 2300 RPM, which is relatively high for a fan of this size, but the hybrid fan mode ensures that it only activates when necessary, reducing unnecessary noise during low to moderate loads.

Seasonic serves as the OEM for this PSU, a well-established manufacturer known for producing high-performance power supply platforms. Seasonic platforms are often associated with high-end efficiency and reliability, and Montech prominently displays the OEM's name on the product packaging to highlight this collaboration.

Image 1 of 2

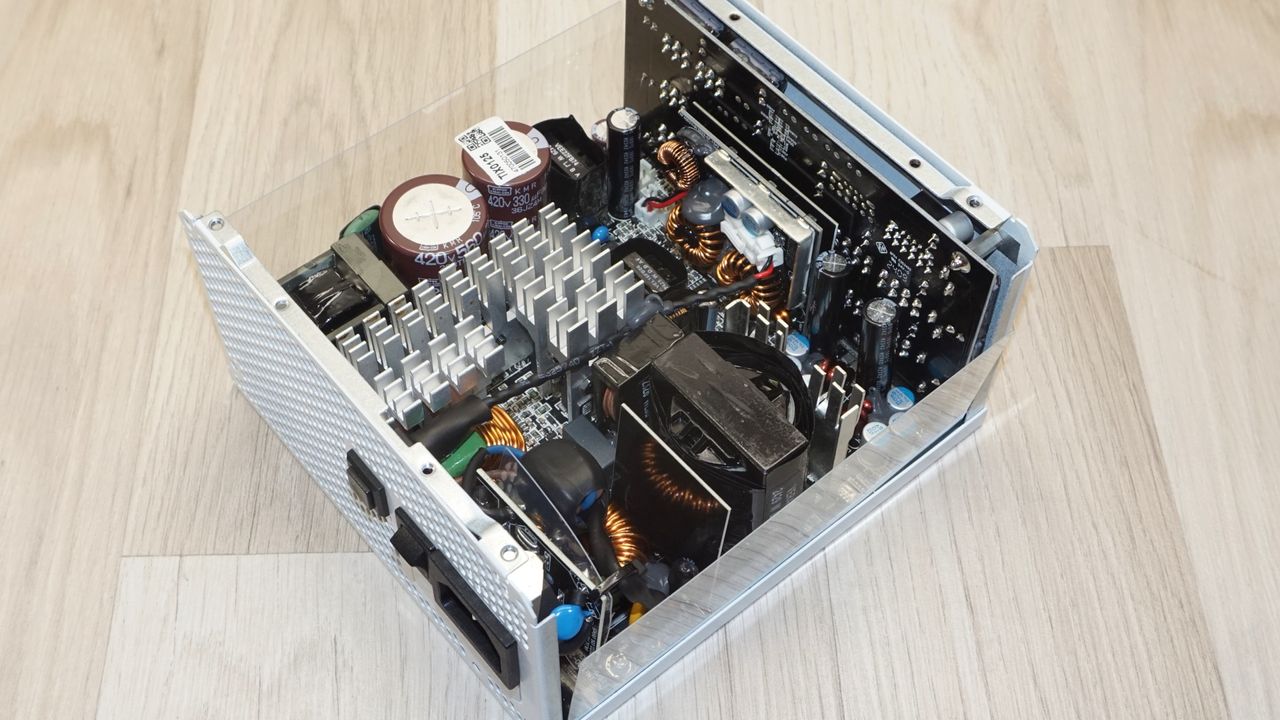

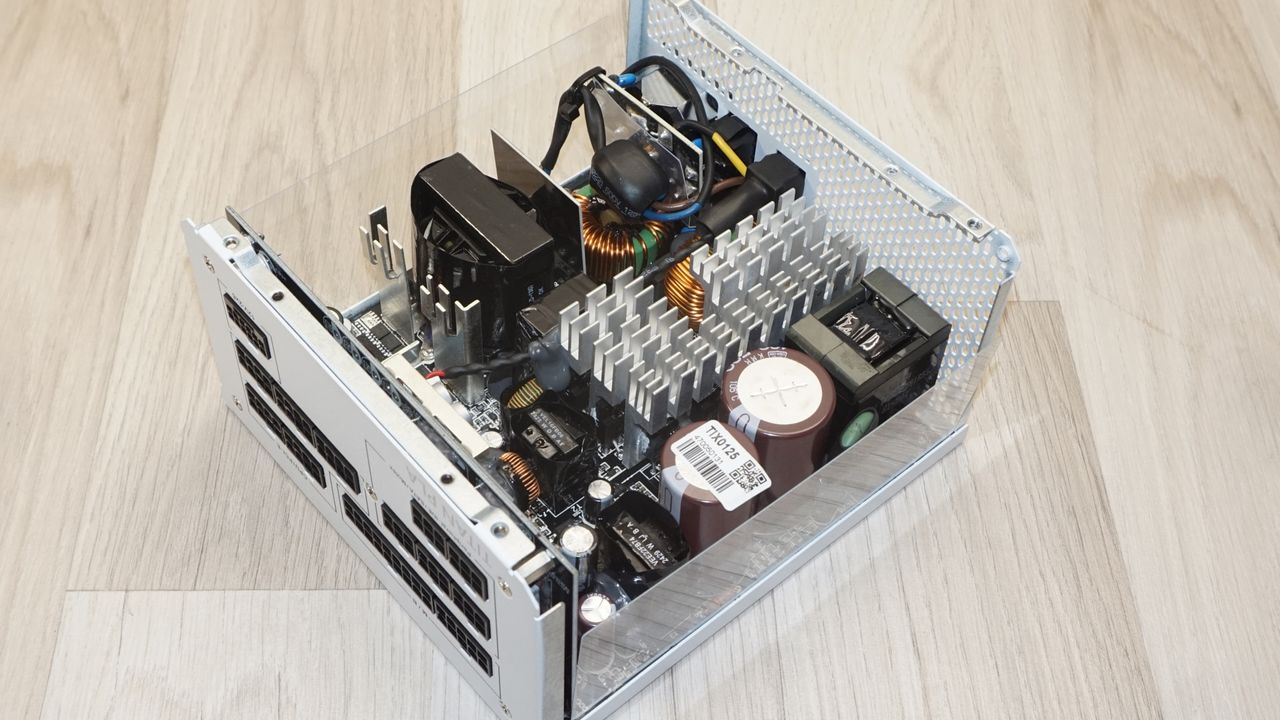

The unit’s input filtering stage consists of four Y capacitors, two X capacitors, and two filtering inductors, forming a fairly standard configuration for a 1000W PSU. Two rectifying bridges are mounted on a small heatsink following the filtering stage. The Active Power Factor Correction (APFC) stage employs two Infineon 60R125P6 MOSFETs and a diode, all mounted on a dedicated heatsink, while an encased inductor and two Nippon Chemi-Con capacitors (330 µF and 560 µF) serve as the passive components.

The primary inversion stage is configured in a full-bridge LLC topology, with four transistors mounted on their own heatsink near the primary transformer. On the secondary side, six MOSFETs generate the main 12V rail, cooled indirectly by a nearby heatsink. The 3.3V and 5V rails are generated using DC-to-DC converters placed on a vertical daughterboard, as is typical with all modern PC PSUs.

The capacitors on the secondary side are sourced from reputable Japanese manufacturers, including Nippon Chemi-Con and Rubycon, while Nichicon supplies the polymer capacitors. The heatsinks are quite large for a unit with that kind of efficiency levels and considering the presence of a strong fan.

Cold Test Results

Cold Test Results (25°C Ambient)

For the testing of PSUs, we are using high precision electronic loads with a maximum power draw of 2700 Watts, a Rigol DS5042M 40 MHz oscilloscope, an Extech 380803 power analyzer, two high precision UNI-T UT-325 digital thermometers, an Extech HD600 SPL meter, a self-designed hotbox and various other bits and parts.

Image 1 of 5

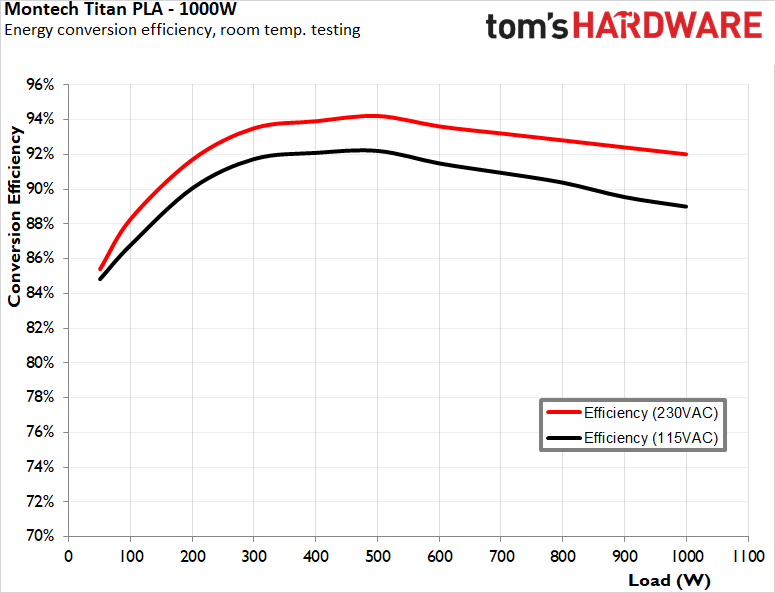

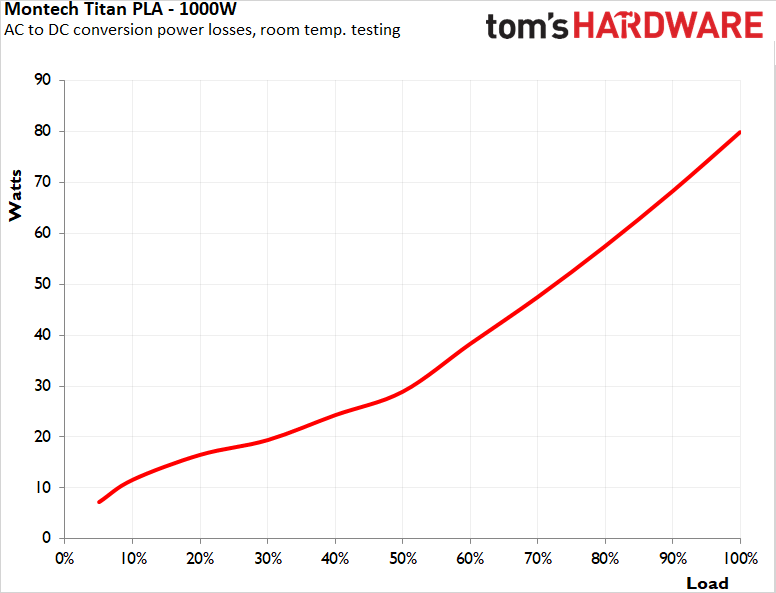

During cold testing, the Montech Titan PLA 1000W exhibited an average nominal load efficiency of 90.4% at 115 VAC and 92.6% at 230 VAC. The PSU is 80 Plus Platinum certified by CLEAResult and Cybenetics Platinum certified. At 115V input, the PSU met 80 Plus Platinum efficiency standards, while at 230V input, it narrowly missed the 92% efficiency requirement at 20% load by a small margin. Peak efficiency was observed at around 50% load, consistent with most high-efficiency designs. The PSU also demonstrated good efficiency at very low loads.

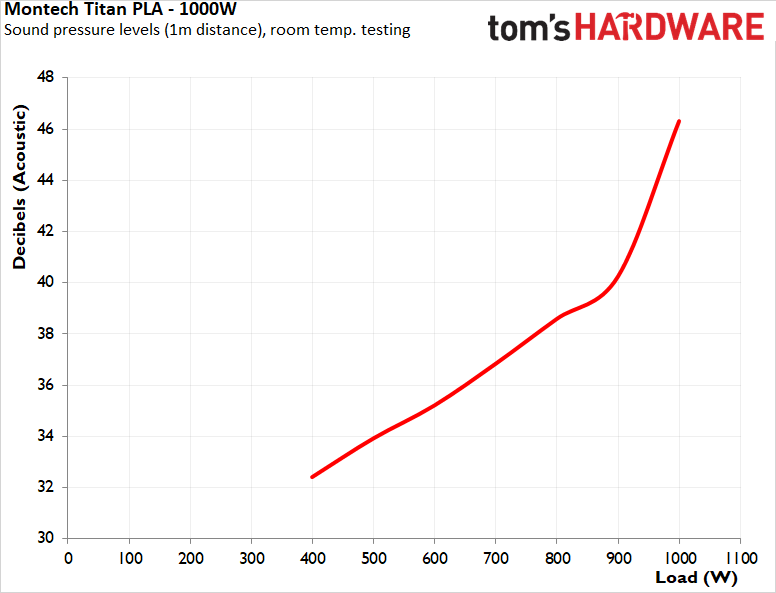

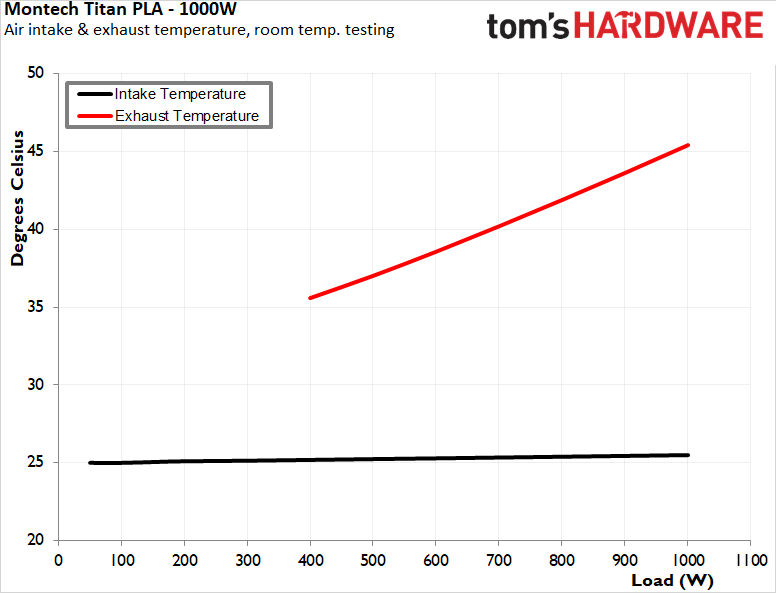

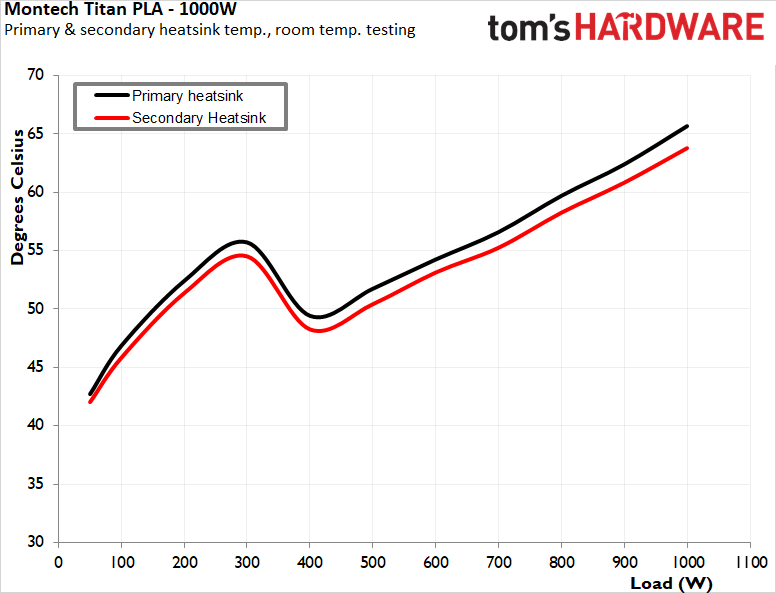

We ran our tests with the hybrid fan mode enabled. The 135mm fluid dynamic bearing (FDB) fan remained off until the load exceeded approximately 400W, ensuring silent operation under light to moderate loads. Once activated, the fan started at a low rotational speed and gradually increased as load levels rose but very slowly. The speed of the fan jumps up when the unit is heavily loaded but remains far from its maximum speed. The unit's internal temperatures are regulated very well and it appears to be very well balanced between reliability and acoustics performance.

Hot Test Results

Hot Test Results (~45°C Ambient)

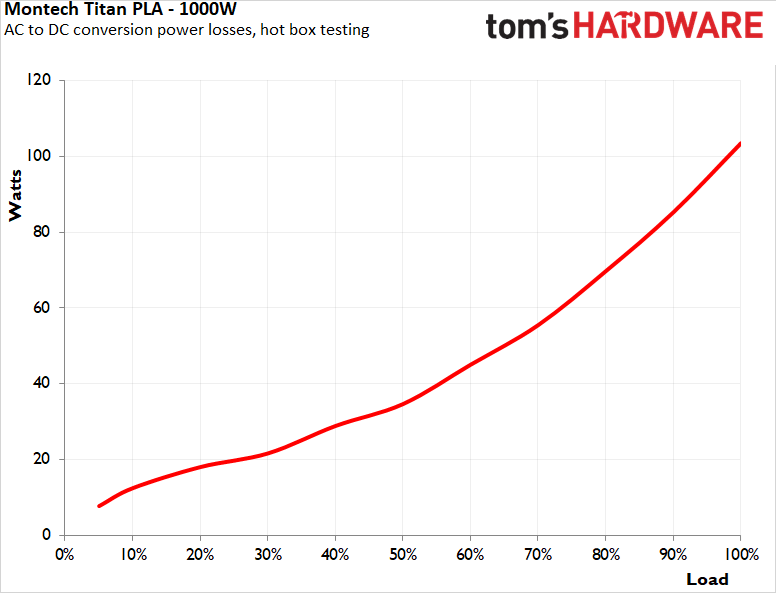

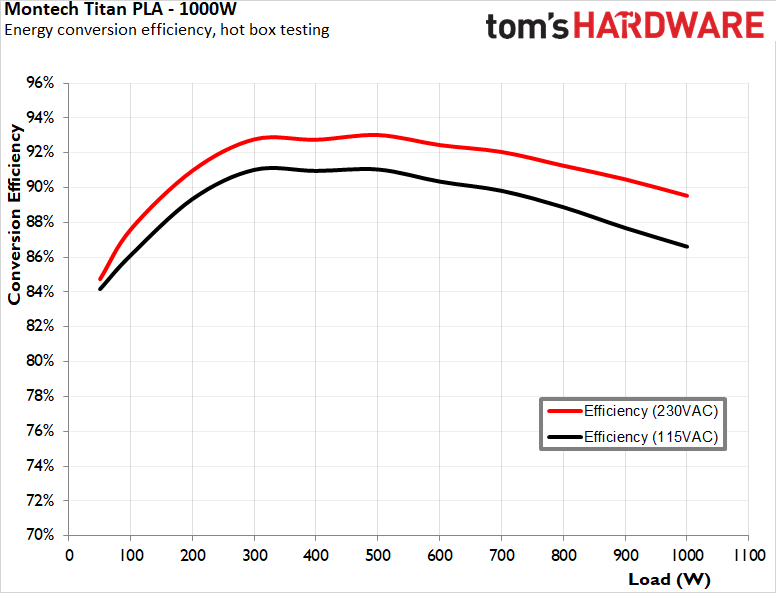

During hot testing, the Montech Titan PLA 1000W demonstrated an average nominal load efficiency of 89.2% at 115 VAC and 91.3% at 230 VAC. Elevated ambient temperatures resulted in a modest efficiency drop compared to cold testing, where it achieved 90.4% and 92.6%, respectively. The 1.2-1.3% efficiency drop is not unexpected but the most noticeable degradation occurs at higher loads, suggesting a slight thermal stress when the unit is heavily loaded for extended periods.

Image 1 of 5

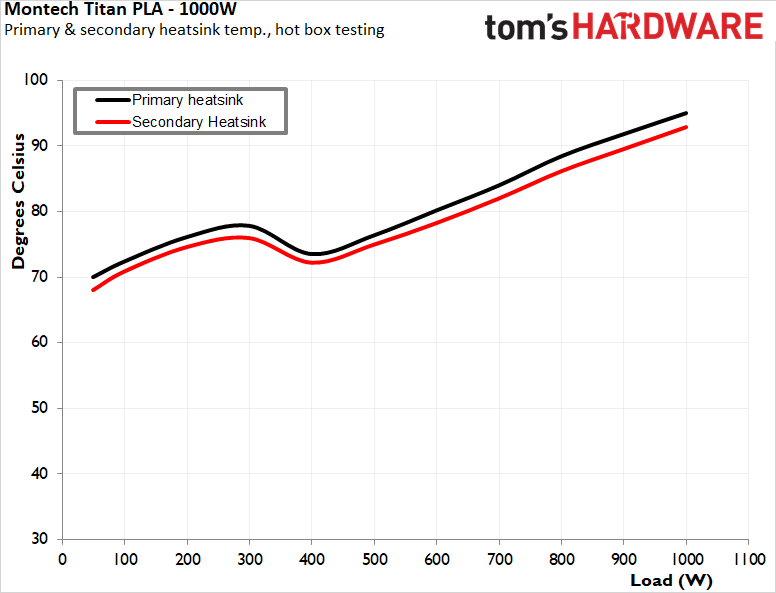

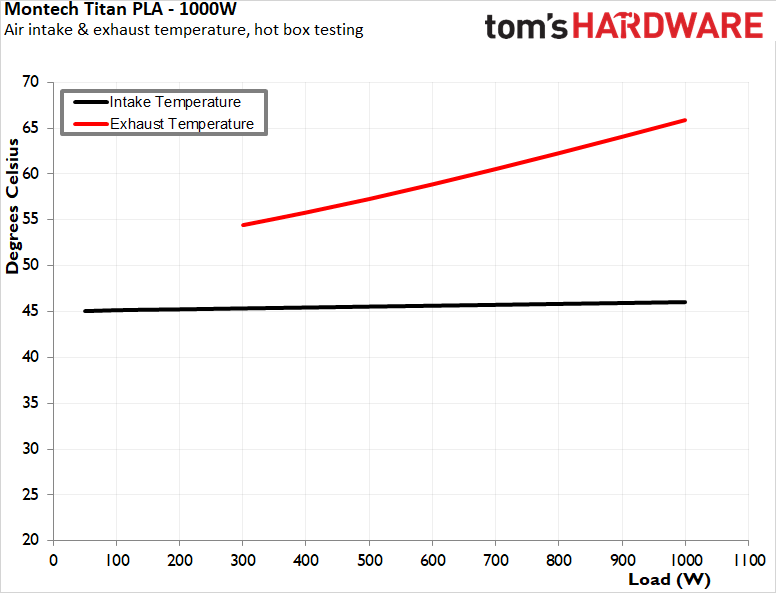

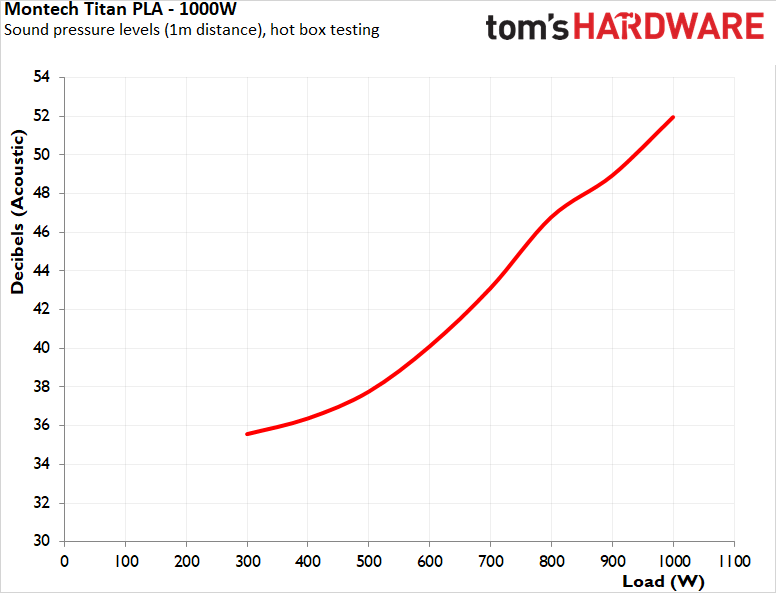

Under these conditions, the hybrid cooling system reacted as expected - the fan started operating just below 300 watts and increased its speed more rapidly than during cold testing, although it never reached its maximum rotational speed under these conditions either. Internal temperatures were higher, yet the PSU maintained a well-balanced performance between cooling efficiency and noise output, with moderate acoustic levels that remained acceptable even as load increased.

PSU Quality and Bottom Line

Power Supply Quality

The Montech Titan PLA 1000W PSU demonstrated excellent electrical performance in both voltage regulation and ripple suppression. Voltage regulation was particularly tight, with deviations of just 0.5% on the 12V rail, 0.3% on the 5V rail, and 0.4% on the 3.3V rail, ensuring stable power delivery under varying loads. Ripple filtering was equally impressive, with very low fluctuations across all voltage lines - 32 mV on the 12V rail, 18 mV on the 5V rail, and 16 mV on the 3.3V rail. These results indicate outstanding power quality, surpassing typical performance.

During our thorough assessment, we evaluate the essential protection features of every power supply unit we review, including Over Current Protection (OCP), Over Voltage Protection (OVP), Over Power Protection (OPP), and Short Circuit Protection (SCP). All protection mechanisms were activated and functioned correctly during testing.

The OCP limits were set at 134% for the 3.3V rail, 140% for the 5V rail, and 122% for the 12V rail, while Over Power Protection (OPP) triggered at 126% under hot conditions. These protection thresholds are well-calibrated for an ATX 3.1 unit.

Bottom Line

The Montech Titan PLA 1000W is a high-quality power supply unit that targets the premium segment of the PSU market. With a fully modular design, high-end internal components, and an elegant aesthetic, it aims to cater to enthusiasts who want everything – quality, performance, and looks. Manufactured by Seasonic, the Titan PLA benefits from one of the most respected OEMs in the industry. The Platinum-level certifications from both CLEAResult and Cybenetics further solidify its positioning as a high-performance PSU.

In terms of electrical performance, the Titan PLA 1000W excels, delivering exceptional voltage regulation and ripple suppression. Voltage regulation is under 0.5% on every rail, ensuring consistent power delivery across different load conditions. Ripple filtering is equally impressive, with just 32 mV on the 12V rail, 18 mV on the 5V rail, and 16 mV on the 3.3V rail, which are among the best figures seen in this wattage class. The unit’s ATX 3.1 compliance ensures that it can handle modern power excursions efficiently, making it well-suited for high-end gaming PCs and workstation builds. Protection mechanisms function correctly, with OCP limits and OPP triggering at reasonable levels for a unit in this category.

The thermal and acoustic performance of the Titan PLA 1000W is well-balanced. The 135mm Hong Hua fluid dynamic bearing (FDB) fan operates in hybrid mode, remaining off until loads exceed 400W in cold conditions and 300W in hot conditions. The fan ramping is smooth and never reaches full speed, even at high loads, helping to maintain a quiet operation. Internal temperatures are kept in check thanks to large heatsinks and an efficient layout. However, efficiency drops by 1.2-1.3% under hot conditions, which is slightly more than ideal for a premium unit.

Overall, the Montech Titan PLA 1000W is an outstanding power supply in terms of quality, performance, and reliability, but it comes at a price. The exceptional electrical performance, top-tier component selection, and solid protection features make it a strong contender in the Platinum-rated PSU category. However, at $200, it faces tough competition from other high-end models that may offer similar efficiency at a slightly lower price point. While the 10-year warranty adds significant value, potential buyers should consider whether they need this level of premium engineering and aesthetics or if a slightly more affordable alternative would suffice.
