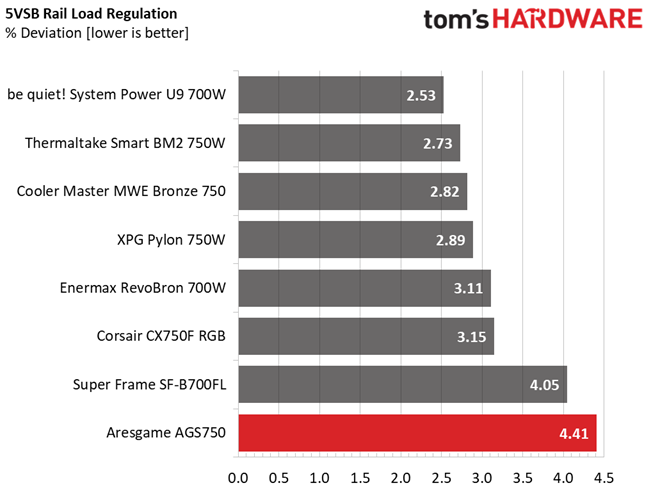

Primary Rails And 5VSB Load Regulation

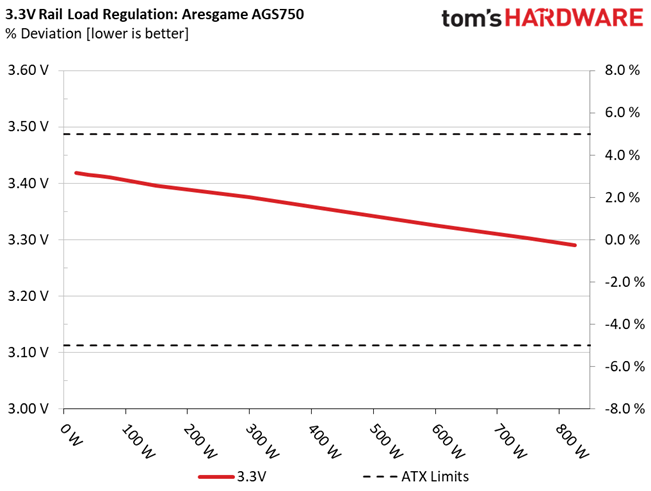

The following charts show the main rail's voltage values recorded between a range of 40W up to the PSU's maximum specified load, along with the deviation (in percent). Tight regulation is an important consideration every time we review a power supply because it facilitates constant voltage levels despite varying loads. Tight load regulation also, among other factors, improves the system’s stability, especially under overclocked conditions and, at the same time, it applies less stress to the DC-DC converters that many system components utilize.

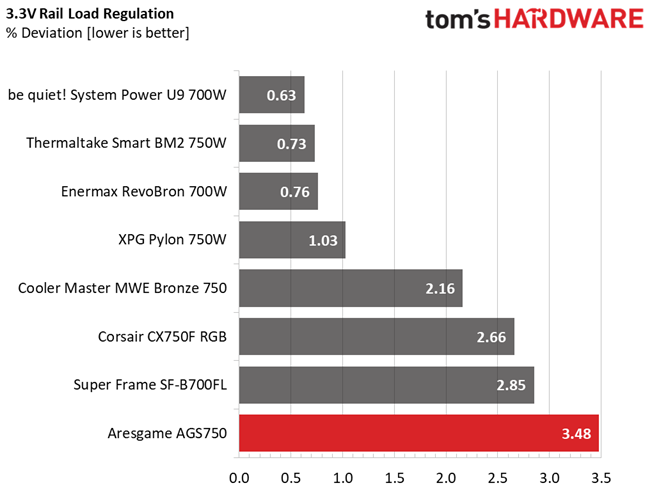

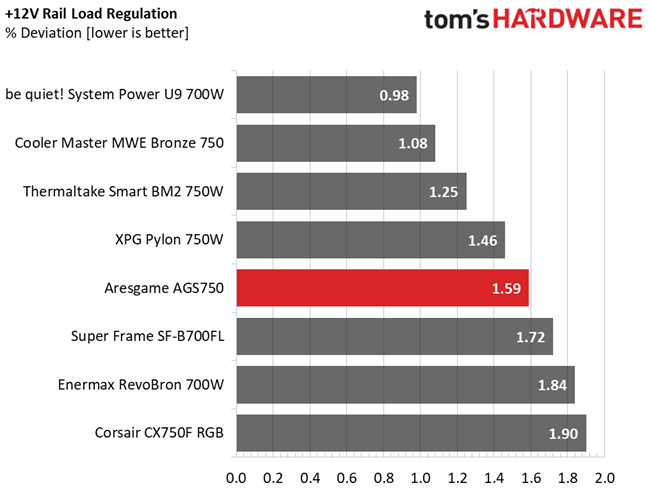

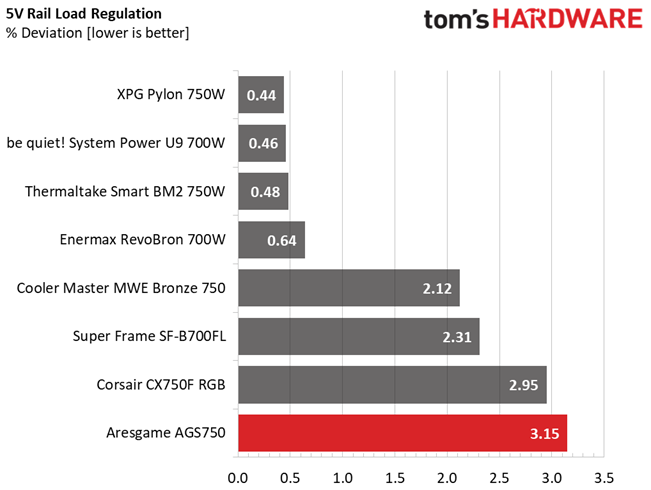

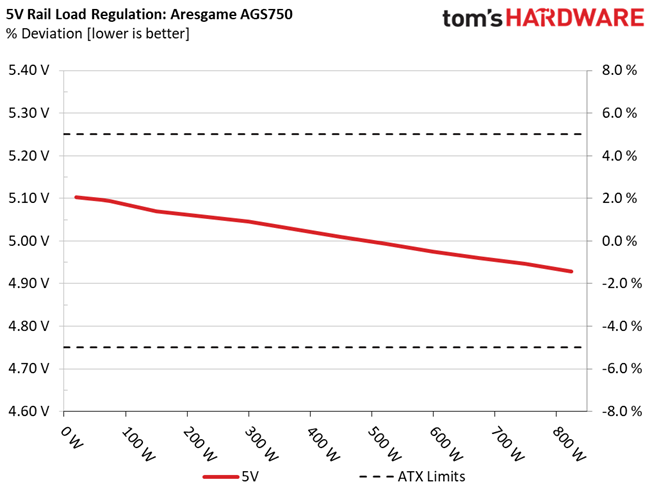

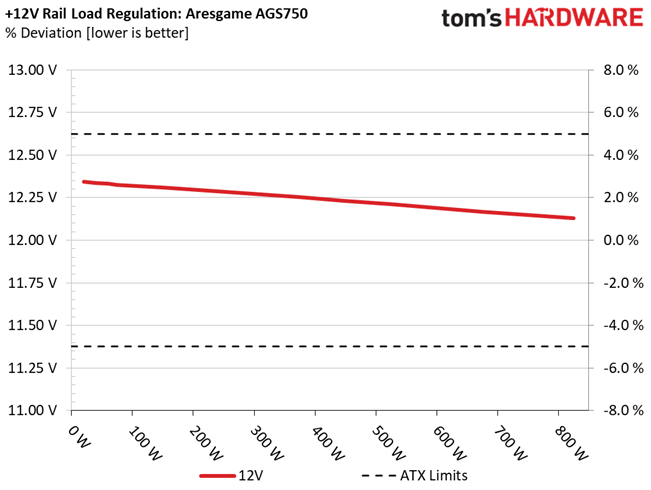

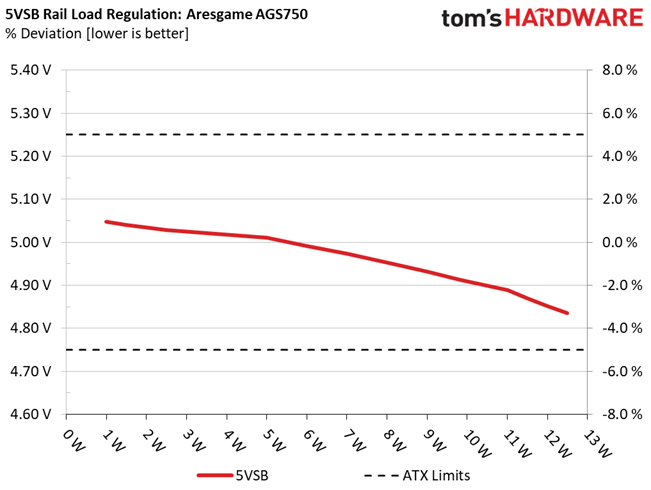

Load regulation is not so bad at 12V, and loose on the other rails.
Hold-Up Time

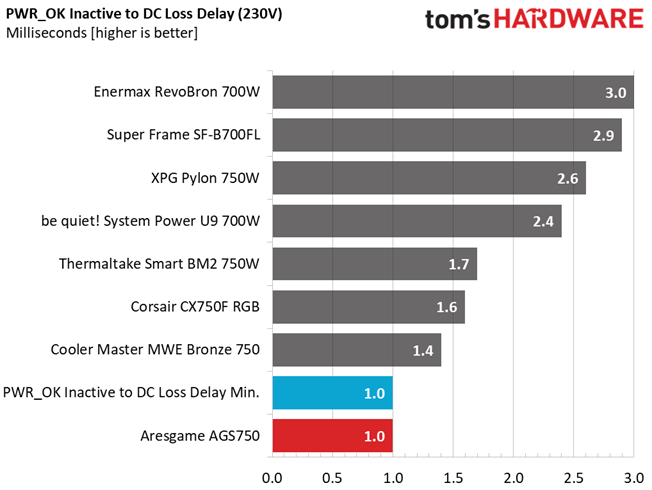

Put simply; hold-up time is the amount of time that the system can continue to run without shutting down or rebooting during a power interruption.

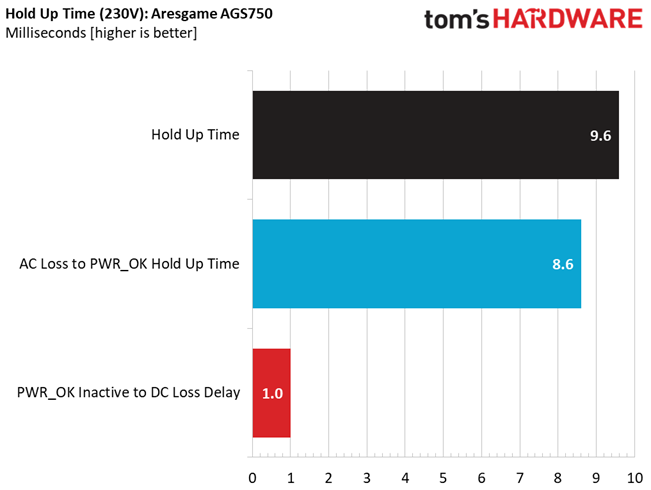

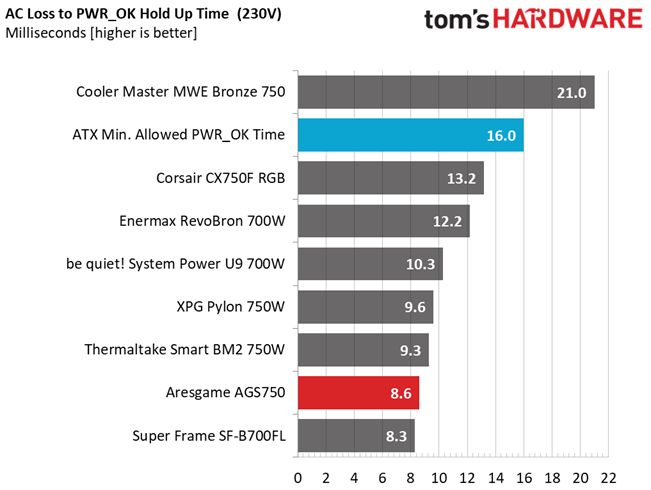

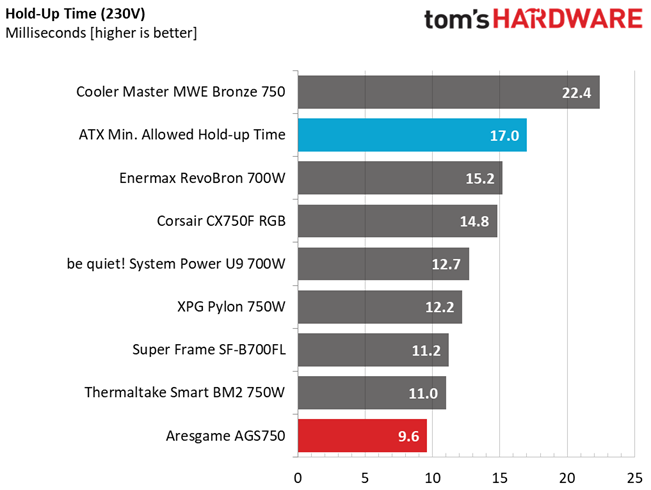

Hold-up time is extremely short.
Inrush Current

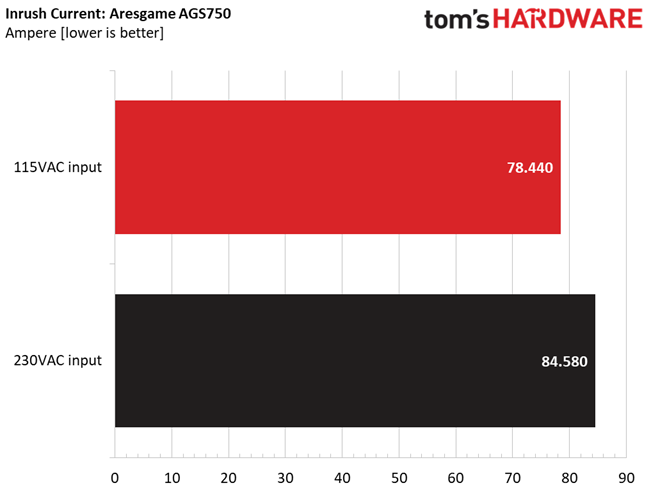

Inrush current, or switch-on surge, refers to the maximum, instantaneous input current drawn by an electrical device when it is first turned on. A large enough inrush current can cause circuit breakers and fuses to trip. It can also damage switches, relays, and bridge rectifiers. As a result, the lower the inrush current of a PSU right as it is turned on, the better.

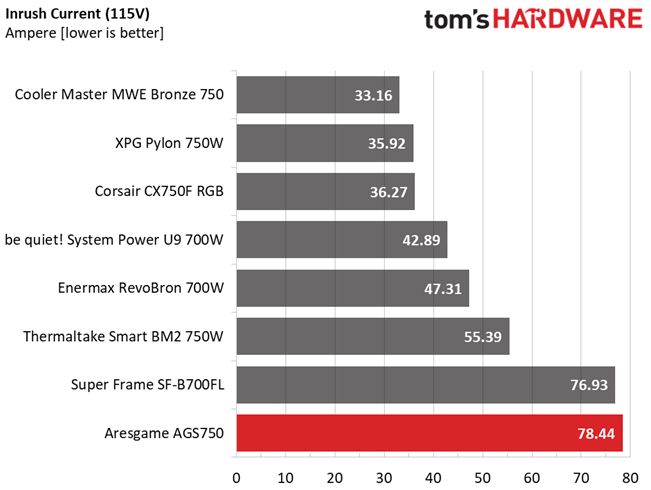

Inrush currents are high.
Leakage Current
In layman's terms, leakage current is the unwanted transfer of energy from one circuit to another. In power supplies, it is the current flowing from the primary side to the ground or the chassis, which in the majority of cases is connected to the ground. For measuring leakage current, we use a GW Instek GPT-9904 electrical safety tester instrument.
The leakage current test is conducted at 110% of the DUT's rated voltage input (so for a 230-240V device, we should conduct the test with 253-264V input). The maximum acceptable limit of a leakage current is 3.5 mA and it is defined by the IEC-60950-1 regulation, ensuring that the current is low and will not harm any person coming in contact with the power supply's chassis.
Leakage current is low, which is the case in PSUs that don't have many Y caps on their transient filters or have low capacity ones.
10-110% Load Tests
These tests reveal the PSU's load regulation and efficiency levels under high ambient temperatures. They also show how the fan speed profile behaves under increased operating temperatures.
Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
10% | 4.333A | 1.966A | 1.937A | 0.998A | 75.014 | 79.747% | 774 | 26.6 | 34.6°C | 0.964 |
12.327V | 5.087V | 3.408V | 5.01V | 94.065 | 37.88°C | 115.13V | ||||
20% | 9.674A | 2.959A | 2.915A | 1.202A | 149.971 | 84.941% | 811 | 28.8 | 34.88°C | 0.971 |
12.309V | 5.07V | 3.396V | 4.991V | 176.56 | 38.73°C | 115.13V | ||||
30% | 15.371A | 3.461A | 3.412A | 1.408A | 224.983 | 86.38% | 986 | 35.0 | 35.38°C | 0.981 |
12.291V | 5.057V | 3.385V | 4.973V | 260.459 | Row 6 - Cell 8 | 39.78°C | 115.13V | |||
40% | 21.094A | 3.965A | 3.911A | 1.615A | 300.076 | 86.617% | 1206 | 41.1 | 35.9°C | 0.988 |
12.272V | 5.045V | 3.375V | 4.953V | 346.439 | Row 8 - Cell 8 | 40.85°C | 115.12V | |||
50% | 26.461A | 4.973A | 4.907A | 1.825A | 374.722 | 86.35% | 1292 | 43.4 | 36.14°C | 0.992 |
12.253V | 5.027V | 3.363V | 4.932V | 433.958 | Row 10 - Cell 8 | 41.61°C | 115.12V | |||
60% | 31.868A | 5.99A | 5.911A | 2A | 449.455 | 85.783% | 1364 | 43.9 | 36.24°C | 0.994 |
12.233V | 5.01V | 3.35V | 4.912V | 523.942 | Row 12 - Cell 8 | 42.39°C | 115.11V | |||
70% | 37.295A | 7.012A | 6.922A | 2.251A | 524.548 | 84.928% | 1483 | 47.0 | 37.52°C | 0.995 |
12.212V | 4.993V | 3.338V | 4.889V | 617.639 | Row 14 - Cell 8 | 44.22°C | 115.11V | |||
80% | 42.811A | 8.003A | 7.94A | 2.362A | 599.555 | 83.964% | 1571 | 48.1 | 37.65°C | 0.995 |
12.189V | 4.975V | 3.325V | 4.87V | 714.066 | Row 16 - Cell 8 | 45.11°C | 115.11V | |||
90% | 48.677A | 8.571A | 8.448A | 2.474A | 674.788 | 82.853% | 1655 | 49.3 | 38.89°C | 0.996 |
12.168V | 4.96V | 3.314V | 4.852V | 814.439 | Row 18 - Cell 8 | 47.03°C | 115.11V | |||
100% | 54.543A | 9.1A | 8.991A | 2.586A | 749.899 | 81.694% | 1695 | 49.5 | 39.46°C | 0.996 |
12.150V | 4.947V | 3.303V | 4.835V | 917.952 | Row 20 - Cell 8 | 48.49°C | 115.1V | |||
110% | 60.103A | 10.149A | 10.122A | 2.595A | 824.928 | 79.895% | 1719 | 50.1 | 39.73°C | 0.995 |
12.131V | 4.928V | 3.29V | 4.818V | 1032.529 | Row 22 - Cell 8 | 49.66°C | 115.11V | |||
CL1 | 0.114A | 12.063A | 11.785A | 0A | 101.325 | 77.523% | 1150 | 38.8 | 36.41°C | 0.97 |
12.311V | 4.992V | 3.368V | 5.02V | 130.702 | Row 24 - Cell 8 | 41.42°C | 115.13V | |||
CL2 | 0.114A | 20.218A | 0A | 0A | 101.431 | 77.401% | 1021 | 36.3 | 37.4°C | 0.97 |
12.317V | 4.948V | 3.387V | 5.027V | 131.047 | Row 26 - Cell 8 | 43.55°C | 115.13V | |||
CL3 | 0.114A | 0A | 19.555A | 0.001A | 67.394 | 70.87% | 939 | 32.9 | 39°C | 0.963 |
12.318V | 5.082V | 3.375V | 5.026V | 95.096 | Row 28 - Cell 8 | 46.43°C | 115.12V | |||
CL4 | 61.630A | 0.001A | 0.002A | 0.003A | 749.766 | 82.556% | 1700 | 49.6 | 40.42°C | 0.996 |
12.165V | 5.035V | 3.342V | 4.942V | 908.218 | Row 30 - Cell 8 | 49.84°C | 115.09V |
Contrary to the AGS850, the PSU managed to run the 110% load test. The results are not good, though, because of the low-efficiency numbers in all tests. The efficiency results are nowhere near the ones that the 80 Plus reported. We conduct our tests at higher temperatures, but still, such differences cannot be justified.
20-80W Load Tests
In the following tests, we measure the PSU's efficiency at loads significantly lower than 10% of its maximum capacity (the lowest load the 80 PLUS standard measures). This is important for representing when a PC is idle with power-saving features turned on.
Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
20W | 1.204A | 0.49A | 0.483A | 0.198A | 20.008 | 62.916% | 755 | 25.7 | 30.44°C | 0.879 |
Row 2 - Cell 0 | 12.343V | 5.103V | 3.418V | 5.048V | 31.801 | Row 2 - Cell 6 | Row 2 - Cell 7 | Row 2 - Cell 8 | 31.64°C | 115.13V |
40W | 2.650A | 0.686A | 0.676A | 0.298A | 40.009 | 72.674% | 759 | 25.8 | 31.12°C | 0.933 |
Row 4 - Cell 0 | 12.337V | 5.1V | 3.415V | 5.041V | 55.053 | Row 4 - Cell 6 | Row 4 - Cell 7 | Row 4 - Cell 8 | 32.99°C | 115.13V |
60W | 4.098A | 0.883A | 0.87A | 0.397A | 60.009 | 78.325% | 763 | 26.0 | 32.15°C | 0.951 |
Row 6 - Cell 0 | 12.332V | 5.097V | 3.413V | 5.035V | 76.615 | Row 6 - Cell 6 | Row 6 - Cell 7 | Row 6 - Cell 8 | 34.45°C | 115.13V |
80W | 5.544A | 1.08A | 1.065A | 0.497A | 79.972 | 81.33% | 766 | 26.1 | 33.05°C | 0.969 |
Row 8 - Cell 0 | 12.327V | 5.094V | 3.41V | 5.028V | 98.33 | Row 8 - Cell 6 | Row 8 - Cell 7 | Row 8 - Cell 8 | 35.87°C | 115.13V |

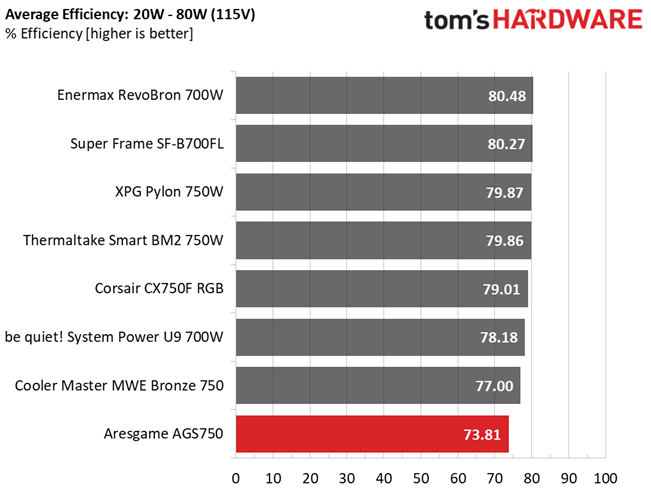

Efficiency is low at light loads, and the fans spins at quite high speeds given the operating conditions.
2% or 10W Load Test

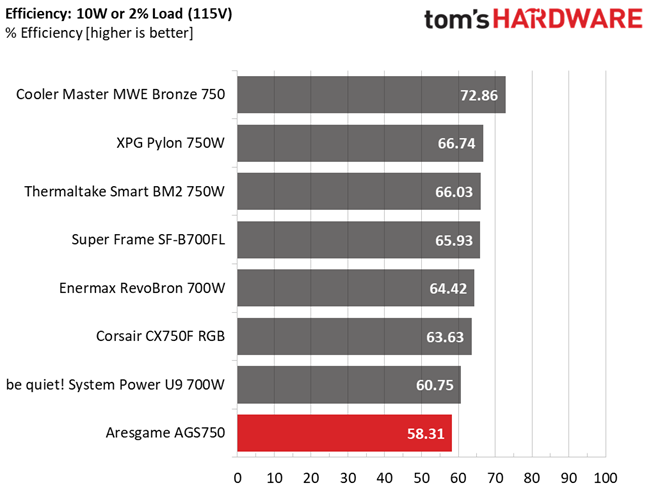

From July 2020, the ATX spec requires 70% and higher efficiency with 115V input. The applied load is only 10W for PSUs with 500W and lower capacities, while for stronger units, we dial 2% of their max-rated capacity.
12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
1.090A | 0.21A | 0.21A | 0.043A | 15.454 | 58.314% | 759 | 25.8 | 29.53°C | 0.863 |
Row 2 - Cell 0 | 12.343V | 5.107V | 3.42V | 5.054V | 26.501 | Row 2 - Cell 6 | Row 2 - Cell 7 | 33.19°C | 115.14V |

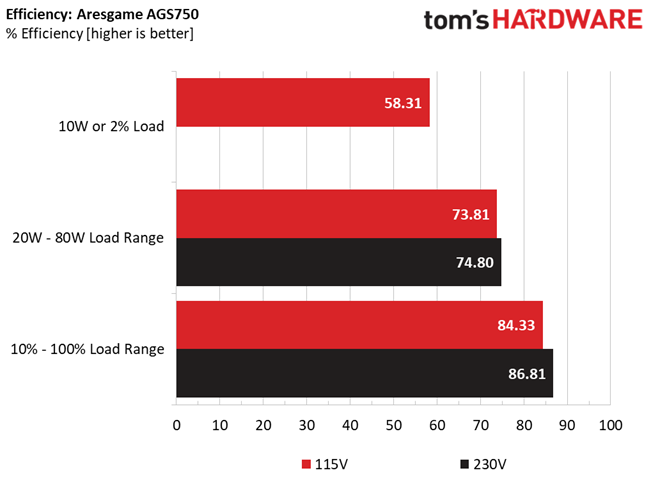

As expected, efficiency with 2% load is bottom-low.
Efficiency & Power Factor

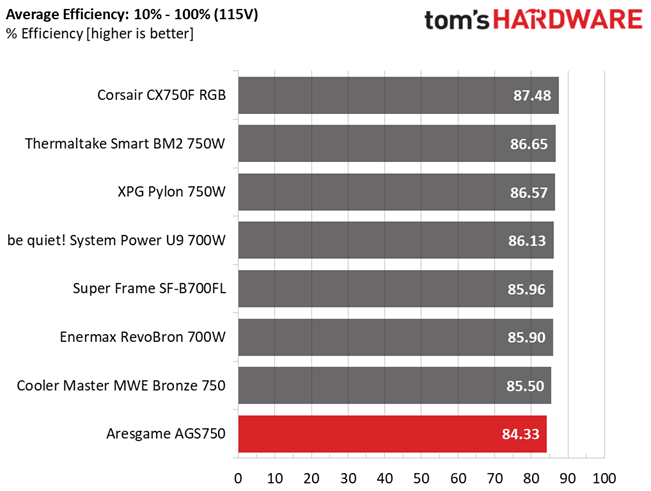

Next, we plotted a chart showing the PSU's efficiency at low loads and loads from 10 to 110% of its maximum rated capacity. The higher a PSU’s efficiency, the less energy goes wasted, leading to a reduced carbon footprint and lower electricity bills. The same goes for Power Factor.

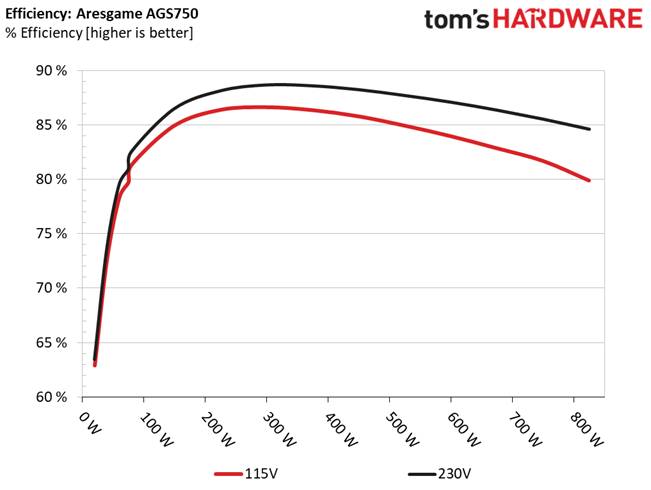

Efficiency is low, even compared to Bronze units. This is definitely not a Gold unit.

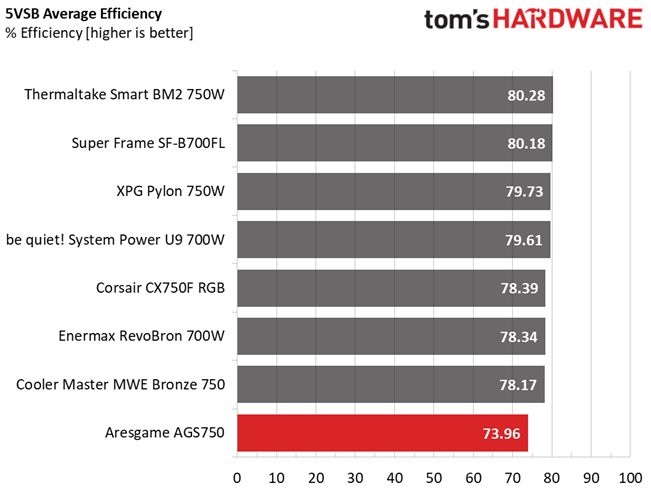

5VSB Efficiency
Test # | 5VSB | DC/AC (Watts) | Efficiency | PF/AC Volts |
1 | 0.1A | 0.512W | 72.352% | 0.066 |
5.123V | 0.708W | 115.12V | ||
2 | 0.25A | 1.28W | 75.888% | 0.147 |
5.119V | 1.687W | 115.12V | ||
3 | 0.55A | 2.813W | 77.558% | 0.264 |
5.113V | 3.627W | 115.12V | ||
4 | 1A | 5.103W | 77.688% | 0.363 |
5.102V | 6.569W | 115.12V | ||
5 | 1.5A | 7.637W | 77.465% | 0.42 |
5.091V | 9.858W | 115.11V | ||
6 | 3A | 15.138W | 75.942% | 0.492 |
5.045V | 19.934W | 115.12V |

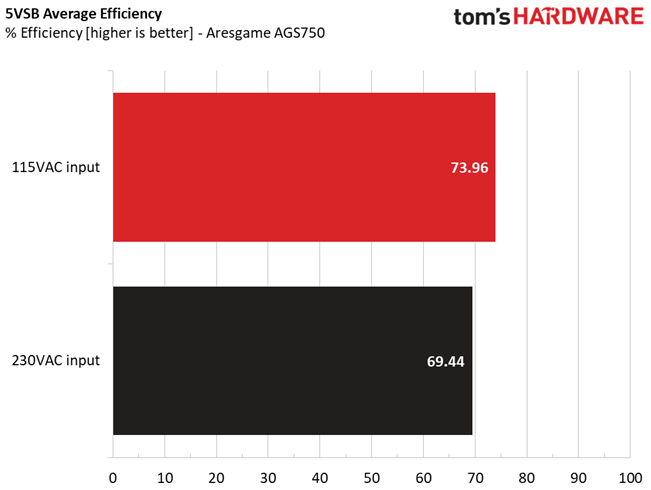

The 5VSB rail is not efficient, at all.
Power Consumption In Idle And Standby
Mode | 12V | 5V | 3.3V | 5VSB | Watts | PF/AC Volts |
Idle | 12.352V | 5.113V | 3.423V | 5.058V | 9.201 | 0.582 |
Row 2 - Cell 0 | Row 2 - Cell 1 | Row 2 - Cell 2 | Row 2 - Cell 3 | Row 2 - Cell 4 | Row 2 - Cell 5 | 115.14V |
Standby | Row 3 - Cell 1 | Row 3 - Cell 2 | Row 3 - Cell 3 | Row 3 - Cell 4 | 0.24 | 0.024 |
Row 4 - Cell 0 | Row 4 - Cell 1 | Row 4 - Cell 2 | Row 4 - Cell 3 | Row 4 - Cell 4 | Row 4 - Cell 5 | 115.14V |

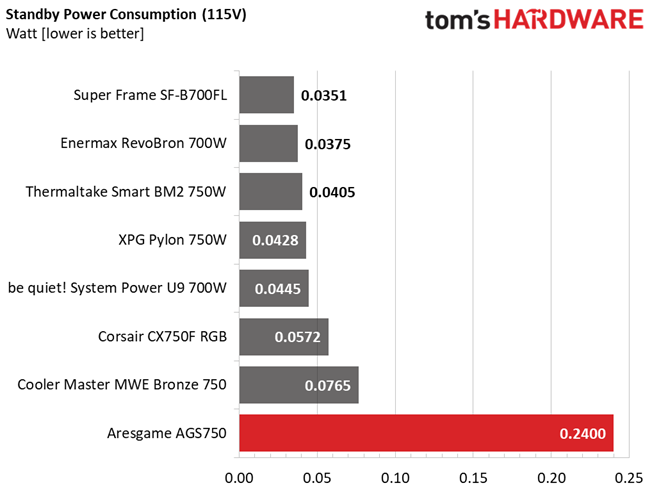

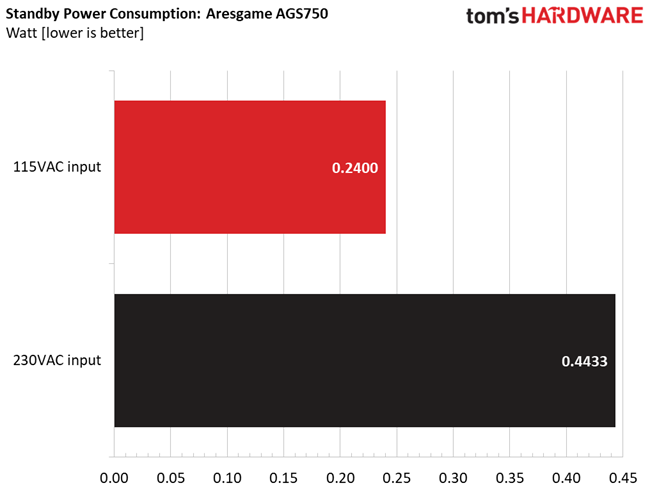

Vampire power is sky-high!
Fan RPM, Delta Temperature, And Output Noise
All results are obtained between an ambient temperature of 37 to 47 degrees Celsius (98.6 to 116.6 degrees Fahrenheit).
The fan speed profile is aggressive at high temperatures, to handle the increased thermal loads.
The following results were obtained at 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit) ambient temperature.
With up to around 180W loads the PSU's noise is not so high, but you may need ear-plugs once the load exceeds 390W.
MORE: Best Power Supplies
MORE: How We Test Power Supplies
MORE: All Power Supply Content
