Bitfenix Formula Gold 650W PSU Review
Why you can trust Tom's Hardware
Ripple Measurements
To learn how we measure ripple, please click here.
The following table includes the ripple levels we measured on the BF650G's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V, and 5VSB).
Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
---|---|---|---|---|---|
10% Load | 10.8mV | 7.1mV | 5.9mV | 13.0mV | Pass |
20% Load | 16.6mV | 7.8mV | 7.1mV | 13.4mV | Pass |
30% Load | 19.1mV | 8.0mV | 7.6mV | 14.2mV | Pass |
40% Load | 20.6mV | 8.9mV | 9.9mV | 14.4mV | Pass |
50% Load | 21.9mV | 10.3mV | 12.5mV | 14.9mV | Pass |
60% Load | 24.1mV | 10.7mV | 12.0mV | 15.6mV | Pass |
70% Load | 25.7mV | 12.5mV | 13.1mV | 16.4mV | Pass |
80% Load | 26.8mV | 13.7mV | 12.9mV | 18.9mV | Pass |
90% Load | 27.7mV | 14.5mV | 13.3mV | 20.6mV | Pass |
100% Load | 29.2mV | 16.1mV | 14.0mV | 24.0mV | Pass |
110% Load | 30.4mV | 17.8mV | 17.9mV | 25.6mV | Pass |
Cross-Load 1 | 20.9mV | 11.8mV | 10.0mV | 8.6mV | Pass |
Cross-Load 2 | 24.3mV | 11.5mV | 13.0mV | 17.4mV | Pass |

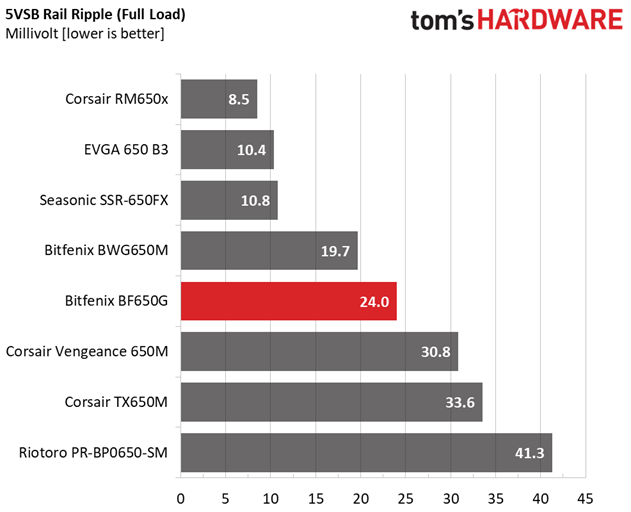

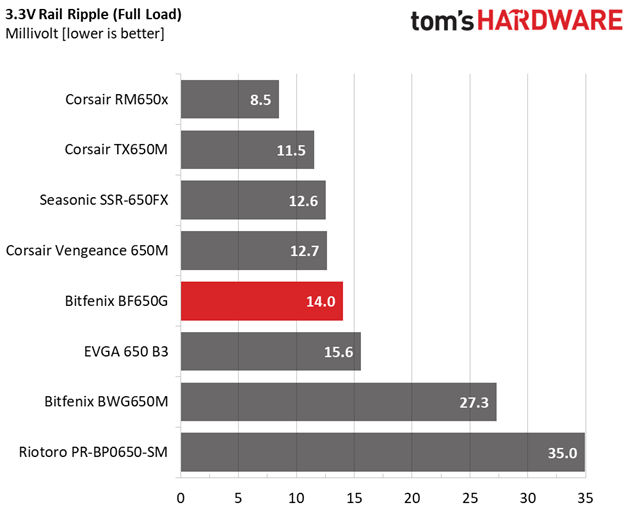

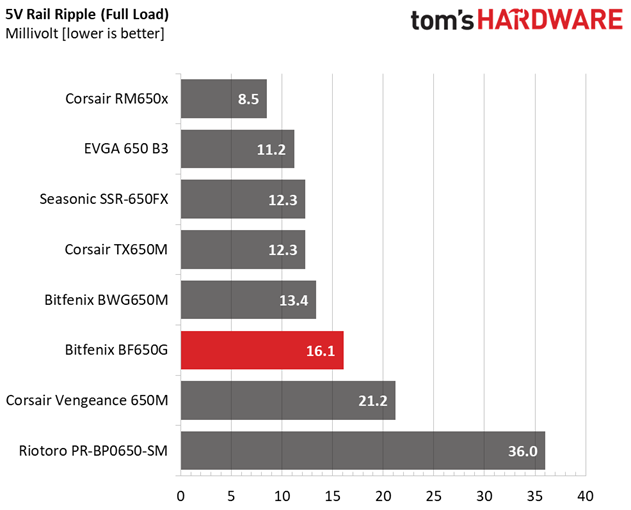

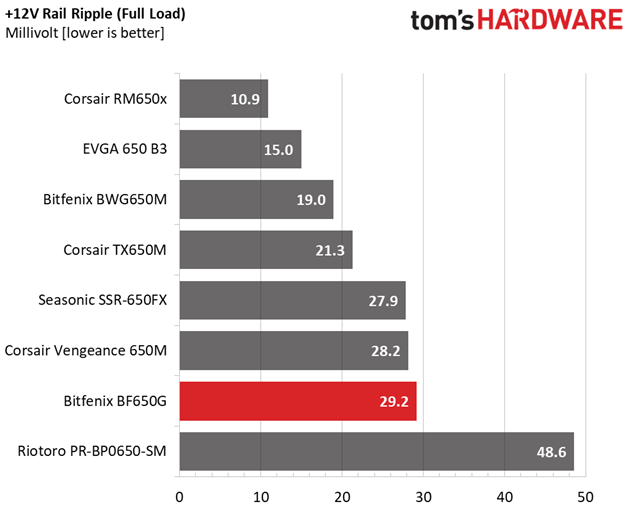

The ripple suppression we observe on each rail is good. Together, CWT and BitFenix did a fine job on this platform.
Ripple Oscilloscope Screenshots
The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

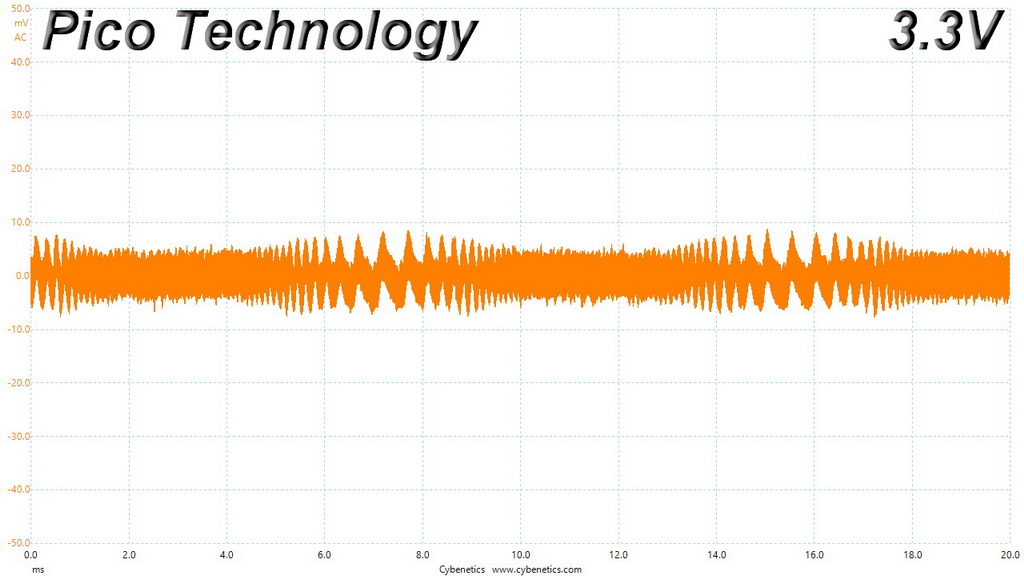

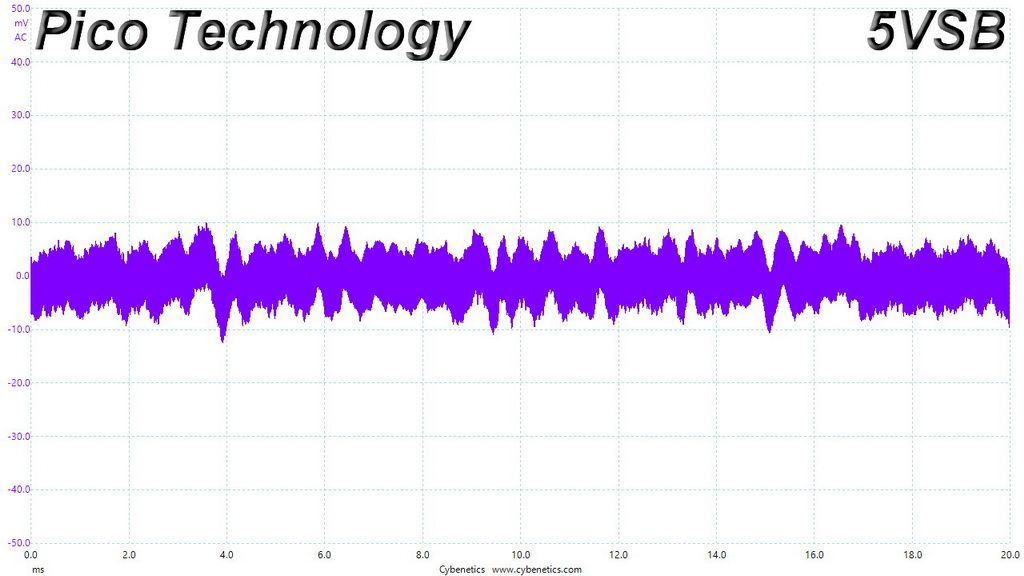

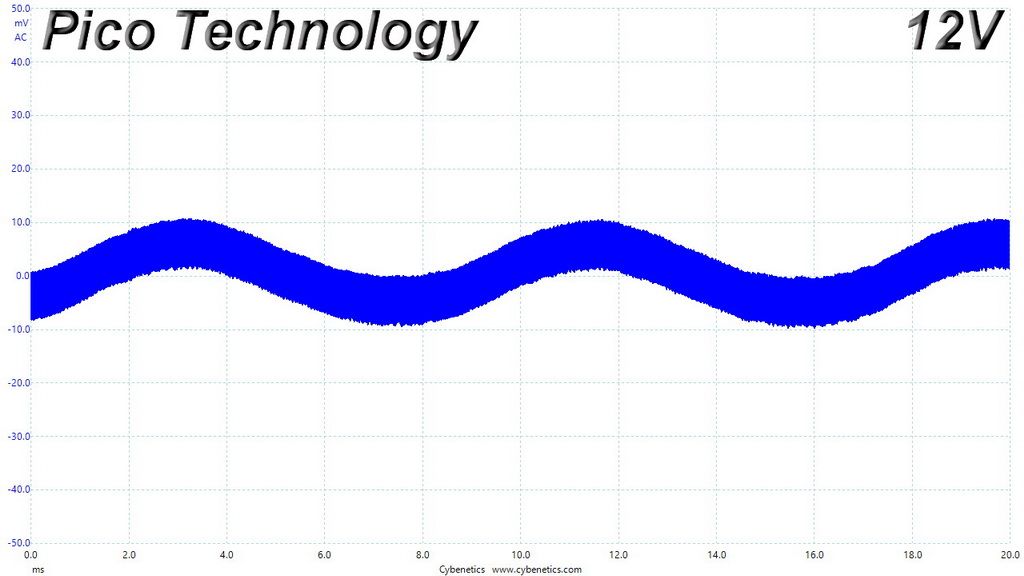

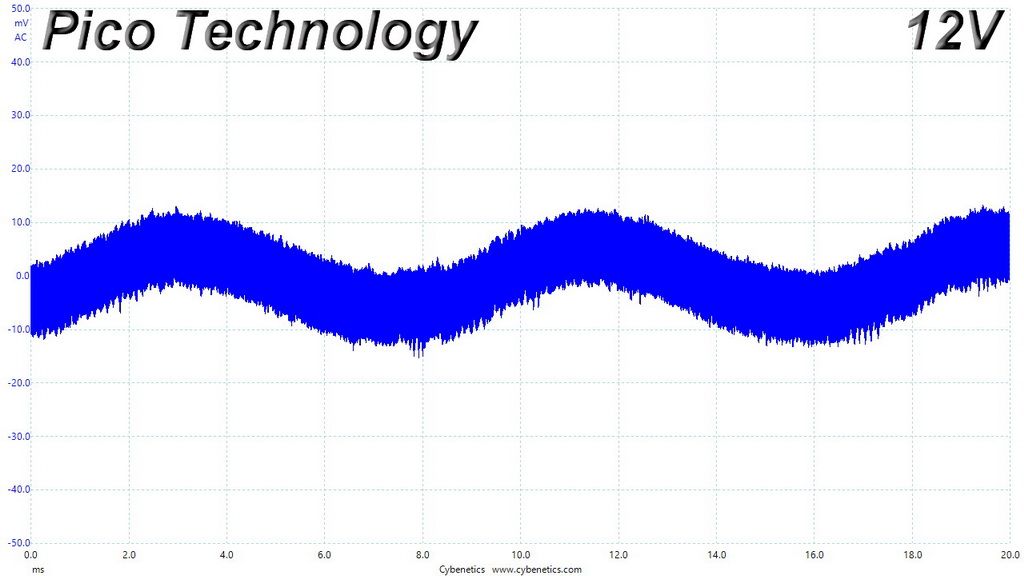

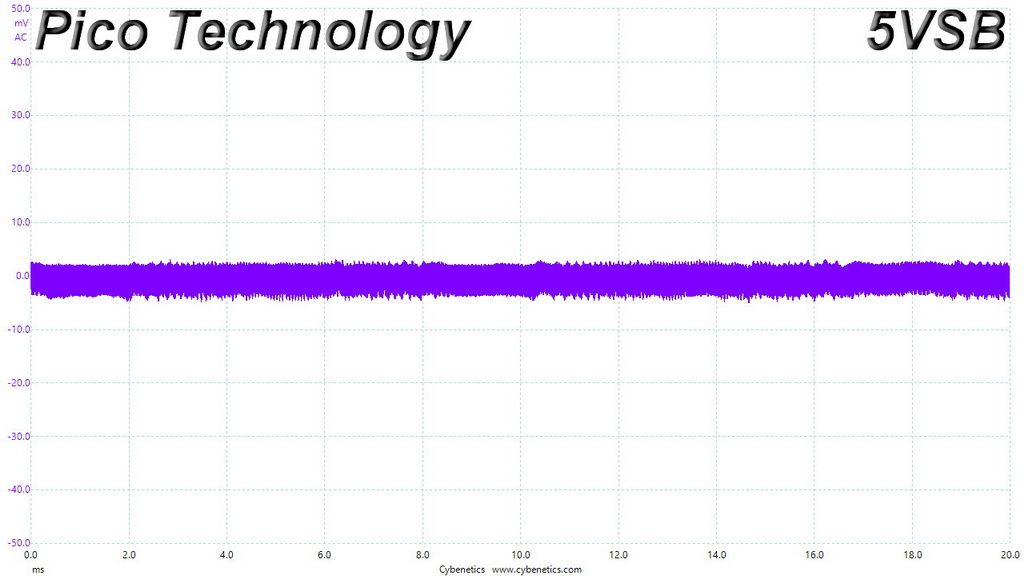

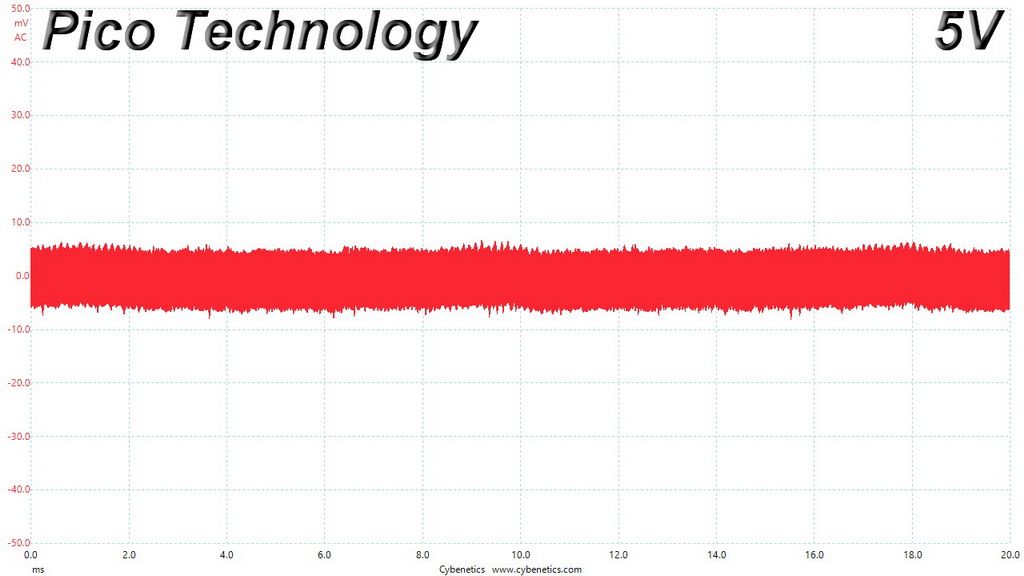

Ripple At Full Load

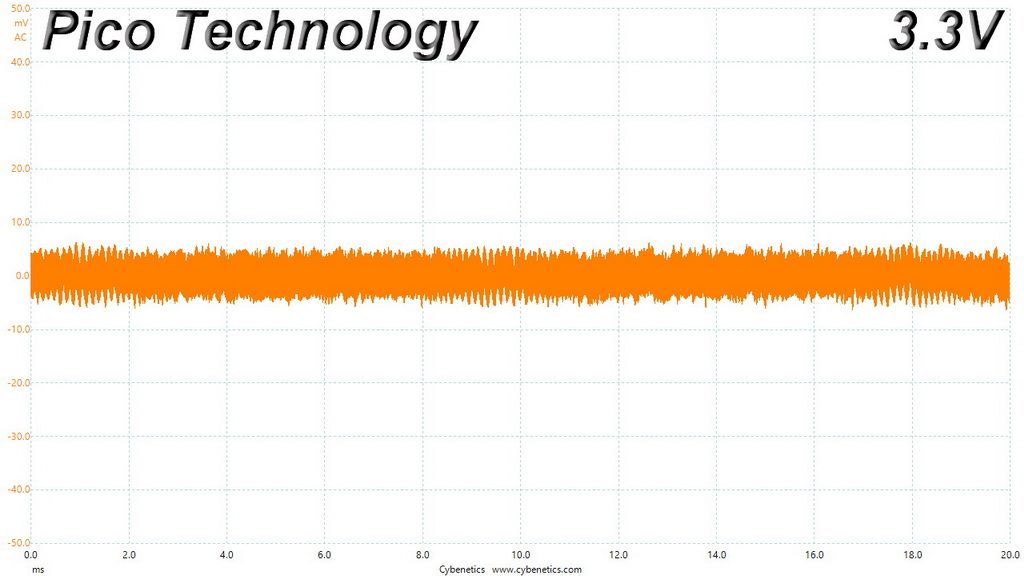

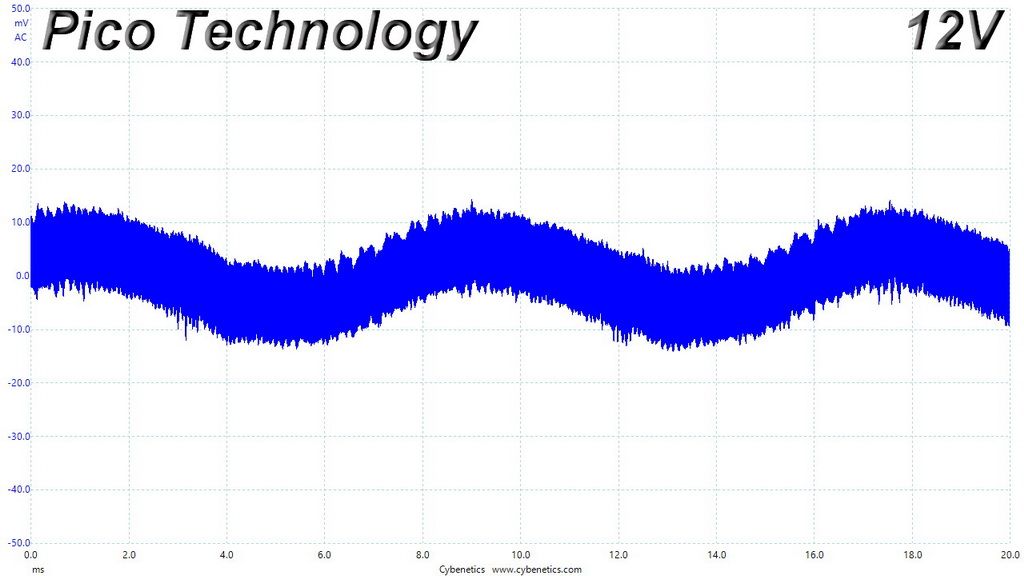

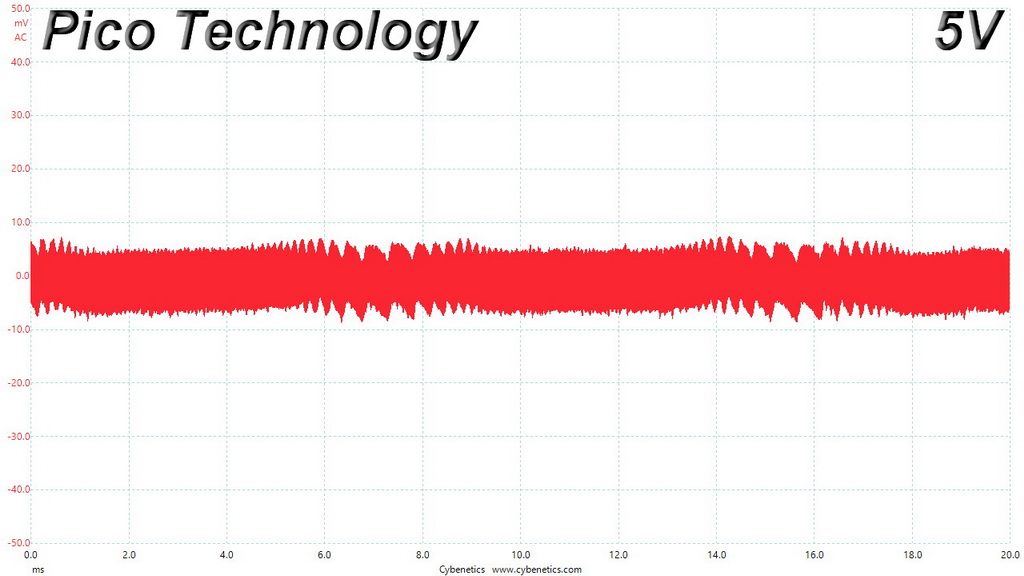

Ripple At 110-Percent Load

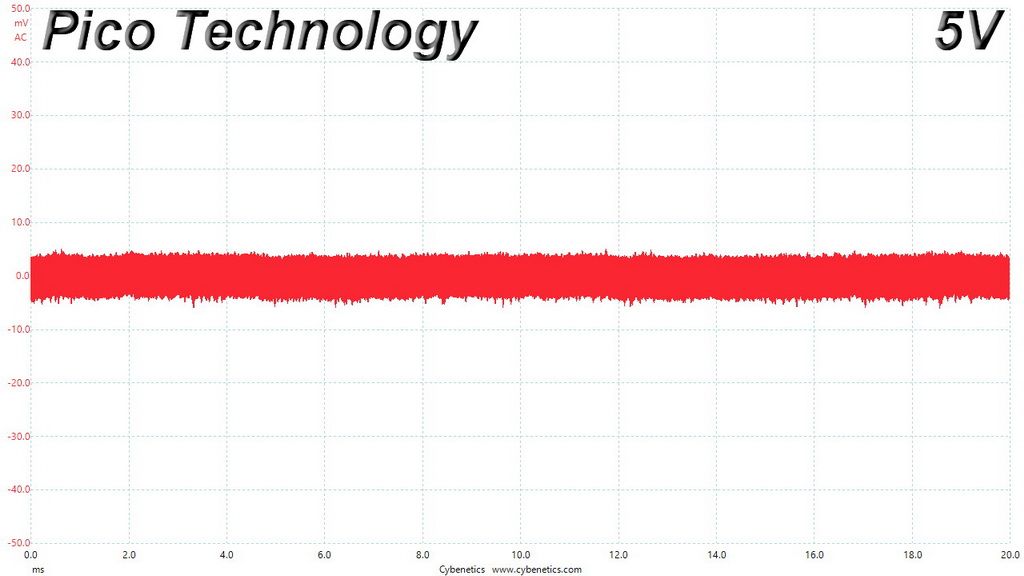

Ripple At Cross-Load 1

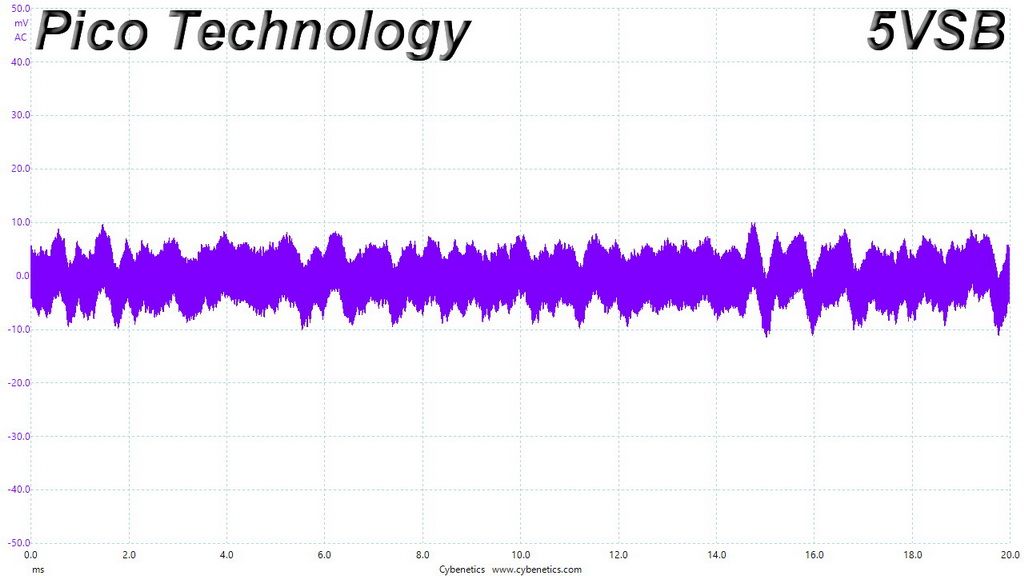

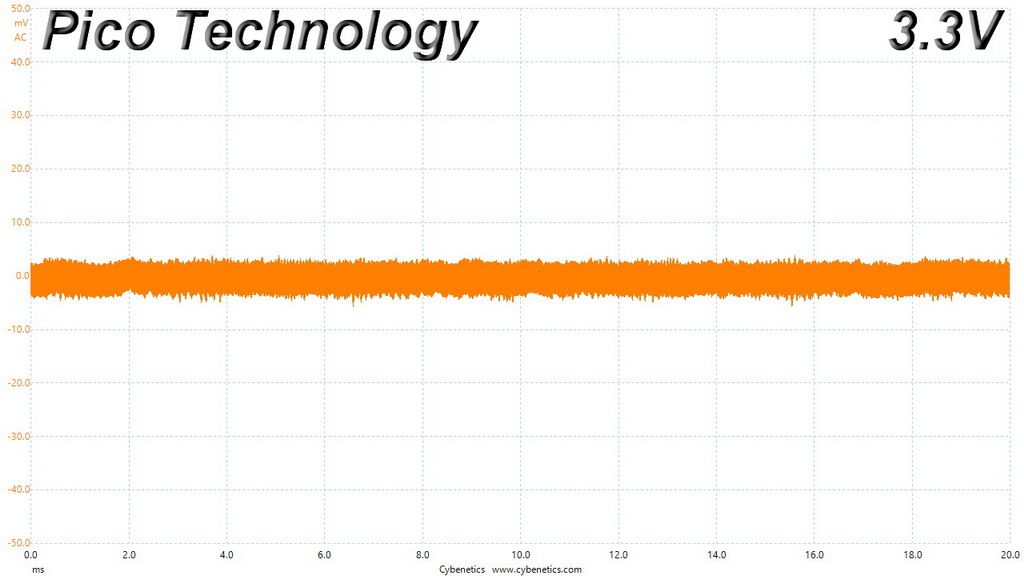

Ripple At Cross-Load 2
MORE: Best Power Supplies
MORE: How We Test Power Supplies
MORE: All Power Supply Content
Current page: Ripple Measurements
