Ripple Measurements
To learn how we measure ripple, please click here.

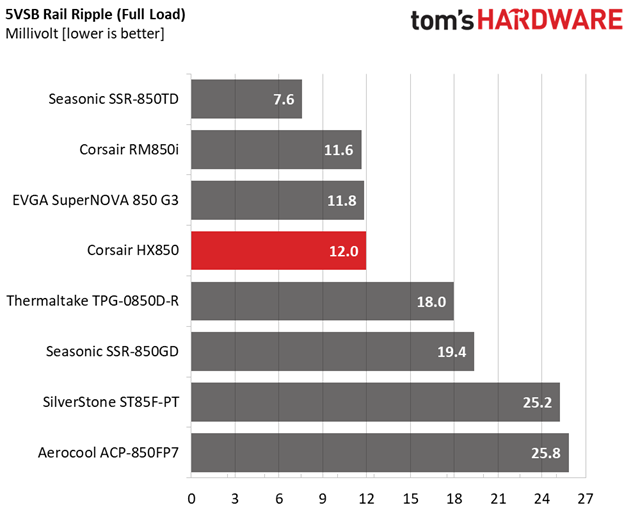

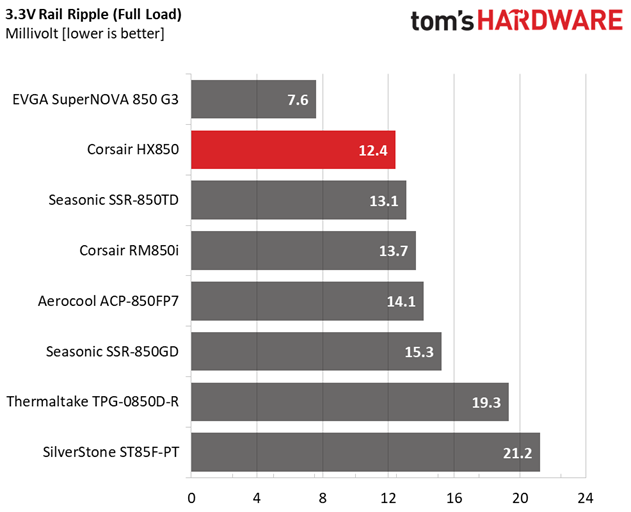

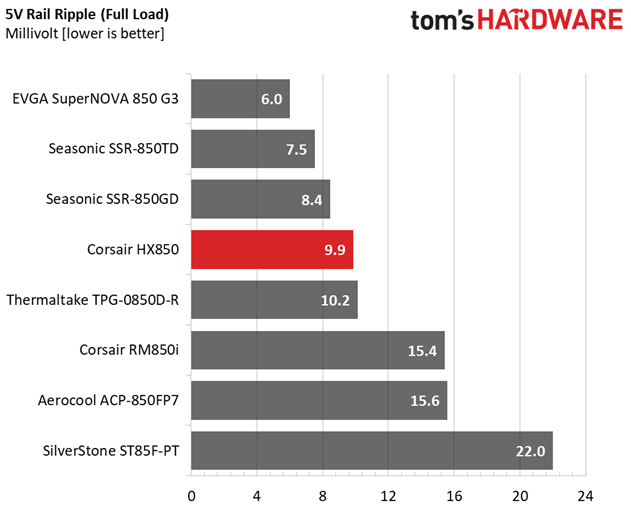

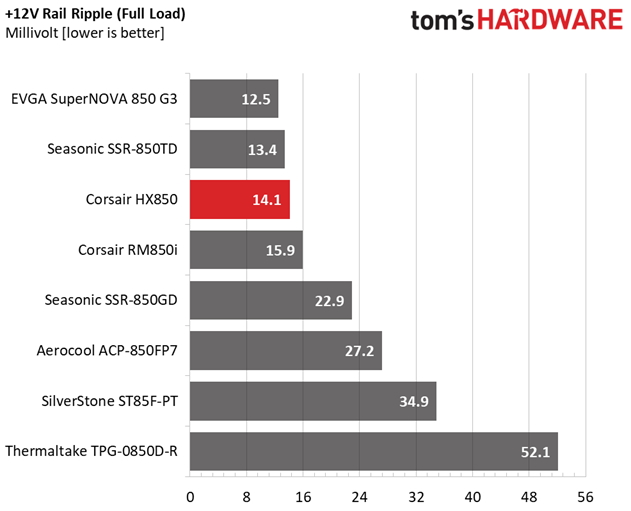

The following table includes the ripple levels we measured on the HX850's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V and 5VSB).
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
|---|---|---|---|---|---|
| 10% Load | 5.7mV | 6.6mV | 8.4mV | 5.5mV | Pass |
| 20% Load | 7.0mV | 6.1mV | 8.6mV | 5.3mV | Pass |
| 30% Load | 8.2mV | 7.1mV | 8.7mV | 6.6mV | Pass |
| 40% Load | 8.7mV | 6.8mV | 9.7mV | 6.0mV | Pass |
| 50% Load | 9.7mV | 7.5mV | 11.3mV | 8.3mV | Pass |
| 60% Load | 11.0mV | 6.7mV | 10.7mV | 8.2mV | Pass |
| 70% Load | 9.9mV | 7.3mV | 10.8mV | 8.5mV | Pass |
| 80% Load | 10.2mV | 7.4mV | 11.4mV | 8.8mV | Pass |
| 90% Load | 11.2mV | 8.0mV | 13.6mV | 10.0mV | Pass |
| 100% Load | 14.1mV | 9.9mV | 12.4mV | 12.0mV | Pass |
| 110% Load | 14.8mV | 10.4mV | 13.1mV | 13.5mV | Pass |
| Cross-Load 1 | 9.4mV | 10.6mV | 9.6mV | 9.8mV | Pass |
| Cross-Load 2 | 12.8mV | 8.4mV | 11.8mV | 10.8mV | Pass |
These numbers reflect excellent ripple suppression! A solid design and those extra in-cable capacitors work wonders in our tests.
Ripple Oscilloscope Screenshots

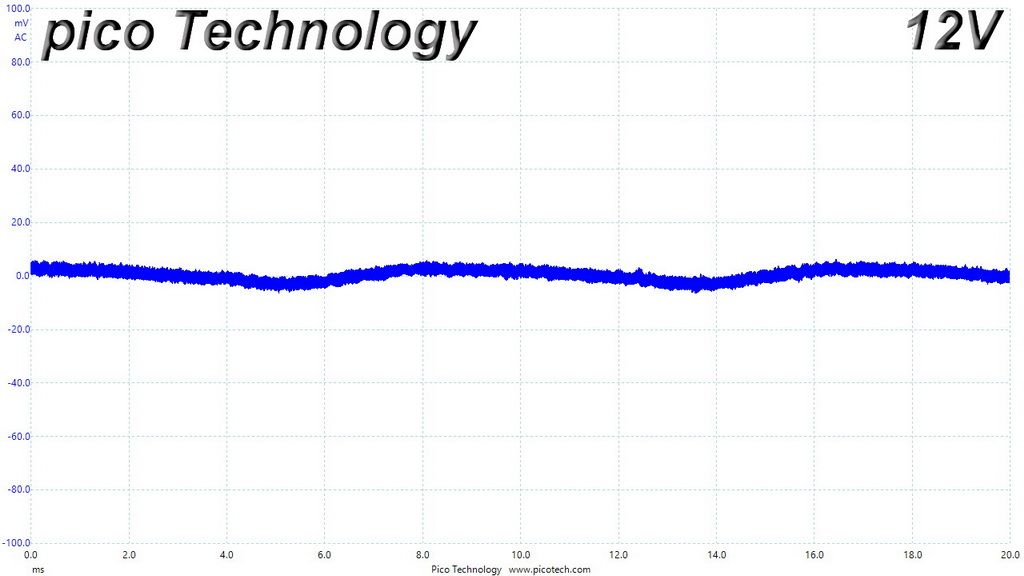

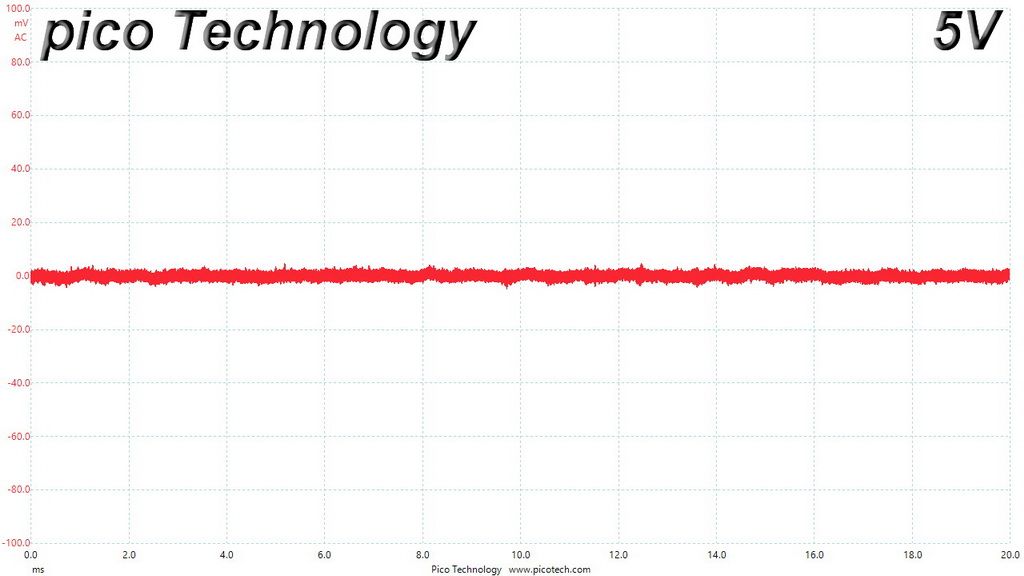

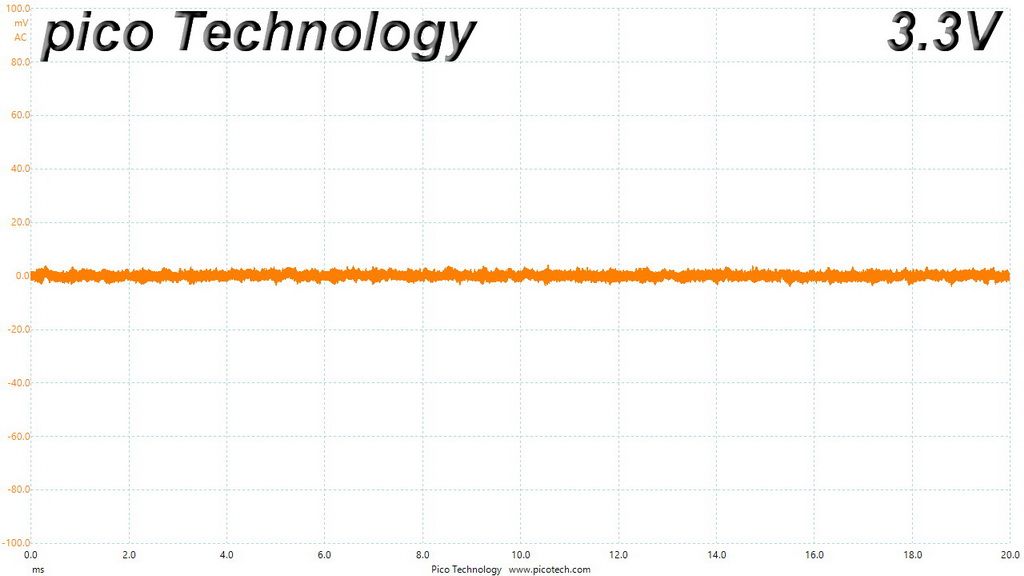

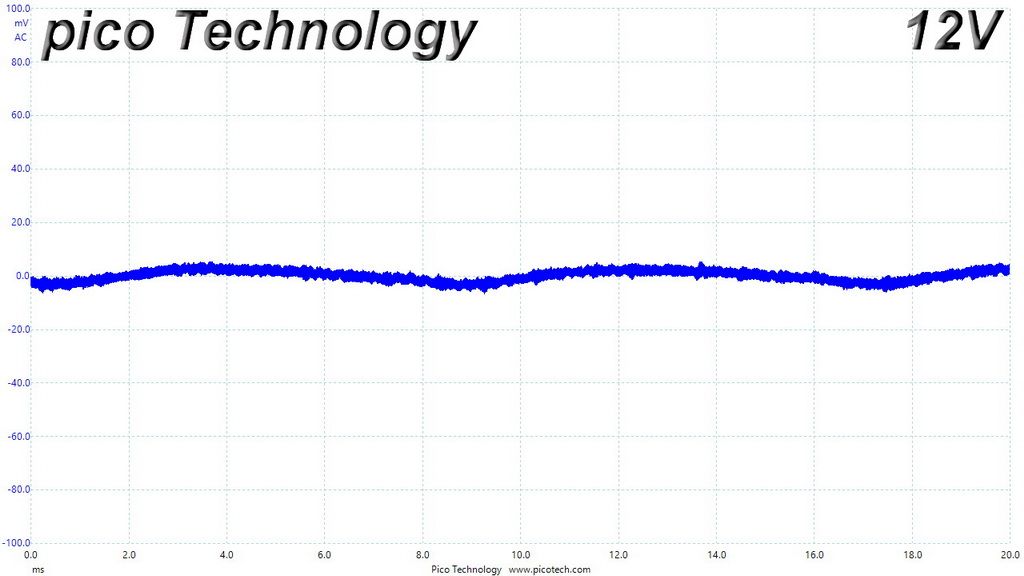

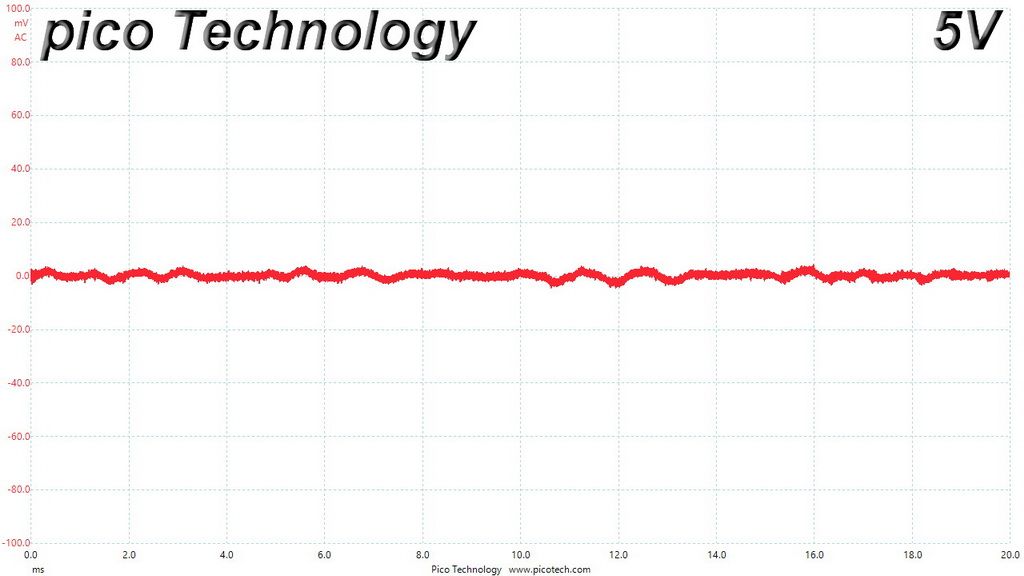

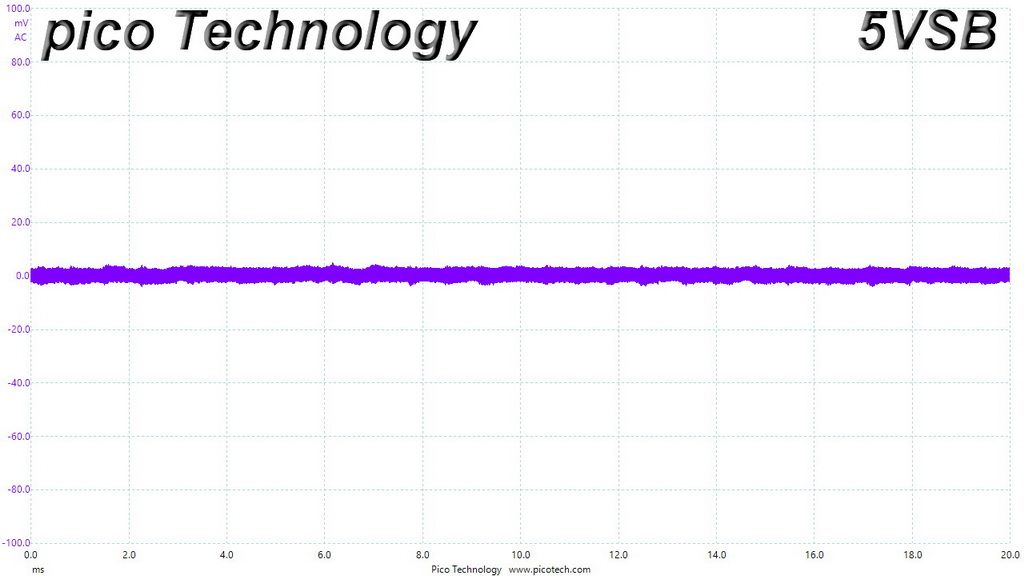

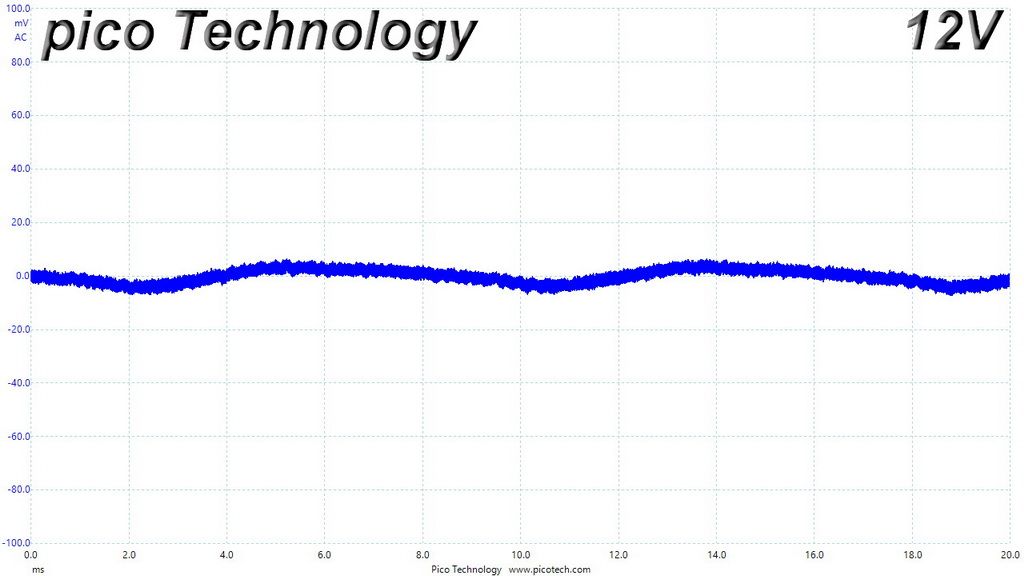

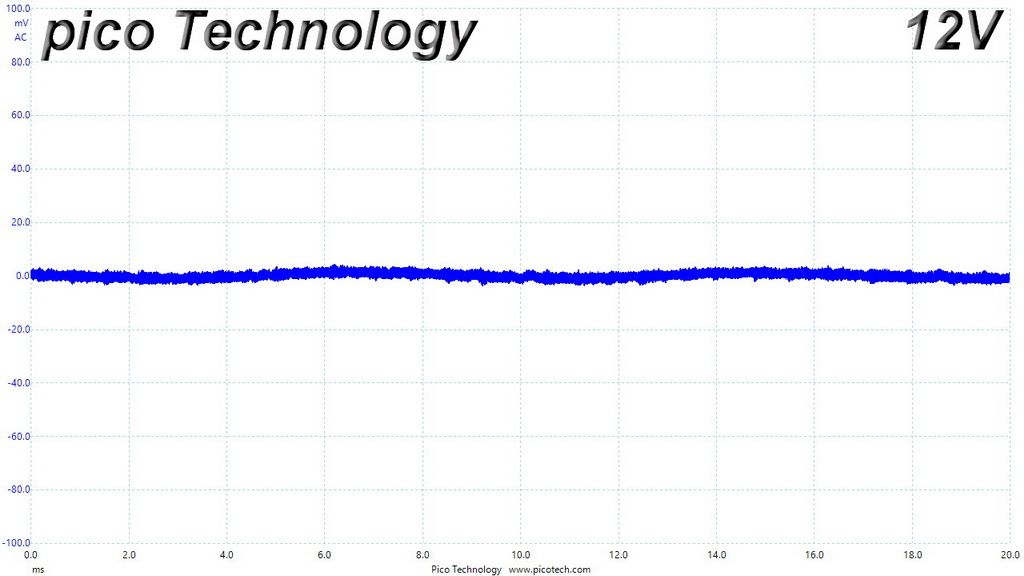

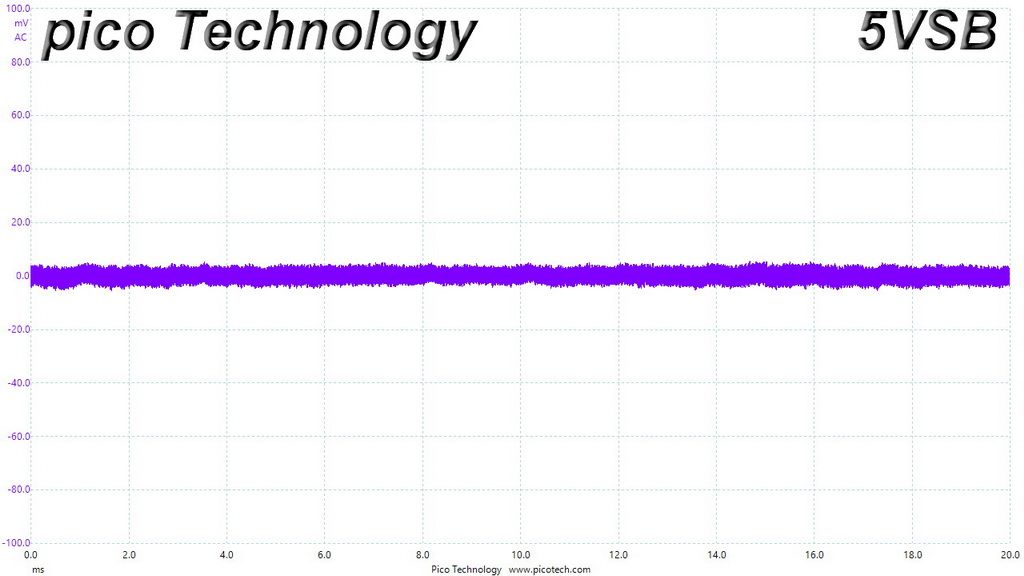

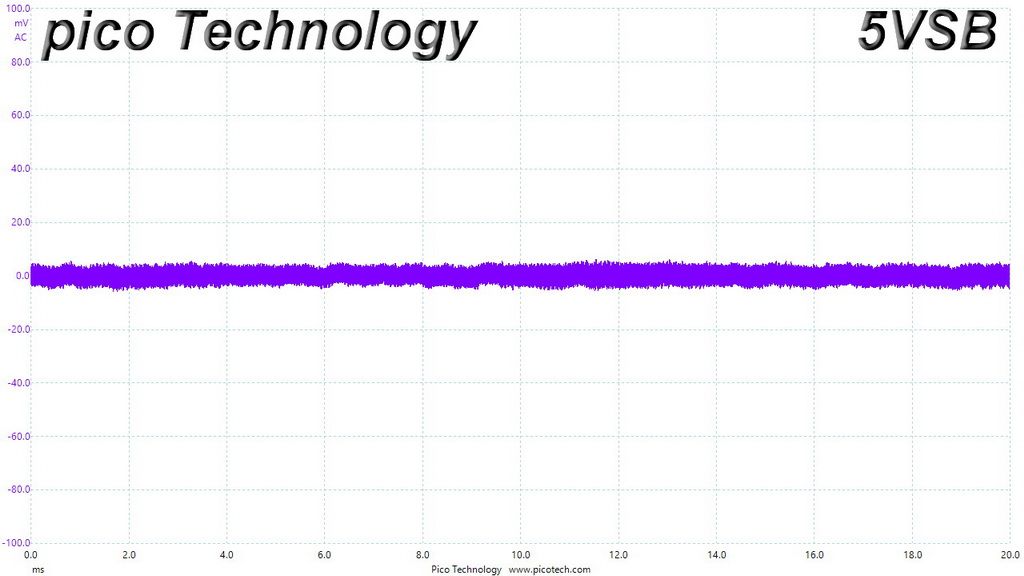

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.
Ripple At Full Load
Ripple At 110-Percent Load
Ripple At Cross-Load 1
Ripple At Cross-Load 2
