Mechanical Keyboards: BlackWidow, Osmium, G710+

By Daniel Starkey
published

Today we review three of the most popular mechanical keyboards around: the Gigabyte Aivia Osmium, Logitech G710+, and Razer BlackWidow Ultimate 2013. Which these three $130-$150 premium gaming peripherals is the best bet? We'll find out!

Mechanical Switches: Cherry MX Blue, Brown, And Red

With the exception of each keyboard physical design, the switch is going to be the most immediately recognizable difference. All three keyboards use MX series switches by Cherry, quite possibly because it's basically the only company to make them in bulk. However, none of the boards use the same kind of Cherry MX switch.

 (opens in new tab)
Gigabyte Aivia Osmium

 (opens in new tab)
Logitech G710+

 (opens in new tab)
Razer BlackWidow Ultimate

The Razer BlackWidow Ultimate 2013 uses Cherry MX Blue switches, a very tactile and "clicky" variety. So, while this switch is a bit louder than the others, it does give the board a small bit of extra resistance that kicks in right before complete activation, which is very satisfying.

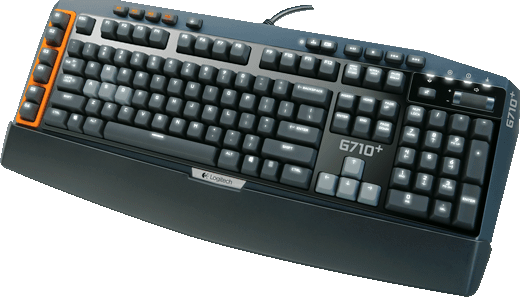

Logitech opted for the MX Brown switches for its very first enthusiast-tier mechanical keyboard. On paper, Brown switches are slightly quieter and easier to trigger than the Blue variety, but they sacrifice that additional level of user feedback afforded by Razer’s choice. The MX Brown is still a tactile switch, however, so there’s still a bit more resistance at the midpoint.

Lastly, the Gigabyte Osmium utilizes the Cherry MX Red switches. It’s a linear switch, meaning that the force at the beginning and end of each stroke is nearly identical, presenting a pretty big difference between either of today's other two boards.

But switches aren’t the only things that matter. While they are one of the most important considerations when comparing mechanical keyboards, additional features like backlighting, volume control, on-the-fly macro creation, and additional port access can often be the deciding factor in a pricey peripheral purchase. While easy to objectively compare, their level of importance will depend more on any particular user's preferences than most other categories.

Let's begin by taking a closer look at each board, starting with the Gigabyte Aivia Osmium.

Daniel Starkey
64 Comments Comment from the forums
  • retrac1324
    I don't understand how you included "actuation force" into the overall keyboard score, it's personal preference.
    Reply
  • slicedtoad
    umm, why does it say that lower actuation force is better on the graph? Right above the graph it says
    Keys that are too easy to press can be easy to accidentally trigger, while keys that are too stiff can be particularly exhausting after long typing sessions.
    Using that as a scoring metric is somewhat absurd.
    Reply
  • slicedtoad
    On another note, razer. I really wish I could endorse their products. They have neat designs and features and sell at a decent price point. But I've had 5 razer products and only one of them is still in use, the rest are broken or returned for not working correctly.

    I had the non-ultimate black widow and it worked excellently for a year and a half and then just crapped out randomly (sent out a random key sequence whenever plugged in). There was no physical damage and I treat my peripherals very well.

    Every time I had a problem with a razer product I kept thinking, "this must just be an outlier and not representative of Razer", but I can't really say that anymore. Mostly I use logitech now. And for keyboards (since logitech just started mechanicals) I use daskeyboard.
    Reply
  • Vorador2
    Personally i prefer old school. Using an Unicomp keyboard, a clone of the classic IBM Model M. It is really loud, but built like a tank.
    Reply
  • adamovera
    11529348 said:
    I don't understand how you included "actuation force" into the overall keyboard score, it's personal preference.

    Carpal tunnel. The harder you have to press and the more you type, the faster this can get you. I'd have to imagine that the lower actuation point on the Blue switches would make them the worst for that - though Razer makes gaming peripherals, not keyboards for typists, so their choice does make sense if you're going for a "trigger" effect. In any event, I seriously doubt any of these top-end keyboards have a too low actuation force issue. They should all be quite solid feeling, and unless you have incredibly heavy hands, that's typically not an issue in this class of product. The preference is probably more between switch types and the different ways they go about providing tactile feedback than any leanings toward a certain amount of force needed to depress a key.
    Reply
  • Someone Somewhere
    There's nothing that stops mechanical keyboards from being in a grid layout - it's less common, but possible.

    Also, conventional/cheap boards still use individual switches (one per key). It's the type of those switches that make it mechanical (spring-loaded contacts instead of a conductive dome on PCB traces), and rollover etc. is all because of how it's wired to a microcontroller.
    Reply
  • Western Infidel
    Had my fair share of TOTR Logitech and Razer Keyboards and to be honest, all of them have either failed prematurely, had the symbols "rub off" the keys through use (unacceptable for kb's in that price range) or just fit into the "look nice, but cheap tat with crap feel" category. In fact i have been pretty underwhelmed, disappointed, cheated by everything until i bought a Corsair Vengeance K90. That K90 was expensive when i bought it but i soon realised that it was money well spent. It is simply awesome, it was so good i bought a second one for my partner and recommended that my friends also buy one, some of whom have and are equally ecstatic. I will admit to owning the Logitech DiNovo Edge - thats used in the lounge with the media center and whilst not very rugged and not mechanical is better than any of the wireless keyboards ive had for media center use, although the software is prone to freezing sometimes. Im still very happy with my Razer Deathadder Mouse (without the Cloud Driver nonsense).

    My advice would be to check out the corsair K90 or the newer K95 before you throw money at the others.
    Reply
  • ubercake
    I like the feel of the browns and blues. They feel mechanical. The blacks and reds to me feel like non-mechanical keys.

    Keyboards aren't pretty, but the 710+ is just plain ugly. Who thought pairing orange with black and gray would be a good idea? Also, it only has white lighting.

    Anyhow, I was able to pick up a 710+ for $99 new on sale. While it's ugly, it's a great keyboard from a practicality/usability standpoint. I like how you can change the lighting level of the wasd cluster independent of the rest of the keys. The tactile and audible feedback of the browns has got to be my favorite of the bunch. I'm constantly using the roller-style volume control too. I wouldn't pay $150 for it though.
    Reply
  • Hayden Jones
    I find it sad that Corsair was not included and the CM storm peripherals considering the fact that those keyboards seem to be more customizable based on macros/switches and these "high end" keyboards are synonymous with overpriced and over marketed.
    Reply
  • madogre
    I have owned both the Gigabyte and Logitech keyboards from this review, and I must say the G710+ hands down is the better keyboard for me. The only problem I have had out of the G710 is some of the led's went out after I got it(twice RMA'd the first one for the same thing) I also had the LED's go out in the Gigabyte keyboard as well, but the Macro keys where in such a bad place I just could never get comfortable using them, so I returned it and got the G710+, I would like for them to make a G720+ with a LCD screen like the old G15 I would buy one in a flash!
    Reply
