Performance Rating
The overall performance is not that far from other offerings, but it is not competitive.
Noise Rating
The graph below depicts the cooling fan's average noise over the PSU's operating range, with an ambient temperature between 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit).
Given its capacity, it is not super-noisy, but there is room for improvement in this section. The king, by far, in noise output is the Asus Rog Thor model, thanks to its beefy heatsinks.
Efficiency Rating
The following graph shows the PSU's average efficiency throughout its operating range with an ambient temperature close to 30 degrees Celsius.
The average efficiency is high enough for a Gold-rated unit.
Power Factor Rating

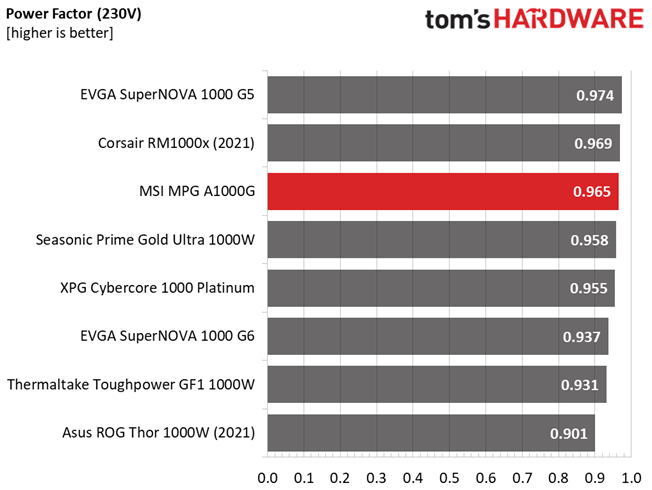

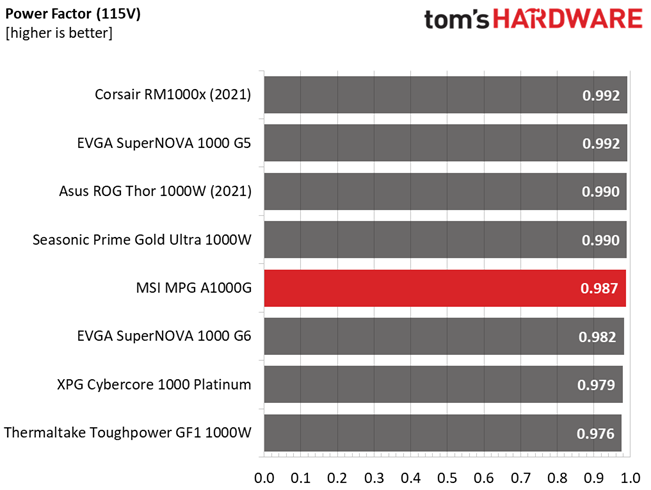

The following graphs show the PSU's average power factor reading throughout its operating range with an ambient temperature close to 30 degrees Celsius and 115V/230V voltage input.
The APFC converter does a good job, especially with 230V input.
MORE: Best Power Supplies
MORE: How We Test Power Supplies
MORE: All Power Supply Content
Current page: Performance, Noise, Efficiency and Power Factor
