QNAP TS-453mini NAS Review

Qnap takes a vertical approach to reduce noise, and making for a small office NAS that fits in tighter spaces.

By Chris Ramseyer
published

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

SMB, iSCSI And Standard Server Workloads

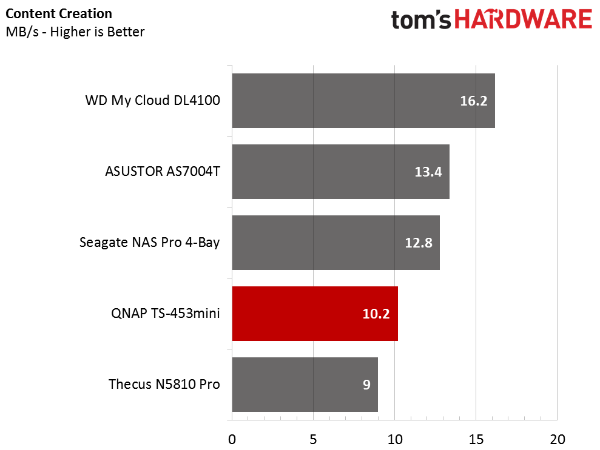

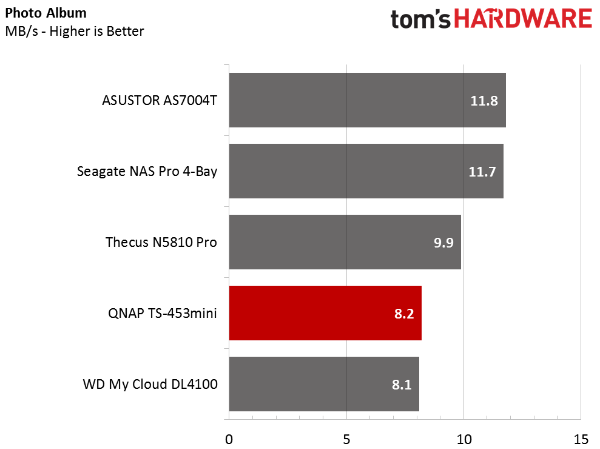

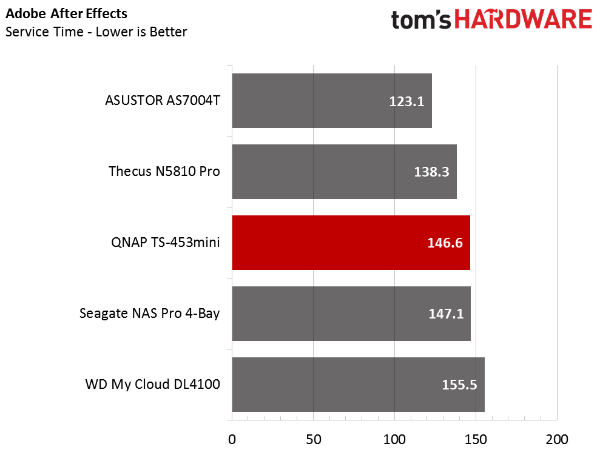

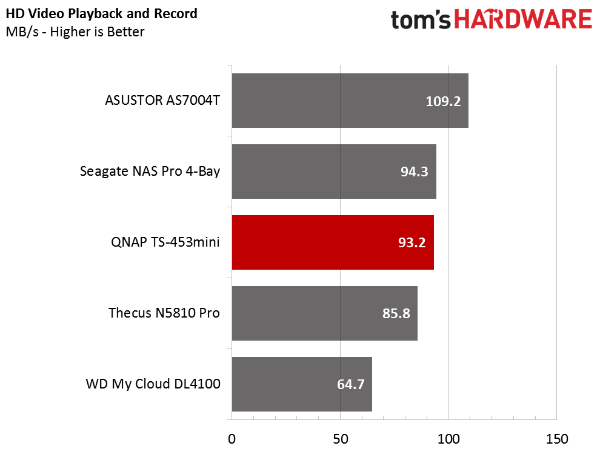

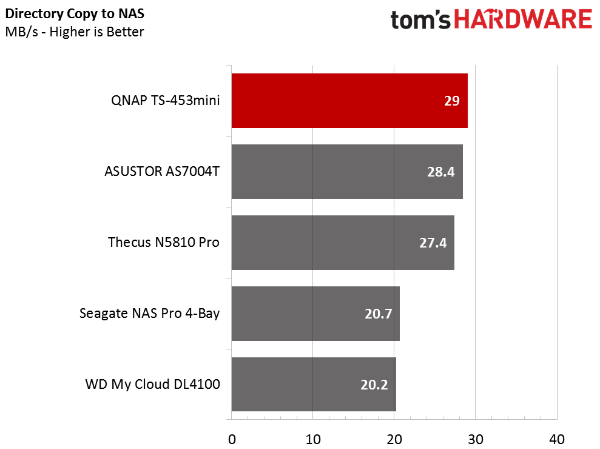

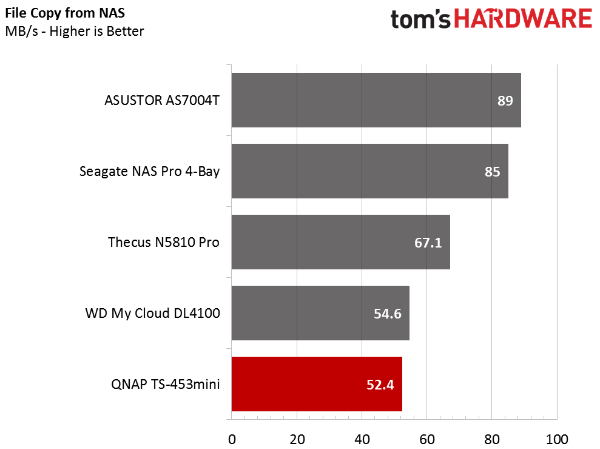

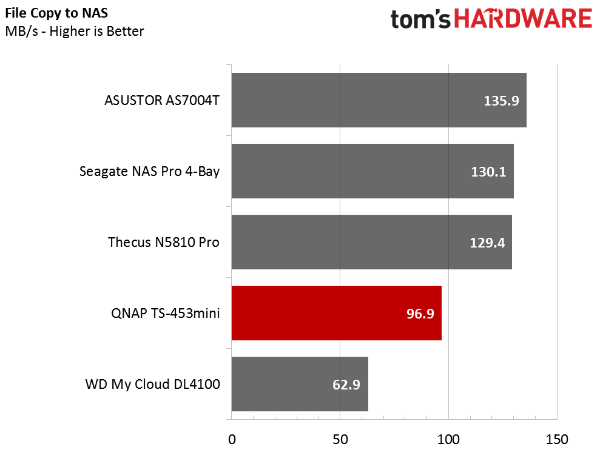

Single-Client SMB Performance

Image 1 of 11

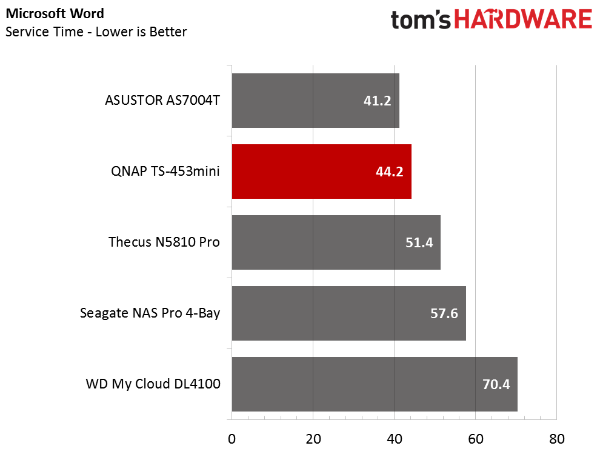

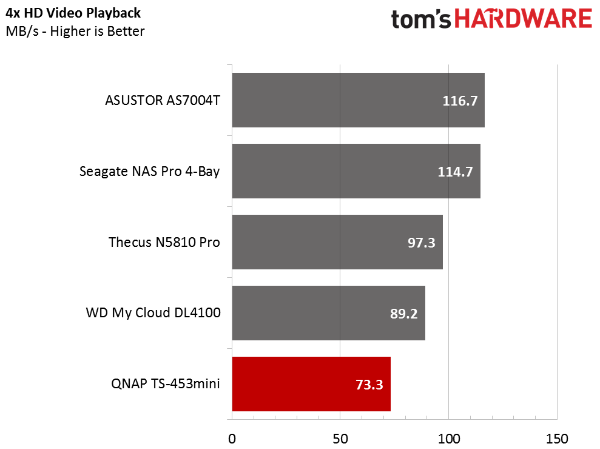

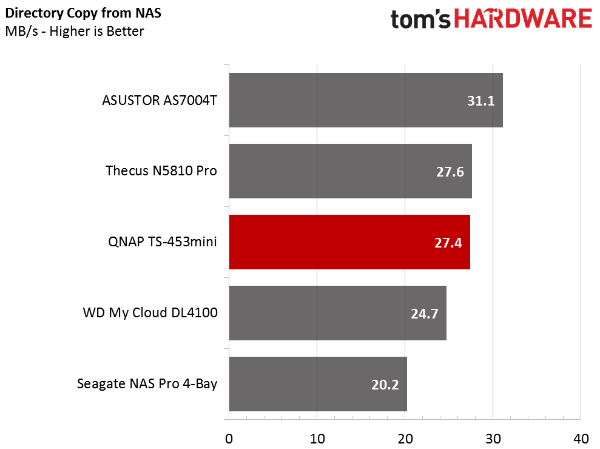

The QNAP TS453mini takes the top spot on the SMB/CIFS workload charts only once. The system does lag behind some of the others in a few tests by a larger margin than we would like to see. Still, the performance is acceptable for a small four-bay tower NAS.

Multi-Client SMB Performance

The multi-client test moves us away from the Quanta CiB system and over to 10 dual Xeon servers loaded with two Hotlava Shasta NICs each that supply 12 gigabit-Ethernet ports per server. Through the magic of Hyper-V, each server mimics 12 office-class desktops that run workload scripts with real Microsoft Office software applications on the device under test.

Image 1 of 2

In this test, we've taken advantage of the dual network interface on the QNAP TS-453mini. In dual NIC mode, we used the 802.11ad protocol, also known as Link Aggregation. We also tested the TS-453mini with a single network interface.

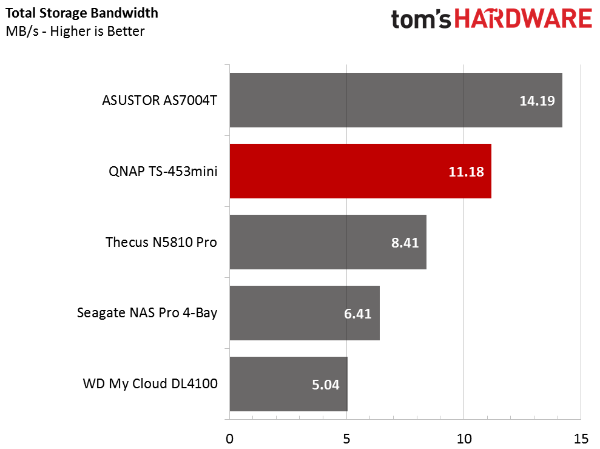

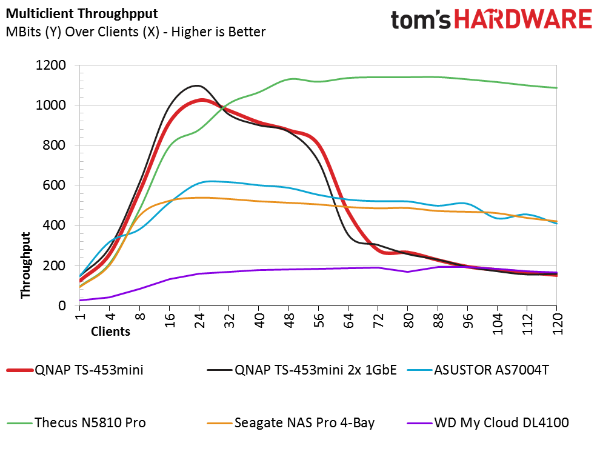

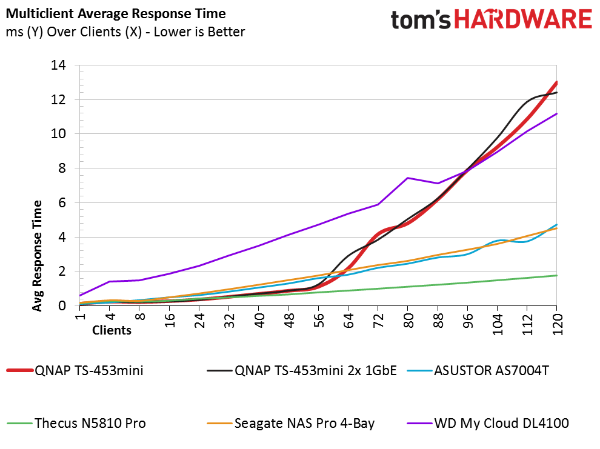

The QNAP TS-453mini delivers exceptional throughput that reaches peak performance at 24 clients. The latency holds steady all the way to 56 clients but quickly skyrockets up from the stress on the CPU from the small file reads, modifies and writes.

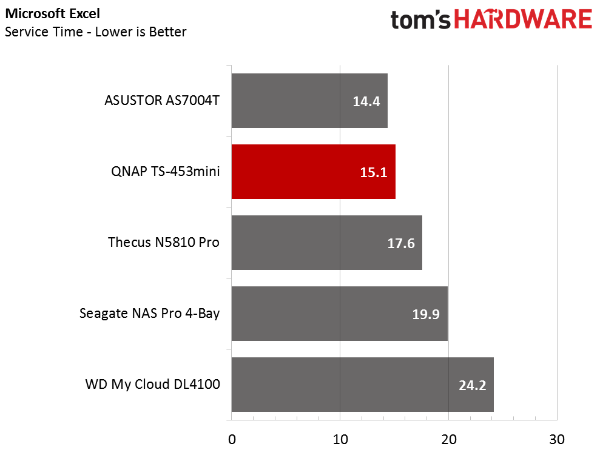

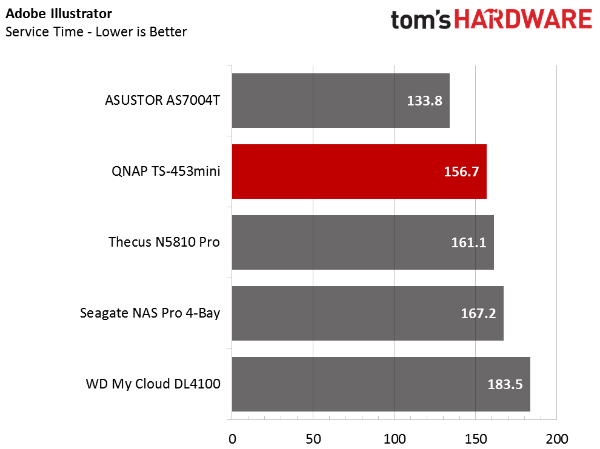

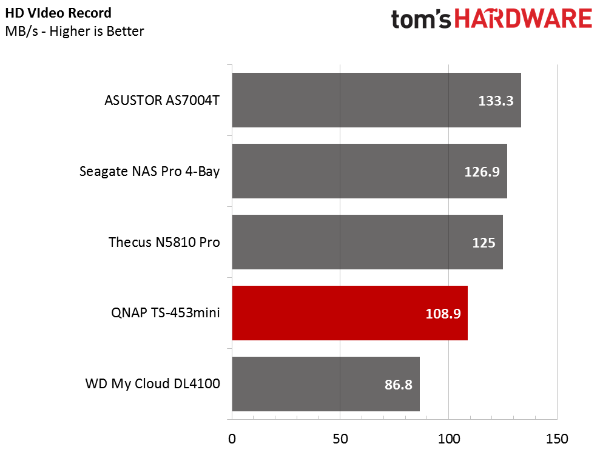

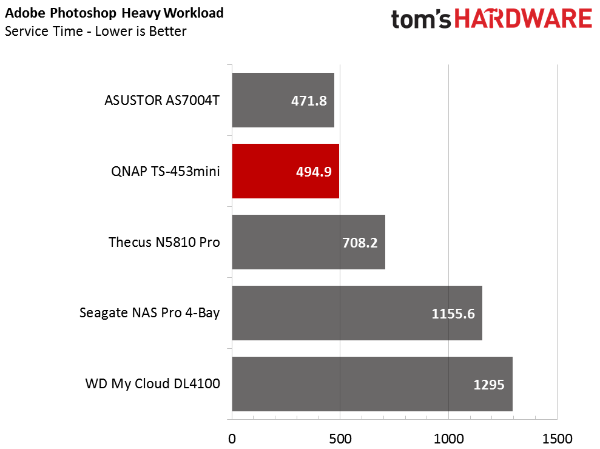

Single-Client iSCSI Workloads

Image 1 of 10

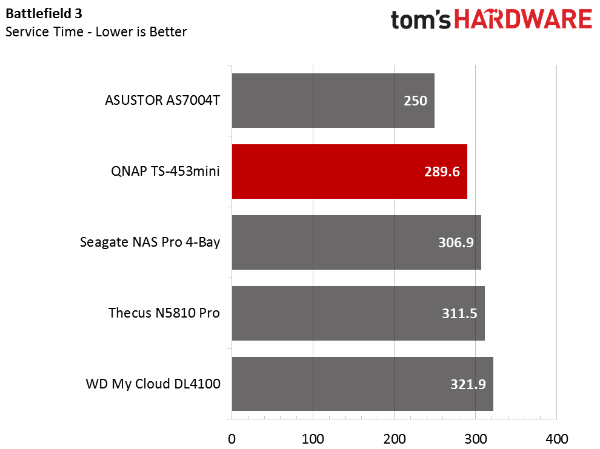

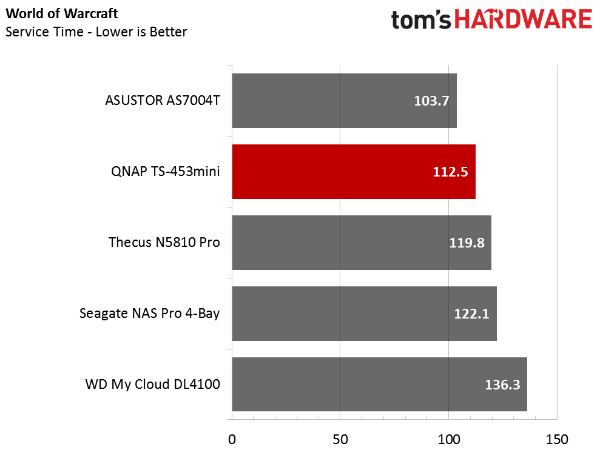

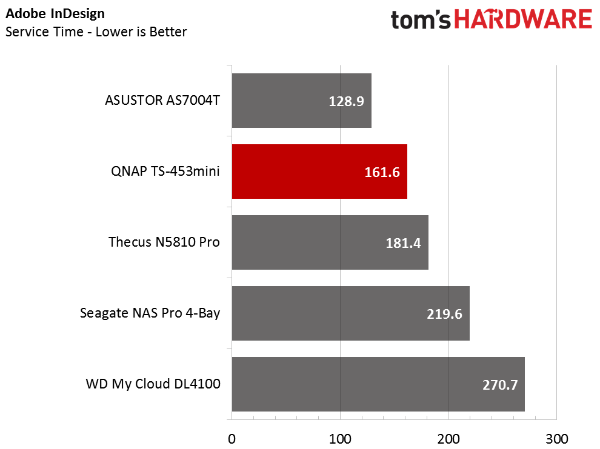

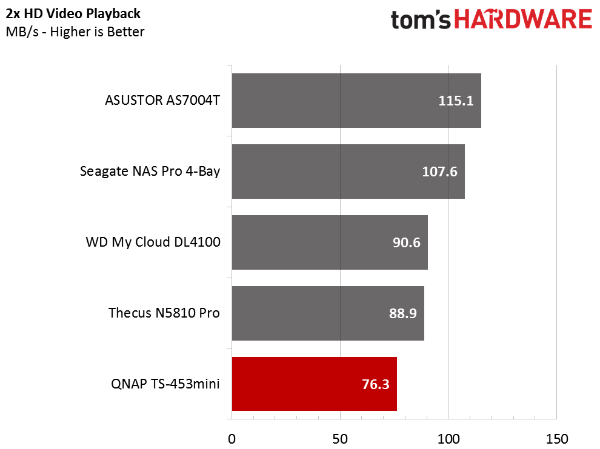

QNAP's iSCSI engine is very good. We've yet to see poor iSCSI results from any of the company's products, even the very low-cost units designed strictly for home users.

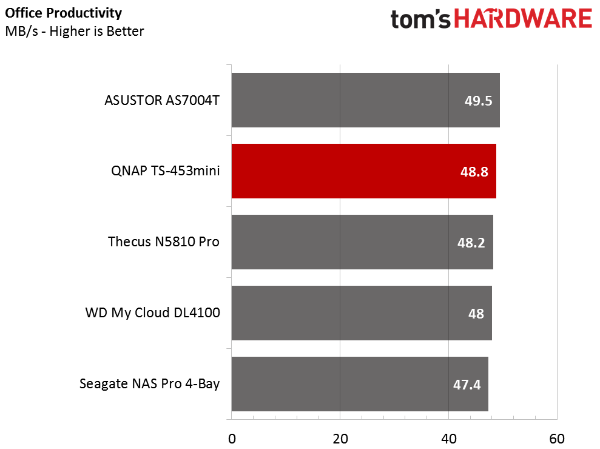

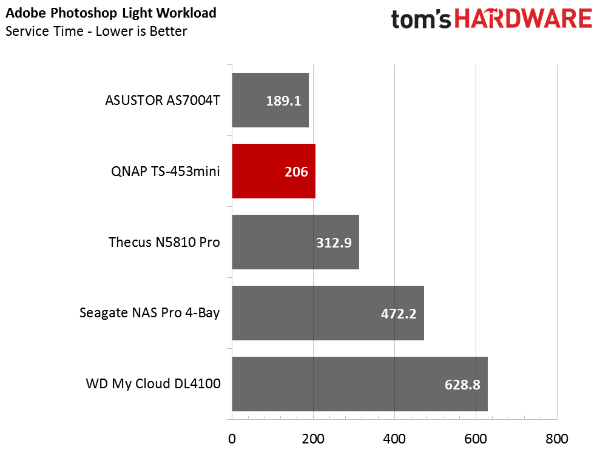

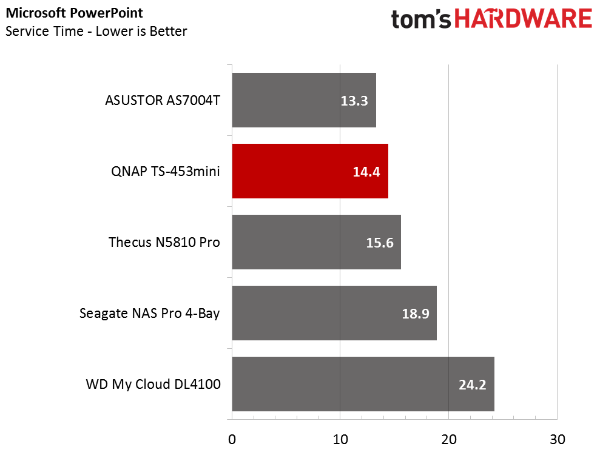

In the end, the QNAP TS-453mini outperformed most of the other products in the iSCSI desktop workloads running from a mounted volume. The ASUSTOR AS7004T with a Core i3 processor was a bit faster. The AS7004T didn't run away from the TS-453mini as much as we expect and not by enough to justify the additional expense.

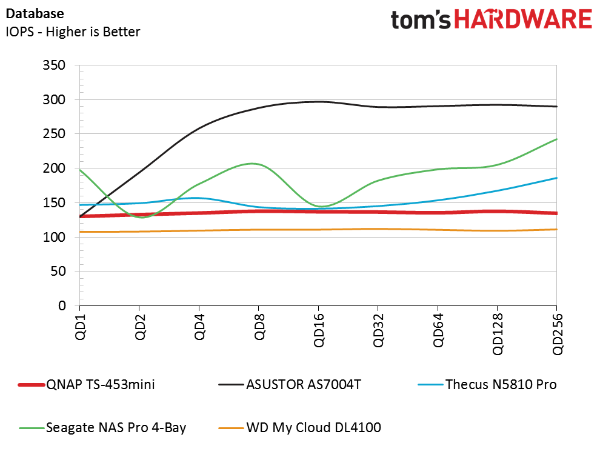

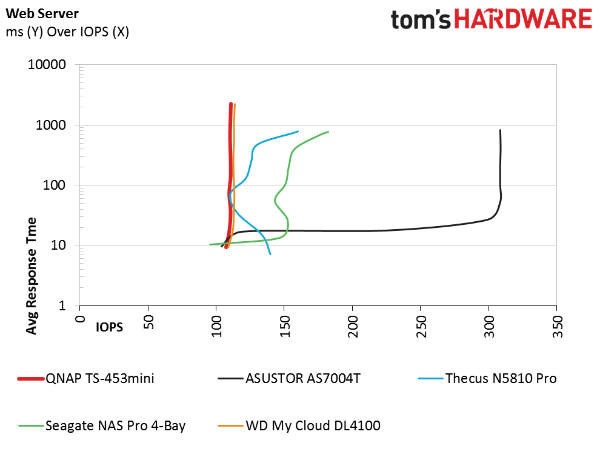

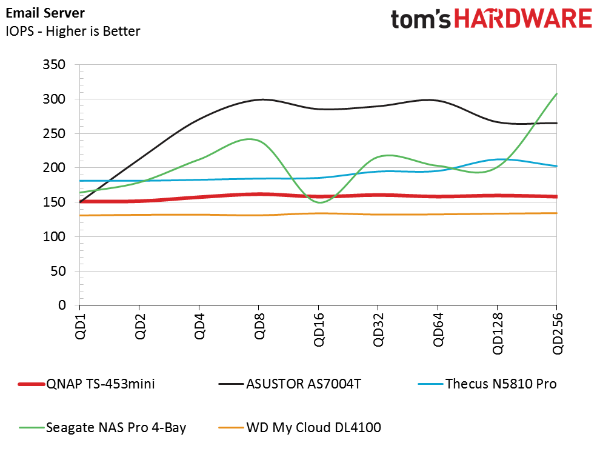

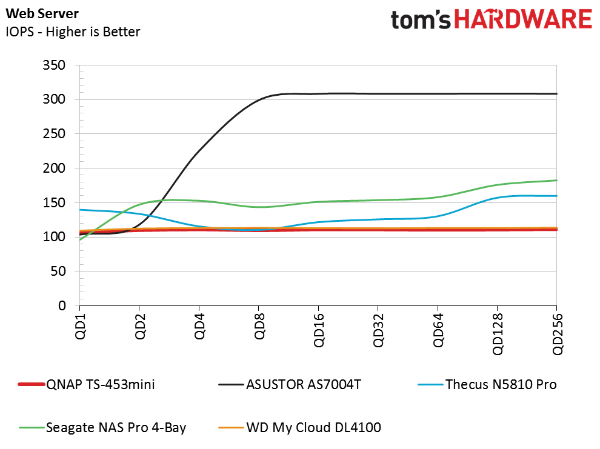

Standard Workloads

Image 1 of 10

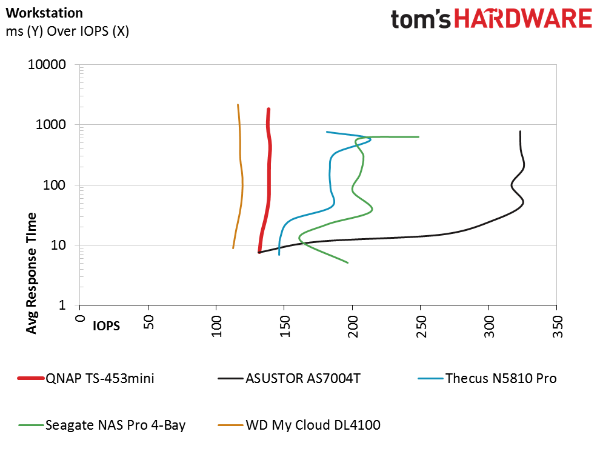

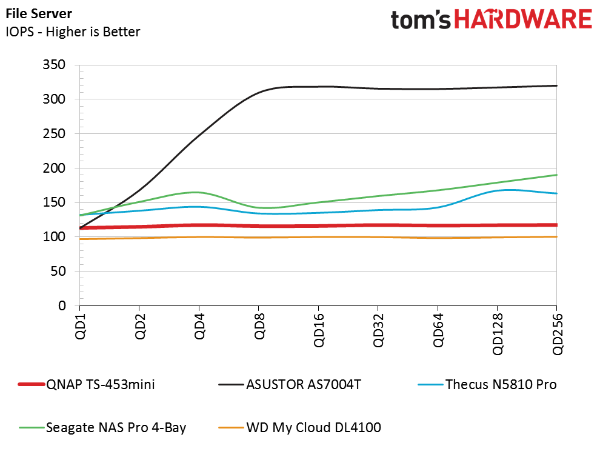

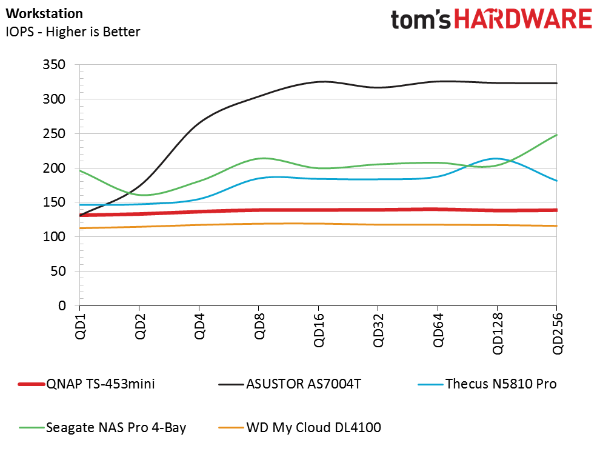

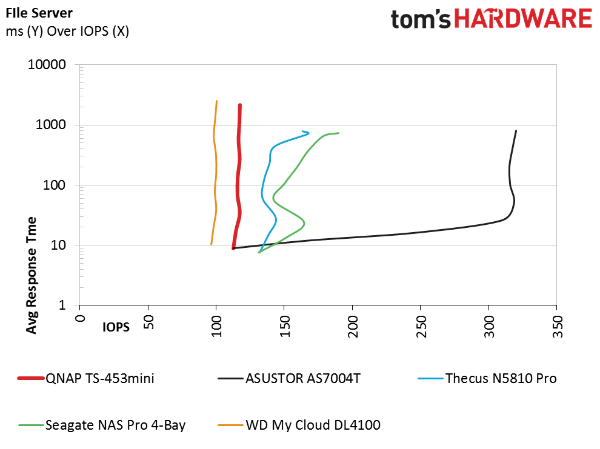

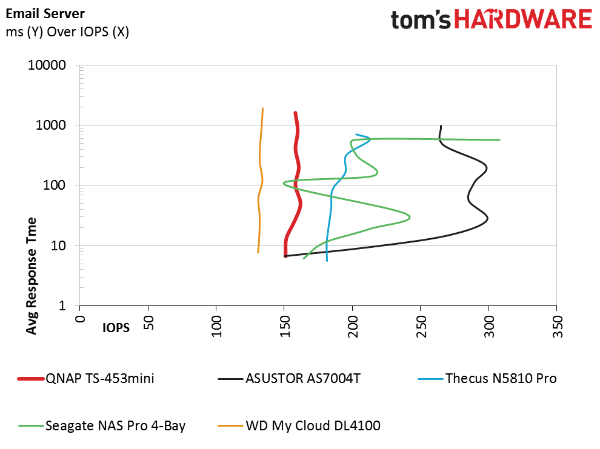

Until this point, the QNAP TS-453mini delivered very consistent performance without large peaks or valleys in the results. That carries over to the traditional-server workloads, in which we see very little deviation regardless of the queue depth applied to the load. The system is able to absorb additional workload but doesn't increase the IOPS performance. The latency does increase, though, an attribute we can see in the snake charts.

Chris Ramseyer
Chris Ramseyer
Chris Ramseyer is a Contributing Editor for Tom's Hardware US. He tests and reviews consumer storage.
10 Comments Comment from the forums
  • thebigt42
    $140 just for 8 gig of ram vs 2. That is nuts! I bet they lock down the 2g version so you cant change the ram yourself too.
    Reply
  • astonerii
    You keep changing the GB on these things. The 8GB is 4GB several times and the 2GB is 4GB at least once.
    Really too bad the prices are so high for these things, but they are niche items I guess. I would like to have one, but prices are too high for my want.
    Reply
  • Haravikk
    Every time a NAS ships with an external power brick of dubious origin I just can't fathom why; while a power brick is a bit easier to replace if it fails than an internal PSU, if they used a standard PC type (e.g- an SFX PSU) then it needn't be that hard. Better yet, a device in this size could easily stand to be a little taller if it meant it could accommodate a pair of slim PSUs such as those common in servers (for redundancy).

    Aside from often coming from an unknown source, and being easily the most commonly failing component (more so than hard-drives in my experience), power bricks just destroy any aesthetics that a company tries to put into their "small" devices; hint, if a device is only small because you've made components external, then it's not small, it's badly designed.

    Sorry, but it's a real annoyance for me, and the reason I'd rather build a NAS in a small(-ish) PC case as I just don't trust power bricks at all, and for an always-on data storage device that's a pretty big negative.
    Reply
  • Uneventful
    I am would really like to know more about the Home Theater possibilities of this NAS. The article mentioned that it came with a remote, but that was all. I would like to know a couple of different things: What application or interface it uses if you hook it up to a TV via HDMI and use the remote? What sort of files can it play back? Does the HDMI 1.4a port support 4K?

    I have a older QNAP NAS myself and I know that it can run the Plex Server, but is the TS-453mini able to transcode fast enough with the hardware transcoding for watching 1080p on a client? Can you run it as a Plex server and have it playback on the TV at the same time? Does it have support for outputting DTS or DD streams? I would really like more details about how this NAS could be used in a home theater.
    Reply
  • CRamseyer
    I'm working on a software overview article for each of the major NAS companies right now. There is a lot to go over for each.

    The two most common for home theater use are XBMC and KODI. KODI is just the newer version of XBMC. The software supports 7.1, DTS, Dolby, the HD versions and so on. I use KODI to play back 1:1 Blu-Ray ISOs and it works great.

    The system can run Plex Server and it's fast enough to transcode on the fly.
    Reply
  • jakjawagon
    $140 just for 8 gig of ram vs 2. That is nuts! I bet they lock down the 2g version so you cant change the ram yourself too.
    Actually they don't. While they recommend you only upgrade using the overpriced kit they'll sell you, it is compatible with standard laptop DDR3 RAM and easily upgradeable.

    I bought a TS-451 a few months ago (pretty much the same specs but half the RAM and a CPU with fewer but higher clocked cores, and a more traditional design), and am mainly using it as a media server. Apart from one squeaky drive (salvaged from an old laptop and due to be replaced when I can afford it), I'm very happy with it. Fast enough for my needs, and very configurable even though default settings work well.
    Reply
  • Dyason
    I'm working on a software overview article for each of the major NAS companies right now. There is a lot to go over for each.

    The two most common for home theater use are XBMC and KODI. KODI is just the newer version of XBMC. The software supports 7.1, DTS, Dolby, the HD versions and so on. I use KODI to play back 1:1 Blu-Ray ISOs and it works great.

    The system can run Plex Server and it's fast enough to transcode on the fly.

    Fantastic to hear it runs Plex Server. Curious if it will run Plex Theatre for playback as I prefer this over XBMC and KODI. Does it just run normal linux apps for playback?
    Reply
  • CRamseyer
    https://www.qnap.com/i/en/app_center/

    The link goes to a list of applications that are already in the App Manager. Plex Theater is on the list.
    Reply
  • mwituni
    As an existing QNAP user, I don't know how any QNAP NAS's can be seriously considered for any awards, nor why they do so well on reviews They entice buyers with fancy options, but are not interested in developing applications users need.

    SVN (Subversion Source Control) is the most popular and source control software in use, yet QNAP have been promising a proper SVN-server application since 2009, and still not delivered! How can users take them seriously - they're obviously not interested in developing applications the community needs, only the minimum needed to trick buyers into purchasing and evaluators to award prizes. They claim you can install SVN by an outdated method - which is very risky and outdated by a few years, and in my experience does not work at all.

    They have a GIT client, so can claim they "have" source control applications. But no SVN support.
    Their marketing department needs to kick the development team into gear.
    Reply
  • Rop
    Hi guys, i own a 453 Mini and it works great for my needs.
    Wish to know if anyone can explain in better detail about why there are so many reports on the Intel Celeron J1900 accesing more then the 8GB ram that are in the spec sheet for the procesor, as many haave installed 16GB and claim it to be fully accesable and usable. And has anyone actaully tested this to be 100% certain that i can in fact accesss more ram then Intel states?

    Thanks in advance for you contribution.

    Reply
