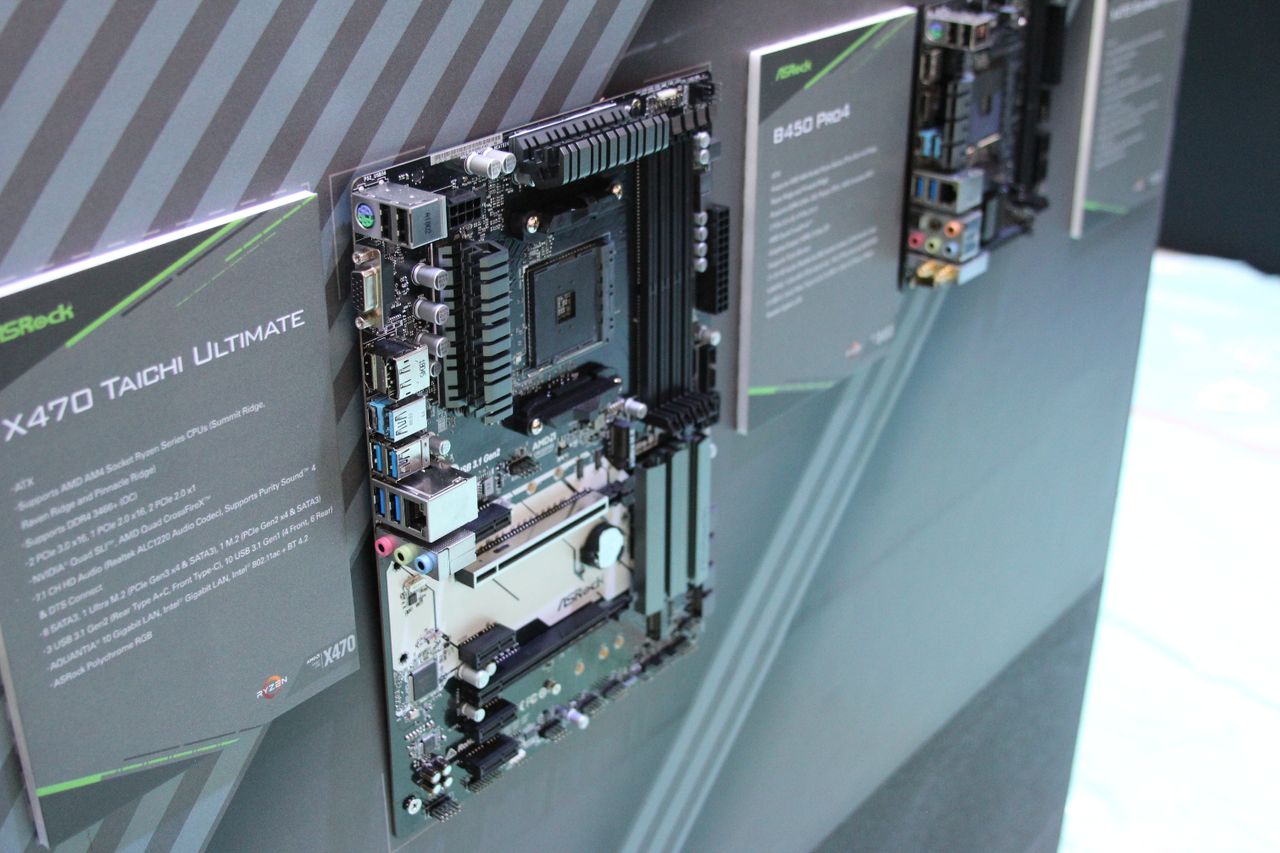

As surprising as it may seem, AMD has yet to officially launch the B450 chipset, but that didn’t stop motherboard manufacturers from showcasing their upcoming AM4 B450 motherboards at Computex 2018. Of all the major motherboard brands present at this year’s venue, ASRock brought one of the most diversified and fascinating lineups of B450 motherboards.

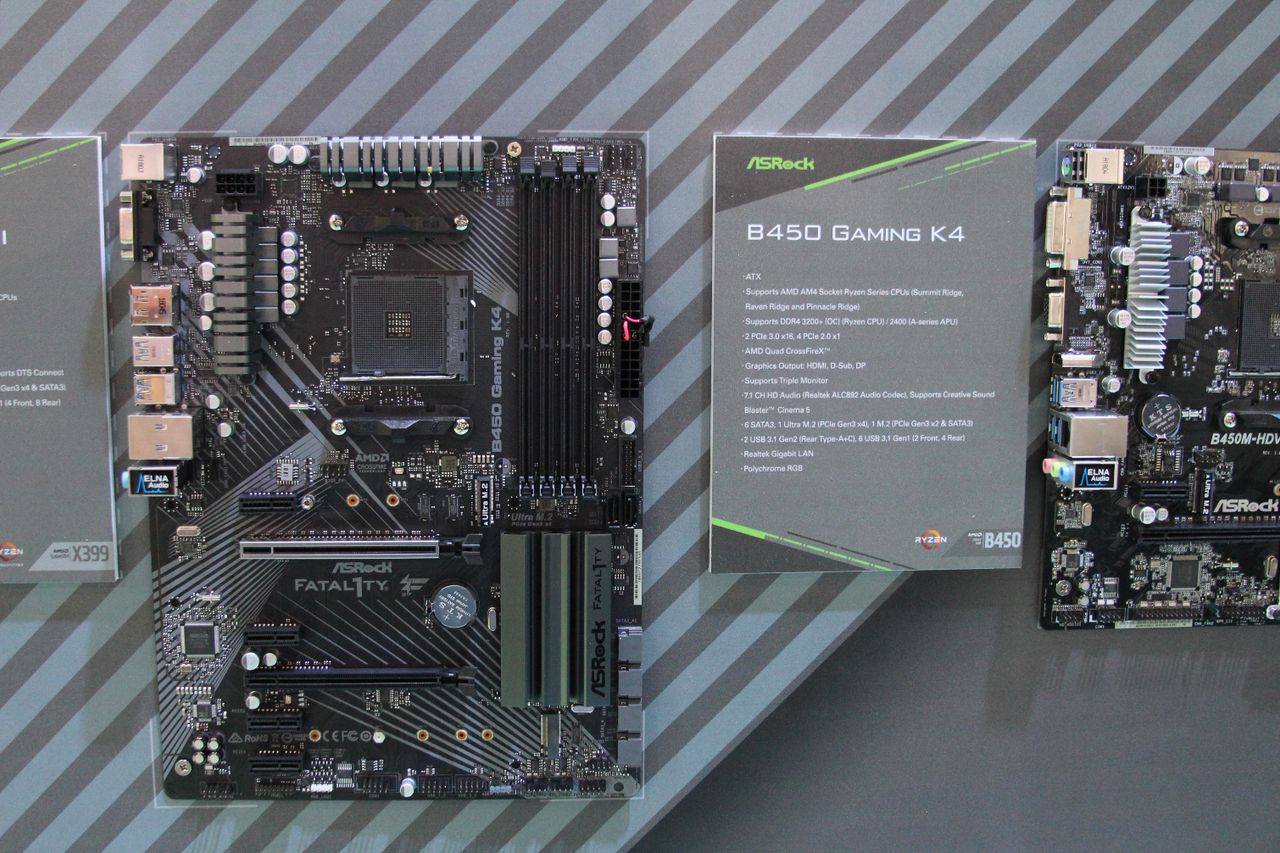

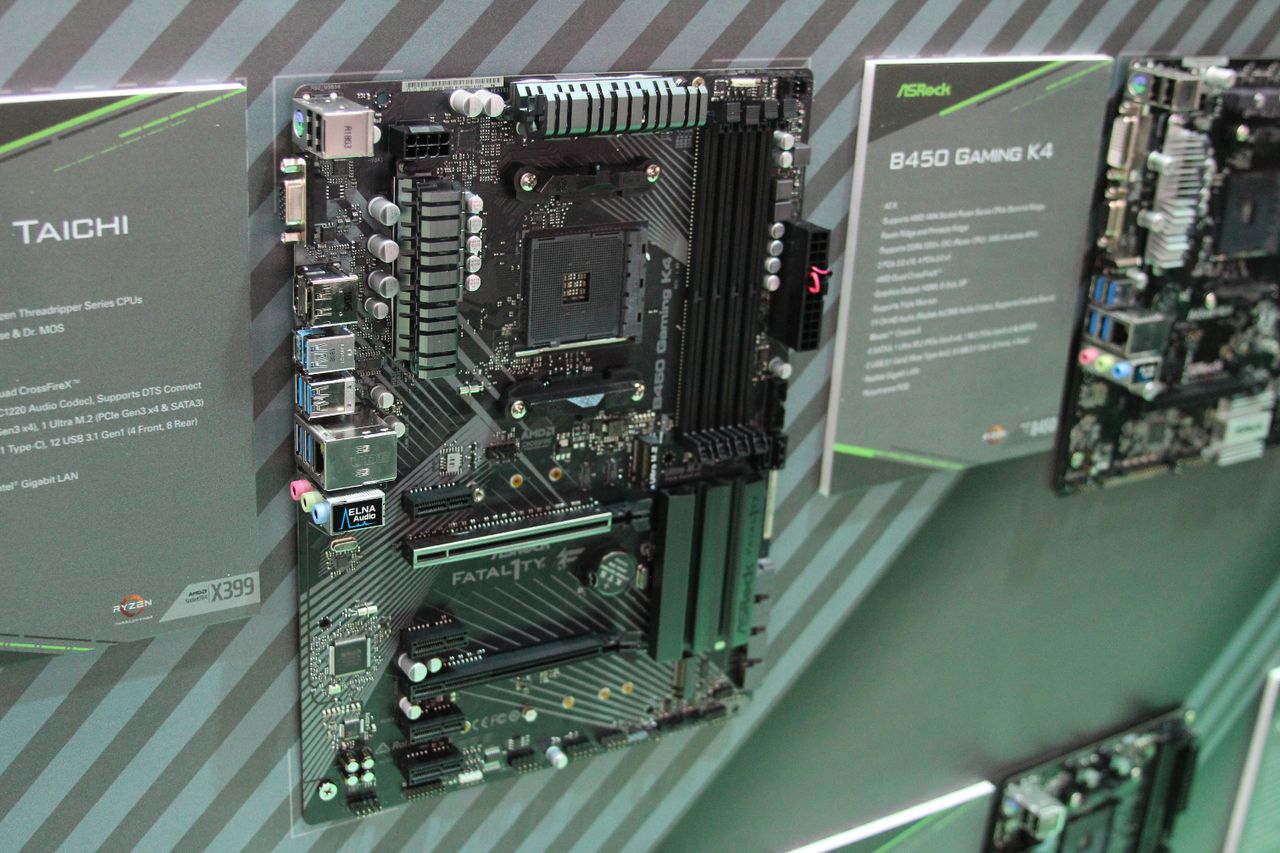

B450 Gaming K4
The B450 Gaming K4 is ASRock’s standard ATX offering. There’s a nine-phase VRM present drawing power from a single 8-pin EPS connector. The motherboard is equipped with four DDR4 memory slots that support frequencies that scale all the way up to 3200 MHz through overclocking. The motherboard also features two PCIe 3.0 x16 slots and four PCIe 2.0 x1 slots. This opens the door to the possibility of running an AMD Quad CrossFireX configuration on this motherboard. Graphics output consists of an HDMI port, DisplayPort, and D-Sub port with support for up to three monitors.
The storage options on the ASRock B450 Gaming K4 consist of four SATA III ports, an M.2 PCIe Gen 3.0 x4 port, and an M.2 PCIe Gen3 x2 port. The audio solution is based on the Realtek ALC892 audio codec. The rear I/O hosts two USB 3.1 Gen 2 (Type-A and C) and four USB 3.1 Gen 1 ports.

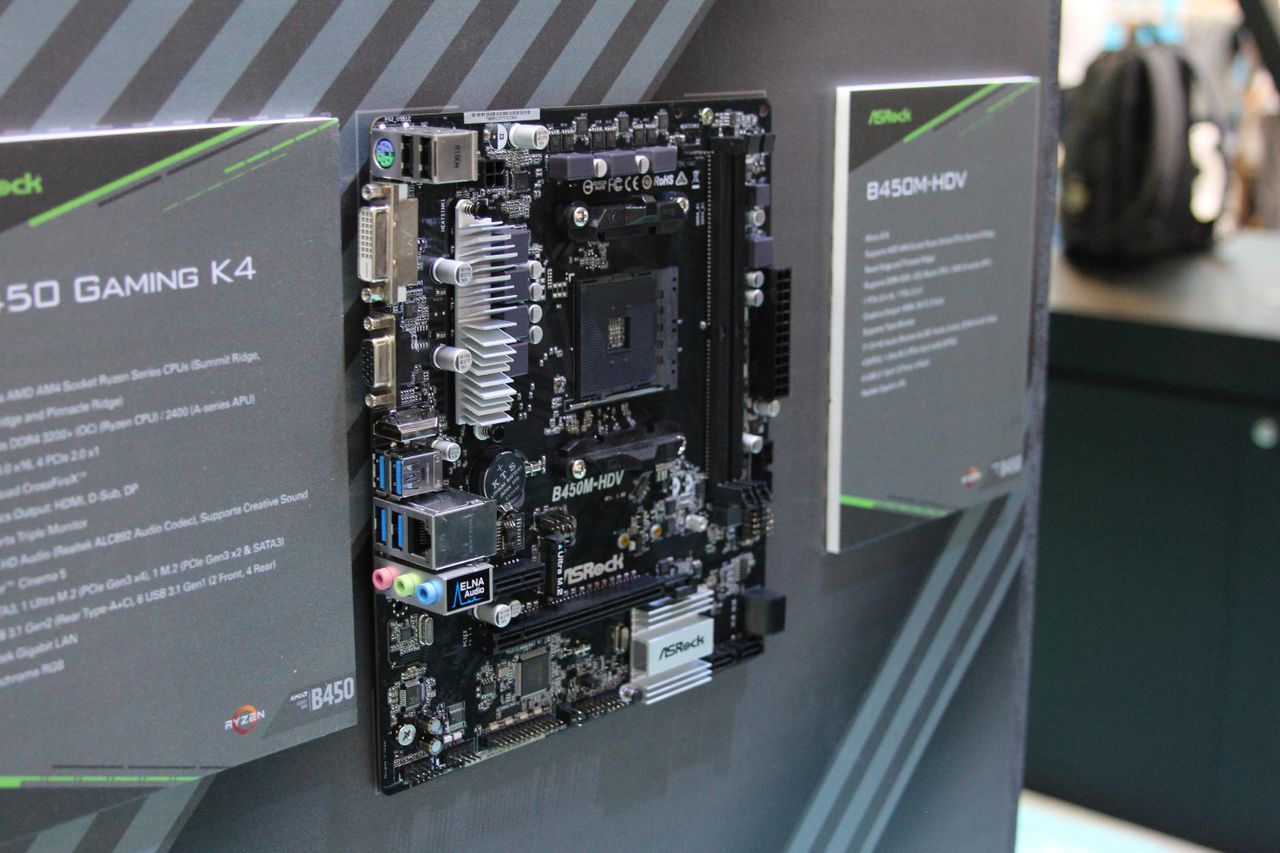

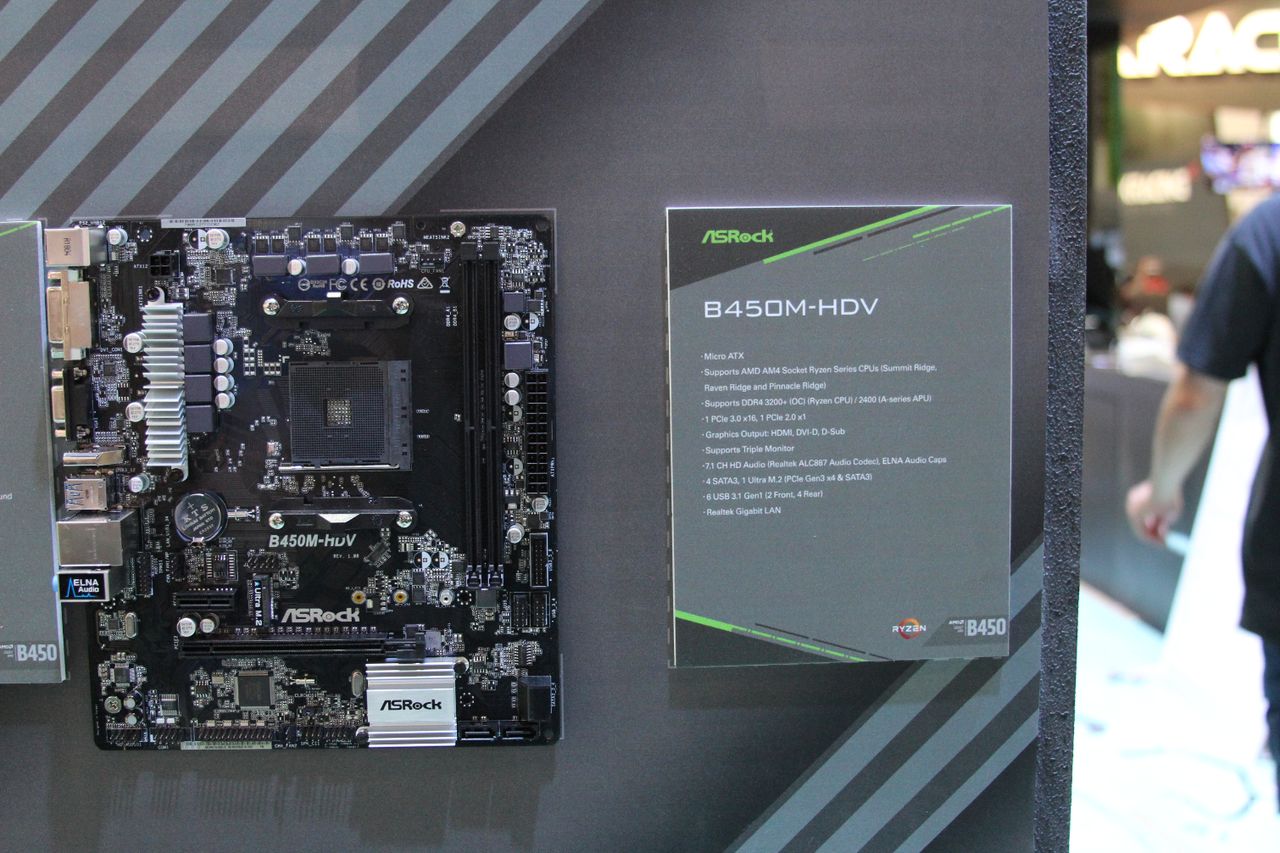

B450M-HDV
The B450M-HDV is a micro-ATX motherboard aimed at consumers who prefer to build compact systems. The motherboard is armed with a seven-phase VRM and a single 4-pin EPS connector. Two DDR4 memory slots can handle memory modules that exceed the DDR4-3200 specification. Options for expansion are a bit limited with only a single PCIe 3.0 x16 slot and PCIe 2.0 x1. Similar to the B450 Gaming K4, the B450M-HDV also comes equipped with one HDMI port, DisplayPort, and D-Sub port with support for triple monitors.
There is a total of four SATA III ports, a M.2 PCIe Gen3 x4 port, and a M.2 SATA III port for users to connect their storage devices. The motherboard utilizes the Realtek ALC887 audio codec for its audio responsibilities, and shares the same number of USB ports as the larger B450 Gaming K4.

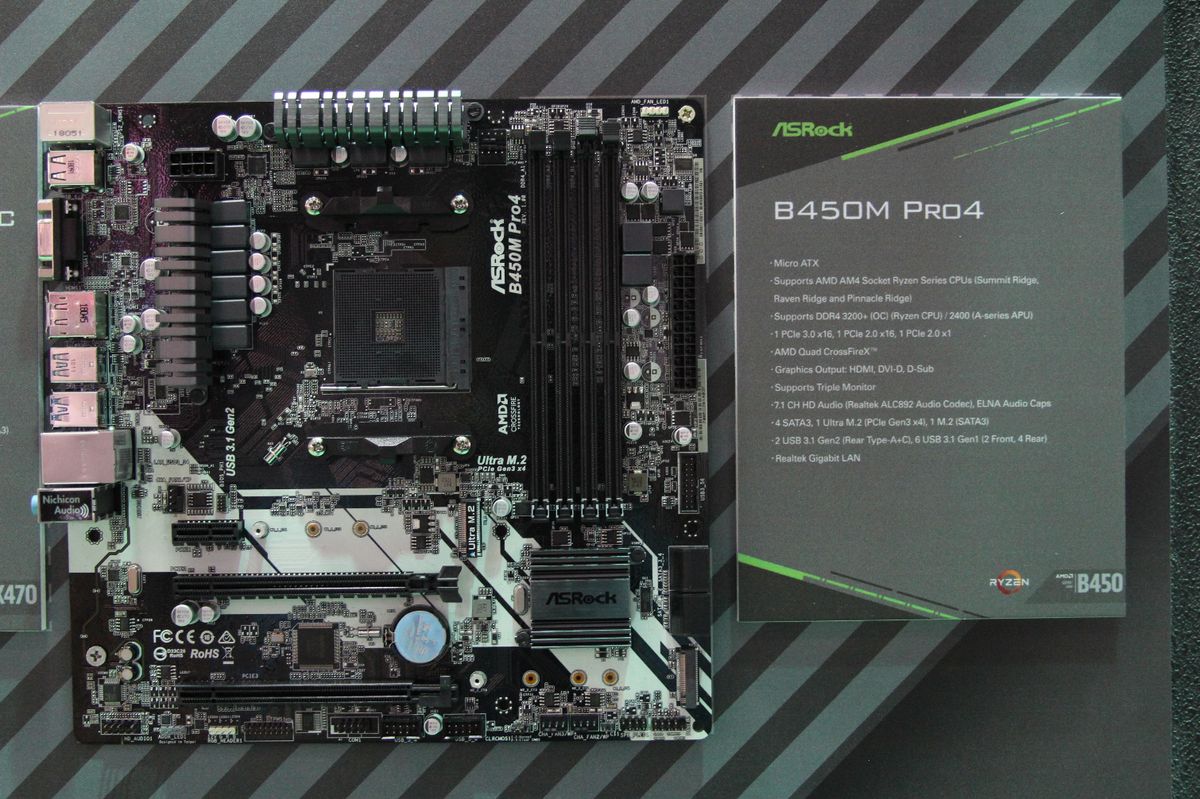

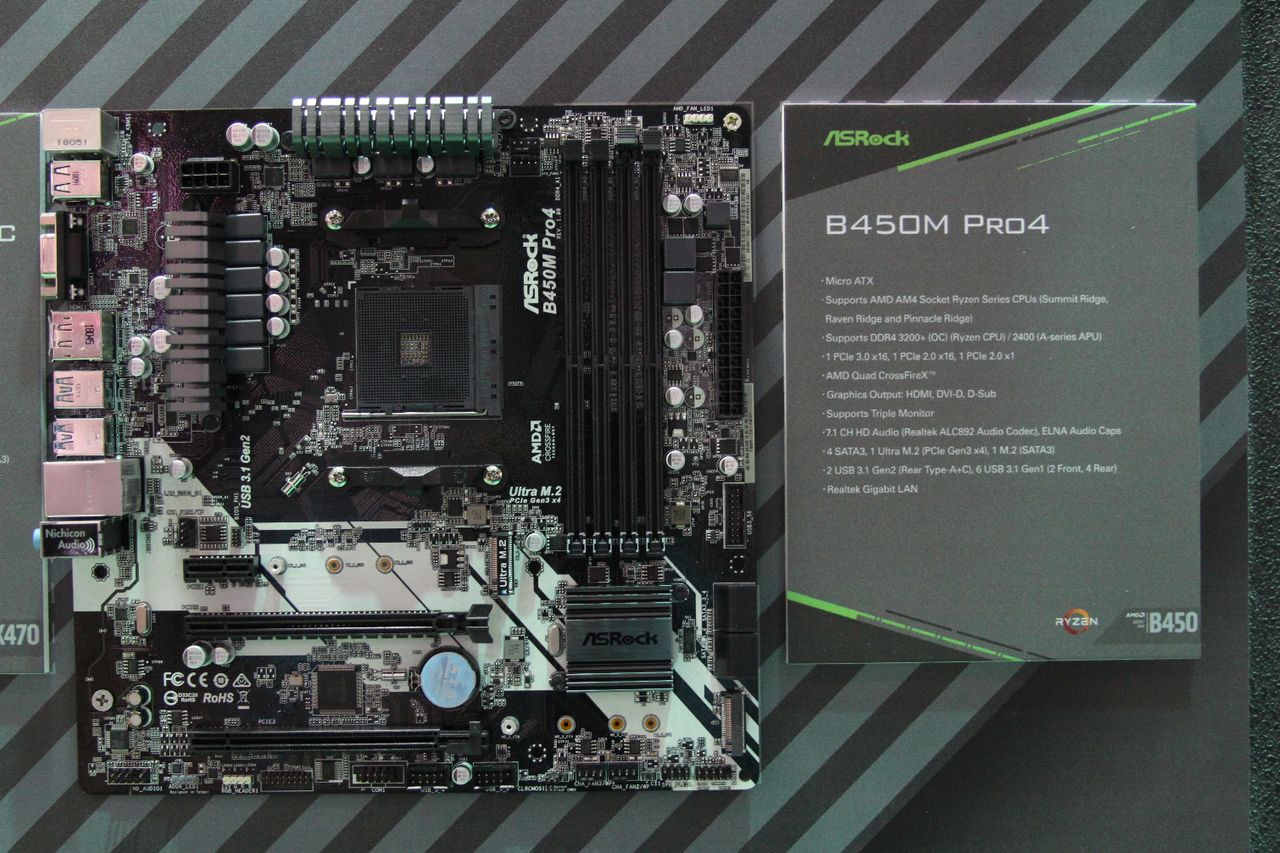

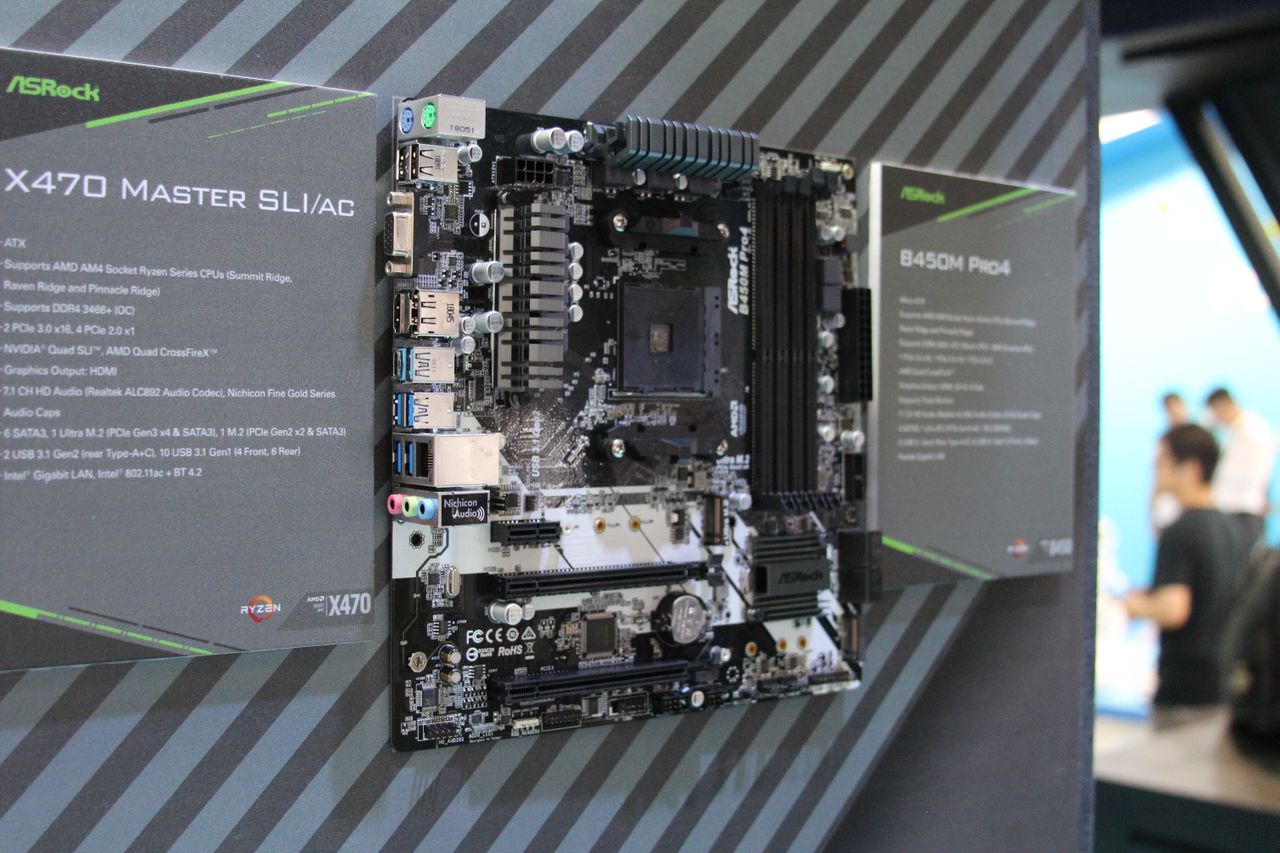

B450M Pro4
The ASRock B450M Pro4 falls into the micro-ATX category as well. In terms of feature set, it’s almost identical to the B450M-HDV except for a few key differences. Unlike the B450M-HDV’s seven-phase VRM, the B450M Pro4 rocks a more robust nine-phase VRM and an 8-pin EPS connector. The B450M Pro4 has four DDR4 memory slots instead of to the B450M-HDV's two. The boards also differ in their number of expansion slots and audio codec: the B450M Pro4 has an extra PCIe 2.0 x16 slot while also employing the Realtek ALC892 audio codec instead of the ALC887 codec found on the B450M-HDV.

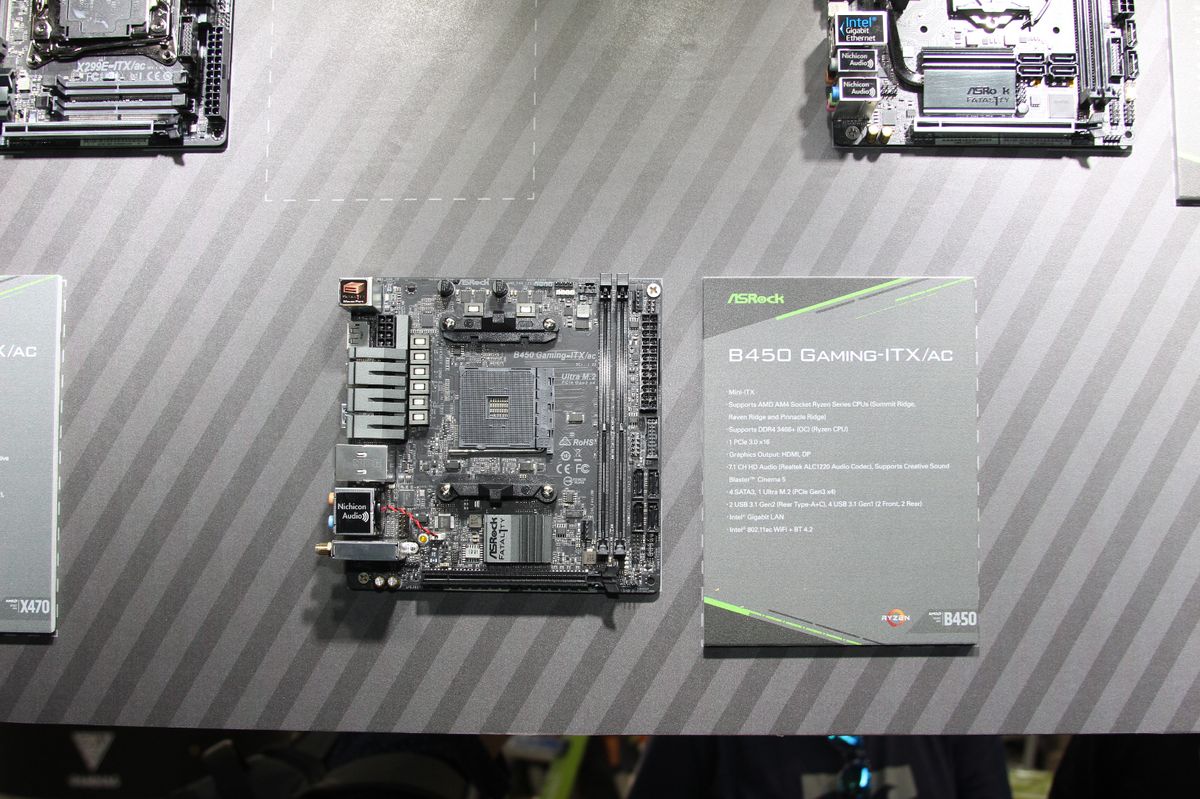

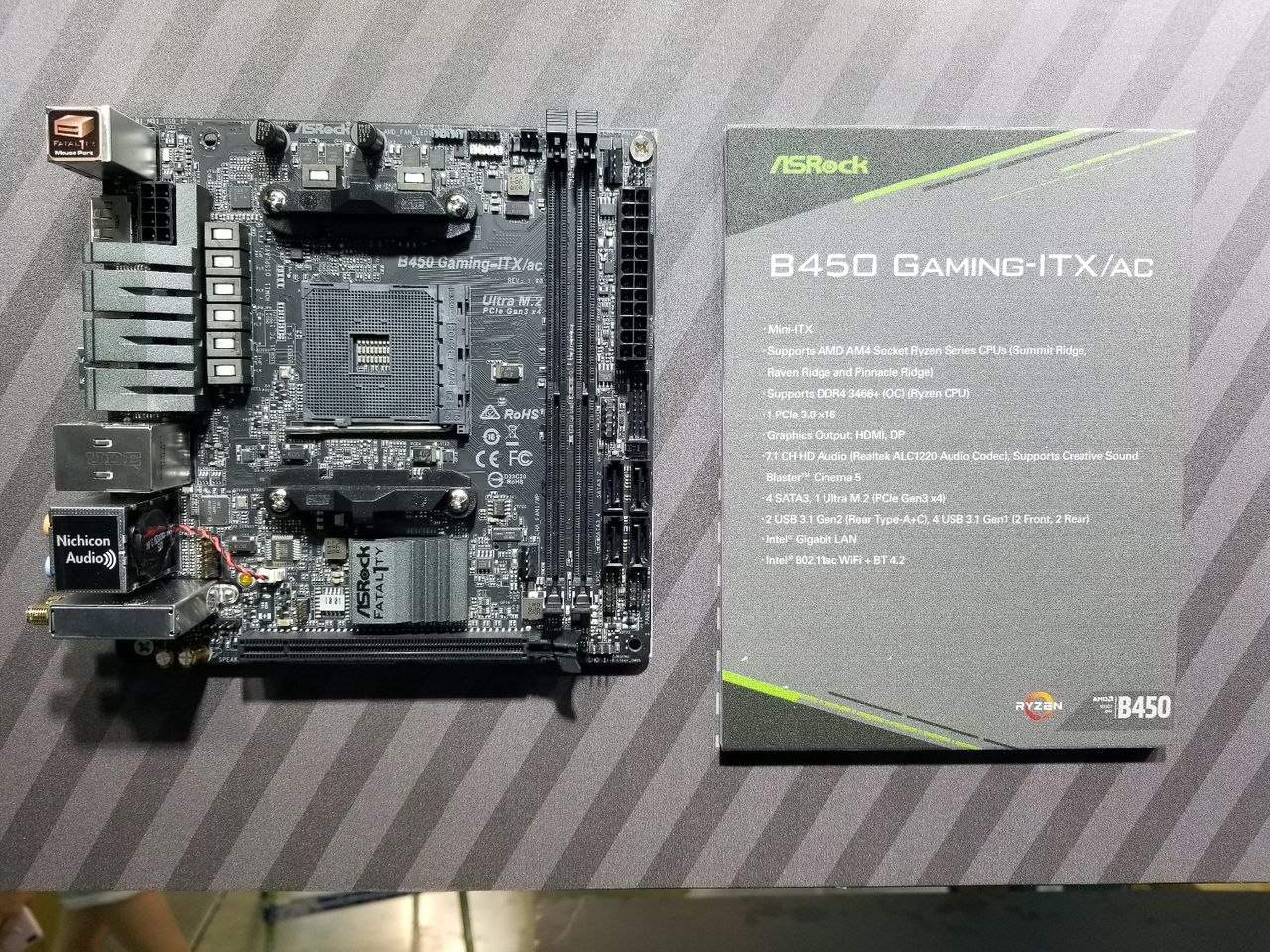

B450 Gaming-ITX/AC
It's comforting to see that ASRock didn’t forget about Mini-ITX lovers. Like its micro-ATX siblings, the tiny B450 Gaming-ITX/ac packs two DDR4 memory slots. However, ASRock said the motherboard supports memory frequencies over 3466 MHz. Due to the nature of the form factor, the motherboard comes with a single PCIe 3.0 x16 slot. Therefore, it’s important to choose a capable graphics card for the build in question. Video connectivity comes in form of an HDMI port and DisplayPort.
