Corsair MP600 Pro XT PCIe 4.0 SSD Expands to 8TB Capacity

Corsair

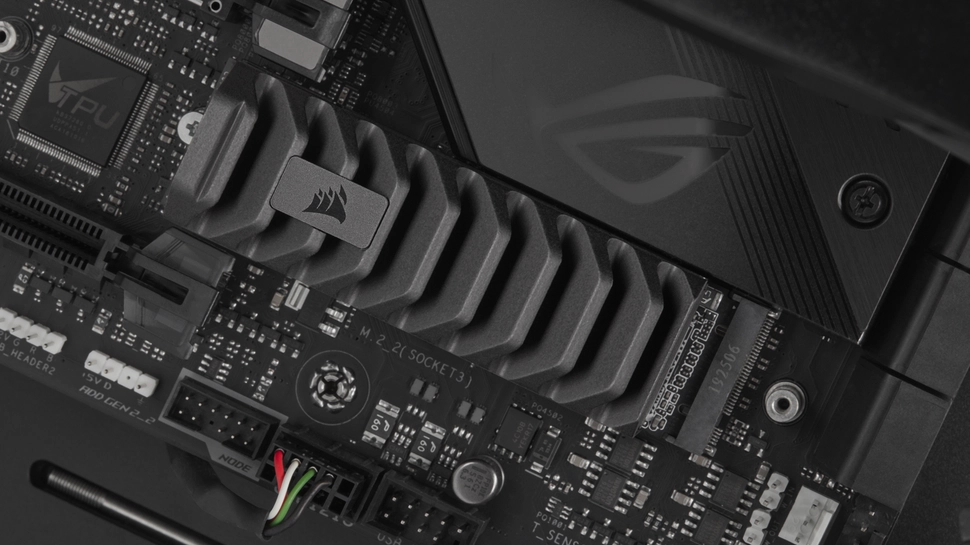

Corsair (Image credit: Corsair)

Corsair has quietly added an 8TB SSD model to its MP600 Pro XT family of premium PCIe 4.0 drives and started their sales in Europe, perhaps months before the company begins sales of its next-generation MP700 SSDs with a PCIe 5.0 interface. The new drives offer a massive capacity, but their performance is slightly lower when compared to other SSDs from this family.

Corsair's MP600 Pro XT M.2-2280 drives are the company's flagship storage products based on Phison's PS5018-E18 controller and Micron's 176-layer 3D TLC NAND memory. So far, Corsair has offered its MP600 Pro XT drives in 1TB, 2TB, and 4TB configurations, but this week German retailer Proshop.de (opens in new tab) began to offer 8TB versions of these devices, reports ComputerBase.de (opens in new tab).

Corsair's new 8TB MP600 Pro XT SSDs are rated for an up to 7,100 MB/s sequential read speed, an up to 6,100 MB/sequential write speed as well as 1.2 million/950 thousand random read/write IOPS (see detailed specifications in comparison to other drives in the lineup below). While the highest-capacity SSDs are typically slightly slower compared to mid-range capacity configurations, Corsair's MP600 Pro XT 8TB will still be one of the best SSDs available with a PCIe 4.0 x4 interface.

Product1TB2TB4TB8TB
Non-HS Pricing$199.99$399.99$989.99?
HS PricingN/A$424.99$999.99?
Capacity (User / Raw)1000GB / 1024GB2000GB / 2048GB4000GB / 4096GB8000GB / 8096GB
Form FactorM.2 2280M.2 2280M.2 2280M.2 2280
Interface / ProtocolPCIe 4.0 x4 / NVMe 1.4PCIe 4.0 x4 / NVMe 1.4PCIe 4.0 x4 / NVMe 1.4PCIe 4.0 x4 / NVMe 1.4
ControllerPhison PS5018-E18Phison PS5018-E18Phison PS5018-E18Phison PS5018-E18
DRAMDDR4DDR4DDR4DDR4
MemoryMicron 176L TLCMicron 176L TLCMicron 176L TLCMicron 176L TLC
Sequential Read7,100 MBps7,100 MBps7,100 MBps7,100 MBps
Sequential Write5,800 MBps6,800 MBps6,800 MBps6,100 MBps
Random Read900,000 IOPS1,000,000 IOPS1,000,000 IOPS950,000 IOPS
Random Write1,200,000 IOPS1,200,000 IOPS1,200,000 IOPS1,200,000 IOPS
SecurityAES 256-bit encryption AES 256-bit encryption AES 256-bit encryption AES 256-bit encryption
Endurance (TBW)700 TB1,400 TB3,000 TB6,000 TB
Part NumberCSSD-F1000GBMP600PXTCSSD-F2000GBMP600PXTCSSD-F4000GBMP600PXTCSSD-F8000GBMP600PXT
Warranty5-Years5-Years5-Years5-Years

Corsair's MP600 Pro XT 8TB SSDs are not cheap. The retailer sells these 8TB drives for €1,399.90 ($1,158 without VAT), which is slightly more expensive than the price of two MP600 Pro XT 4TB devices. Meanwhile, recommended price of Corsair's 8TB drive in the U.S. is unclear as it is not available on this side of the pond.

For enthusiasts who already have a machine with a PCIe 5.0 x4-supporting M.2 slot or those who wait for AMD's Ryzen 7000-series or Intel's 13th Gen Core 'Raptor Lake' platforms with PCIe Gen5 support, the dilemma is whether to buy a high-capacity PCIe Gen4 SSD now or wait for upcoming drives with a PCIe 5.0 interface. Unfortunately, there is no correct answer for this question as we do not know when exactly Corsair and other vendors release their PCIe Gen5 drives, especially those not constrained with a 10GBps read speed.
