In Win Classic Series C750, C900 PSUs Now Available
In Win released the Classic PSU line, which consists of two PSUs (750W and 900W capacities) along with a fully modular cable design and an attractive brushed aluminum chassis.
During Computex 2016, In Win announced (among other things) the launch of the Classic PSU line which consists of two members, the C750 and C900. Both these units became officially available today. The C900 costs $190, and its smaller brother has a lower price tag (close to $170). As the high price tags indicate, both units belong in the high-end category.
Aside from offering an attractive look, the aluminum enclosure with the brushed hairline finish also plays a major role into the unit's cooling, because the FETs that regulate the +12V rails come in contact, through a thermal pad, with the chassis in order to lower their operational temperatures.
| Line | Classic Series |
|---|---|
| Models | C750, C900 |
| Max. DC Output | 750W, 900W(respectively) |
| PFC | Active PFC |
| Efficiency | 80 Plus Platinum |
| Modular | Yes (fully) |
| Intel Haswell Ready | Yes |
| Operating temperature | No Info |
| Protections | Over Voltage Protection Under Voltage Protection Over Current Protection Short Circuit Protection Over Power Protection Over Temperature Protection |
| Cooling | 120 mm Hypro Bearing Fan |
| Semi-passive operation | Yes (Selectable) |
| Number of Connectors | EPS: 1PCIe: 4 |
| Dimensions | 150 x 87 x 165mm (WxHxD) |
| Compliance | ATX12V v2.4, EPS 2.92 |
| Warranty | 7 years |
Strangely enough, both units share the same number of connectors. This is strange, considering the 150W difference between them. On top of that, we expected those PSUs to be equipped with at least a couple of EPS connectors, but according to the official specs, they have but one. This will definitely lead to compatibility problems with high-end mainboards that require two EPS connectors, or a combination of EPS and ATX12V connectors. Moreover, the number of PCIe connectors is low for the C900 unit.
We should note that the review sample (C900) that we have in our hands came with two EPS cables/connectors, but on its box, In Win insisted that it has only one. In the photo above, you can also see the power specifications table. Both units have four +12V rails and not a single one, as has been the trend for several years now.
| General Data | |
|---|---|
| Manufacturer (OEM) | In Win |
| Model | C900 |
| Primary Side | |
| Transient Filter | 6x Y caps, 3x X caps, 2x CM chokes, 1x MOV |
| Inrush Protection | NTC Thermistor & Relay |
| Bridge Rectifier(s) | 2x Shindengen LL15XB60 (600 V, 15 A @ 124 °C) |
| APFC MOSFETS | 2x Infineon IPP60R125P6 (650 V, 19 A @ 100 °C, 0.125 Ohm @ 25 °C) |
| APFC Boost Diode | 1x CREE C3D10060A (600 V, 10 A @ 153 °C) |
| Hold-up Cap(s) | 2x Nippon Chemi-Con (420 V, 390 uF each or 780 uF combined, 105 °C ) |
| Main Switchers | 2x Infineon IPW60R160P6 (650 V, 15 A @ 100 °C, 0.16 Ohm @ 25 °C) |
| APFC Controller | On Semiconductor NCP1654 |
| Switching Controller | Champion CM6901 |
| Topology | Primary side: Half-Bridge & LLC Resonant Converter Secondary side: Synchronous Rectification & DC-DC converters |
| Secondary Side | |
| +12V MOSFETS | 4x Alpha & Omega AON6590 (40 V, 100 A @ 100 °C, 1.55 mOhm @ 125 °C) |
| 5V & 3.3V | DC-DC Converters: 8x D528 (GA5G13) FETs PWM Controller: ANPEC APW7160A |
| Filtering Capacitors | Electrolytics: Nippon Chemi-Con (105 °C, KY, KZE) Polymers: Nippon Chemi-Con |
| Supervisor IC | SITI PS223 (OVP, UVP, OCP, SCP, OTP ) |
| Fan Model | ADDA AD1212DX-A70GL (120 mm, 12 V, 0.13 A, Hypro Bearing) |
| 5VSB Circuit | |
| Rectifier | Taiwan Semiconductor TSF20U45C (45 V, 20 A) |
| Standby PWM Controller | Excelliance MOS EM8569D |
| -12V Circuit | |
| PWM Controller | ANPEC APW7174 |

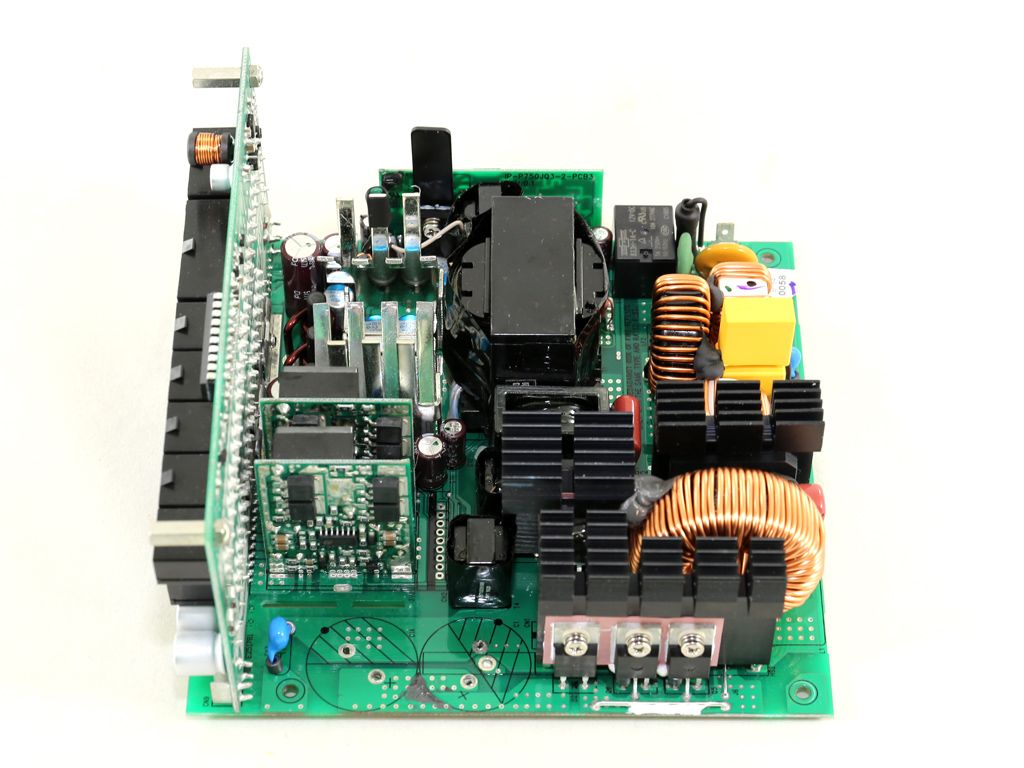

As you can easily figure from the table above, In Win used quality parts in the new Classic series PSUs, and the build quality is high overall. Our only objection concerns the low combined capacity of the bulk caps, something that will inevitably lead to a low hold-up time. We hope, at least, that the power signal will be accurate and that it won't provide "fake" data to the system's mainboard.
The design is modern and very clean. There are no cables running around freely over the main PCB, and that's advantageous for airflow. In addition, all filtering caps are provided by Nippon Chemi-Con, and it uses both electrolytic and polymer caps.

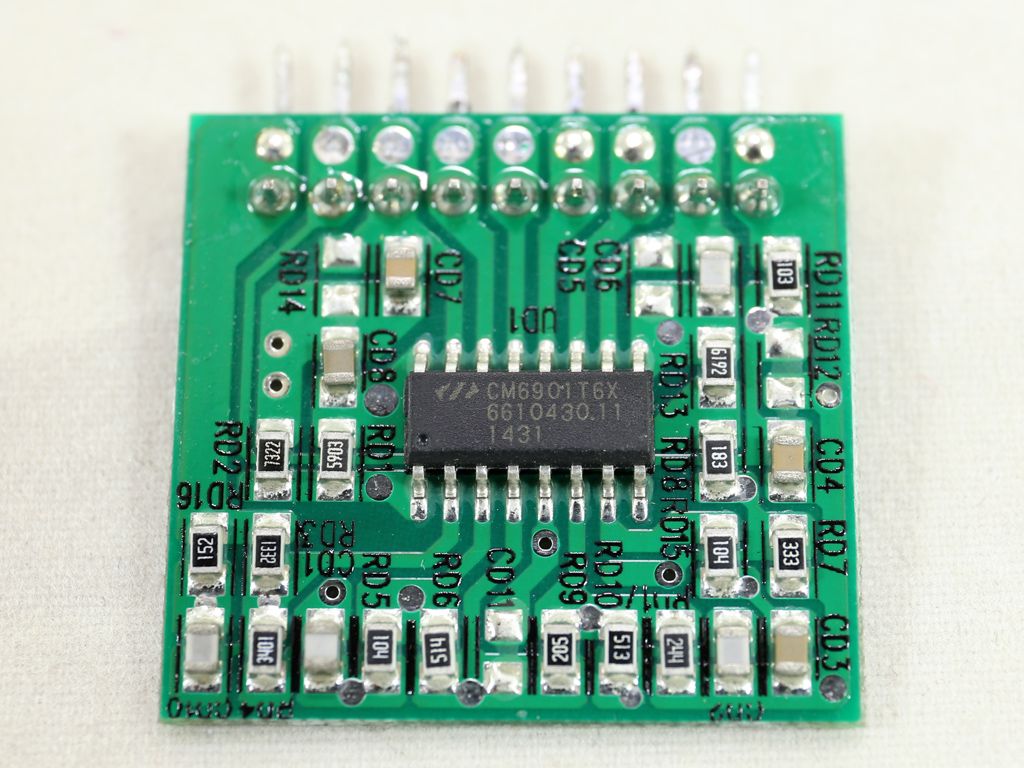

As usual, for a Platinum efficiency PSU, an LLC resonant converter is used to boost efficiency. The primary controller is the usual aspect, a Champion CM6901 IC.
Get Tom's Hardware's best news and in-depth reviews, straight to your inbox.

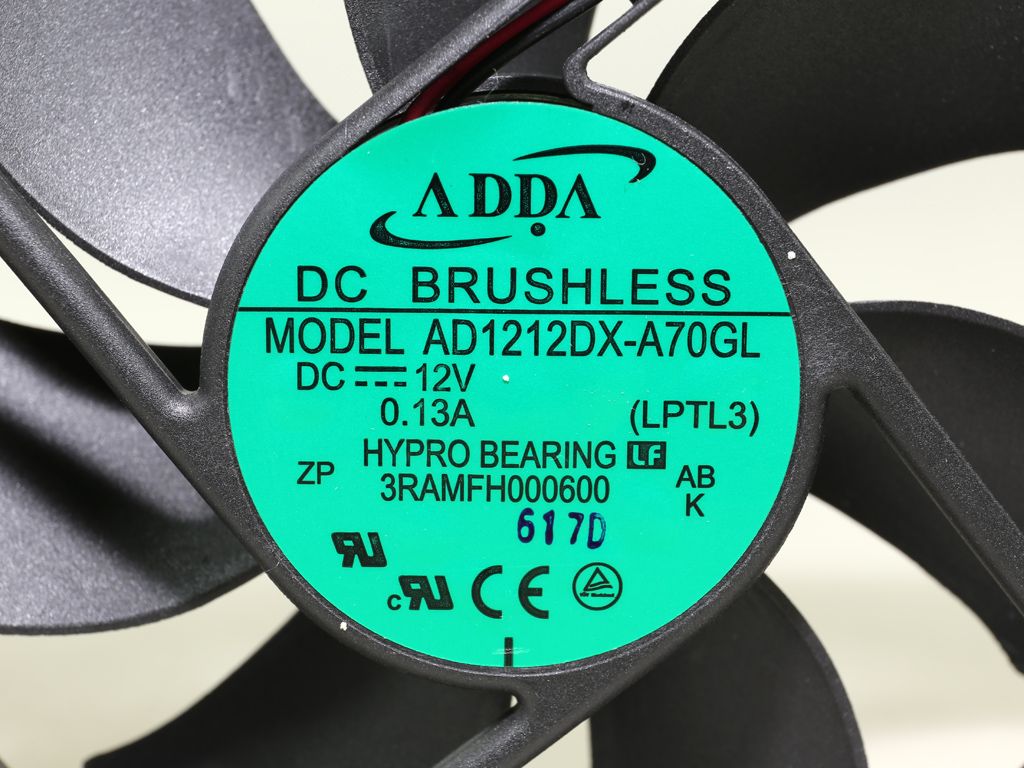

The Hypro Bearing fan is provided by Adda. According to its maker, this type of bearing offers increased lifetime because it develops a hypro wave in the bearing's center, where the oil reservoir is located. This means that the center point of the bearing has a lower temperature compared to its outer surface, promoting the cold to hot flow circulation. The re-circulation of the lubricant and the seal prevent the oil from evaporating, thereby significantly extending the fan's lifetime. The Hypro Bearing fans have a lifetime that exceeds 50,000 hours, so according to paper specs, they last as long as the good ball-bearing ones--which are more noisy in general.
Aris Mpitziopoulos is a contributing editor at Tom's Hardware, covering PSUs.
