Gigabyte B850 Aorus Elite Wifi 7 Review

Elite specifications, even from B850

Reviews
By published
Gigabyte B850 Aorus Elite Wifi 7
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Firmware

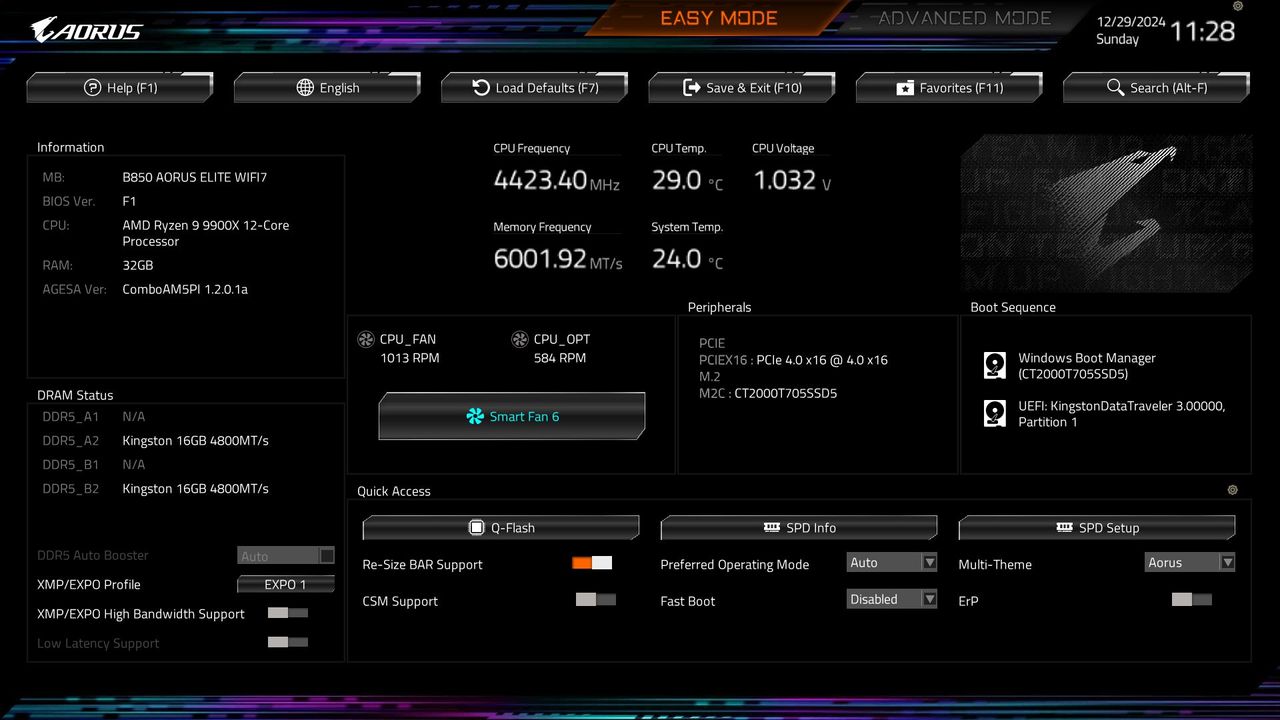

Gigabyte updated its BIOS on some X670 refresh boards, carrying that layout to X870 and now B850. The updated Easy Mode is laid out logically and displays plenty of information about the system, processor, RAM, fan speeds, and has several selectable options, including XMP profiles and RAM tweaks, Re-Size BAR support, Smart Fan 6 access, and more. The black background and white text familiar to the Aorus line is easy to read, while the orange accents on the Aorus line provide a much-needed visual update.

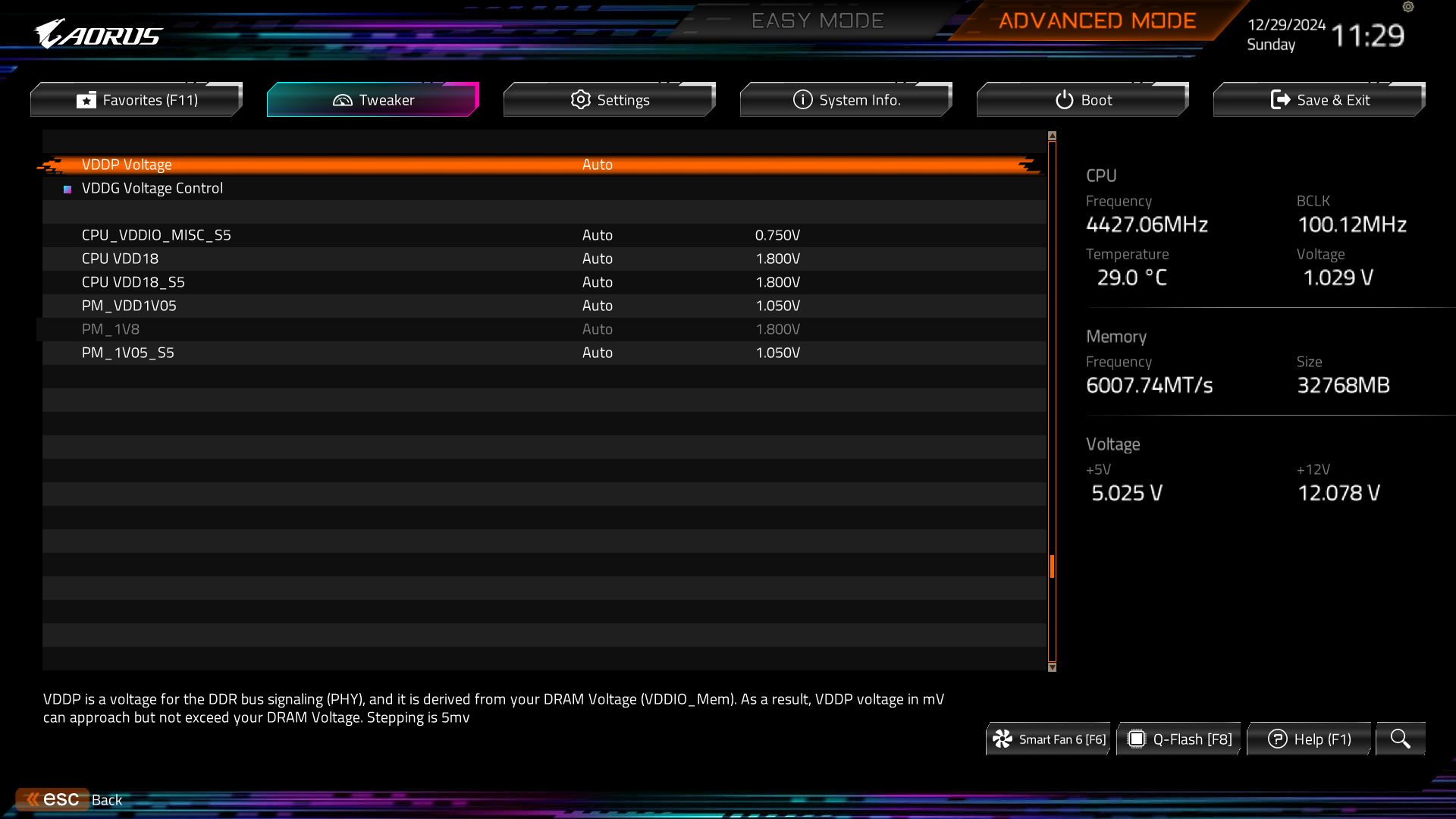

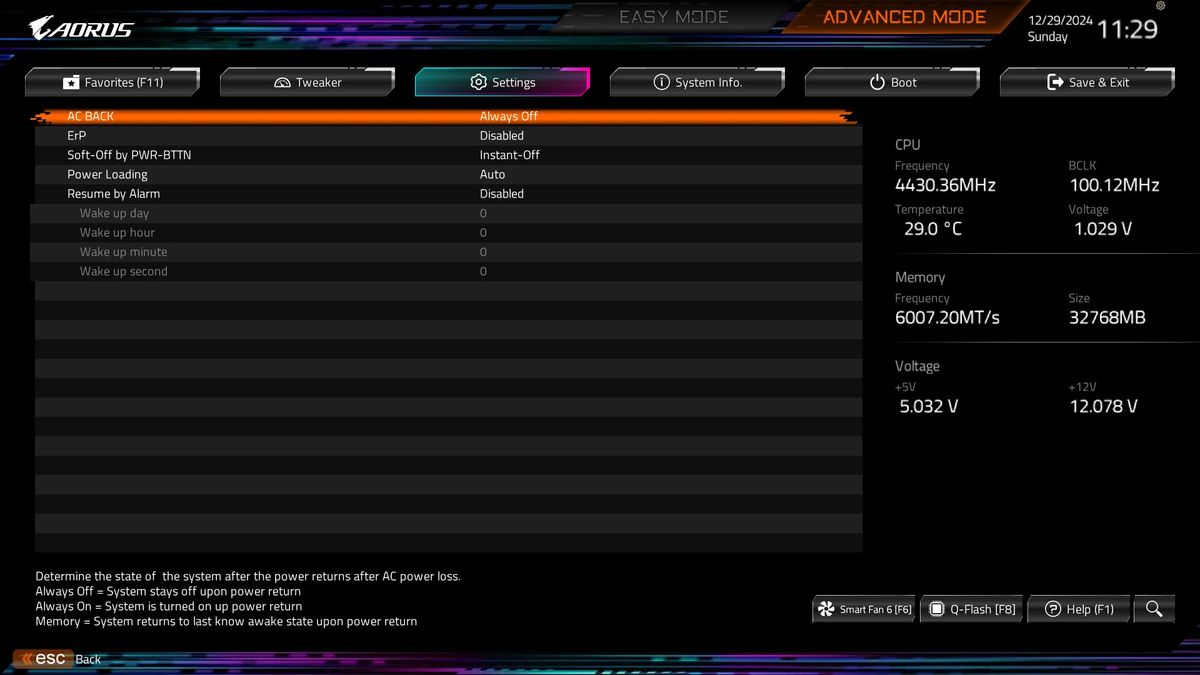

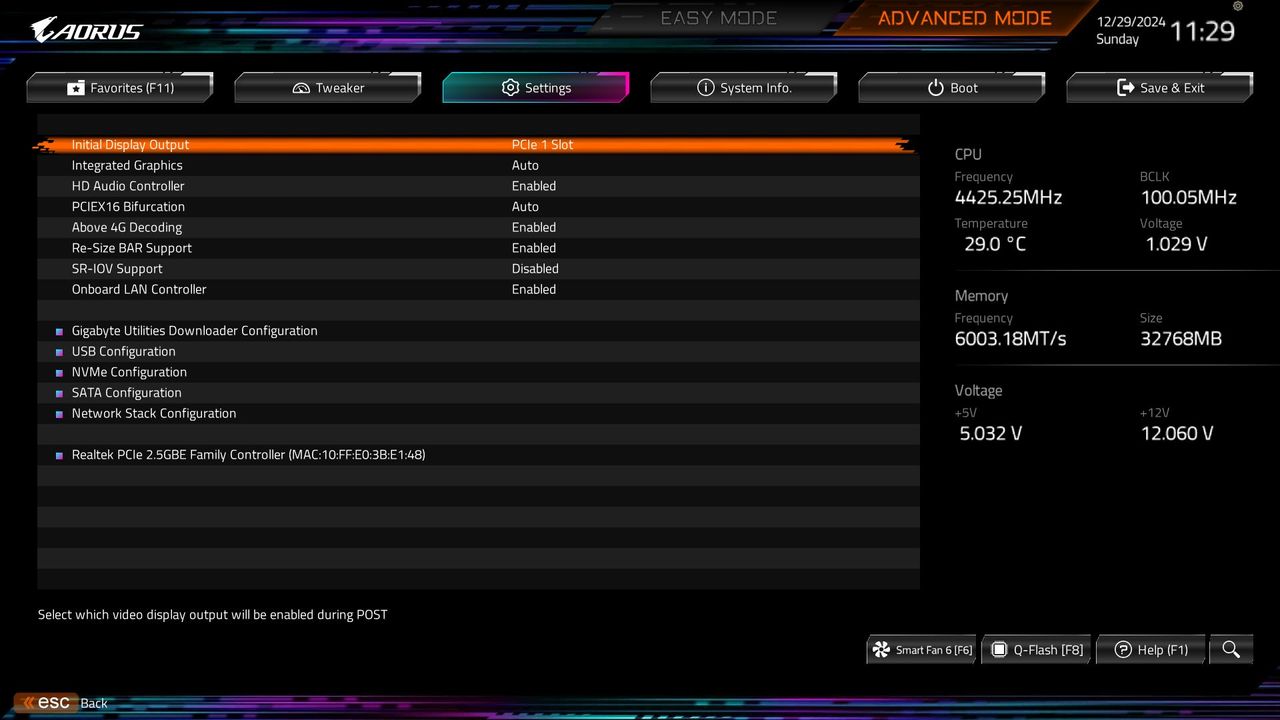

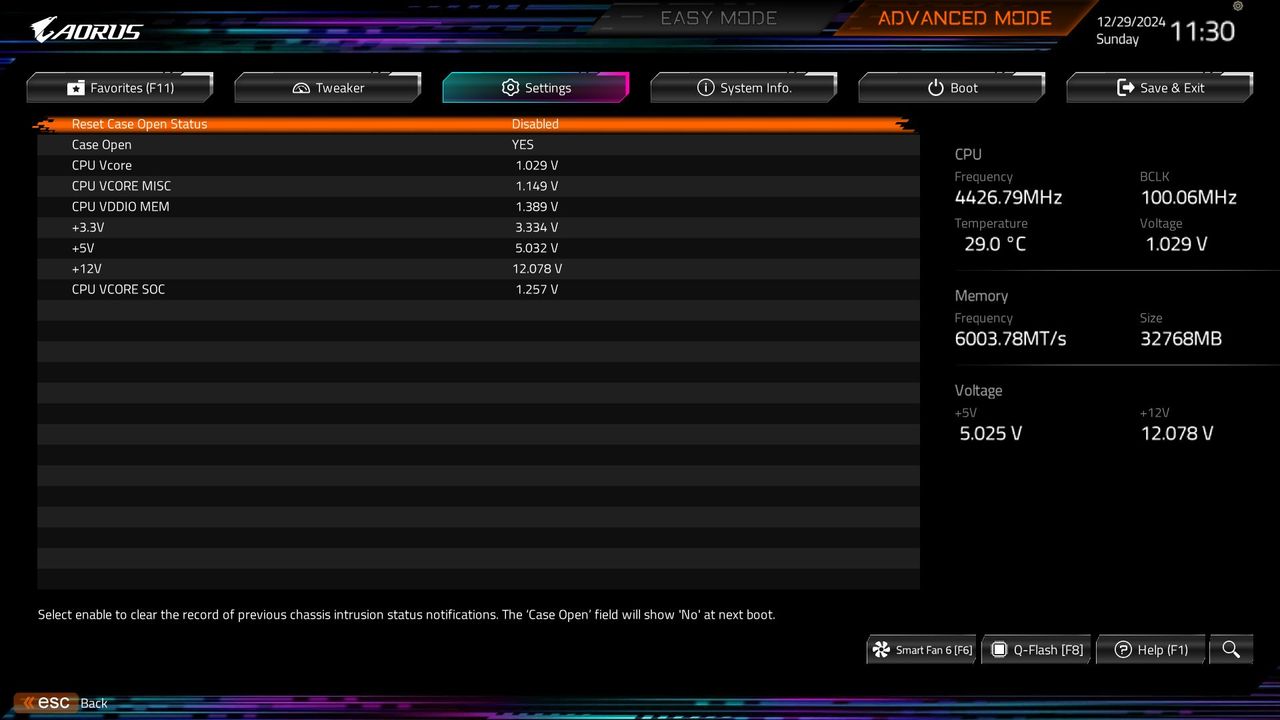

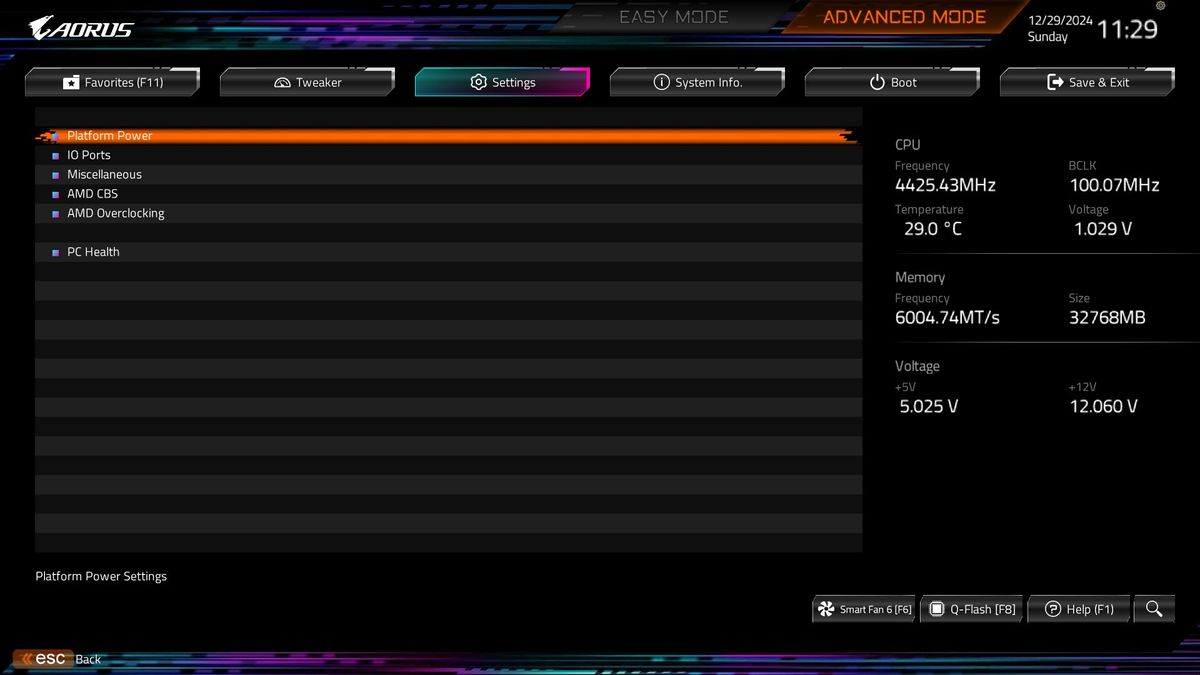

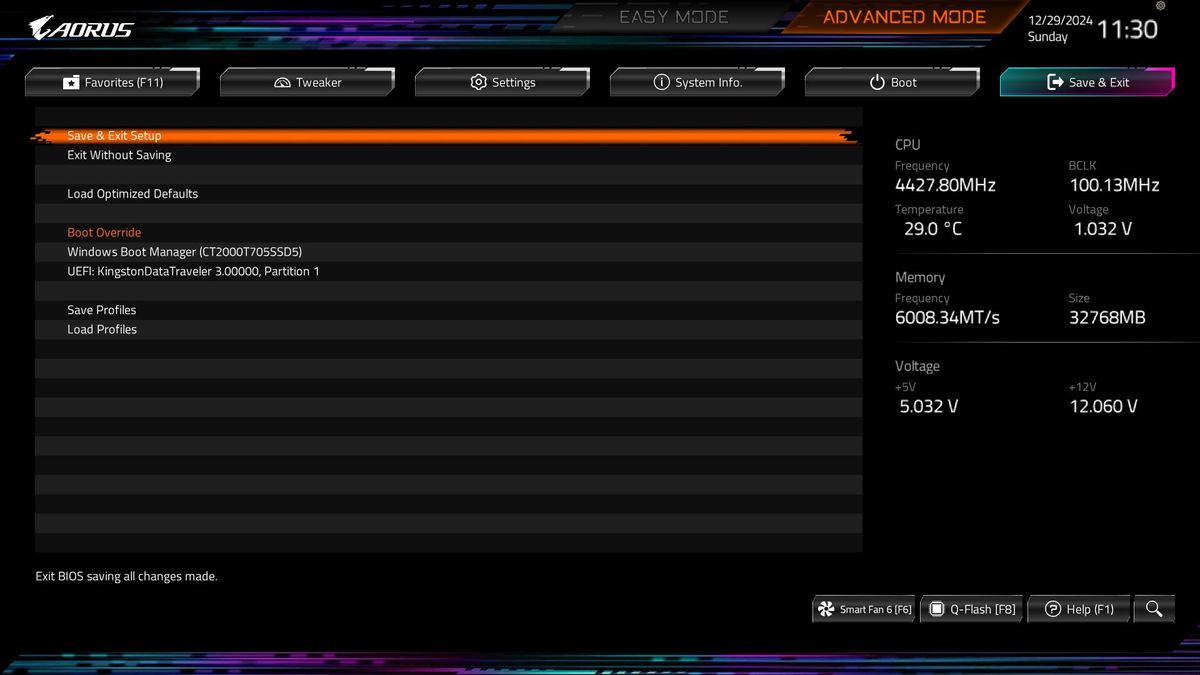

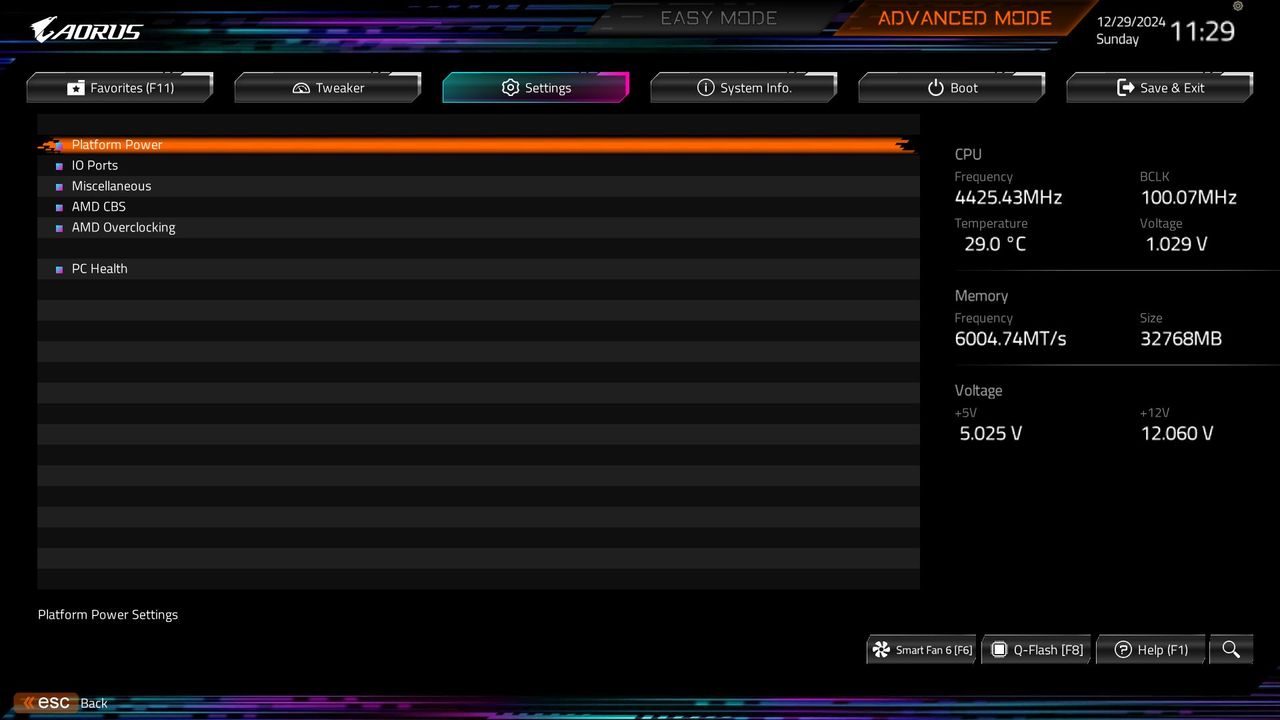

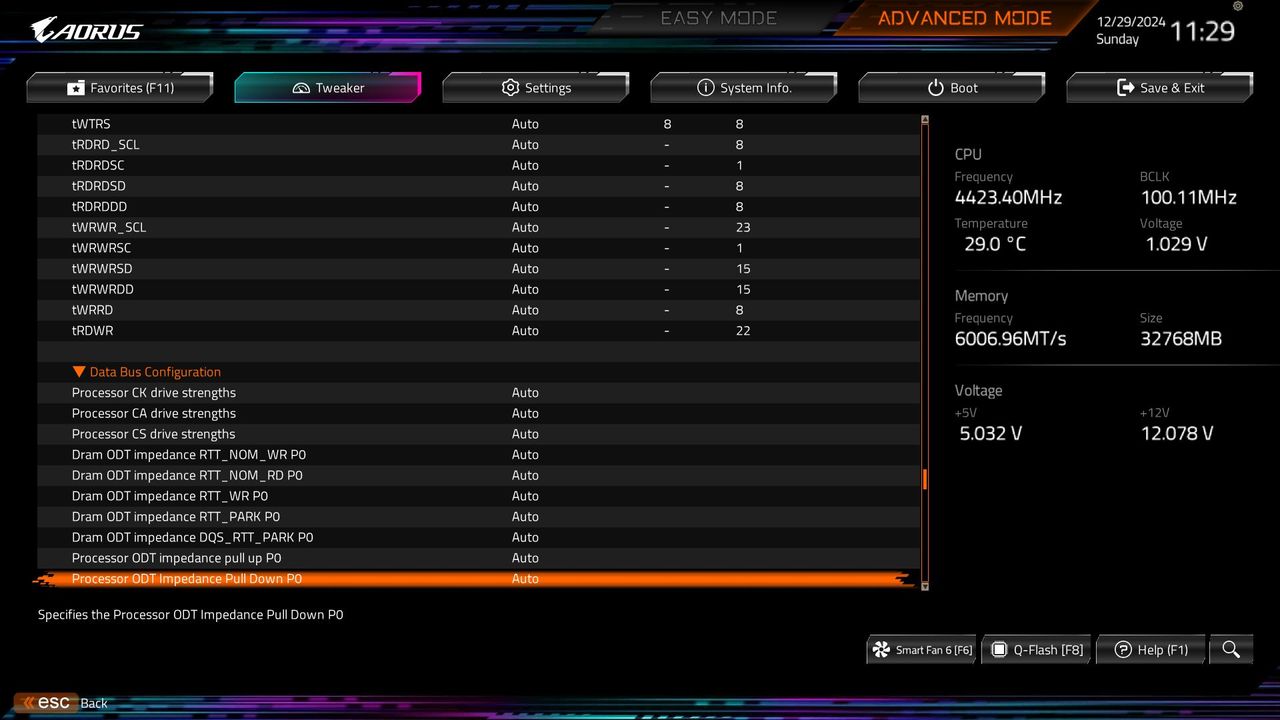

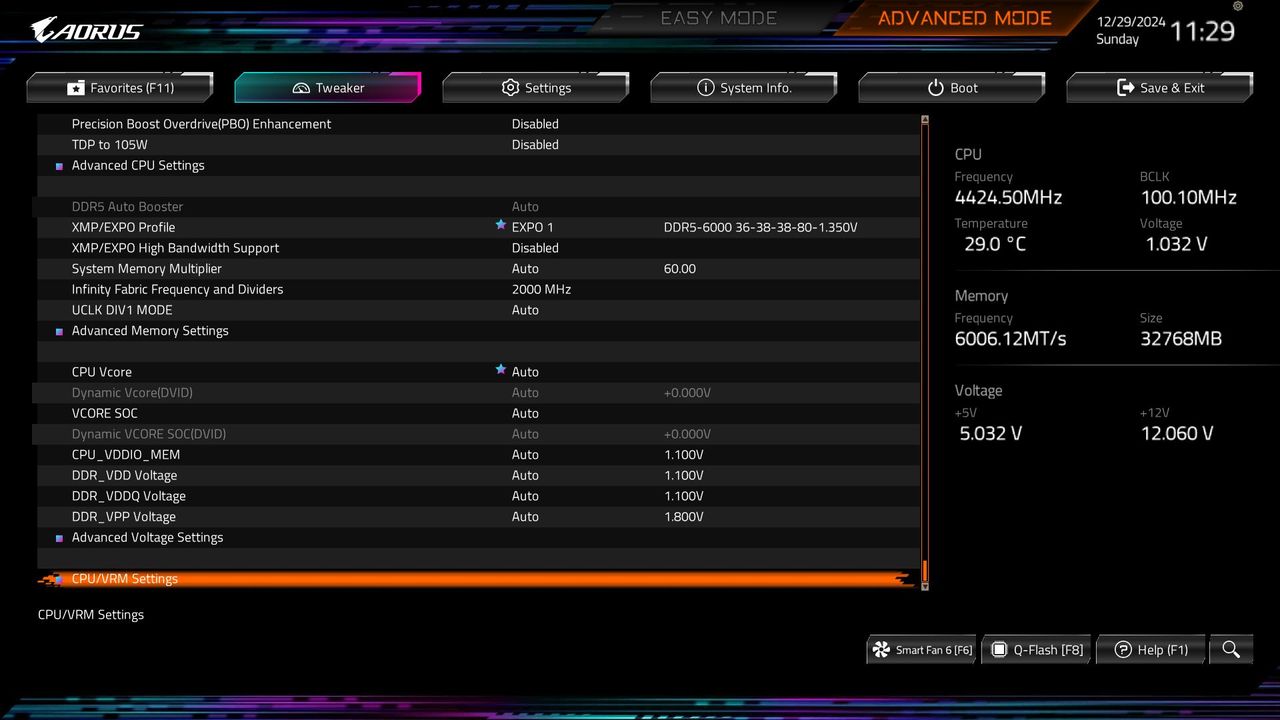

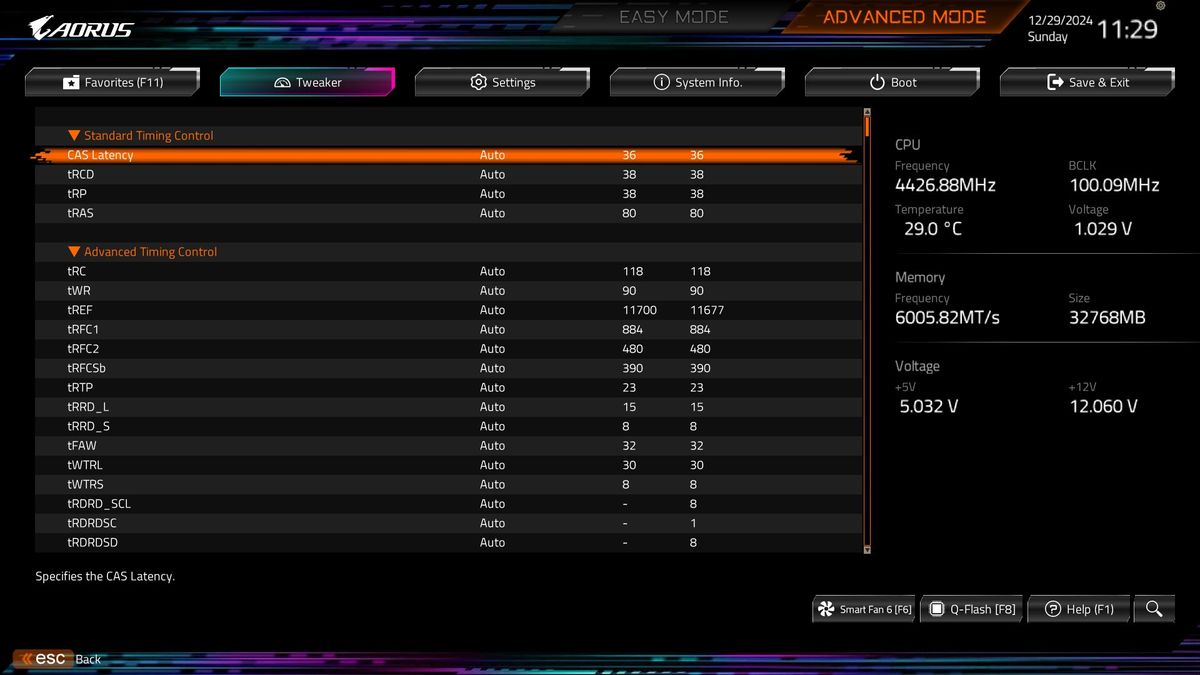

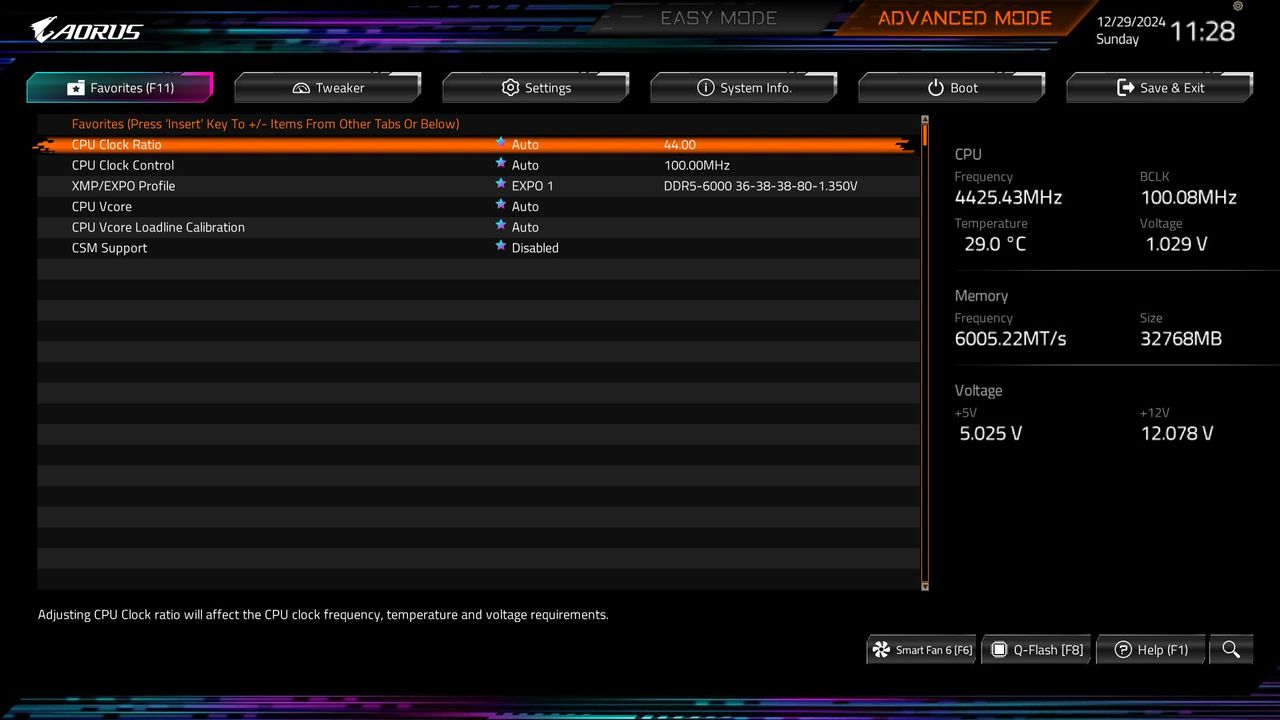

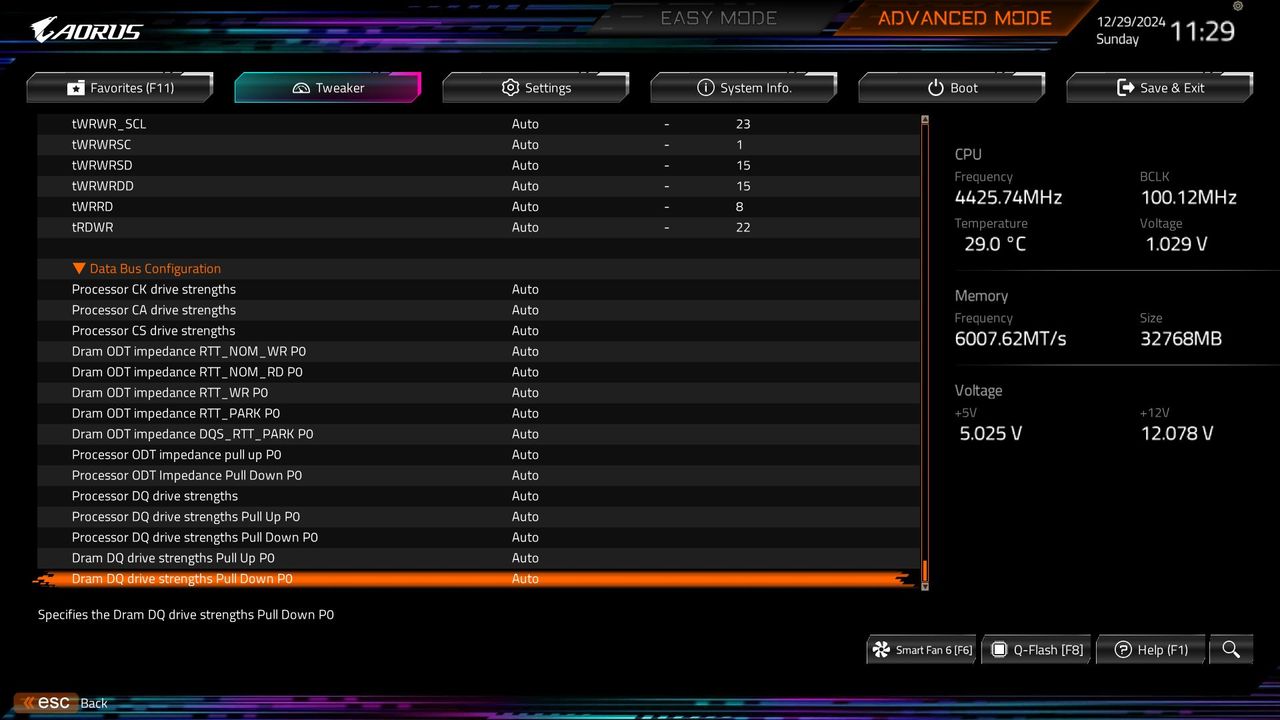

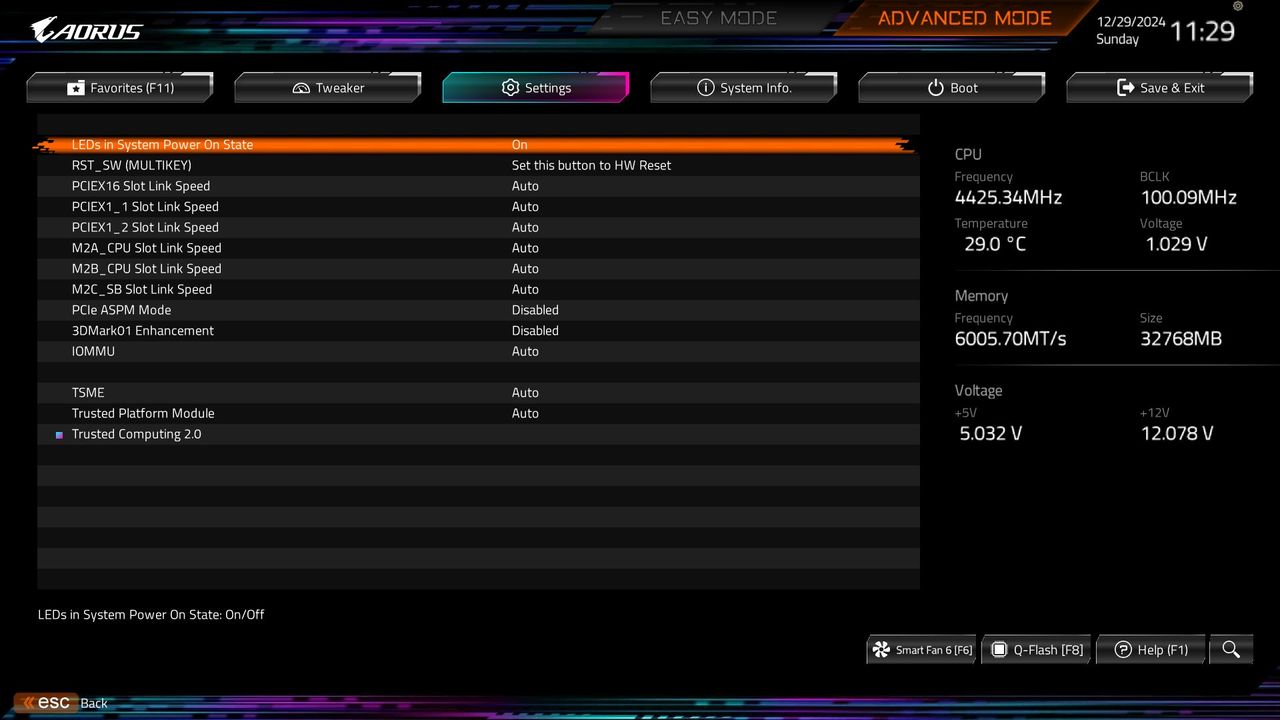

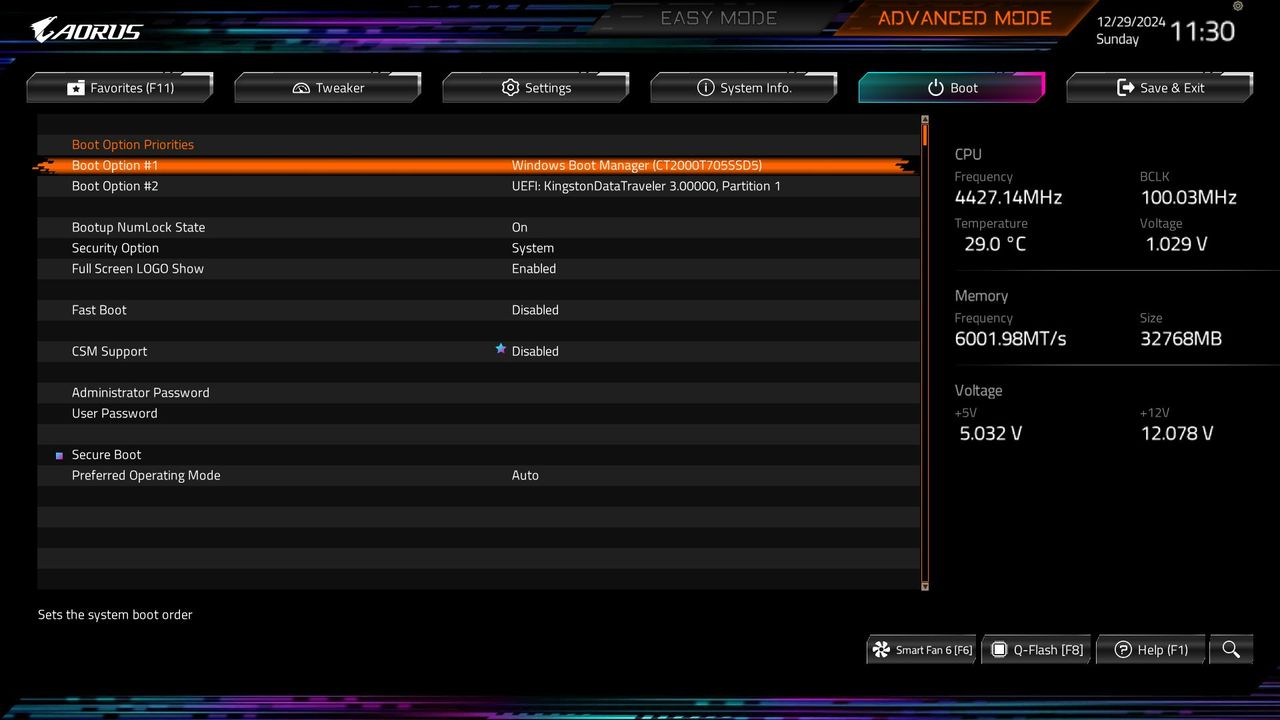

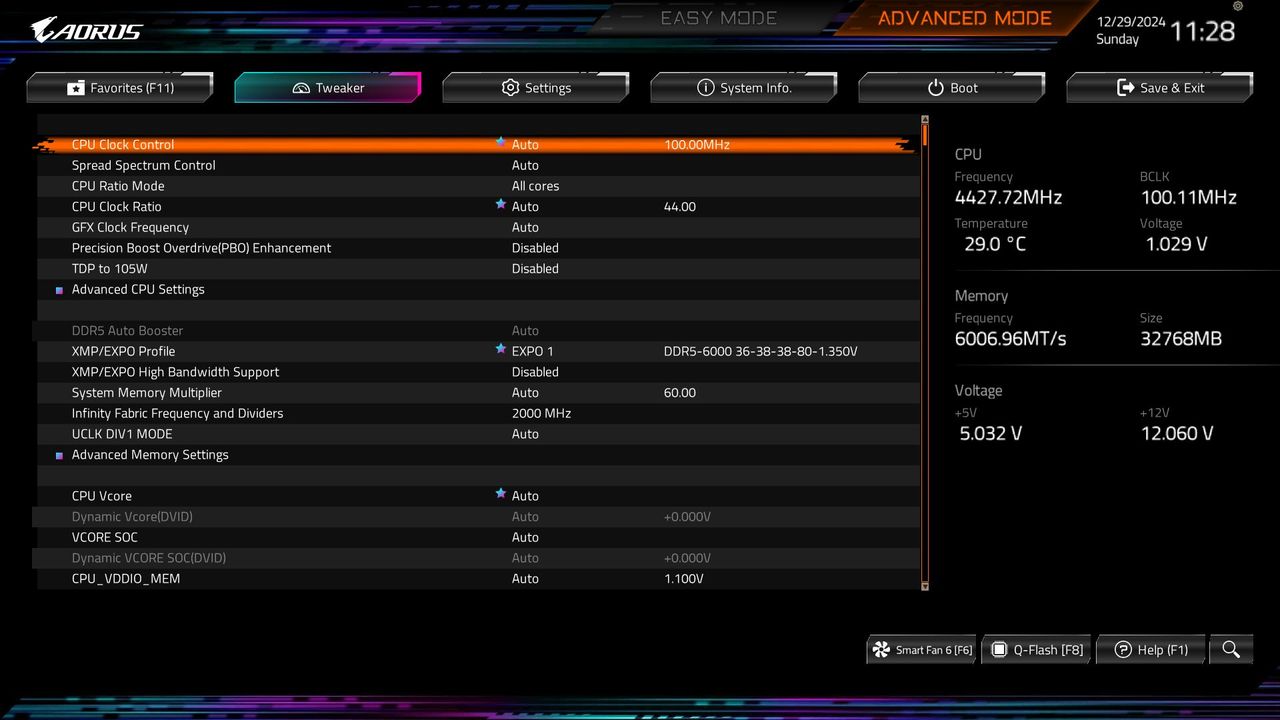

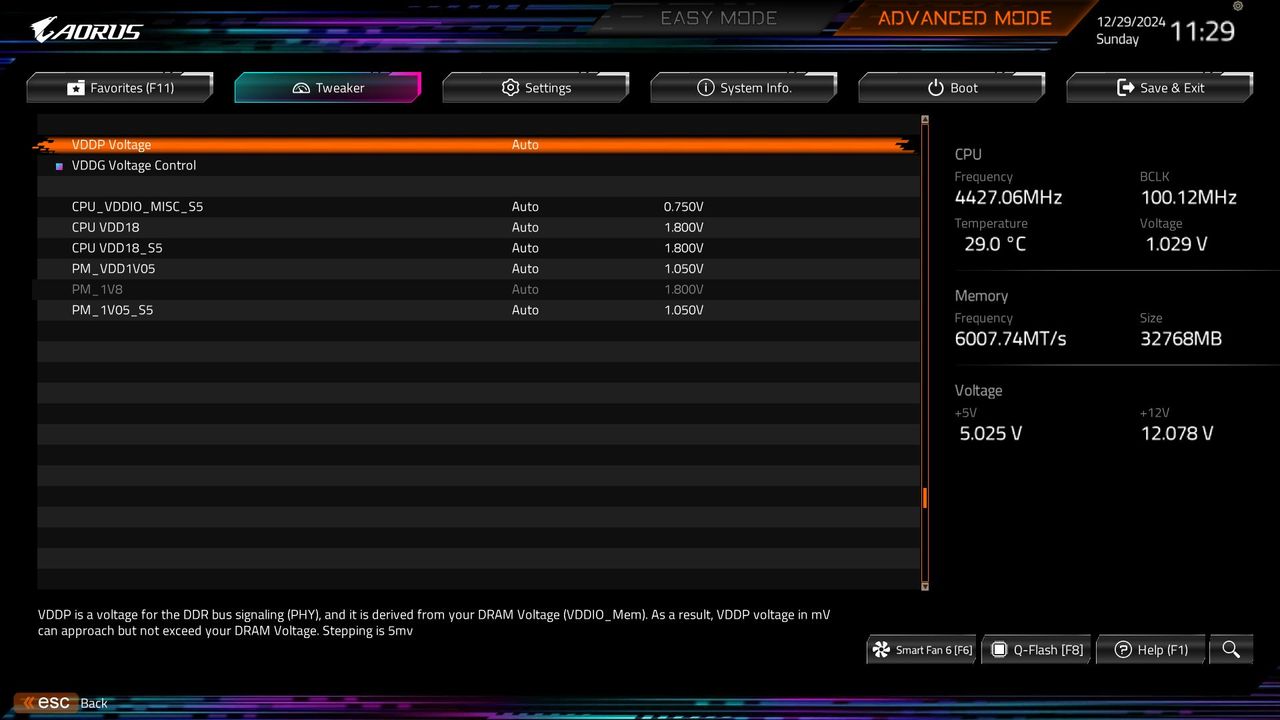

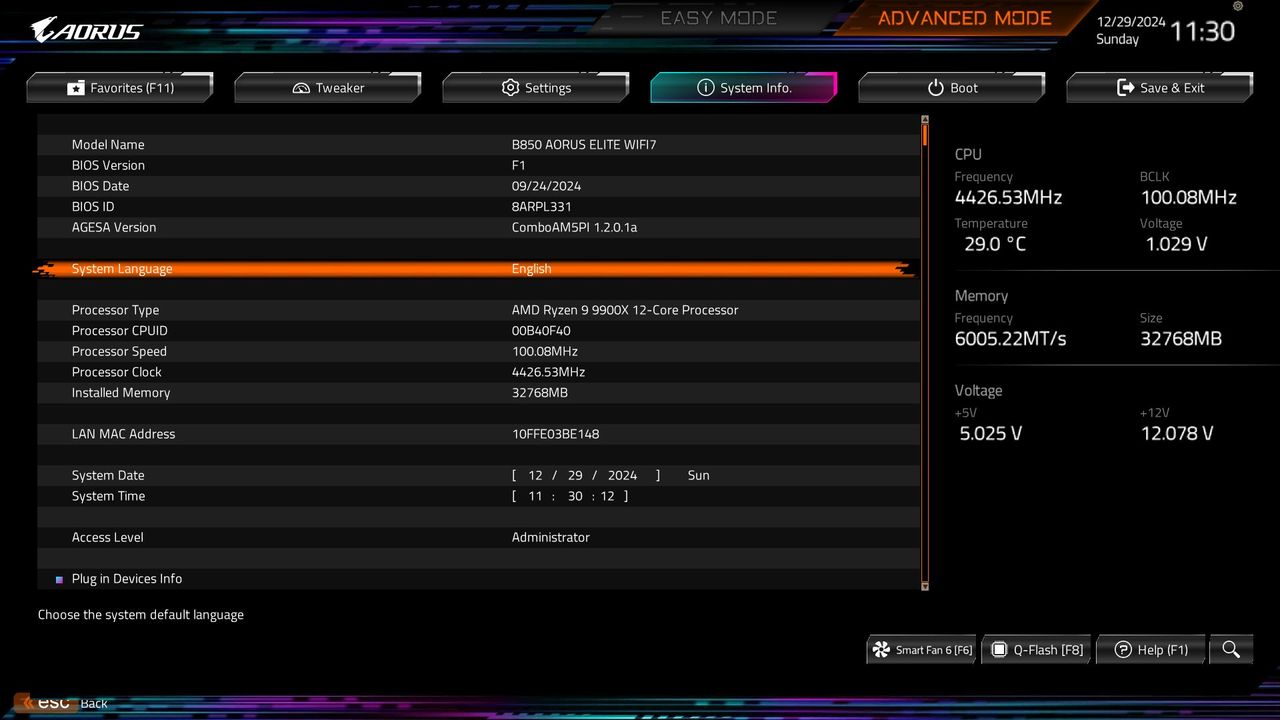

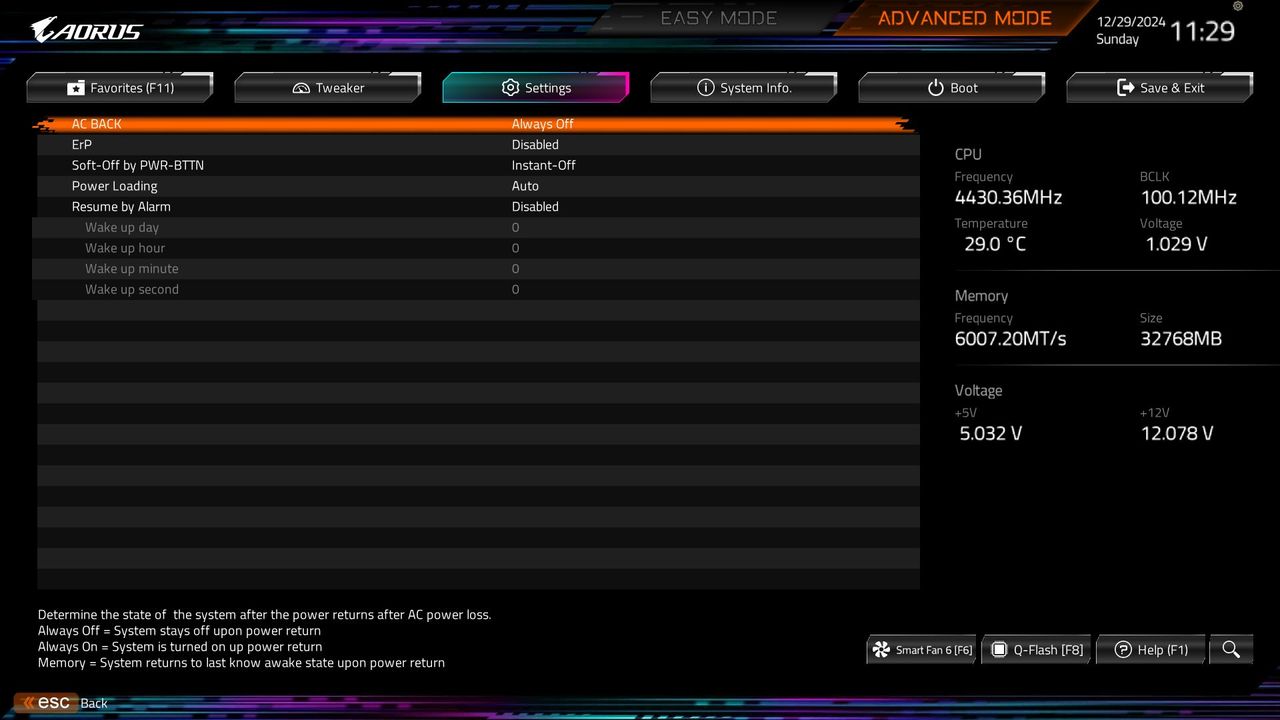

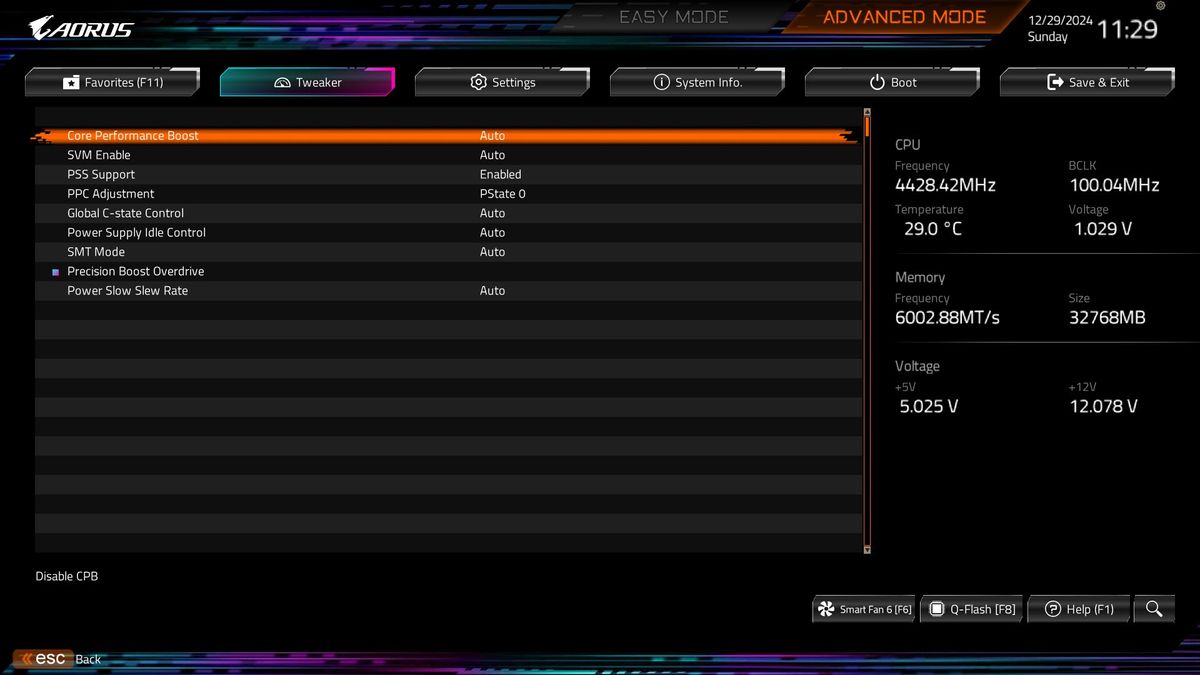

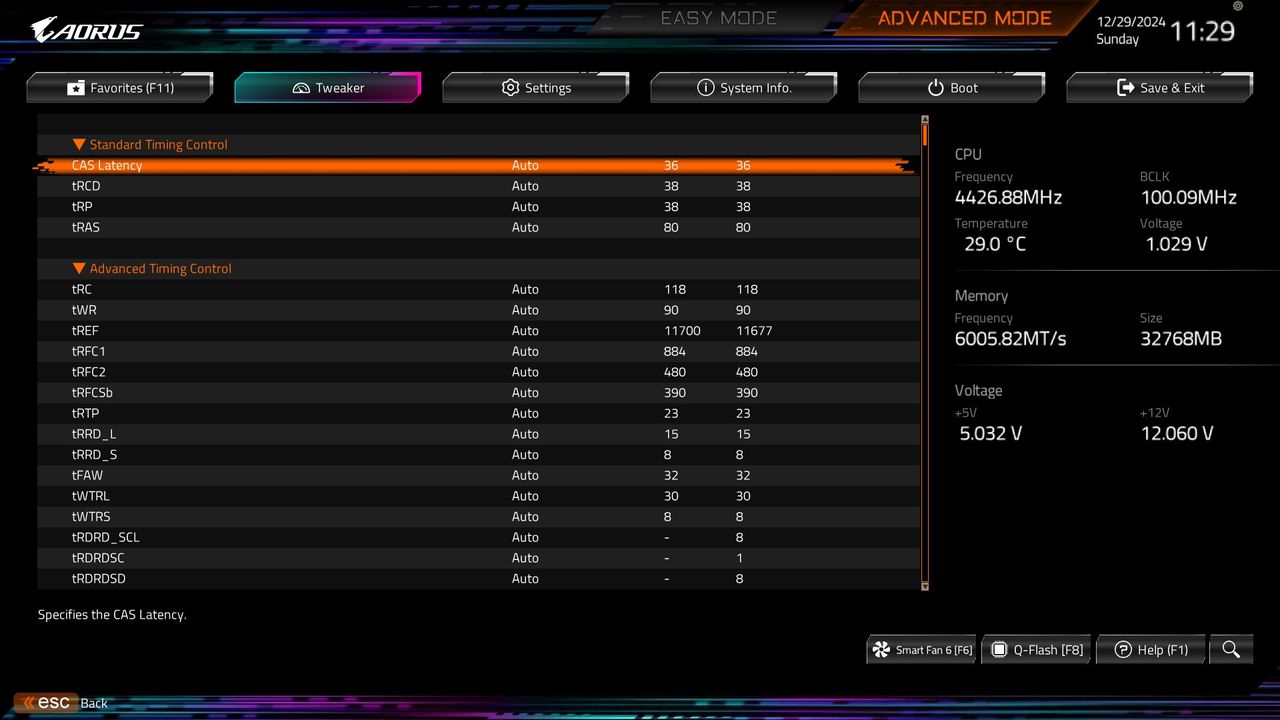

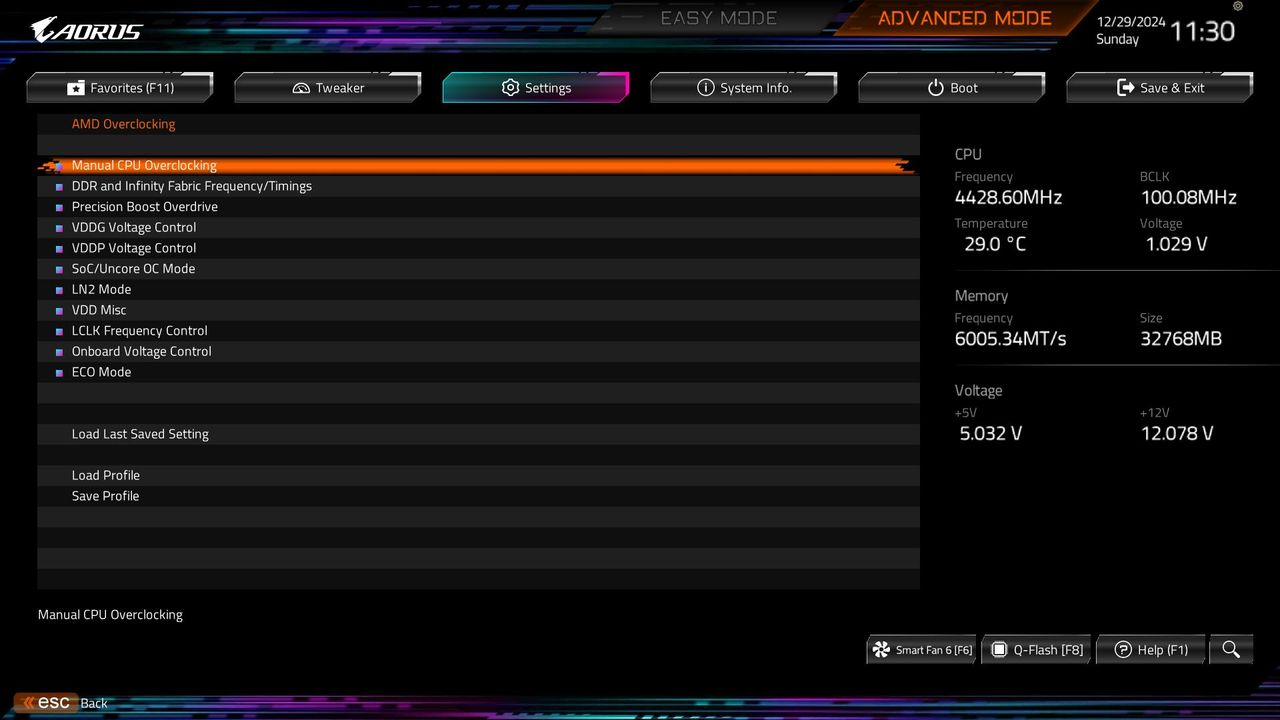

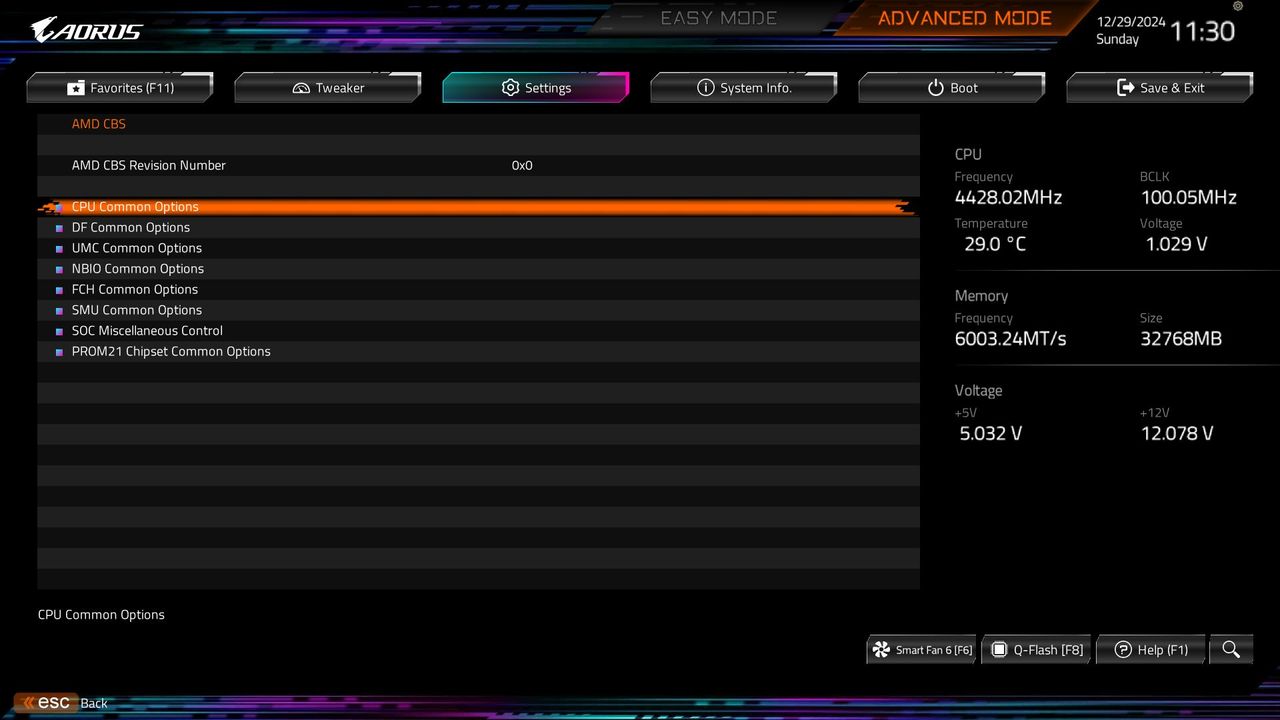

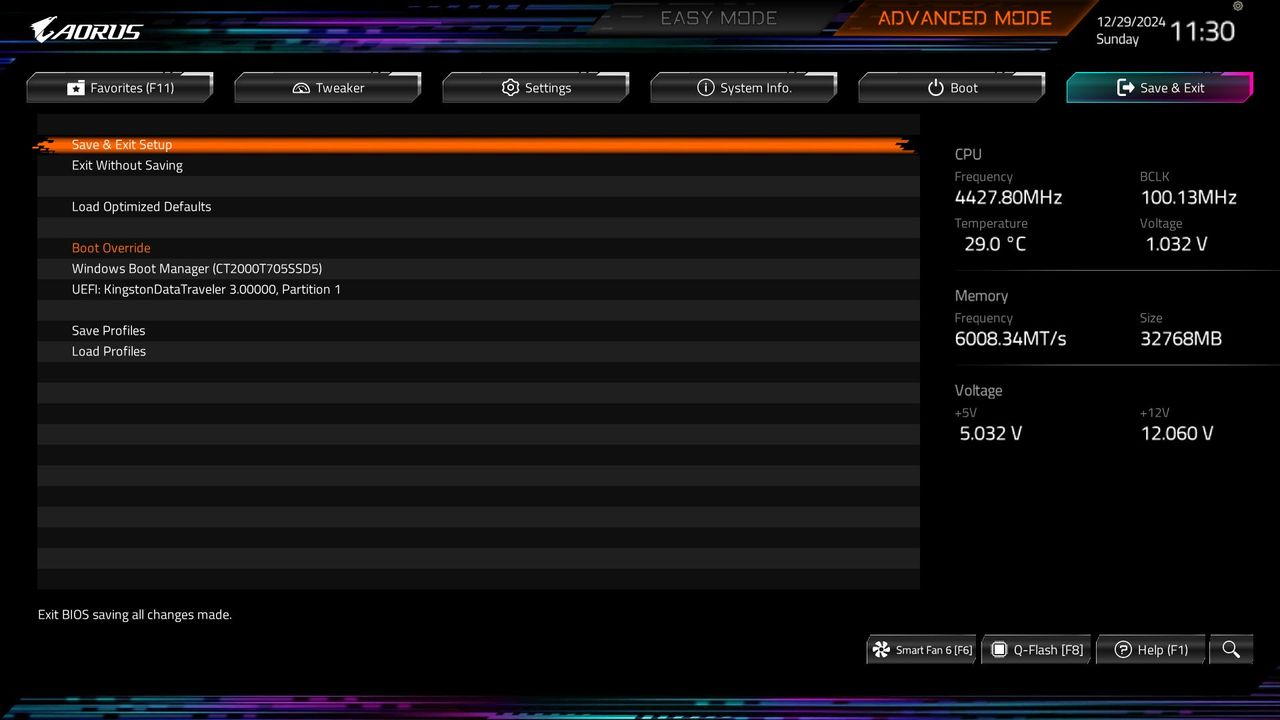

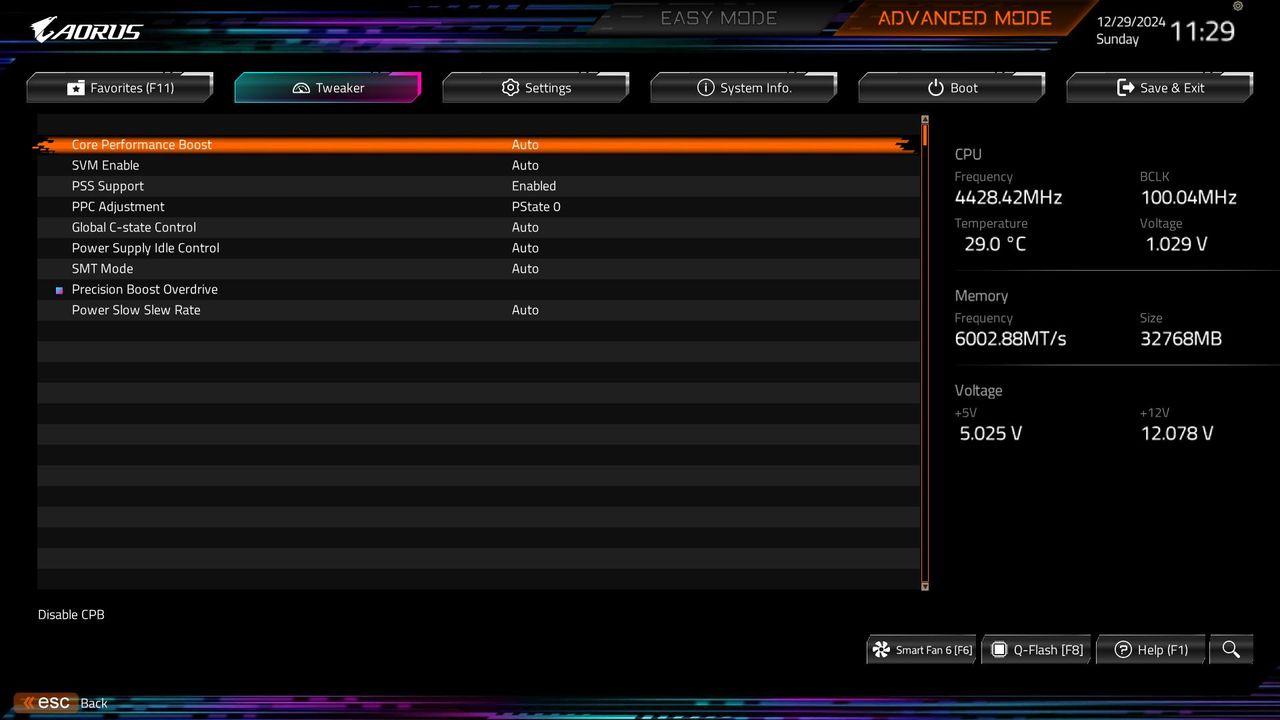

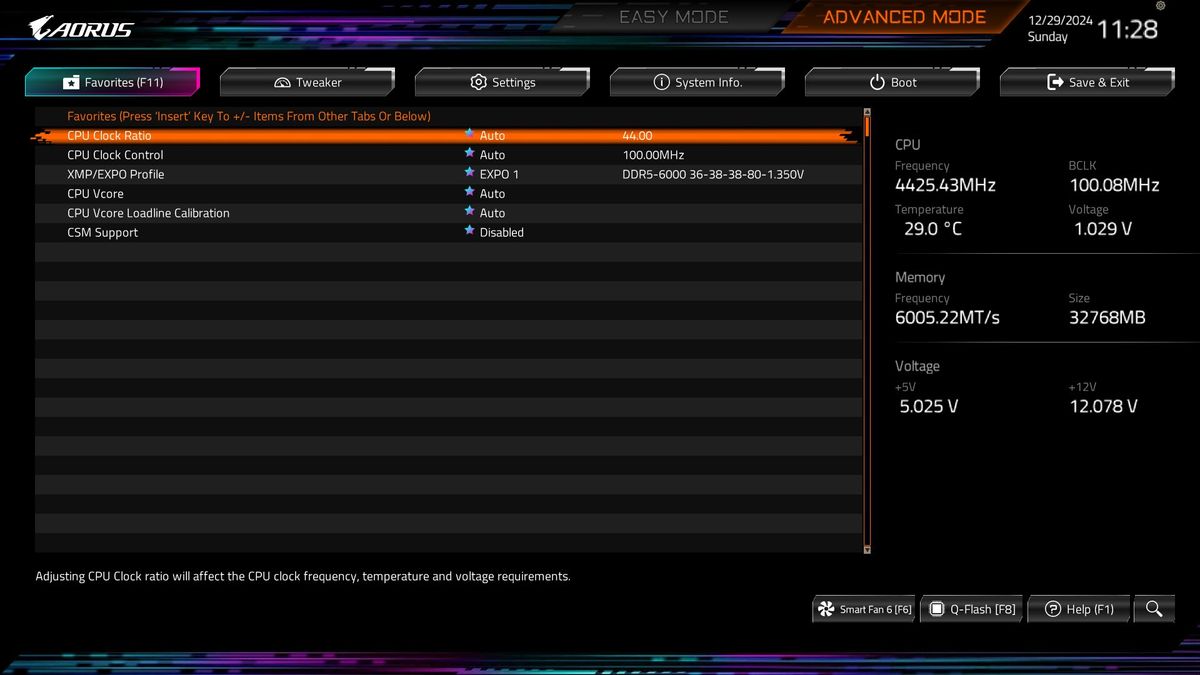

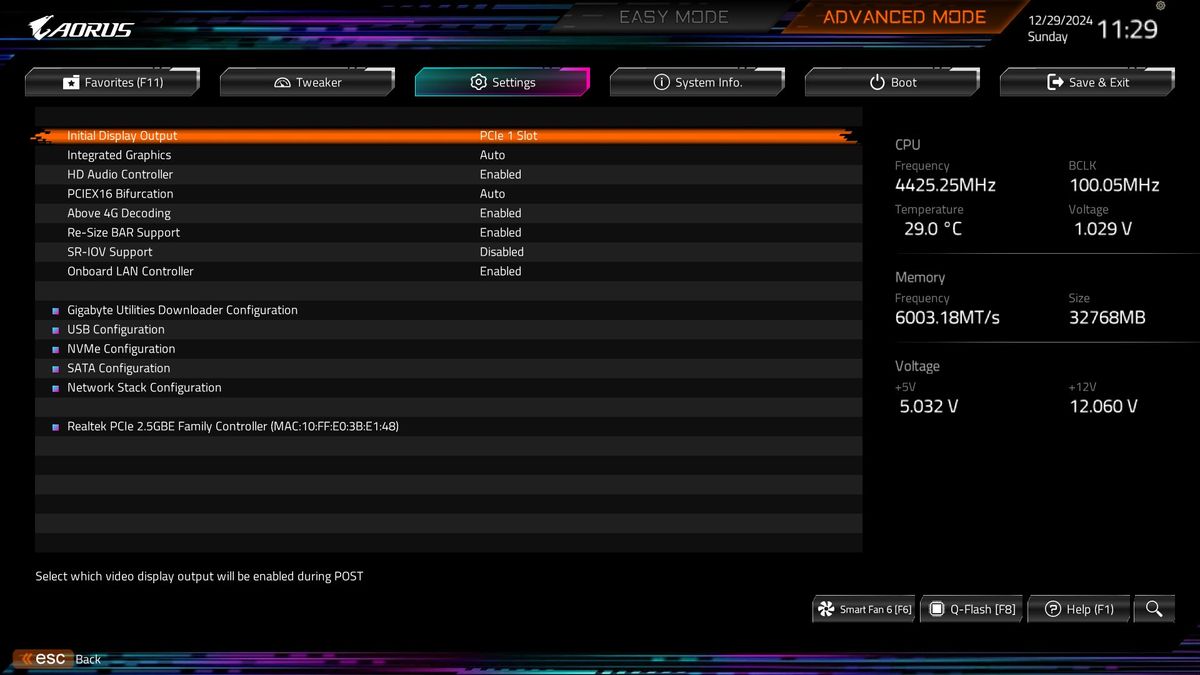

The Advanced mode also received a facelift. While all headings are still across the top, they are now larger ‘buttons’ and easily selectable with a mouse. The highlight bar (where you are on the page) is Aorus Orange and easy to see. Every option you need and want is at your fingertips, and you don’t have to drill down several layers to reach the most commonly used functions – especially if you populate your selections in the Favorites section.

Image 1 of 19
Gigabyte B850 Aorus Elite Wifi 7
(Image credit: Tom's Hardware)

Software

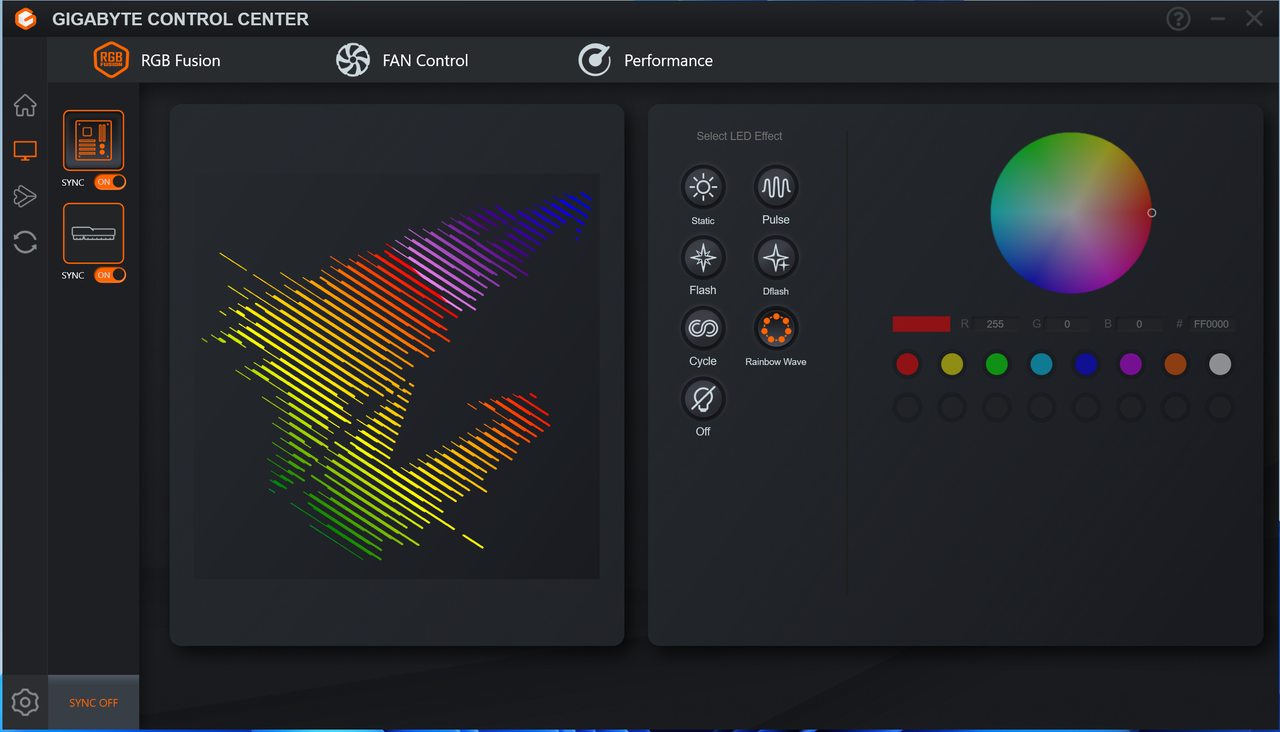

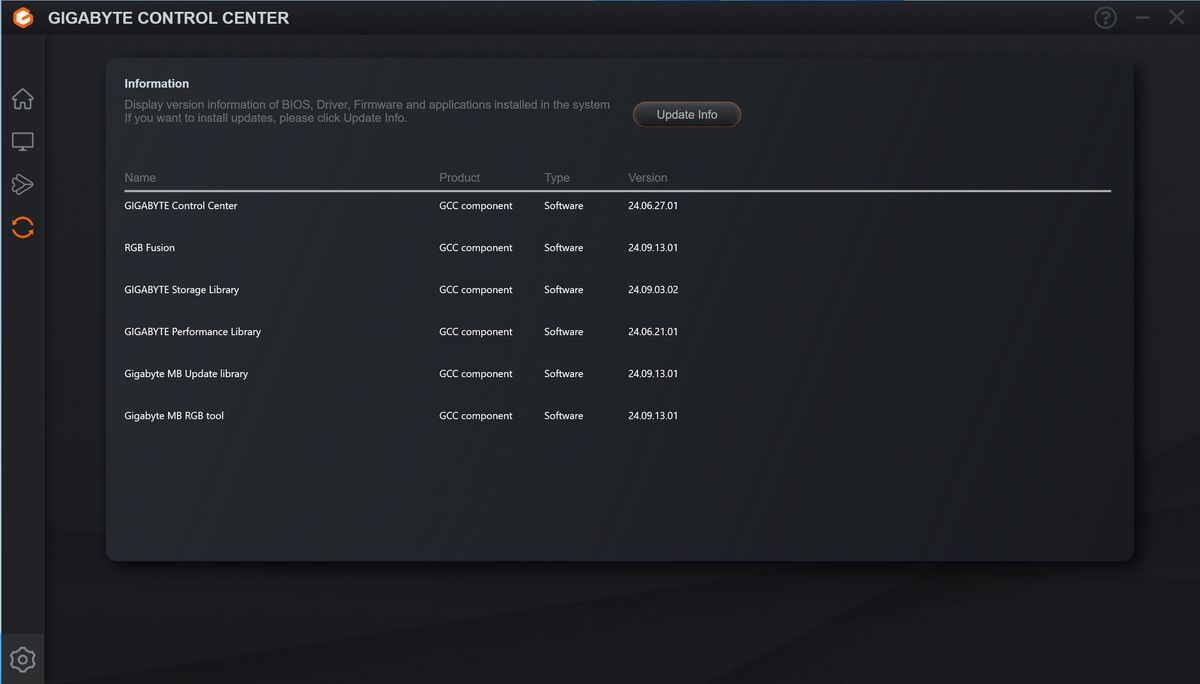

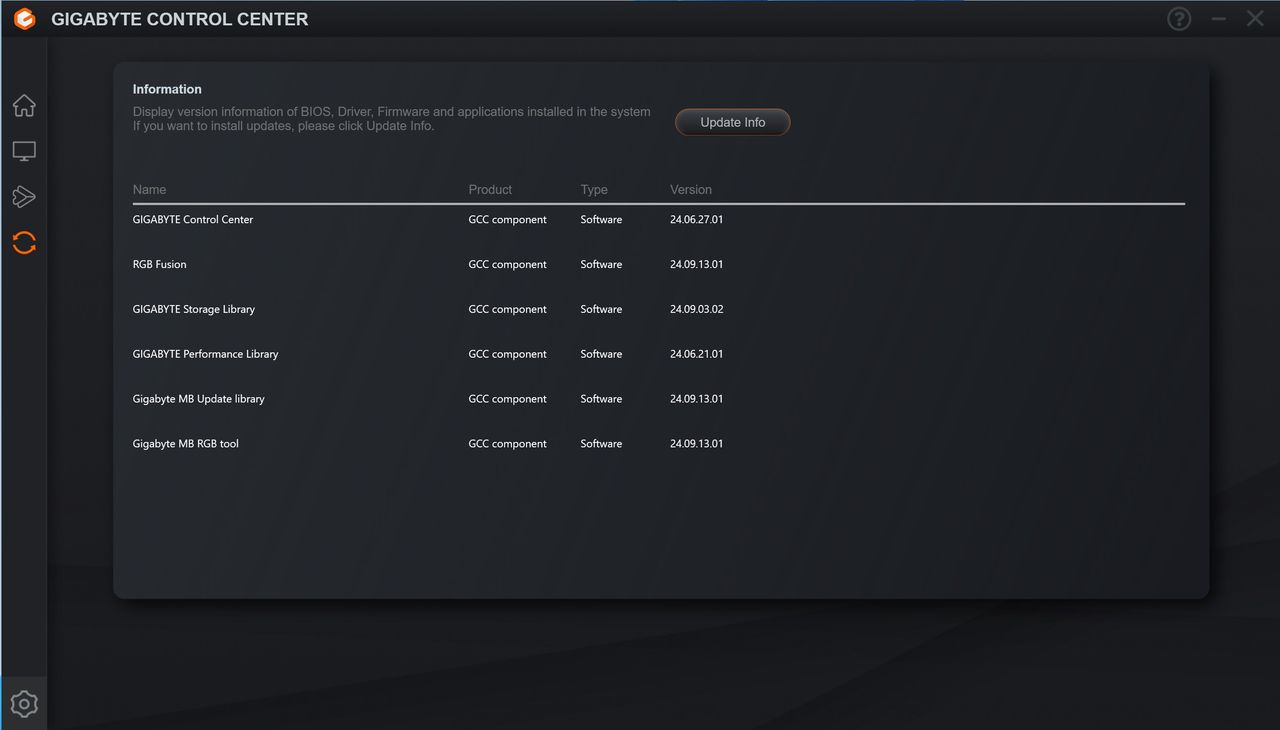

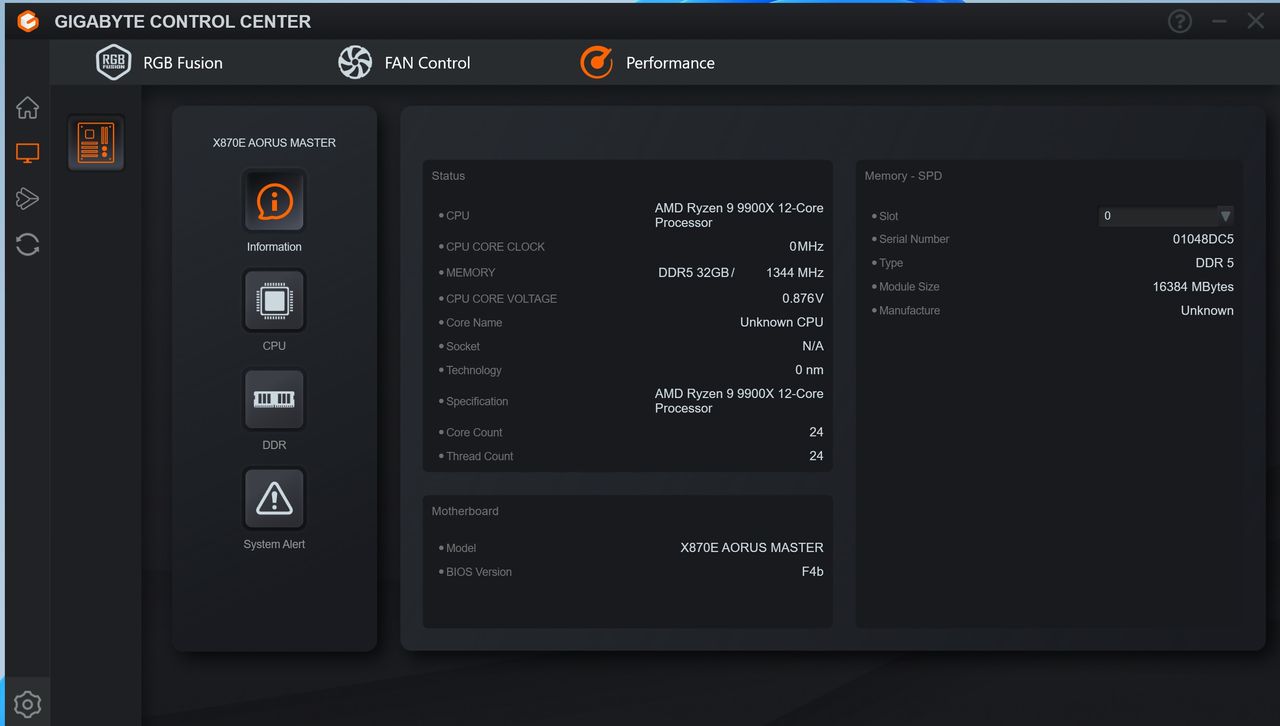

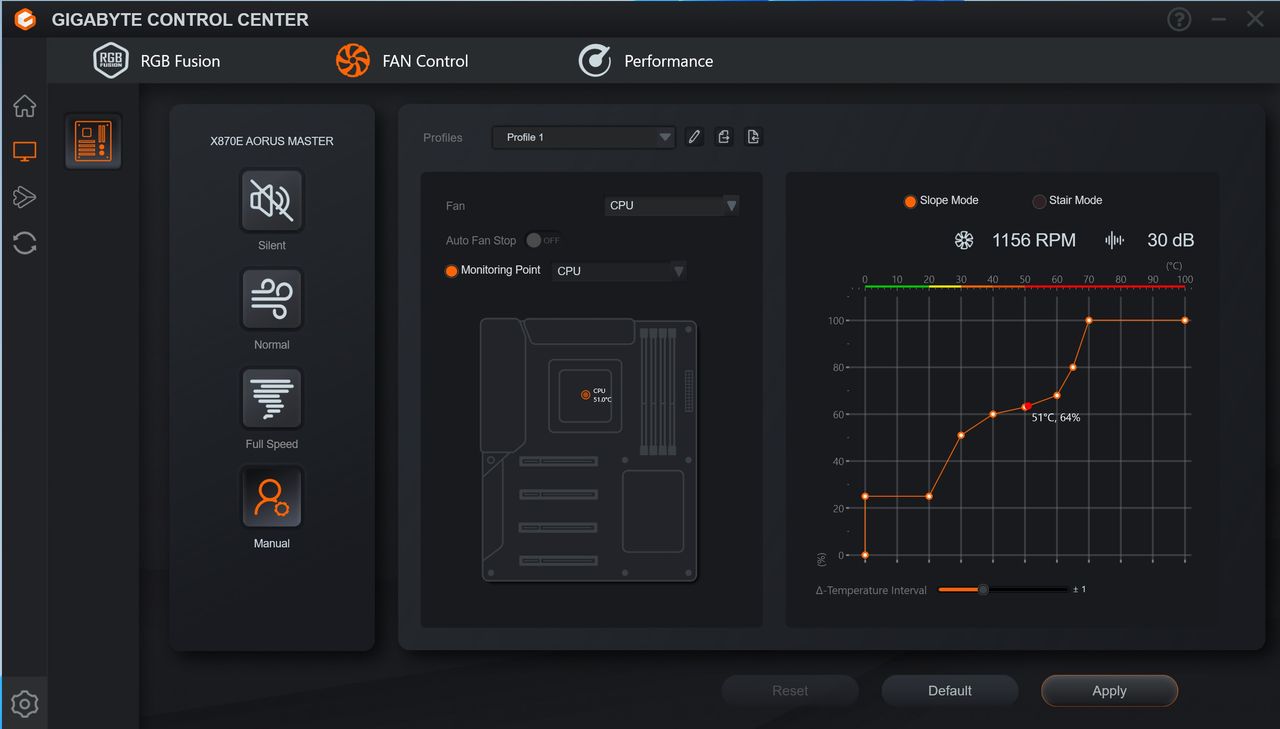

Several months ago, Gigabyte released a new software suite called Gigabyte Control Center (GCC). GCC is a one-stop shop for controlling several functions, from RGB and Fan control to hardware monitoring and overclocking. It’s also helpful in finding, downloading, and installing driver updates for your system. It’s a simple application that does its job. It’s also a much cleaner tool than the previous App Center and gets our approval for the breadth of functionality it offers users.

Image 1 of 4
Gigabyte B850 Aorus Elite Wifi 7
(Image credit: Tom's Hardware)

Test System / Comparison Products

We’ve updated our test system to Windows 11 (23H2) 64-bit OS with all updates applied as of late September 2024 (this includes the Branch Prediction Optimizations for AMD). Hardware-wise, we’ve updated the RAM kits (matching our Intel test system), cooling, storage, and video card. Unless otherwise noted, we use the latest non-beta motherboard BIOS available to the public. Thanks to Asus for providing the RTX 4080 TUF graphics card and Crucial for the 2TB T705 SSDs. The hardware we used is as follows:

Test System Components

Swipe to scroll horizontally
CPUAMD Ryzen 9 9900X
CoolingArctic Liquid Freezer II 420
StorageCrucial 2TB T705 M.2 PCIe 5.0 NVMe SSD
RAMKingston Fury Beast DDR5-6000 CL36 (KF560C36BBEAK2-32)
RAMTeamgroup T-Froce Delta DDR5-7200 CL34 (FF3D518G7200HC34ABK)
RAMKlevv Cras XR5 RGB DDR5-8000 (KD5AGUA80-80R380S)
GPUAsus TUF RTX 4080 16G
PSUEVGA Supernova 850W P6
SoftwareWindows 11 64-bit (23H2 - 22631.4169)
SoundIntegrated HD audio
NetworkIntegrated Networking (GbE to 10 GbE)
Graphics DriverGeForce 561.09

(Image credit: Tom's Hardware)

Benchmark Settings

Swipe to scroll horizontally
Synthetic Benchmarks and SettingsRow 0 - Cell 1
ProcyonVersion 2.8.1352 64
Row 2 - Cell 0 Office 365, Video Editing (Premiere Pro 24.6.1), Photo Editing (Photoshop 25.1.2, Lightroom Classic 13.5.1)
3DMarkVersion 2.29.8294.0 64
Row 4 - Cell 0 Speed Way and Steel Nomad (Default)
Cinebench R24Version 2024.1.0
Row 6 - Cell 0 Open GL Rendering Benchmark - Single and Multi-threaded
BlenderVersion 4.2.0
Row 8 - Cell 0 Full benchmark (all 3 tests)
Application Tests and SettingsRow 9 - Cell 1
LAME MP3Version SSE2_2019
Row 11 - Cell 0 Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)
HandBrake CLIVersion: 1.8.2
Row 13 - Cell 0 Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)
Corona 1.4Version 1.4
Row 15 - Cell 0 Custom benchmark
7-ZipVersion 24.08
Row 17 - Cell 0 Integrated benchmark (Command Line)
Game Tests and SettingsRow 18 - Cell 1
Cyberpunk 2077Ultra RT: - 1920 x 1080,  DLSS - Balanced
F1 2024Ultra High Preset - 1920 x 1080, 16xAF/TAA, Great Britain (Clear/Dry), FPS Counter ON

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: All Motherboard Content

Joe Shields
Joe Shields
Motherboard Reviewer

Joe Shields is a Freelance writer for Tom’s Hardware US. He reviews motherboards.
