Two years ago, I put together a quick little event in Bakersfield, CA to evaluate the effectiveness of AMD’s frame pacing driver (Radeon HD 7990 Vs. GeForce GTX 690: The Crowd Picks A Winner) from an experiential standpoint. We gleaned some interesting information, talked technology and drank some beer at a local brewery. It was an all-around great time. As AMD’s FreeSync introduction came and went, we collectively decided that something similar, but on a larger scale, would be the best way to compare both variable refresh capabilities.
Editor-in-Chief Fritz Nelson covered the highlights of this most recent get-together in Tom's Hardware Readers Pit G-Sync Vs FreeSync In Weekend Battle, but a lot more went into the planning than our highlight reel shows. Even if this was being called an event — you know, for the purposes of everyone getting to enjoy themselves — it would be handled like a proper laboratory experiment.
The first step, taken months ago, was letting AMD and Nvidia know our intentions and securing their support. Both companies were quick to climb on board, putting the onus on us to create a comparison both sides would consider fair. The hardware had to be decided on first, of course. By the time we were ready to commit, AMD's 300 series had launched. So, Nvidia proposed using GeForce GTX 970 and pitting it against Radeon R9 390X. The GM204-based board could be overclocked to match Grenada XT’s performance, the company assured us. In retrospect, we should have countered that the R9 390 would be a more fitting match. But given the advantage it was being handed, AMD readily accepted that pairing.
MORE: Best Graphics Cards For The Money
MORE: All Graphics Content
MORE: Graphics Cards in the Forum
Picking the monitors that both GPUs would drive proved to be more contentious. I wanted a comparison between FreeSync and G-Sync at 2560x1440, which meant eliminating the LCD as a variable. Right away, our options were narrowed to two: Acer’s XB270HU (G-Sync) vs. Asus’ MG279Q (FreeSync) or Asus’ PG278Q (G-Sync) vs. BenQ’s XL2730Z (FreeSync). The former would give us two IPS-based screens, while the latter shifted to TN. We’ve long dreamed of the day when fast-refresh IPS monitors were readily available at QHD resolutions, so that became our first choice. There was just one wrinkle: Asus’ MG279Q has a variable refresh range of 35 to 90Hz, whereas the BenQ can do 40 to 144Hz. So, while the Asus is perhaps a superior example of a gaming monitor, it’s not necessarily the best representation of FreeSync if your graphics subsystem regularly pushes above 90 FPS. Nevertheless, both AMD and Nvidia signed off on our preference for IPS.
MORE: Best Computer Monitors
MORE: All Monitor Content
MORE: Displays in the Forums
Next, we needed to build platforms around these graphics subsystems. Whereas my Bakersfield frame pacing event involved two PCs — one powered by AMD and the other by Nvidia — this experiment was to be grander. We envisioned eight total machines and two spares, which transcended our capacity for sourcing components and building our own boxes during off hours. So, we approached Digital Storm, a long-time supporter of the site, to gauge its interest in what we were doing. It too signed on right off the bat, offering 10 of its Vanquish 3 systems in Level 4 trim, keyboards, mice and headsets. The company even upgraded them to Core i7s, understanding our desire to factor out any potential platform bottleneck from a gaming comparison.

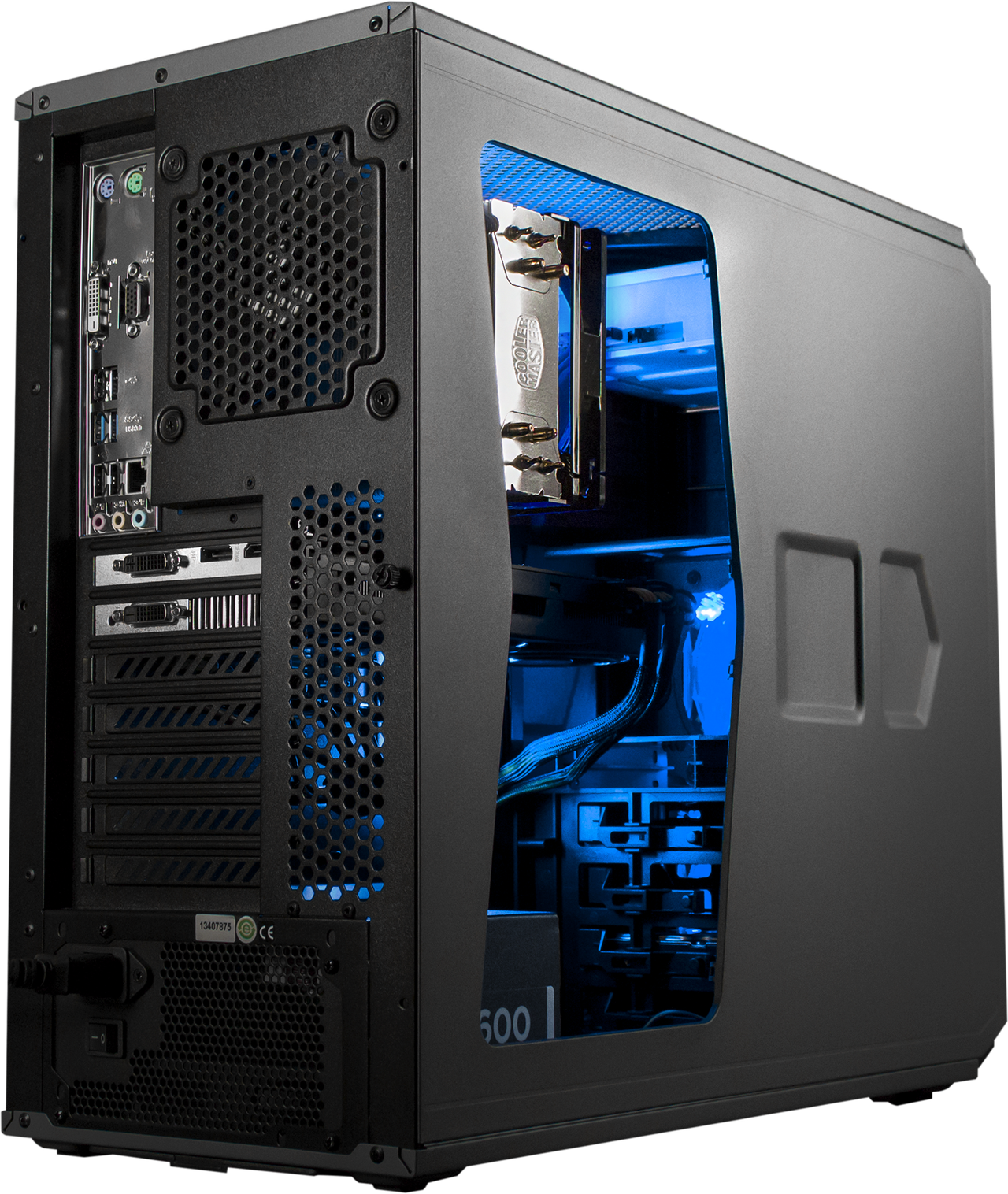

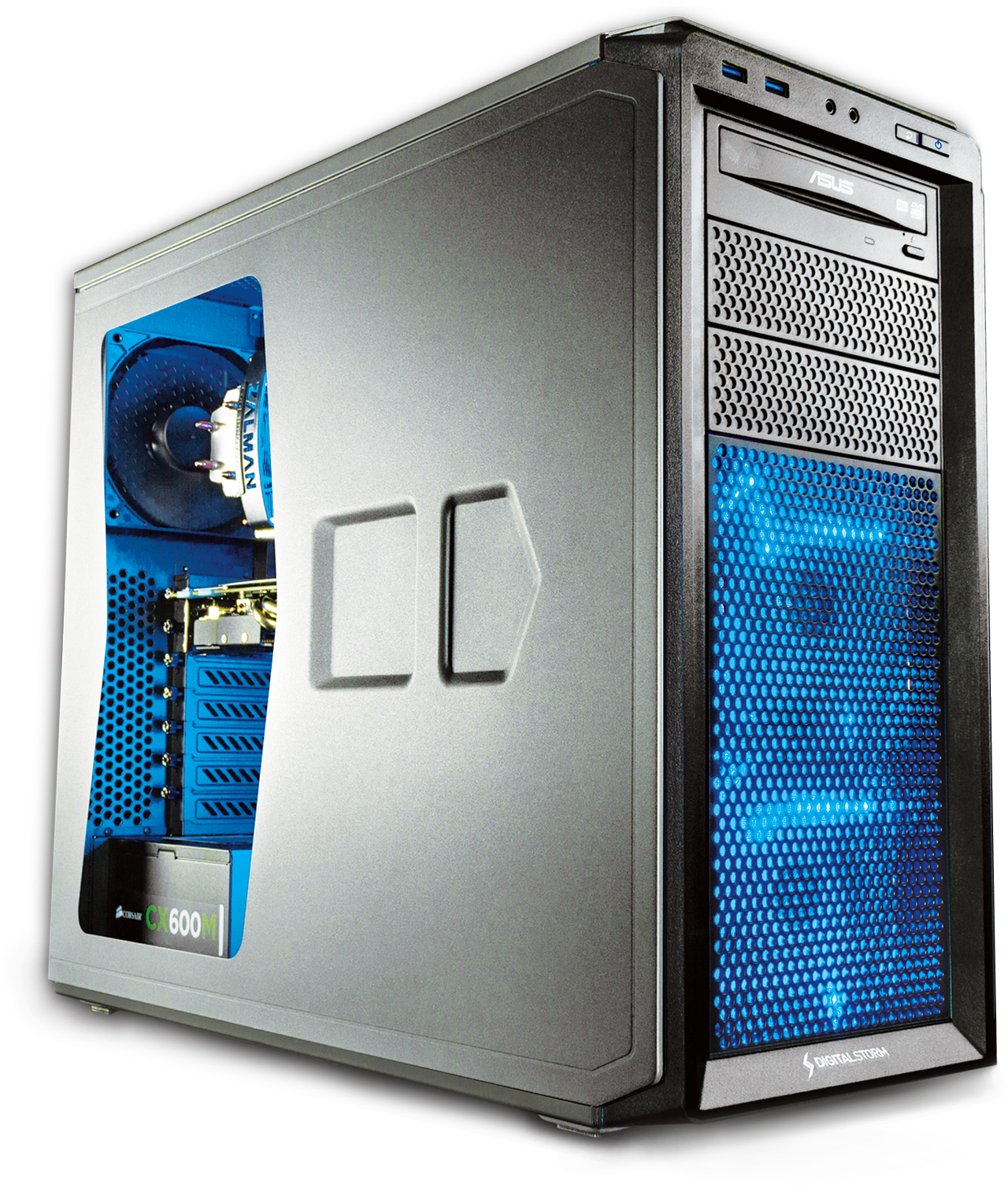

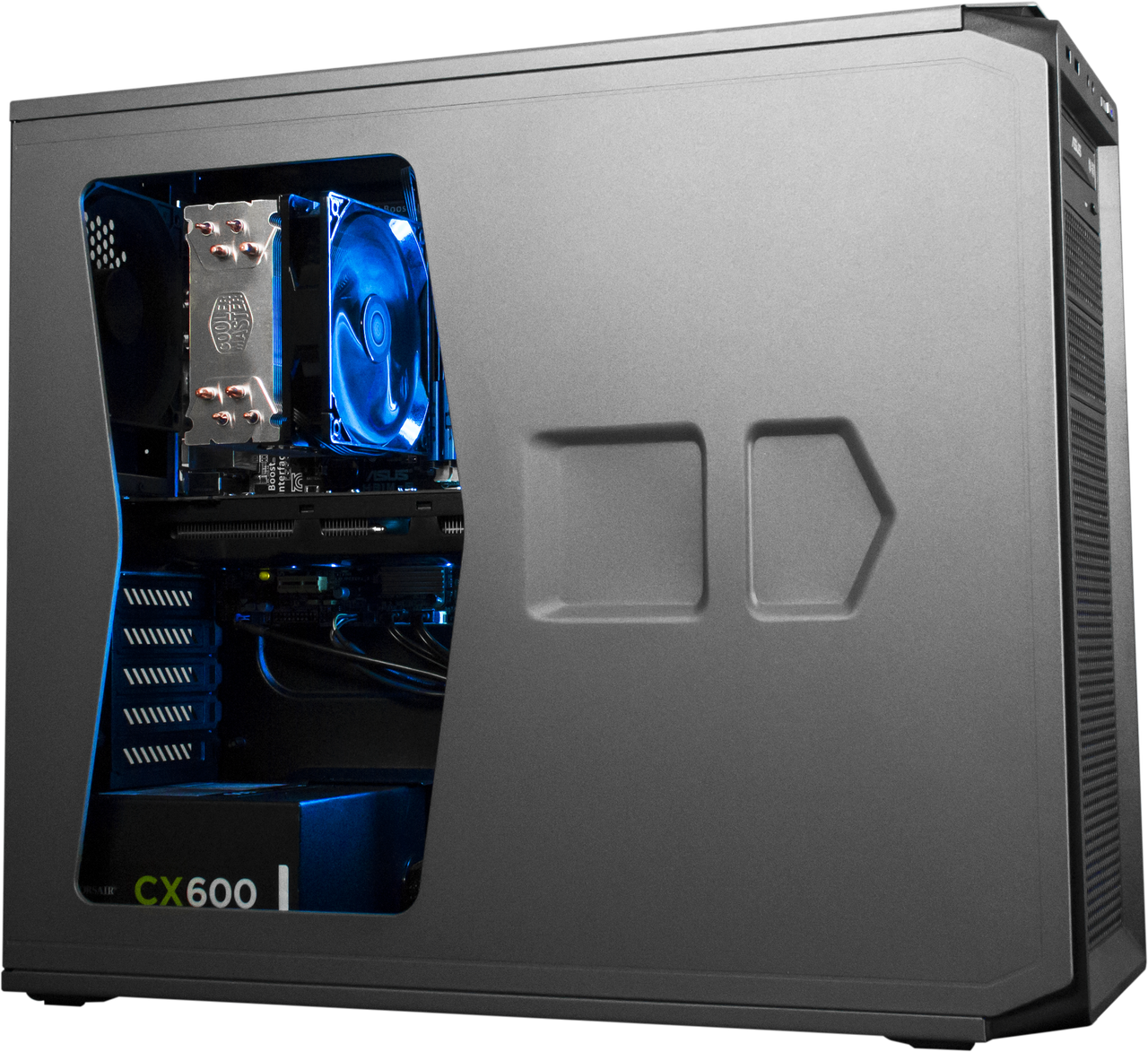

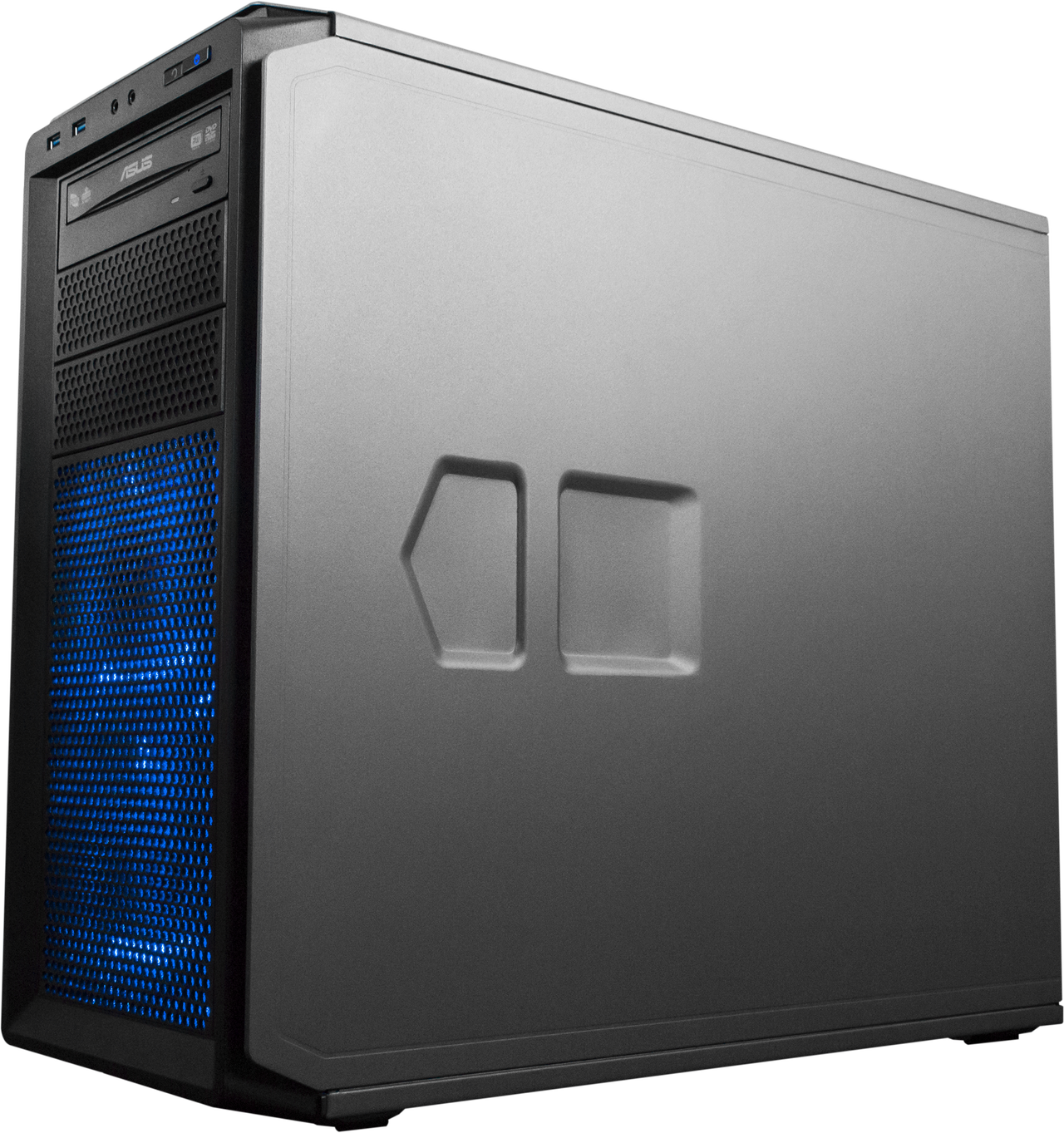

Digital Storm Vanquish 3 (Level 4 Trim)
With a hardware foundation in place, it was time to formulate a plan for testing. Eight machines meant we could parallelize the process. And, depending on the venue, we could run for five or six hours if necessary, cycling groups through at regular intervals. While we originally hoped to get each volunteer through four games on both technologies, the math just didn’t add up. Eight unique test points per participant times, say, five minutes per experience would add up to an hour after switching seats, games and settings. Instead, we’d give two groups of four a chance to play two games in front of G-Sync and the same for FreeSync.
Naturally, game selection was its own issue, and it quickly became clear that both AMD and Nvidia knew where their respective strengths and weaknesses would materialize. I’ll spare you the politicking, but we eventually settled on a pair of titles commonly associated with AMD (Battlefield 4 and Crysis 3), and two others in Nvidia’s camp (Borderlands: The Pre Sequel and The Witcher 3). Battlefield and Borderlands were deemed our “faster-paced” selections, while Crysis and The Witcher were on the slower side. At the end of the day, though, as a PC gamer, I wanted each title to run at the lushest playable detail settings possible. That’d prove to be another topic for zero-day debate between the two companies. Admittedly, any preference toward quality or performance is going to be subjective. We conceded that both schools of thought are valid, and one gamer's preference may even change depending on genre.
