ASRock X99E-ITX/ac Motherboard Review

By

Synthetic Benchmarks

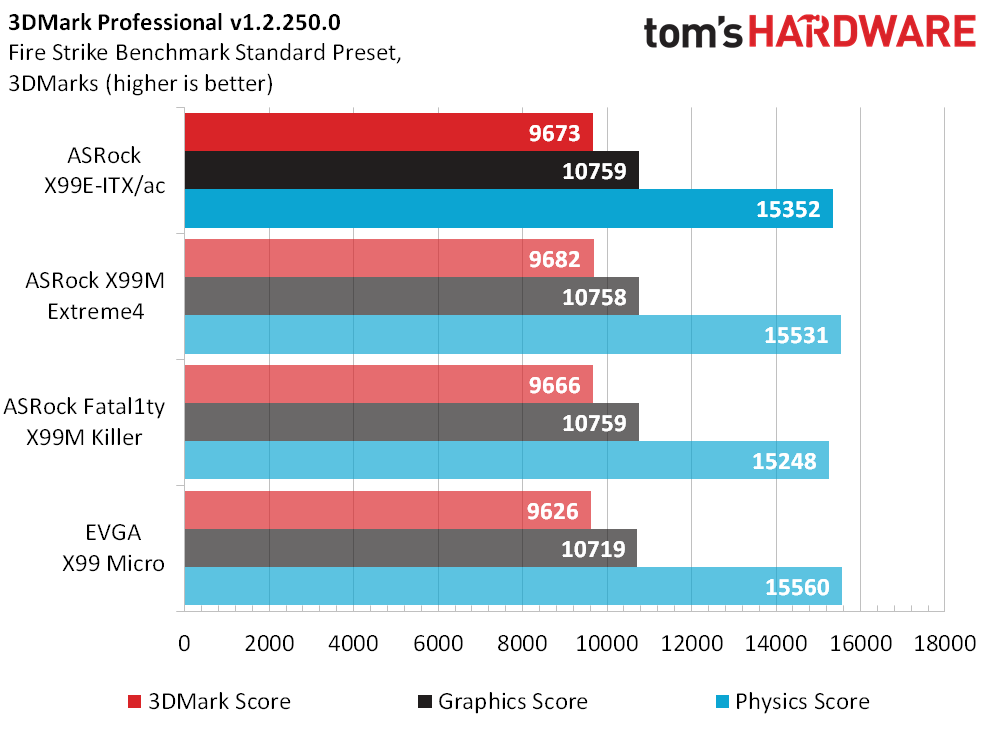

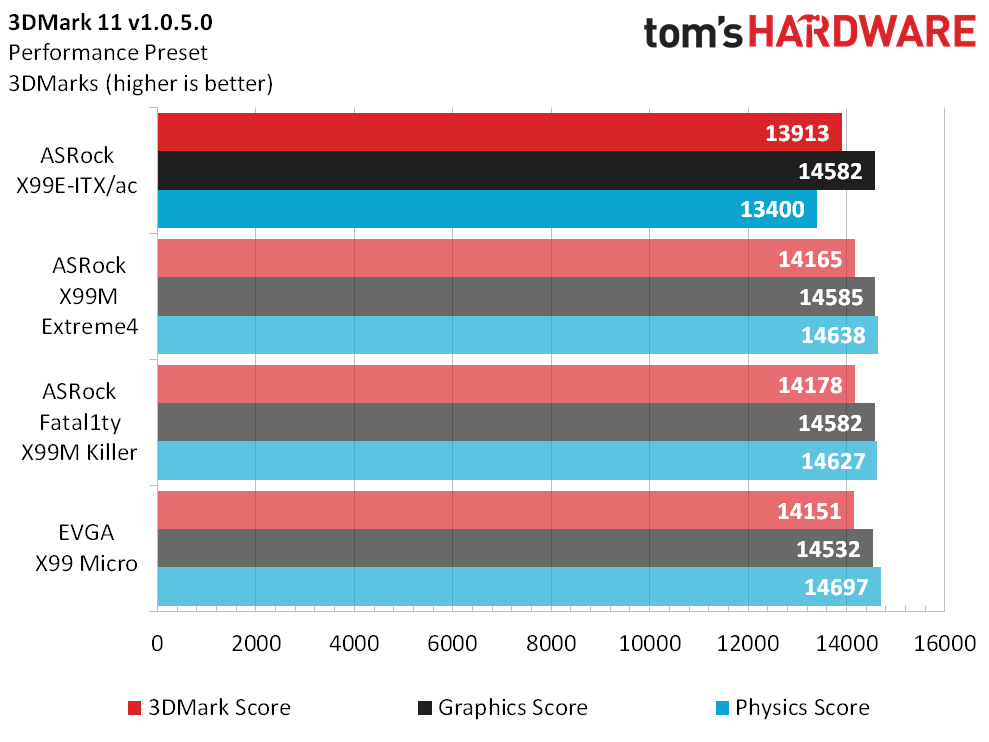

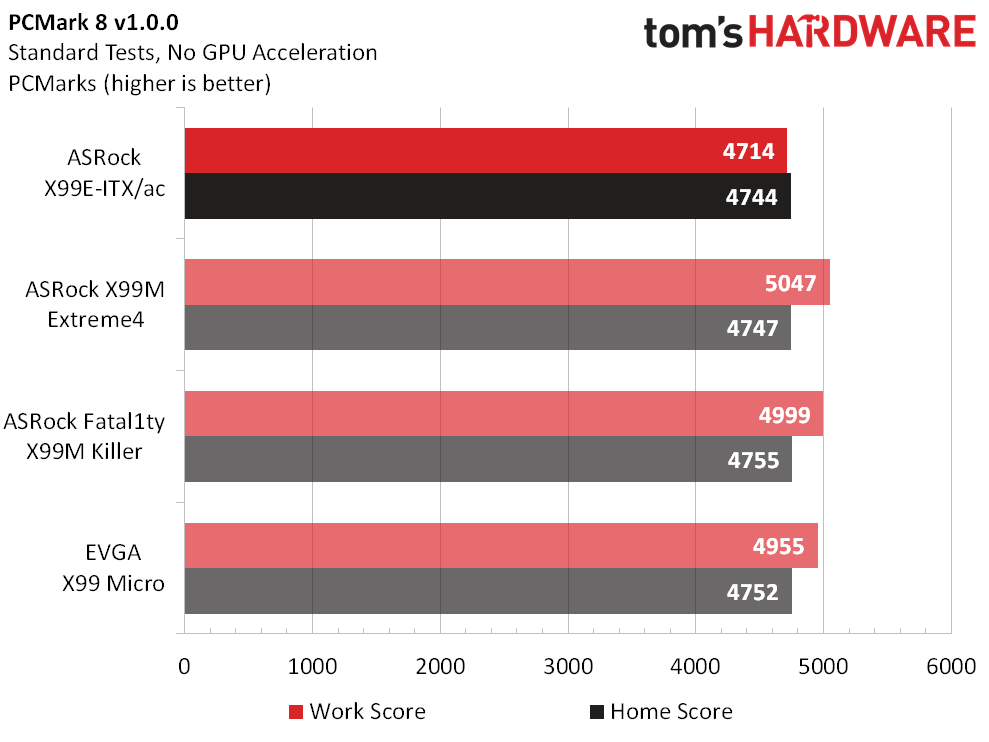

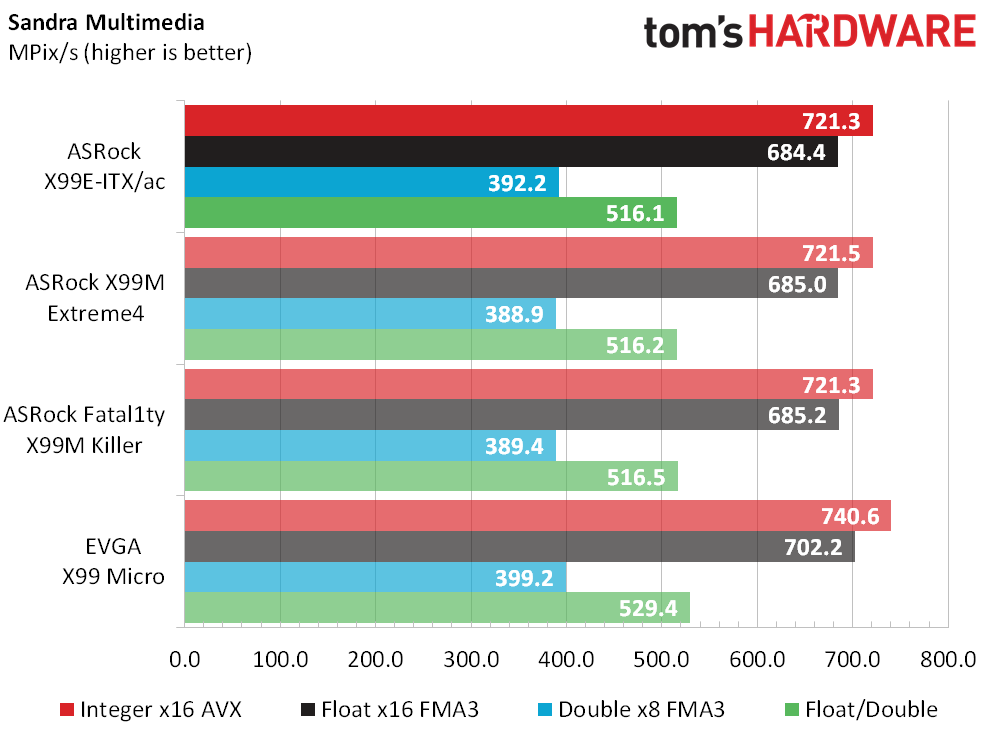

Synthetic benchmarks are a great way to find configuration problems like unrequested overclocks (which wreck a head-to-head match) and configuration issues (which can slow down certain components). In this case, we can see that the X99E-ITX/ac’s 3DMark 11 scores suffer slightly compared to larger motherboards, but we don’t see the cause until we get towards the end of our synthetic test.

Image 1 of 7

Image 2 of 7

Image 3 of 7

Image 4 of 7

Image 5 of 7

Image 6 of 7

Image 7 of 7

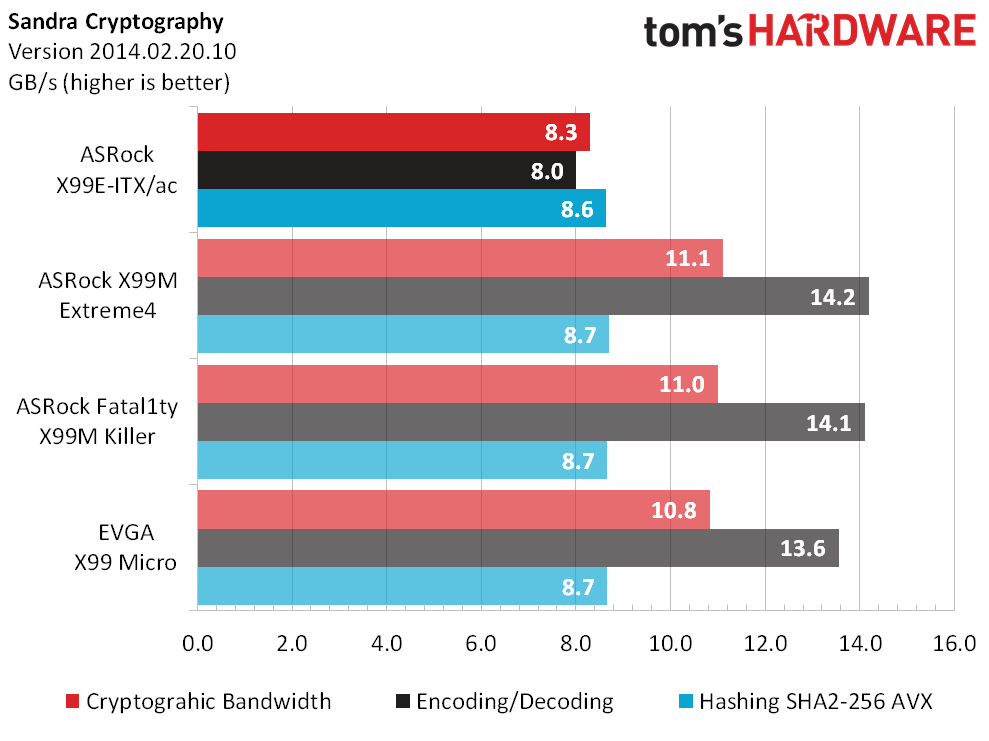

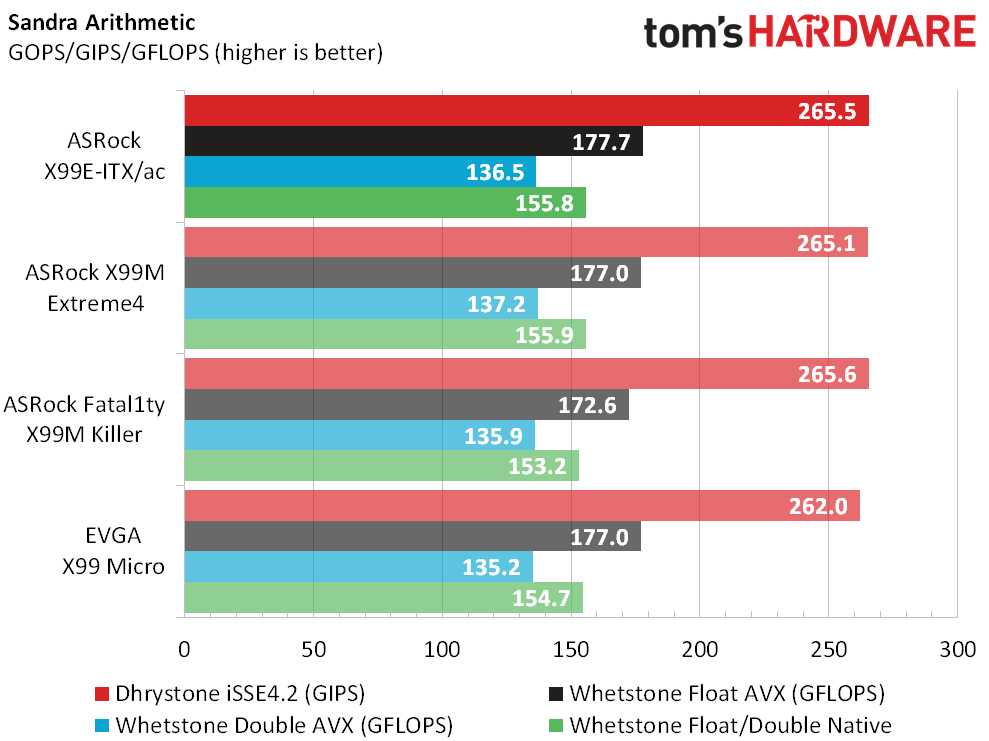

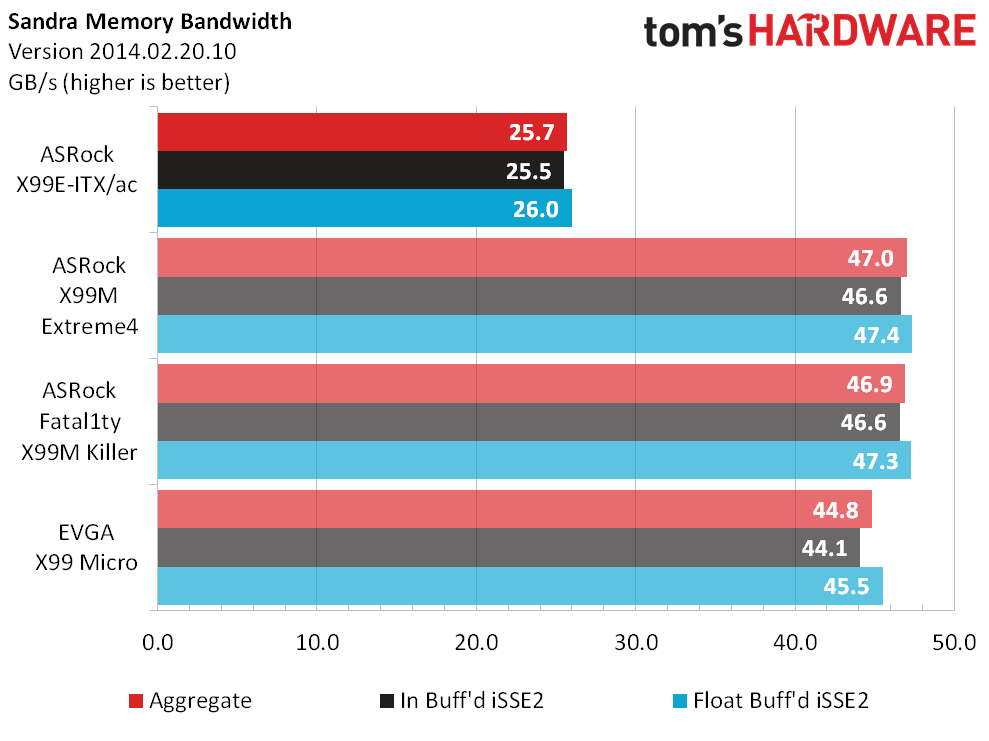

Scrolling through to the sixth image, we see a 36% performance deficit in Sandra's Cryptography module, and the next image reveals the reason: the X99E-ITX/ac interfaces only two of the platform’s four memory channels. Bandwidth drops by slightly less than half, but will we see any big differences in real-world applications?
