How Seagate Tests Its Hard Drives

Into The Labs

Let’s take a look through Seagate’s product assurance lab and see how some of this work actually gets done.

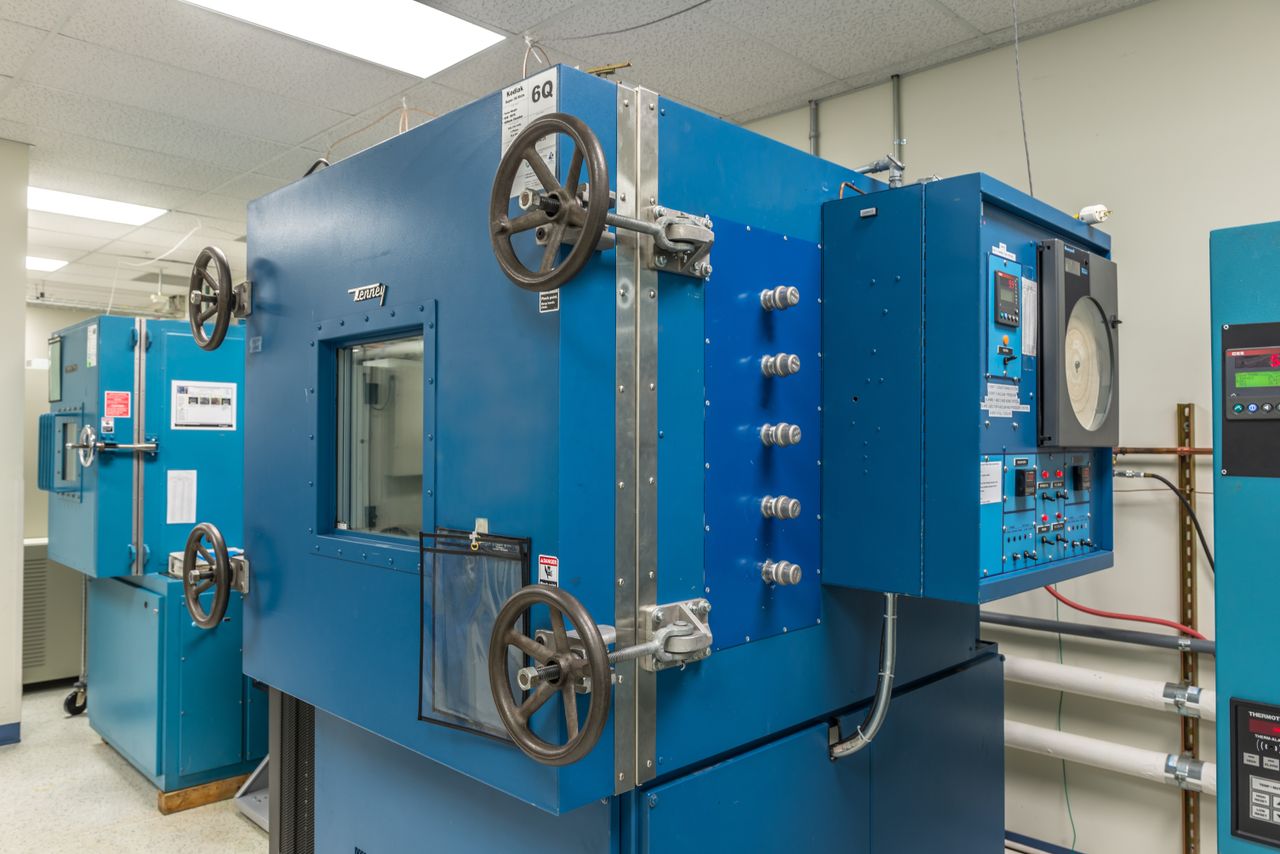

First up, we run into a pair of temperature-humidity test chambers. These units serve as something of a Swiss Army knife for drive testing, able to dial temperature up to 100 ˚C (212 ˚F) and down to a frosty -50 ˚C (-58 ˚F). It also provides for relative humidity control and independent 5V and 12V voltage. This test goes beyond the temperature, humidity, and power functional specifications of the HDD. Each drive slot within the test chamber features its own single-board computer that ties back to a server system running both scripts and application software developed in Seagate’s reliability department. This gives Seagate engineers full control over all test parameters, remote monitoring and management control, and complete logging capabilities.

Seagate’s hardware architecture ensures that a failure on any given slot won’t interrupt the others being tested. All available data from test systems helps to assess the drive state, including drive parametrics, upstream parametrics and drive failure analysis. Every failure is thoroughly investigated. When needed, a drive will get written up and sent off to the failure analysis lab, which then figures out the root cause of failure. Firmware issues get routed back to the FW team for investigation. Mechanical or system failures will get torn down and investigated until the problem is understood.

When quantities start to increase, engineers step up to higher capacity burn-in test chambers, each capable of holding over 100 drives. These units only serve to run scripts at elevated temperatures.

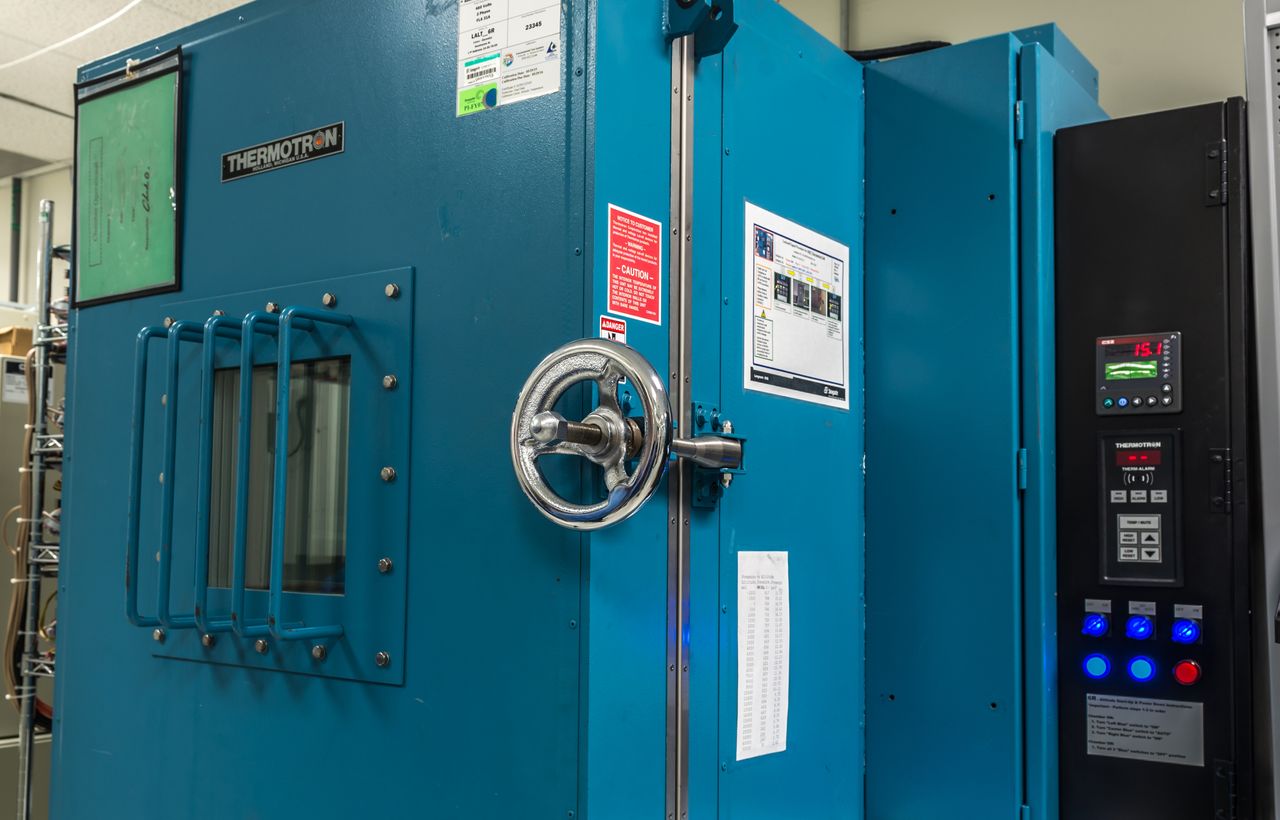

A second type of testing executes in high-capacity temperature chambers. These chambers carefully manage airflow characteristics to maintain consistent drive temperatures. As you can see, Seagate runs a lot of these machines, and drives are kept spinning around the clock. A third type of testing runs in hot rooms where the room temperature, rather than the drive temperature, is controlled. This test approach provides for both higher drive density as well as conditions closer to that of a large data center.

Taking many steps back, here’s another vantage on the main reliability testing room. The view here doesn’t do justice to the physical impression made by being in the midst of rank upon rank of these beasts, all chugging quietly away in the pursuit of creating drive failures.

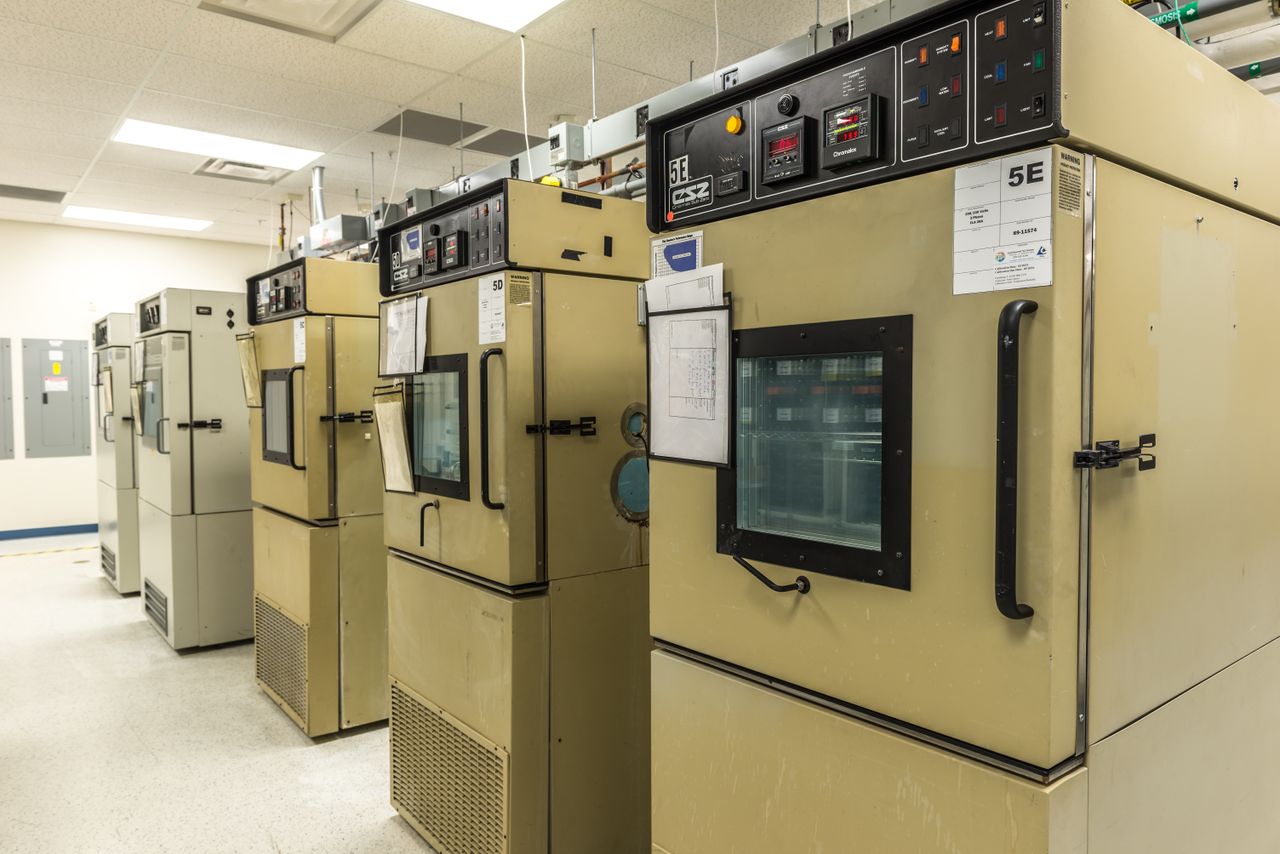

Throughout the lab, we observed drives being tested at different temperatures. Often, drives are tested at, or above, the product temperature specification. The purpose here is twofold. First, engineers need to make sure that drives will perform reliably at these temperatures, as they may well encounter them in environments such as data centers or deserts. Second, elevating temperature serves to add stress to the device and thus accelerate expected failure times. Engineers don’t have five years to wait around and tally up drive failures at room temperature, but they can make educated guesses at this number based on many years of heightened temperature testing and subsequent analysis.

Could a company fudge these methods and cheat its test algorithms? Sure. Would it be short-sighted and self-damaging when those drives started failing prematurely? Absolutely, so Seagate makes every possible effort to calibrate its temperature/reliability result curves and ensure their long-term accuracy.

Of course, sometimes all you need is to test drives at normal, room temperature conditions. These racks serve primarily to run scripts on SAS and SATA drives as well as perform load/unload tests. Here’s a close-up view:

Drive failures can also be accelerated through altitude testing. Following are different views of Seagate’s altitude chambers. These machines can create air pressure conditions ranging from roughly 200 feet below sea level to 40,000 feet (for non-operation). This is critical, because heads fly so microscopically close to disk media that even tiny changes in pressure within the drive affect the “air bearing” between heads and disks. This could yield either inability to read/write data or, even worse, contact between the heads and platters, resulting in potentially catastrophic data loss. These chambers can also adjust temperature to correspond with air pressure, such as the type of chilly environment you might expect at the top of Wyoming’s Grand Tetons.

Continuing through the lab, we find additional testers running non-operational tests. The idea of having non-operational test chambers be more stringent than operational ones often has to do with drives being in transit. For example, a pallet of drives might get left on the airport tarmac in China or Ecuador for hours at a time, where heat and humidity could be extreme. This is why Seagate places drives in chambers such as those in the above shot and lets them sit soak at high humidity and intolerable temperatures (to humans) for extended periods. Samples may occasionally be pulled during that time, but most will sit out the full duration. The drives then get shuttled to the chemical lab for tear-down and exhaustive examination, as we’ll soon see.

Naturally, someone needs to monitor all of that testing equipment. The wall display you see above shows all of the test chambers in Longmont’s lab. In the event of an issue, the board will display various codes and color-based alerts. It also notifies technicians when chamber maintenance and calibration are due. We watched as one worker switched views to show a similar dashboard for all of the chambers running in the Thailand facility.

“If a compressor goes bad and it’s shaking the chamber, this is going to set off a trigger,” explained one engineer. “The drives themselves are telling this dashboard, ‘Hey, I'm seeing a lot of NRRO—non-repeatable run-out. The drive itself is saying, ‘There’s a lot of vibration energy. What's going on? Did we lose a compressor? Are the fans out of balance or something?’ We have those sorts of measurements. The chamber is set at a certain temperature, and if it can’t keep that temperature for whatever reason, it will trigger a notice to say, ‘Hey, I can’t stay at 0 ˚C. Maybe the compressor’s going out, and I can’t cool it well enough.’ Again, this chamber data is all separate from the drive data we’re pulling. It’s pretty amazing what we can monitor.”

MORE: Best SSDs For The Money
MORE: How We Test HDDs And SSDs

MORE: All Storage Content
