Software
MSI doesn’t offer an excessive amount of software, but it covers all the bases. In the utility section of MSI’s support section for this board is an MSI-skinned version of CPUz, Realtek Audio control and Dragon Center. Dragon Center (DC) is a one-stop-shop to monitor the system, control RGB lighting (Mystic Light), LAN, and gaming highlights. DC is relatively comprehensive, though it is missing software-based overclocking and fan control.
Firmware
To give you a taste of the Firmware, we’ve gathered screenshots showing a majority of the BIOS screens. MSI’s layout is informative and simple to use in EZ Mode or Advanced, with the latter separated into the more familiar sections on the main page. When overclocking, the most frequently used options are located on the opening BIOS screen in the OC section, so you don’t have to dig down for most common functions. Overall, the MSI BIOS is easy to navigate and read with plenty of options to tweak your system.
Test System and Comparison Products
Our test system uses Windows 10 64-bit OS (1909) with all threat mitigations applied. The motherboard BIOS used is the latest non-beta available to the public, unless otherwise noted. The hardware used is as follows:
CPU | AMD Ryzen R9 3900X | Row 0 - Cell 2 |
Memory | G.Skill Trident Z Neo 2x8GB DDR4 3600 (F4-3600C16Q-32GTZN) | Row 1 - Cell 2 |
GPU | Asus ROG Strix RTX 2070 | Row 2 - Cell 2 |
CPU Cooler | Corsair H150i | Row 3 - Cell 2 |
PSU | Corsair AX1200i | Row 4 - Cell 2 |
Software | Windows 10 64-bit 1909 | Row 5 - Cell 2 |
Graphics Driver | Nvidia Driver 445.75 | Row 6 - Cell 2 |
Sound | Integrated HD audio | Row 7 - Cell 2 |
Network | Integrated Networking (GbE or 2.5 GbE) | Row 8 - Cell 2 |
Graphics Driver | GeForce 445.74 | Row 9 - Cell 2 |

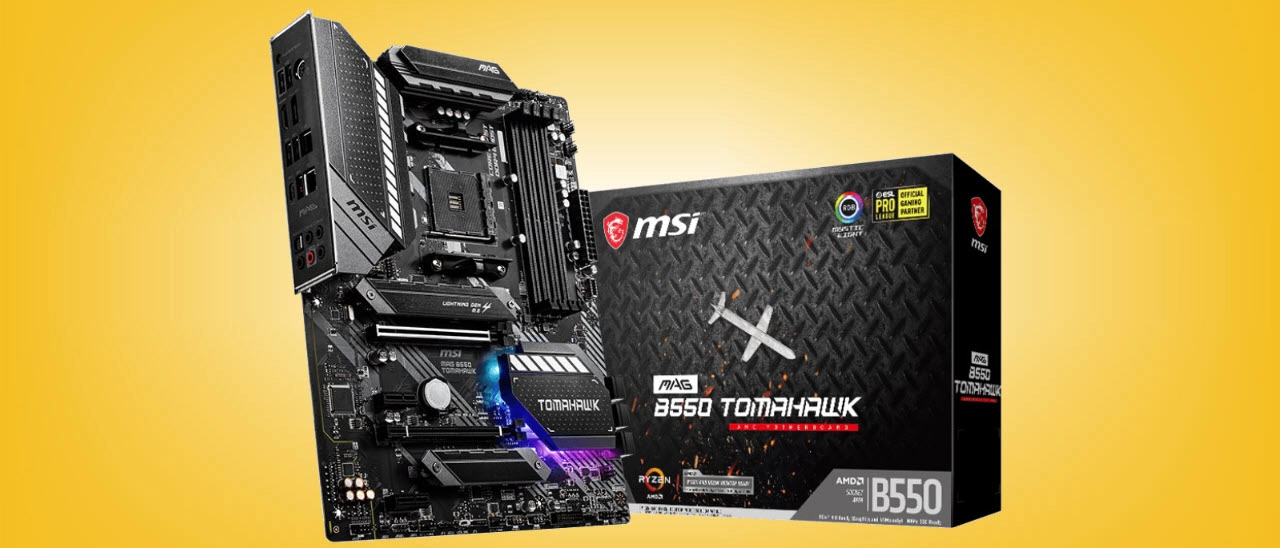

For this review, we’ll be comparing the MSI MAG B550 Tomahawk ($179.99) with the Gigabyte B550 Aorus Master ($279.99) and the Asus ROG Strix B550-F Gaming Wi-Fi ($209.99).
Benchmark Settings
Synthetic Benchmarks and Settings | Header Cell - Column 1 |
---|---|
PCMark 10 | Version 2.1.2177 64 |
Row 1 - Cell 0 | Essentials, Productivity, Digital Content Creation, MS Office |
3DMark | Version 2.11.6866 64 |
Row 3 - Cell 0 | Firestrike Extreme and Time Spy Default Presets |
Cinebench R20 | Version RBBENCHMARK271150 |
Row 5 - Cell 0 | Open GL Benchmark - Single and Multi-threaded |
Application Tests and Settings | Row 6 - Cell 1 |
LAME MP3 | Version SSE2_2019 |
Row 8 - Cell 0 | Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s) |
HandBrake CLI | Version: 1.2.2 |
Row 10 - Cell 0 | Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX) |
Corona 1.4 | Version 1.4 |
Row 12 - Cell 0 | Custom benchmark |
7-Zip | Version 19.00 |
Row 14 - Cell 0 | Integrated benchmark |
Game Tests and Settings | Row 15 - Cell 1 |
The Division 2 | Ultra Preset - 1920 x 1080 |
Forza Horizon 4 | Ultra Preset - 1920 x 1080 |
MORE: Best Motherboards
MORE: How To Choose A Motherboard
MORE: All Motherboard Content
Current page: Firmware, Software and Test System
Prev Page Features and Specifications Next Page Benchmarks and Final AnalysisJoe Shields is a Freelance writer for Tom’s Hardware US. He reviews motherboards.
