Firmware

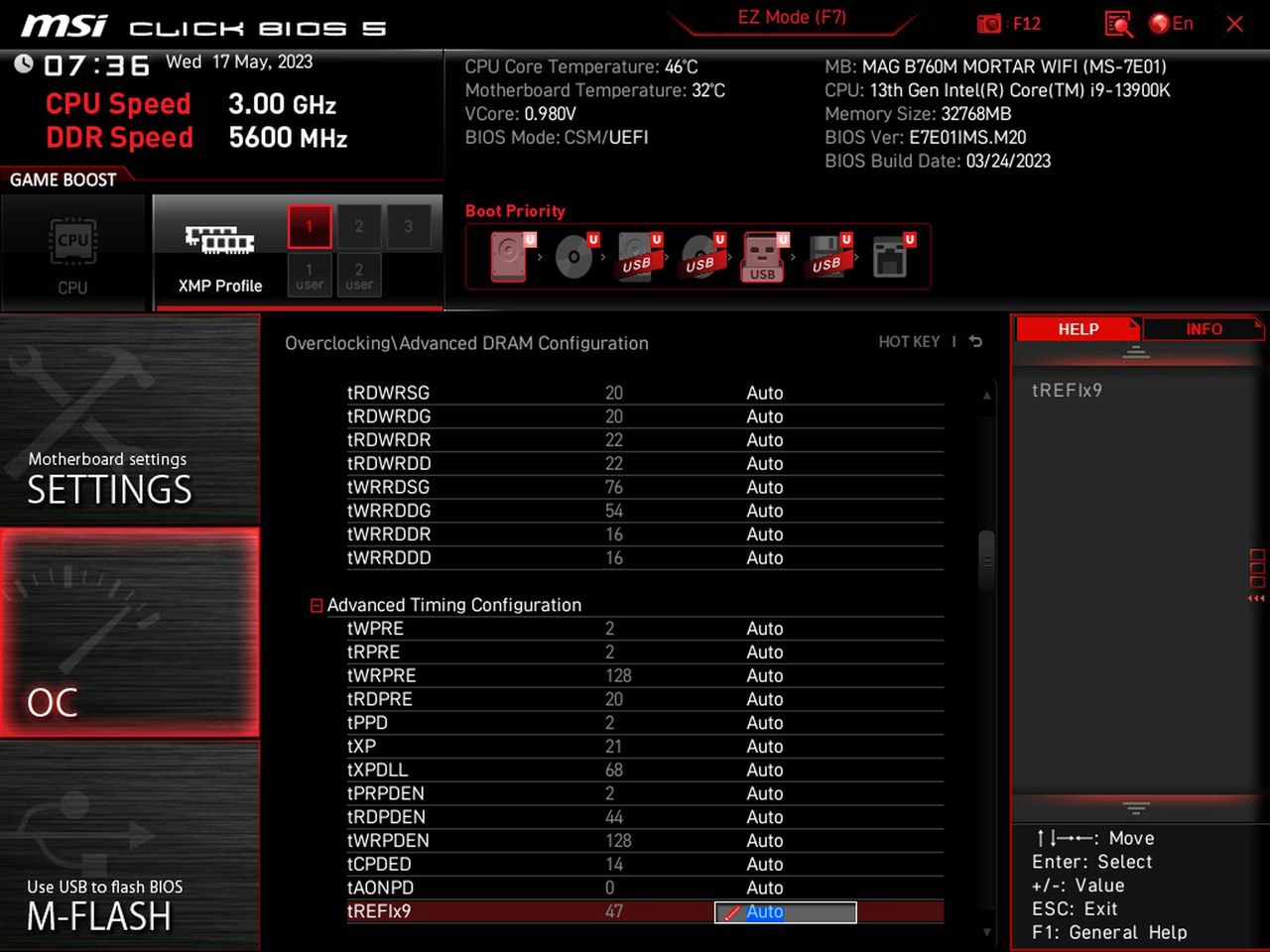

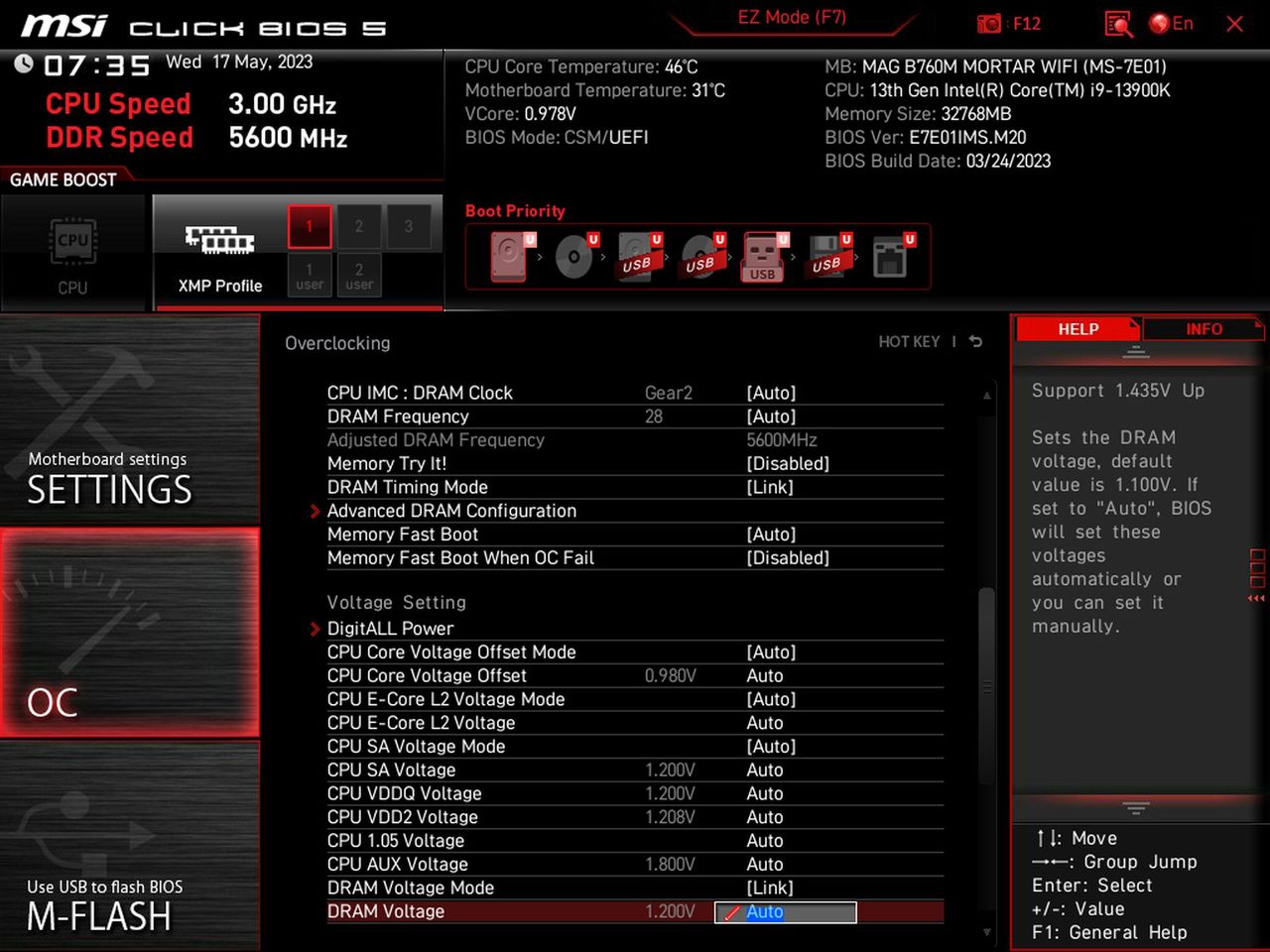

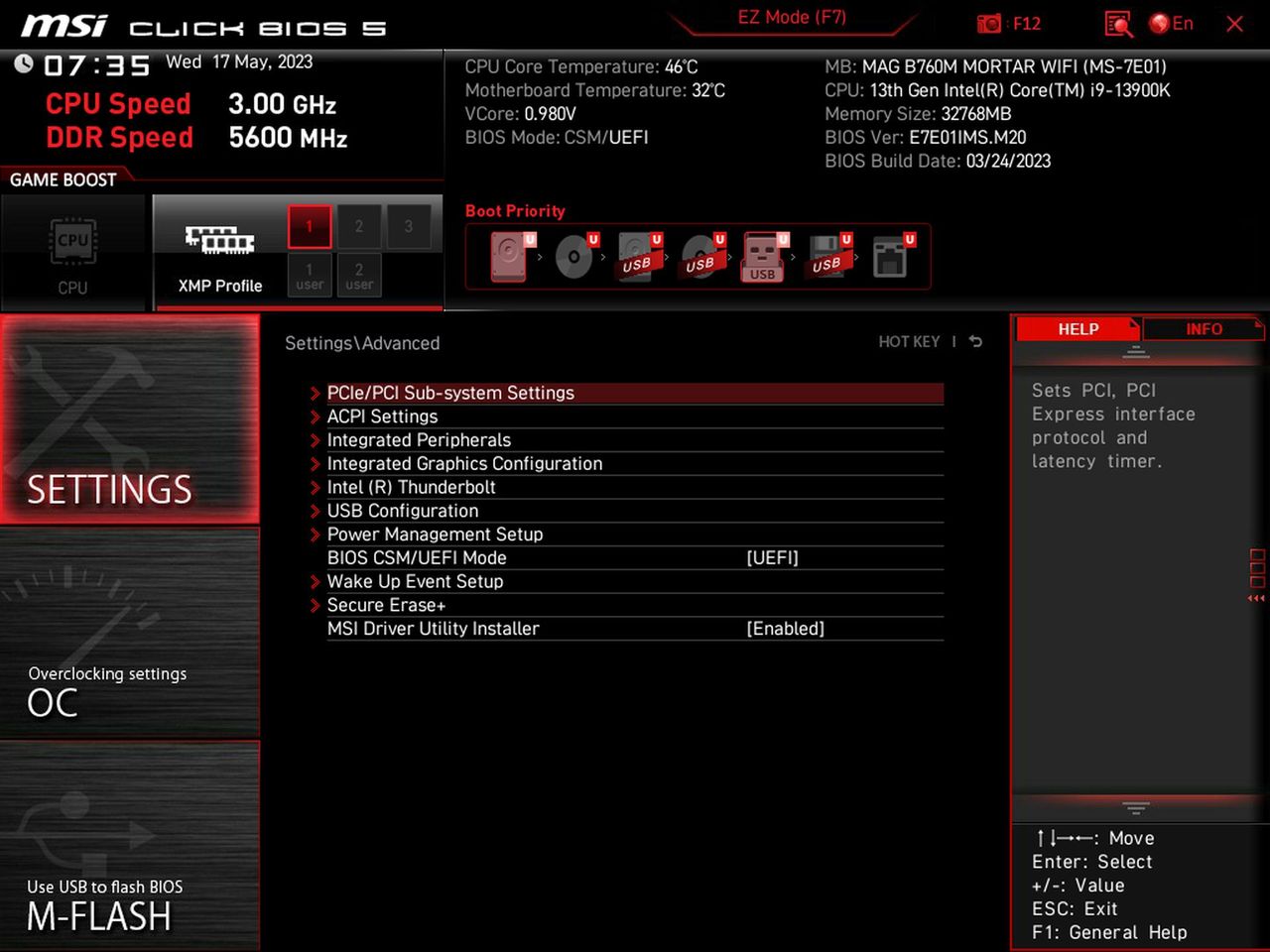

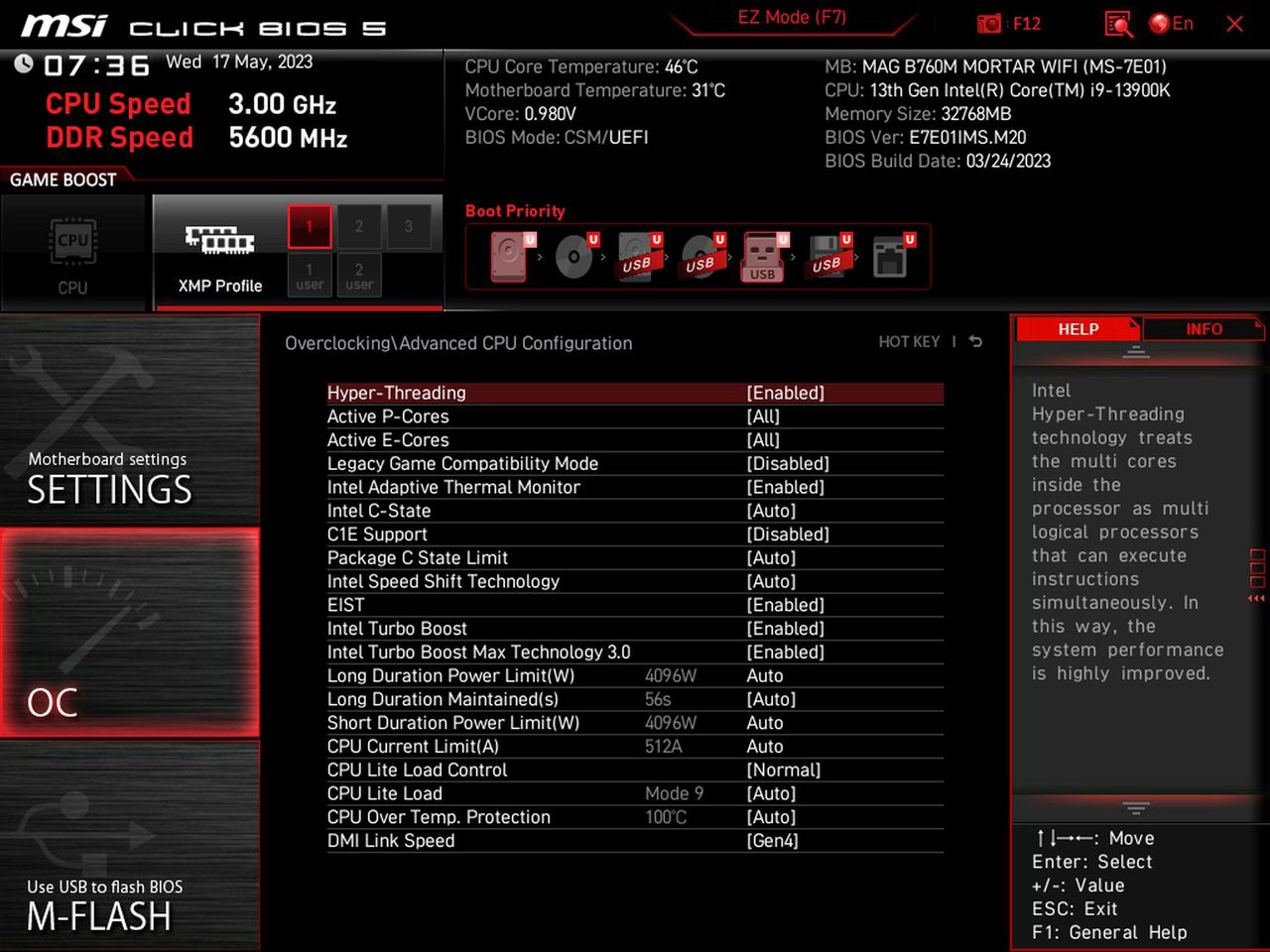

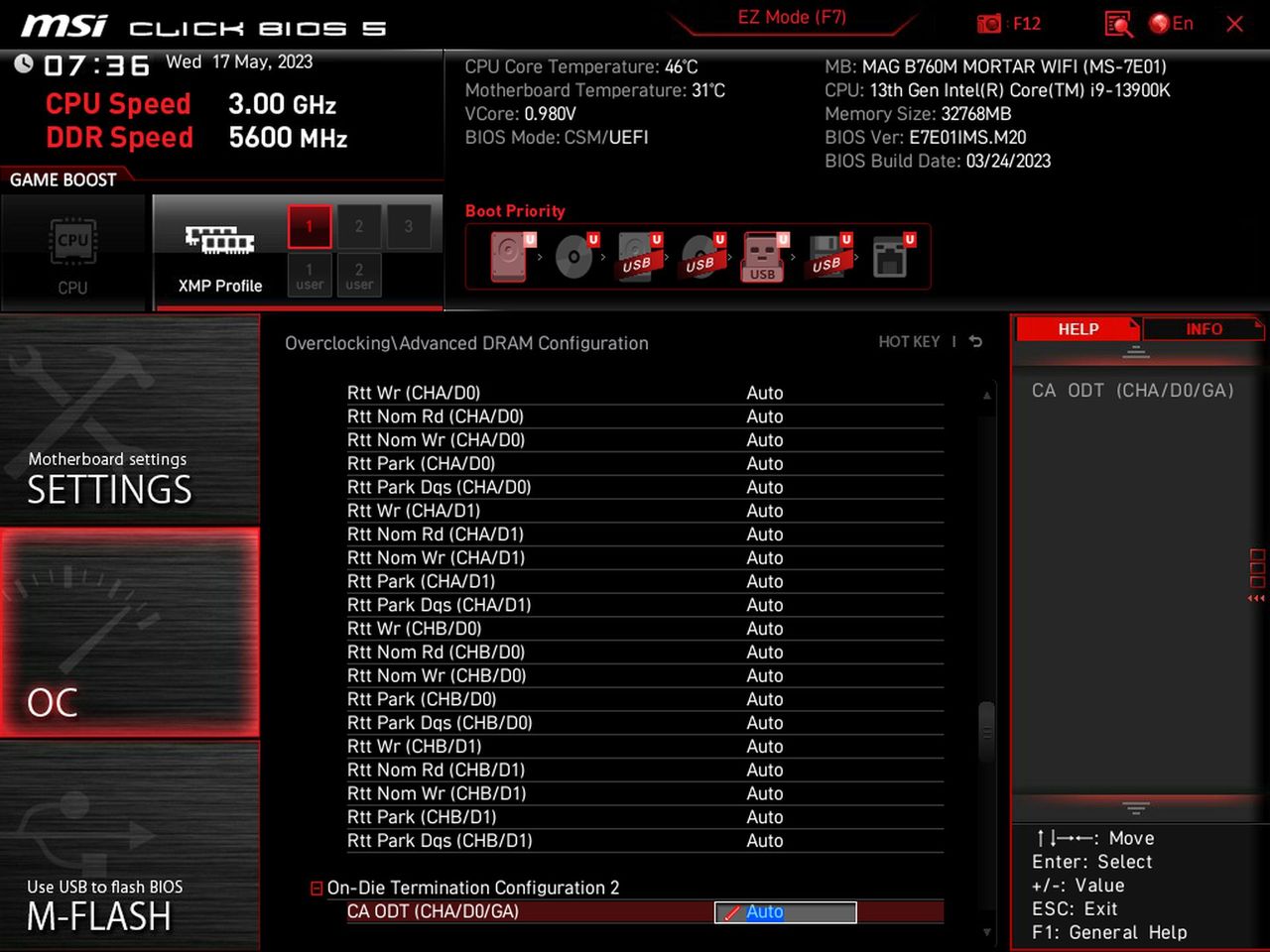

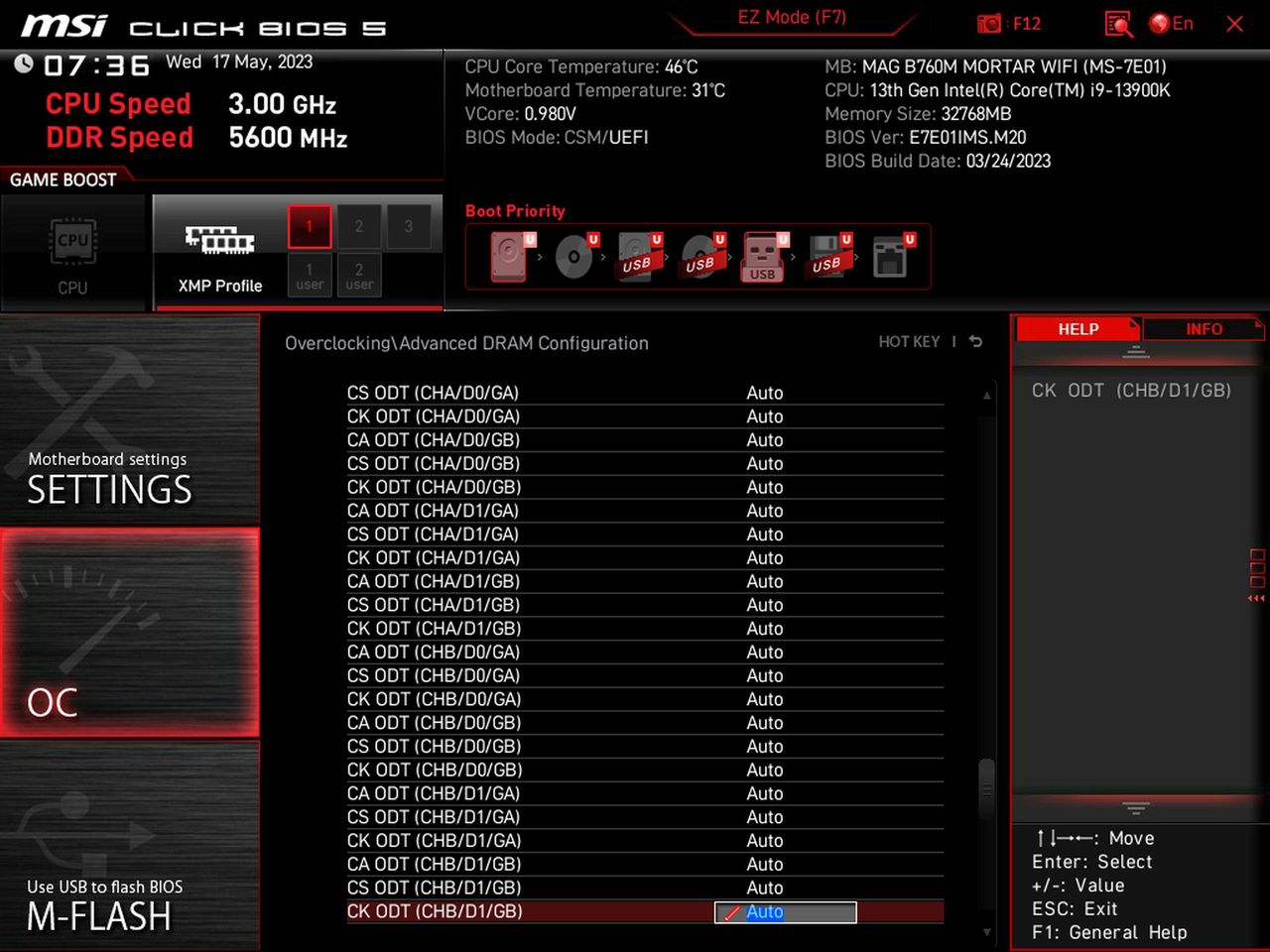

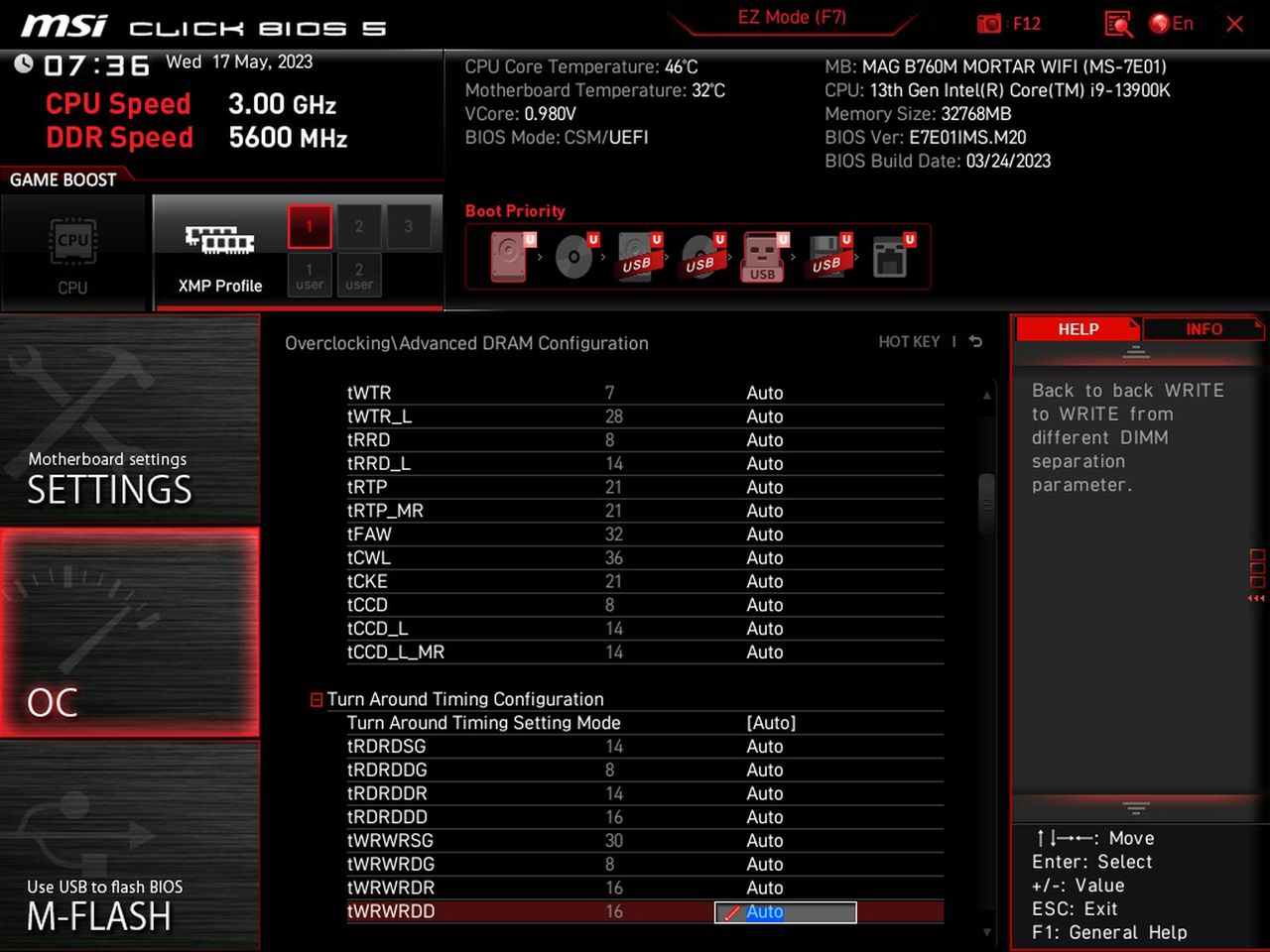

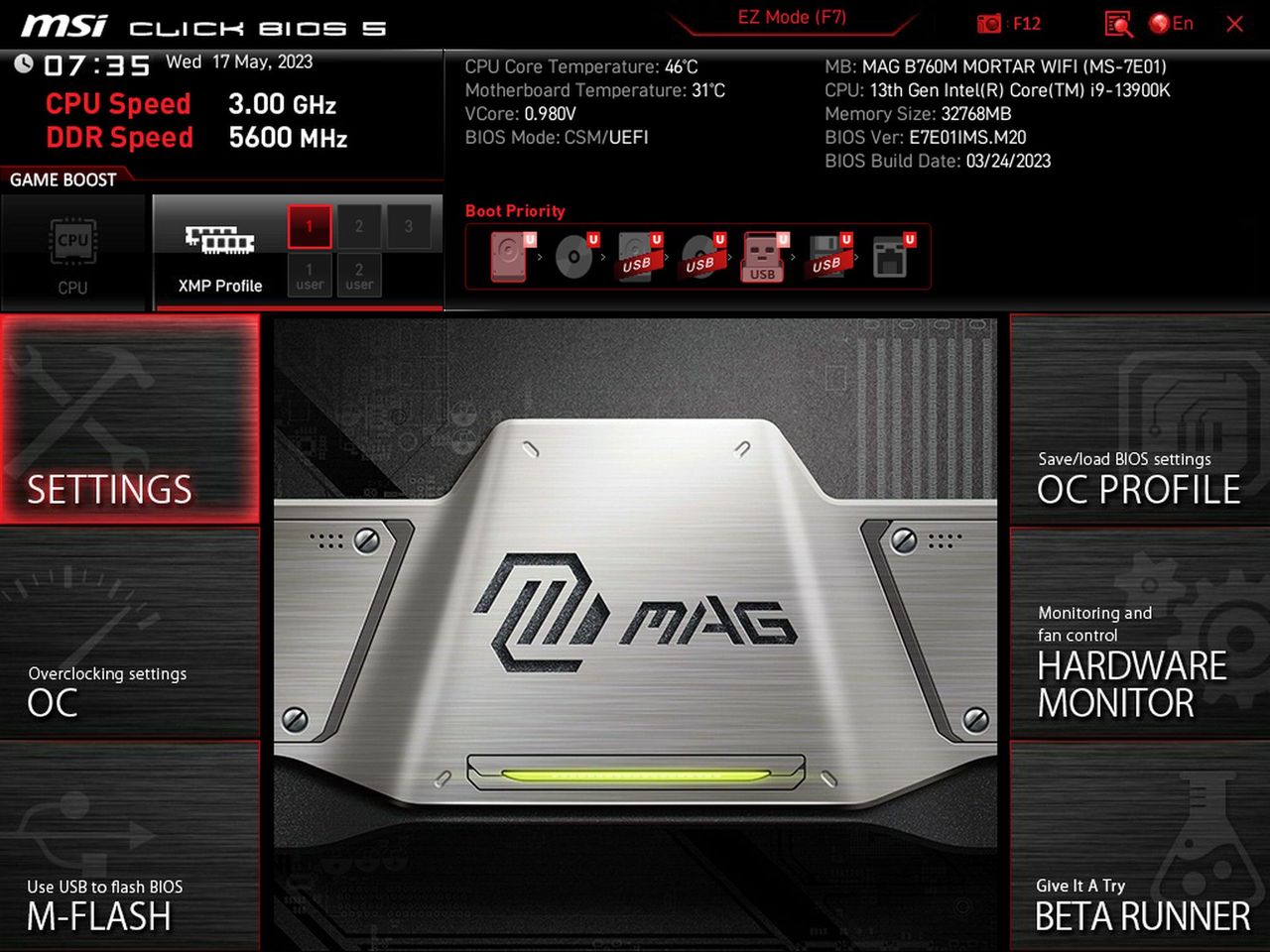

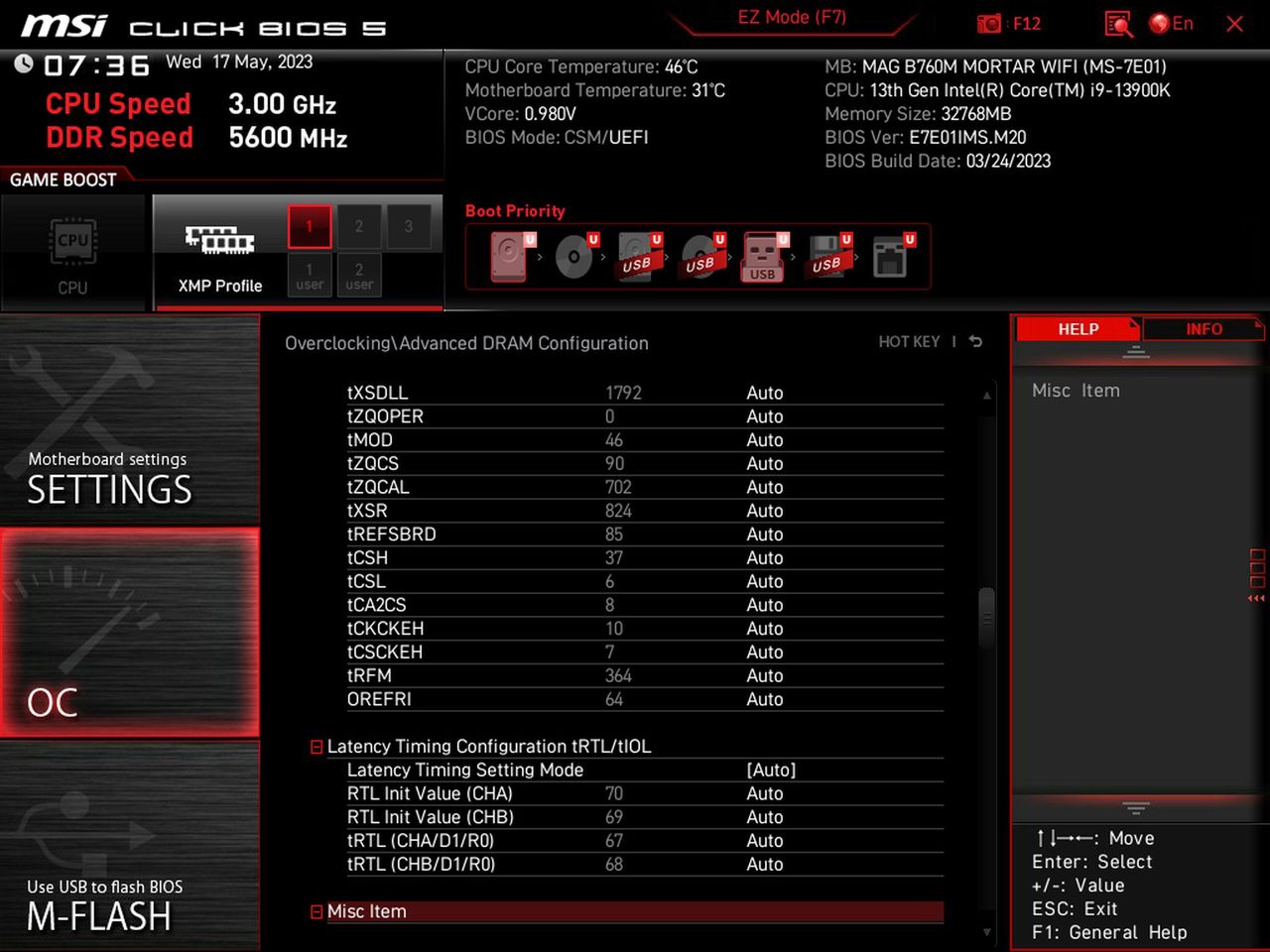

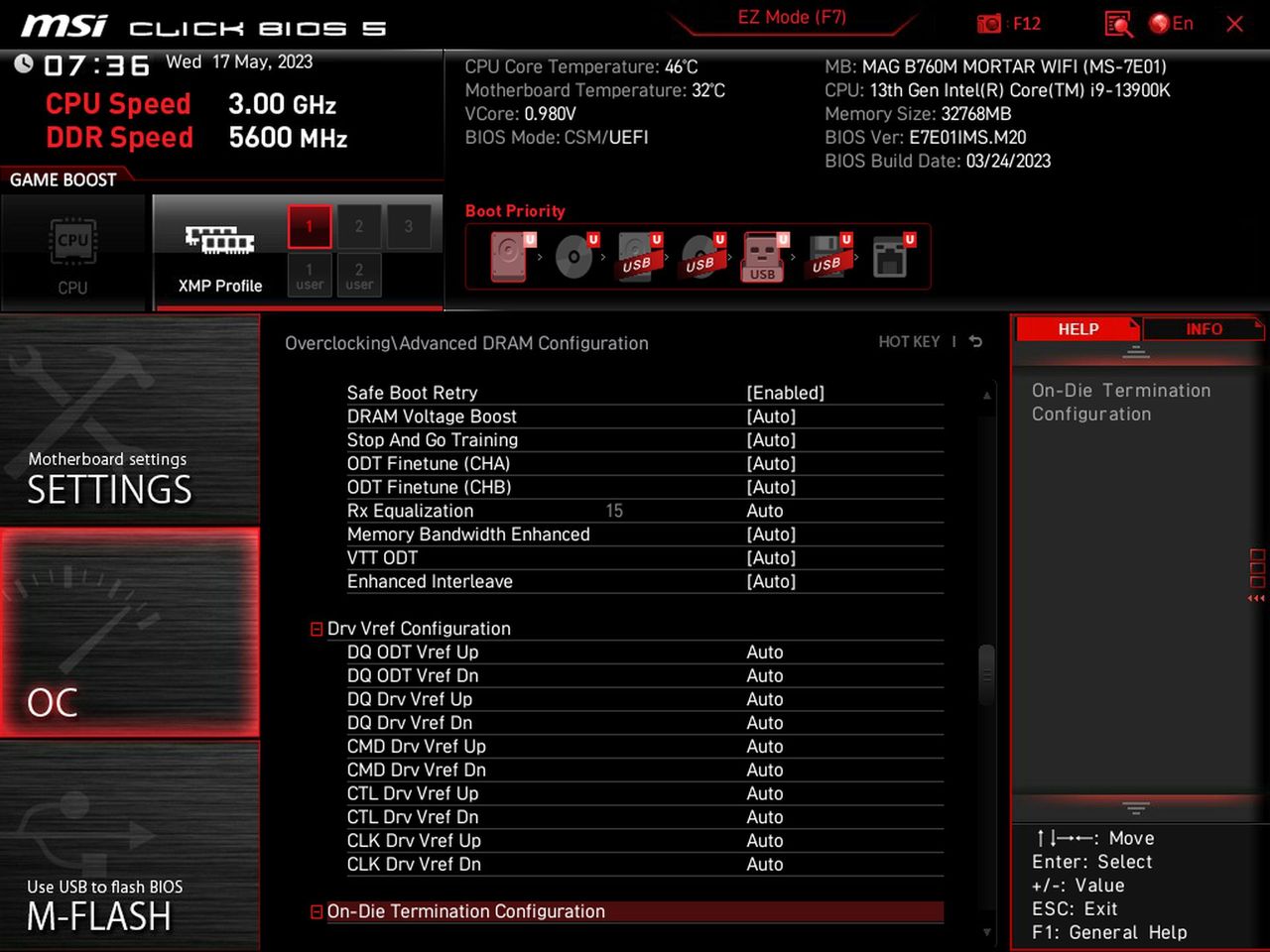

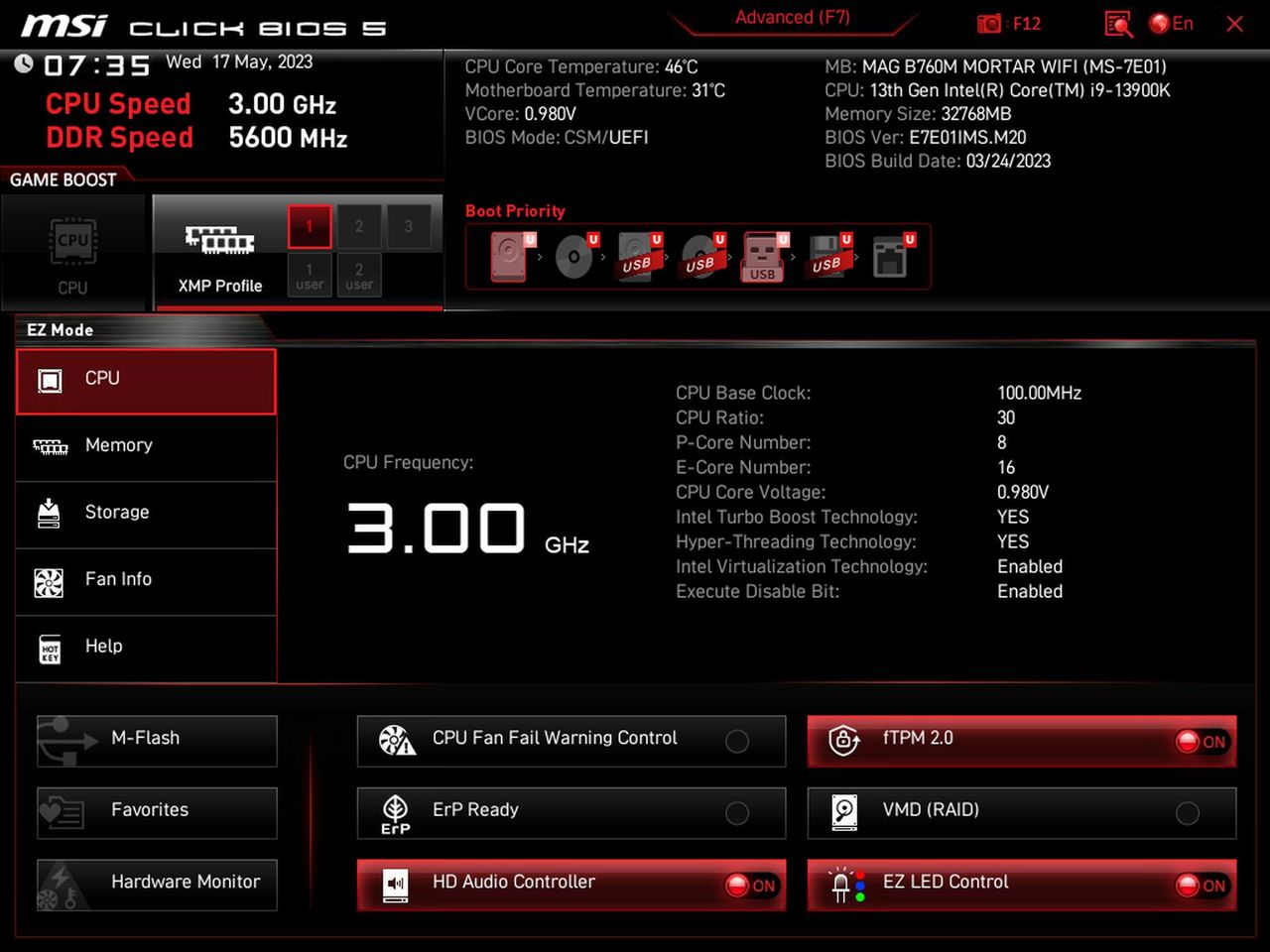

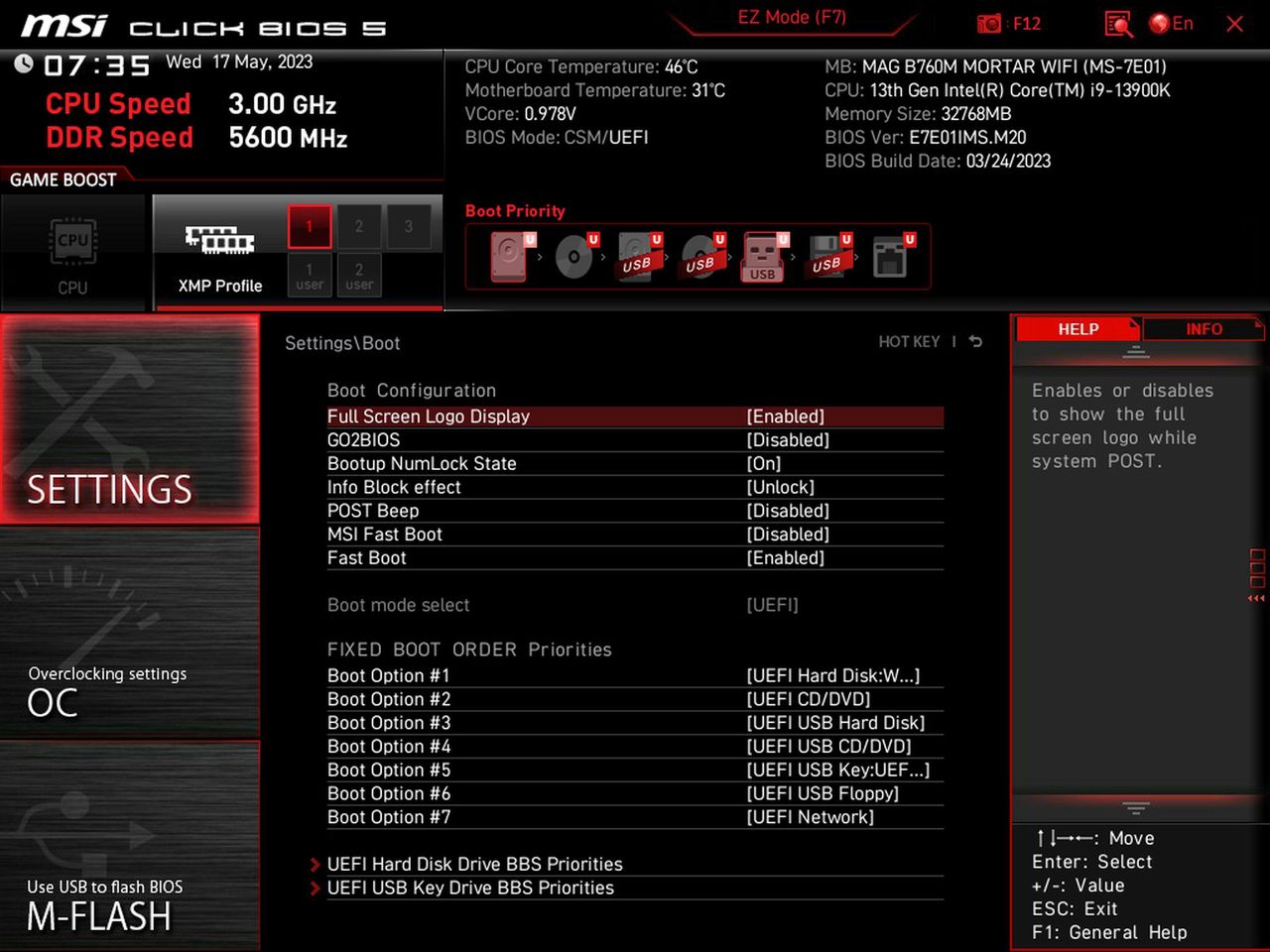

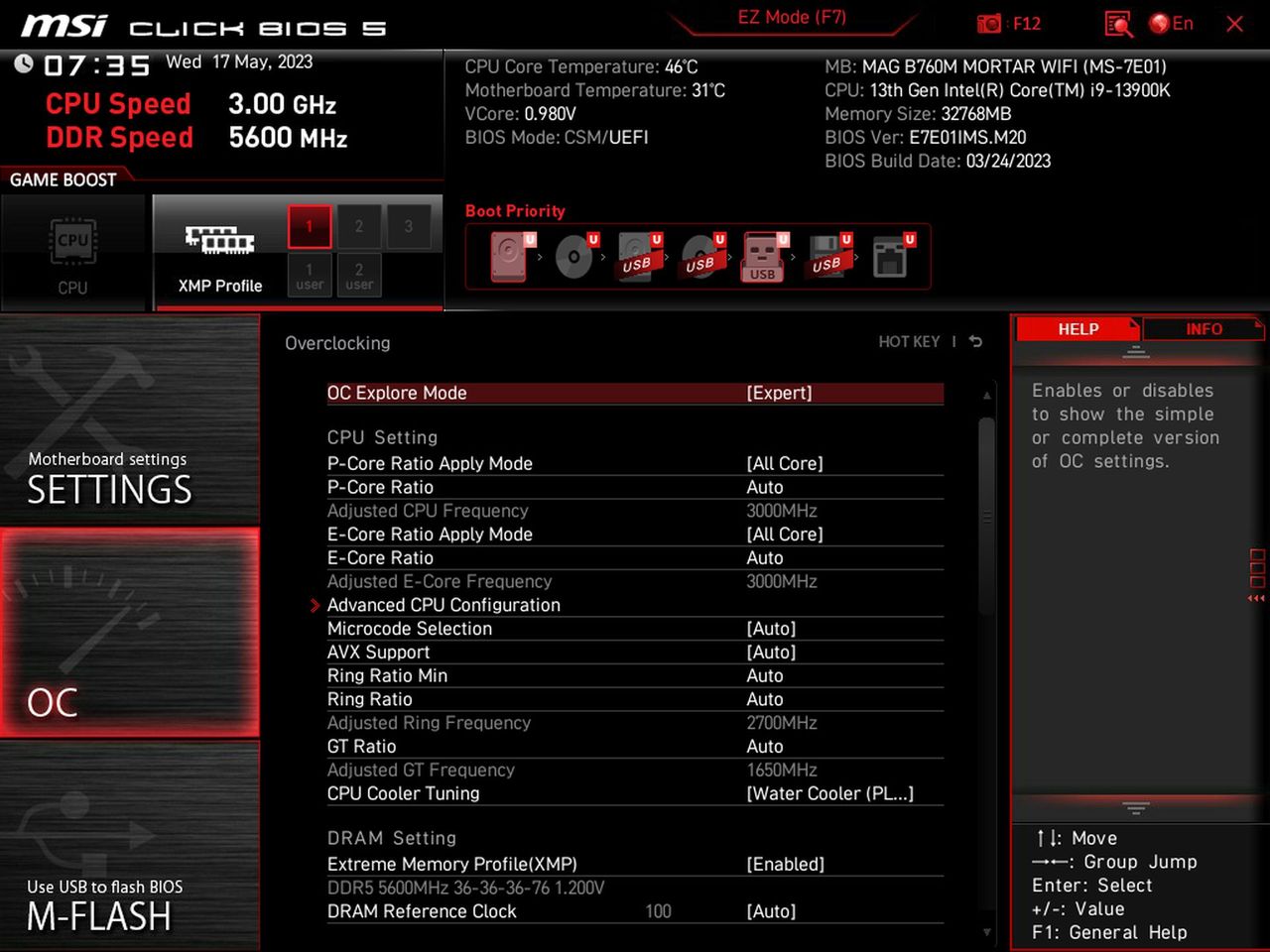

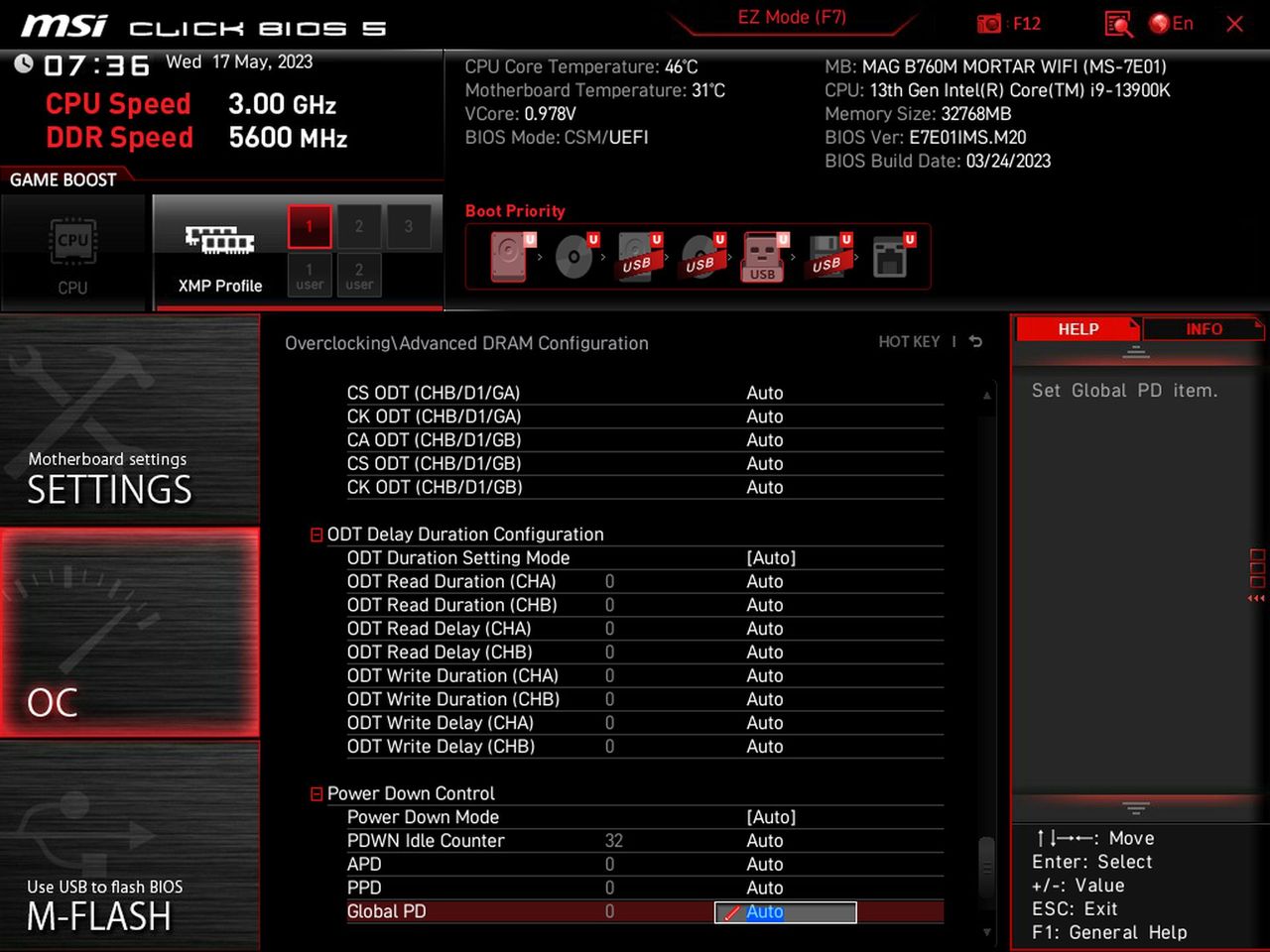

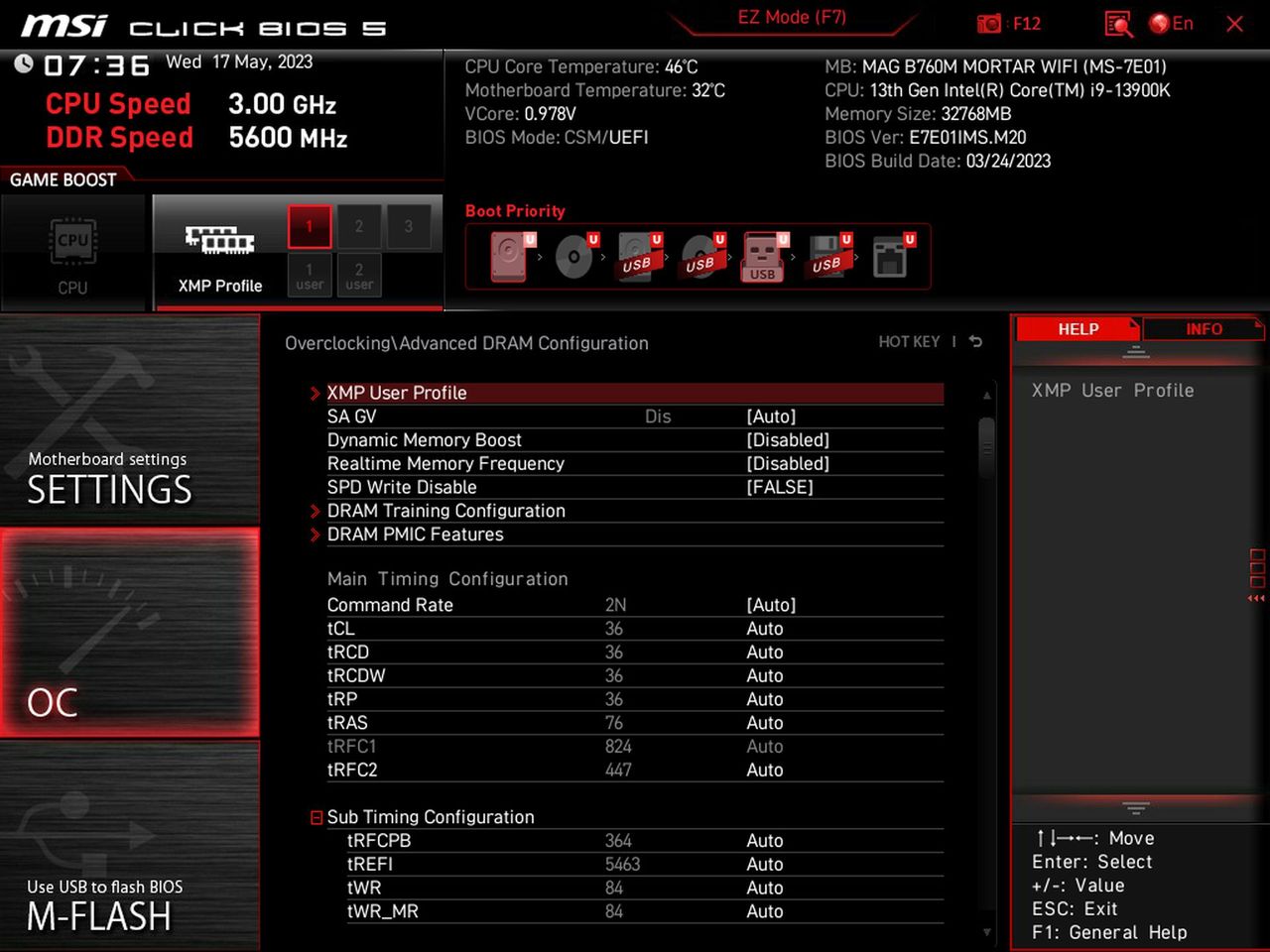

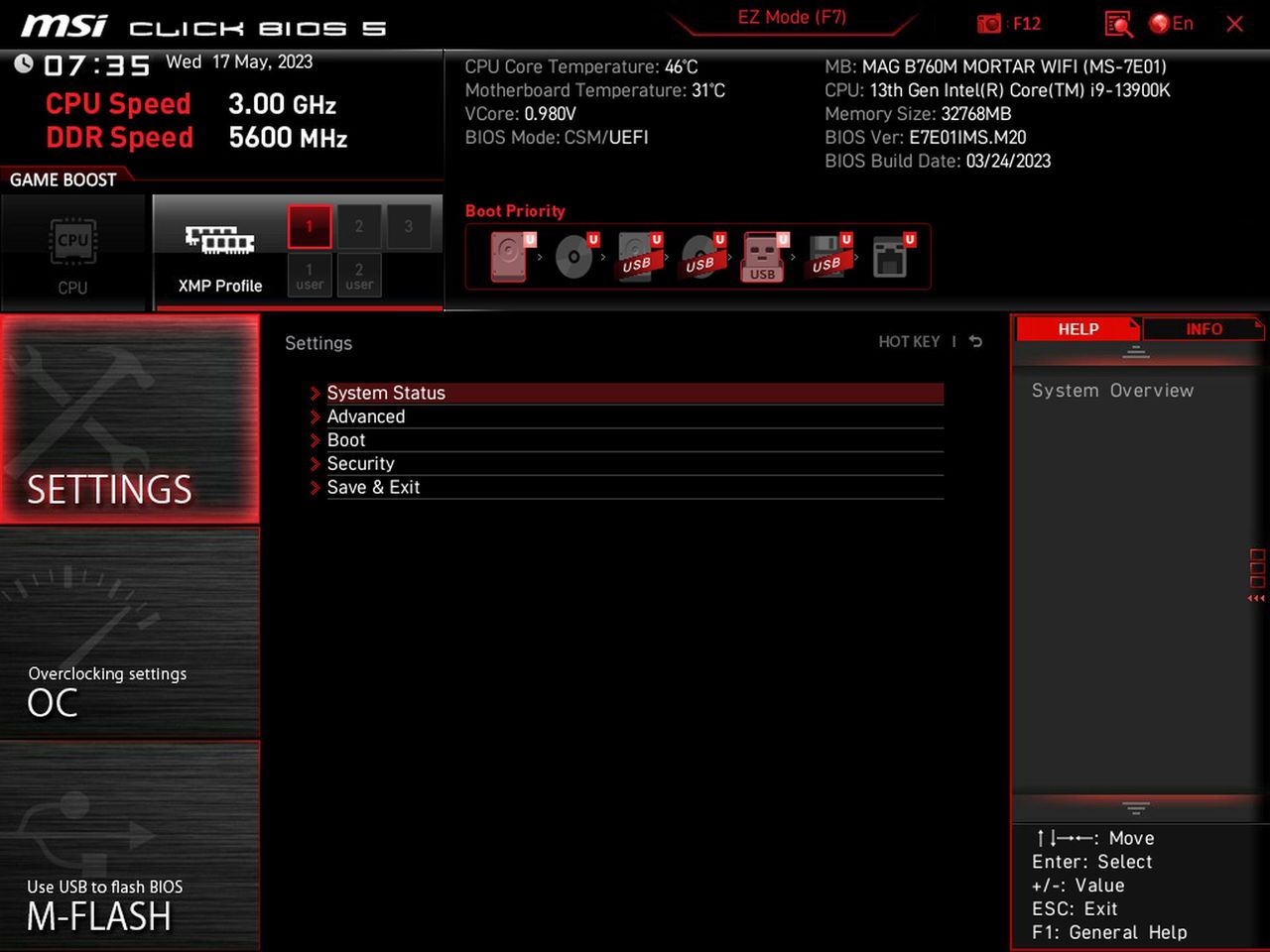

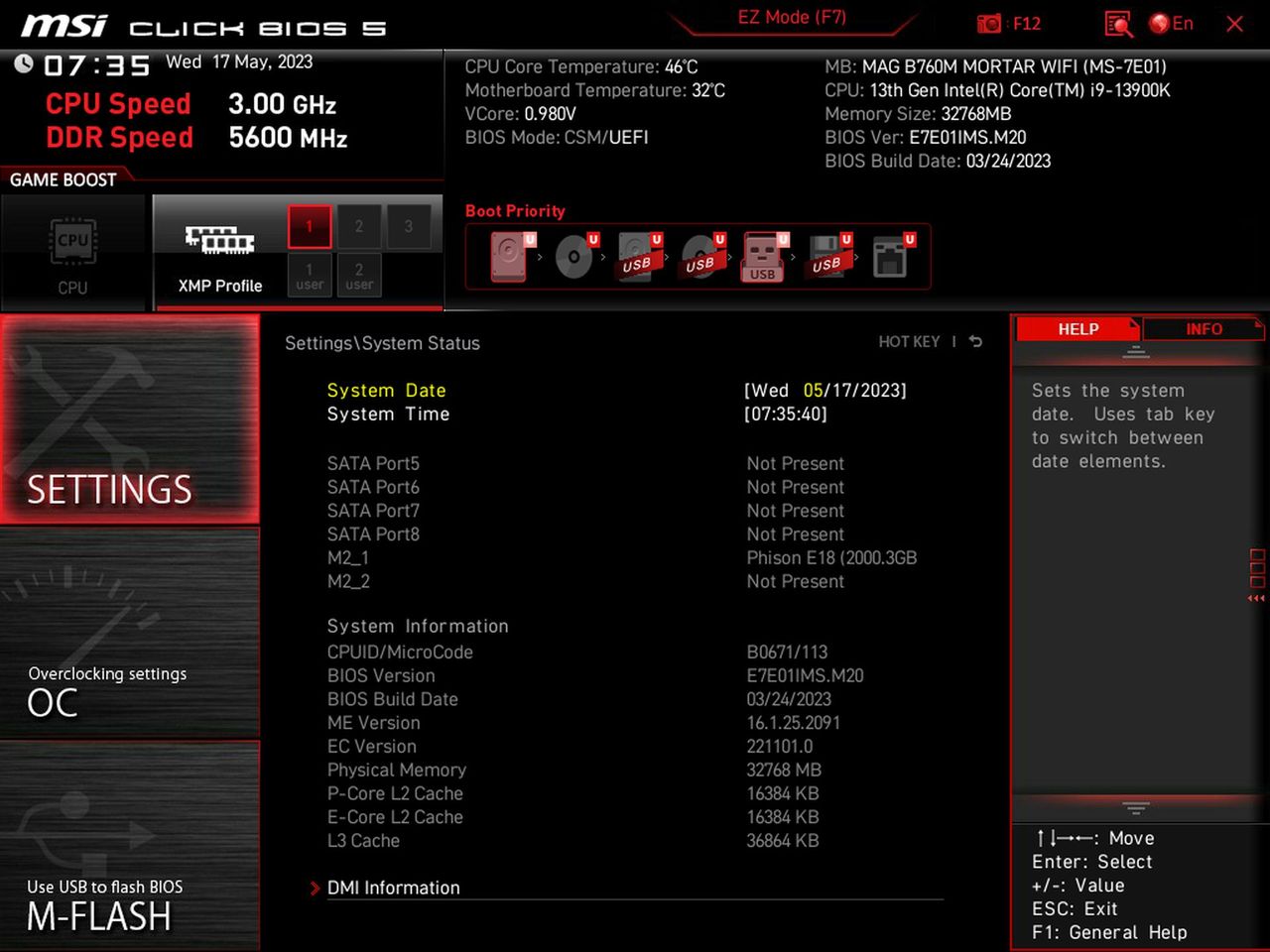

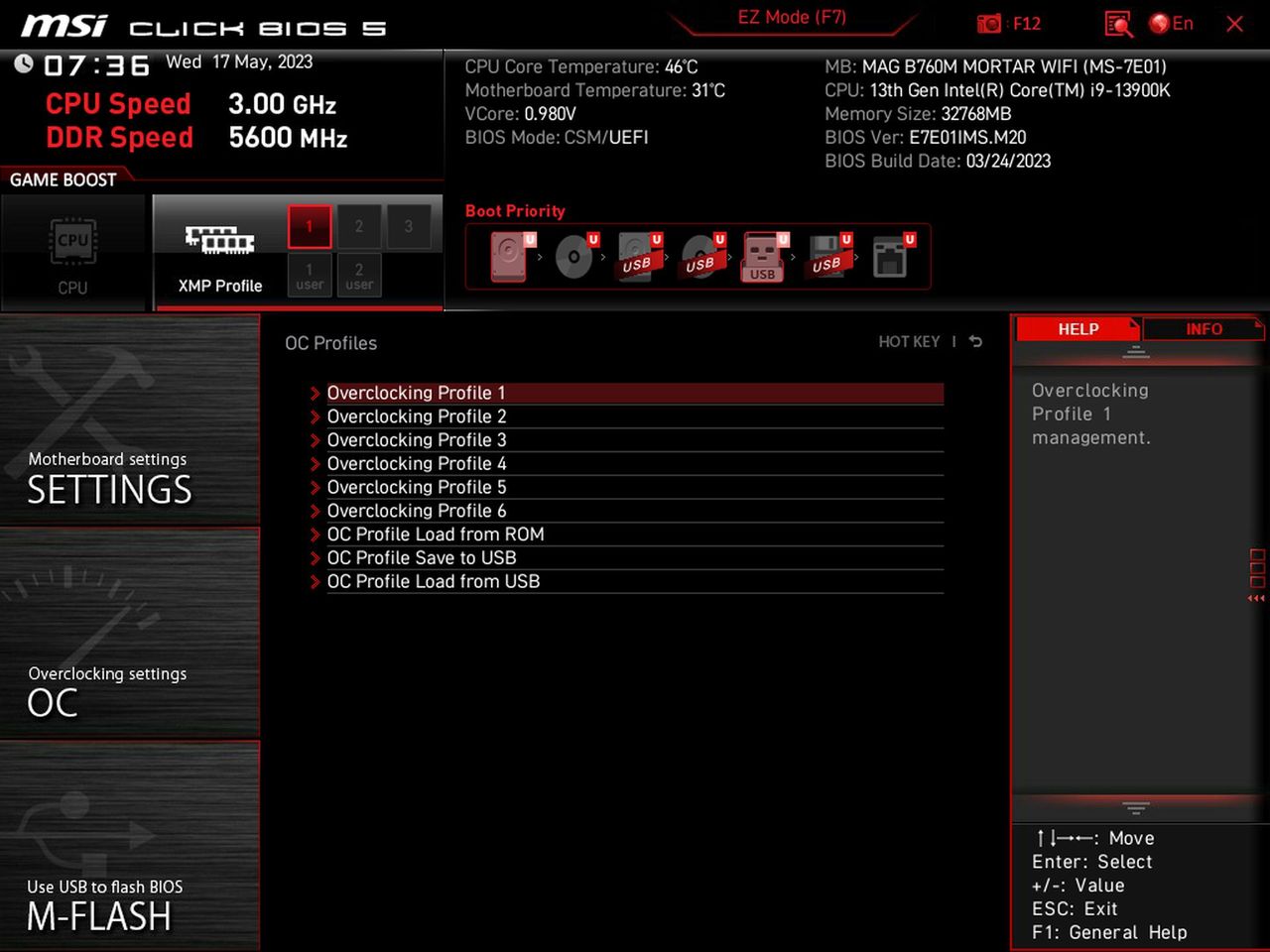

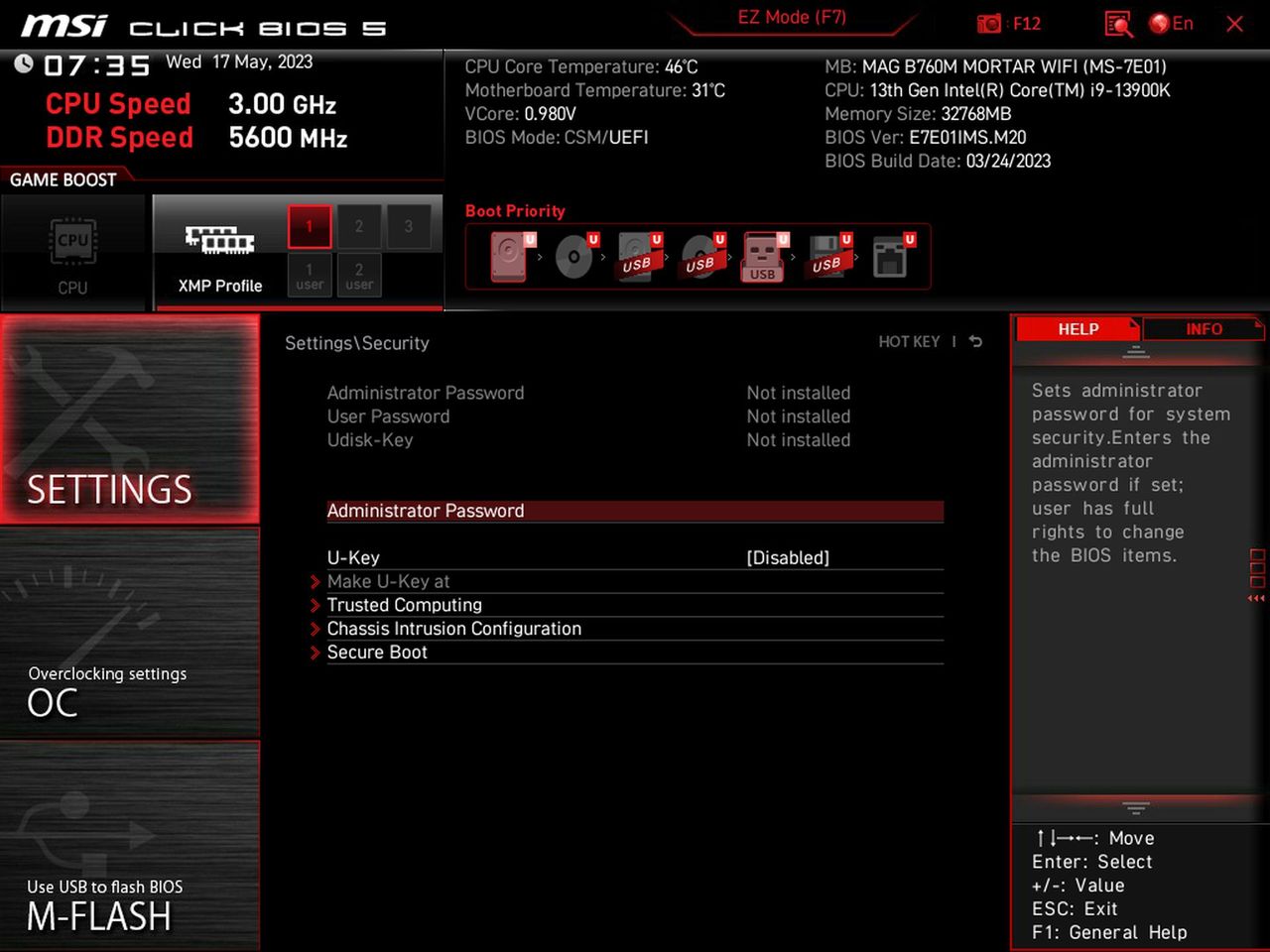

MSI’s BIOS for the B760M is the same as other Z790 boards we’ve seen before, except it doesn't allow you to overclock the processor. The menus reside on the sides and information up top, a unique look compared to others. For our B760M Mortar, it still has a black background with red highlights and is easy to read. It also has an informative Easy Mode that displays various information about the system and allows for some changes (boot order and XMP enable). Though different than other UEFIs, it is easy to get around; everything has a place, and many frequently used options are readily available, not buried within sub-menus.
Software

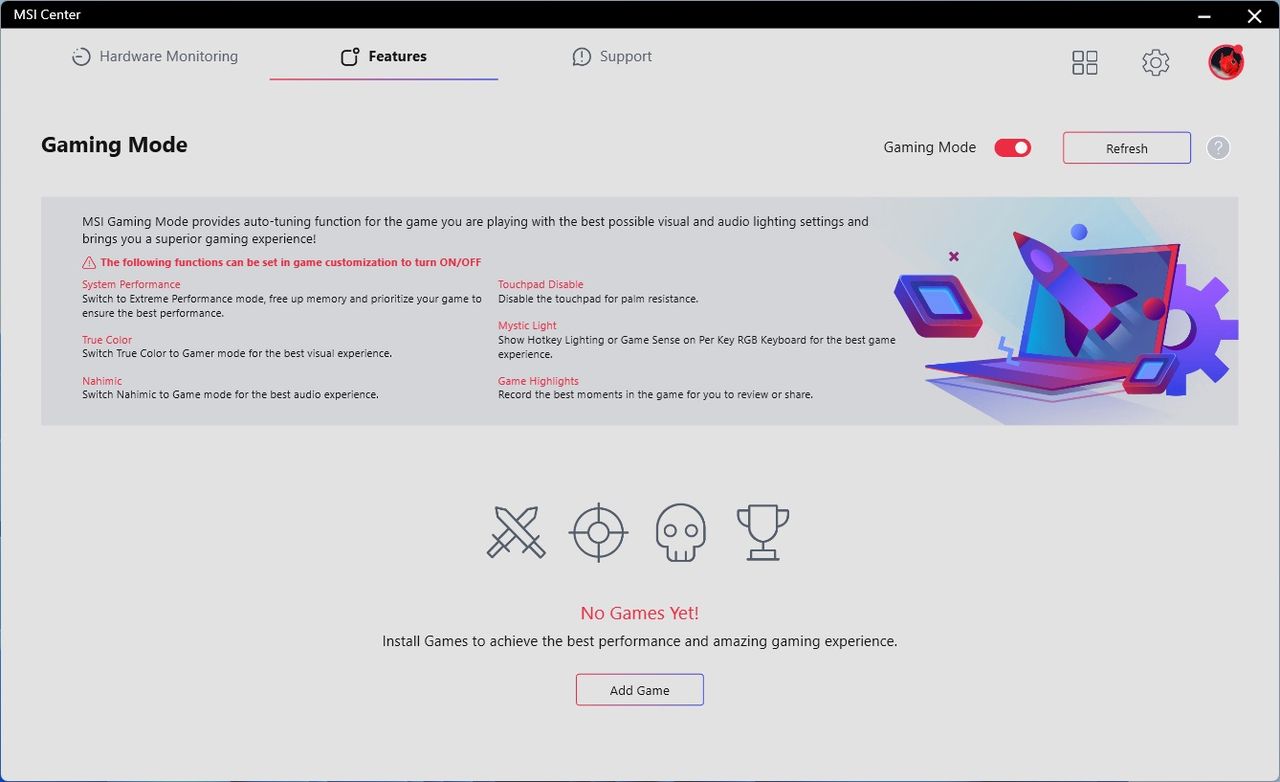

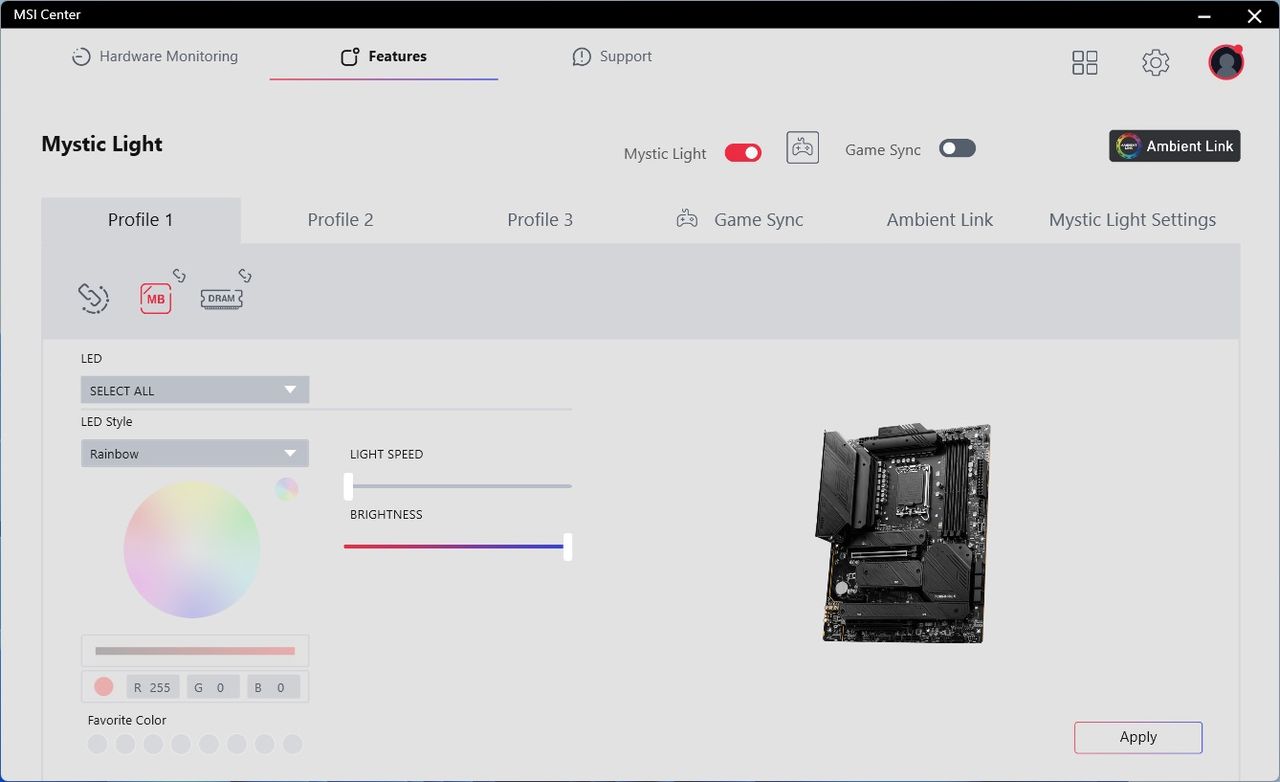

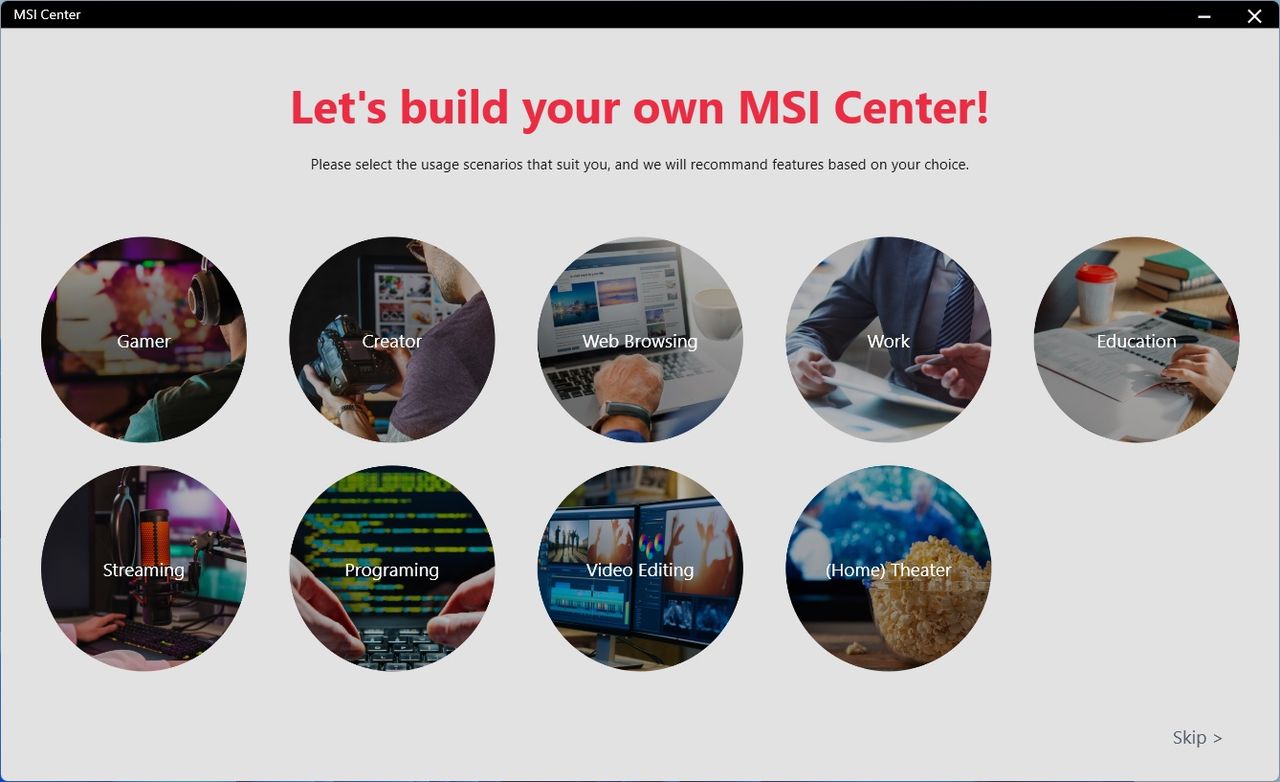

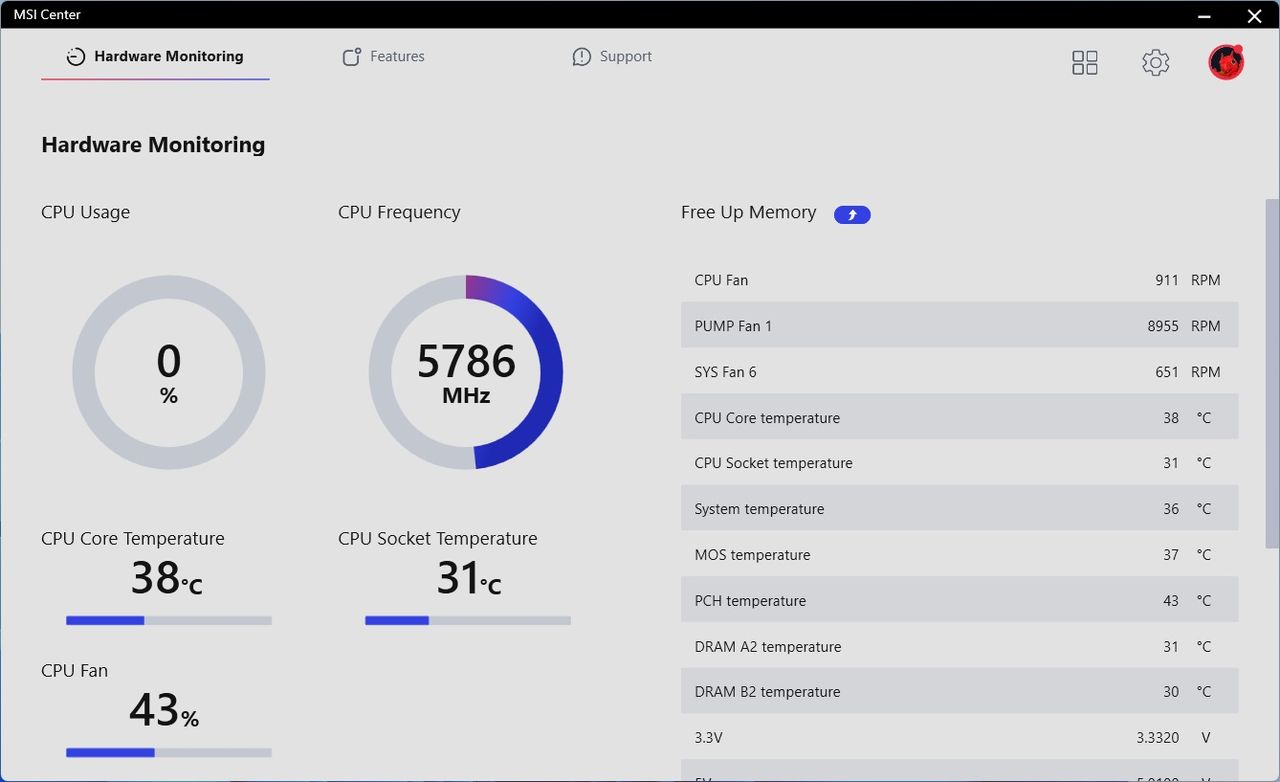

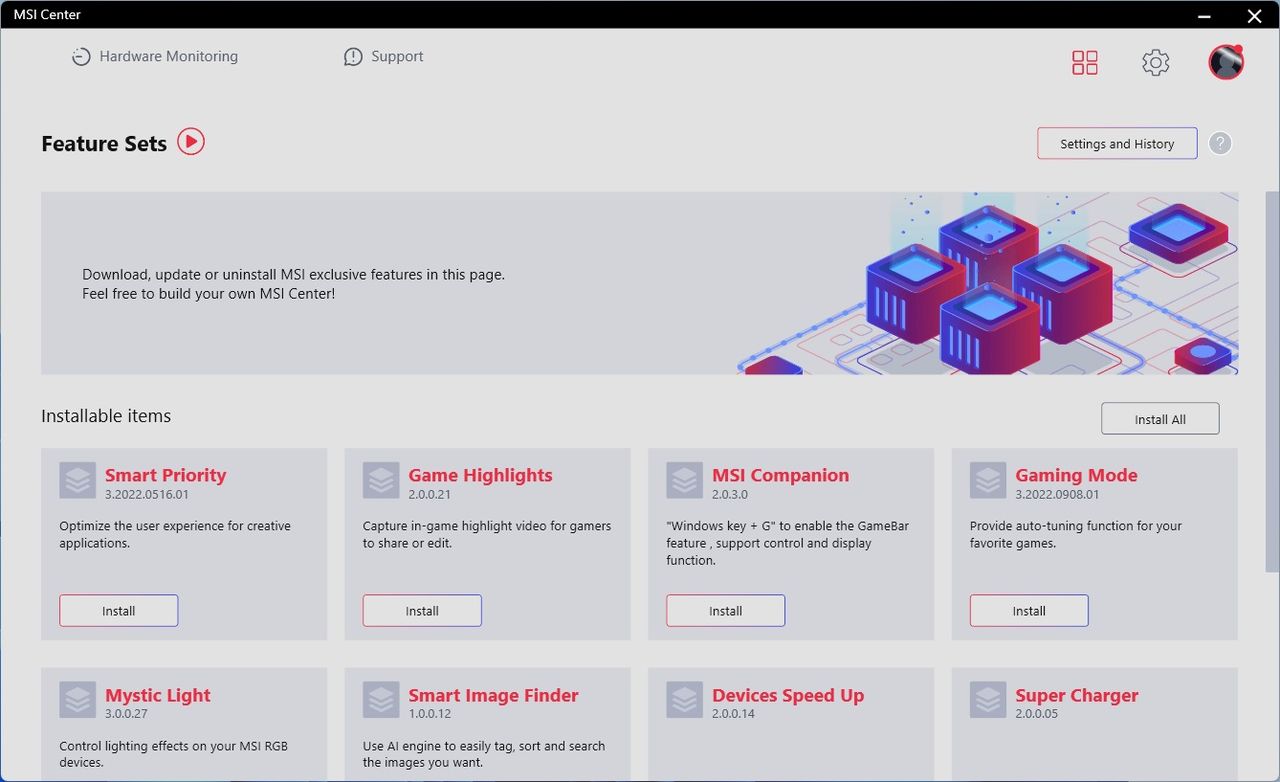

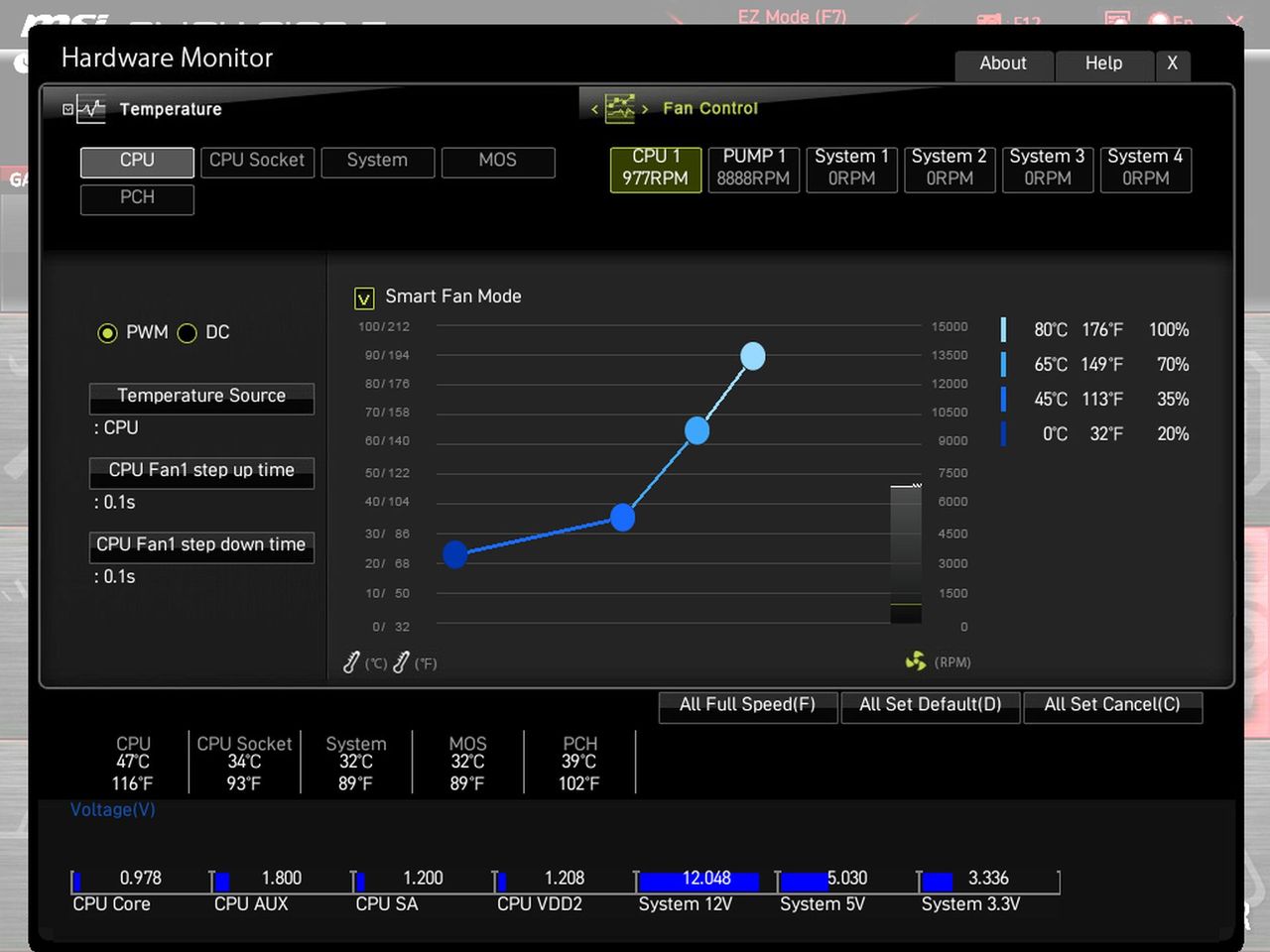

MSI has a single utility, MSI Center, that covers quite a bit of functionality. From hardware monitoring to RGB control with Mystic Light, there are many applets within the software and a one-stop shop to download all of their utilities. I wish there were some overclocking options for boards that support it, however. But for those looking to use the Gamebar feature, Super Charger, or any other utilities, you'll find them in the software.
Test System / Comparison Products
We’ve updated our test system to Windows 11 64-bit OS with all updates applied. We kept the same Asus TUF RTX 3070 video card from our previous testing platforms but updated the driver. We also updated our games to include F1 22 and kept Far Cry 6. We use the latest non-beta motherboard BIOS available to the public unless otherwise noted. The hardware we used is as follows:
CPU | Intel Core i9-13900K |
Memory | Kingston Fury Beast DDR5-6000 CL36 (KF560C36BBEAK2-32) |
GSkill Trident Z DDR5-5600 CL36 (F5-5600U3636C16GX2-TZ5RK) | |
GPU | Asus TUF RTX 3070 |
Cooling | Coolermaster MasterLiquid PL360 Flux |
PSU | EVGA Supernova 850W P6 |
Software | Windows 11 64-bit (22H2) |
Graphics Driver | Nvidia GeForce Driver 522.25 |
Sound | Integrated HD audio |
Network | Integrated Networking (GbE or 2.5 GbE) |
EVGA supplied our Supernova 850W P6 power supply (appropriately sized and more efficient than the 1.2KW monster we used previously) for our test systems, and G.Skill sent us a DDR5-5600 (F5-5600U3636C16GX2-TZ5RK) memory kit for testing.
Benchmark Settings
Synthetic Benchmarks and Settings | |
Procyon | Version 2.1.459 64 |
Office Suite (Office 365), Video Editing (Premiere Pro 22.6.2.2), Photo Editing (Photoshop 23.5.1, Lightroom Classic 11.5) | |
3DMark | Version 2.22.7359 64 |
Firestrike Extreme and Time Spy Default Presets | |
Cinebench R23 | Version RBBENCHMARK330542 |
Open GL Benchmark - Single and Multi-threaded | |
Blender | Version 3.3.0 |
Full benchmark (all 3 tests) | |
Application Tests and Settings | |
LAME MP3 | Version SSE2_2019 |
Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s) | |
HandBrake CLI | Version: 1.2.2 |
Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX) | |
Corona 1.4 | Version 1.4 |
Custom benchmark | |
7-Zip | Version 21.03-beta |
Integrated benchmark (Command Line) | |
Game Tests and Settings | |
Far Cry 6 | Ultra Preset - 1920 x 1080, HD Textures ON |
F1 2022 | Ultra Preset - 1920 x 1080, Ultra High (default) Bahrain (Clear/Dry), FPS Counter ON |
