XFX XTR Series 850W PSU Review

XFX cooperates closely with Seasonic for its PSU products. That's a major advantage, since Seasonic is a top OEM. The XTR line is XFX's second-best, after the XTS family, and today's review focuses on the 850W model.

Early Verdict

An affordable, for its category, power supply with very good performance, high-quality capacitors and an FDB fan. What more to ask for? In this case for a more relaxed fan profile and probably for a not so strong fan. These changes would grant the XTR-850 with a much more silent operation, especially under stressful conditions.

Pros

  • +

    Full power at 49 °C • Fair price • Efficient • Ripple suppression • Load regulation • Hold-up time • 12V Advanced Transient Response performance • Compact dimensions • Quality caps • FDB fan • Fully modular • 8x PCIe connectors • Warranty

Cons

  • -

    Fan profile should be more relaxed • Some leaning heatsinks at the internals • Location of the fan-mode-selection switch

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

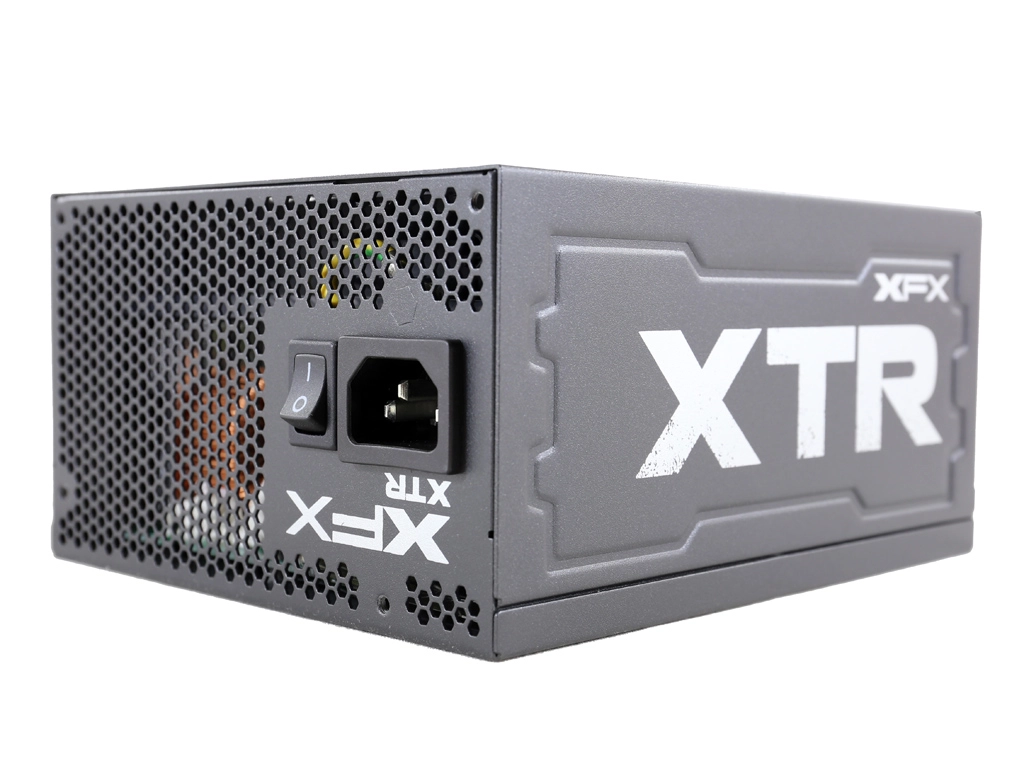

XFX XTR 850W Power Supply Review

XFX is a division of PINE Technology Holdings Limited and its main product categories are graphics cards and PSUs. Currently, the company has six active PSU lines with the XTS family up front and the XTR series behind it. The XTRs cover almost every market segment with capacities between 500W and 1250W. All XFX PSUs are made by Seasonic, so we expect high performance out of them. Today, we're looking at the P1-850B-BEFX specifically.

You may find this PSU selling under the Pro Series Gold name since XFX recently made some changes to the way it markets power supplies. Since the same company also has a Pro Series family that includes several Bronze members, it decided to add all previous Pro Gold models to the XTR family for simplicity's sake. Unfortunately, some vendors still show pictures of the old box with the previous name, even though they're actually selling the newer XTR.

The XTR 850W features modular cabling, and its external design helps it stand out from the crowd. This PSU is based on a a slightly modified version of Seasonic's former high-end platform (KM3), so its performance should be exceptional. On top of that, since it isn't a new product, you should be able to find it priced aggressively. Occasional rebates even bring the XTR 850W down under $100. Of course, that's a good price for a fully modular 850W 80 PLUS Gold-rated PSU sporting only Japanese capacitors and a Fluid Dynamic Bearing fan. Seasonic's power supplies aren't known for low prices, so it's interesting that XFX is able to make this model so affordable. We're not complaining; rather, we'd like to see XFX drop its price even more if possible.

So far, the only issue we have with the XTR 850W is its 120mm fan, which has to spin faster in order to move the same volume of air as the competition's 140mm fans. This translates into higher noise levels.

Specifications

The PSU is 80 PLUS Gold-certified and, according to its manufacturer, it is able to deliver full power continuously at up to 50 degrees Celsius ambient temperatures. According to our experience with Seasonic's KM3 platform, this is indeed the case. Moreover, the DC-DC converters responsible for generating the minor rails ensure compatibility with the C6 and C7 sleep states that Intel's Haswell processors introduced.

Besides modular cables, you also get a full set of protection features. Only over-current protection is missing, since it is meaningless in a high-capacity single +12V rail unit. The cooling fan uses a Fluid Dynamic Bearing that facilitates a longer lifetime.

Meanwhile, as mentioned, the only downside appears to be the smaller fan. A larger one would enable the same airflow at lower speeds, hence noise output would be lower. At least we get a semi-passive mode to keep acoustics in check under light loads. Physically, the unit's dimensions are small given its capacity, and the provided five-year warranty is satisfactory.

Power Specifications

Swipe to scroll horizontally
Rail3.3V5V12V5VSB-12V
Max. PowerAmps25257030.5
Watts125840156
Total Max. Power (W)850

The minor rails are quite strong, offering 125W maximum combined power. The single +12V rail is also powerful, and with up to 70A of current available, it easily supports multiple graphics cards. Finally, the 5VSB rail tops out at 15W of capacity, so it won't trouble you unless you want to charge two energy-hungry tablets at the same time.

Cables And Connectors

Swipe to scroll horizontally
Modular Cables
DescriptionCable CountConnector Count (Total)
ATX connector 20+4 pin (610mm)11
Eight-pin EPS12V (655mm)11
4+4 pin EPS12V (655mm)11
6+2 pin PCIe (550mm+100)48
SATA (400mm+120mm+120mm+120mm)28
SATA (500mm+120mm)24
Four-pin Molex (400mm+100mm+100mm+100mm) / FDD (+100mm)14 / 1
Four-pin Molex (310mm+125mm)12

The number of cables is huge, even for a 850W PSU. A couple of EPS connectors, along with eight PCIe ones, are available simultaneously. You get a ton of SATA and peripheral connectors as well. The only flaw is that the single Berg connector is fixed on a modular cable along with several four-pin Molex connectors. Normally, the FDD connector works best as an adapter since only a few folks need it. Finally, all connectors employ standard 18-gauge wires.

Power Distribution

Since this PSU features a single +12V rail, we do not have anything to say about its power distribution.

MORE: Best Power Supplies
MORE: Power Supplies 101
MORE: How We Test Power Supplies
MORE: Picking The Right Power Supply: What You Should Know
MORE: All Power Supply Content
