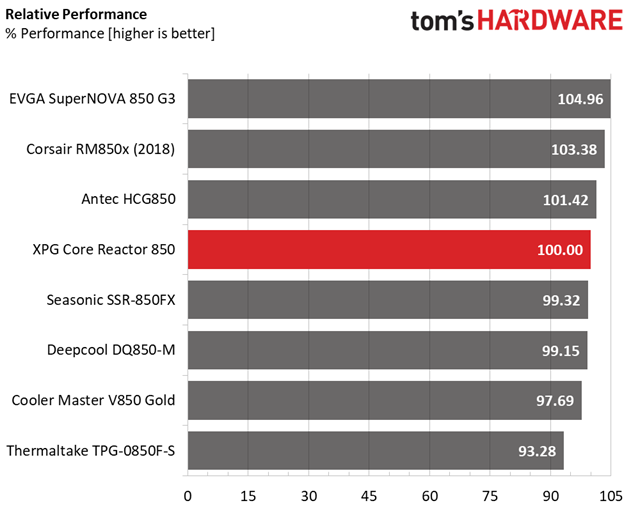

The overall performance is high, but it is not a threat to the popular Corsair RM850x. With a tighter load regulation at +12V and better 3.3V performance in both transient response and ripple suppression, the overall performance score could be improved. However, still, it wouldn't be as high as the Corsair and EVGA models.

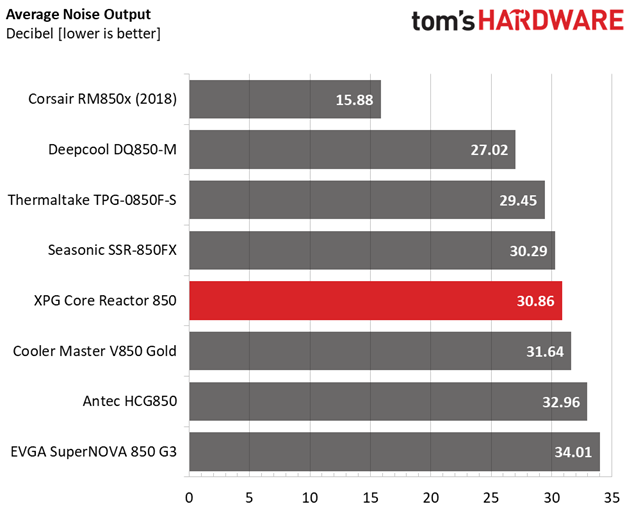

The graph below depicts the cooling fan's average noise over the PSU's operating range, with an ambient temperature between 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit).
The overall noise output is close to 31 dB(A). The fan speed profile is more aggressive than the required unless CWT's engineers wanted to be extra sure about this unit's reliability, given the extended warranty that XPG provides.

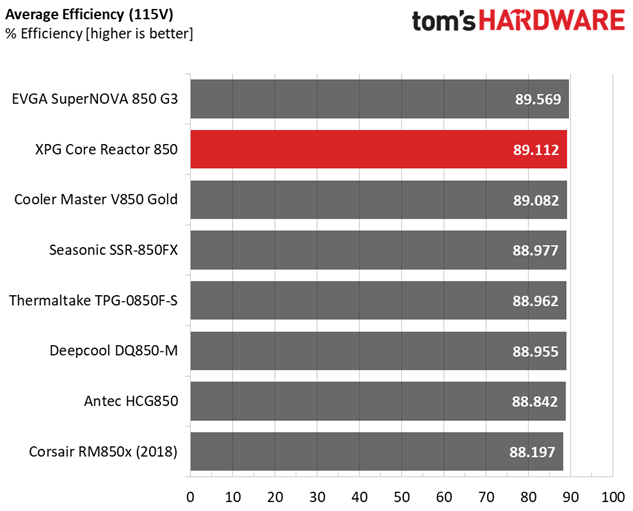

The following graph shows the PSU's average efficiency throughout its operating range with an ambient temperature close to 30 degrees Celsius.
The overall efficiency is high, as you can see in the chart above.
MORE: Best Power Supplies
MORE: All Power Supply Content
Current page: Performance, Noise and EfficiencyPrev Page Transient Response Tests, Timing Tests, Ripple Measurements and EMC Pre-Compliance Testing Next Page Bottom Line
Aris Mpitziopoulos is a Contributing Editor at Tom's Hardware US, covering PSUs.
Hardware-wise this seems like a great PSU.Reply
One good thing that wasn't listed is that the housing actually adhere to the ATX-format! (Most PSUs have the wrong length.)
There are no standards for depth on ATX power supplies. They vary from model to model and it has been that way since forever. Even within the same brand. This is nothing new. There is no ATX format regarding depth for it to adhere TO.Reply
Aris. Any idea yet whether all three capacities of this power supply are using the same platform and have the same expected or similar performance and characteristics or no idea at this time? Thanks.
I got one of this recently for a new build, and being the paranoic person that i am, i bought a psu tester and it showed a 80ms PG result. The 12V, 5V and 3.3V results were alright. Is this something i should worry about?Reply
You should start your own thread. This is not the place for such questions.Reply
Got it, thanks!Darkbreeze said:You should start your own thread. This is not the place for such questions.
