LSI SAS 9300-8e & HGST Ultrastar SSD800MM: 12 Gb/s SAS, Tested

Results: Enterprise Workload Performance

Our next set of tests simulates different enterprise-oriented workloads, including database, file server, Web server, and workstation configurations.

Because LSI's SAS 9300-8e and Intel's native SATA controller treats the SSD DC S3700 so similarly, we're only showing the X79 chipset's results as reference at 6 Gb/s.

The database workload (also categorized as transaction processing) involves purely random I/O. Its profile consists of 67% reads and 33% writes using 8 KB transfers.

The file server workload consists of 80% reads at varying transfer sizes.

The Web server test generates 100% reads at varying transfer sizes.

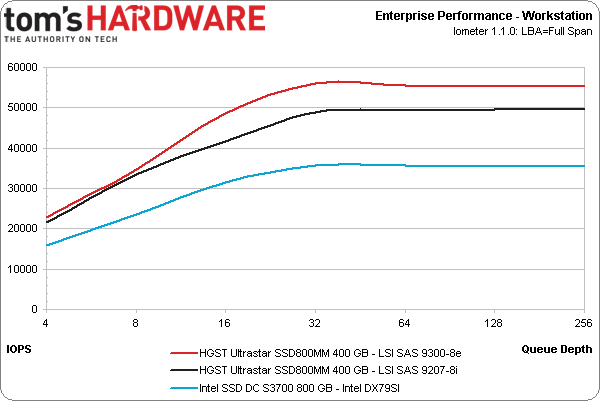

Our workstation test is 80% reads that are 80% random.

With the SSD800MM capable of generating nearly two times the performance of Intel's SSD DC S3700, you might have guessed the gains that'd show up in our enterprise workloads. Transferring over a 12 Gb/s link, the SSD800MM is consistently 50-100% faster than Intel's 6 Gb/s enterprise drive. Even limited to 6 Gb/s, the SSD800MM is at least 30% faster.

We usually only see results like these from PCI Express-based add-in cards. In fact, HGST's SSD800MM is only a little slower than Intel's SSD 910. When you consider that $2000 (for a comparable 400 GB model) card came out almost a year ago, it's amazing that a single 2.5" SSD can already come close to catching up.

Create a new thread in the US Reviews comments forum about this subject
This thread is closed for comments
13 comments
Comment from the forums
    Your comment
  • slomo4sho
    Now only if this technology was viable for home builds. :( Maybe in a couple years?
    0
  • major-error
    The performance and relative maturity of this prototype drive certainly is impressive, but this is what the enterprise space demands.
    At the consumer level though, the article takes on a completely different tone--I would be very surprised if we don't start seeing mention of PCIe4 at/before the top of the next CPU cycle (so, in 24-36 months at most.)
    0
  • raidtarded
    Actually, Adaptec already saturated PCIe 3.0 with 6GB/s. The chart is incorrect, it doesn't take 12Gb/s to saturate the PCIe bus. Well, not for Adaptec.
    0
  • falcompsx
    Remember when mechanical hard drives struggled to saturate their interfaces? Times sure have changed with SSD tech.
    0
  • CaedenV
    Anonymous said:
    The performance and relative maturity of this prototype drive certainly is impressive, but this is what the enterprise space demands.
    At the consumer level though, the article takes on a completely different tone--I would be very surprised if we don't start seeing mention of PCIe4 at/before the top of the next CPU cycle (so, in 24-36 months at most.)


    Ya, my bet is that we will not start to see SATA4 or PCIe4 until Skymont at the earliest. Considering it is looking like Broadwell may be pushed back due to 14nm die shrink issues I would bet that Skymont will have similar issues when moving to 10nm. But at least for home users you can cram 2 SSDs in RAID0 with a proper RAID card and get a little performance boost until then. I guess the only problem is that most people are going to use the onboard Intel RAID for RAID0, which will get you a killer synthetic benchmark, but in practical reality it is really just expanding your volume with very little speed benefit.
    0
  • kj3639
    Go HGST! WOO!!!!
    0
  • bit_user
    * wipes drool off floor *

    That's a quality review of some quality products. I like the insights shared, throughout. I especially appreciated the link to the SATA-Express paper. Thanks!

    MORE REVIEWS LIKE THIS!!
    :)
    0
  • bit_user
    Anonymous said:
    Actually, Adaptec already saturated PCIe 3.0 with 6GB/s. The chart is incorrect, it doesn't take 12Gb/s to saturate the PCIe bus. Well, not for Adaptec.
    How many ports and how many lanes, though? If it's just a 8-port card, the math doesn't support that, as 6x8 = 48 Gbps, which is less than the 8 x 8 = 64 Gbps that a x8 PCIe 3.0 slot should carry.
    0
  • raidtarded
    It is the equivalent of a nuke bomb compared to the LSI products. It has 24 Native ports.
    Anonymous said:
    Anonymous said:
    Actually, Adaptec already saturated PCIe 3.0 with 6GB/s. The chart is incorrect, it doesn't take 12Gb/s to saturate the PCIe bus. Well, not for Adaptec.
    How many ports and how many lanes, though? If it's just a 8-port card, the math doesn't support that, as 6x8 = 48 Gbps, which is less than the 8 x 8 = 64 Gbps that a x8 PCIe 3.0 slot should carry.
    0
  • raidtarded
    It is a 24 port native raid controller. smokes the 4 ports.
    0
  • drewriley
    Anonymous said:
    Anonymous said:
    Actually, Adaptec already saturated PCIe 3.0 with 6GB/s. The chart is incorrect, it doesn't take 12Gb/s to saturate the PCIe bus. Well, not for Adaptec.
    How many ports and how many lanes, though? If it's just a 8-port card, the math doesn't support that, as 6x8 = 48 Gbps, which is less than the 8 x 8 = 64 Gbps that a x8 PCIe 3.0 slot should carry.


    The graph is slightly misleading because it includes some assumptions. I mentioned the x8 assumption, and you found the other major one, which limits it to 8 port cards. Also, they list the SAS throughput with 8b/10b taken into account.
    0
  • drewriley
    Anonymous said:
    It is a 24 port native raid controller. smokes the 4 ports.


    I personally love the Adaptec 72405, it is amazing that they can provide 24 native ports and absolutely amazing sequential performance. But, when you look at external connectivity, there isn't a ton of difference. Adaptec has a version with 16 external ports, or 16x6Gbps, which is 96Gbps. LSI has an 8 port version, which gives you 8x12Gbps, or 96Gbps. While Adaptec allows you to connect more drives without the use of expanders, LSI allows you to get better performance per drive. I really like the fact that we have two companies catering to high-end RAID that offer different solutions, which gives us, the customer, the most flexibility.
    0
  • drewriley
    Anonymous said:
    * wipes drool off floor *

    That's a quality review of some quality products. I like the insights shared, throughout. I especially appreciated the link to the SATA-Express paper. Thanks!

    MORE REVIEWS LIKE THIS!!
    :)


    Thank you, I appreciate the feedback!
    0
