The Best PS5 SSDs in 2024: Speedy NVMe storage for your console

Best PS5 SSDs
(Image credit: Tom's Hardware)

The Best PS5 SSDs

Finding the best PS5 SSD might seem like a daunting task due to the wide range of choices; there are plenty of SSDs for the PS5 on the market that will provide a simple and hassle-free capacity upgrade for your game library. To narrow down the options, we put a wide range of the speediest drives from our SSD benchmarks hierarchy through a battery of our tests to find the best SSDs for the PS5, and then we picked the cream of the crop based on both performance and pricing. Given that nearly any new drive you buy for the PC can also be used in the PS5, you can also find many of these same picks on our list of Best SSDs for desktop PCs.

The PS5's internal SSD is a restrictive 825GB, and after formatting, updates, and bloatware it typically leaves you with about 670GB free for games. That's bad news, because today's games are becoming larger with each new release, and you'll also need somewhere to store all the screenshots and video clips you gather while you play. Call of Duty: Black Ops Cold War all by itself uses more than 200GB!

The good news is that Sony has an M.2 expansion slot where you can put a second SSD for the PS5, and updated system firmware now allows you to use an SSD with up to 8TB of capacity. That capacious amount of storage should satiate even the most demanding of gamers, but there are also more affordable options, and modern 2TB and 4TB models are particularly attractive choices for the PS5.

The TLDR: Best SSDs for the PS5 (more info below):

Swipe to scroll horizontally

Here's the quick list of the best SSDs for the PS5, but we have further breakdowns and testing results below. When searching for the best SSD for the PS5, you'll want to be careful about which drive you pick. The Samsung 990 Pro and WD SN850X are great SSDs for the PS5, though pricing has been trending upward for the past several months — on all SSDs. The SN850X also comes as an SN850P that's just an overpriced SN850X with a different heatsink and PlayStation 5 branding.

We've broken things down by category, with our top picks being the Inland Performance Plus, WD SN850X, Samsung 990 Pro, and Crucial T500. Which drive will fit your particular needs best depends on what you're after, and we have alternate picks for each category as well. For example, if you're looking for lots of decently fast storage on the cheap, the Addlink A93 4TB warrants consideration.

Tips for Finding the Best SSD for the PS5 in 2024

Which SSDs are compatible with the PS5? Luckily, finding a spacious PS5 SSD to complement your console's internal drive isn't too difficult — any PCIe 4.0 SSD that provides a minimum of 5,500 MB/s of throughput over the NVMe interface can be used as a PS5 SSD, provided it comes with a heatsink that doesn't take the overall height above 11.25mm. In fact, even slower SSDs will also be perfectly fine (PCIe 4.0 is still required), though the PS5 may warn you about the potential for reduced performance if you opt for such a drive.

Do you absolutely need a heatsink for a PS5 SSD?
Sony says yes, and you can easily add your own heatsink to SSDs that aren't marketed specifically for the PS5. You can also use one of the best external drives with the PS5 to store games, but these are only for game storage — you'll need an internal expansion drive to actually play the games.

What size of SSD should you buy for the PS5? You might =be fine with a 1TB drive, but we recommend selecting a 2TB or 4TB model due to the current low pricing trends for these models. Besides, who wouldn't want more storage for extra games?

Ultimately, the best drive for your PS is one that provides enough capacity to hold your games and data at a price you can afford. To help you choose, we've tested a number of the top SSDs in our labs — see the results further down the page — and pulled out the top performers for a list of the Best PS5 SSDs.

Best SSDs for PS5

(Image credit: Tom's Hardware)
Best Overall PS5 SSD

Specifications

Capacities: 1TB, 2TB, 4TB, 8TB
Form Factor: M.2 2280
Transfer Interface/Protocol: x4 PCIe 4.0 / NVMe 1.4
Sequential Reads/Writes: 7,000 / 6,850 MB/s
Warranty/Endurance: 5 years / Up to 6,000 TBW (8TB)

Reasons to buy

+
Solid all-around performance
+
Wide range of capacities
+
Optional PS5-compliant heatsink
+
Affordable

Reasons to avoid

-
Not the fastest drive possible
-
Not as power-efficient as newer drives
-
No software support

The Inland Gaming Performance Plus doesn’t really stand out on its own, using common hardware that’s been a PCIe 4.0 SSD staple for quite some time — it has a Phison E18 controller paired with 176-layer Micron TLC NAND. However, this mature platform performs well in the PS5, and the optional heatsink means one less thing to worry about. (You can add your own alternative heatsink for less money, if you prefer.)

The Inland drive also has a great range of capacities, including 8TB, which makes it perfect for game libraries of any size. While it may not sparkle the most, this drive is a great value for PS5 and desktop gaming. The SN850X and 990 Pro might be faster, but they’re also more expensive.

Other drives with the same hardware combination that we've tested include the Corsair MP600 Pro LPX, Corsair MP600 Pro XT, Kingston Fury Renegade, Kingston KC3000, Netac NV7000, PNY CS3140, Sabrent Rocket 4 Plus-G, Seagate FireCuda 530, Silicon Power XPower XS70, and Teamgroup A440 Pro. Of these, the Inland 4TB currently has the best price, which is why it gets the nod — they're all basically the same, otherwise.

Newer drives, like the Lexar NM790 and Crucial T500, are more power efficient, although these tend to tap out at 2TB or at most 4TB. Both examples are heatsink-optional, though we think it’s worth investing in cooling for the PS5 for long-term use. The Inland drive’s hardware provides the best performance consistency, and its ready availability at retail is a plus.

Read: Inland Gaming Performance Plus SSD Review


(Image credit: Tom's Hardware)
Fastest and Best PS5 SSD Alternate Pick

Specifications

Capacities: 1TB, 2TB, 4TB
Form Factor: M.2 2280
Transfer Interface/Protocol: PCIe 4.0 x4 / NVMe
Sequential Reads/Writes: Up to 7,300 / 6,600 MBps
Warranty/Endurance: 5 Years / Up to 2400 TBW

Reasons to buy

+
Top-tier performance
+
Large, consistent SLC cache
+
Strong warranty and software toolbox
+
Optional heatsink and RGB

Reasons to avoid

-
Pricing

WD took its popular Black SN850 SSD and turned it up to 11, but luckily the price isn't nearly so extreme. The $130 price point for the 2TB model is a steal, but make sure you check current pricing. The Black SN850X leverages an improved controller and newer flash to get the most out of the PCIe 4.0 interface, thus delivering excellent performance with the Sony PlayStation 5. Performance is improved across the board, and the drive comes with a heatsink option at 1TB and 2TB.

WD also supports the SSD with a respectable five-year warranty that will let you game with peace of mind. This drive is made for the PlayStation 5, but it is a bit pricier than other options, so you'll want to keep an eye out for sales. It's also super fast for gaming on a PC, particularly with DirectStorage on the horizon.

WD has taken the course of releasing an officially-licensed SN850P. That drive is a glorified heatsinked SN850X and should only be picked if you want the heatsink at 4TB. Even then, it's far less expensive to get a bare SN850X and add your own heatsink. The SN850X also shines when used in a PC.

Read: WD Black SN850X Review


High-Capacity SSD for PS5

High-Capacity PS5 SSD: Samsung 990 Pro 4TB (Image credit: Tom's Hardware)
High-Capacity and Fastest PS5 SSD

Specifications

Capacities: 1TB, 2TB, 4TB
Form Factor: M.2 2280
Transfer Interface/Protocol: PCIe 4.0 x4 / NVMe
Sequential Reads/Writes: Up to 7,450 / 6,900 MBps
Warranty/Endurance: 5 Years / Up to 2400 TBW

Reasons to buy

+
Single-sided 4TB capacity
+
High performance
+
Heatsink and RGB options
+
Consistent, efficient, and cool-running

Reasons to avoid

-
High MSRP

The Samsung 990 Pro ranks as both the fastest overall SSD we've tested with the PS5, and if you want a large and spacious SSD, it also ranks as a top pick. The 4TB model now sells for $339 at Amazon (up from a low of $249 a few months back), however, so pricing is definitely not as nice as it once was. Still, many other 4TB SSDs that aren't even as fast cost more. Which isn't to say there aren't some potential alternatives (see below), but paying extra for peace of mind isn't a bad approach.

The Samsung 990 Pro 4TB provides excellent performance. More importantly, it's available as a single-sided drive with 4TB — many 4TB drives will use both sides of the SSD, which could create issues if you try to stuff them into the PS5. Samsung's latest 236-Layer V-NAND is what allows for such a high capacity with just two NAND packages, and the drive runs generally cool.

Do you want to save money and forego the Samsung name? There are a few reasonable alternatives below.

Read: Samsung 990 Pro 4TB Review


Alternate High-Capacity SSD for PS5: Addlink A93 4TB (Image credit: Tom's Hardware)
Best High-Capacity SSD for PS5 Alternate Pick

Specifications

Capacities: 1TB, 2TB, 4TB
Form Factor: M.2 2280
Transfer Interface/Protocol: PCIe 4.0 x4 / NVMe
Sequential Reads/Writes: Up to 7,400 / 6,500 MBps (unofficial)
Warranty/Endurance: 5 Years / Up to 3,000 TBW

Reasons to buy

+
Good to great all-around and sustained performance
+
Power-efficient
+
4TB, TLC, and single-sided
+
PS5-compliant with a heatsink

Reasons to avoid

-
Hardware is still maturing
-
No DRAM

Addlink isn't a familiar name among SSDs for most enthusiasts, though the hardware is sound enough and the company seems to be gaining some traction. The A93 pairs the Maxio MAP1602A controller with 232-layer YMTC TLC NAND for a potent combination of performance, efficiency, and perhaps most importantly: price. Right now, you can pick up the 4TB model for just $249 — $90 less than the Samsung 990 Pro. (The drive formerly went for as little as $193, but prices are on the rise.)

In our testing, the Addlink A93 performed just as well as more expensive PS5 SSDs. The PS5 read speed test, as well as our copy to and from results, were practically indistinguishable from most other drives. The drive even comes with a heatsink as standard equipment, though we still think the Sabrent PS5 heatsink is a better option overall (since it provides direct airflow access rather than putting the SSD under a cover).

Note that the Maxio MAP1602A doesn't include DRAM, and on Windows PCs it would use the HMB (host memory buffer) feature to get around this. But even in the PS5, performance was fine. If you want other alternatives, the Lexar NM790 4TB and Silicon Power US75 4TB (see below) use the same controller and NAND, while the Netac NV7000 4TB opts for a Phison E18 controller and 176-layer Micron TLC NAND (the same as the Inland drive listed above).

Read: Addlink A93 Review

Best Cheap SSD for PS5

Best Cheap SSD for PS5: Crucial T500 2TB (Image credit: Tom's Hardware)
Best Cheap SSD for PS5

Specifications

Capacities: 500GB, 1TB, 2TB
Form Factor: M.2 2280 Single-sided
Transfer Interface/Protocol: PCIe 4.0 x4
Sequential Reads/Writes: 7,400 / 7,000 MBps
Warranty/Endurance: 5 Years / Up to 1,200 TBW

Reasons to buy

+
Excellent all-around performance
+
Efficient and single-sided
+
Optional heatsink at 1TB/2TB

Reasons to avoid

-
No 4TB model yet
-
High MSRPs

The Crucial T500 is a high-performance PCIe 4.0 x4 NVMe SSD that dishes out speeds of up to 7.4 GB/s of read and 7.0 GB/s write throughput, along with up to 1.18 million IOPS. The 2TB model checks in at $139 (sans heatsink, which costs an extra $30), while the 1TB costs $84 ($99 with heatsink).

The drive dishes out plenty of performance for the PS5, and while it's not quite as fast in the PS5 read test as the top drives, it was basically just as performant in our real-world file copy tests. As noted in our test section, the differences between the fastest and slowest SSDs in real-world gaming are incredibly slim, meaning that the T500's price tag will draw in the value seekers among us.

The endurance ratings on the various T500 models are a bit lower than some of the competition, topping out at 1,200 TBW for the 2TB drive, but is anyone really going to completely fill and erase the drive 600 times while using it in a PS5? We think not. You can also look at the Crucial P5 Plus as a similar performing alternative that may save you a few dollars, depending on sales.

Read: Crucial T500 Review


Alternate Best Cheap SSD for PS5: Silicon Power US75 2TB (Image credit: Tom's Hardware)

6. Silicon Power US75

Best Cheap SSD for PS5 Alternate Pick

Specifications

Capacities: 1TB, 2TB, 4TB
Form Factor: M.2 2280 Single-sided
Transfer Interface/Protocol: PCIe 4.0 x4
Sequential Reads/Writes: 7,000 / 6,500 MBps
Warranty/Endurance: 5 Years / Up to 2,400 TBW

Reasons to buy

+
Good performance
+
Efficient and single-sided
+
Low pricing

Reasons to avoid

-
Lesser known brand
-
No heatsink option

The Silicon Power US75 is another Maxio MAP1602A SSD, like the above Addlink A93. Performance will be similar, and there's a 4TB option as well. But we're mostly interested in the 1TB drive that can be had for as little as $84 ($89 with the optional heatsink).

Silicon Power has been around for quite a few years as a purveyor of inexpensive SSDs, though support and warranty service tend to less than what you'd get from a major brand like Crucial or Samsung. You get what you pay for, in other words. The Addlink A93 and Lexar NM790 mentioned above are viable alternatives here as well, depending on current prices, as they use the same controller and NAND.

What about 8TB SSDs? Technically, they can work in the PS5, but prices are way too high to justify the added capacity. Just give a look at the 8TB M.2 drives listed on Newegg: The cheapest options cost over $800, which is far higher than the price per GB of inexpensive 4TB drives.


Benchmarks / How We Tested PS5 SSDs

Best PS5 SSDs performance charts

(Image credit: Tom's Hardware)

Best PS5 SSDs performance charts

(Image credit: Tom's Hardware)

Best PS5 SSDs performance charts

(Image credit: Tom's Hardware)
Swipe to scroll horizontally
SSDPS5 Read BenchmarkCopy to M.2Transfer From M.2
Samsung 990 Pro 2TB6,5582,495252.2
Lexar NM790 4TB6,5382,327249.9
WD Black SN850X 2TB6,5312,495250.2
Crucial T700 4TB6,5292,390251.2
Samsung 990 Pro 4TB6,5112,470251.3
SK hynix Platinum P41 2TB6,5072,492251.4
HP FX700 2TB6,5052,310250.3
Crucial T700 2TB6,5022,439250.8
Kingston KC3000 2TB6,4972,476251.2
Sabrent Rocket 4 Plus-G 4TB6,4912,451250.7
Addlink A93 4TB6,4892,332250.2
Corsair MP600 Elite 2TB6,4871,490251.1
Sabrent Rocket 4 Plus-G 2TB6,4852,463250.9
Silicon Power US75 2TB6,4852,304250.0
Crucial T705 2TB6,4792,408250.9
Solidigm P44 Pro 2TB6,4622,479250.8
Adata Legend 960 Max 2TB6,3892,426251.5
Transcend 250H 1TB6,3881,171251.4
Seagate Game Drive PS5 1TB6,3792,293250.8
Seagate FireCuda 530 2TB6,3612,457250.5
Teamgroup MP44 2TB6,1812,315249.4
PNY CS3140 2TB6,1802,435250.7
Netac NV7000 4TB6,1412,457251.2
Micron 3500 SSD 1TB6,1202,405250.6
Crucial P5 Plus 2TB5,6292,448251.8
Crucial T500 2TB5,5382,378250.4
AGI AI818 2TB5,2012,375250.7
Samsung 990 Evo 2TB4,8771,509250.7
Corsair MP600 Core XT 2TB4,3402,405250.7
WD Blue SN580 1TB3,9852,396249.9
Patriot Viper VP4100 2TB3,8472,414250.8
Solidigm P41 Plus 2TB3,4612,261250.2

Some of the best SSDs for the PS5 are either specifically designed for the console, or come with an integrated heatsink. However, some drives don't come with a heatsink, so we equip them with the Sabrent M.2 NVMe heatsink for the PS5 to both meet the requirements for the PS5 and to ensure a level playing field. We've found that this cooler is a great solution if you're looking for a cheap, versatile, and easy-to-install solution.

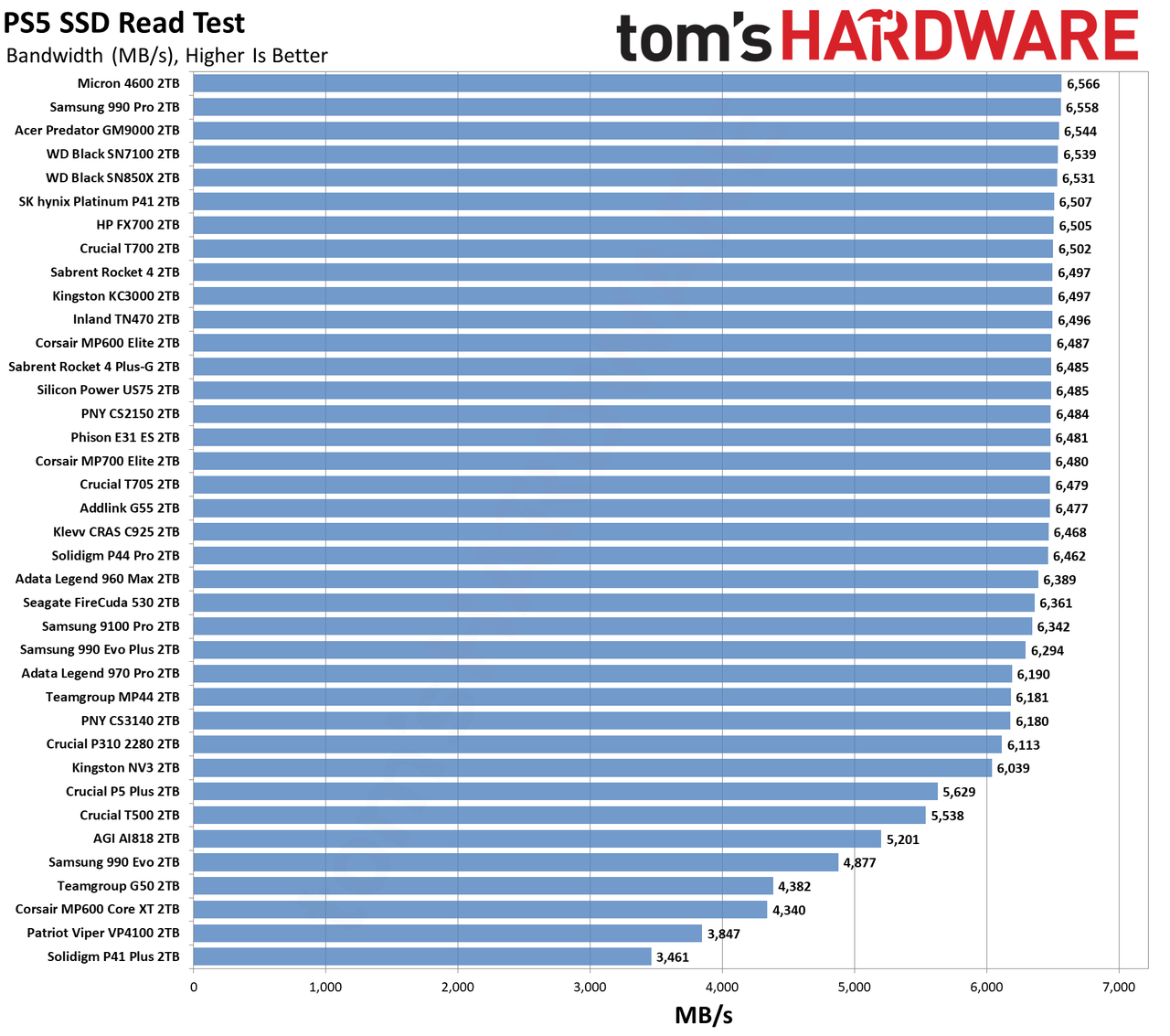

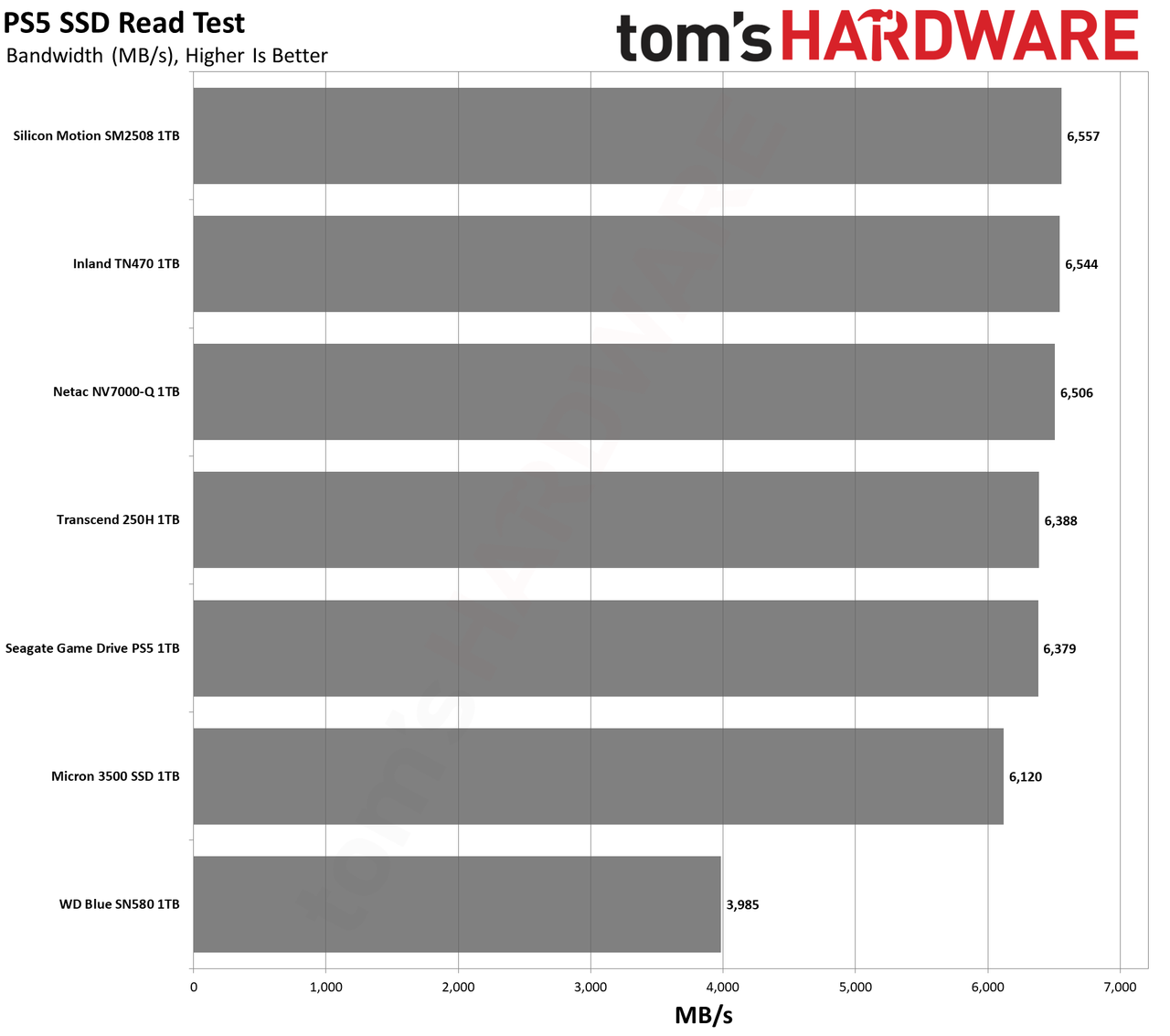

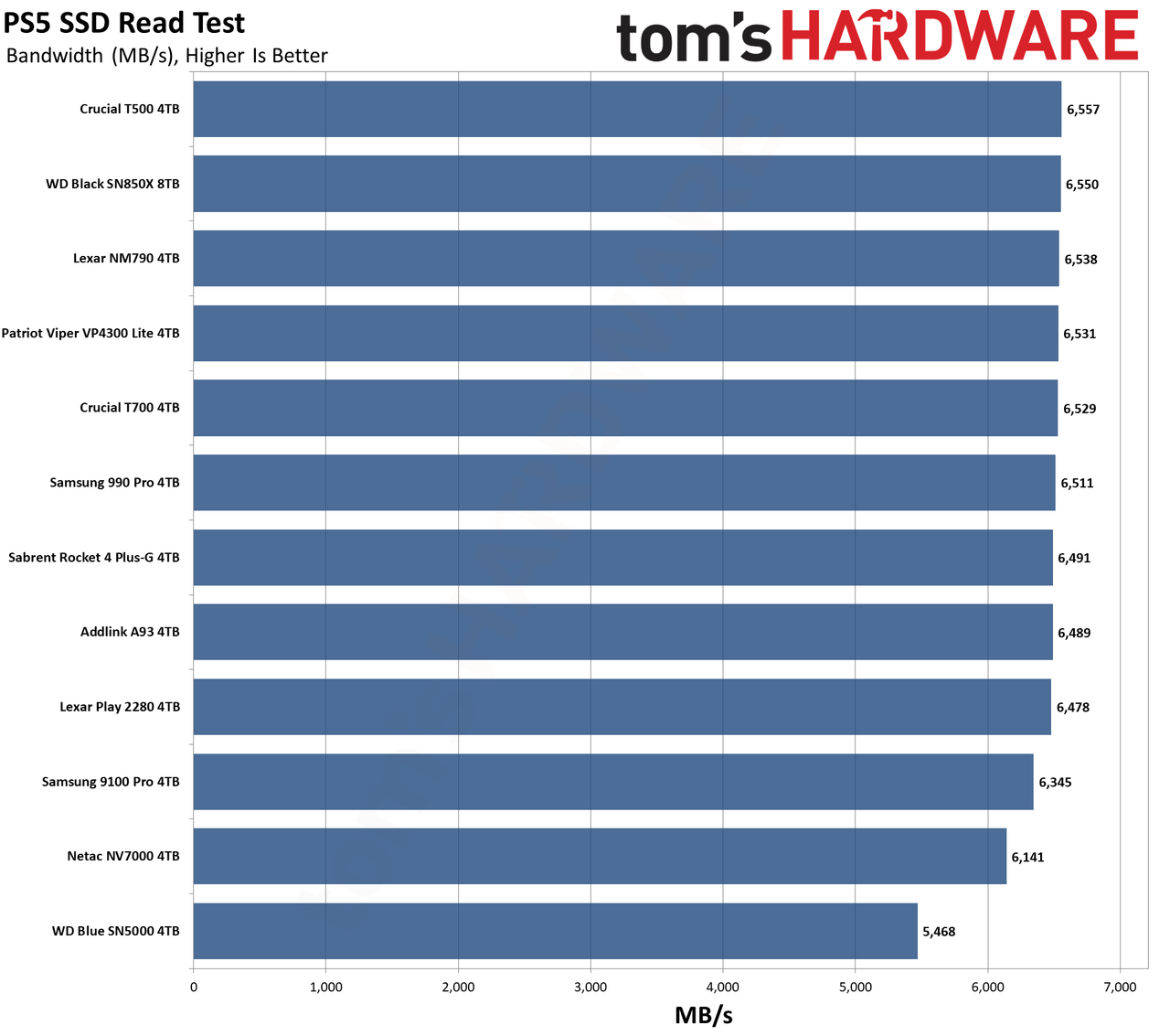

The Sony PS5 has an internal benchmark measuring how fast the system can read data from the drive. This is the most critical performance metric for gaming, as a speedy response time is responsible for ensuring a smooth gaming experience. As you can see in the 'PS5 Read Benchmark' column above, the fastest SSD in our test pool was 90% faster than the slowest model. Sony will even flag performance as being potentially inadequate if the read score is below about 4,000 MB/s.

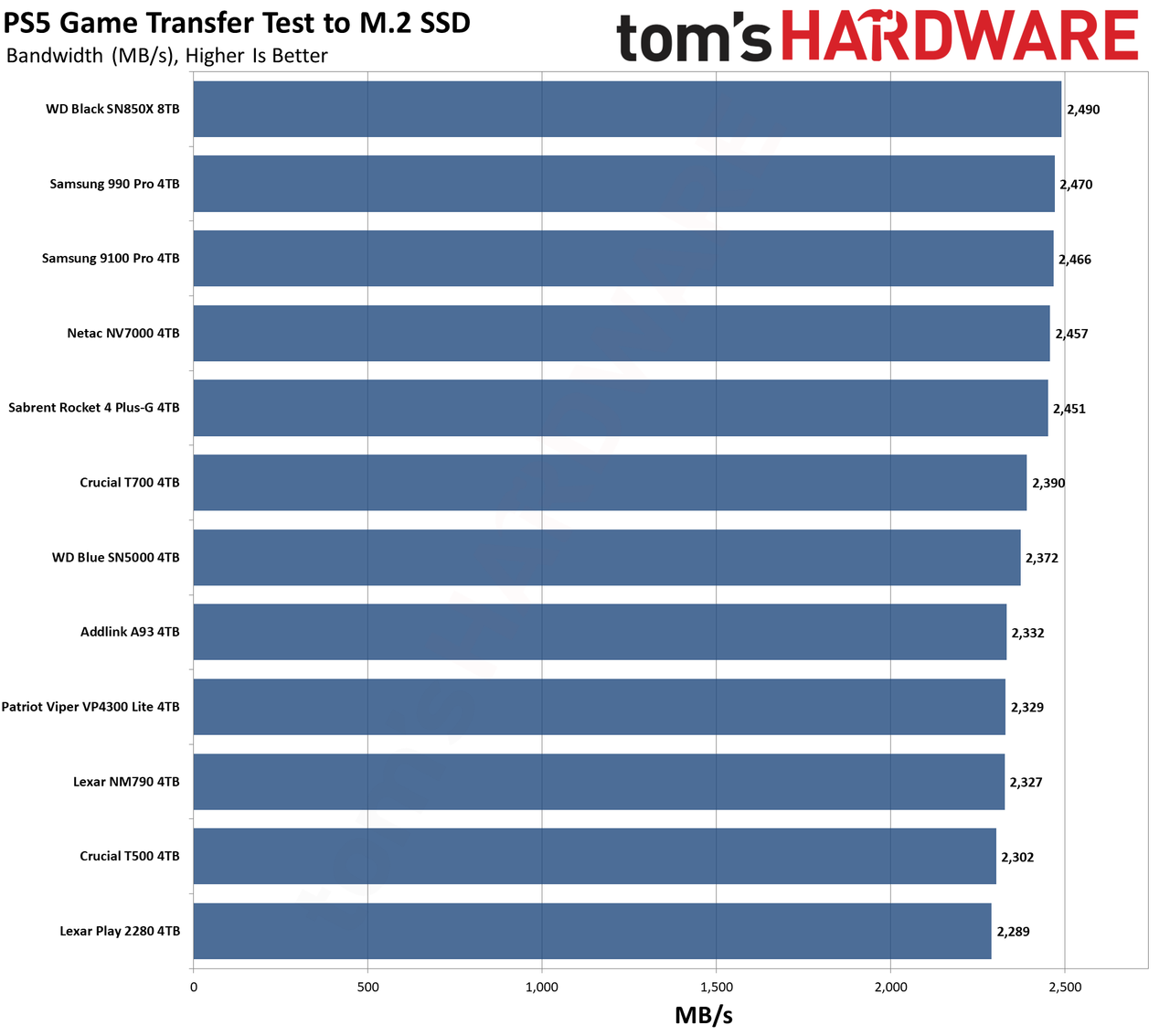

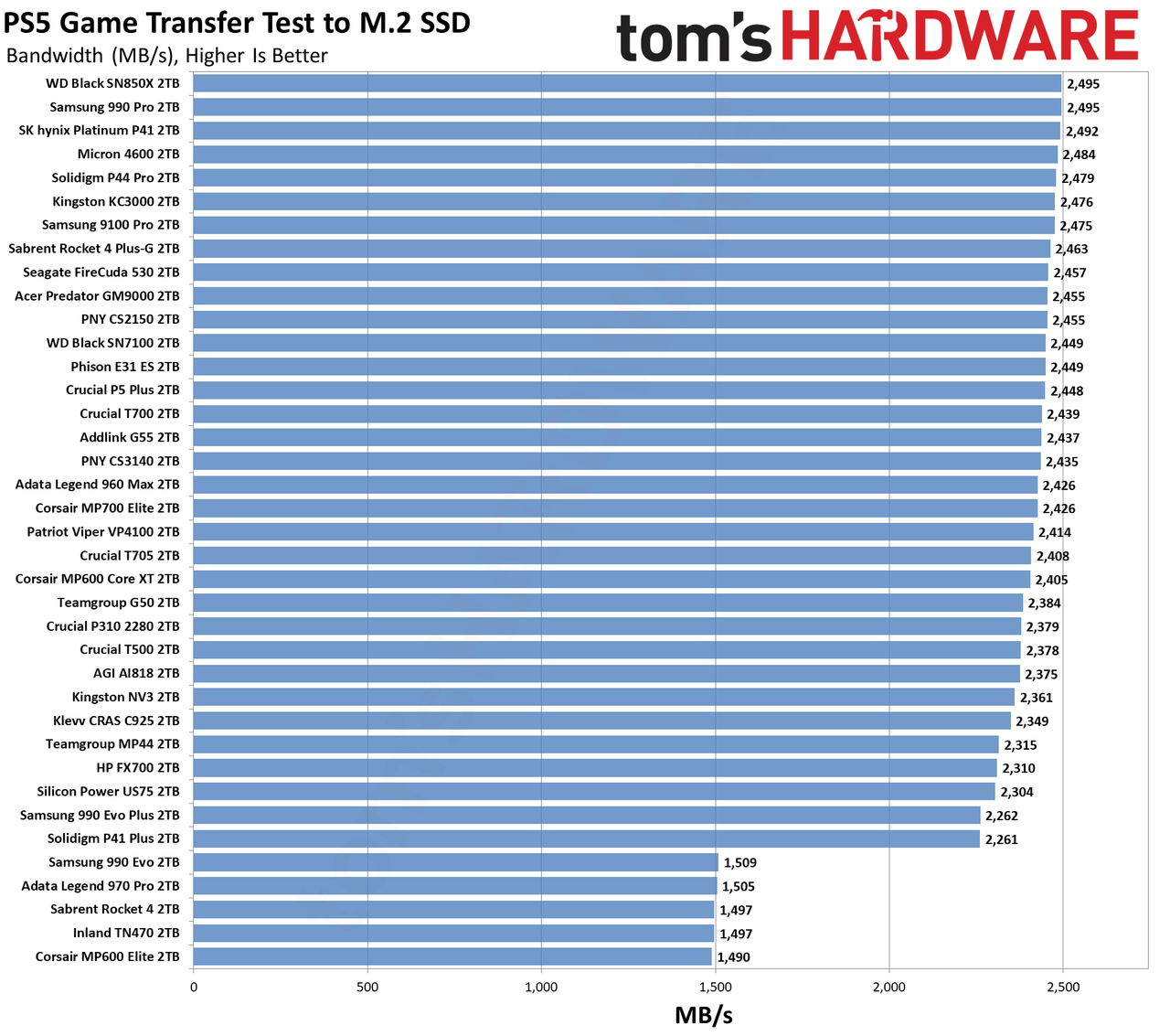

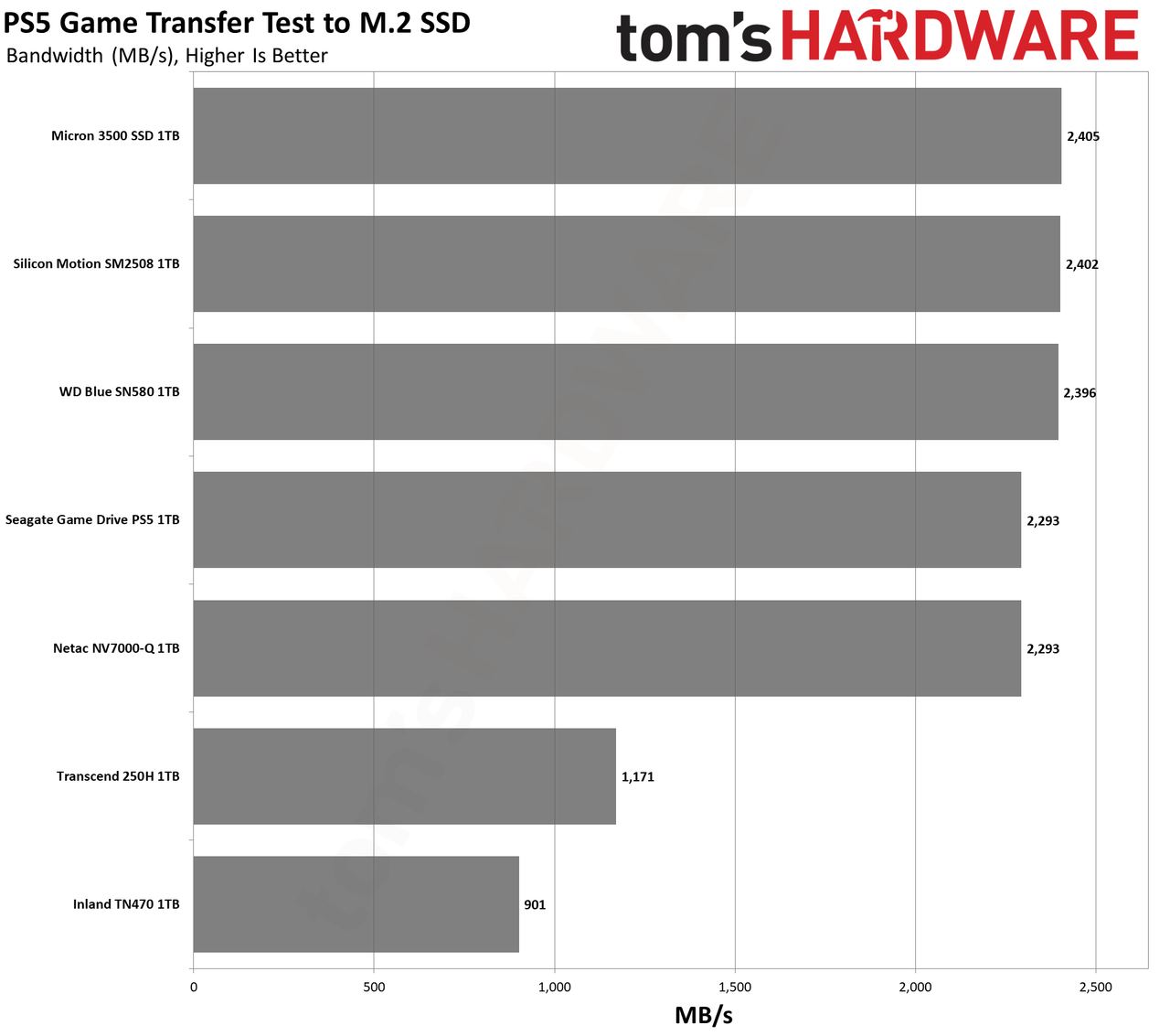

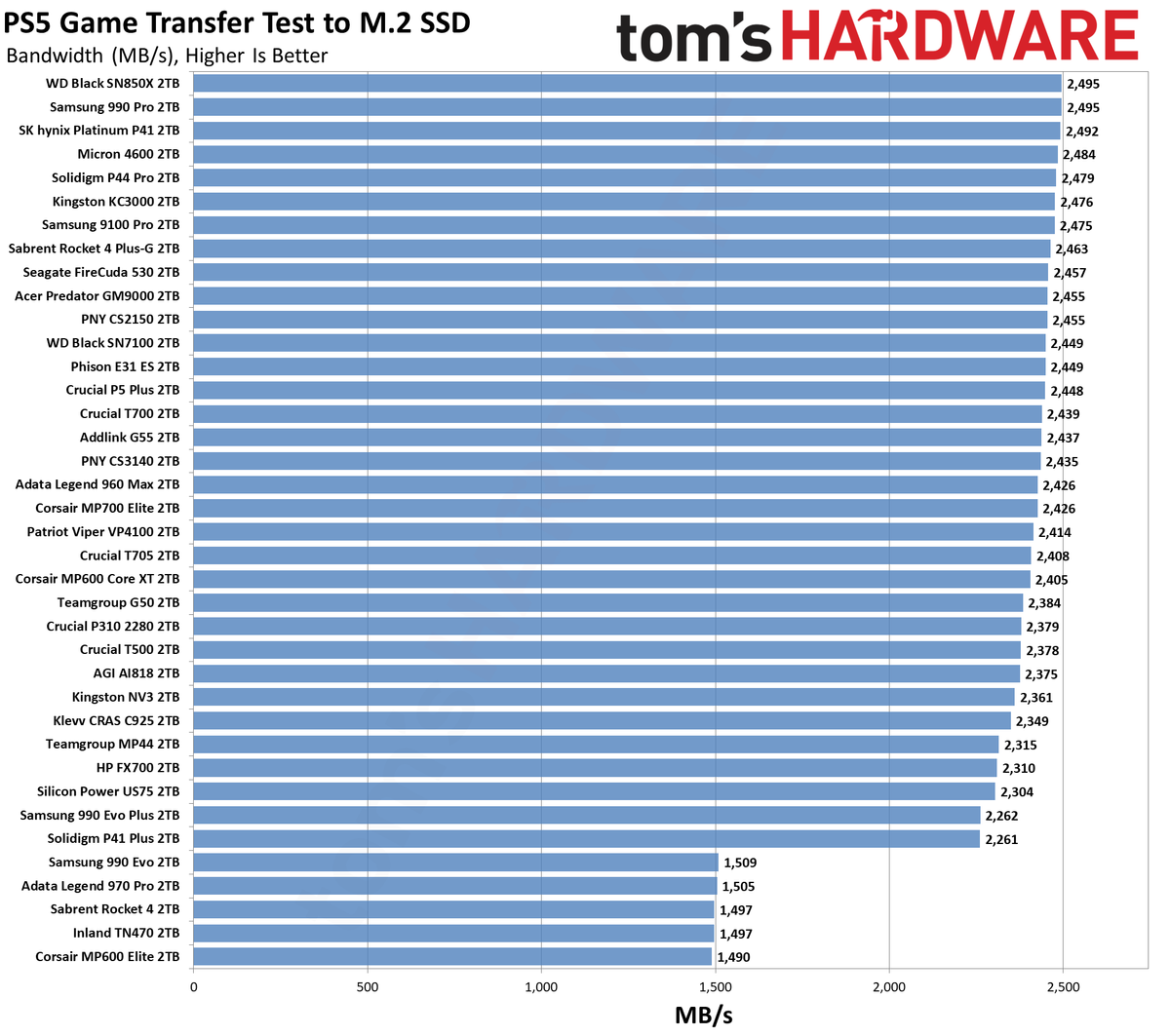

However, other real-world tests show much smaller differences. For instance, our 'Copy to M.2' benchmark consisted of timing how long it took to move four games totaling 192.6 GB (Mass Effect: Andromeda, Assassin's Creed Valhalla, Elden Ring, and Astro's Playroom) from the internal PS5 SSD to the expansion drive. In most cases, we only logged a difference of a few seconds, and converting to MB/s the fastest and next-slowest drive only showed a 10% difference.

There's one exception to this, and that's the Transcend 250H 1TB that has a relatively small ~100GB pSLC cache; it was less than half as fast as most other drives on this write-heavy (for the M.2 drive) test. If you're moving more data, of course, it's possible to exceed the pSLC cache size of other, larger SSDs. Check our sustained write performance in the individual SSD reviews and choose a drive with an appropriately fast minimum speed to avoid slowdowns in such cases.

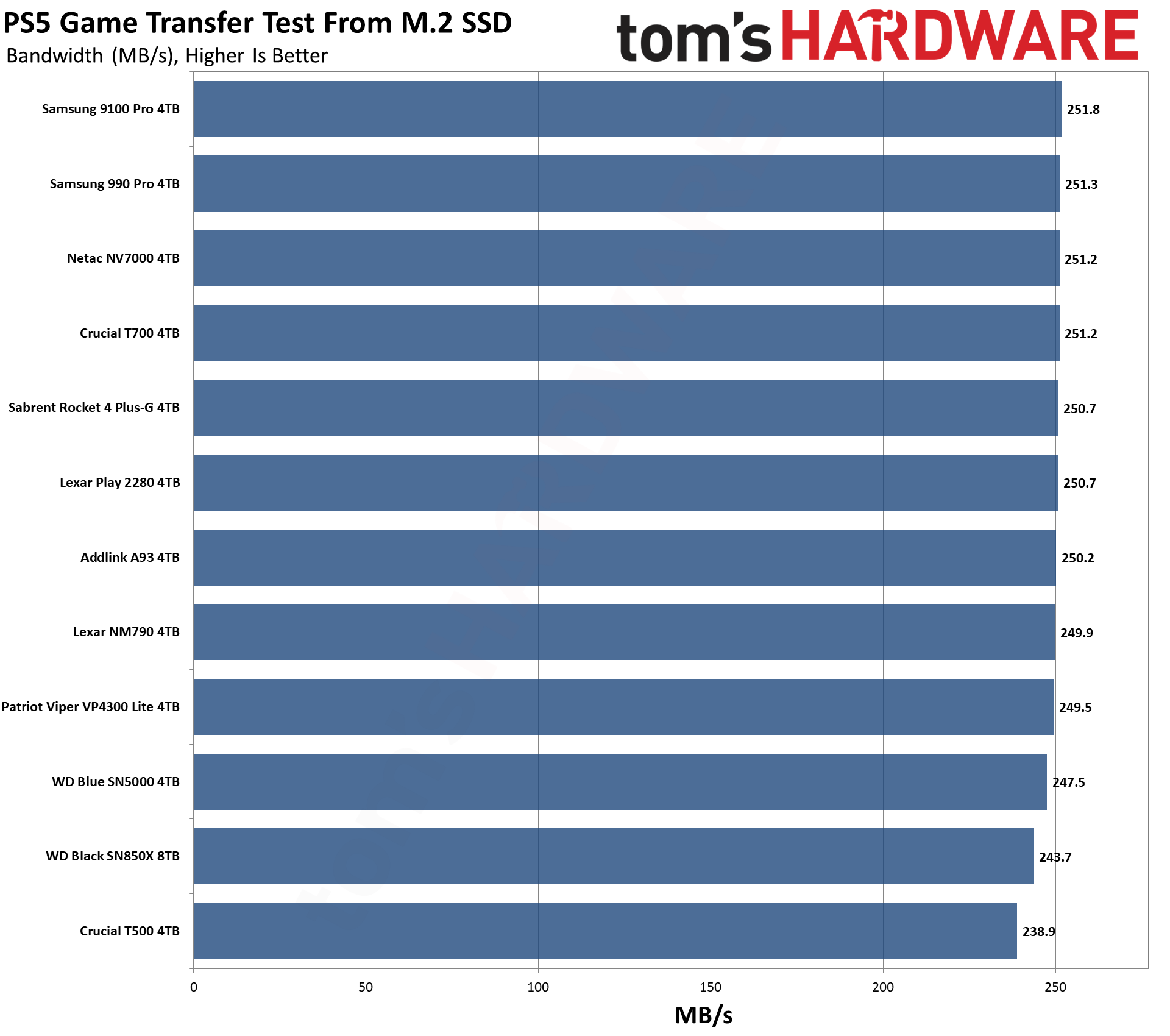

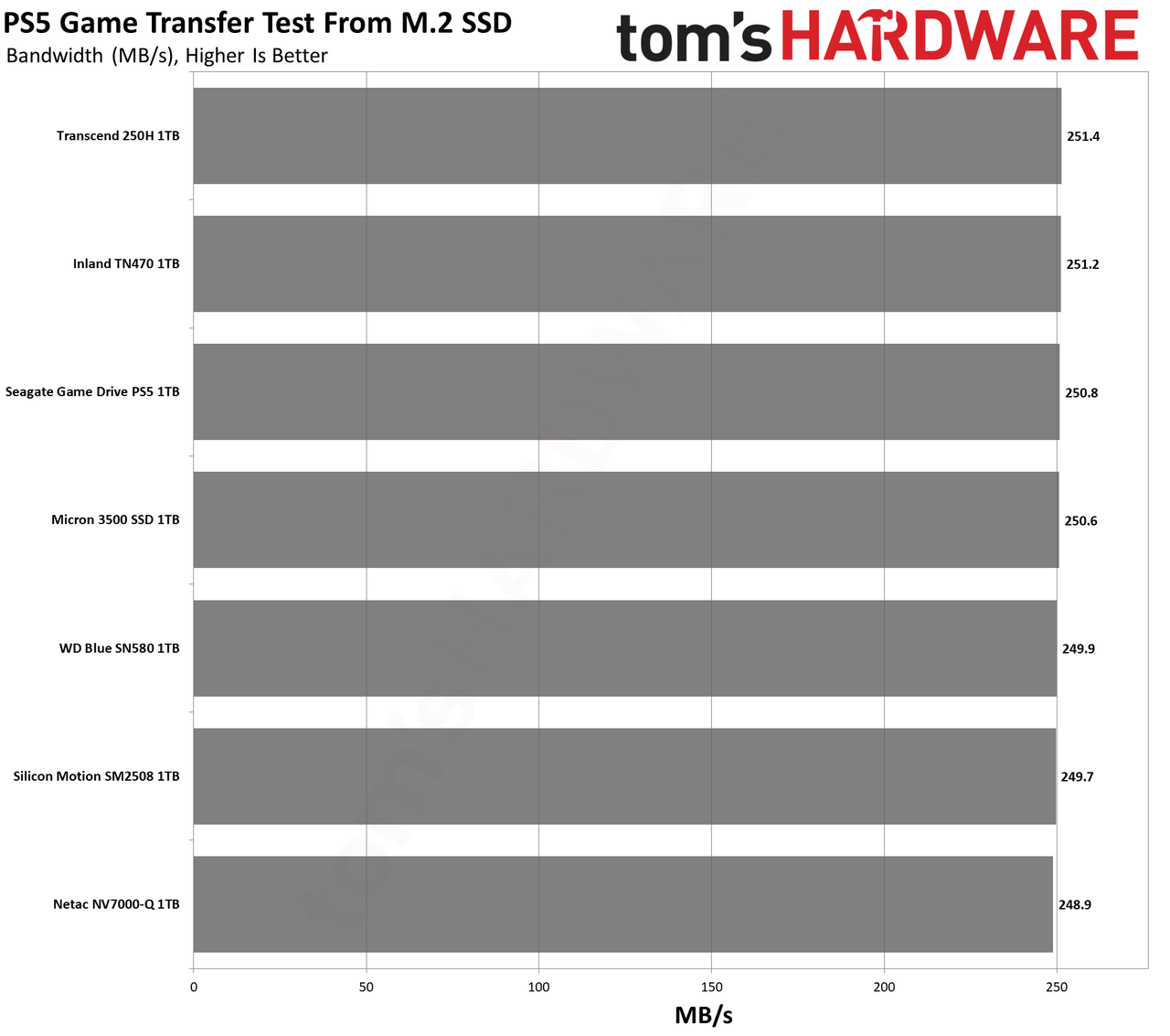

On the flipped side, we also tested this process in reverse, moving the four games back to the internal drive for our "Transfer From M.2" benchmark. Here, the sustained write speed of the integrated 825GB SSD becomes the limiting factor, and there's only a 1% difference between the fastest and slowest SSD we've tested. The current 825GB SSD only appears to write data at up to 250 MB/s, and all of the M.2 SSDs are easily able to maintain read speeds higher than that figure.

Likewise, extensive testing has failed to expose meaningful differences between the drives — it's common to see at most a one to two second difference between drives in game load times. Other testing we've seen from multiple outlets indicates very few meaningful differences, if any, for game loading times. Overall, you're unlikely to notice the speed difference between most PCIe 4.0 SSDs and could make a good argument for simply selecting the most cost-effective drive that meets the capacity target that you want — 4TB and 2TB drives are particularly popular.

Naturally, not all of the drives that we test will make the final cut for our list of Best SSDs for the PS5, but that doesn't mean those drives failed the test, or wouldn't be a great deal if you can catch them on sale. The Solidigm P44 Pro is a great SSD that delivered respectable performance in our PS5 SSD benchmarks, and given the slim difference between the fastest and slowest SSDs on our list, it could make a great drive if the price is right. The only thing we'd try to avoid is any SSD that uses QLC NAND, as those drives can slow down significantly as they're filled to capacity.

There's also no benefit at present to selecting any of the PCIe 5.0 SSDs, and in fact performance can suffer. We originally tested the Crucial T700 2TB, which like all currently available PCIe 5.0 drives uses a Phison E26 controller with Micron TLC NAND. The PS5 initially limited read performance to around 4,100 MB/s on such SSDs, even though in theory they should be fully backward compatible with the PCIe 4.0 interface. They also tend to use more power then PCIe 4.0 drives, making them a poor choice for the PS5. Newer firmware has fixed the previously observed issue with reduced performance, but given current prices there's no real purpose in using a PCIe 5.0 drive.

Sony PS5 SSD Requirements

The Sony PS5 requires an M.2 SSD that communicates over the NVMe protocol. Officially, you'll need a PCIe 4.0 x4 model that can deliver up to 5,500 MB/s of sequential read throughput. In practice, you can use slower SSDs, and you'll just get a warning that performance may be inadequate — note that PCIe 3.0 models are explicitly prohibited from working. The console supports 250GB, 500GB, 1TB, 2TB, 4TB and 8TB models.

These small, rectangular drives look like sticks of RAM, only smaller, and the PS5 accepts both single-sided and double-sided versions. You'll also need to ensure that your drive has a cooling solution pre-applied. These can consist of thin copper heat spreaders that look like a label, or a full-fledged metal heatsink with a thermal pad.

Not all of the best SSDs for the PS5 come with a heatsink, but you can easily use your own double- or single-sided heatsink. We recommend the Sabrent M.2 NVMe heatsink for the PS5, which actually replaces the outside SSD panel on the PS5 with a heatsink, giving the SSD access to nice cooler air from outside the system. We've found that this cooler is a great solution if you're looking for a cheap, versatile, and easy-to-install solution, but there are many options on the market. For instance, TeamGroup has its new TForce AL1 heatsink, which operates similarly, coming to market soon.

Just make sure the SSDs don't exceed 110 x 25 x 11.25mm. M.2 SSDs are usually 80mm long by 22mm wide, described as size 2280, but some may be shorter or longer. The PS5 supports M Key Type 2230, 2242, 2260, 2280 and 22110. Some M.2 drives are also SATA interfaces instead of NVMe, but those are rare and would not be listed as being PCIe 4.0 compliant. Regardless, make sure your SSD supports NVMe.

Sony has detailed instructions on how to install a PS5 SSD. As you can see in the video above, installing the SSD is a simple process that only requires a #1 Phillips head screwdriver. After you've installed the SSD, you can navigate through the menus to the 'Settings→Storage→Installation Location' area and change it to your new SSD. All new games will now install directly to the SSD.

To move existing games to your new drive, select the internal SSD, highlight the item you want to move, press the Options button, and then select 'Move Games and Apps.' Select any other games that you would like to move in the checkboxes, then select 'Move.' As noted in our above testing, moving from the integrated SSD will generally be much faster than moving to the integrated drive.
