November 18, 2022 Update: We've updated this article with new testing for the 1TB Solidigm P41 Plus SSD on page 2.
Original Review published October 17, 2022:

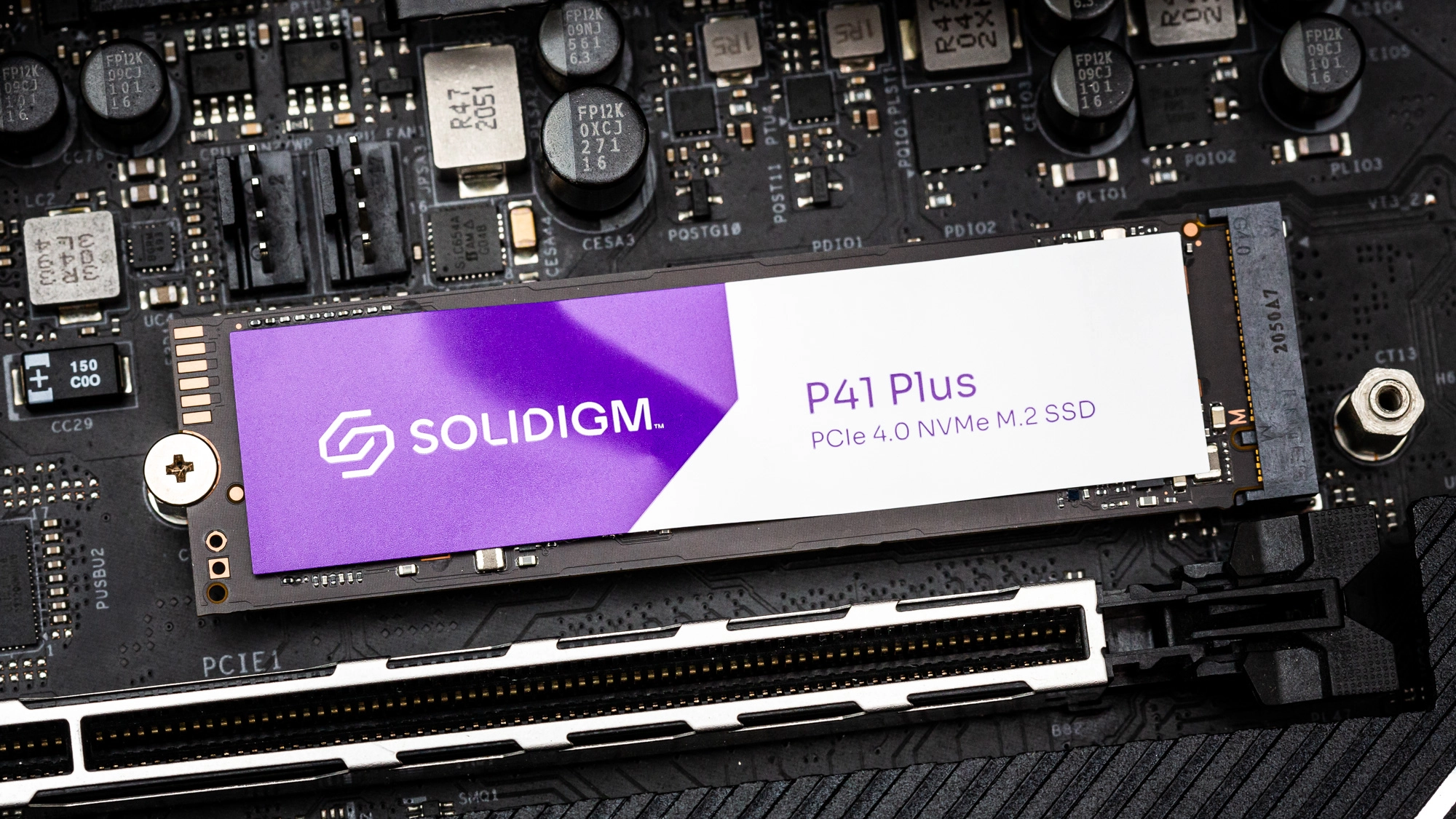

The Solidigm P41 Plus is the successor to the Intel 670p, using the same QLC flash but going with a DRAM-less, PCIe 4.0 design. While QLC has its limitations in sustained performance, the hybrid pSLC cache does a good job of masking this weakness. The drive is not particularly power-efficient, but it does run cool and is ideally suited to general laptop and desktop PC use, like its predecessor, without breaking the bank. The drive’s new controller has proven capable, but stiff competition remains in the market, including from such drives as Crucial’s P3 Plus.
Solidigm officially formed in December of last year as part of the larger Intel-SK hynix deal that found SK hynix buying Intel’s NAND and SSD business. Solidigm is a subsidiary of SK hynix, a company that has recently brought out two excellent SSDs: the Gold P31 and the Platinum P41.
The new P41 Plus uses the same flash as the Intel 670p, but SK hynix has its own 176-layer QLC based on a different architecture. The drive’s controller is also new but has the same focus as the 670p’s - strong everyday performance. Combined, this makes the P41 Plus a drive designed for OEMs, prebuilts, laptops, budget builds, and more.
Solidigm has done its homework, taking Intel’s foundation from the 660p, 665p, and 670p drives and applying its own knowledge to produce a competent SSD. Solidigm released a wealth of information during a webinar before the drive’s release. Particular focus is paid to the drive being designed for real-world workloads. Solidigm also provides a decent software package for the P41 Plus, including a driver that introduces additional functionality to deliver a better everyday experience, like a new type of caching feature.
Does it live up to the hype? Recent PCIe 4.0 SSDs have gone above and beyond with new controllers and flash. However, it may be challenging to find a foothold in the current market for Solidigm, especially as prices continue to drop. The SK hynix parent has made popular drives but often struggled to achieve global availability. Time will tell for Solidigm, but the P41 Plus does appear to be a good first effort.
|Capacity (User / Raw)||512GB / 512GB||1024GB / 1024GB||1024GB / 1024GB|
|Form Factor||M.2 2280||M.2 2280||M.2 2280|
|Interface / Protocol||PCIe 4.0 x4||PCIe 4.0 x4||PCIe 4.0 x4|
|Controller||SMI SM2269XT||SMI SM2269XT||SMI SM2269XT|
|DRAM||No (HMB)||No (HMB)||No (HMB)|
|Flash Memory||144-Layer Solidigm QLC||144-Layer Solidigm QLC||144-Layer Solidigm QLC|
|Sequential Read||3,500 MBps||4,125 MBps||4,125 MBps|
|Sequential Write||1,625 MBps||2,950 MBps||3,325 MBps|
The Solidigm P41 Plus is available at 512GB, 1TB, and 2TB. This matches its predecessor, the Intel 670p, and Solidigm doesn’t offer a 4TB option like the Crucial P3 Plus. This drive uses the same flash as the 670p and a similar, if newer, controller, albeit without DRAM. Performance is rated up to 4125/3325 MBps for sequential read and write, respectively, and up to 390K/540K IOPS for random read and write. This isn’t quite as fast as other mid-range PCIe 4.0 SSDs. Solidigm may have opted for consistency and reliability over peak performance.
Solidigm backs this with a five-year warranty and 400TB of write endurance per TB of capacity. This level of write endurance is fairly good for QLC, easily beating the P3 Plus. It also comes out of the gate with a lower MSRP for all capacities, making it an affordable option. However, as with the 670p, it is probably best avoided at 512GB unless budget is a top priority. Higher capacities can make better use of the dense QLC, and the correspondingly larger pSLC cache helps better hide poor native performance.
Software and Accessories
Solidigm offers a few pieces of software for the P41 Plus, including the Solidigm Storage Tool (SST), the Solidigm Firmware Update Tool (SFUT), and the Solidigm Synergy Sofware (SSS). The SST acts like an SSD toolbox with GUI and has command line (CLI) functionality, offering information about the drive, including SMART with utilities for secure erase, firmware updating, and other diagnostics. The SFUT is a bootable tool for USBs or CDs that you can use to update the drive’s firmware.
Aside from the SST, the SSS includes a storage driver for the P41 Plus, which offers additional functionality. Specifically, this allows for an improved communication path between the host and storage. This optimizes how data is stored by using host metadata to discover the type of data being stored and also how the user tends to use that data. Such a driver, via NVMe, also allows the host to manage caching (HMC), prefetching, and queuing of data to improve performance transparently. The P41 Plus also can do read caching from pSLC.
This type of tiered caching is reminiscent of the Enmotus FuzeDrive, which could have separate pSLC and QLC sections. In that case, performance and endurance could be improved, but a special driver was also required. Solidigm states on its website that its driver can improve performance by up to 21%. Although we tested this feature, it didn't have an impact on our typical benchmarks. Real-world improvements may exist, but this will vary on how you use the drive.
A Closer Look

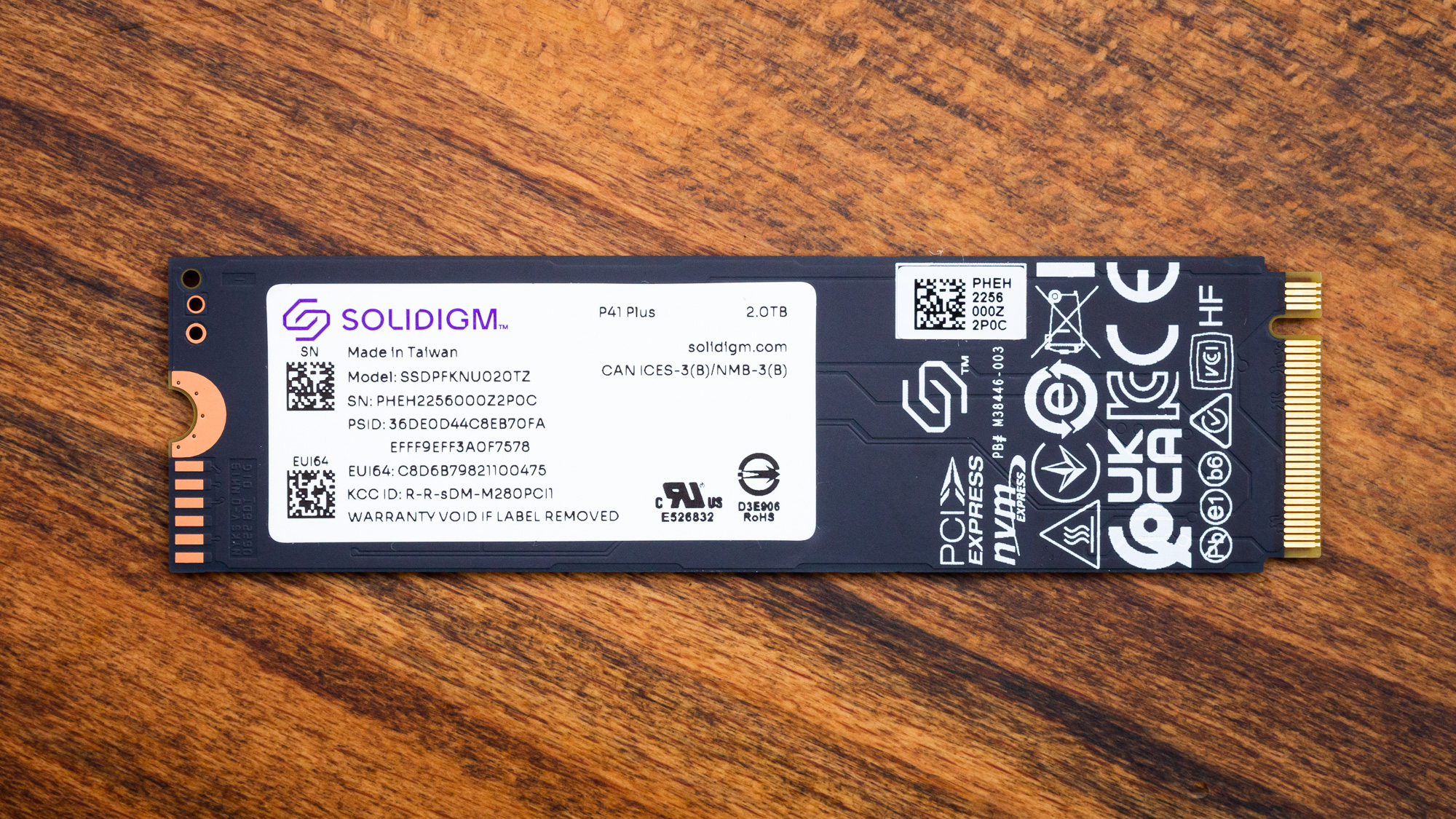

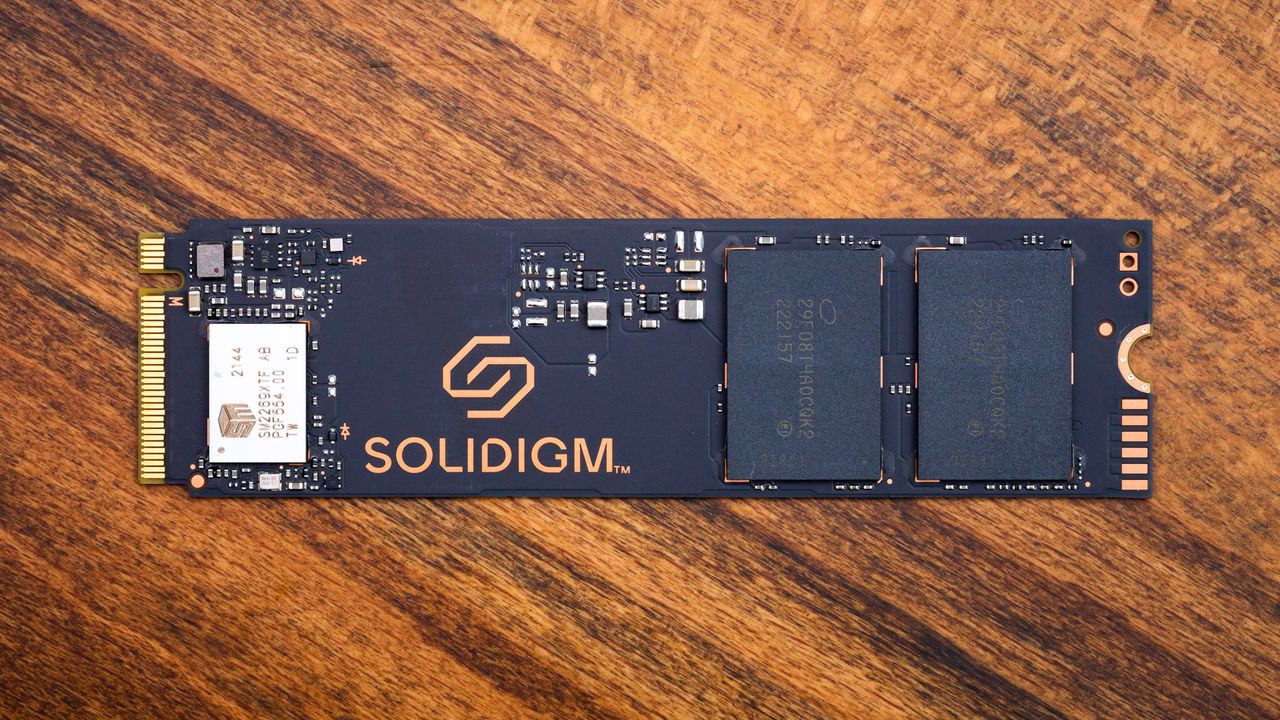

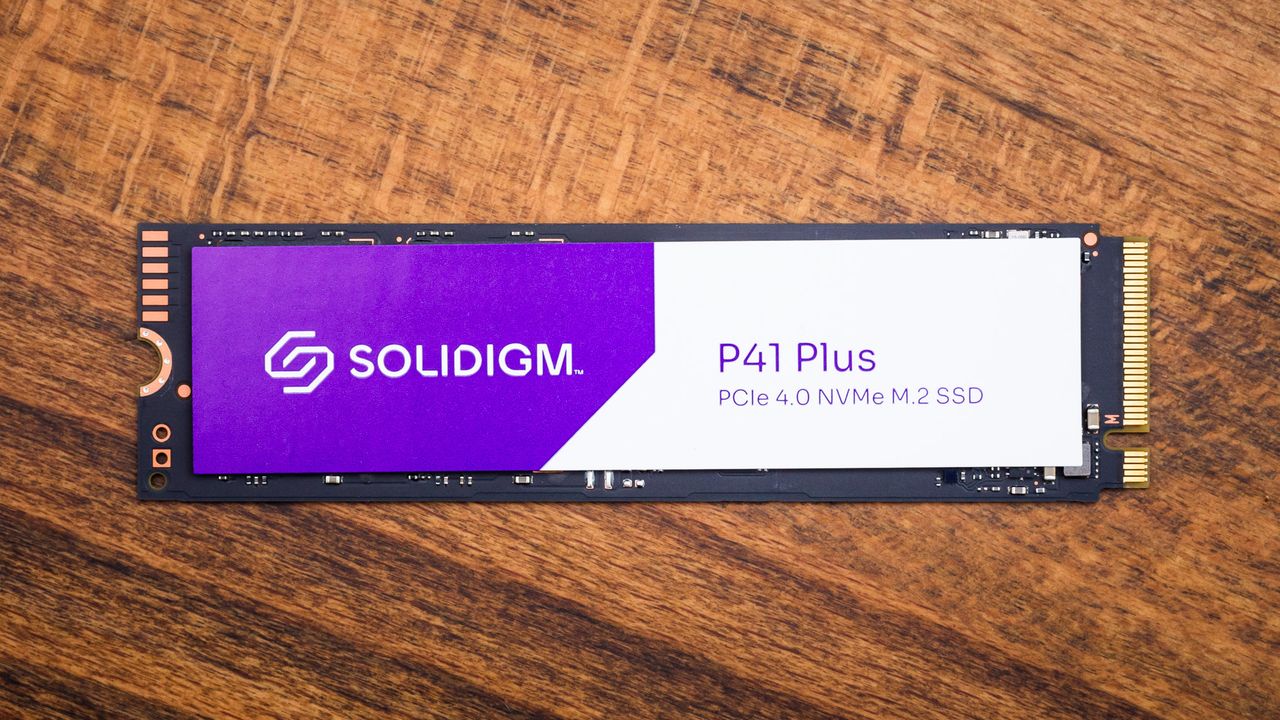

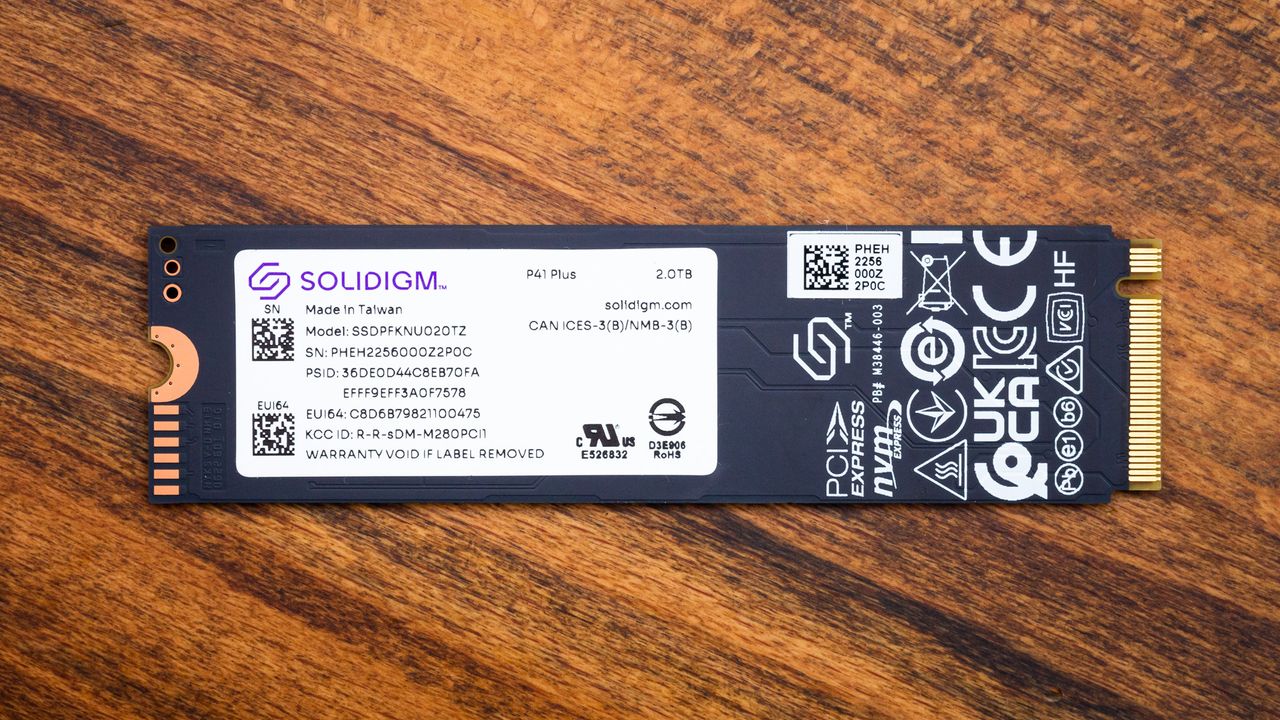

The P41 Plus has a label on the front and the back. The front label displays the subsidiary’s logo and name with the use of an attractive purple hue for a backdrop. The rear label has more information on the drive. It is a single-sided SSD with a controller and just two NAND packages, made possible by using dense QLC.
The controller is a Silicon Motion (SMI) SM2269XT. This controller has appeared on the Micron 2400 OEM series of SSDs, coupled with Micron’s 176-layer QLC with those drives. This controller’s performance characteristics place it against competing products such as the InnoGrit IG5220, the Phison E21T, and WD’s proprietary design on the SN770.
SMI is a bit late to the game with its new PCIe 4.0 controllers, partly because of the shift from a Cortex-R5 to a Cortex-R8 base. The latter achieves significantly better performance per clock, although there are other differences. So it’s not necessarily more efficient, but the 12nm dual-core design of the SM2269XT should keep it competitive.
The flash packages are labeled 29F08T4A0CQK2. This tells us it’s from Intel, 8Tb or 1TB per package, and of the 144-layer (K) generation. This is now Solidigm NAND, although SK hynix has its own 176-layer QLC, as presented at ISSCC 2022. This particular 144-layer flash is also used on the Intel 670p, utilizing a floating gate architecture. SK hynix’s QLC is, instead, charge trap flash, much like Micron’s 176-layer QLC. All of this flash is essentially comparable in performance.
