FSP’s New CMT230 And CMT240 Chassis Bring The 5.25” Drive Bay Back

FSP released two new mid-tower chassis, the CMT230 and CMT240. These no-frills chassis’ defining selling point are their dual 5.25” drive bays, which is a rarity among modern cases.

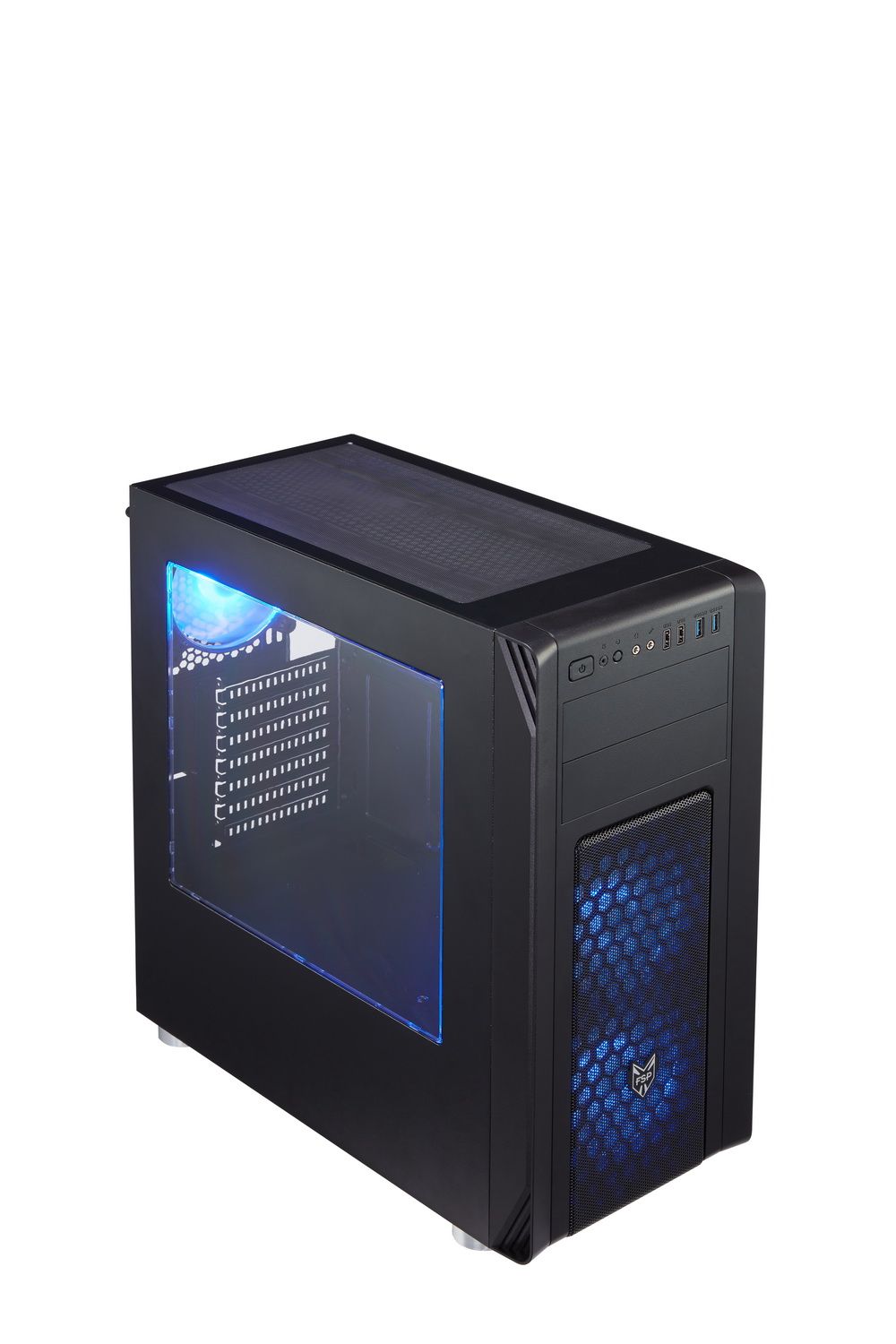

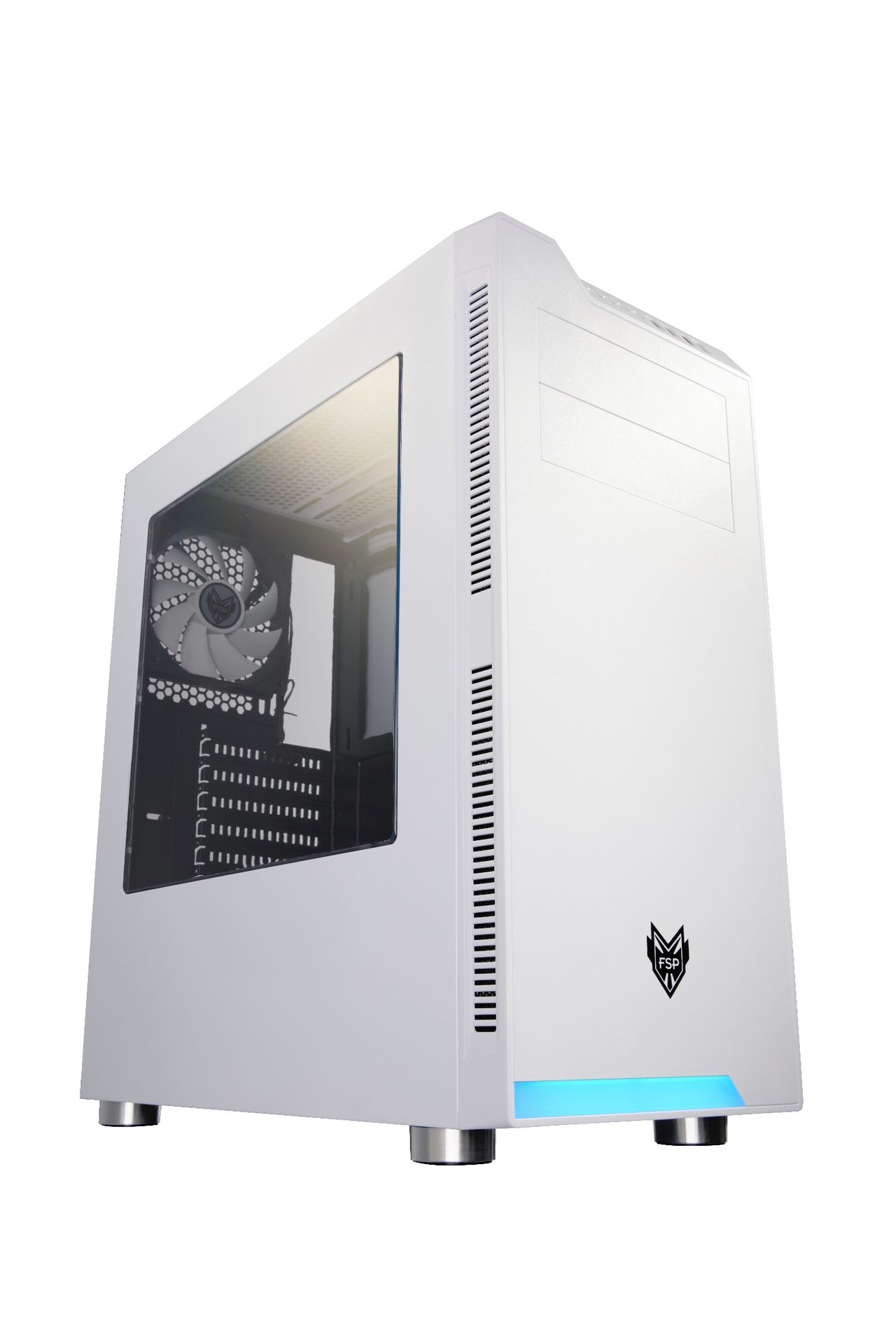

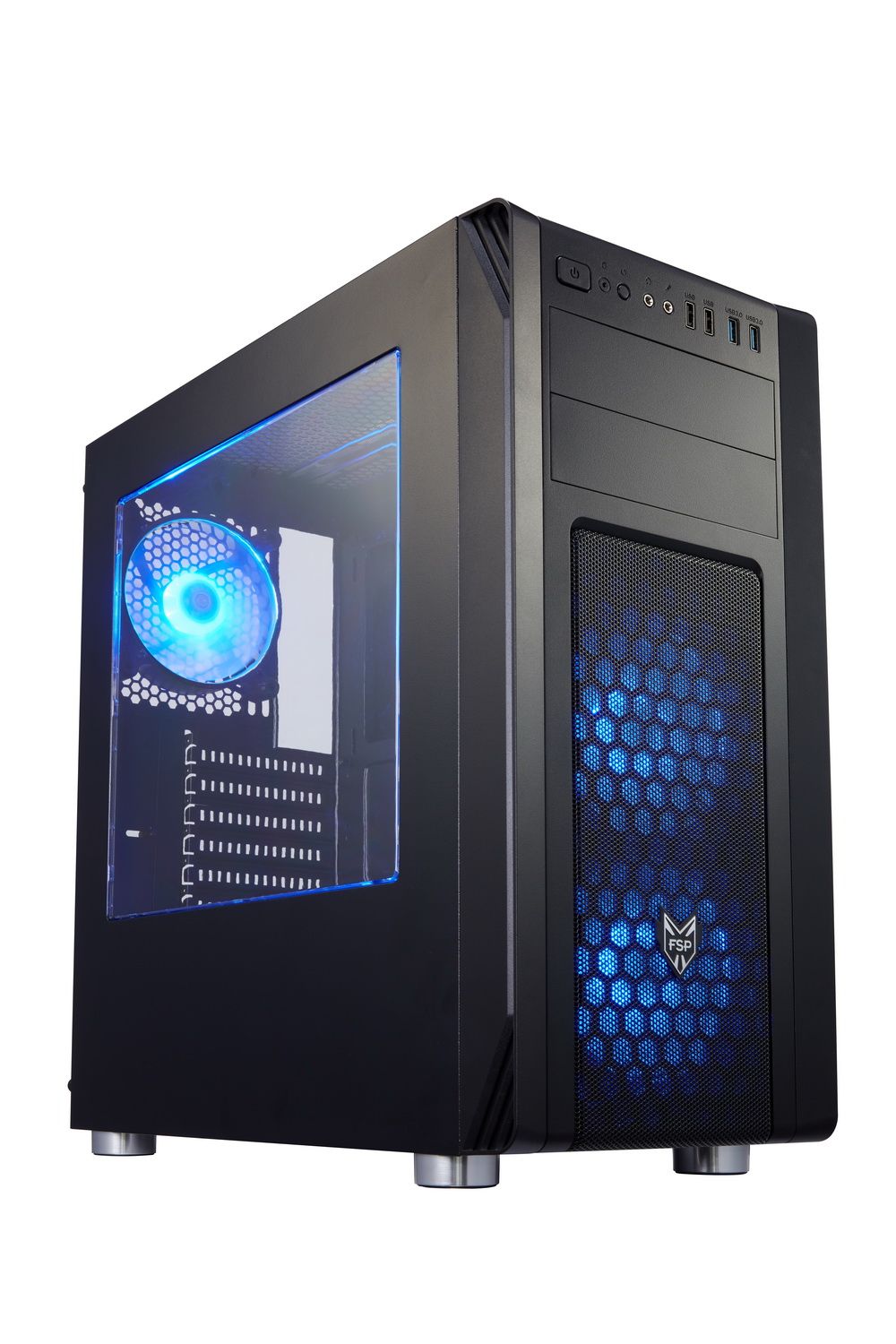

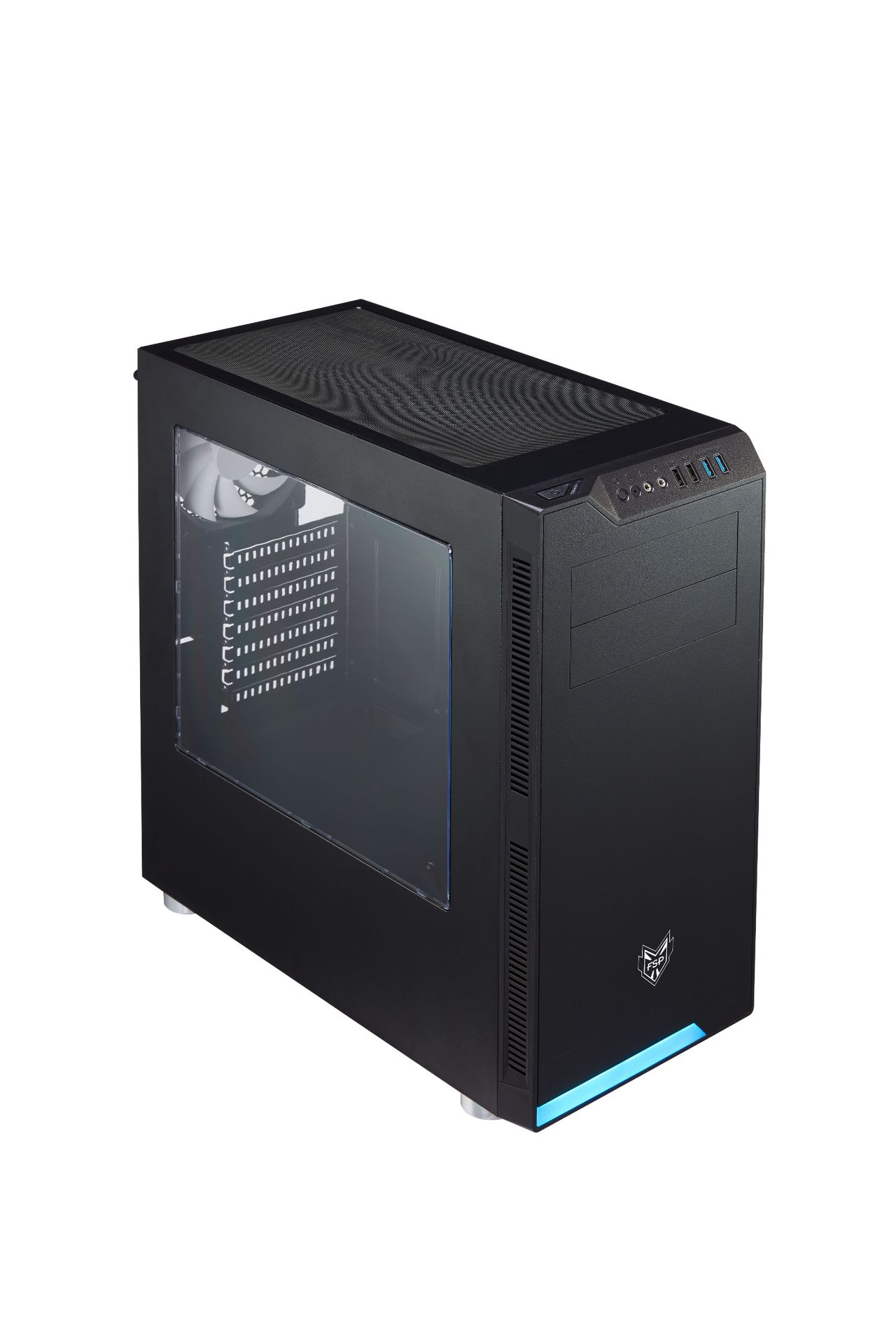

It seems that FSP likes to release its cases in pairs. Mere days after releasing the CMT330 and CMT520, the company has released a new duo: the CMT230 and CMT240. Taking after their more premium cousins, this pair of cases feature identical interiors but different exteriors. The CMT230 has mesh section at the front for air intake, while the CMT240 has single-pane frontal faceplate with side air intake vents. Both cases’ exteriors are relatively nondescript, but the CMT240 has a blue glow element at the foot of its faceplate that adds just a bit of style.

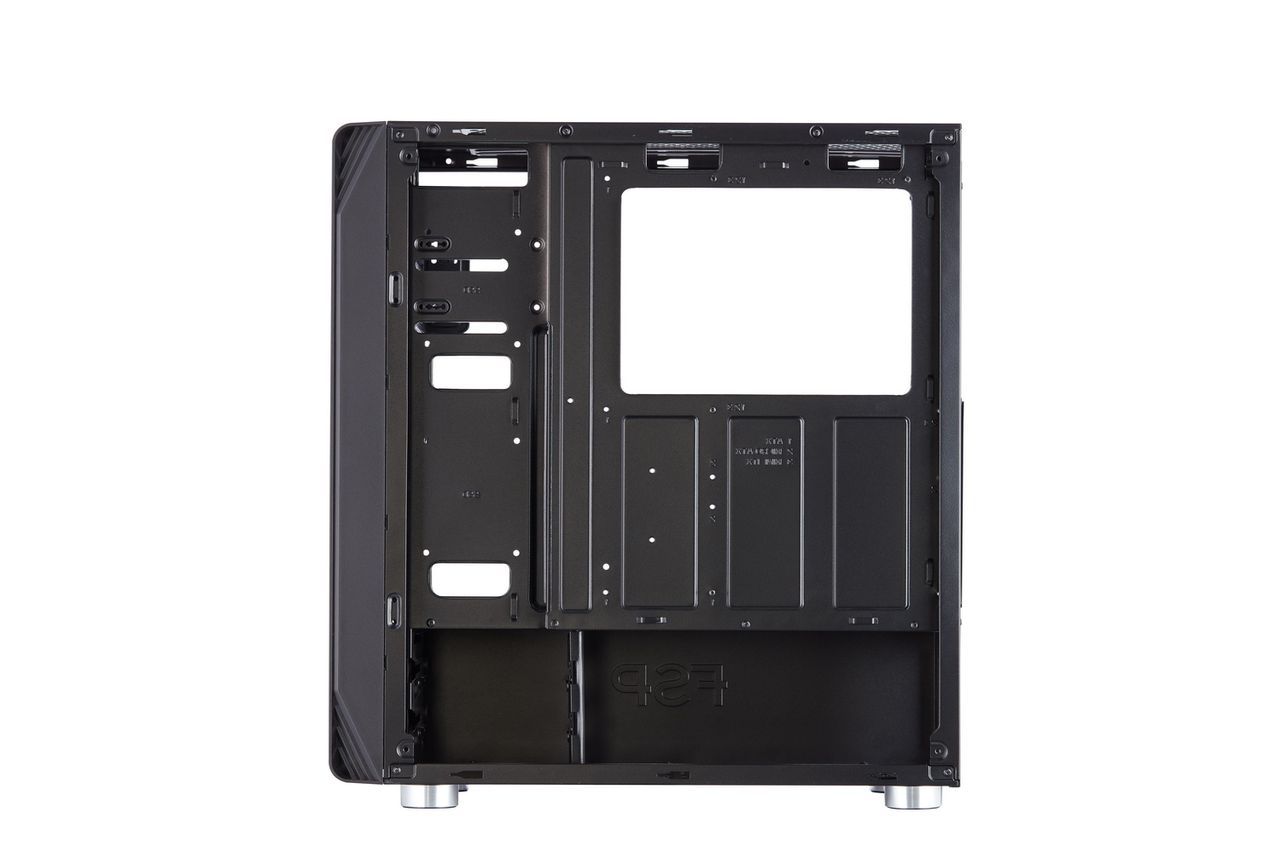

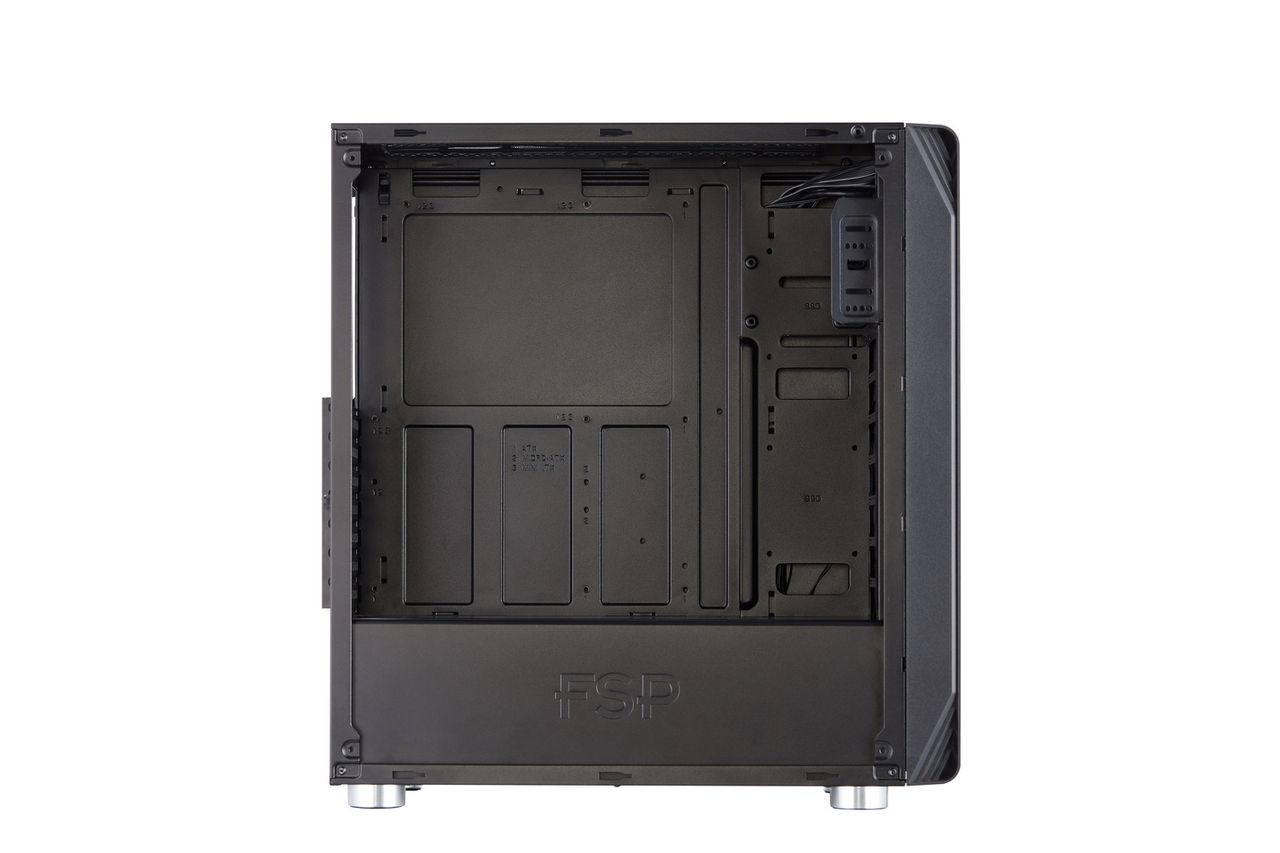

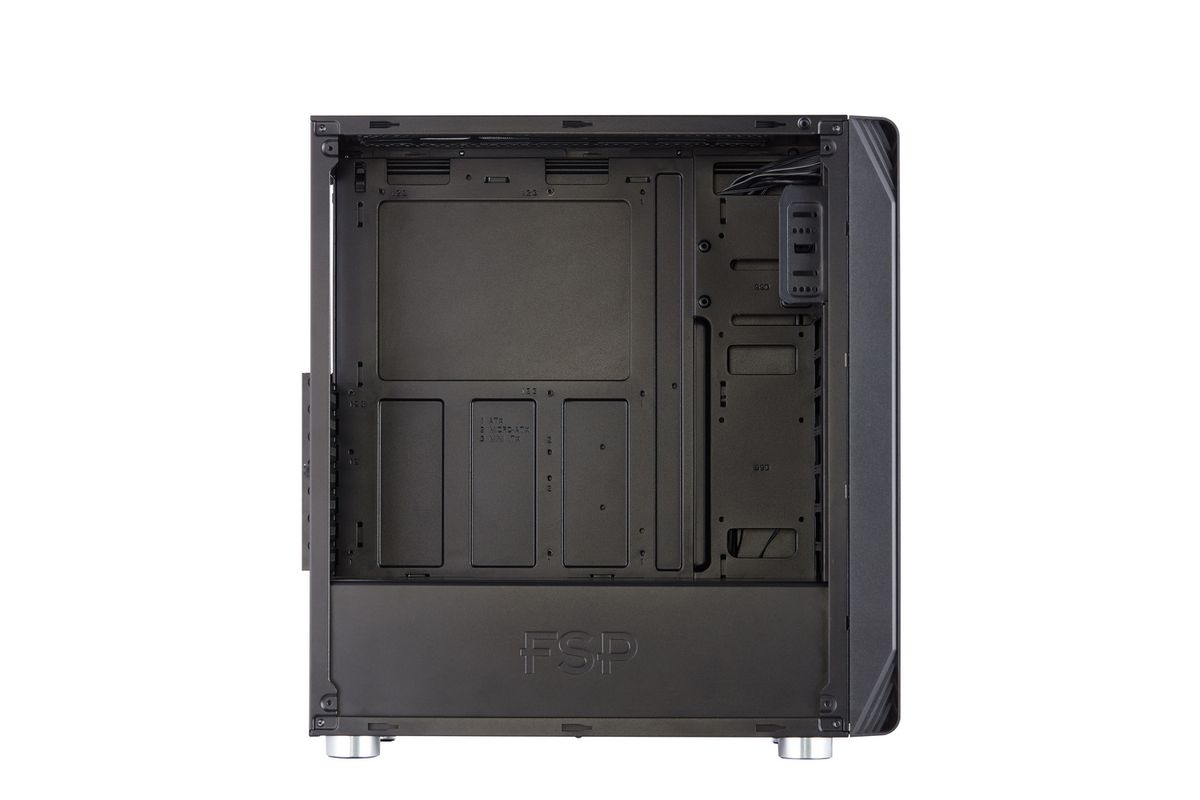

On the inside, these cases can fit motherboards up to standard ATX size. Along with the aforementioned dual 5.25” drive slots, there’s space for two 3.5” drives, in a cage on the case floor, and two 2.5” drives, in mounts on the motherboard tray. Seven card slots allow GPUs up to 373mm in length to be installed. The cooler height clearance of 179mm shouldn’t be a restriction on air cooling, but it also means that even the widest GPUs should fit in this case.

Moving on to cooling, all fan mounts on these cases can fit either 120mm or 140mm fans. The front of these cases can fit three fans, the top can fit two, and the rear can fit one. Installing 5.25” drives will limit the front to two fans, however. Radiators of 280mm size can be installed on the front and top of these cases.

The FSP CMT230 and CMT240 are available now. The price for the CMT230 is $60, while prices for the CMT240 are $48 for the black version and $51 for the white version.

Product

CMT230

CMT240

Type

Mid Tower

Mid Tower

Motherboard Support

ATX, mATX, Mini-ITX

ATX, mATX, Mini-ITX

Dimensions (W x D x H)

210 x 390 x 450mm

210 x 390 x 450mm

Space Above Motherboard

Unknown

Unknown

Card Length

373mm

373mm

Power Supply Format

PS/2

PS/2

Weight

Unknown

Unknown

External Bays

2 x 5.25”

2 x 5.25”

Internal Bays

2 x 3.5”, 2 x 2.5”

2 x 3.5”, 2 x 2.5”

Card Slots

7

7

Port/Jacks

2 x USB 3.0, 2 x USB 2.0, Mic In, Audio Out

2 x USB 3.0, 2 x USB 2.0, Mic In, Audio Out

Other



Front Fans

3 x 120mm (2 included, blue LED) or 3 x 140mm


3 x 120mm or 3 x 140mm


Rear Fans

1 x 120mm (included, blue LED) or 1 x 140mm

1 x 120mm (included) or 1 x 140mm

Top Fans

2 x 120mm or 2 x 140mm

2 x 120mm or 2 x 140mm

Side Fans

X

X

Dampening

X

X
