Nvidia's GeForce RTX 30 Super Potential Specs Have Been Leaked

News
By Zhiye Liu
last updated

The great Ampere refresh

GeForce RTX 3070

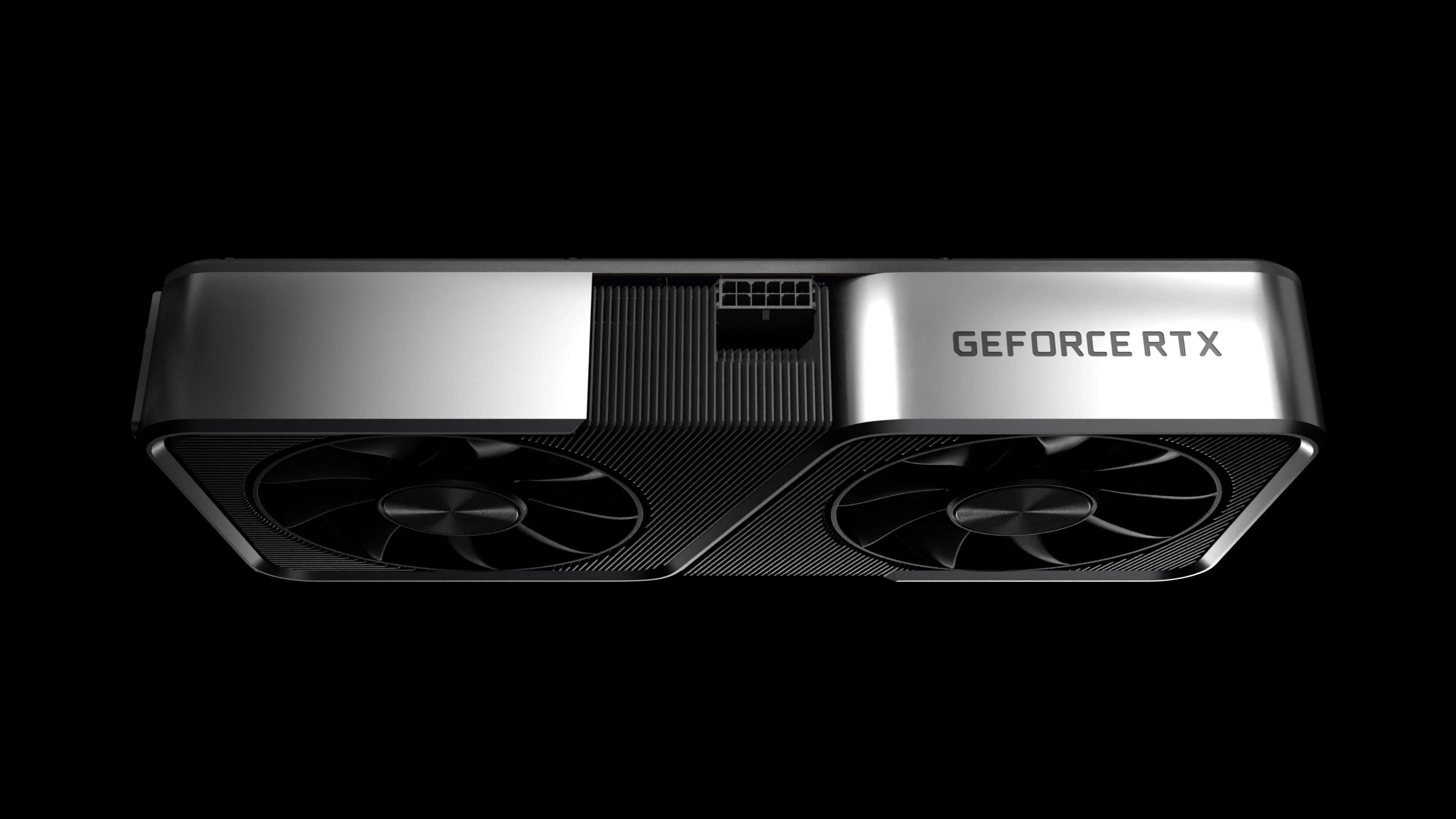

GeForce RTX 3070 (Image credit: Nvidia)

Nvidia's GeForce RTX 30-series (Ampere) products are some of the best graphics cards on the market right now. However, they may get even faster according to the recent rumors of an Ampere refresh.

It's almost a given that Nvidia will give its Ampere graphics cards the same Super treatment as it did with Turing. Now, the question is when will Nvidia unleash the GeForce RTX 30-series Super graphics cards. Word on the street is that we may be looking at a early 2022 launch, however, there is no evidence to back it up.

Hardware leaker kopite7kimi, who has an impeccable track record with Ampere leaks, has shared a summary of the potential specifications for the GeForce RTX 30-series Super lineup. We don't know just how far Nvidia is into the Ampere refresh, and specifications do change over time. In fact, the leaker himself questions some of the specifications, therefore, we recommend you approach the rumored specifications with caution.

Nvidia GeForce RTX 30-Series Super Specifications

Swipe to scroll horizontally
Header Cell - Column 0 GeForce RTX 3090 Super*GeForce RTX 3090GeForce RTX 3080 Super*GeForce RTX 3080GeForce RTX 3070 Super*GeForce RTX 3070GeForce RTX 3060 Super*GeForce RTX 3060
SM8482706846464428
TMUs336328280272184184176112
CUDA Cores10,75210,4968,9608,7045,8885,8885,6323,584
Tensor Cores336328280272184184176112
RT Cores8482706846464428
Memory24GB GDDR6X24GB GDDR6X12GB GDDR6X10GB GDDR6X8GB GDDR6X8GB GDDR612GB GDDR612GB GDDR6

*Specifications are unconfirmed.

The GeForce RTX 3090 Super may arrive with 10,752 CUDA cores, meaning it'll leverage the full GA102 die. For comparison, the vanilla GeForce RTX 3090 has 82 enabled SMs for 10,496 CUDA cores whereas the Super counterpart comes with 84 SMs or 10,752 CUDA cores. We're basically looking at a 2.4% increase in CUDA core count. Appaently, the memory will remain the same, although kopite7kimi is unsure if Nvidia will roll with the GeForce RTX 3090 Super name.

The GeForce RTX 3080 Super could see a similar improvement as the flagship Ampere SKU. Remember that the GeForce RTX 3080 also utilizes the GA102 silicon but with 68 SMs (8,704 CUDA cores). Two more SMs on the GeForce RTX 3080 Super would bump the total to 8,960 CUDA cores. However, it's plausible that the GeForce RTX 3080 Super may get a memory upgrade as well. The rumor is pointing to 12GB of GDDR6X, 2GB more than the regular GeForce RTX 3080.

As for the GeForce RTX 3070 Super, it would appear that this SKU drew the shortest straw out of the refreshed Ampere models. If the rumored specifications are accurate, the graphics card may retain the same CUDA core count and memory as the GeForce RTX 3070. The upgrade seems to be a simple swap from GDDR6 to GDDR6X memory.

The GeForce RTX 3060 Super, on the other hand, seems to bring the biggest upgrade in terms of performance. The GeForce RTX 3060 Super is rumored to sport 5,632 CUDA cores, which would equal to 44 SMs. As a reminder, the GeForce RTX 3060 is based on the GA106 die, which only has 30 SMs. This means that the GeForce RTX 3060 Super will likely use a different silicon. We suspect it may be the GA104 die that has a total of 48 SMs, which has more wiggle room. Curiously, the GA104 is the same silicon that powers the GeForce RTX 3060 Ti.

However, the GeForce RTX 3060 Ti's GA104 die only has 38 SMs enabled out of the potential 48 SMs. This certainly raises some eyebrows since the GeForce RTX 3060 Super would be faster than the GeForce RTX 3060 Ti. The GeForce RTX 3060 Super would have 44 SMs, very close to maxing the silicon. That's six SMs or 768 CUDA cores more than the GeForce RTX 3060 Ti. Therefore, the GeForce RTX 3060 Super would only make sense if Nvidia is thinking about phasing out the GeForce RTX 3060 Ti.

Zhiye Liu
Zhiye Liu
RAM Reviewer and News Editor

Zhiye Liu is a Freelance News Writer at Tom’s Hardware US. Although he loves everything that’s hardware, he has a soft spot for CPUs, GPUs, and RAM.
