Firmware

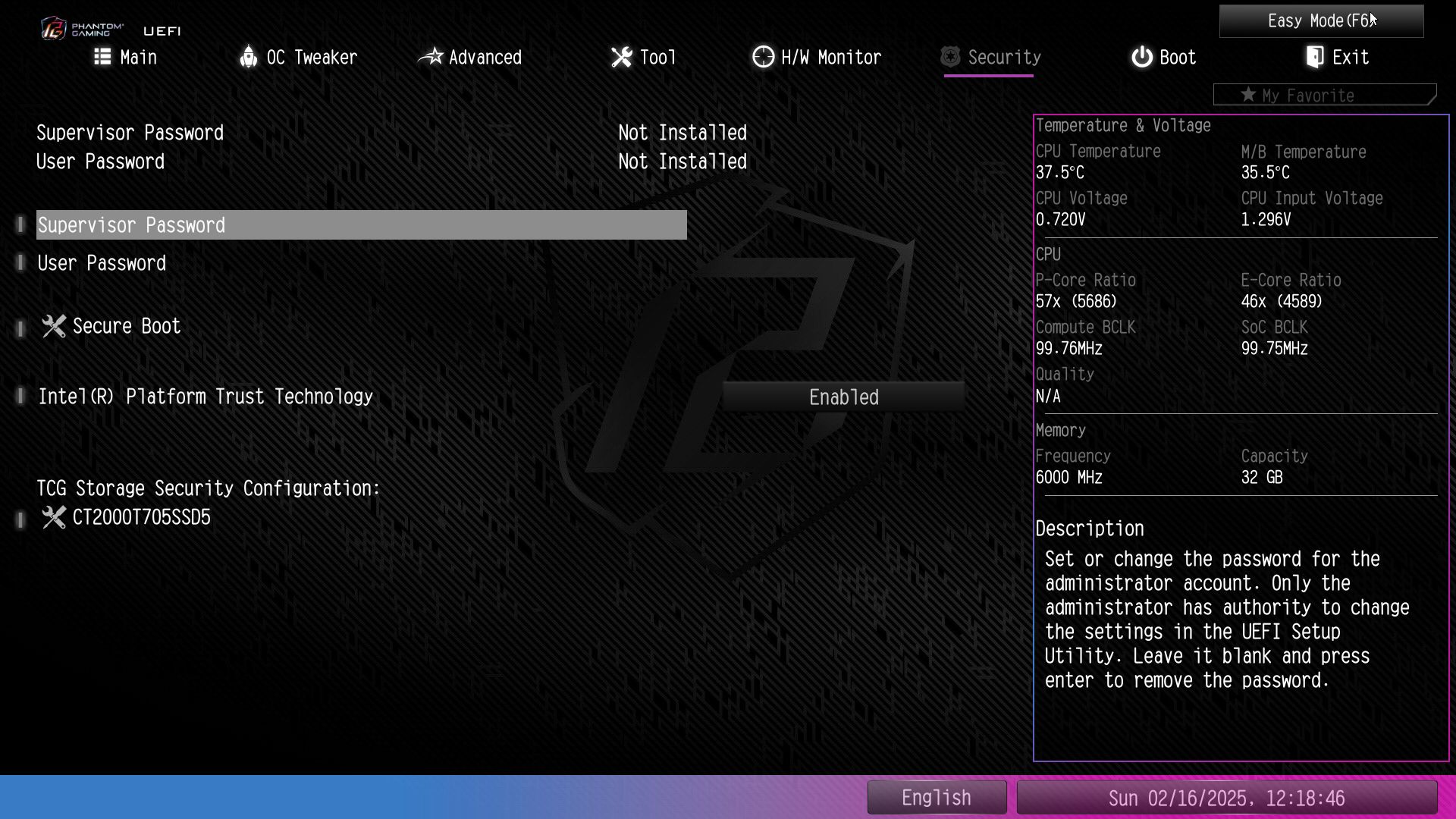

ASRock’s BIOS for the B860I Lightning WiFi features a black background and the familiar purple and blue accent colors associated with the Phantom Gaming theme. It includes an informative and functional Easy Mode alongside a more conventional Advanced section. While the BIOS is user-friendly with numerous options to customize your system, it feels somewhat dated compared to the refreshed BIOS options from MSI and Gigabyte. It still looks appealing, and at the end of the day, it’s a BIOS. It simply needs to function well, and it does.

Image 1 of 34
ASRock B860I Lightning Wifi
(Image credit: Tom's Hardware)

Software

ASRock offers several different software options. These include the App Shop, which allows users to install drivers and software, the Nahimic 3 audio control panel, the A-Tuning application (for overclocking and controlling fans), the flexible Polychrome RGB software, and more. A convenient pop-up to install drivers appears when the system is first booted (you can disable it from the BIOS). ASRock’s software provides everything users need to manage and tweak their systems.

Image 1 of 10
ASRock B860I Lightning Wifi
(Image credit: Tom's Hardware)

Test System / Comparison Products

We’ve updated our test system to Windows 11 (24H2) 64-bit OS with all updates applied as of mid-September 2024, which includes all OS optimizations. Hardware-wise, we’ve updated the RAM kits to match the AMD system, as well as cooling, storage, and our video card. Unless otherwise noted, we use the latest non-beta motherboard BIOS available to the public. Thanks to Asus for providing the RTX 4080 TUF graphics card and Crucial for the 2TB T705 SSDs. The hardware we used is as follows:

Test System Components

Swipe to scroll horizontally

CPU

Intel Core Ultra 9 285K

Cooling

Arctic Liquid Freezer II 420

Storage

Crucial 2TB T705 M.2 PCIe 5.0 NVMe SSD

RAM

Kingston Fury Beast DDR5-6000 CL36 (KF560C36BBEAK2-32)

RAM

GSkill Trident Z5 CK (F5-8200C4052G24GX2)

RAM

Klevv Cras XR5 RGB DDR5-8000 (KD5AGUA80-80R380S)

RAM

Kingston Renegade Fury DDR5-8200 CU-DIMM (KF582C40RS-24)

GPU

Asus TUF RTX 4080 16G

PSU

EVGA Supernova 850W P6

Software

Windows 11 64-bit (24H2)

Graphics

NVIDIA Driver 561.09

Sound

Integrated HD audio

Network

Integrated Networking (GbE to 10 GbE)

ASRock B860I Lightning Wifi

(Image credit: Tom's Hardware)

Benchmark Settings

Swipe to scroll horizontally

Synthetic Benchmarks and Settings

Row 0 - Cell 1

Procyon

Version 2.8.1352 64

Row 2 - Cell 0

Office 365, Video Editing (Premiere Pro 24.6.1), Photo Editing (Photoshop 25.1.2, Lightroom Classic 13.5.1)

3DMark

Version 2.29.8294.0 64

Row 4 - Cell 0

Speed Way and Steel Nomad (Default)

Cinebench R24

Version 2024.1.0

Row 6 - Cell 0

Open GL Rendering Benchmark - Single and Multi-threaded

Blender

Version 4.2.0

Row 8 - Cell 0

Full benchmark (all 3 tests)

Application Tests and Settings

Row 9 - Cell 1

LAME MP3

Version SSE2_2019

Row 11 - Cell 0

Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)

HandBrake CLI

Version: 1.8.2

Row 13 - Cell 0

Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)

Corona 1.4

Version 1.4

Row 15 - Cell 0

Custom benchmark

7-Zip

Version 24.08

Row 17 - Cell 0

Integrated benchmark (Command Line)

Game Tests and Settings

Row 18 - Cell 1

Cyberpunk 2077

Ultra RT: - 1920 x 1080,  DLSS - Balanced

F1 2024

Ultra High Preset - 1920 x 1080, 16xAF/TAA, Great Britain (Clear/Dry), FPS Counter ON
