Adata XPG SX8200 Pro Review: Go Pro on a Budget (2TB Update)

Adata XPG SX8200 Pro 2TB
Editor's Choice
(Image: © Adata)

Tom's Hardware Verdict

At the 2TB capacity, Adata’s XPG SX8200 Pro is a highly competitive SSD that trades blows with Samsung’s finest. For the price, it is a solid pick.

Pros

  • +

    High-performance

  • +

    Class-leading power efficiency

  • +

    Black PCB with stylish DIY heat spreader

  • +

    Software package

  • +

    5-year warranty

Cons

  • -

    Same endurance as the non-Pro model

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

12/20/2019 Update: We've updated this article with new testing for the 2TB XPG SX8200 Pro on page 4.

12/15/2019 Update: We've updated this article with new testing for the 512GB XPG SX8200 Pro on page 2.

Original Review published 2/12/2019:

One of the best SSDs you can buy, Adata’s XPG SX8200 Pro, is designed for gamers, overclockers, and video content producers. The drive features speeds of up to 3.5 / 3 GBps of read/write throughput and power efficiency that outclasses any other SSD we've tested, making the SX8200 Pro the performance leader out of the gate. The black XPG heat spreader makes it an even 'cooler' buy. Best of all, the SX8200 Pro's pricing undercuts the Samsung 970 EVO and PRO, as well as many other competitors. As of publication time, the 1TB model was selling for just $117 on Amazon (after you click a coupon button).

Jam-packed with Micron’s 64L 3D TLC, Adata’s SX8200 Pro is nearly identical to the SX8200 and GAMMIX S11 we reviewed previously, except this time around the SSD comes armed with the new SMI SM2262EN controller that is a significant upgrade over the previous-gen SM2262.

The controller brings higher performance and better efficiency thanks to an improved data path and firmware enhancements. It also supports the NVMe 1.3 spec and comes with end-to-end data protection, a RAID Engine, and LDPC ECC to maintain data integrity over time. The drive also leverages SLC caching, which helps improve performance beyond the native TLC write performance.

Specifications

Swipe to scroll horizontally
ProductXPG SX8200 Pro 256GBXPG SX8200 Pro 512GBXPG SX8200 Pro 1TBXPG SX8200 Pro 2TB
Pricing$74.99$114.99$219.99N/A
Capacity (User / Raw)256GB / 256GB512GB / 512GB1024GB / 1024GB2048GB / 2048GB
Form FactorM.2 2280 D5M.2 2280 D5M.2 2280 D5M.2 2280 D5
Interface / ProtocolPCIe 3.0 x4 / NVMe 1.3PCIe 3.0 x4 / NVMe 1.3PCIe 3.0 x4 / NVMe 1.3PCIe 3.0 x4 / NVMe 1.3
ControllerSMI SM2262ENSMI SM2262ENSMI SM2262ENSMI SM2262EN
DRAMNANYA DDR3NANYA DDR3NANYA DDR3NANYA DDR3
MemoryMicron 64-Layer TLCMicron 64-Layer TLCMicron 64-Layer TLCMicron 64-Layer TLC
Sequential Read3,500 MB/s3,500 MB/s3,500 MB/s3,500 MB/s
Sequential Write1,200 MB/s2,300 MB/s3,000 MB/s3,000 MB/s
Random Read220,000 IOPS390,000 IOPS390,000 IOPS390,000 IOPS
Random Write290,000 IOPS380,000 IOPS380,000 IOPS380,000 IOPS
EncryptionN/AN/AN/AN/A
Endurance160 TBW320 TBW640 TBWN/A
Part NumberASX8200PNP-256GT-CASX8200PNP-512GT-CASX8200PNP-1TT-CN/A
Warranty5-Years5-Years5-Years5-Years

The SX8200 Pro model doesn't have as much over-provisioning as its predecessor, but that doesn’t mean less performance. Actually, it’s quite the opposite. The new SM2262EN controller powers the SX8200 Pro up to 3. 5/ 3GBps of throughput in sequential read/write workloads. As per usual, performance varies based on the capacity of the drive, with write performance being slower on the smaller models. The SX8200 Pro also provides up to 390K/380K random read/write IOPS.

Adata makes the Pro in 256GB, 512GB, 1TB and 2TB models. At publication time, U.S. prices came in around $0.11-13 cents per GB for the 512,  1TB, and 2TB models, while the 256GB retails for a much-higher $0.19 cents.

Swipe to scroll horizontally
ProductTBWDWPDWarranty
Adata XPG SX8200 Pro 1TB6400.355
Intel SSD 660p 1TB2000.115
Corsair Force MP510 960GB17000.935
Samsung 970 PRO 1TB12000.665
Adata XPG GAMMIX S11/SX8200 960GB6400.355
Samsung 860/970 EVO 1TB6000.335
WD Black 1TB6000.335
WD Blue 3D 1TB4000.373
Crucial MX500 1TB3600.25

The SX8200 Pro wouldn’t be a pro model SSD without a Pro-class warranty, so Adata added a lengthy five-year warranty paired with an endurance rating that spans up to 640TBW (terabytes written) for the 1TB model. Other new SSDs with Phison’s E12 controller do offer more endurance, but the Pro's rating it is still plenty for the average gamer or PC enthusiast.

SMI also turned its eye to improving power consumption with its new SM2262EN controller. An improved data path helps boot performance, but other enhancements focus on delivering the same or better performance within a more efficient power envelope. The SX8200 Pro supports multiple NVMe low power states and has an active rating of just 0.33W. It also has a slumber rating of just 0.14W.

Software

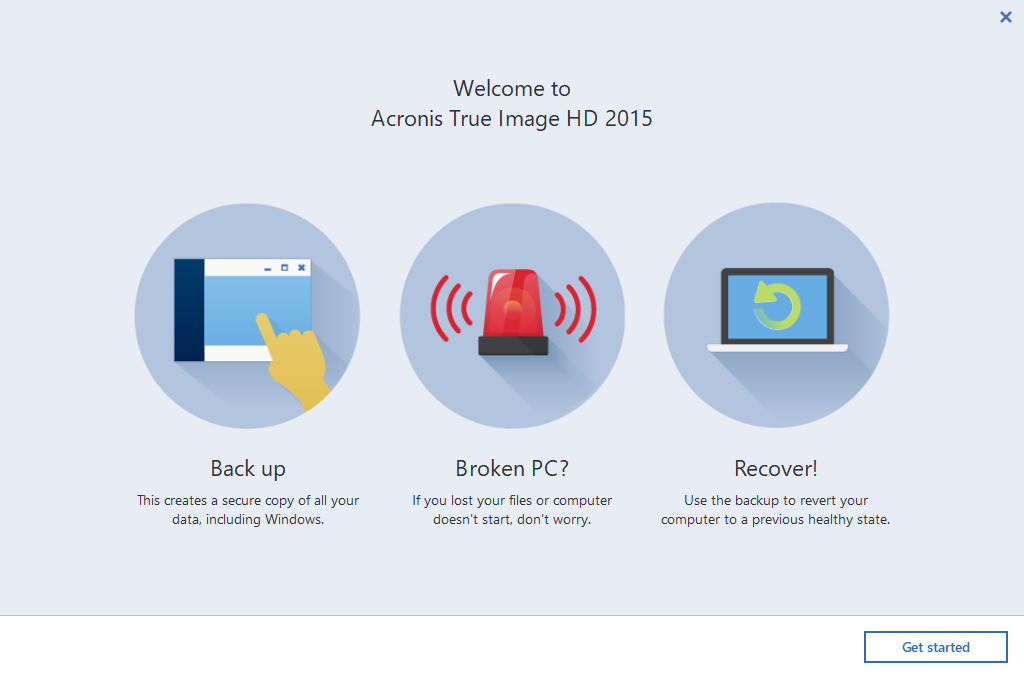

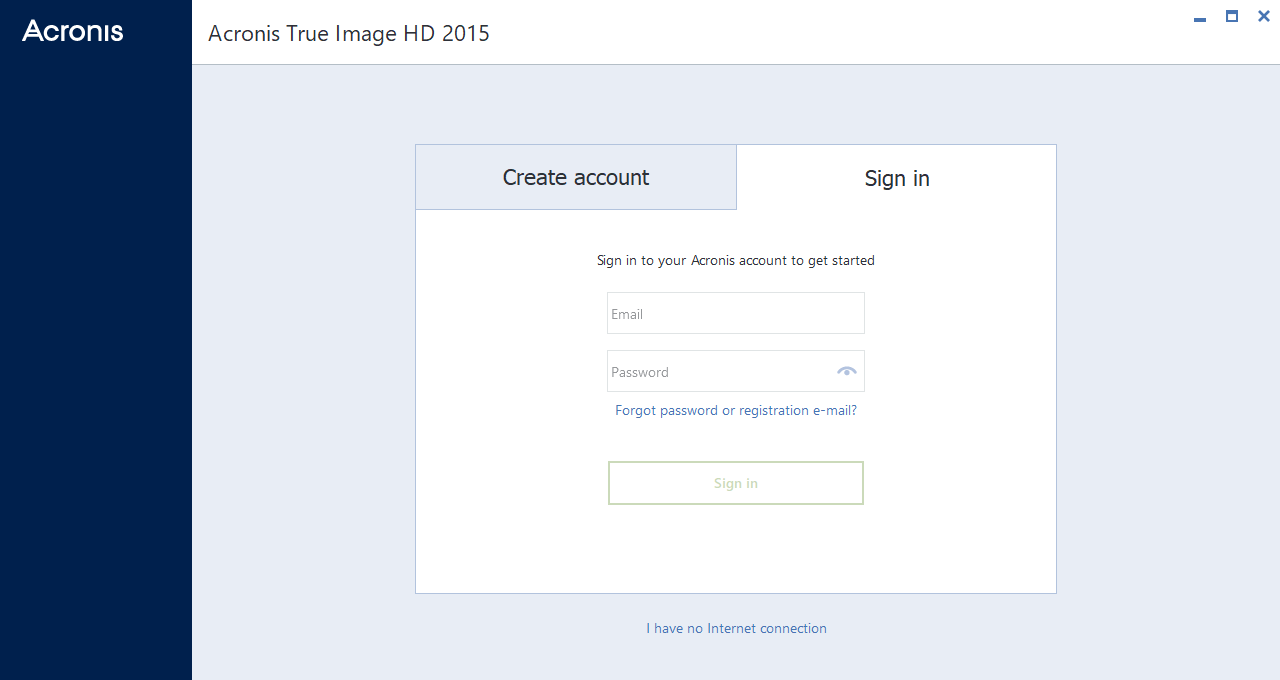

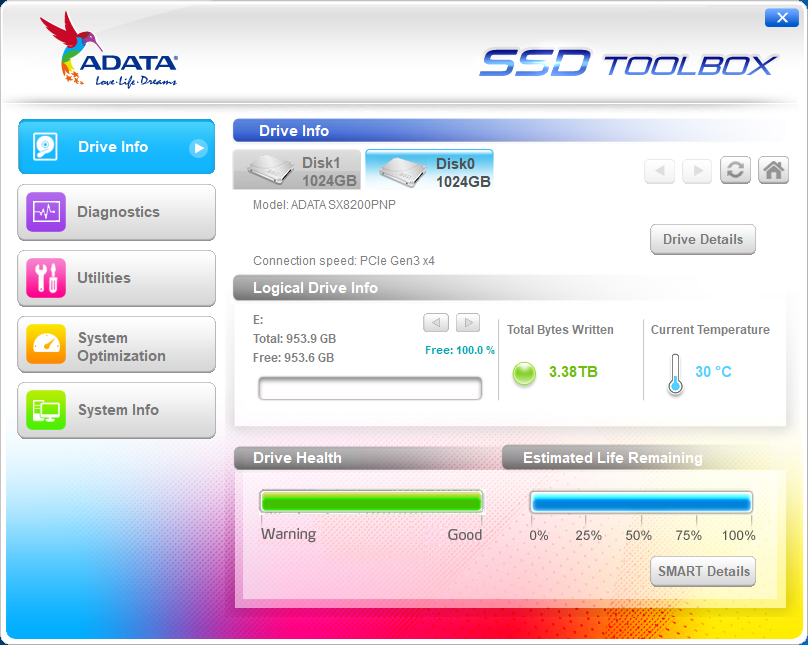

Product support wouldn’t be complete without a software package, right? Like others, Adata provides an SSD Toolbox as a download, which can be used to monitor the drive and perform firmware upgrades. Additionally, you can download Acronis True Image HD, a drive cloning software, to help you clone over your existing data to your new drive.

A Closer Look

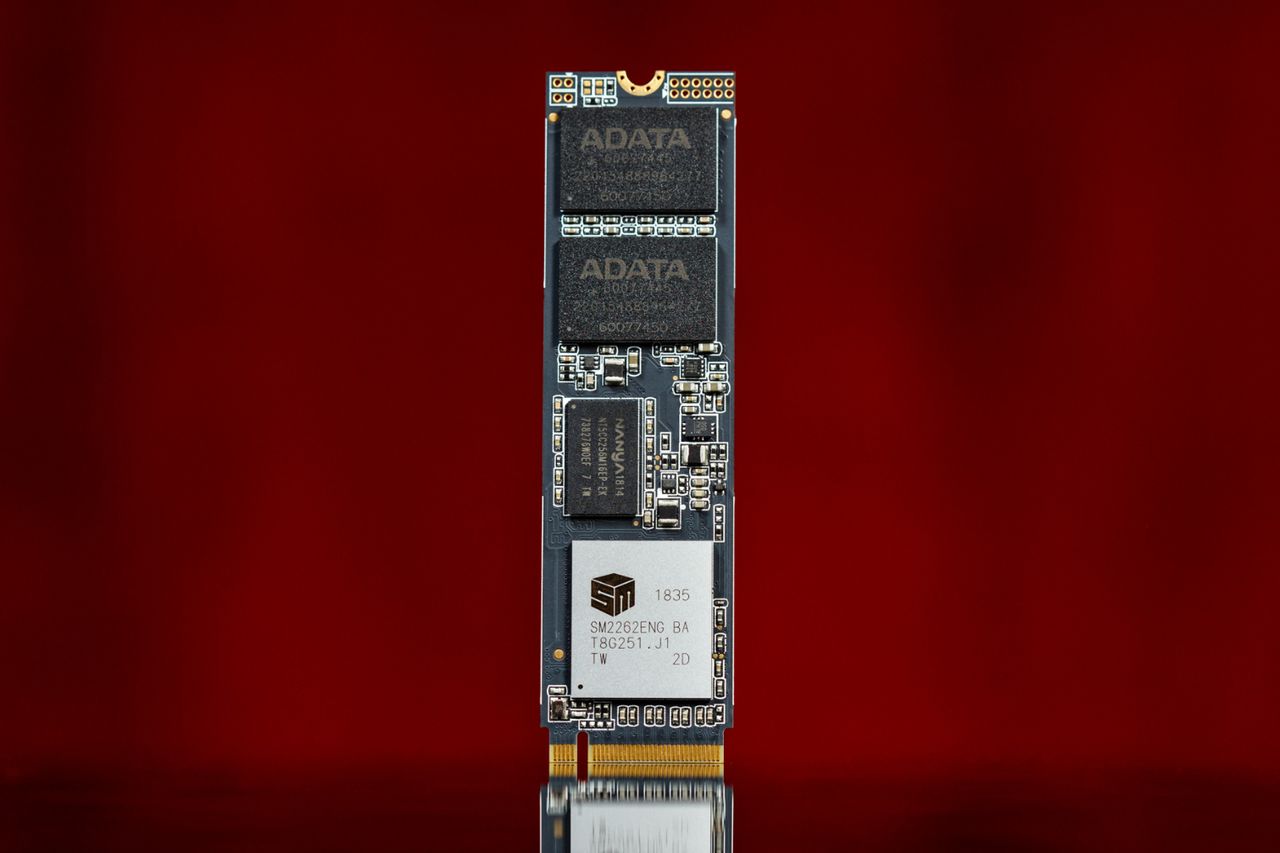

The XPG SX8200 Pro comes in an M.2 2280 form factor and uses a PCIe 3.0 x4 interface to connect to the host system. Aesthetically, the SX8200 Pro is quite appealing. It features a black PCB and even a stick-on heat spreader that improve looks but also helps dissipate heat a bit more efficiently.

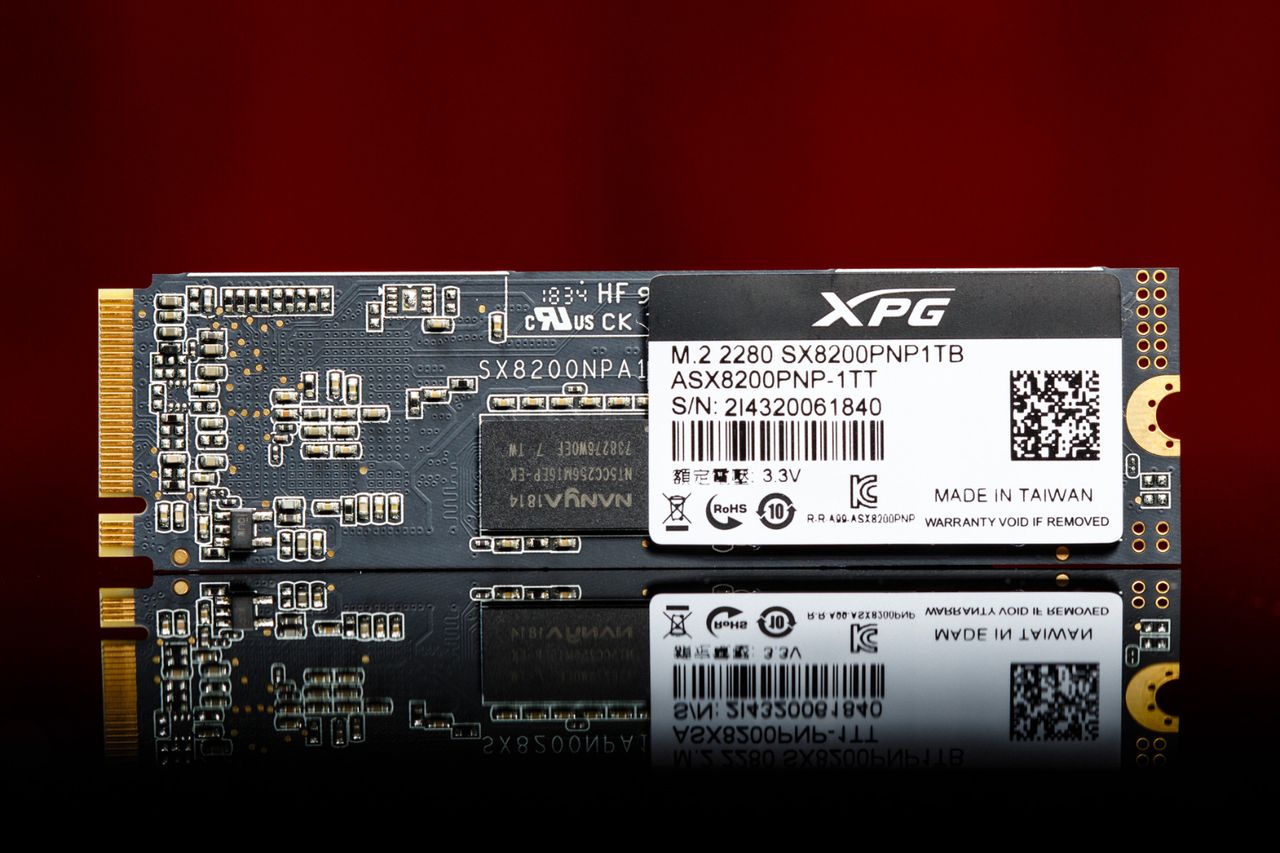

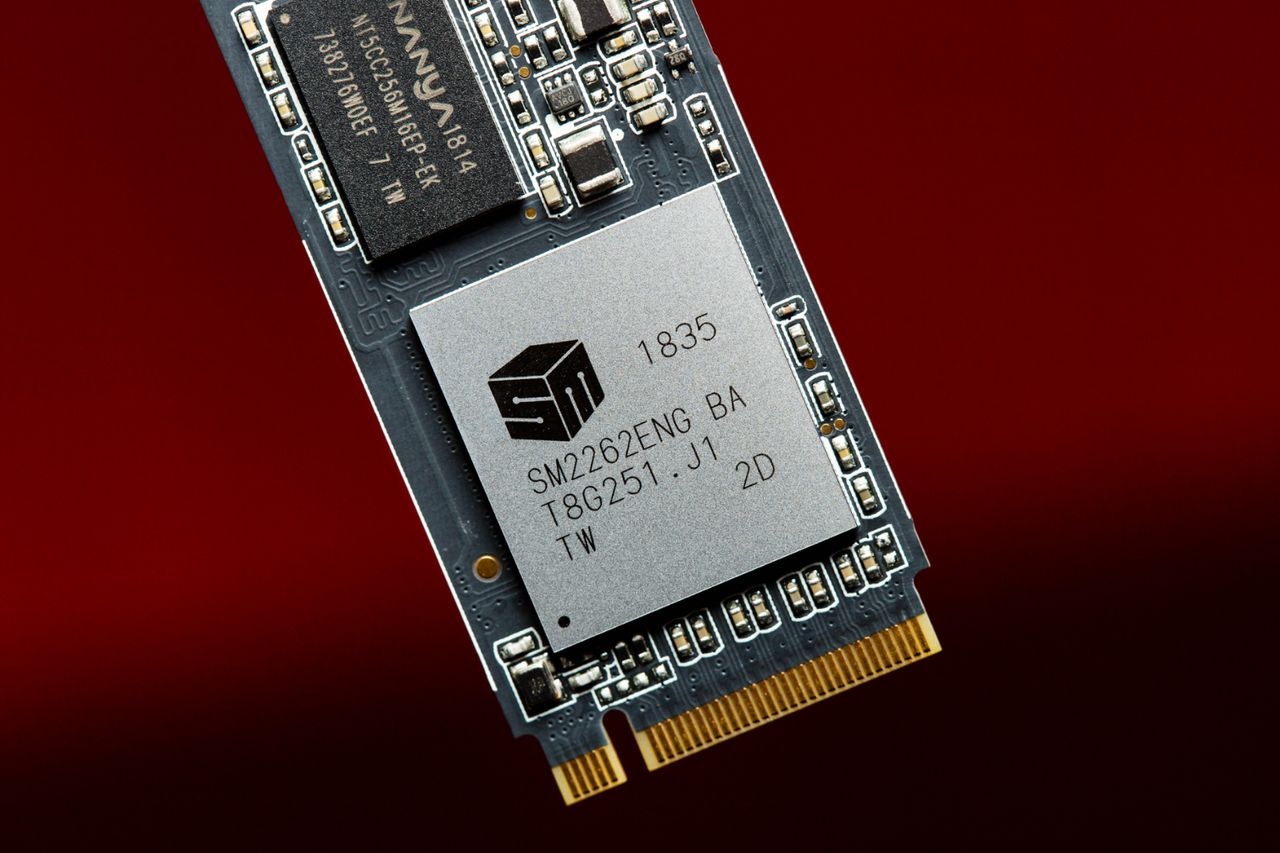

The 1TB model we're testing has components on both sides of the PCB, meaning it is double-sided and a bit thicker than the Samsung 970 EVO. The SM2262EN uses a DRAM cache to help maintain a steady level of performance. The drive has two DRAM emplacements, one on each side, that total 1GB, complemented by four Micron 64L 3D TLC NAND emplacements. After formatting, the 1TB SX8200 Pro exposes 953GB of usable capacity.
