Firmware, Software and Test System

Software

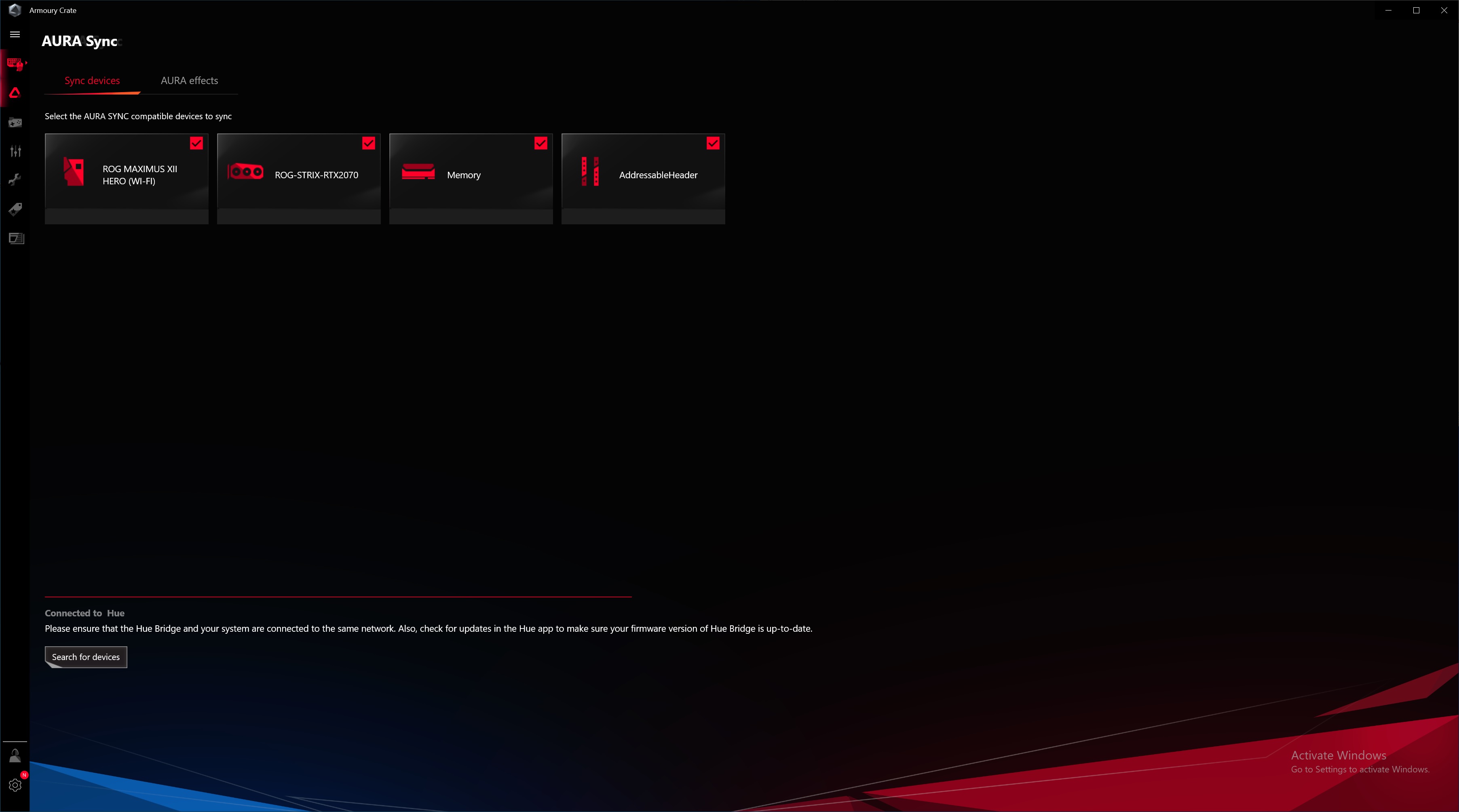

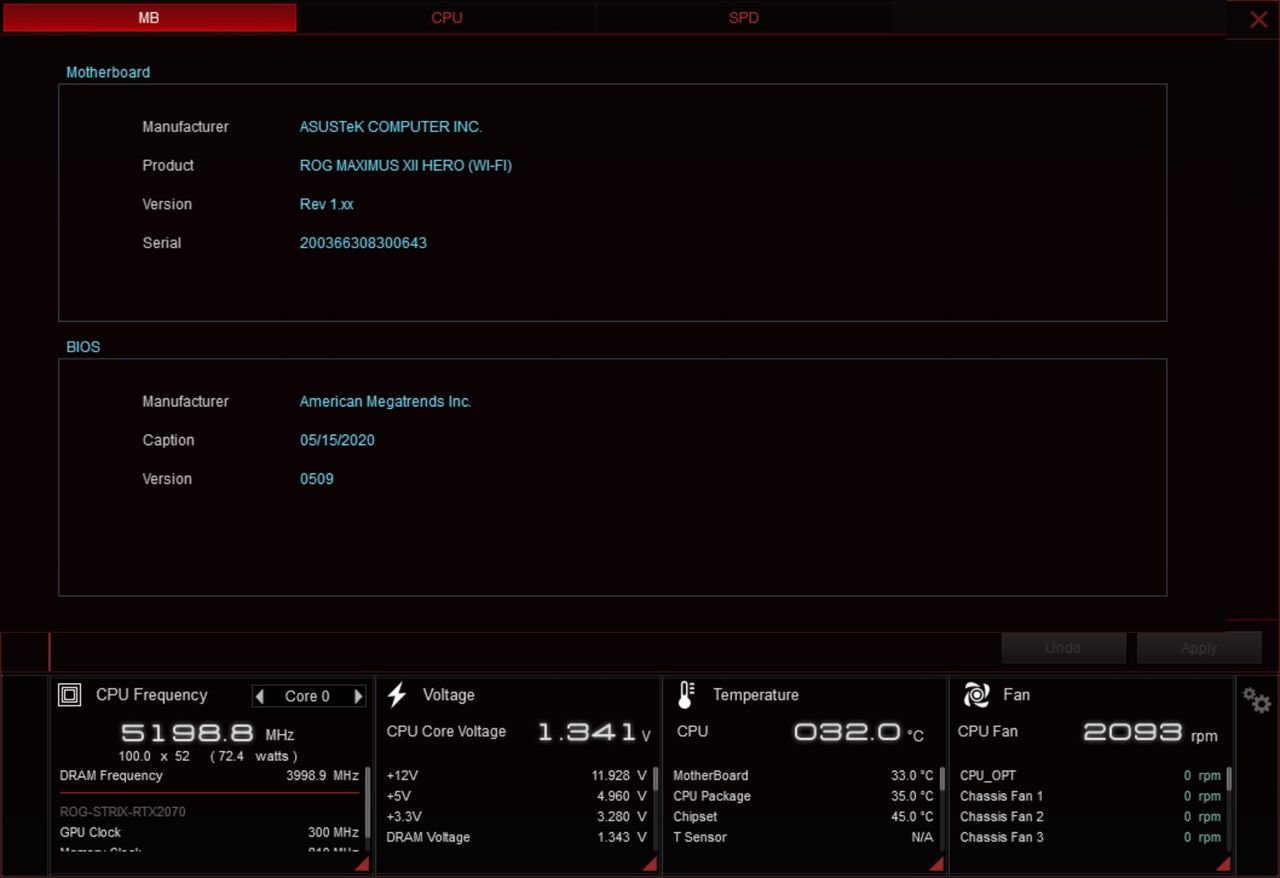

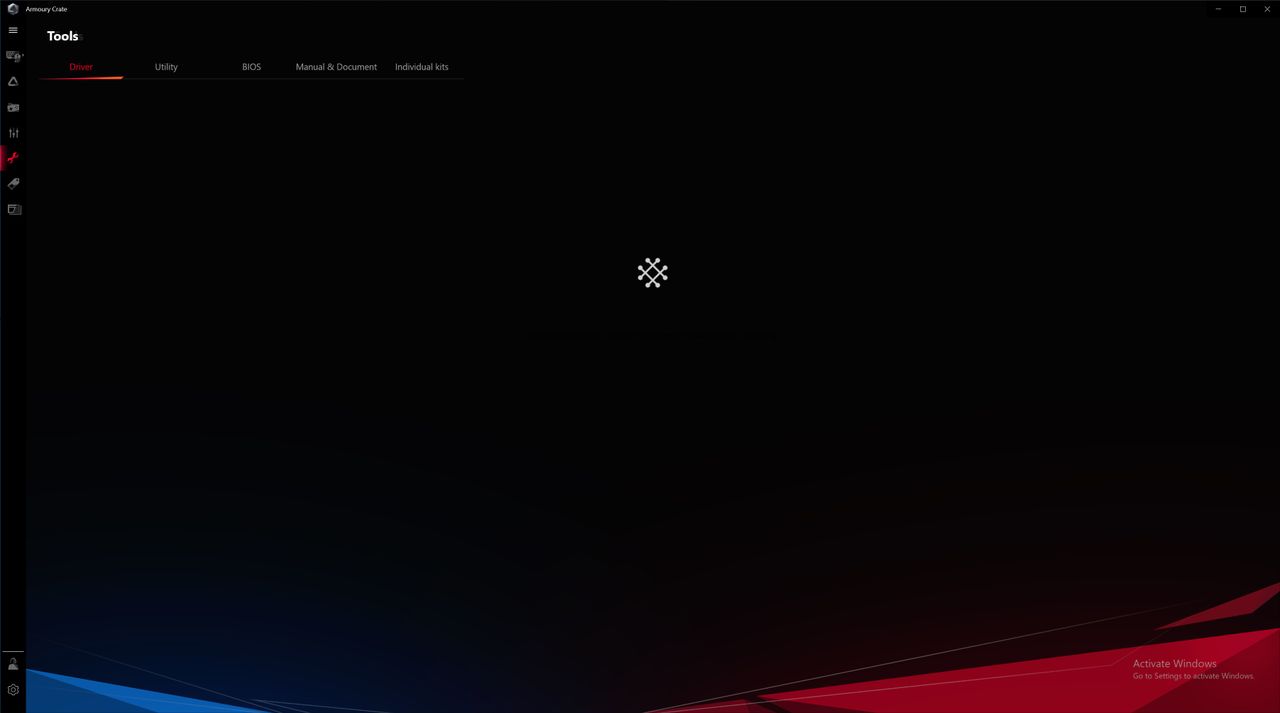

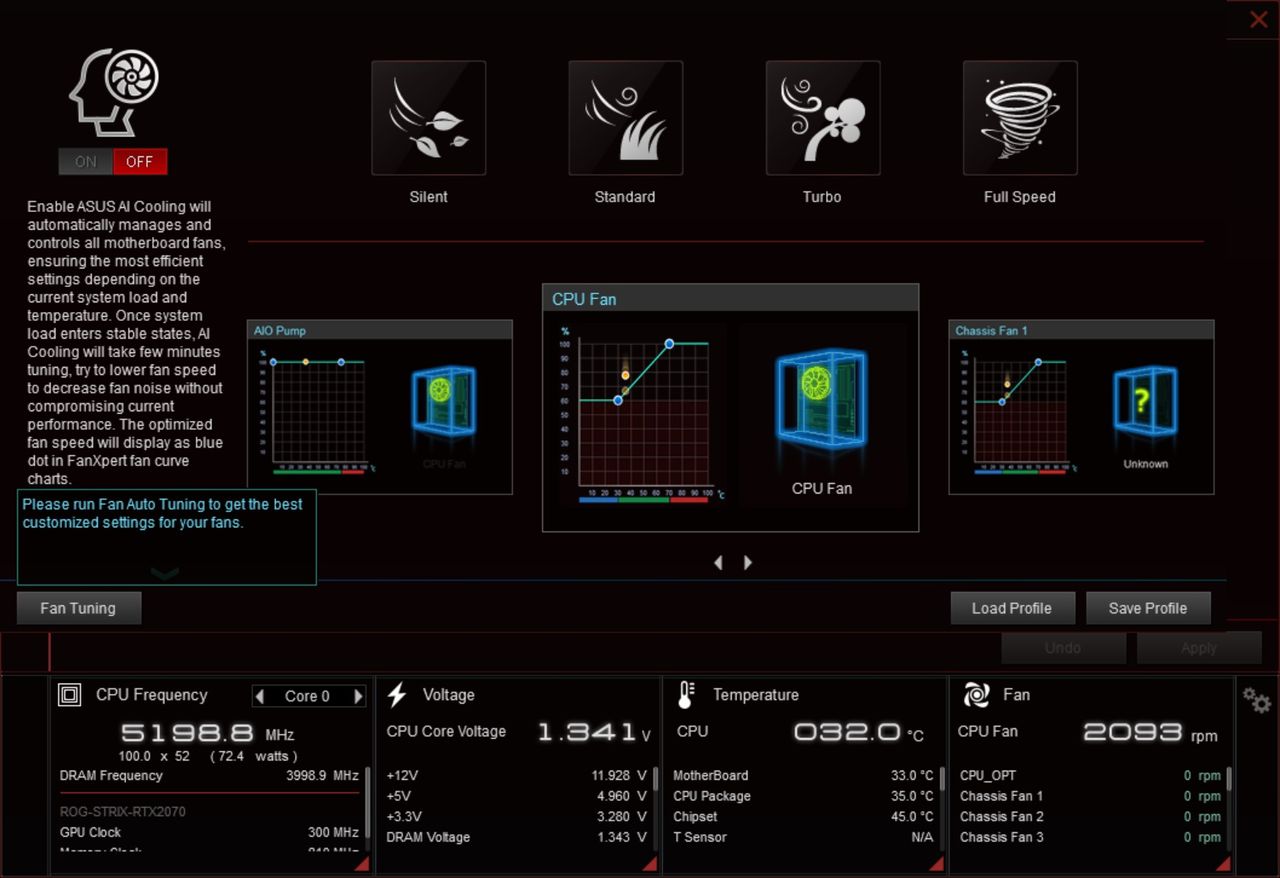

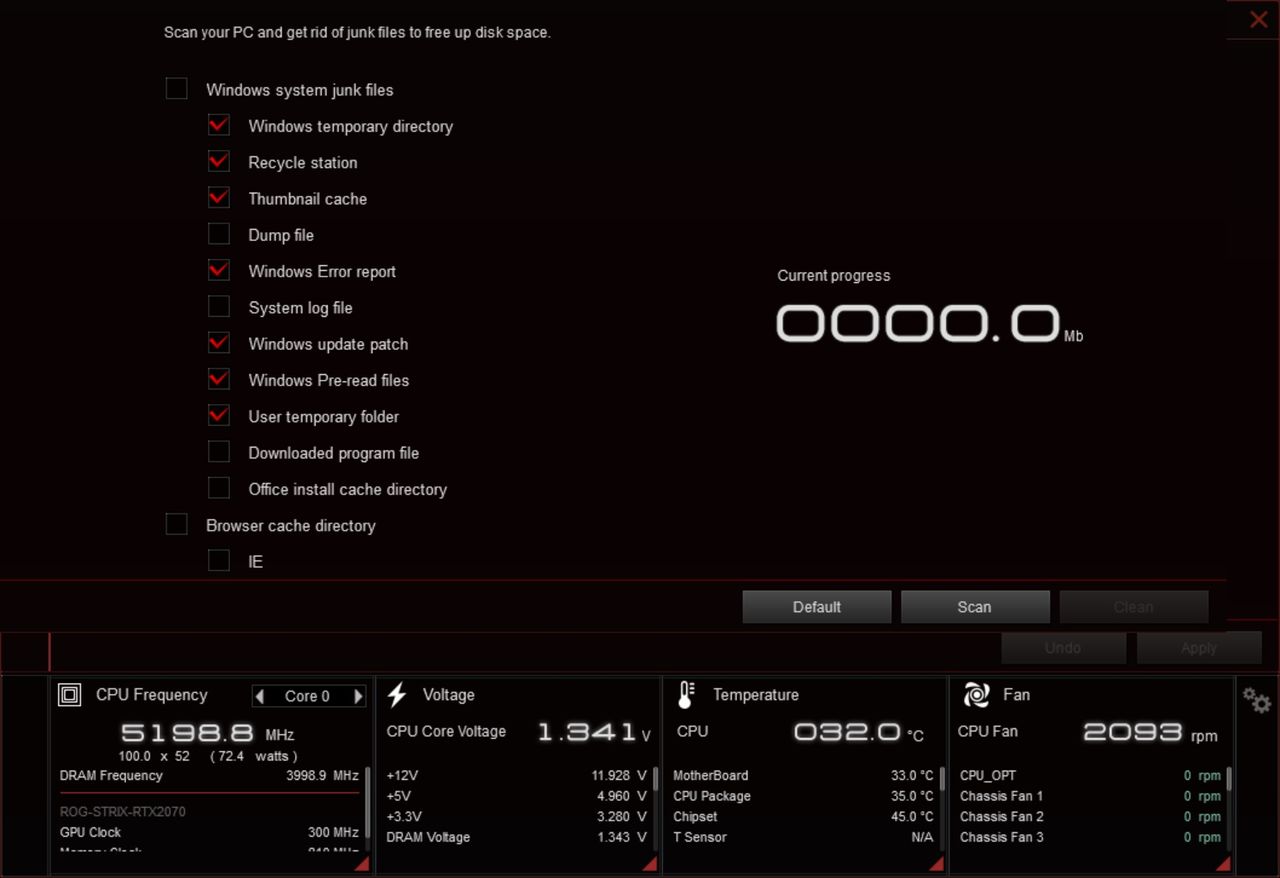

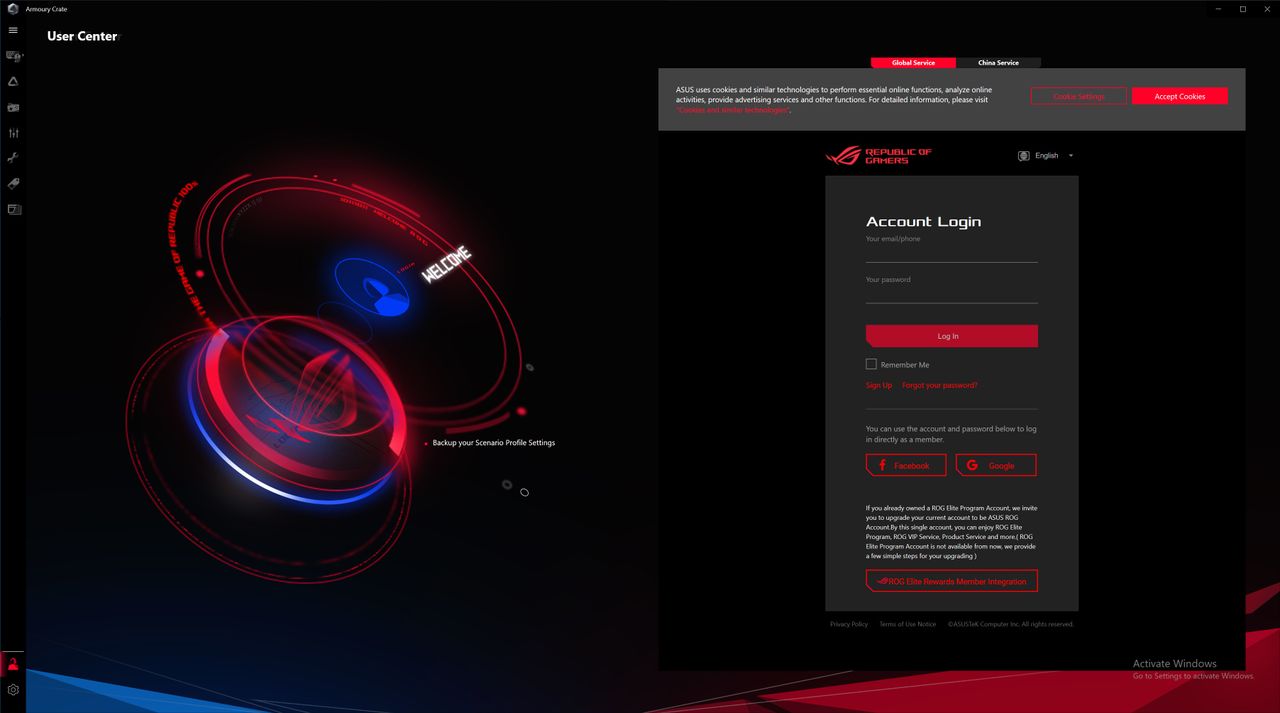

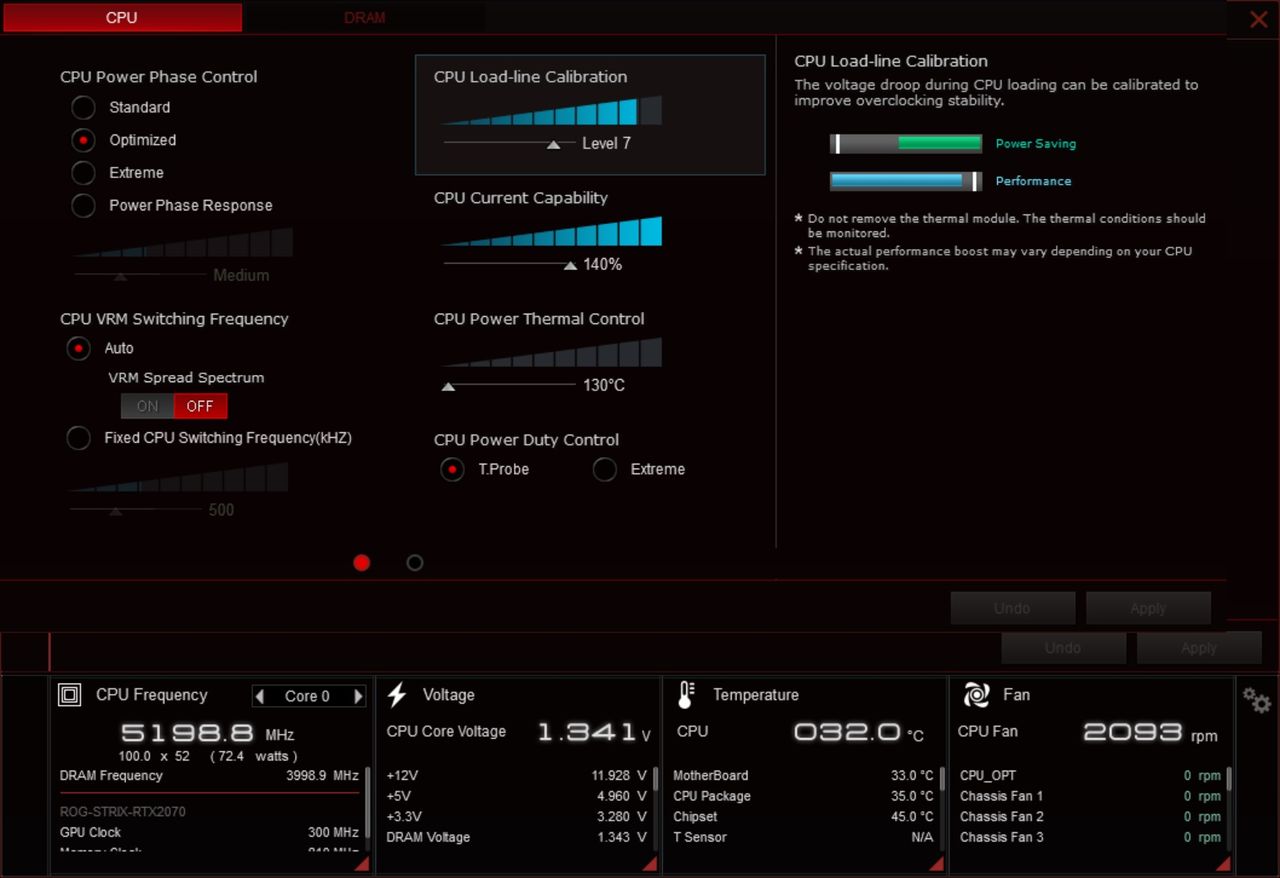

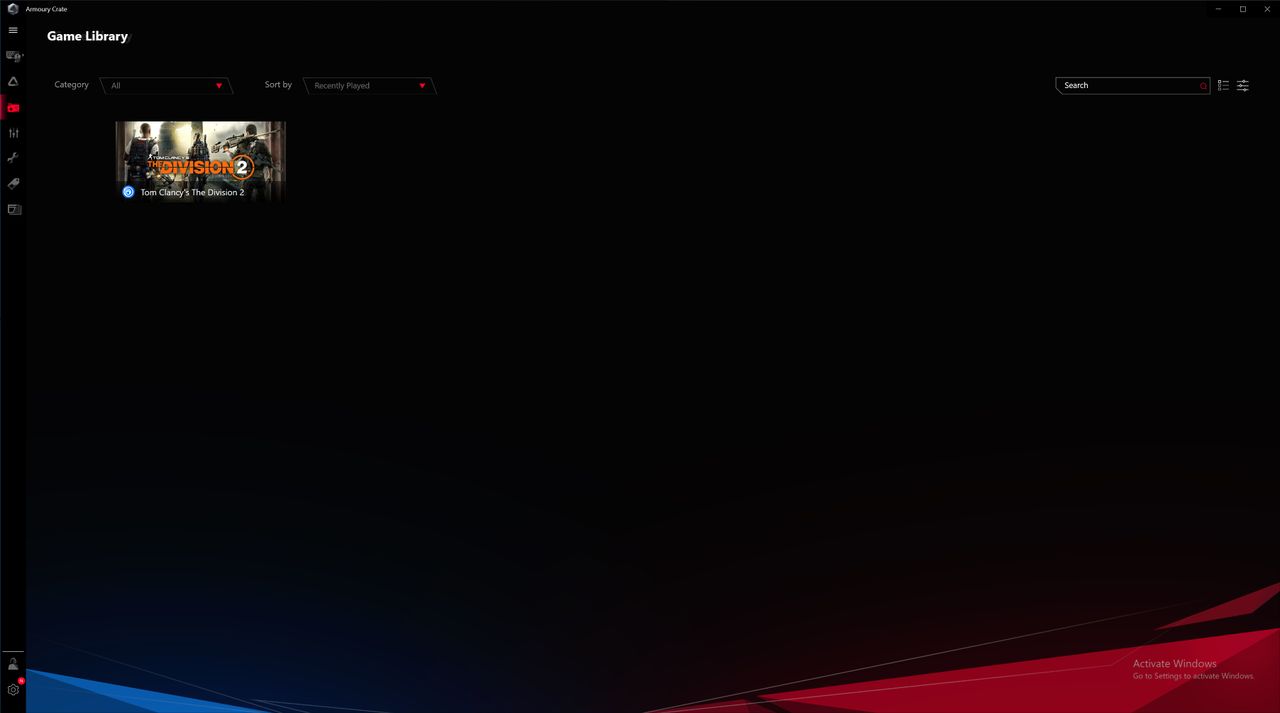

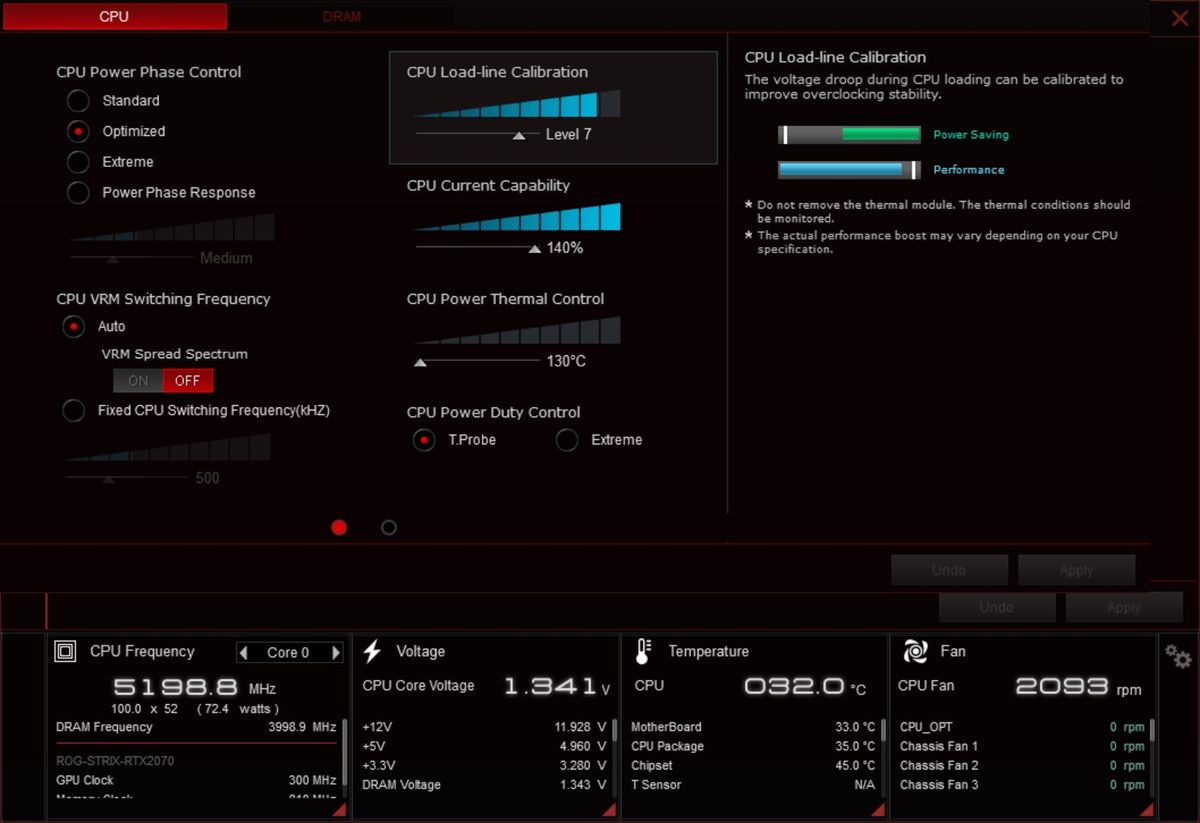

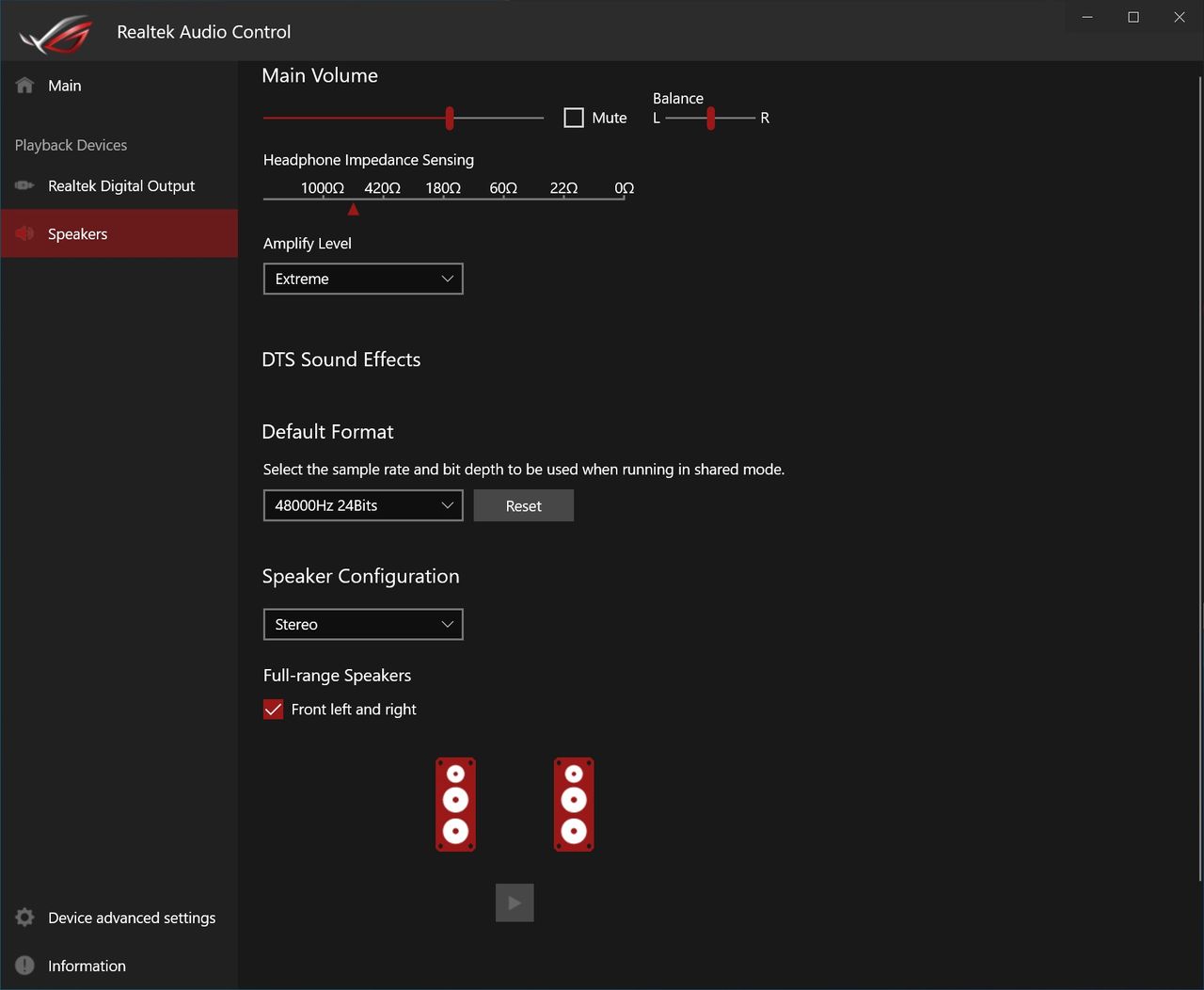

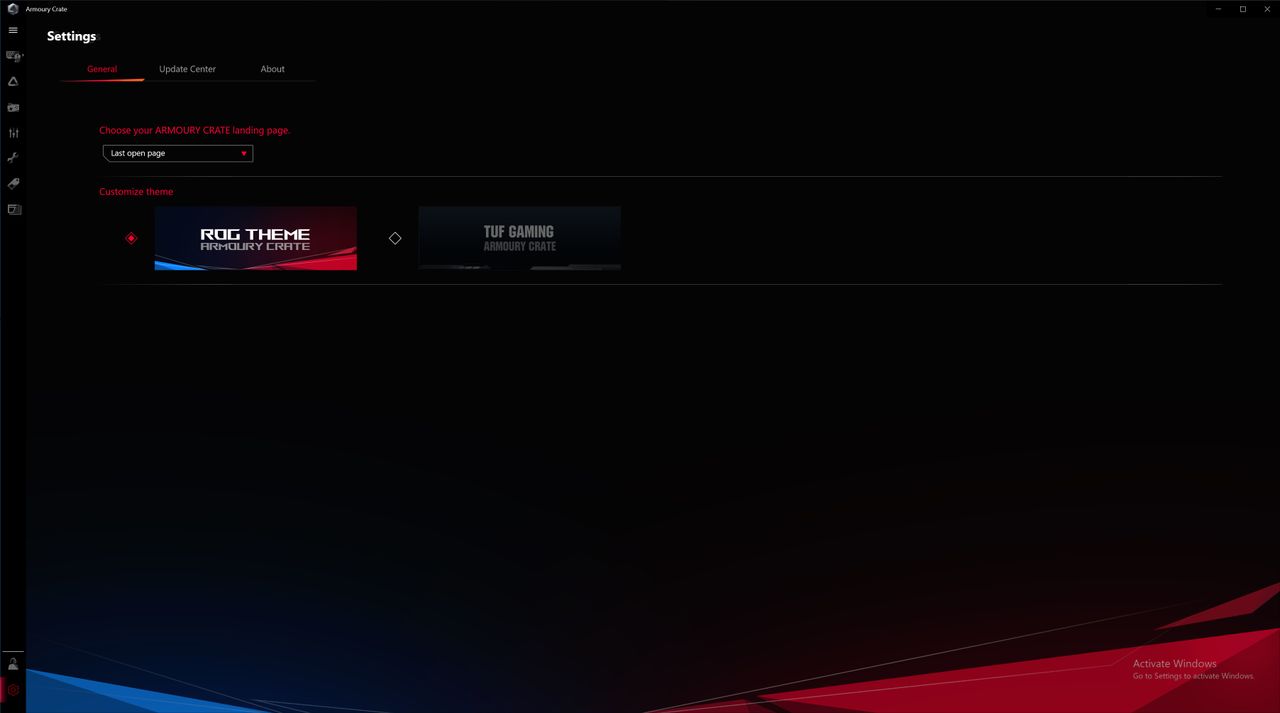

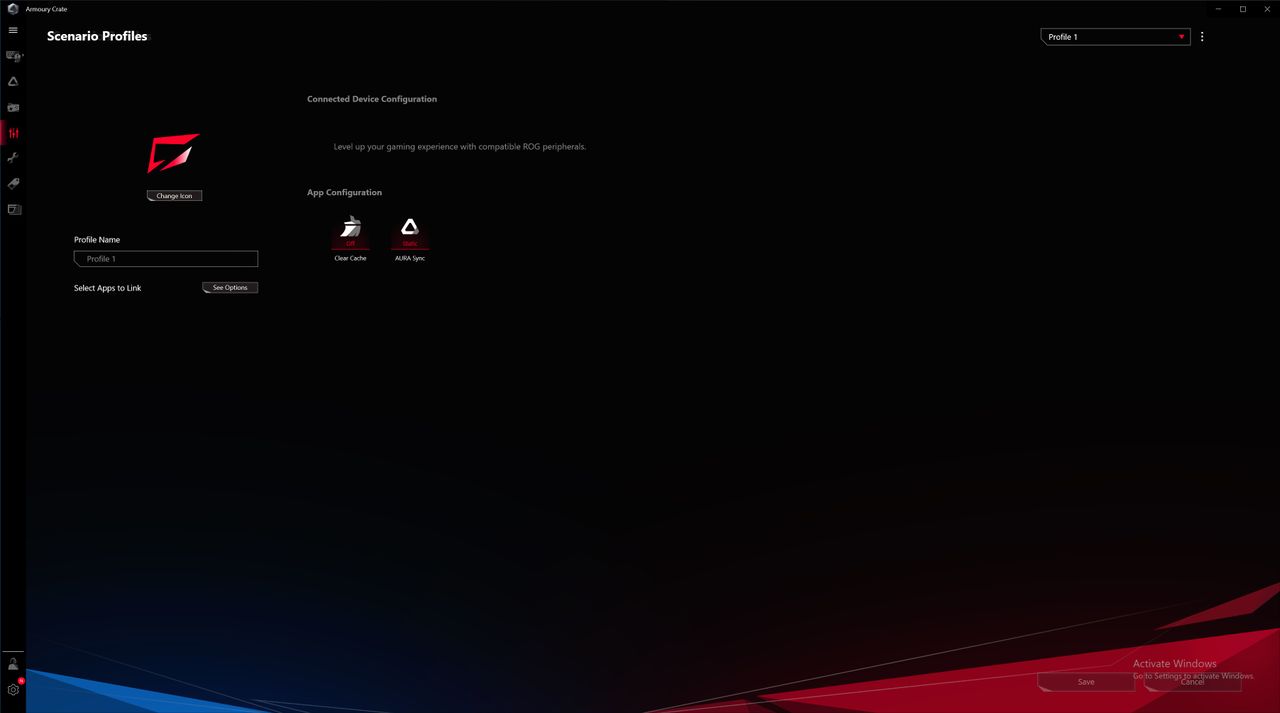

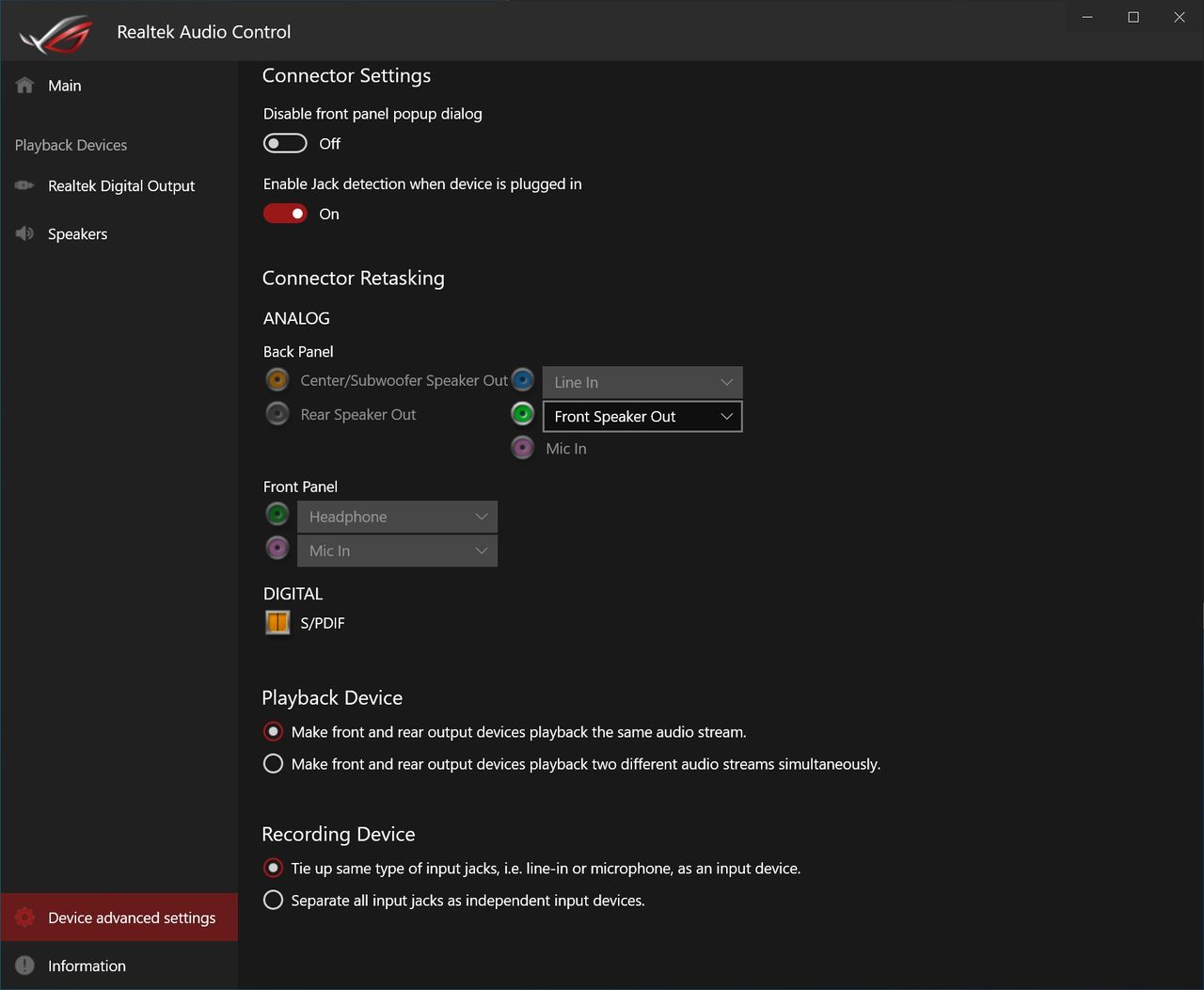

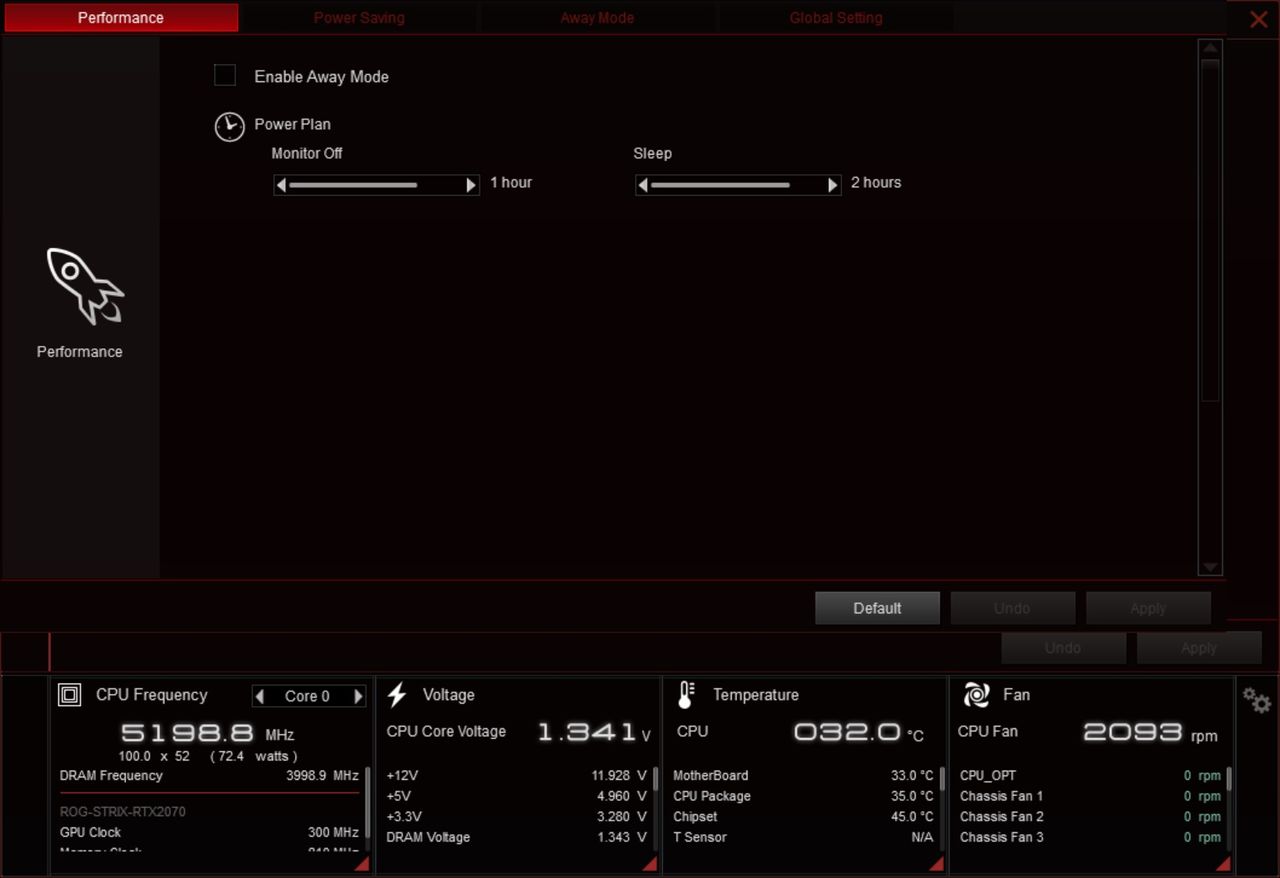

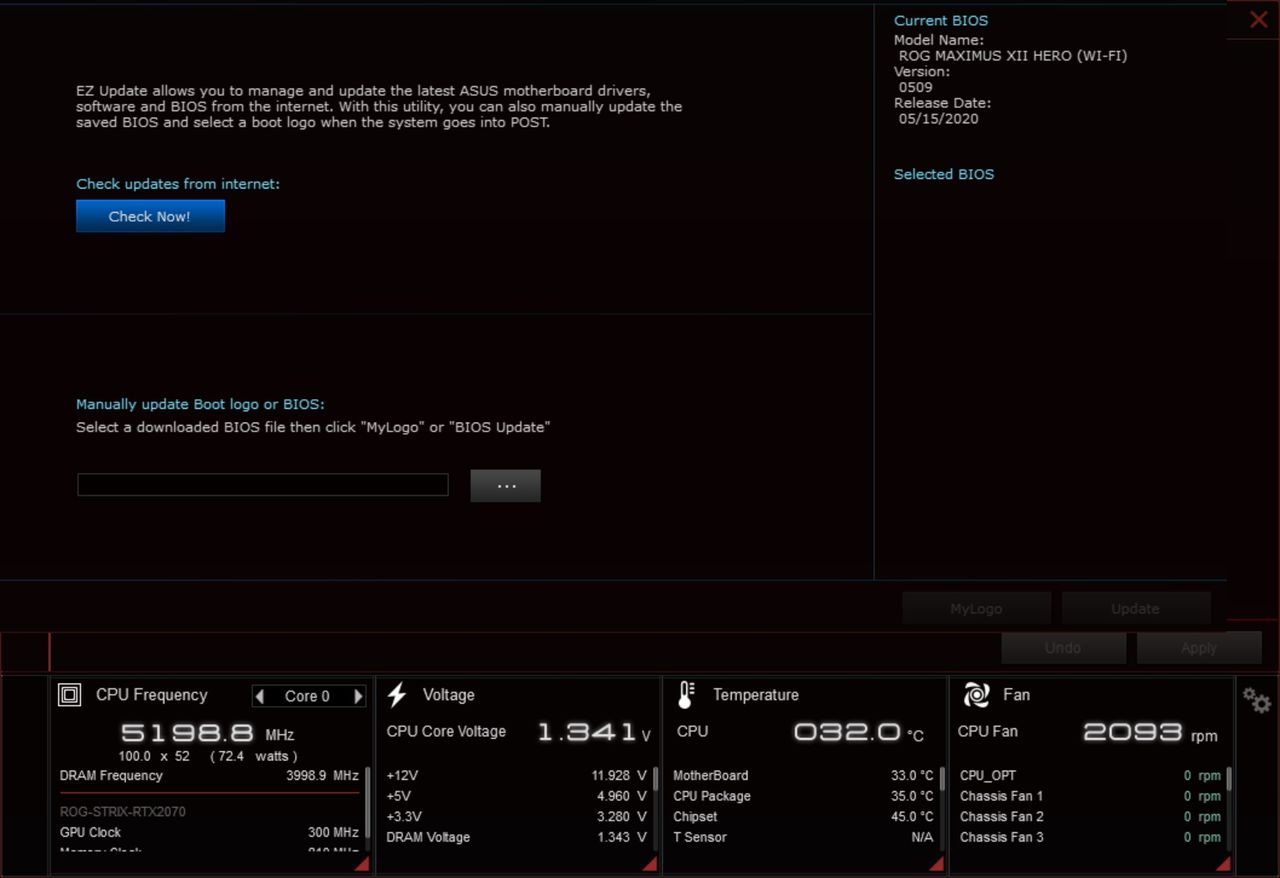

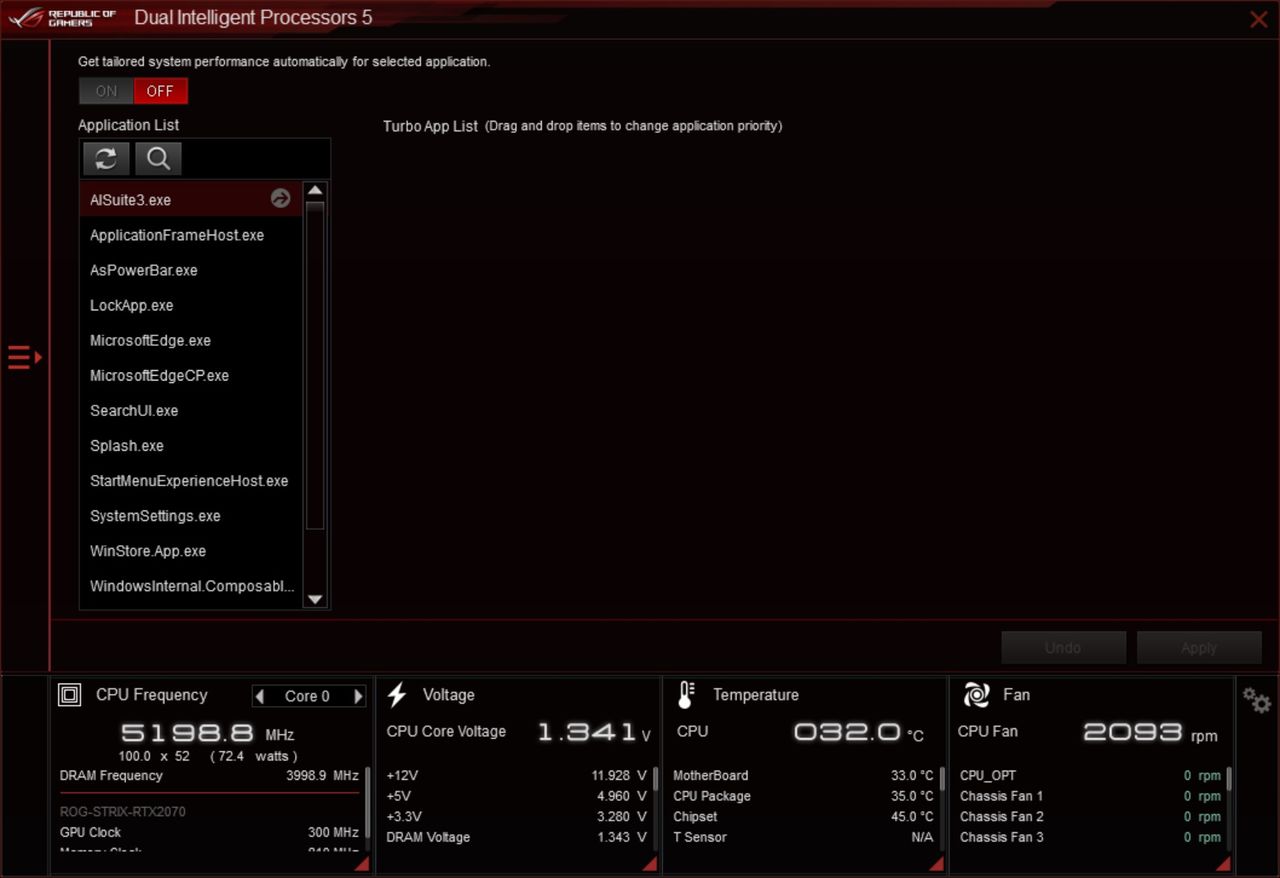

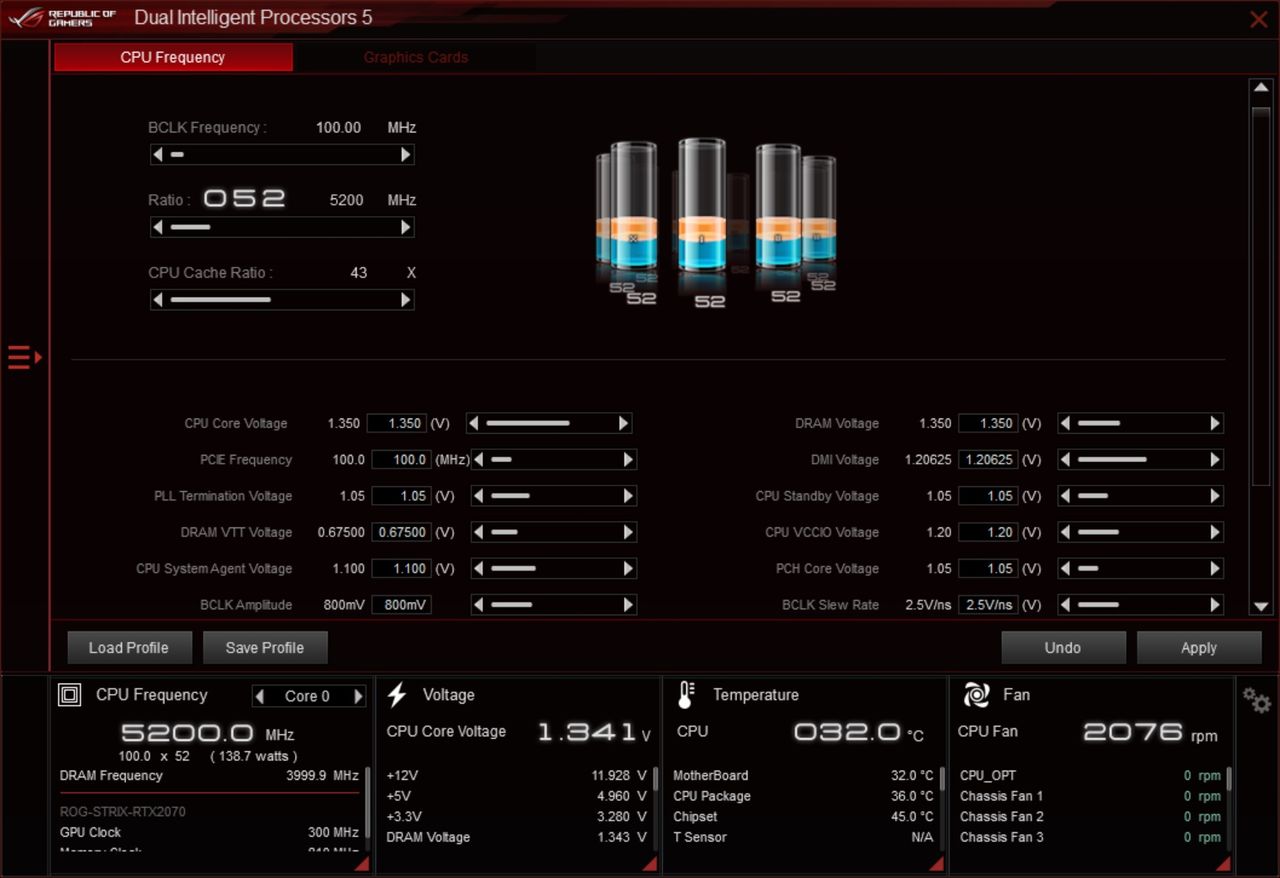

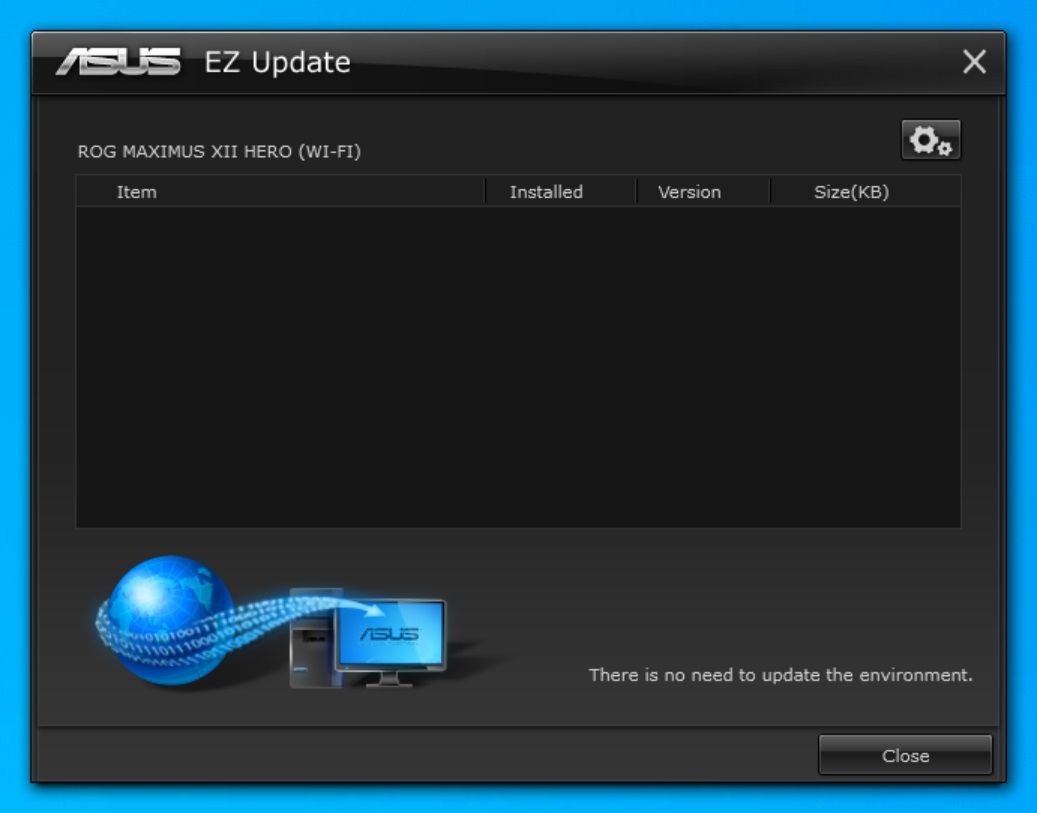

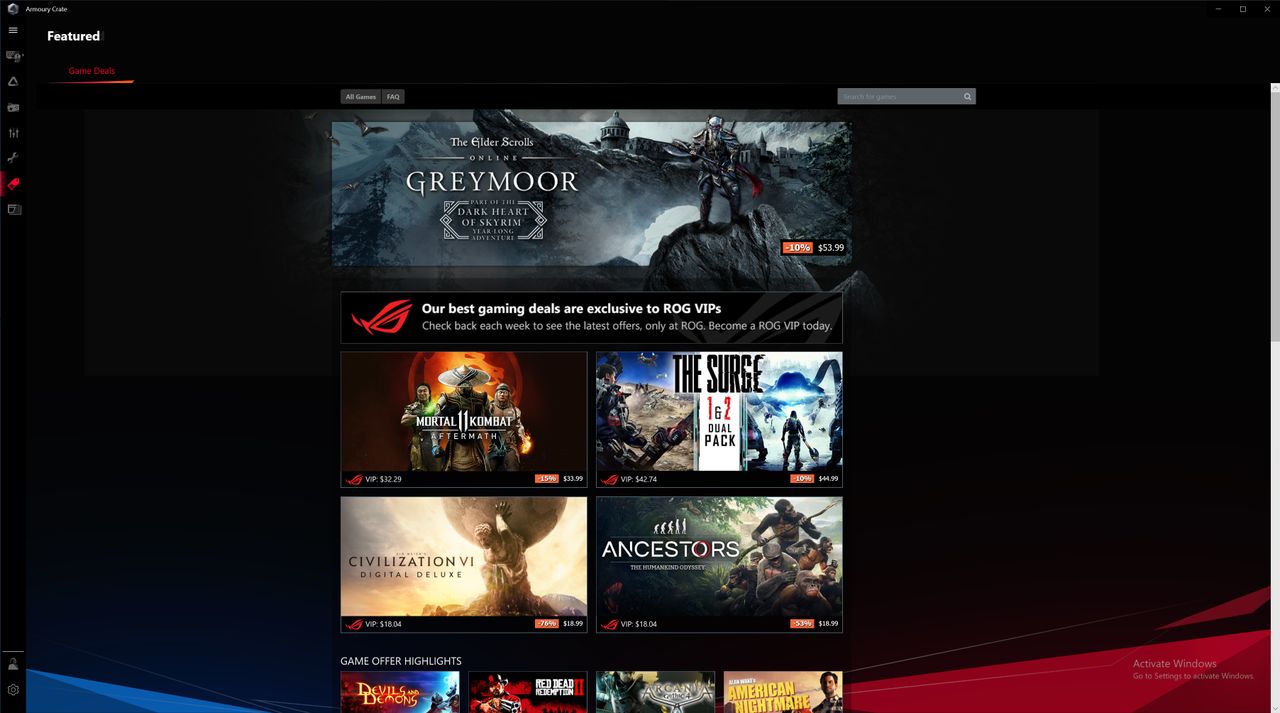

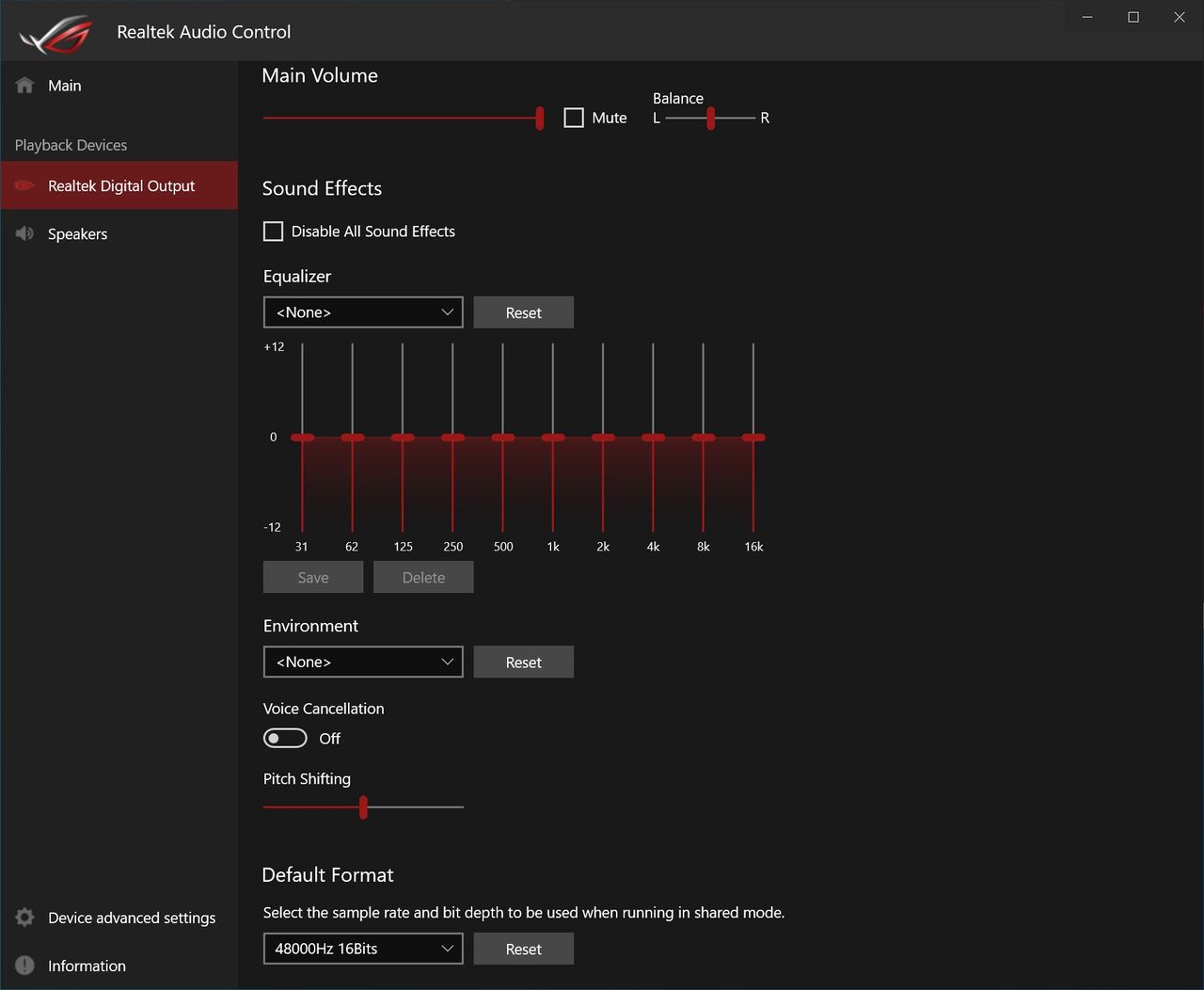

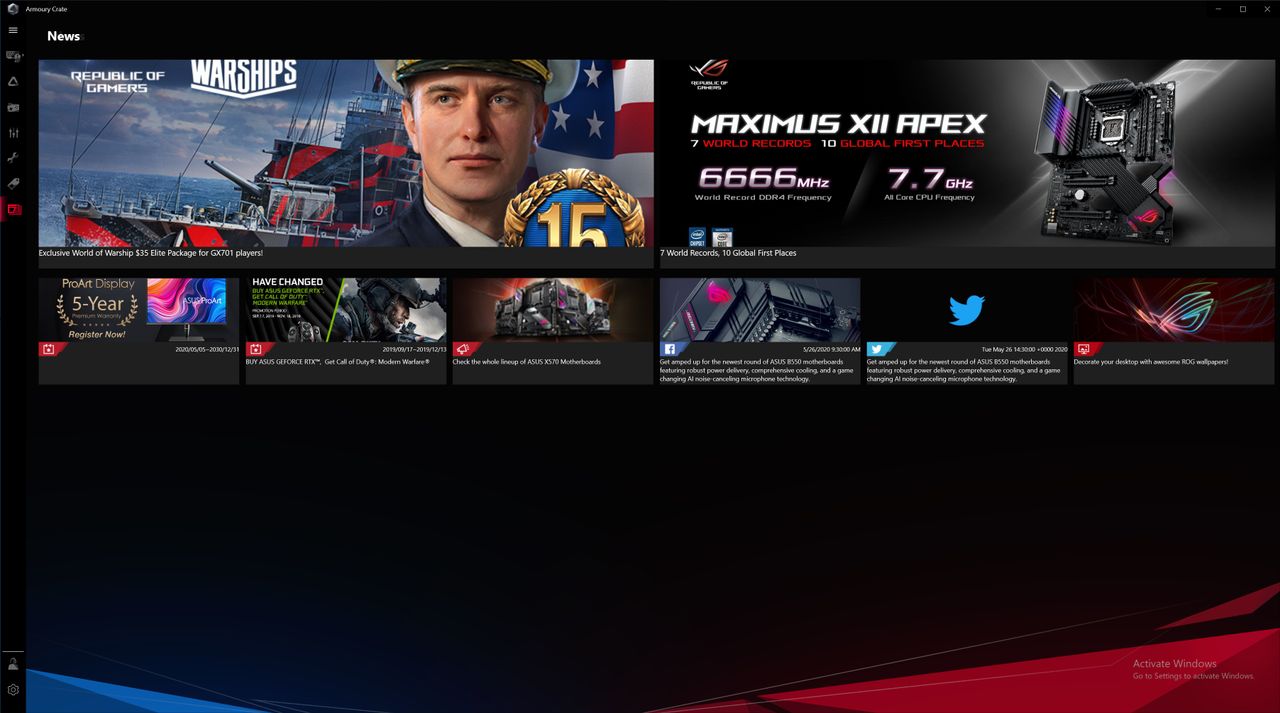

Asus has several applications designed for various functions, ranging from RGB lighting control, audio, system monitoring, overclocking and more. Instead of plodding through each application as if it changes for each review, moving forward, we’ll capture several screenshots of a few major utilities. In this case, here’s a look at Ai Suite 3, Armory Crate, and the Realtek Audio application.

Image 1 of 20

Asus TUF Gaming X570-Pro WiFi — (Image credit: Tom's Hardware)

Image 2 of 20

Image 3 of 20

Image 4 of 20

Image 5 of 20

Image 6 of 20

Image 7 of 20

Image 8 of 20

Image 9 of 20

Image 10 of 20

Image 11 of 20

Image 12 of 20

Image 13 of 20

Image 14 of 20

Image 15 of 20

Image 16 of 20

Image 17 of 20

Image 18 of 20

Image 19 of 20

Image 20 of 20

Firmware

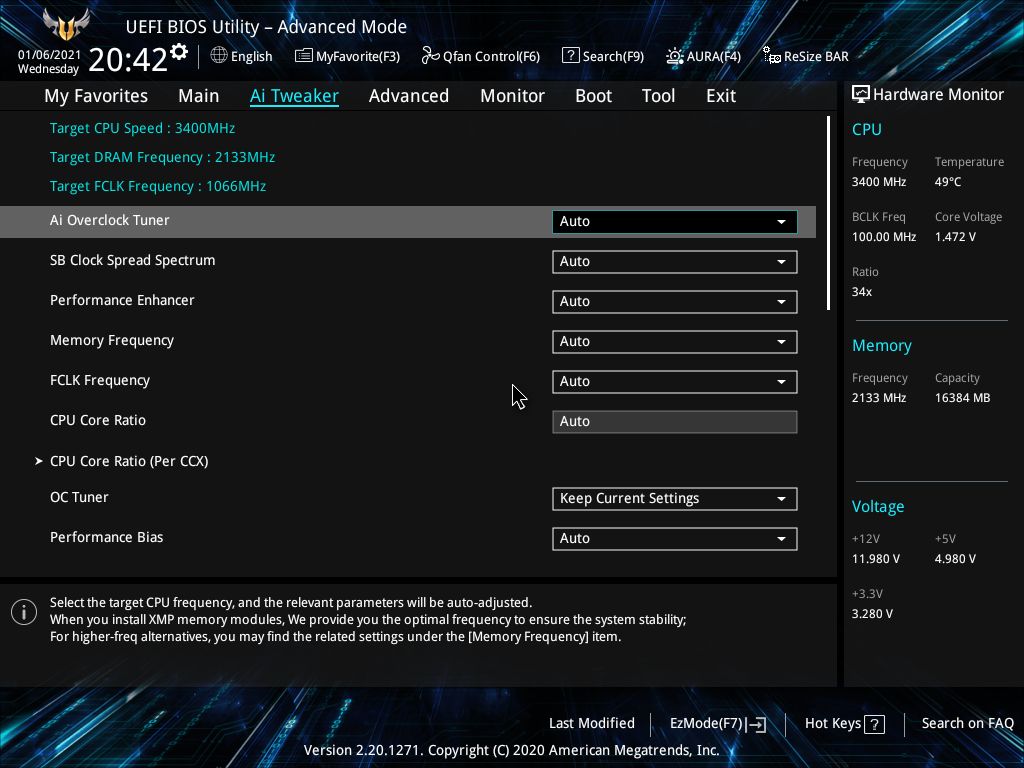

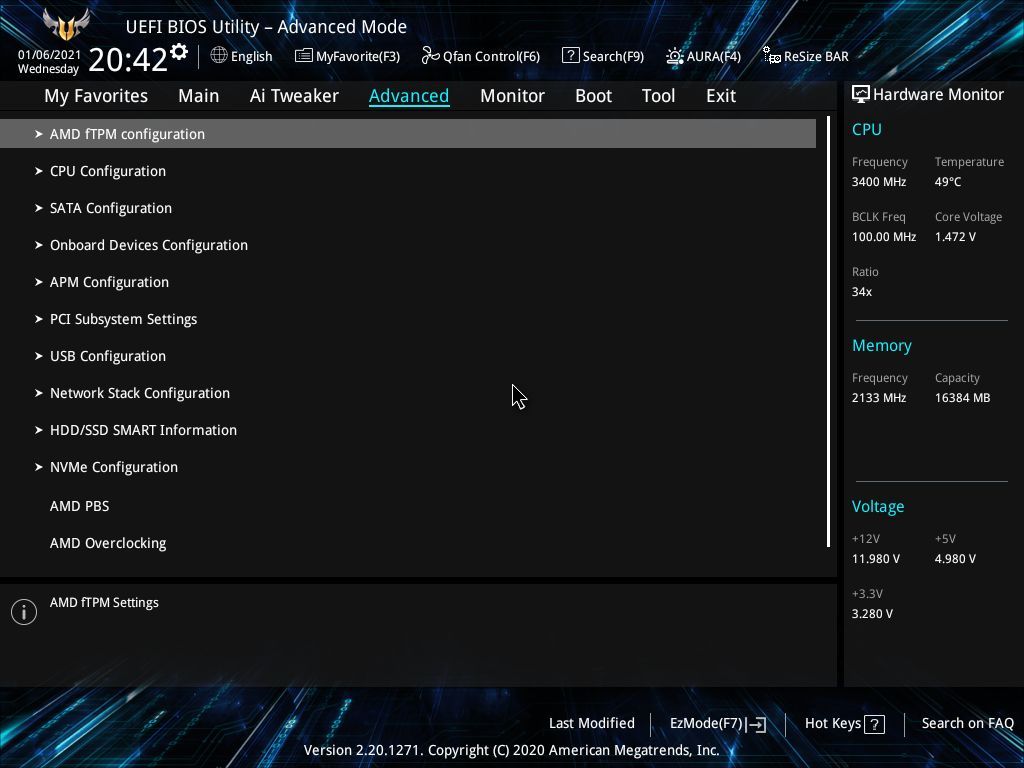

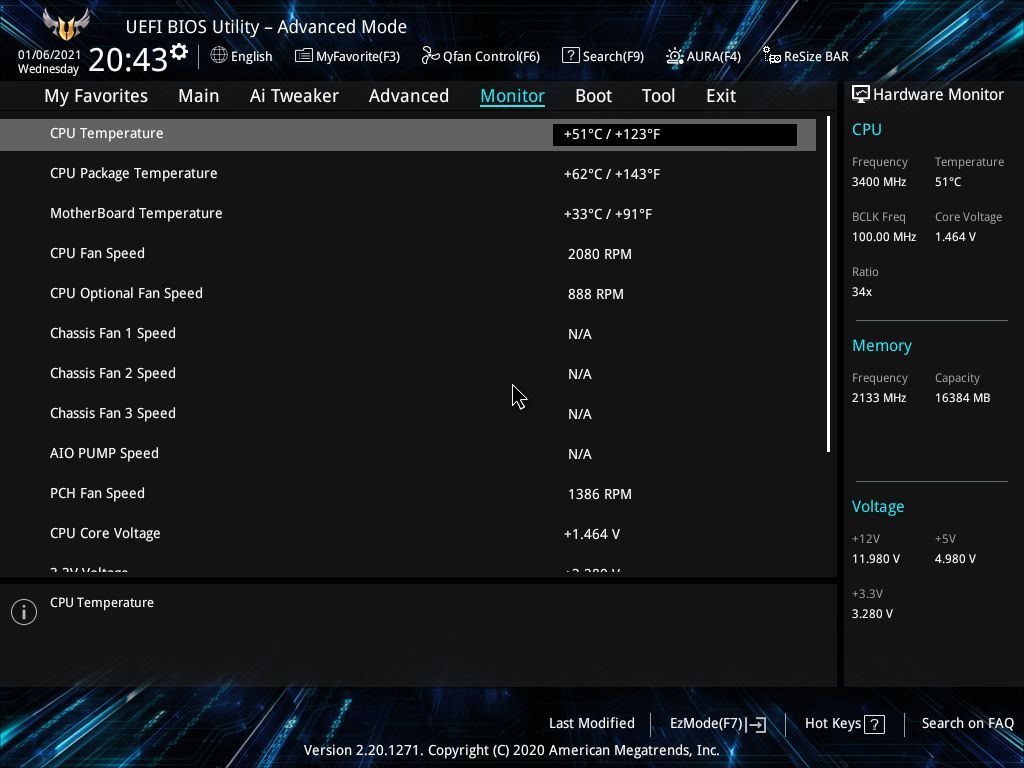

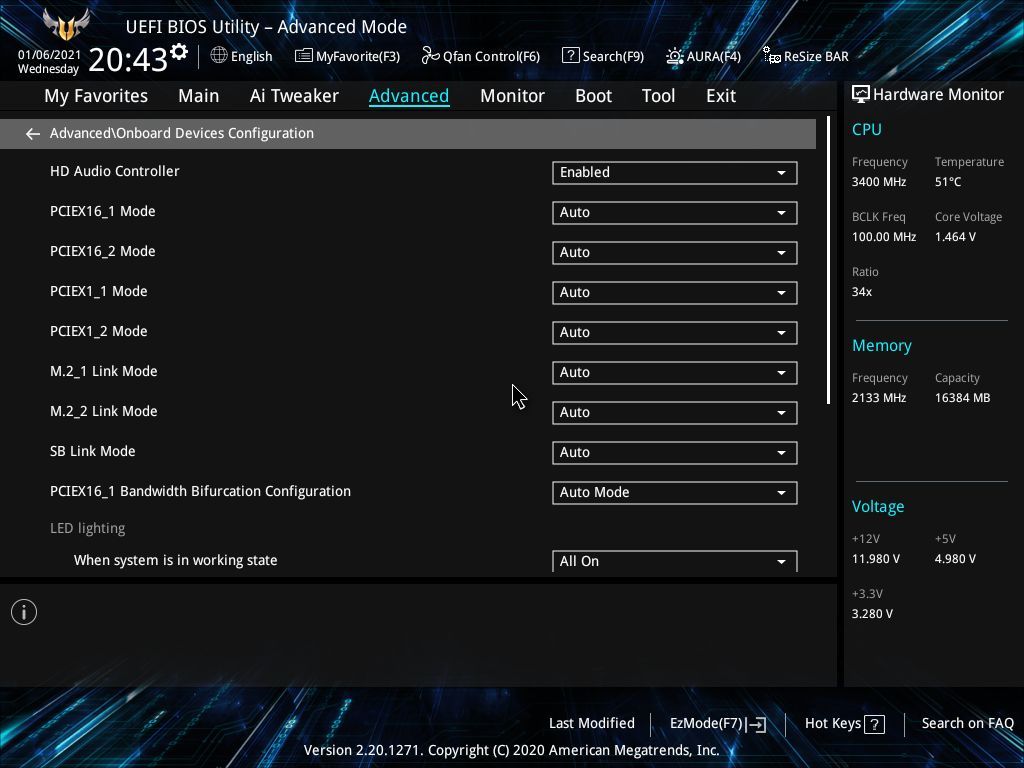

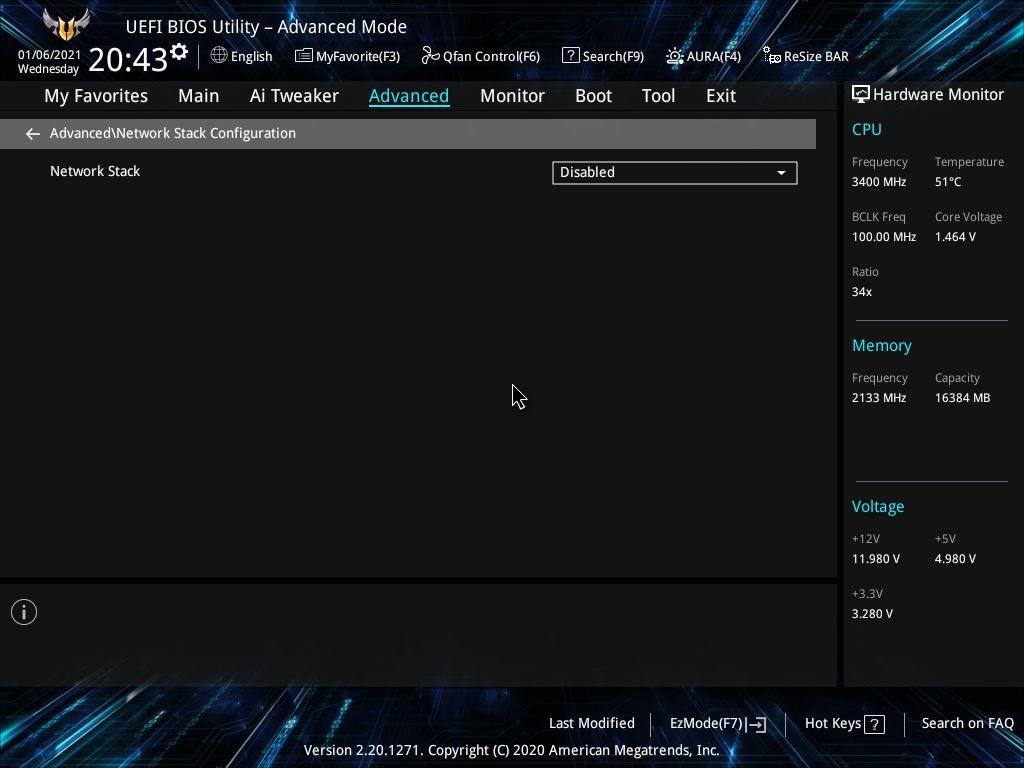

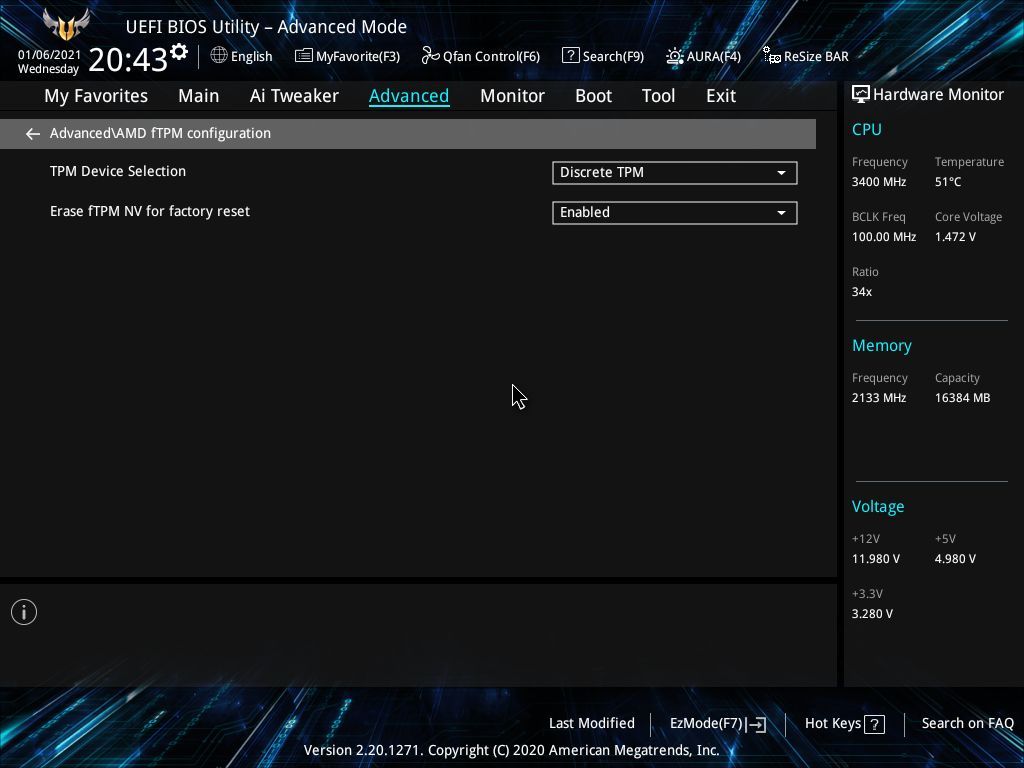

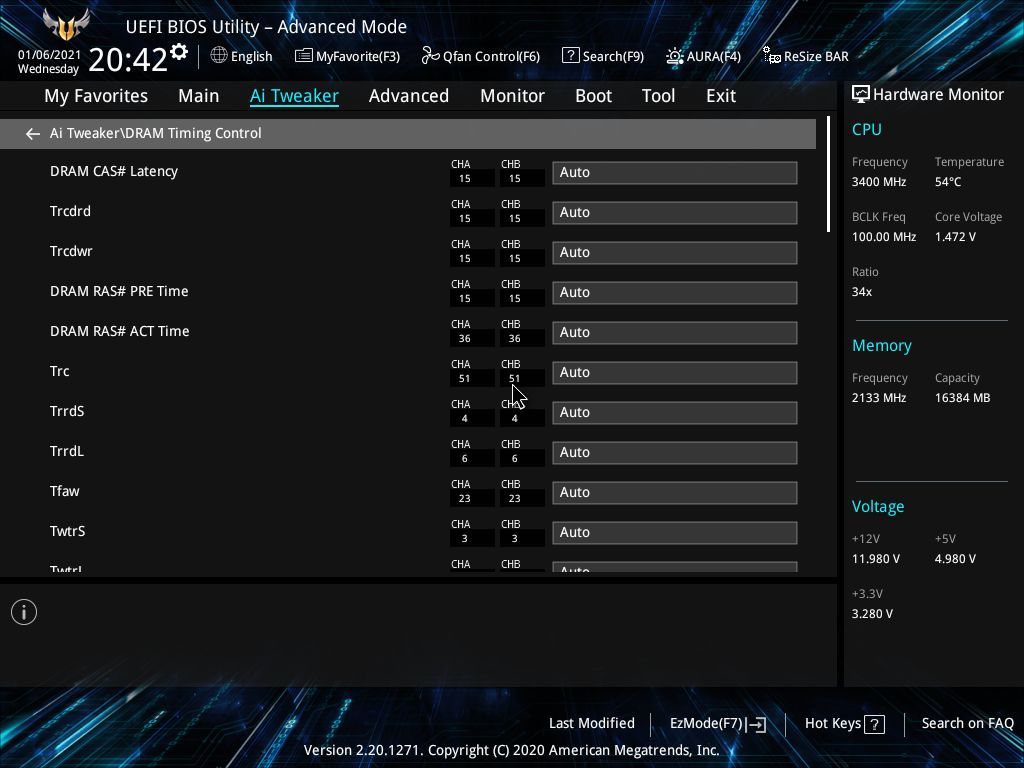

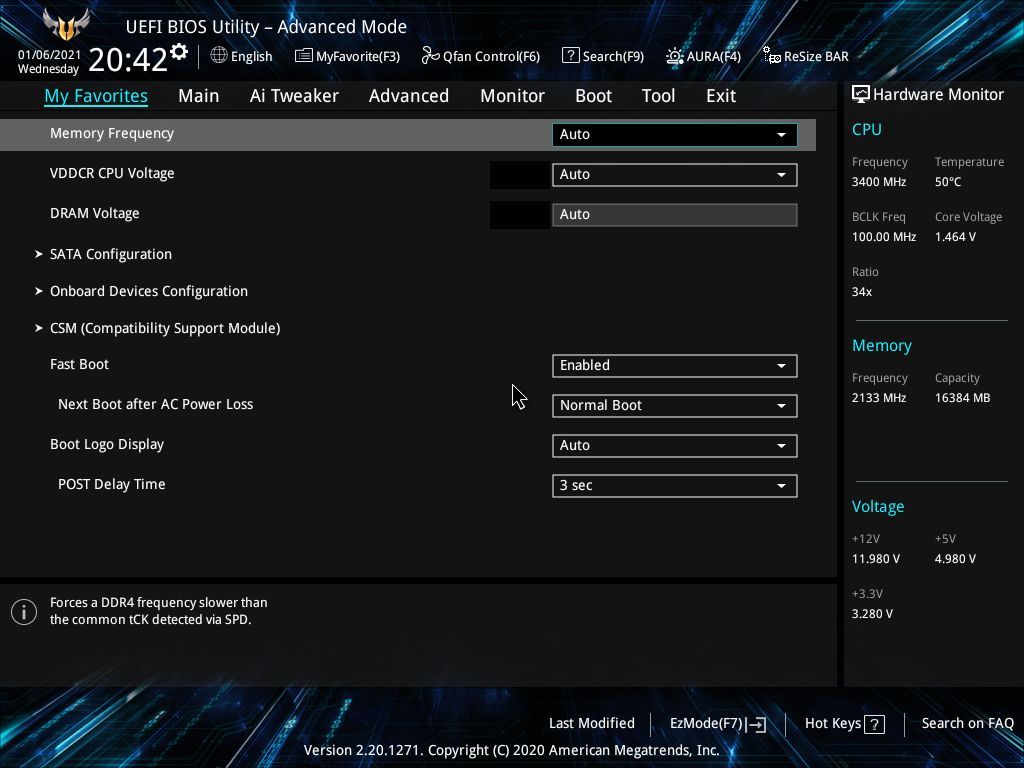

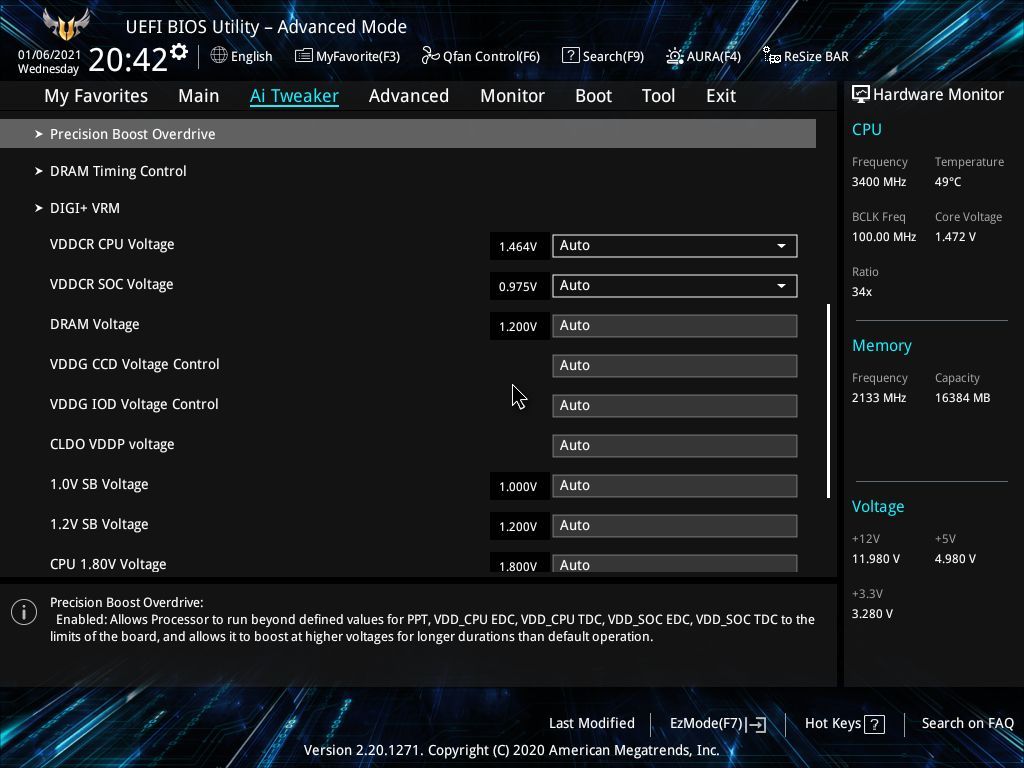

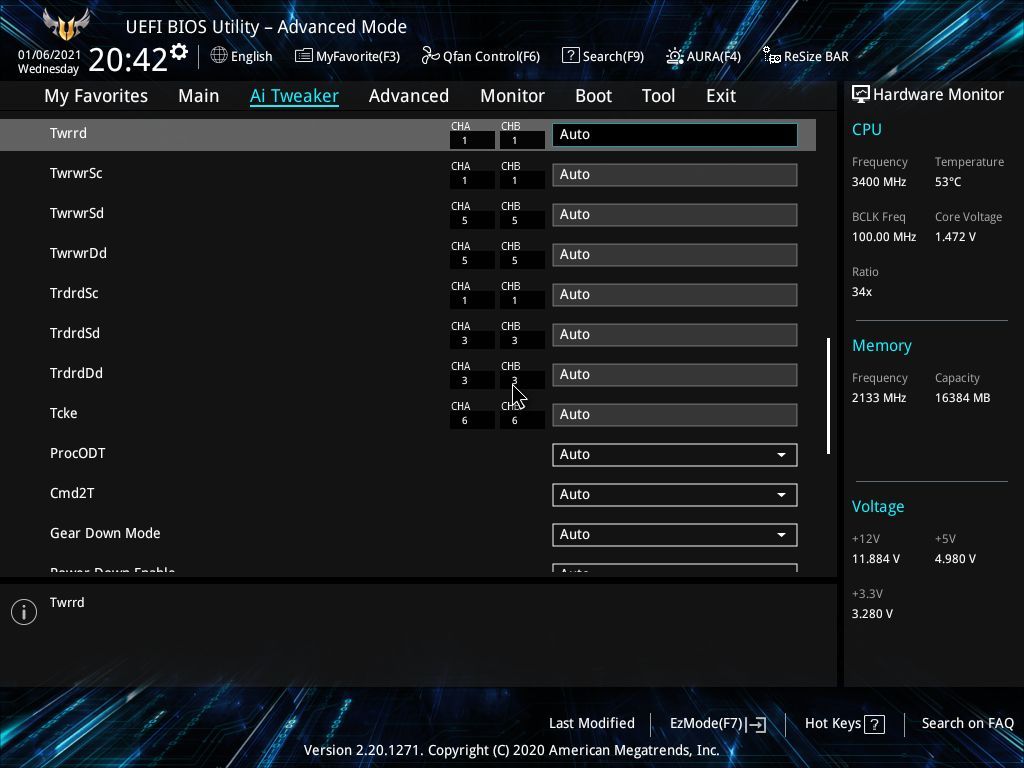

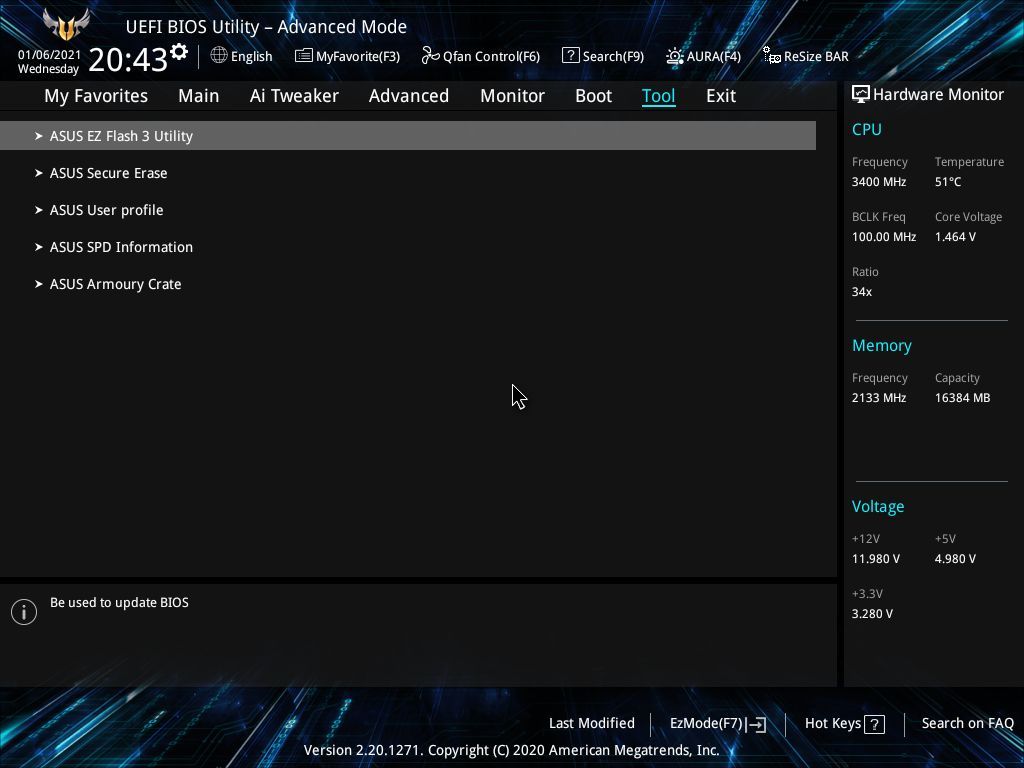

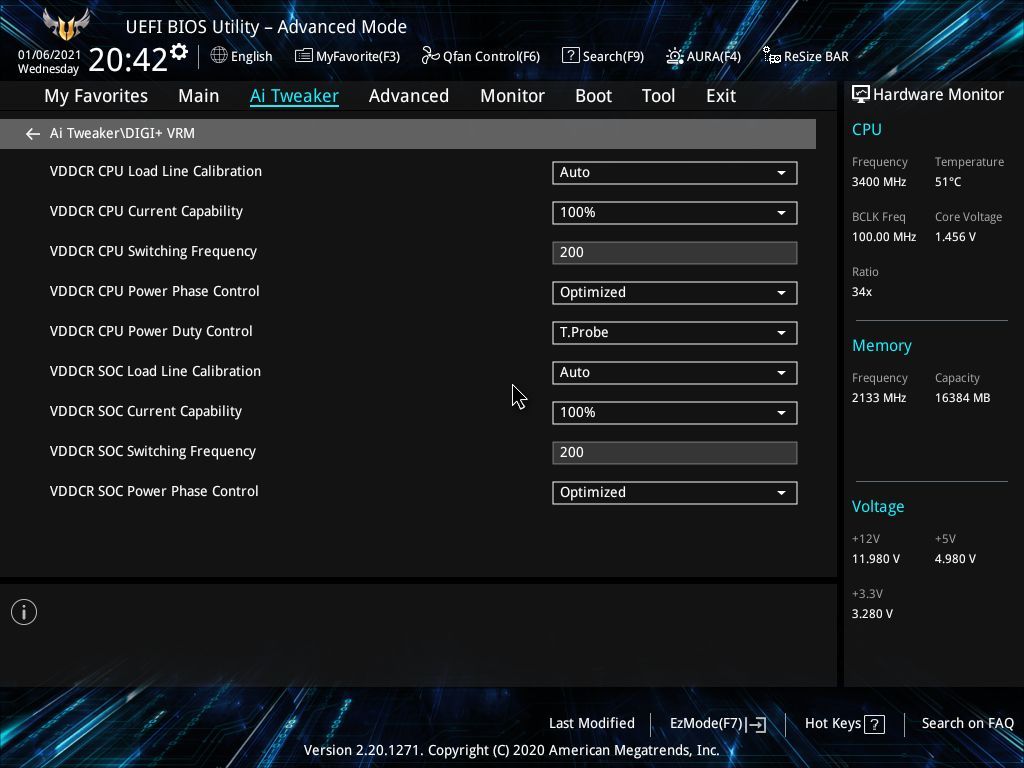

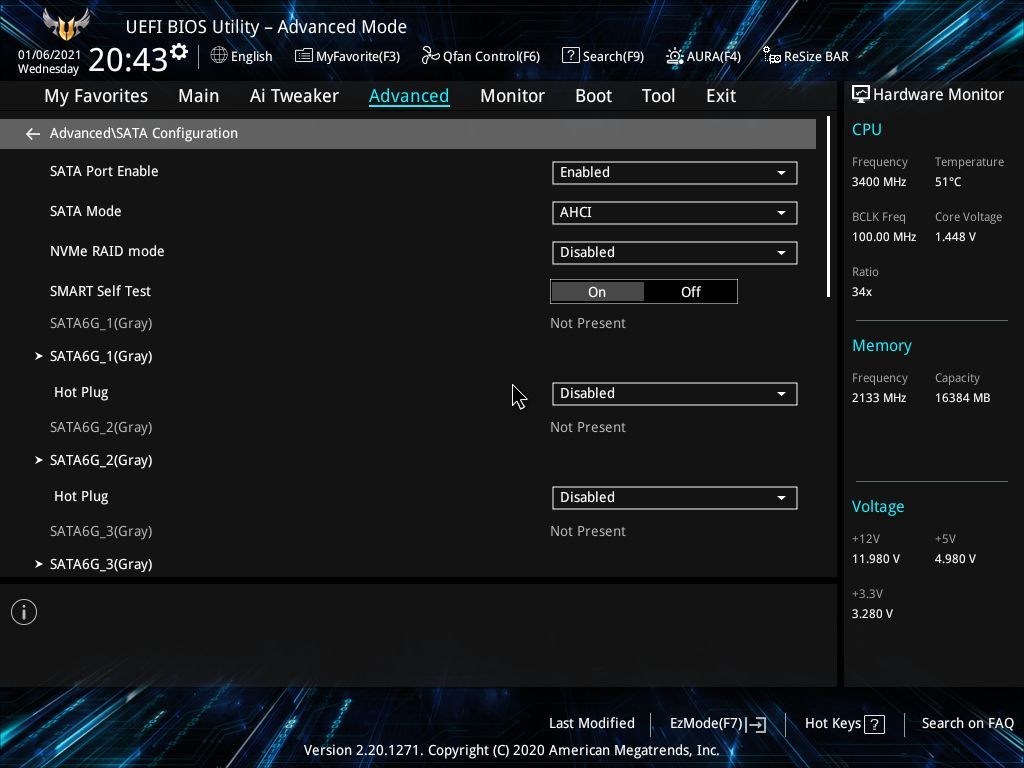

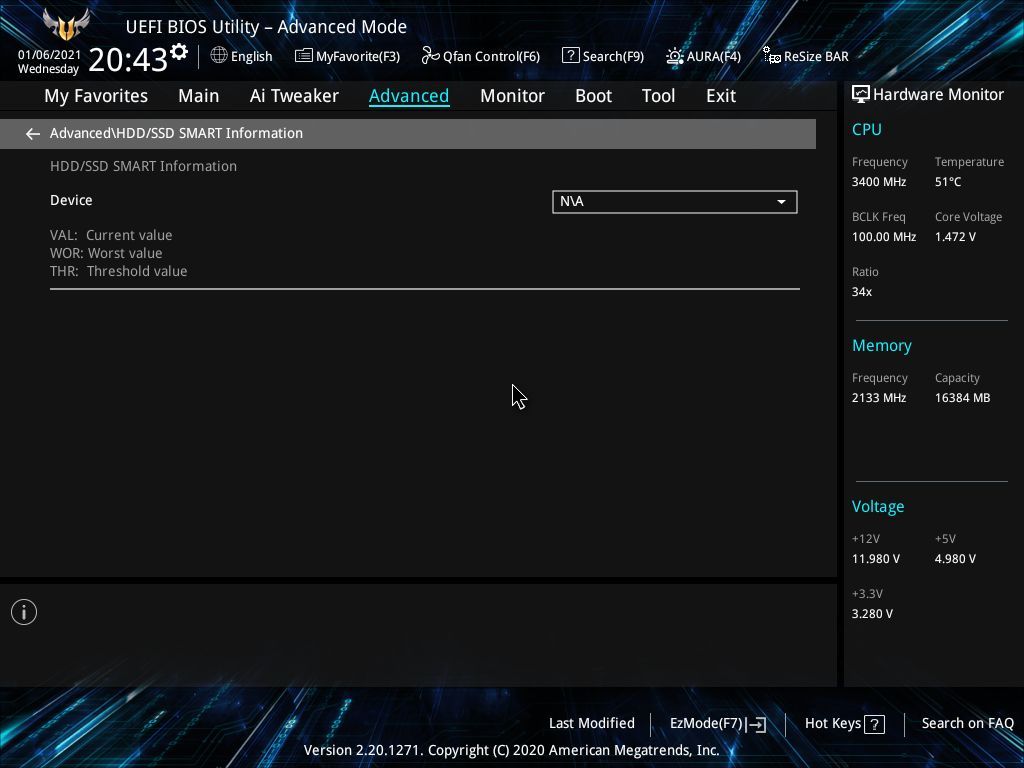

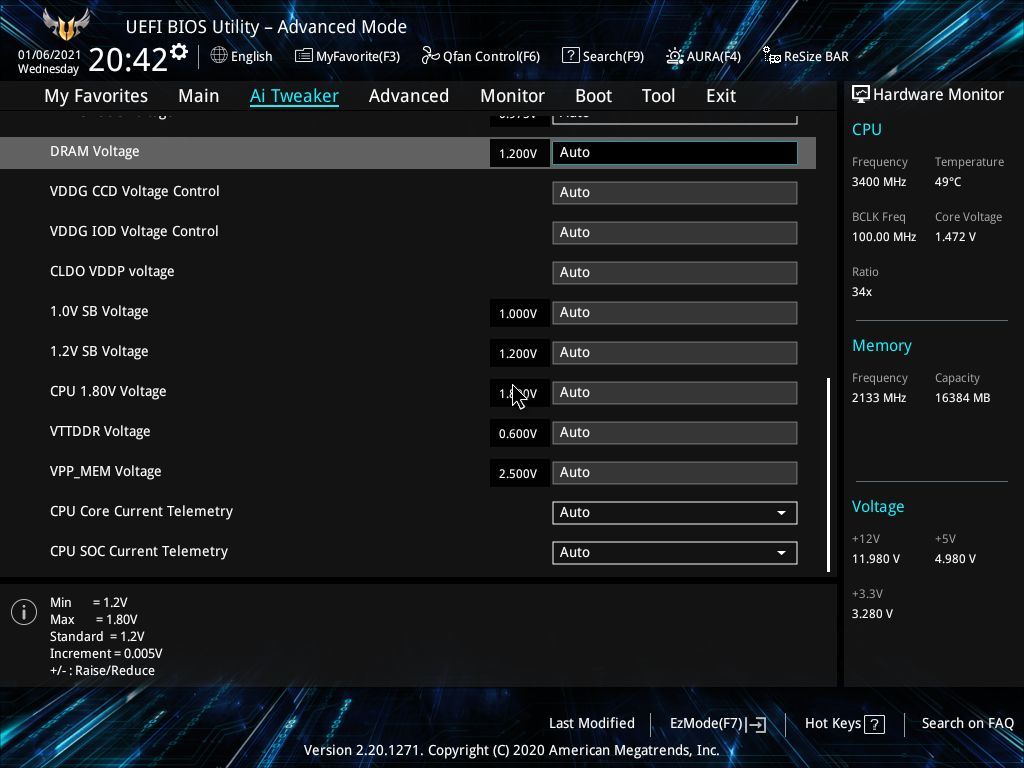

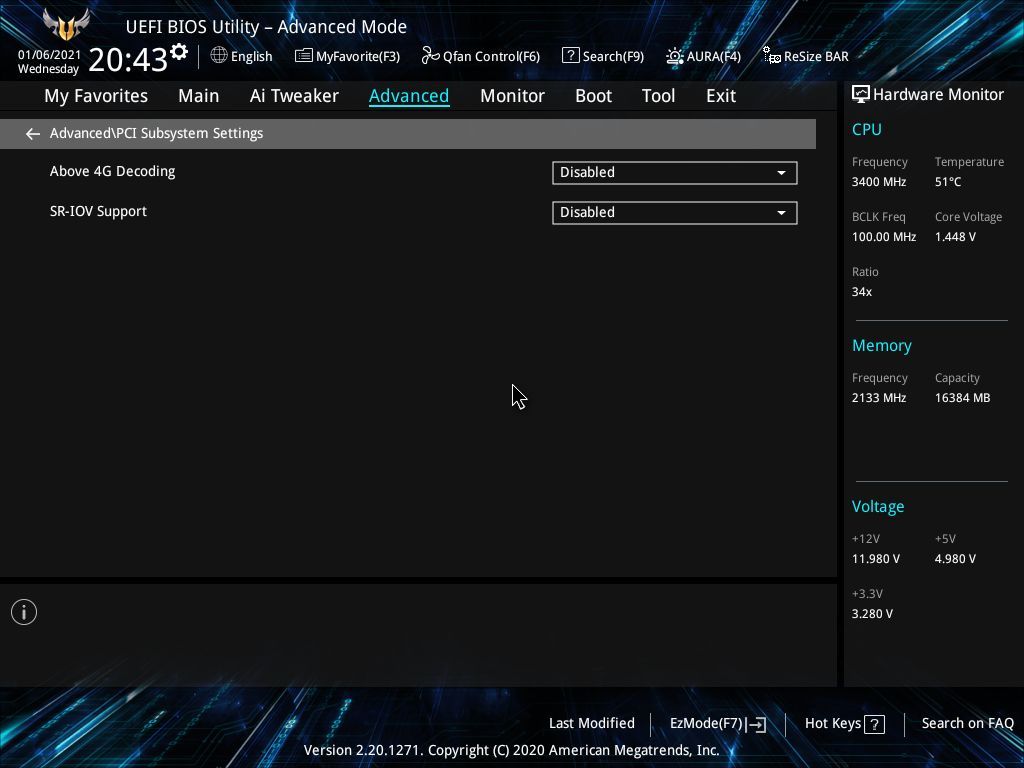

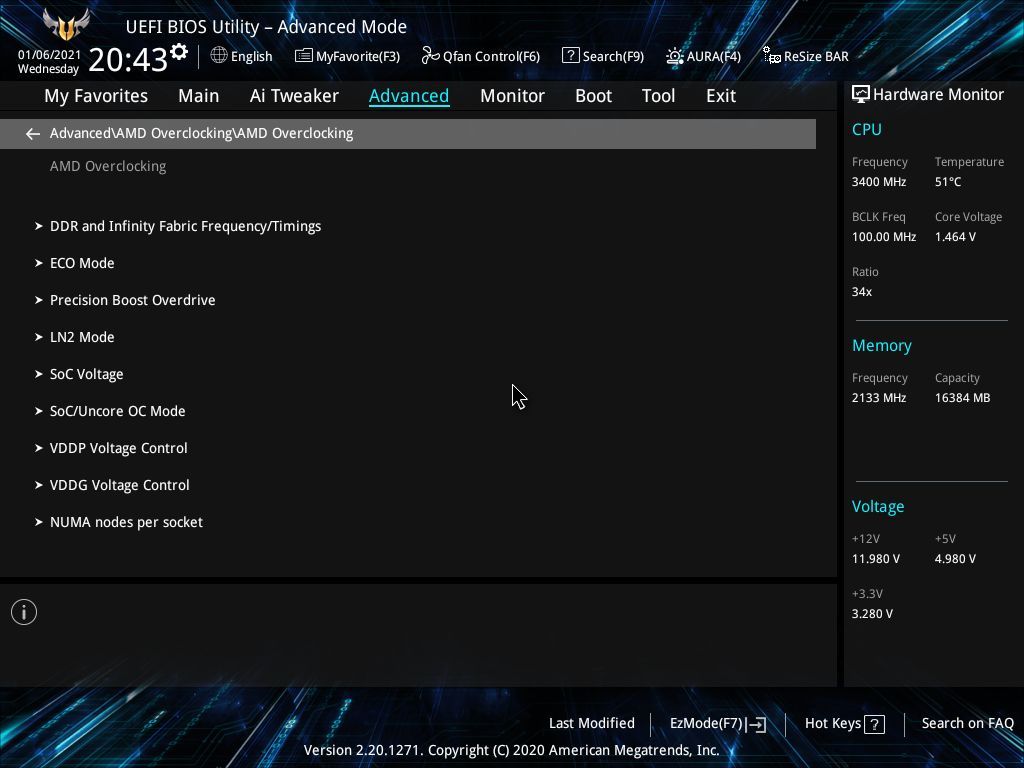

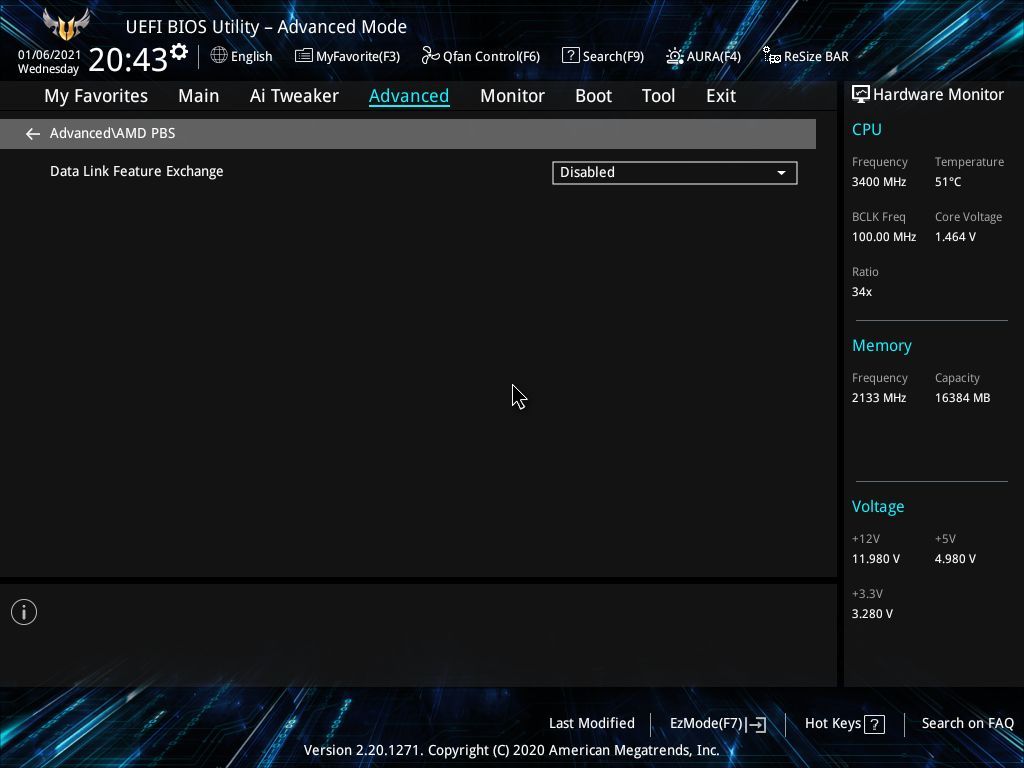

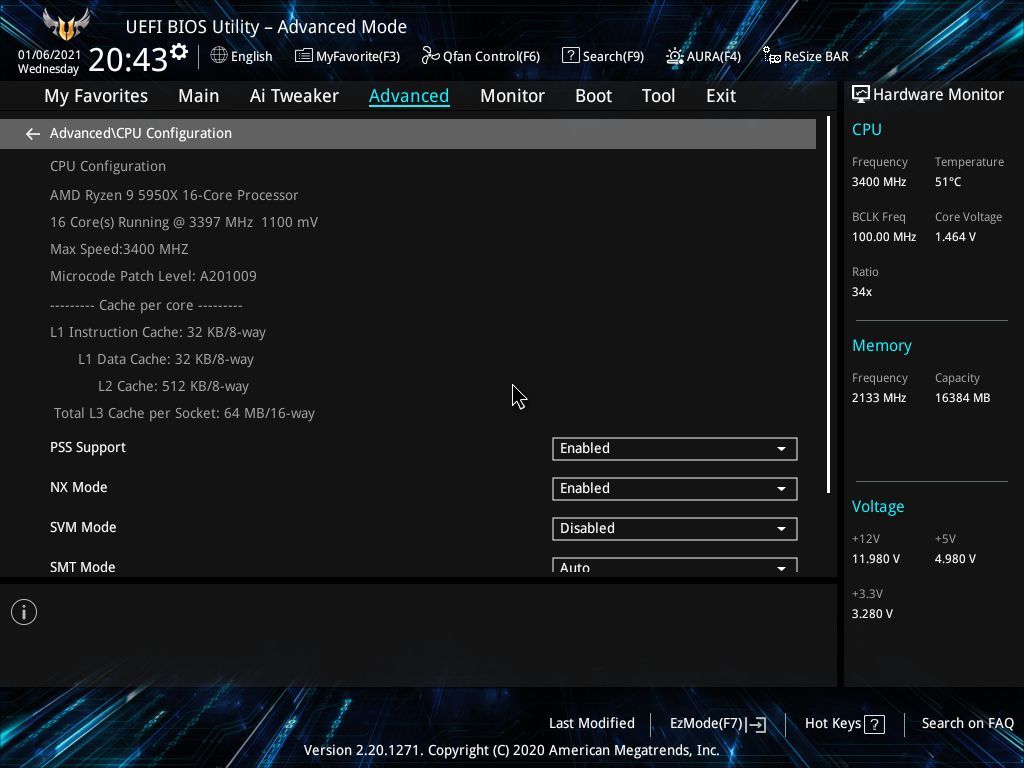

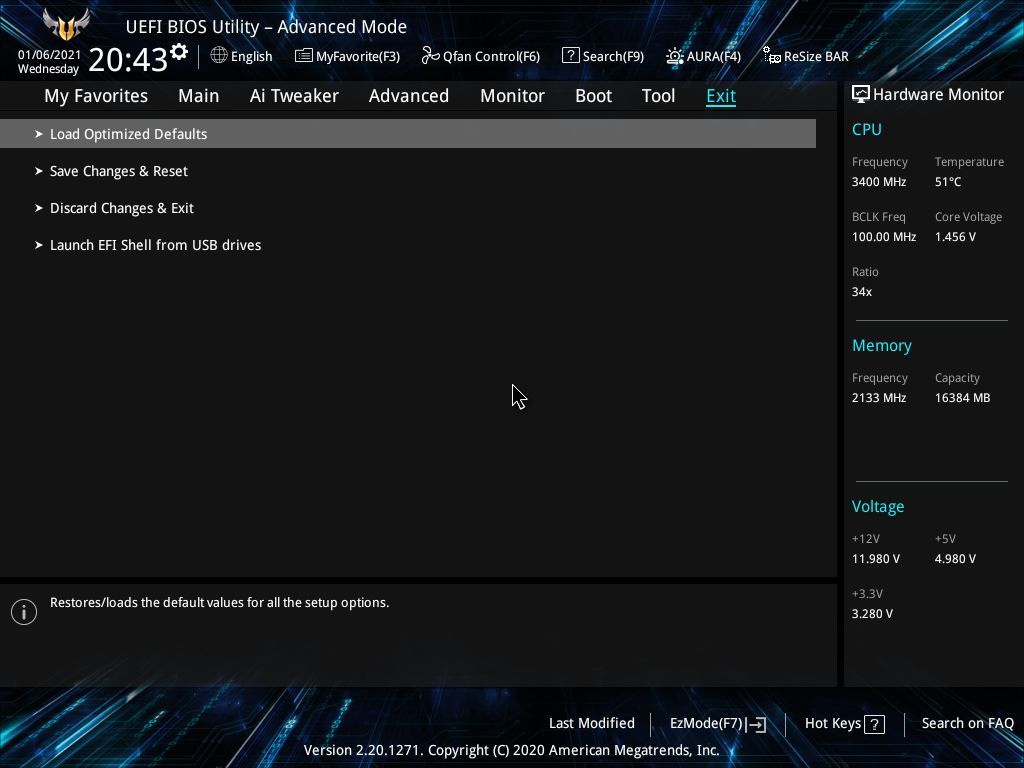

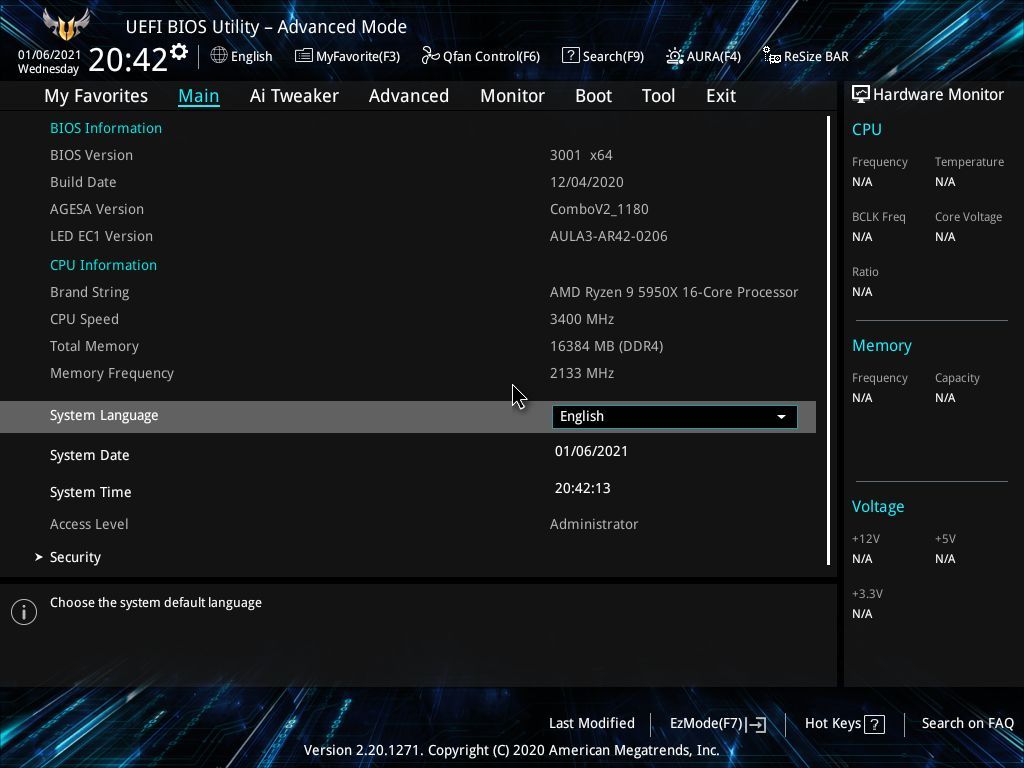

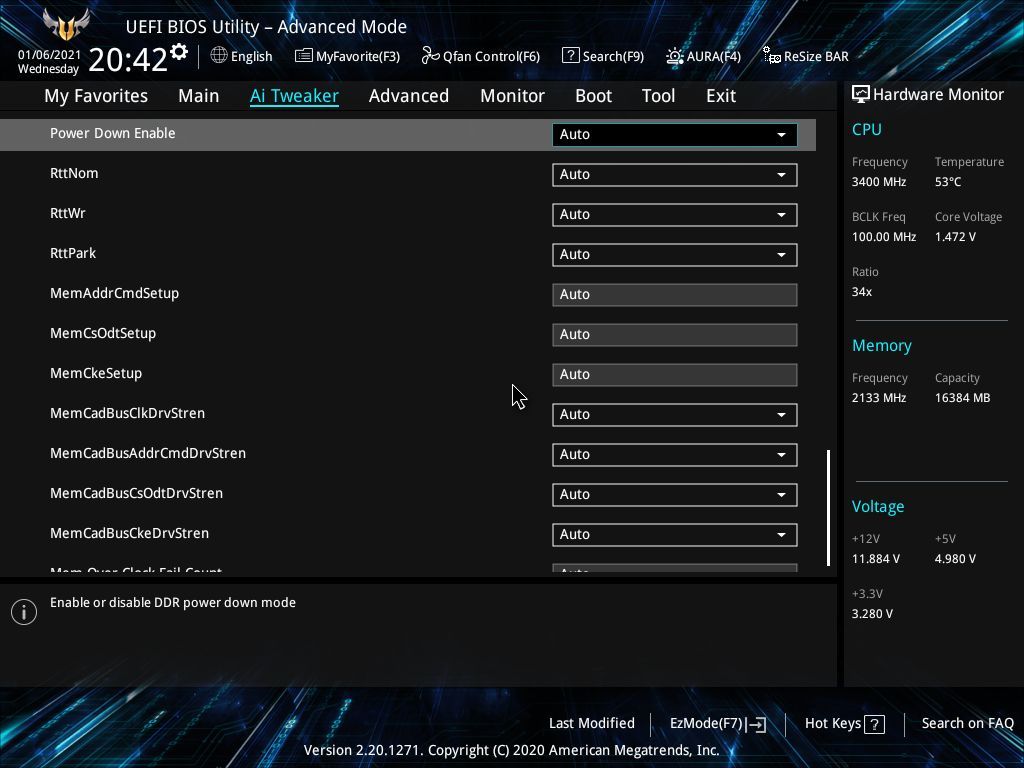

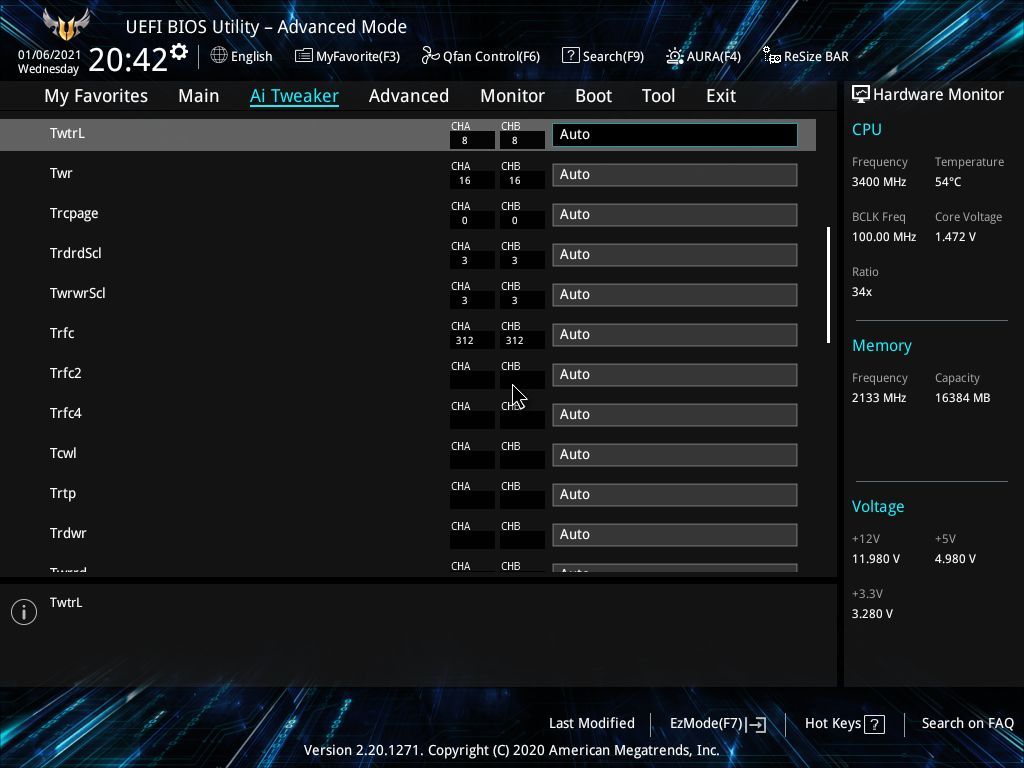

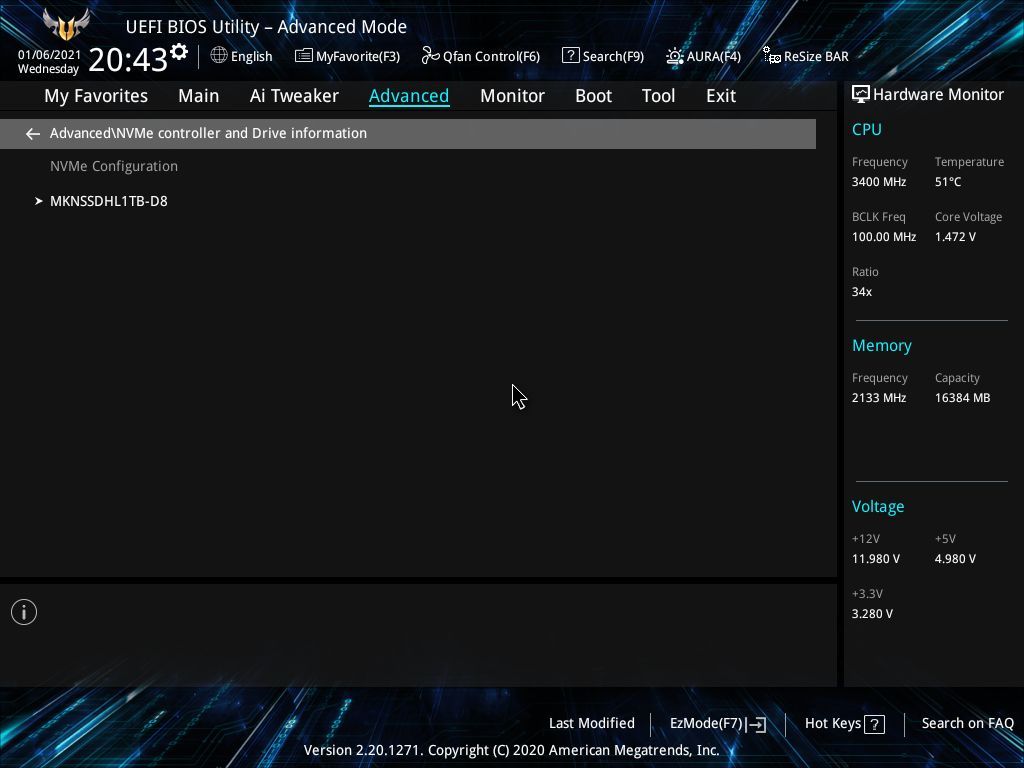

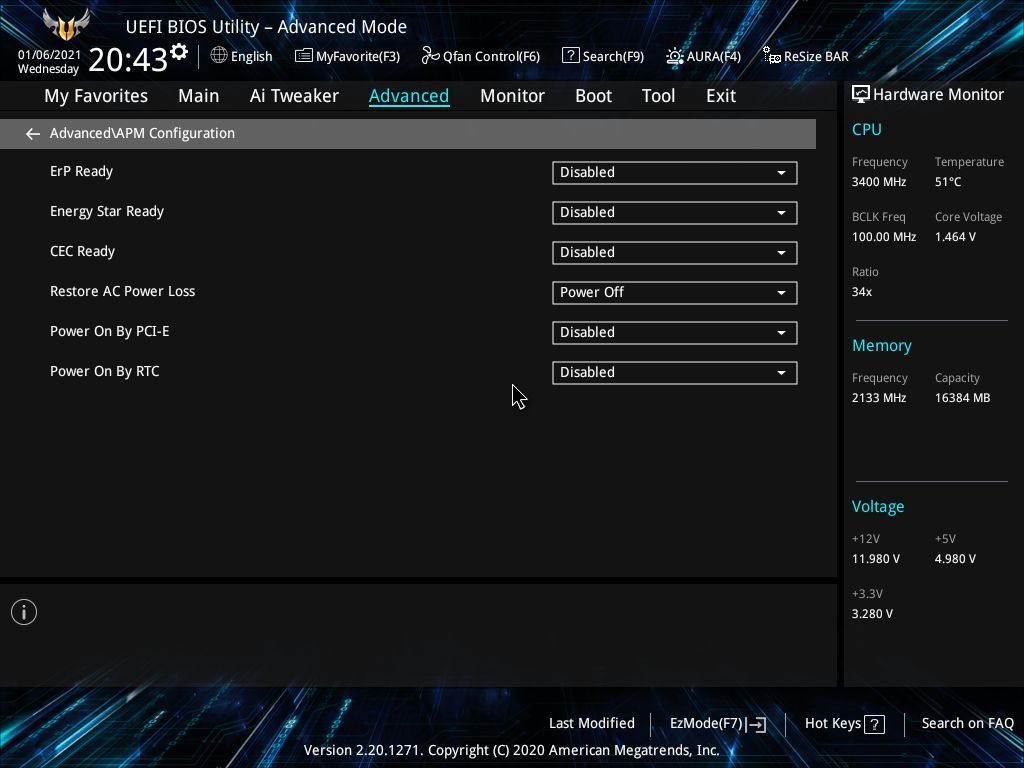

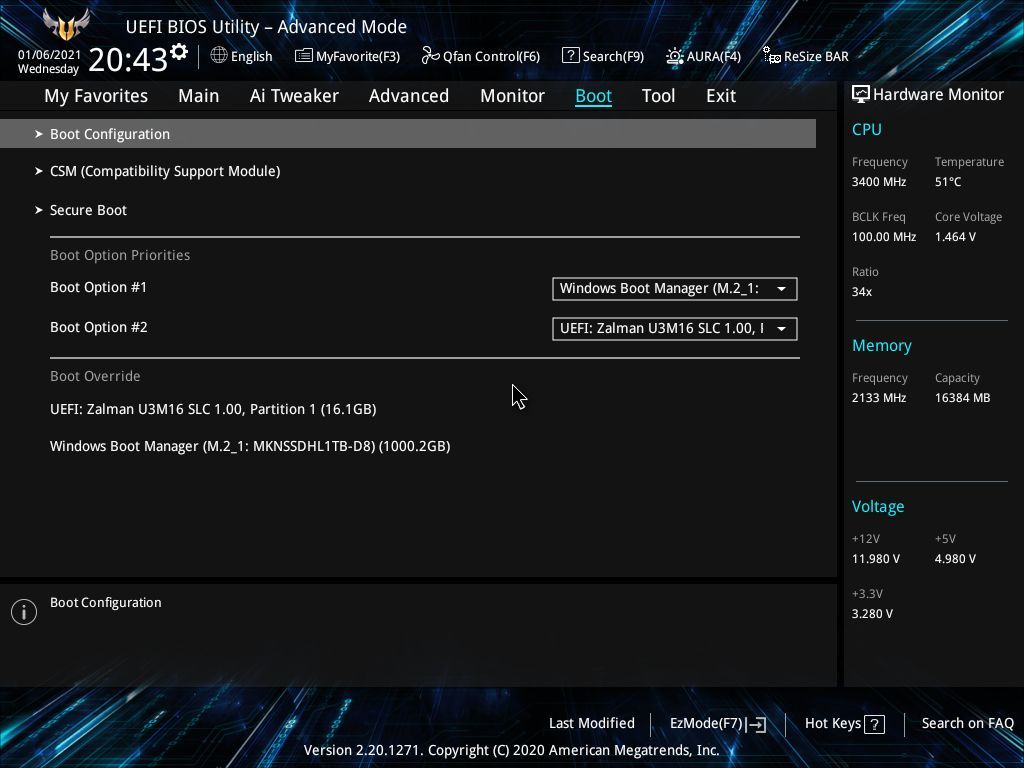

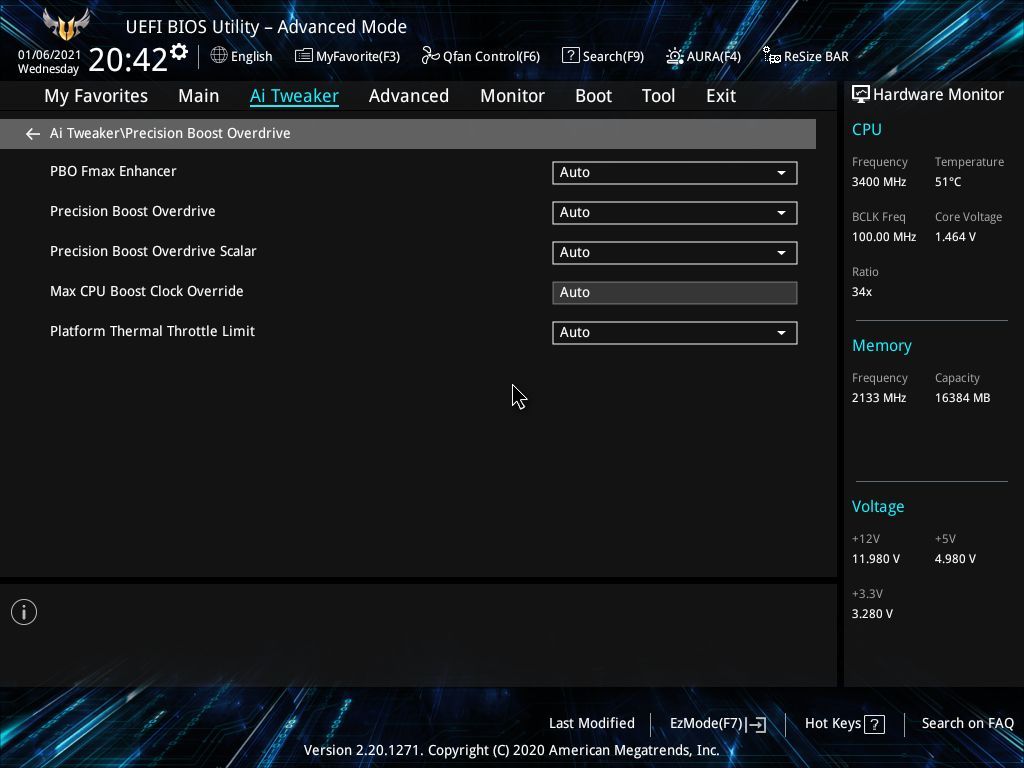

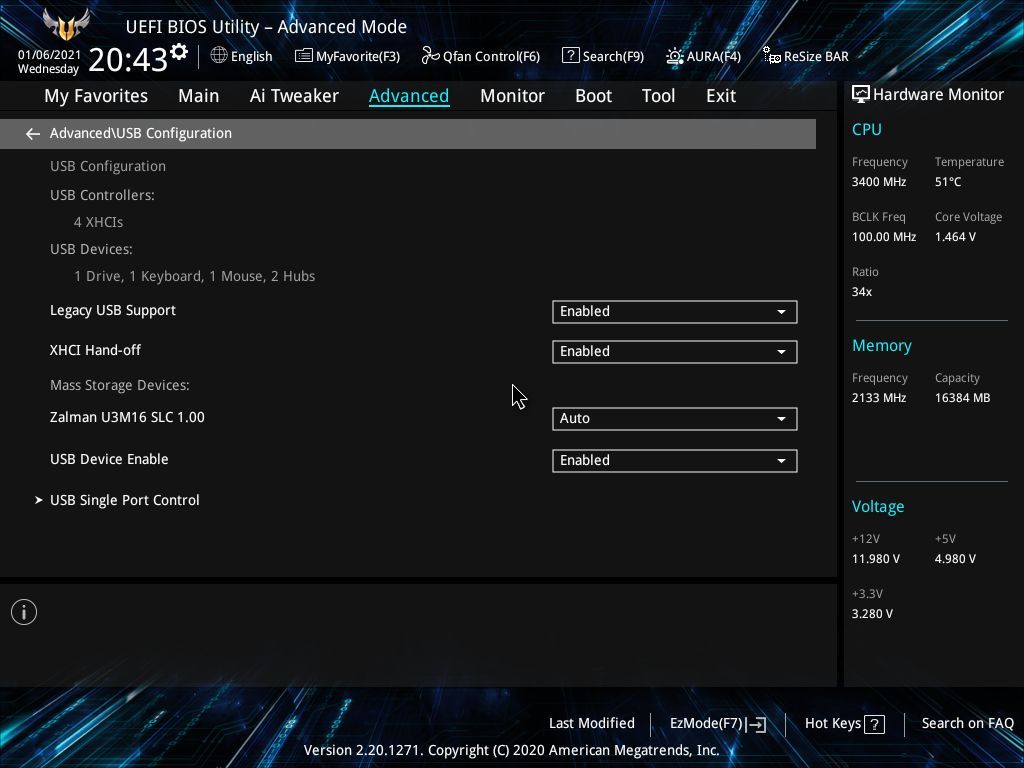

Like the software section above, we’ve shortened the Firmware section as well. Instead of describing each section, we’ve gathered screenshots covering the vast majority of the bios screens. If there is anything of interest, we’ll make a note of it.

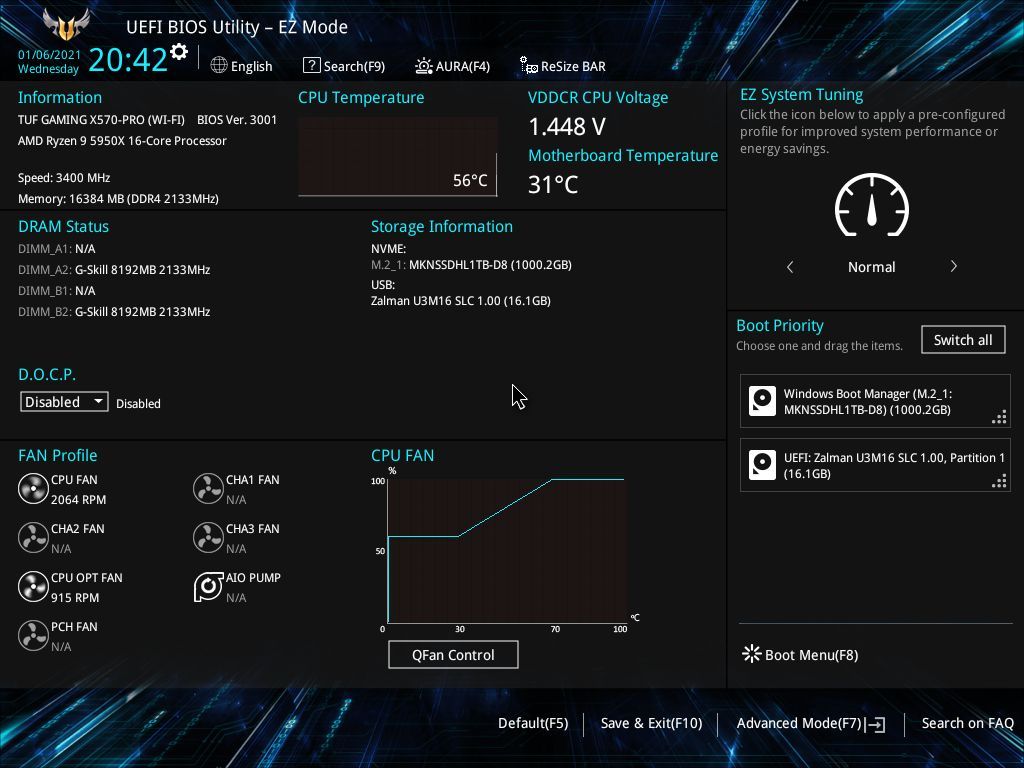

I’ve been a longtime fan of the Asus UEFIs as they are easy to get around, have a lot of options, and the most frequently accessed items are not buried deep within the menus. The BIOS is high-contrast and easy to read, too. The EZ Mode provides enough information and options to be useful, while the Advanced part of the BIOS has everything you need, and more, to tweak your motherboard and components.

Image 1 of 29

Image 2 of 29

Image 3 of 29

Image 4 of 29

Image 5 of 29

Image 6 of 29

Image 7 of 29

Image 8 of 29

Image 9 of 29

Image 10 of 29

Image 11 of 29

Image 12 of 29

Image 13 of 29

Image 14 of 29

Image 15 of 29

Image 16 of 29

Image 17 of 29

Image 18 of 29

Image 19 of 29

Image 20 of 29

Image 21 of 29

Image 22 of 29

Image 23 of 29

Image 24 of 29

Image 25 of 29

Image 26 of 29

Image 27 of 29

Image 28 of 29

Image 29 of 29

Test System / Comparison Products

We’ve updated our test system to Windows 10 64-bit OS (20H2) with all threat mitigations applied. We also upgraded our video card driver to 457.30 and reran all the game tests moving to the new 5000 series CPU. We use the latest non-beta motherboard BIOS available to the public unless otherwise noted. The hardware used is as follows :

CPU	AMD Ryzen R9 5950X
Memory	GSkill Trident Z Neo 2x8GB DDR4 3600 (F4-3600C16Q-32GTZN)
GPU	Asus ROG Strix RTX 2070
CPU Cooler	Corsair H150i
PSU	Corsair AX1200i
Software	Windows 10 64-bit 20H2
Graphics Driver	NVIDIA Driver 457.30
Sound	Integrated HD audio
Network	Integrated Networking (GbE or 2.5 GbE)

Benchmark Settings

Synthetic Benchmarks and Settings
PCMark 10	Version 2.1.2177 64
	Essentials, Productivity, Digital Content Creation, MS Office
3DMark	Version 2.11.6866 64
	Firestrike Extreme and Time Spy Default Presets
Cinebench R20	Version RBBENCHMARK271150
	Open GL Benchmark - Single and Multi-threaded
Application Tests and Settings
LAME MP3	Version SSE2_2019
	Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)
HandBrake CLI	Version: 1.2.2
	Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)
Corona 1.4	Version 1.4
	Custom benchmark
7-Zip	Version 19.00
	Integrated benchmark
Game Tests and Settings
The Division 2	Ultra Preset - 1920 x 1080
Forza Horizon 4	Ultra Preset - 1920 x 1080

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: All Motherboard Content
