be quiet! Straight Power 11 1000W

Teardown & Component Analysis

Before proceeding with this page we strongly encourage you to a look at this article, which will provide you valuable information about PSUs and their operation, allowing you to understand better the information given below.

General Data
Manufacturer (OEM)FSP
Platform ModelNo info (platform exclusively used by be quiet!)
Primary Side

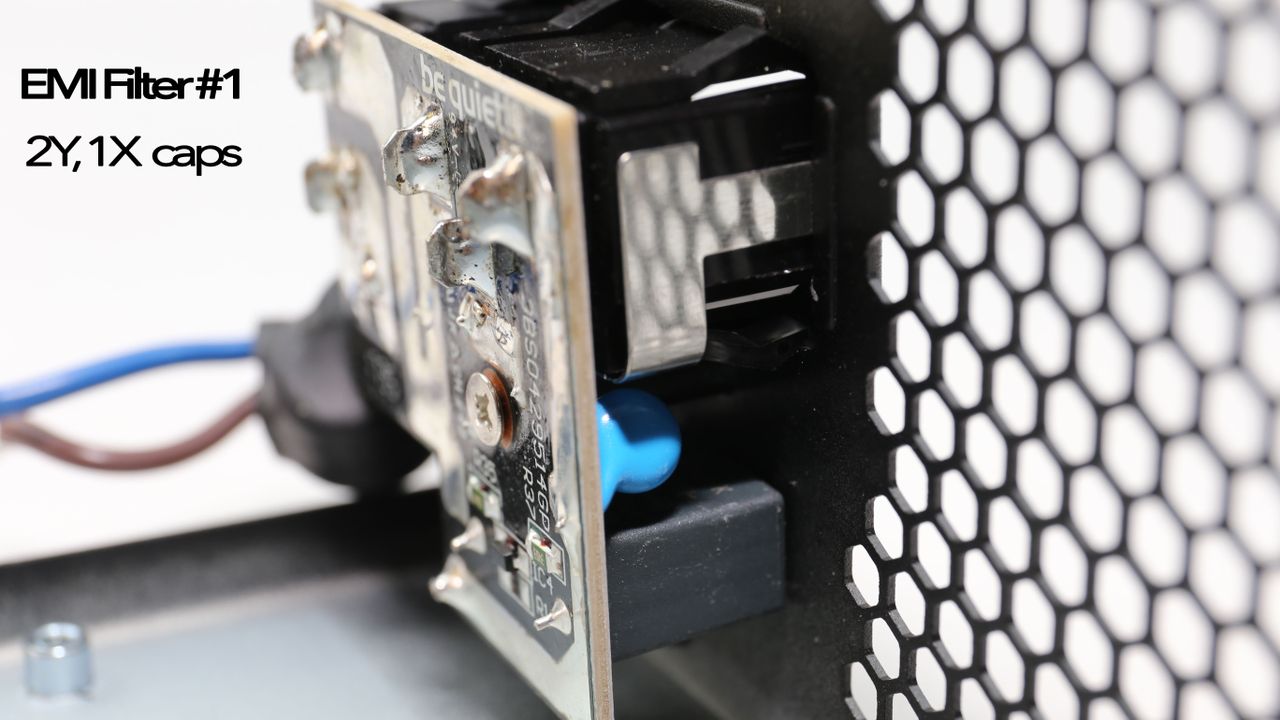

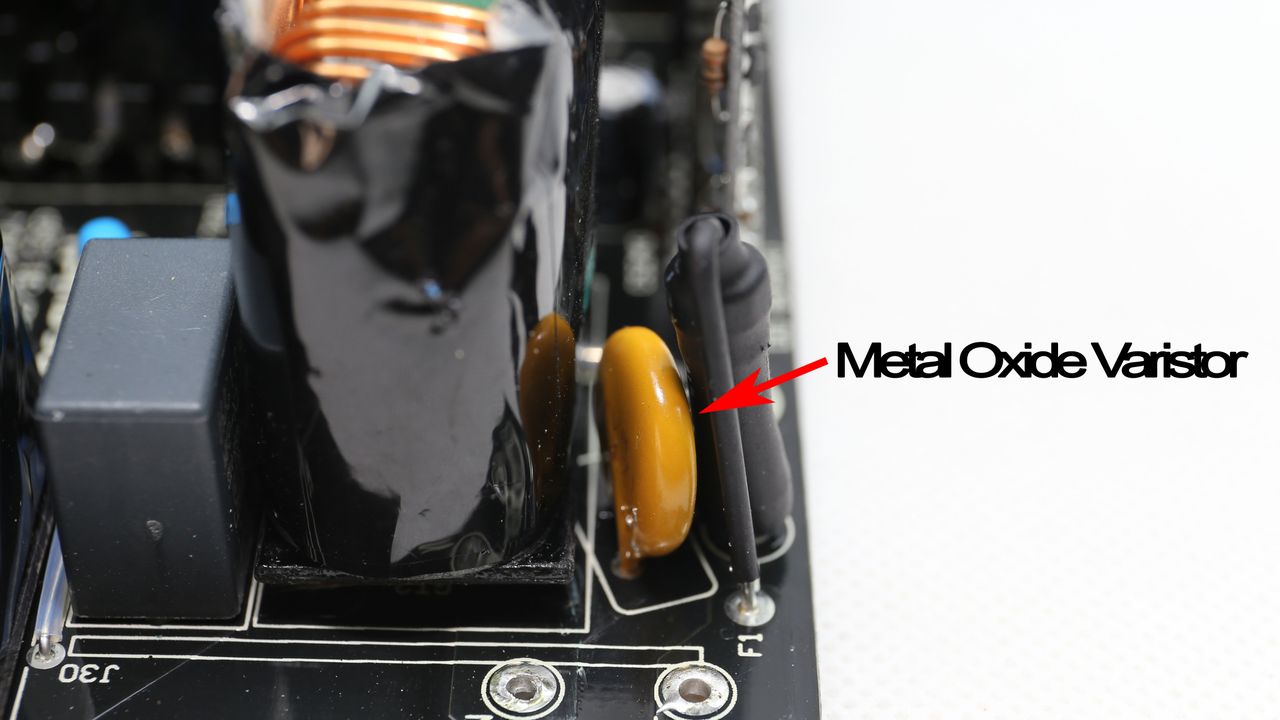

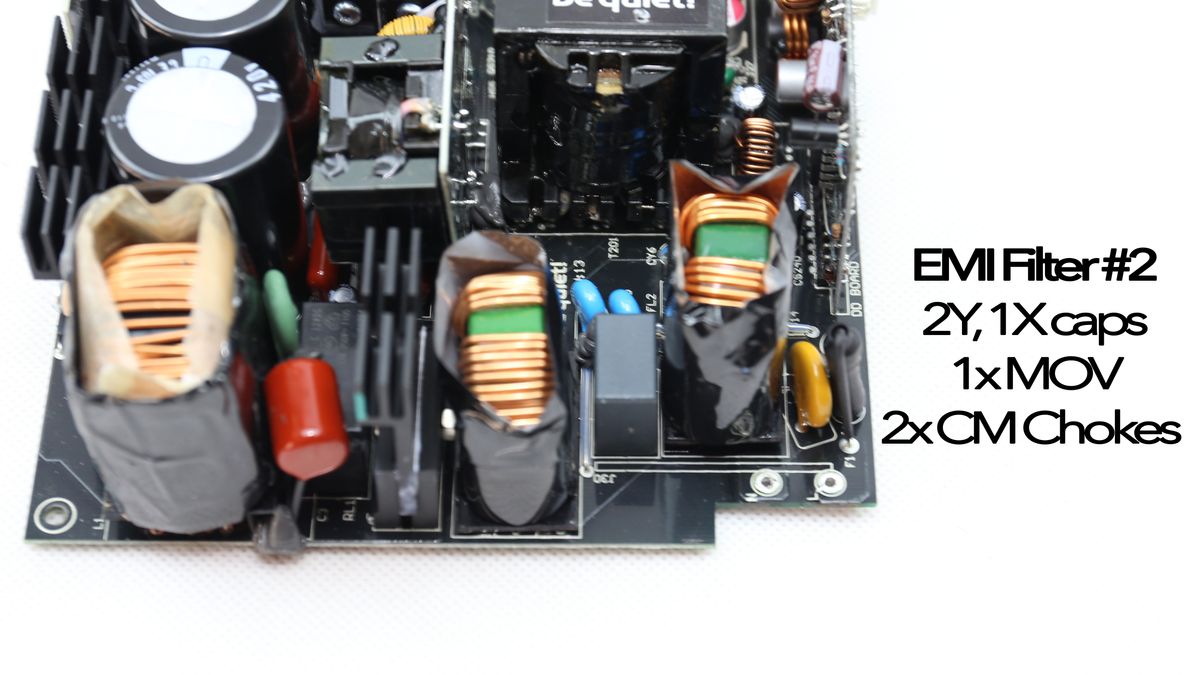

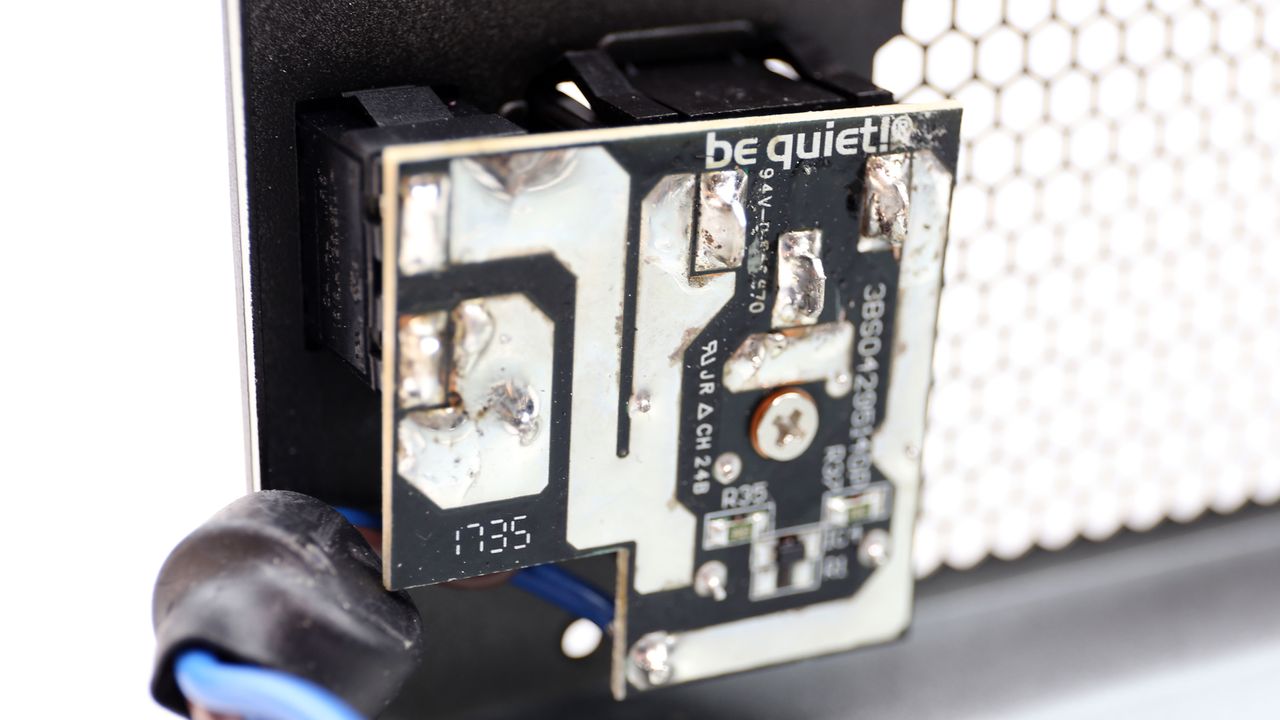

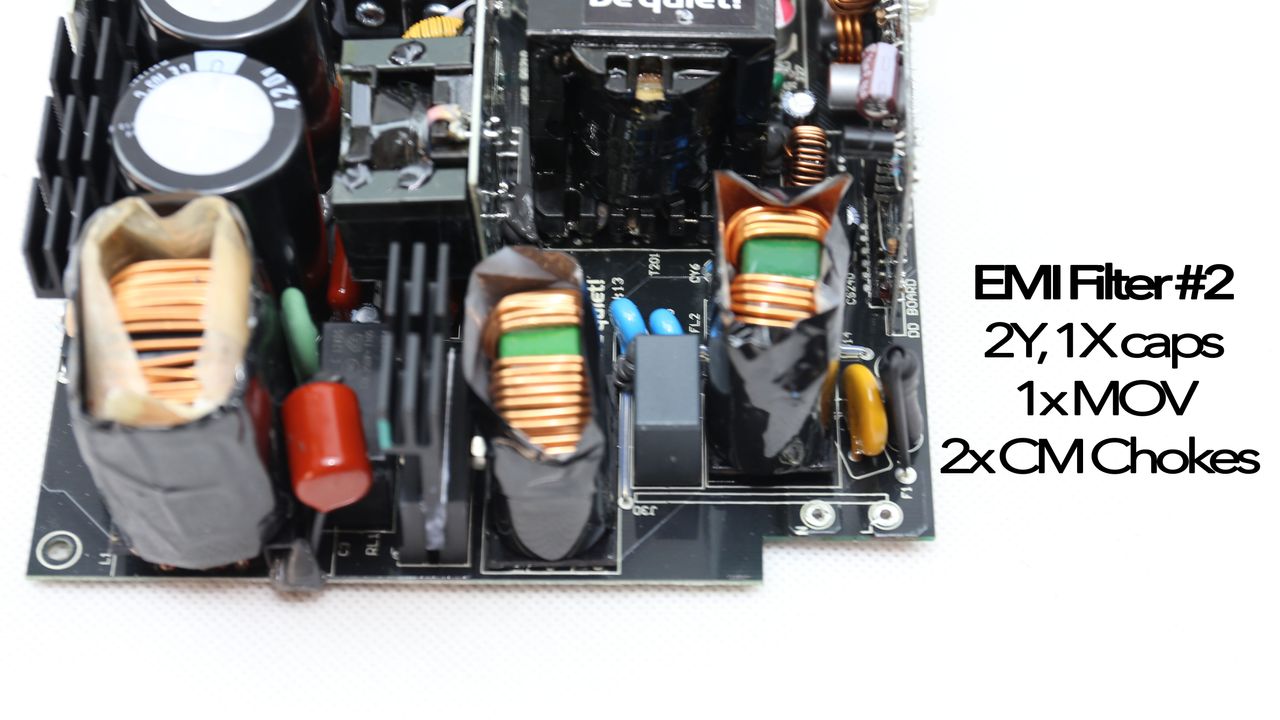

Transient Filter4x Y caps, 2x X caps, 2x CM chokes, 1x MOV

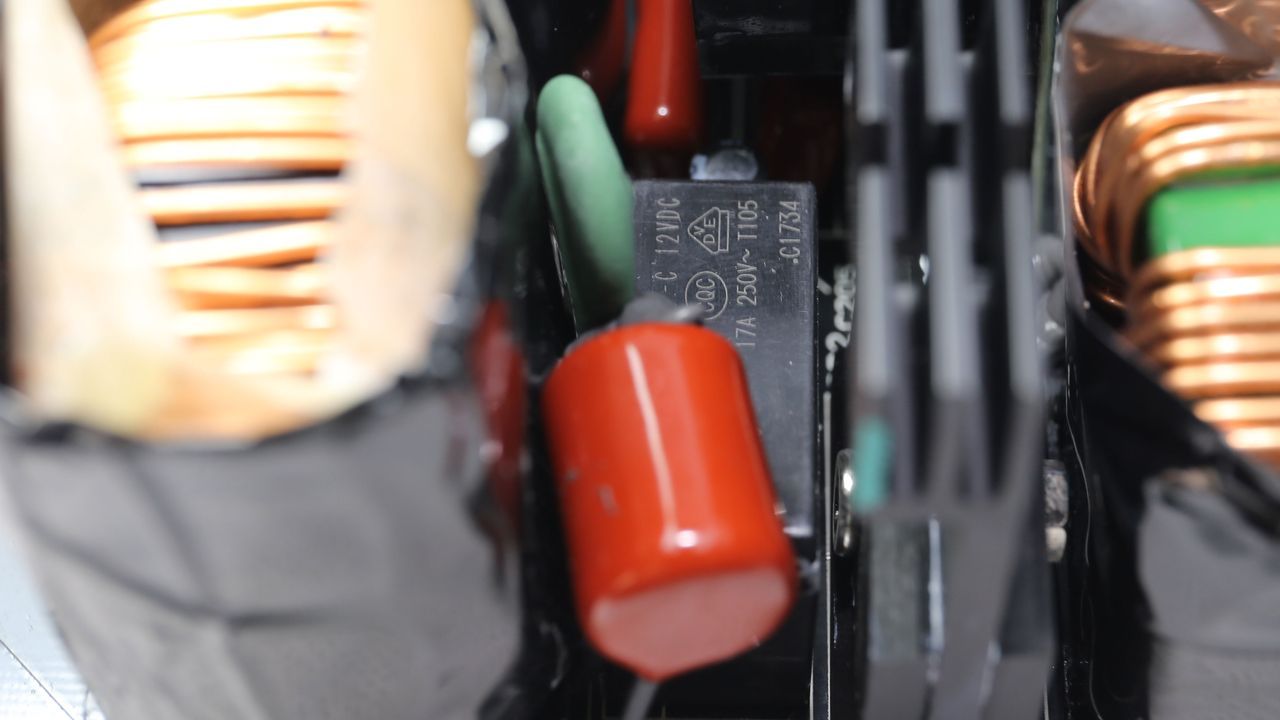

Inrush ProtectionNTC thermistor & relay

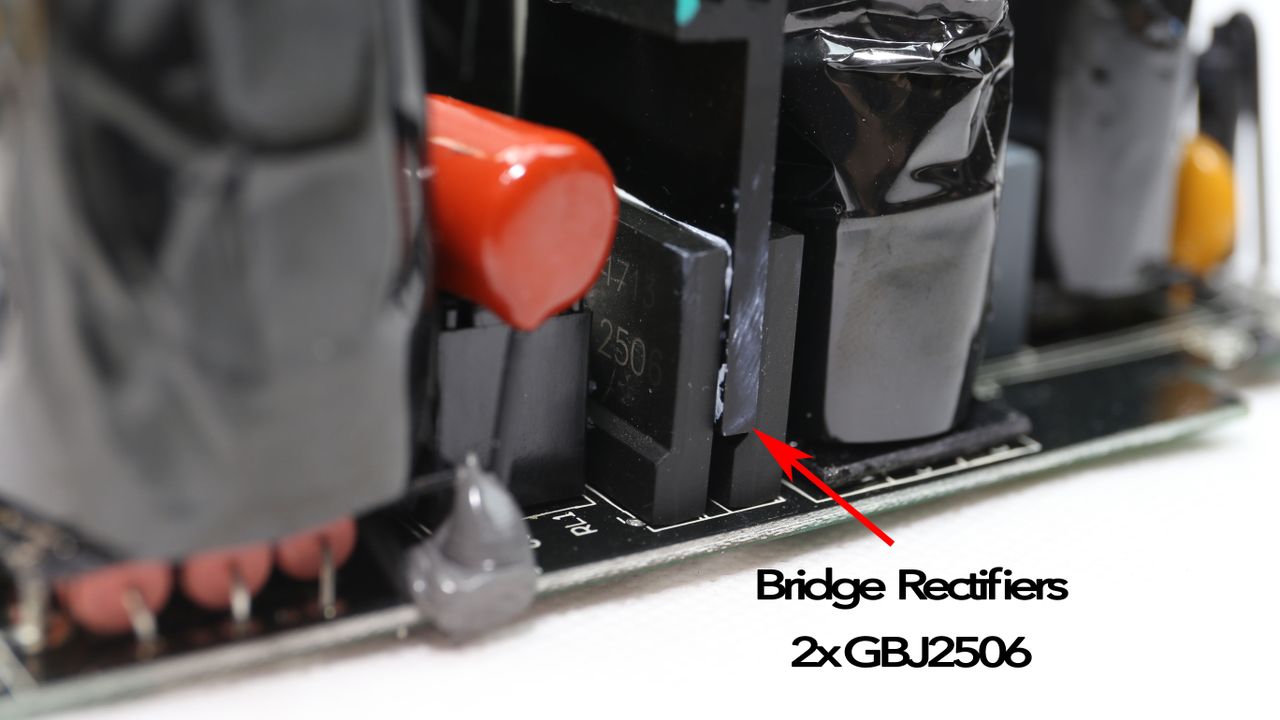

Bridge Rectifier(s)2x GBJ2506 (600V, 25A @ 100°C)

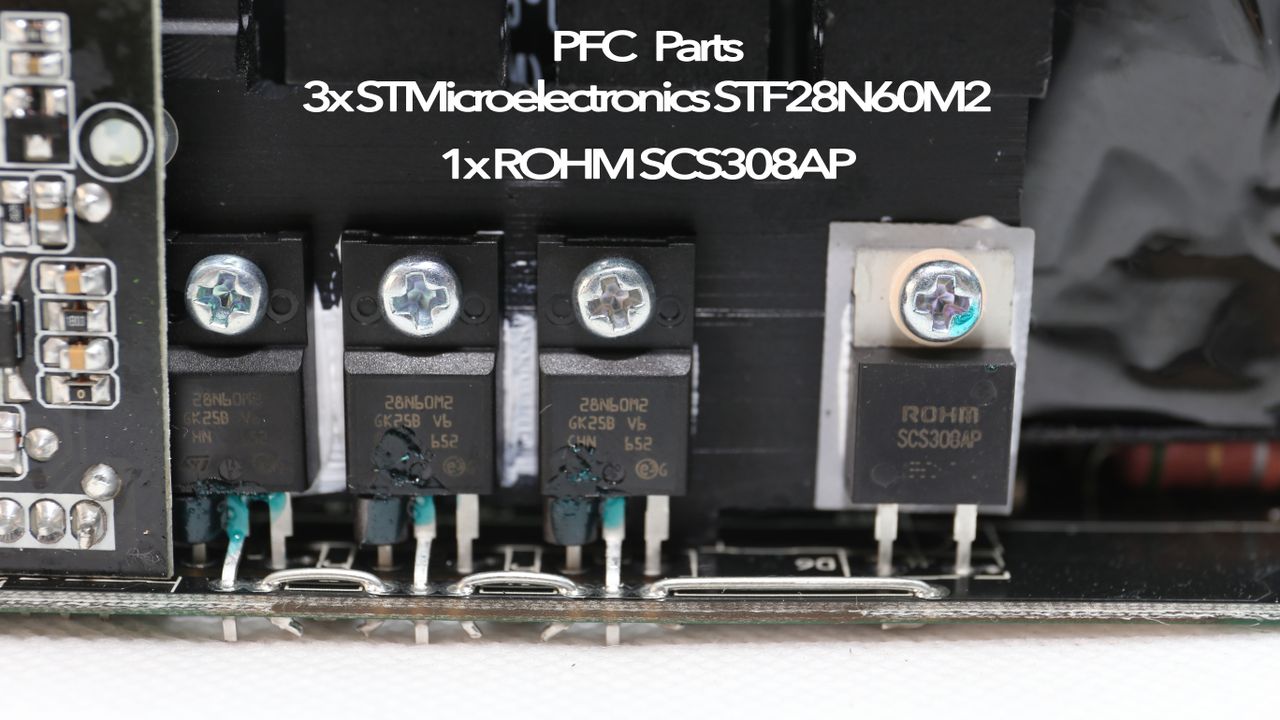

APFC MOSFETs3x STMicroelectronics STF28N60M2 (600V, 14A @ 100°C, 0.15Ω)
APFC Boost Diode1x ROHM SCS308AP (600V, 8A @ 135°C)

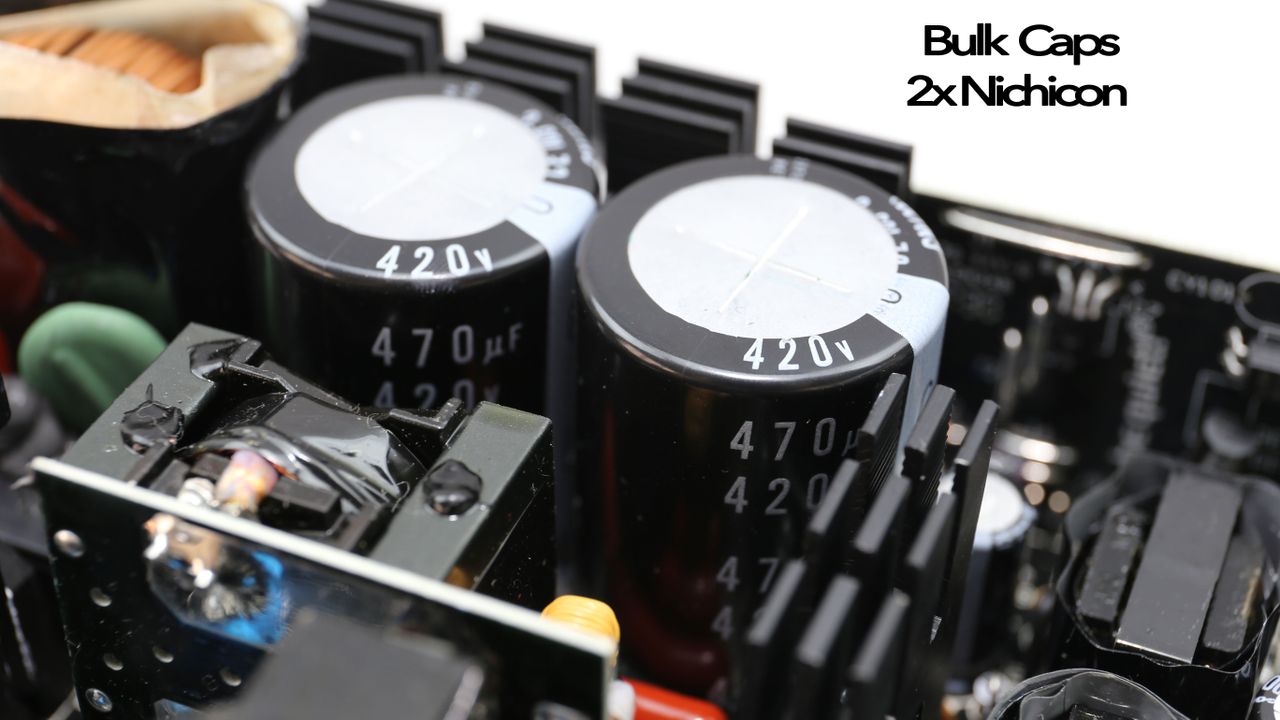

Hold-up Cap(s)2x Nichicon (420V, 470uF, 3000h @ 105°C, GN)

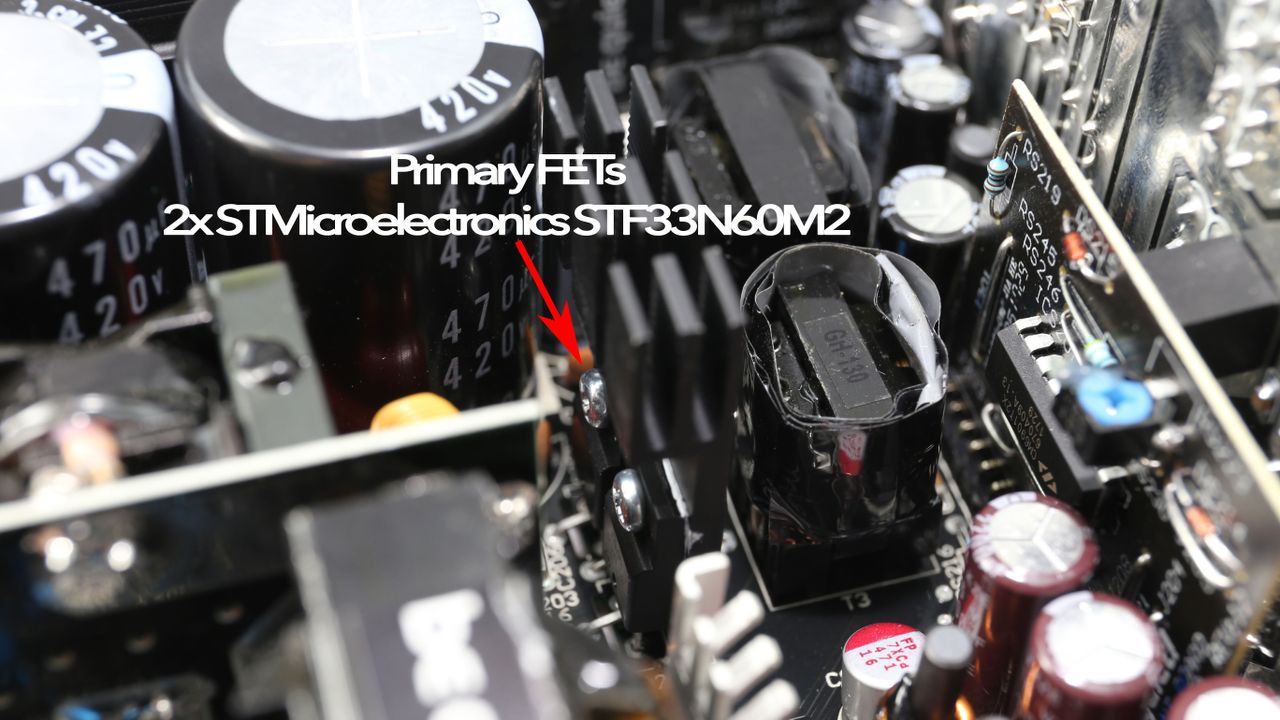

Main Switchers2x STMicroelectronics STF33N60M2 (650V, 16A @ 100°C, 0.125Ω)

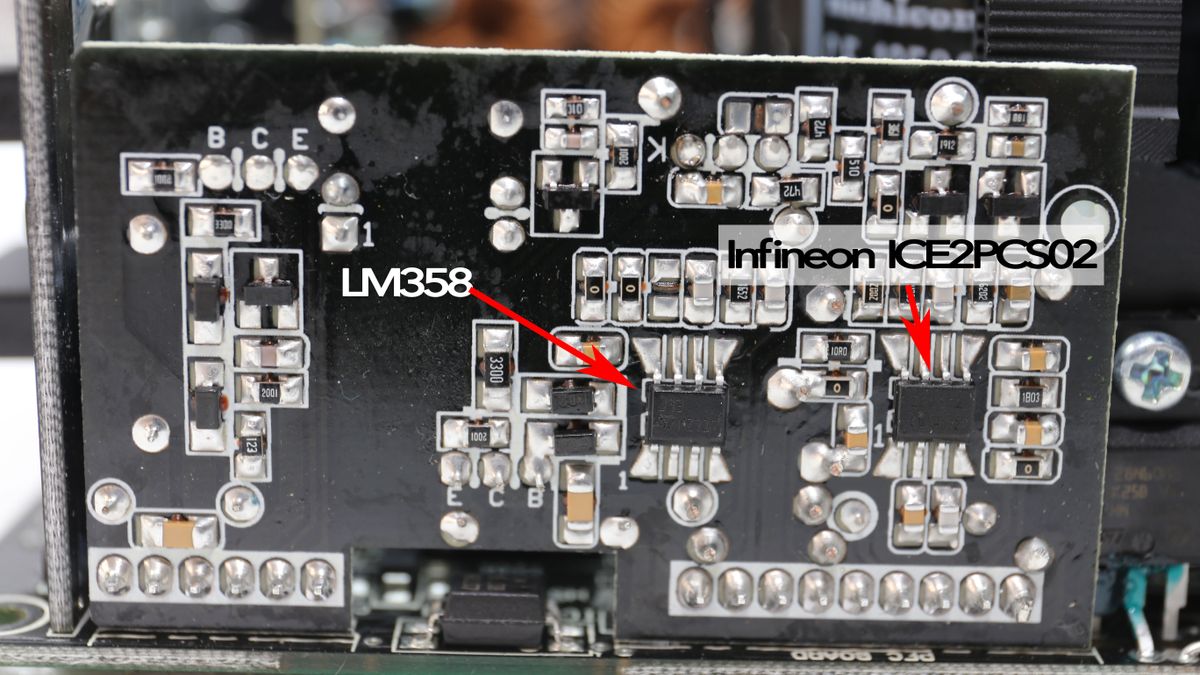

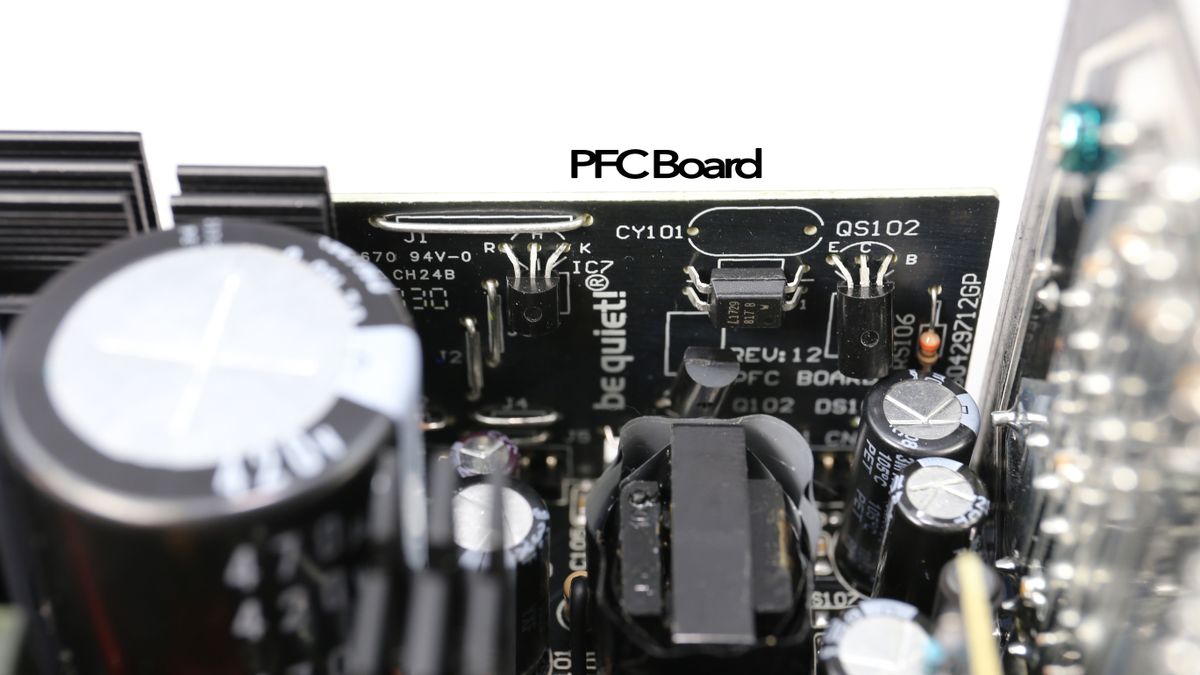

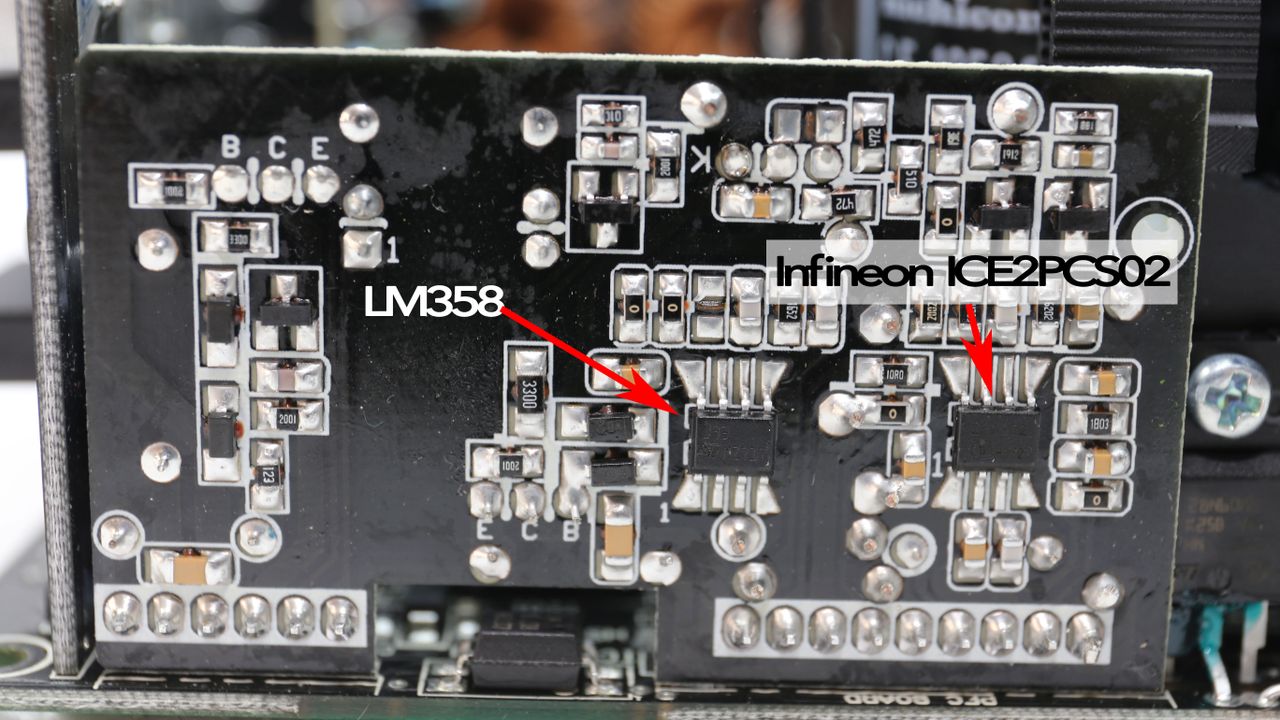

APFC ControllerInfineon ICE2PCS02

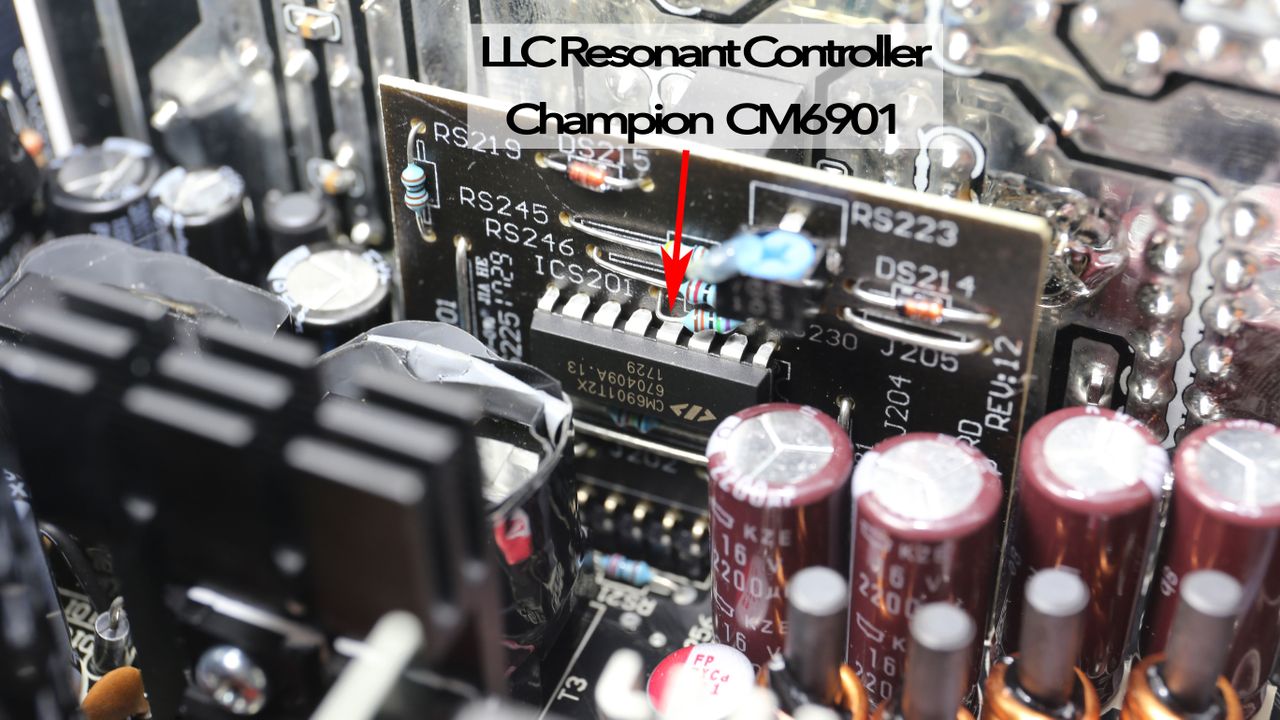

Resonant ControllerChampion CM6901

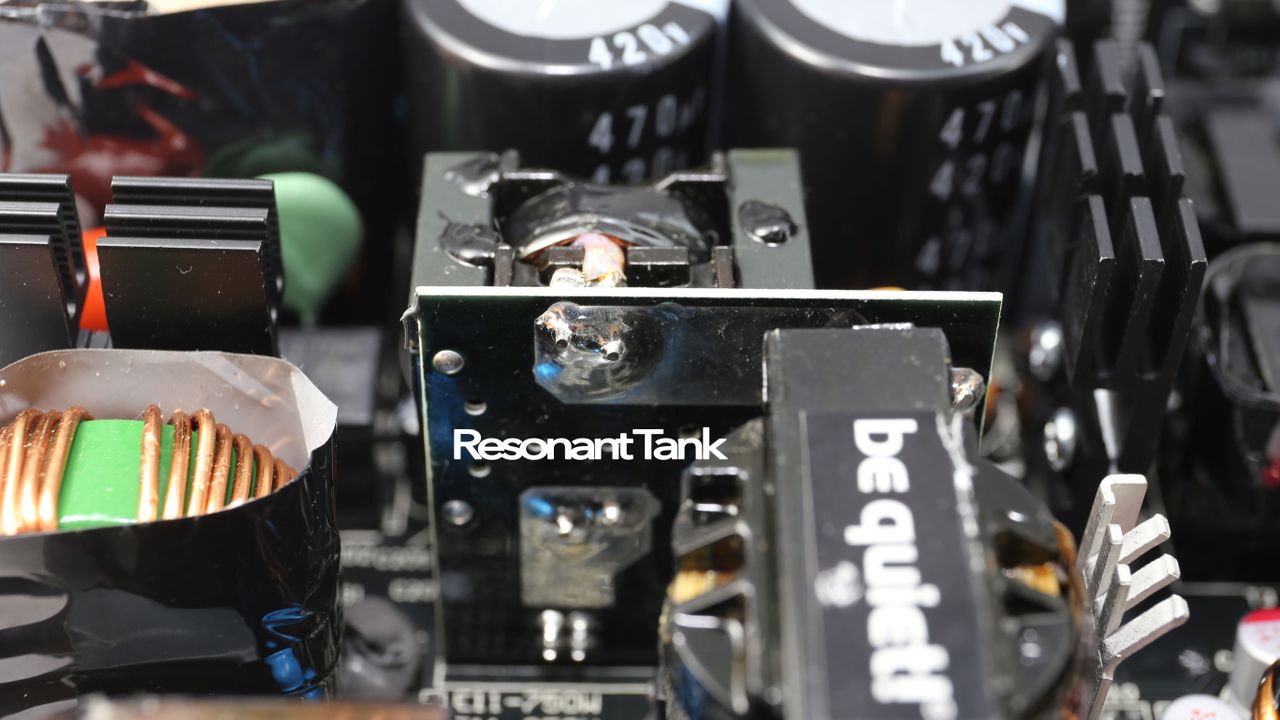

TopologyPrimary side: Half-bridge & LLC resonant controller Secondary side: Synchronous rectification & DC-DC converters
Secondary Side

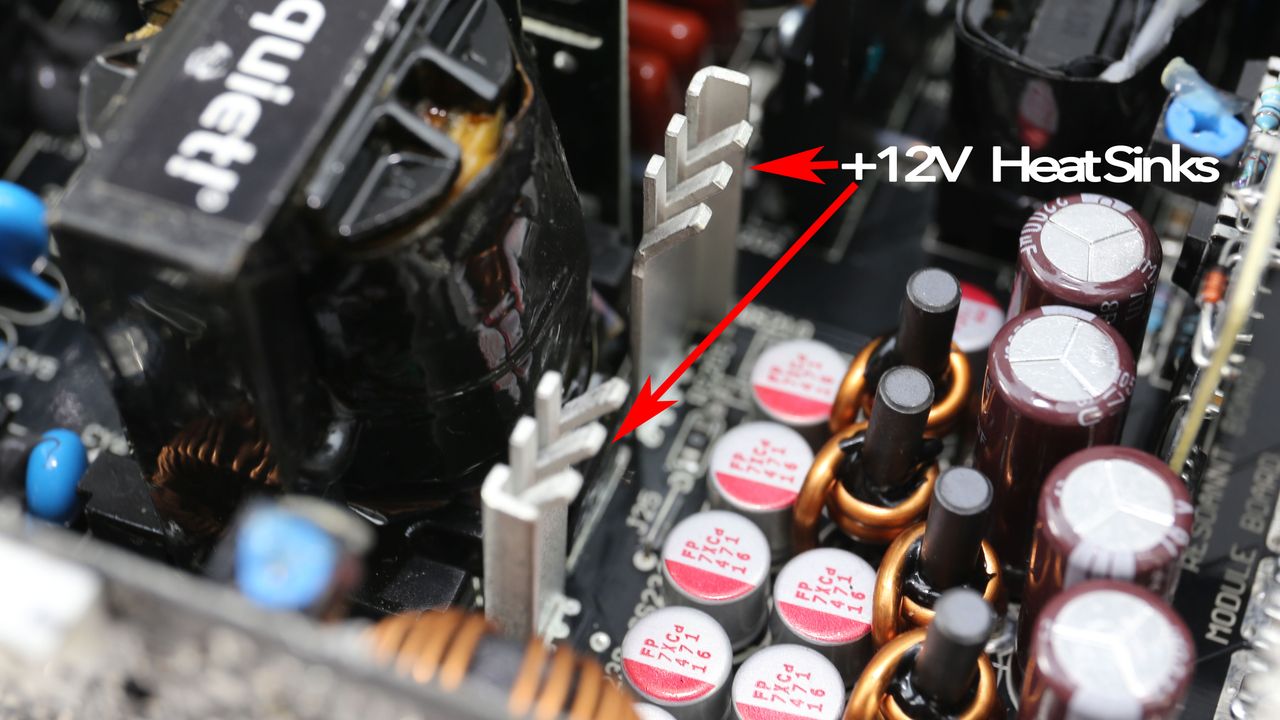

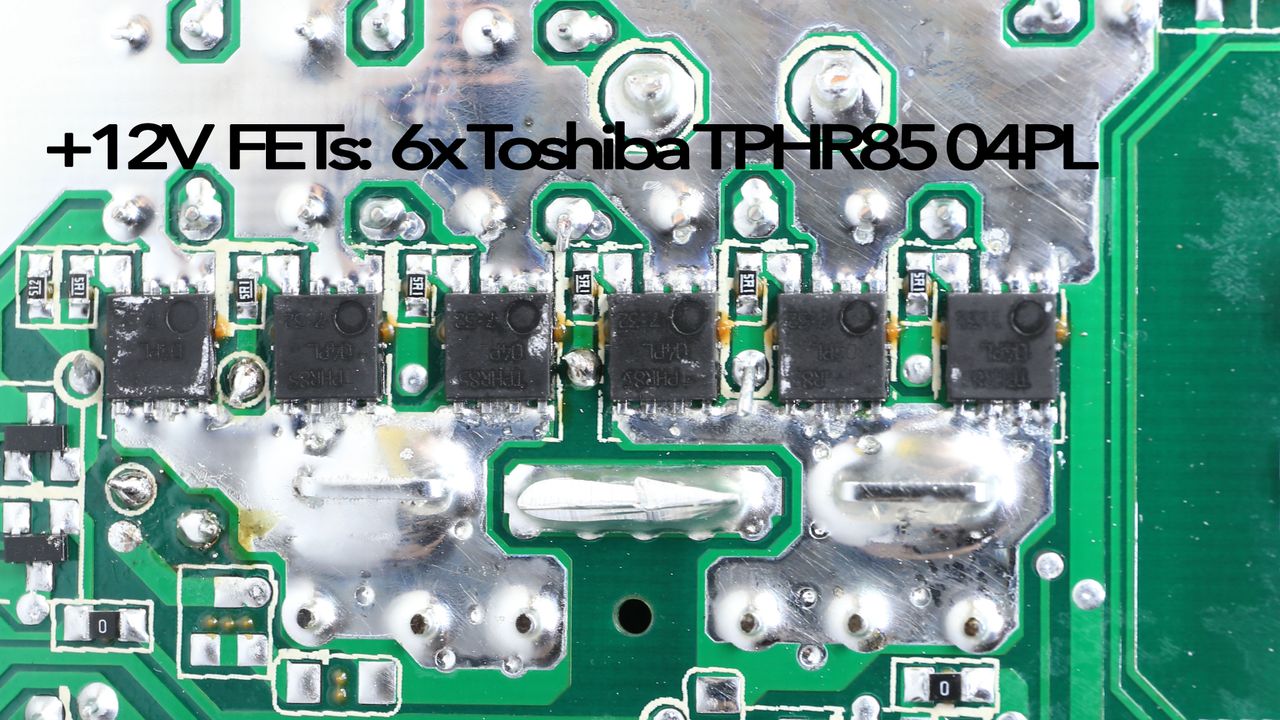

+12V MOSFETs6x Toshiba TPHR85 04PL (SOP Advance Series, 40V, 150A @ 25°C, 0.85Ω)

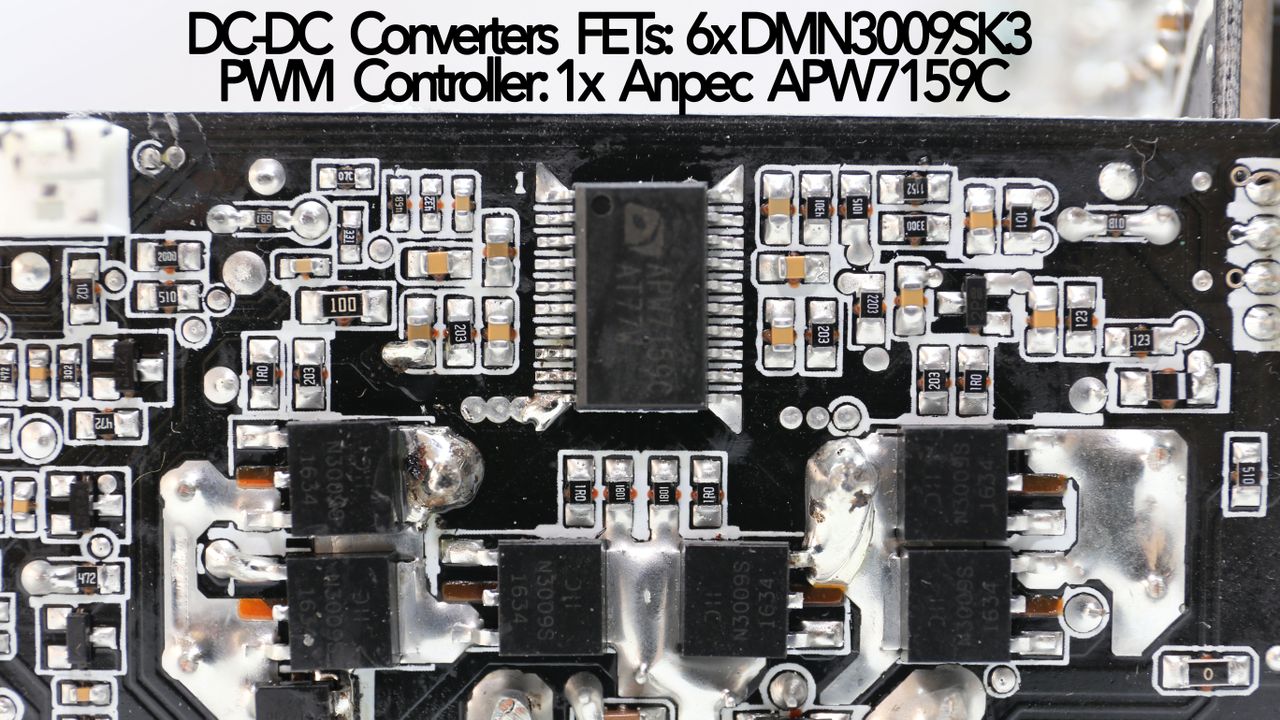

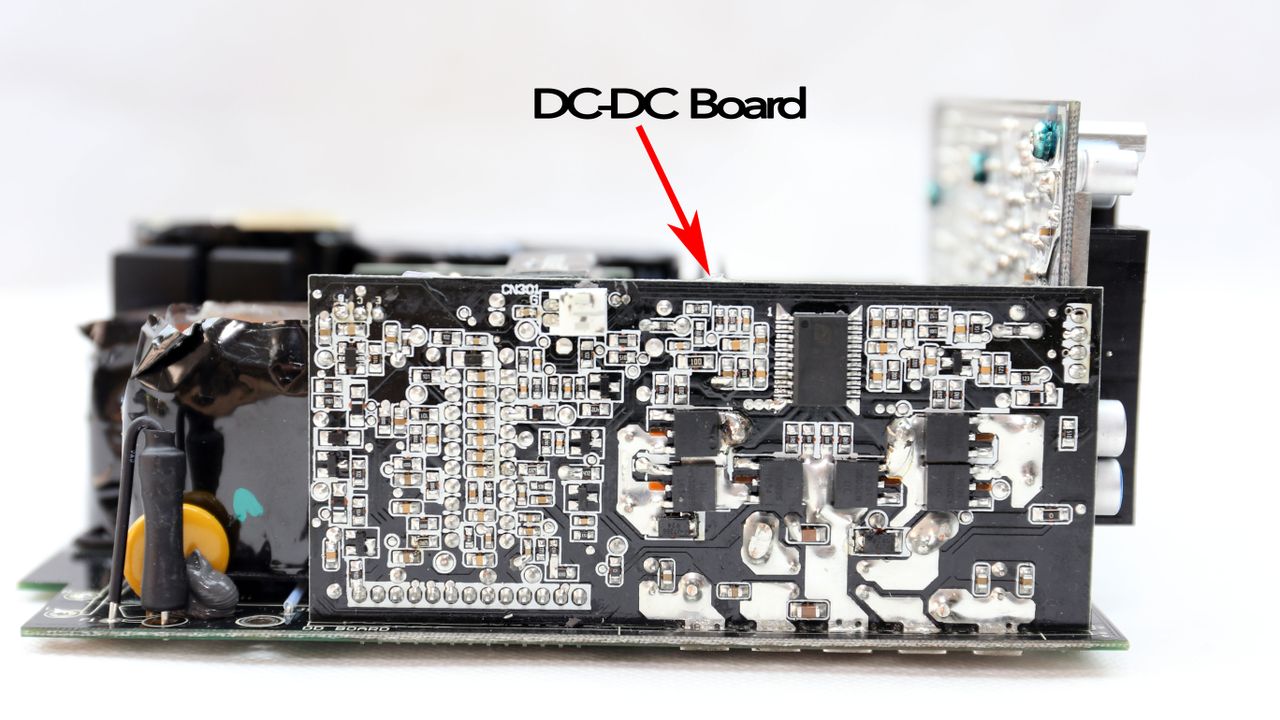

5V & 3.3VDC-DC Converters: 6x DMN3009SK3 (30V, 60A @ 70°C, 5.5mΩ) PWM Controller: 1x Anpec APW7159C

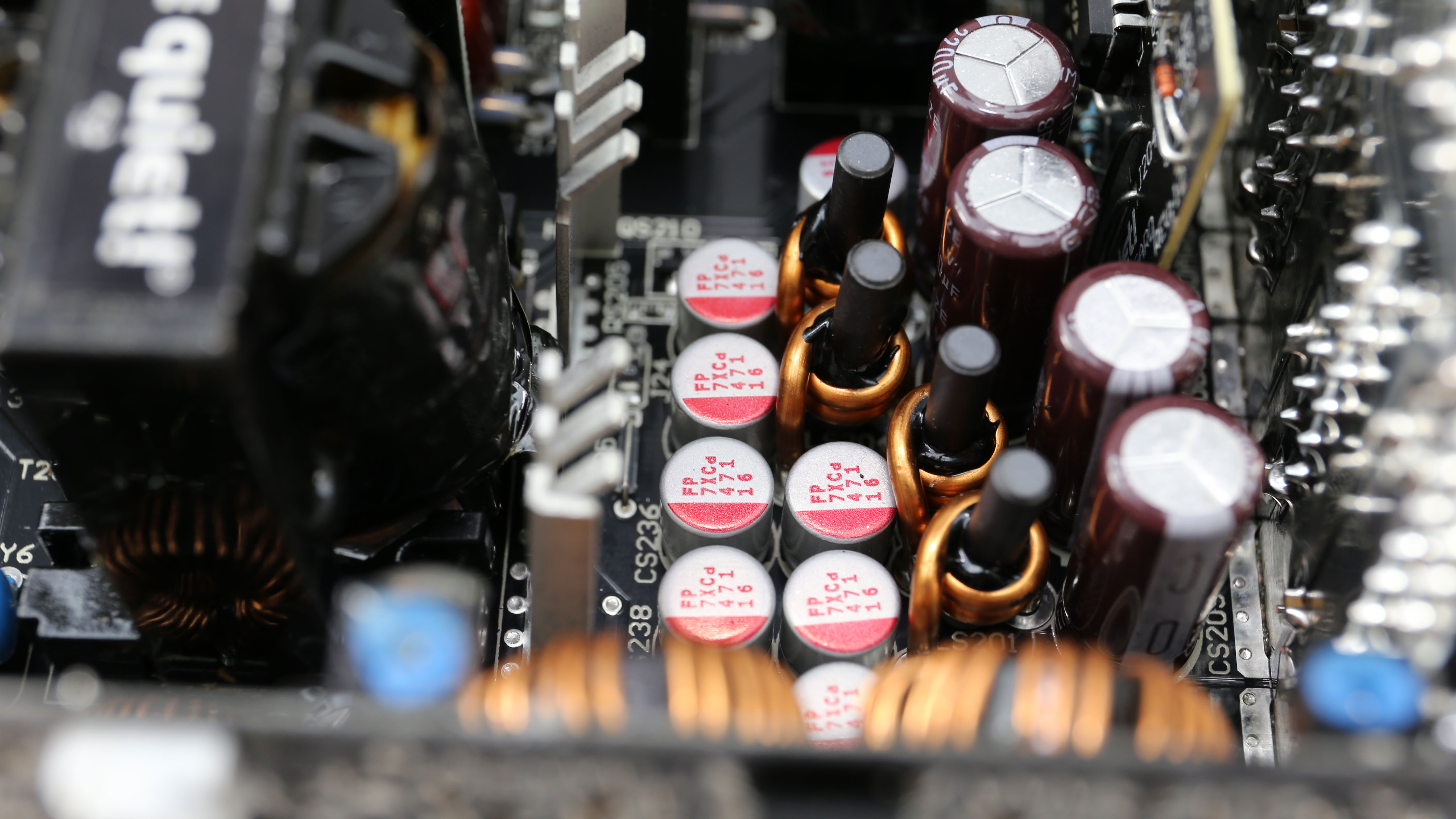

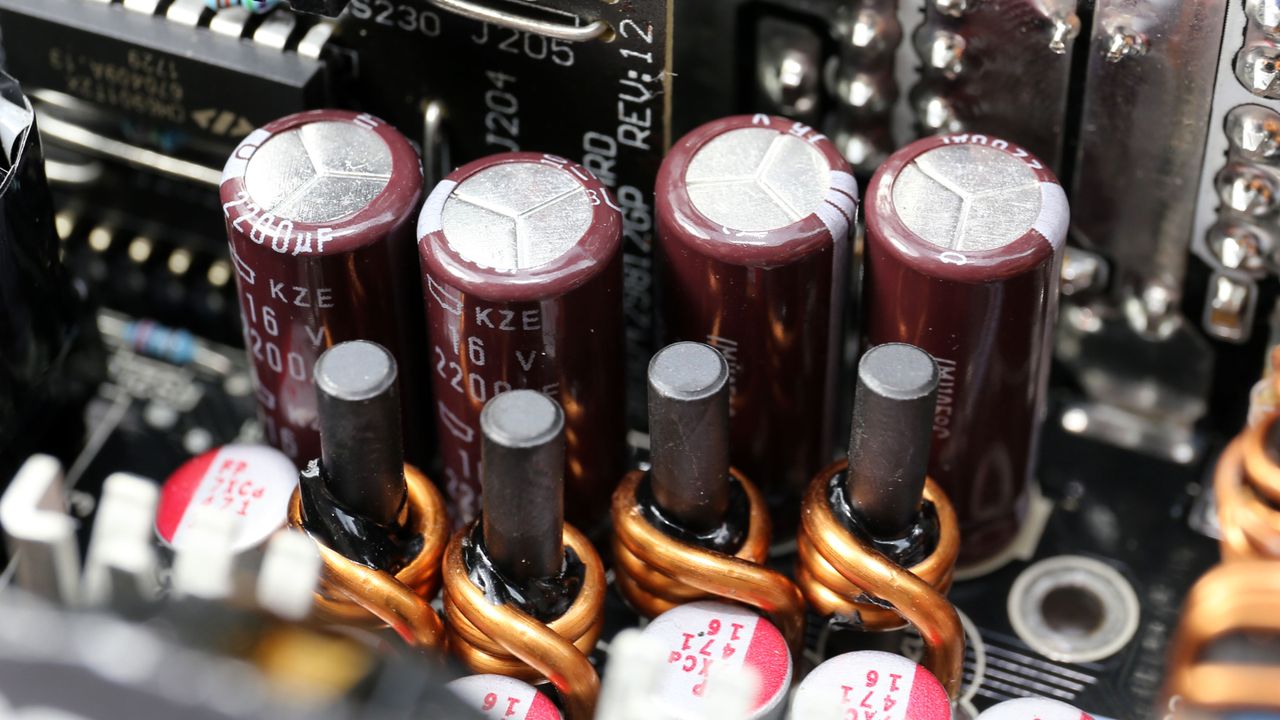

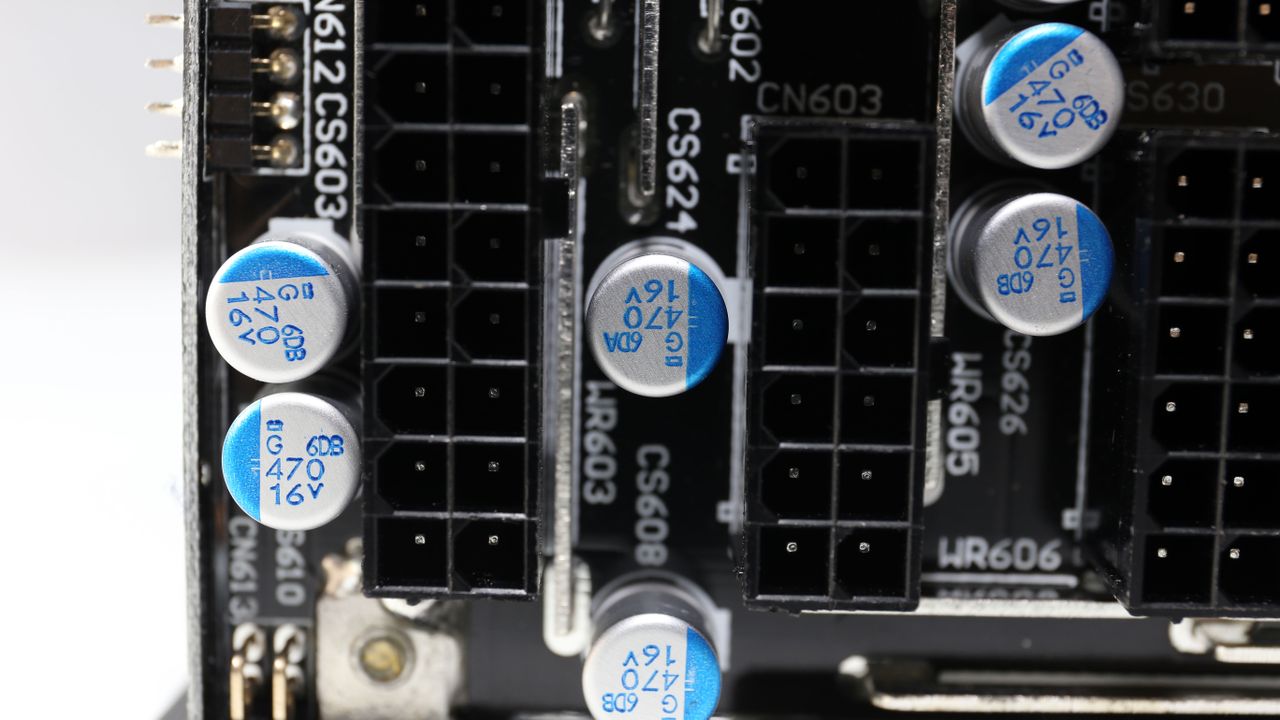

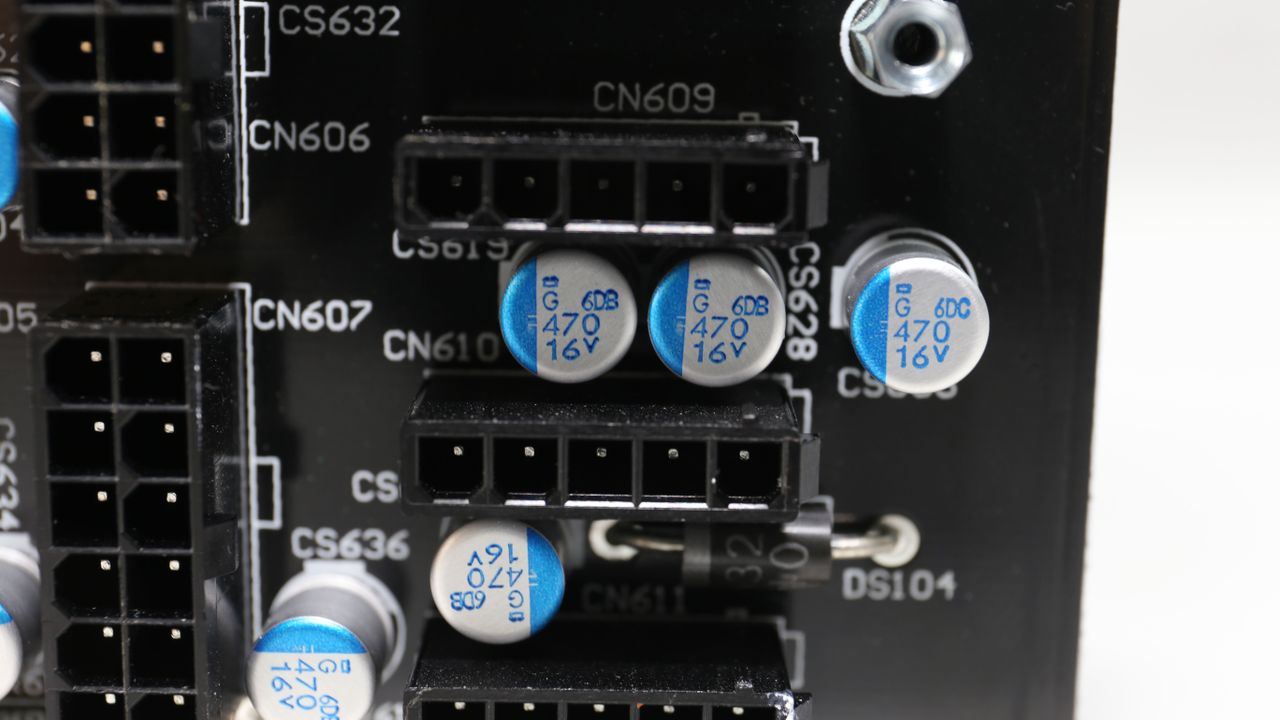

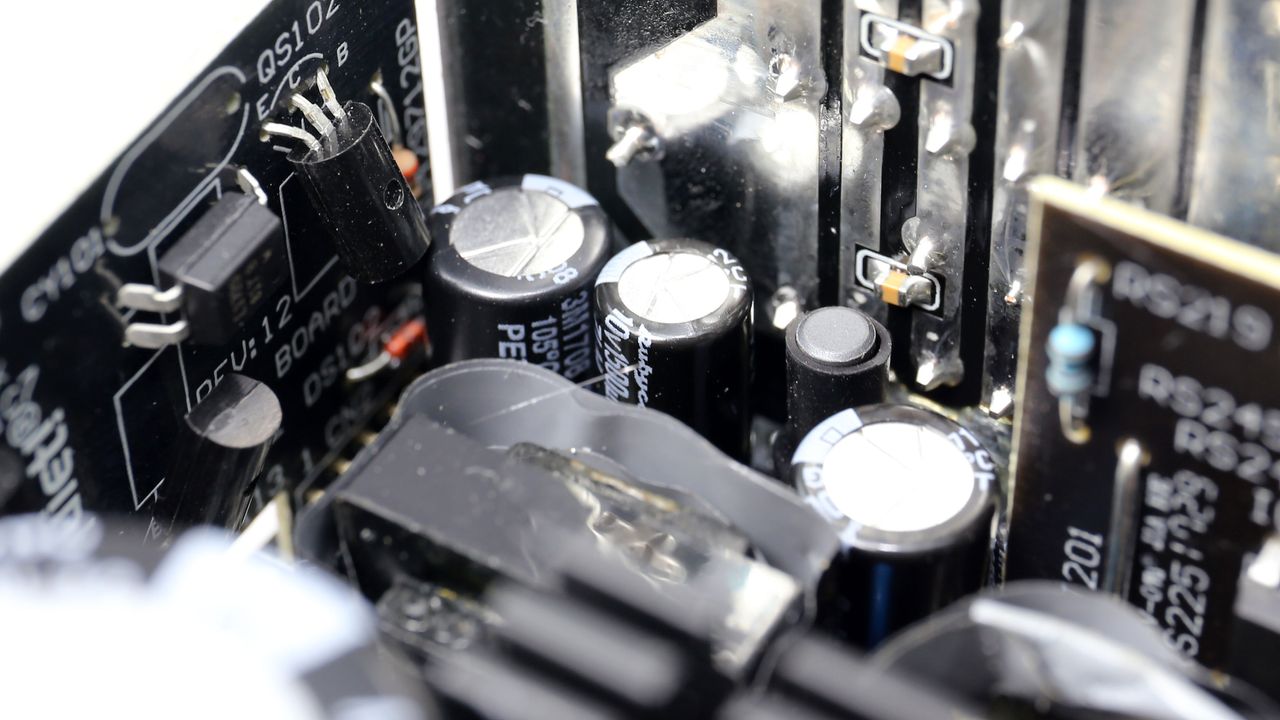

Filtering CapacitorsElectrolytics: Nippon Chemi-Con (1-5000 @ 105°C, KZE), Rubycon (6-10,000 @ 105°C, ZLH), Rubycon (3-6000 @ 105°C, ZLH), Rubycon (4-10,000 @ 105°C, YXF) Polymers: FPCAP, Chemi-Con
Supervisor ICWeltrend WT7579 (OVP, UVP, SCP, PG)

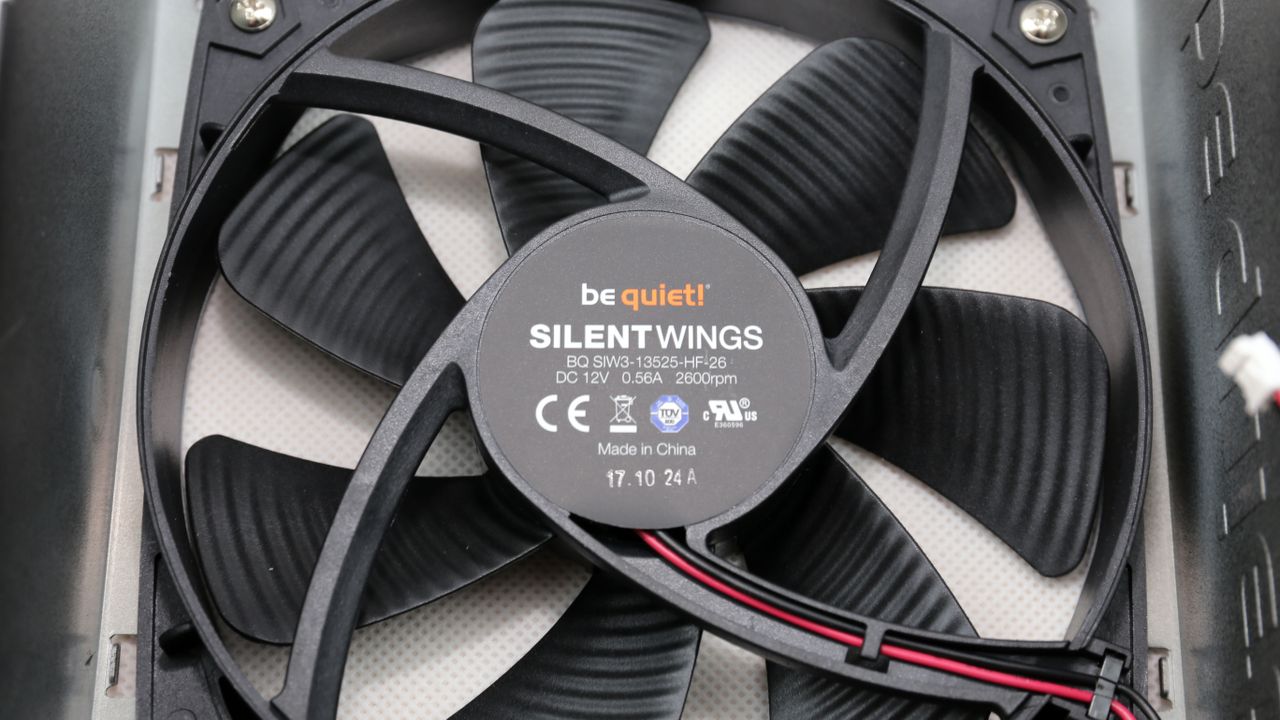

Fan ModelBQ SIW3-13525-HF-26 (135mm, 12V, 0.56A, 2600 RPM, fluid dynamic bearing)

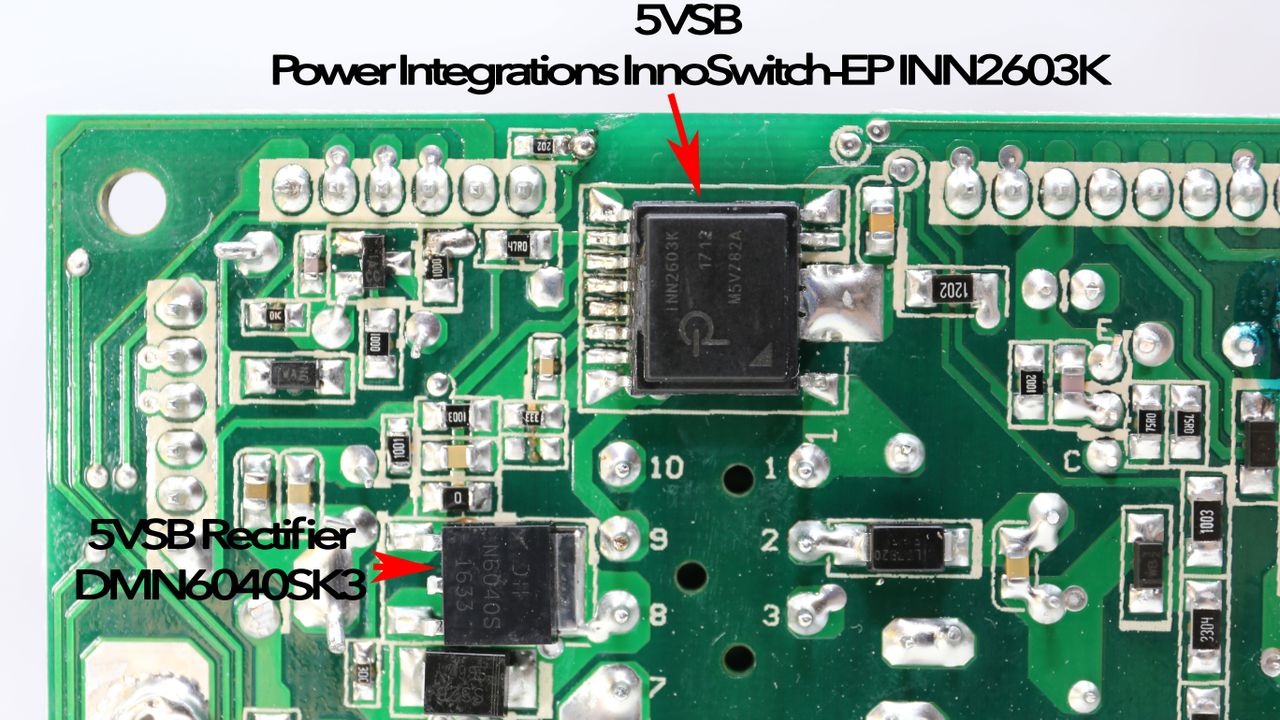

5VSB Circuit
Rectifier1x DMN6040SK3 (30V, 13A @ 100°C, 40mΩ)
Standby PWM ControllerPower Integrations InnoSwitch-EP INN2603K

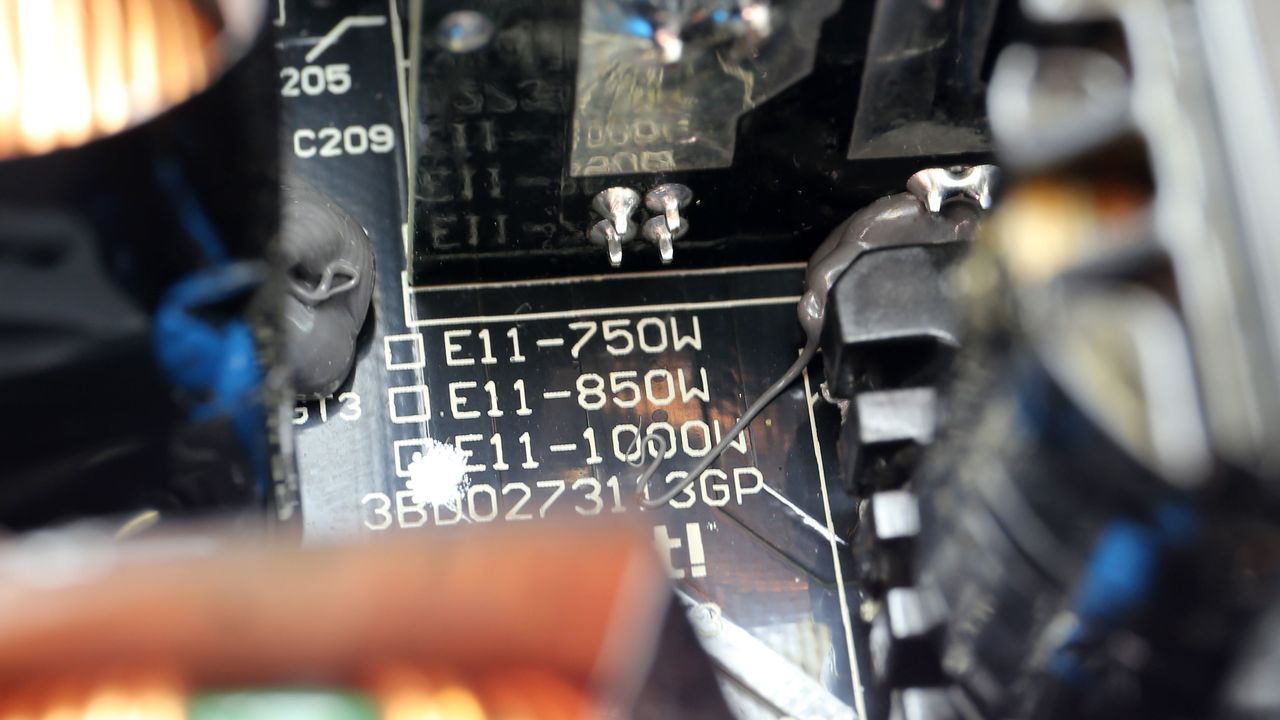

Straight Power 11 PSUs use an FSP platform that's currently only available to be quiet!. Besides the high soldering quality and clean design, what catches our eyes most is FSP's choice of bulk capacitors. We're not used to seeing bulk caps with 3000-hour lifetimes, even in higher-end PSUs. It's much more common to find 2000-hour caps. A number of polymer caps on the secondary side, along with electrolytic caps from reputable brands, are a good indication of this platform's expected reliability over time.

The following video shows the E11-1000’s internals:

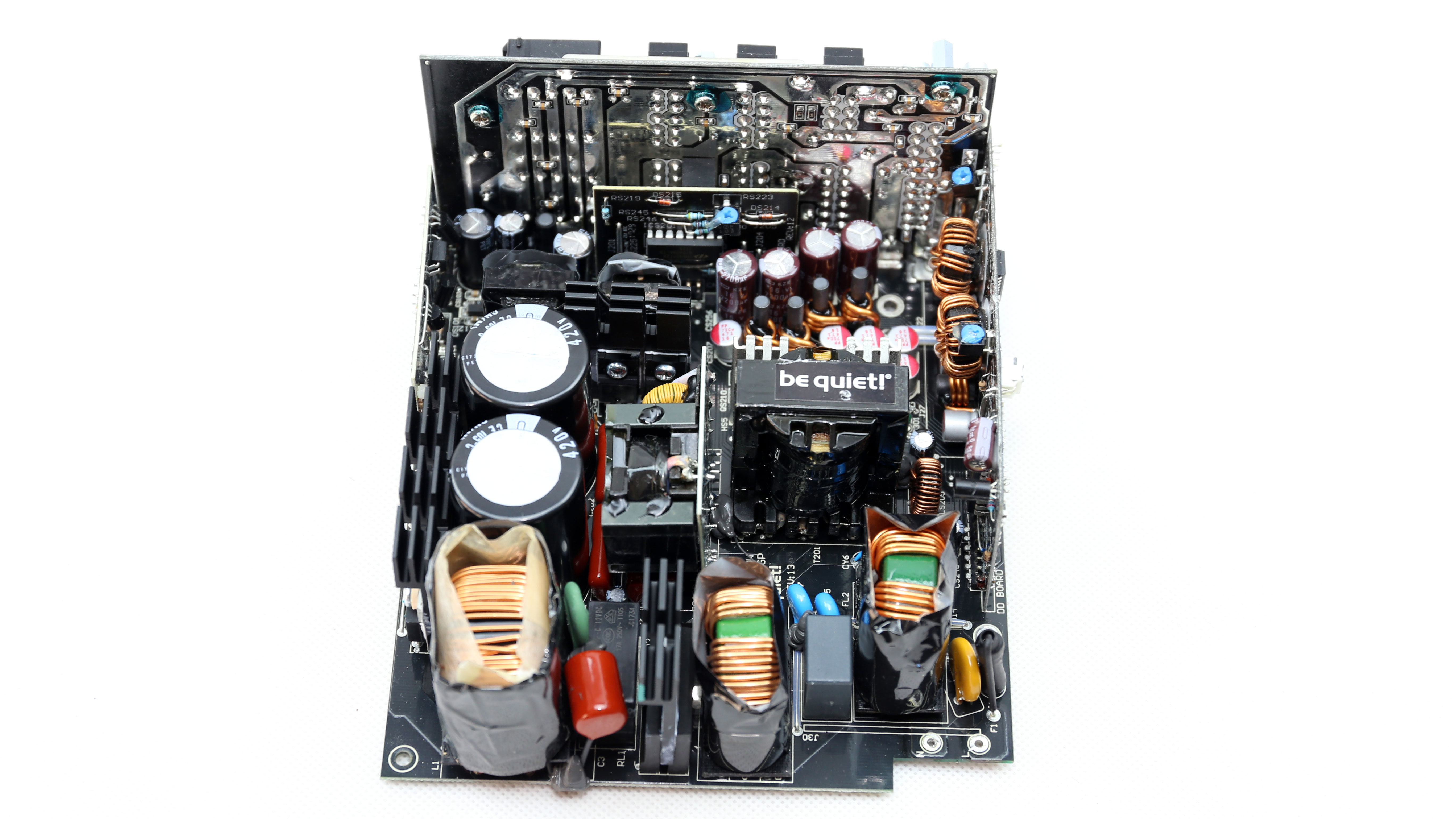

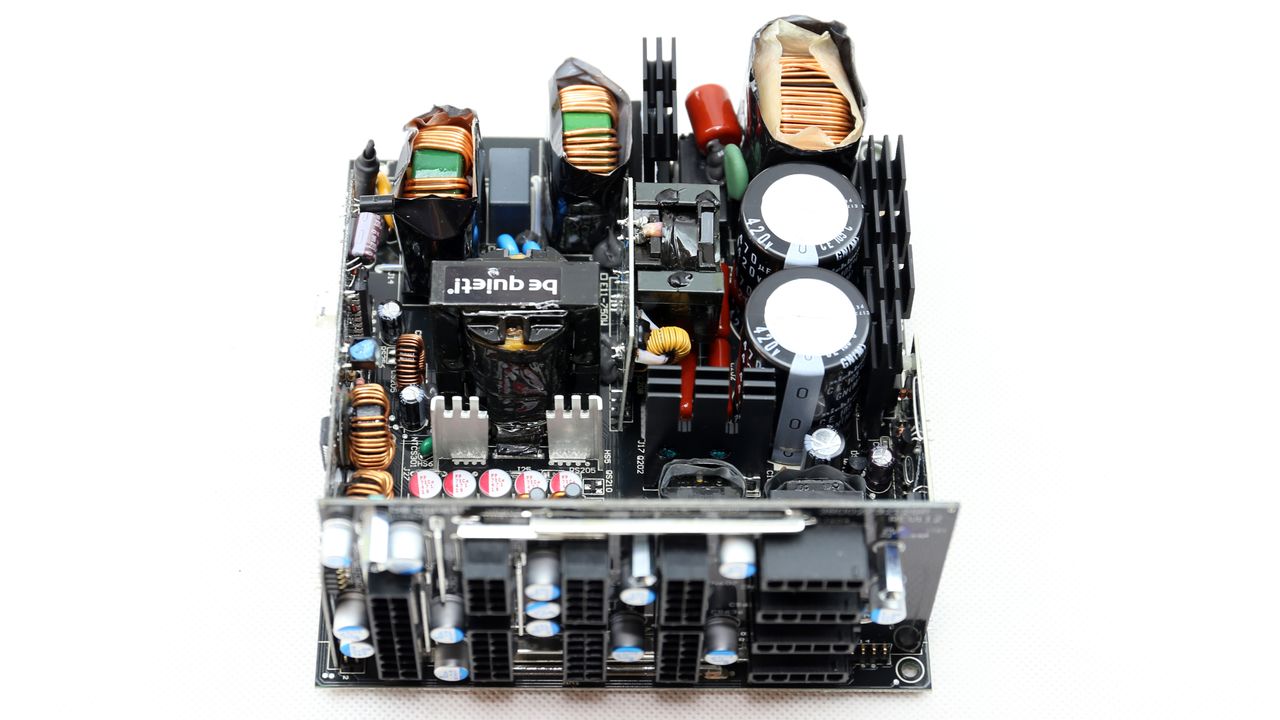

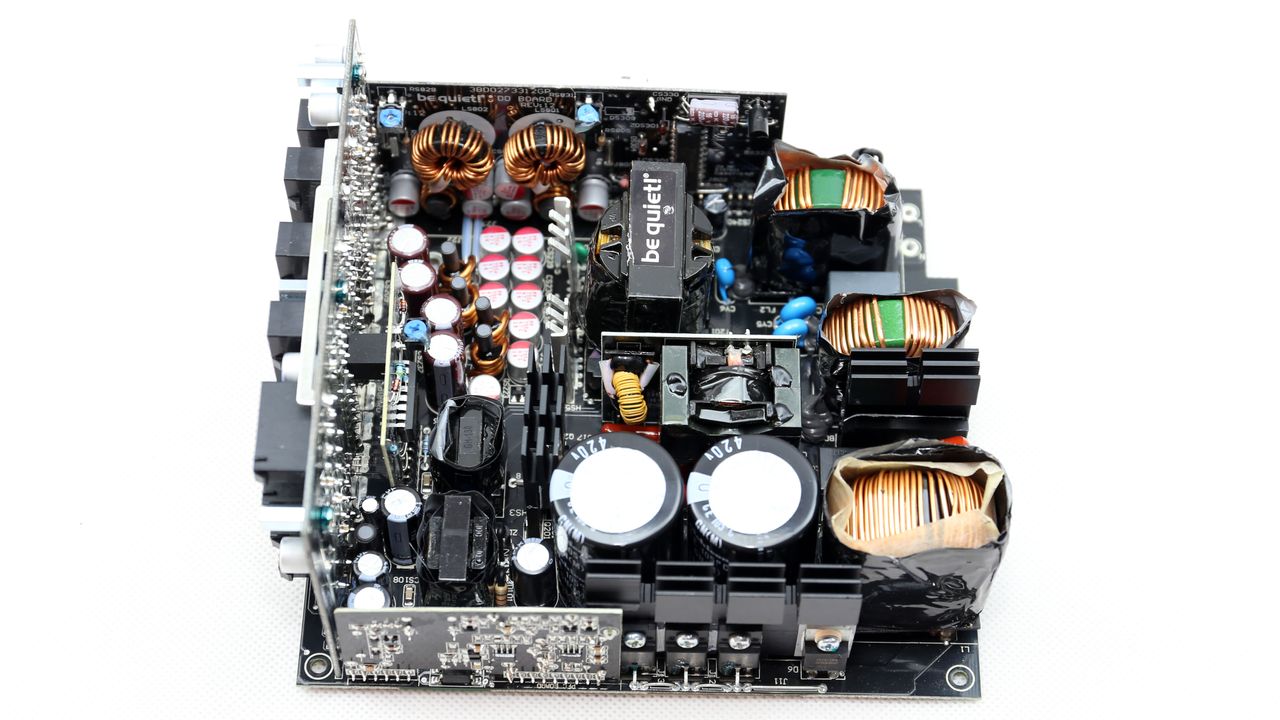

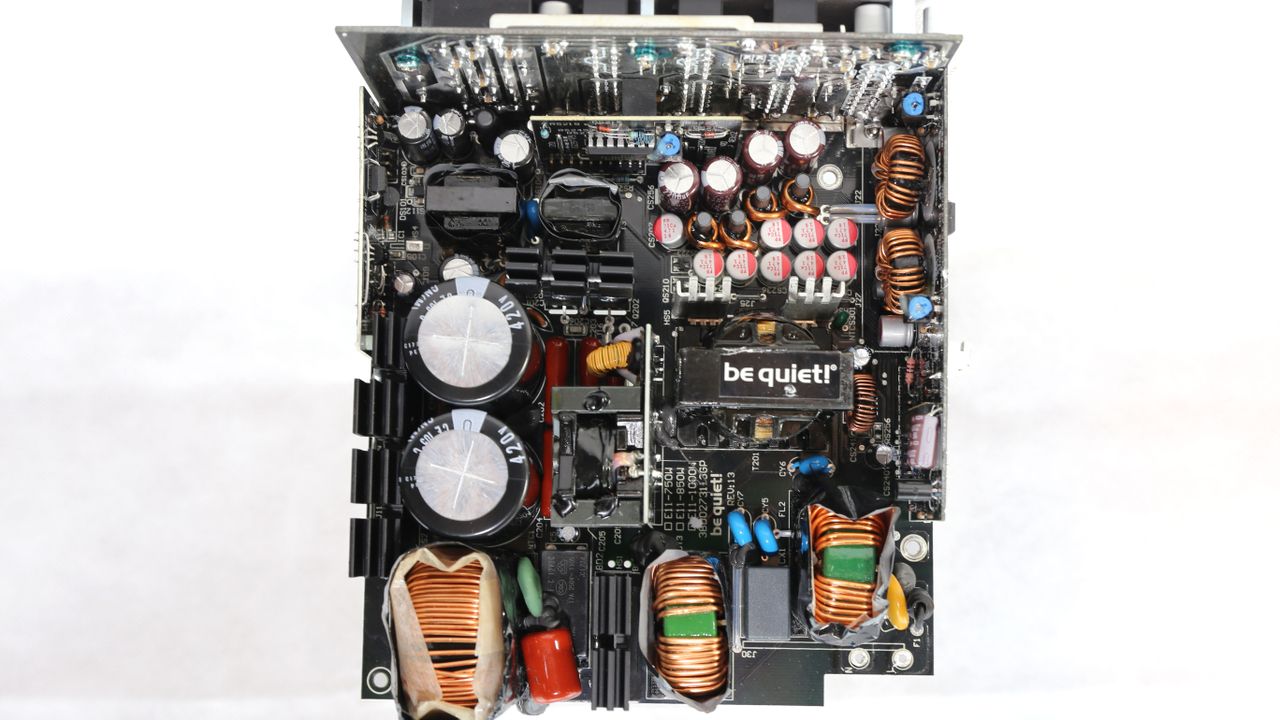

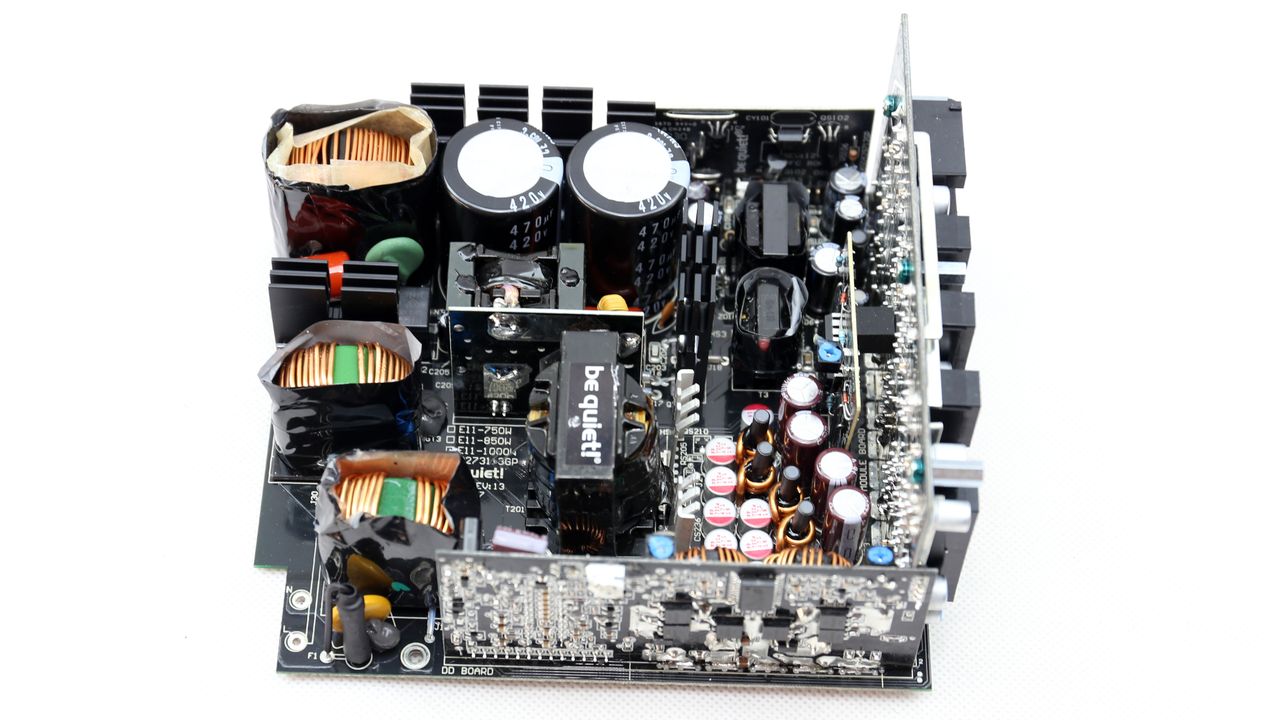

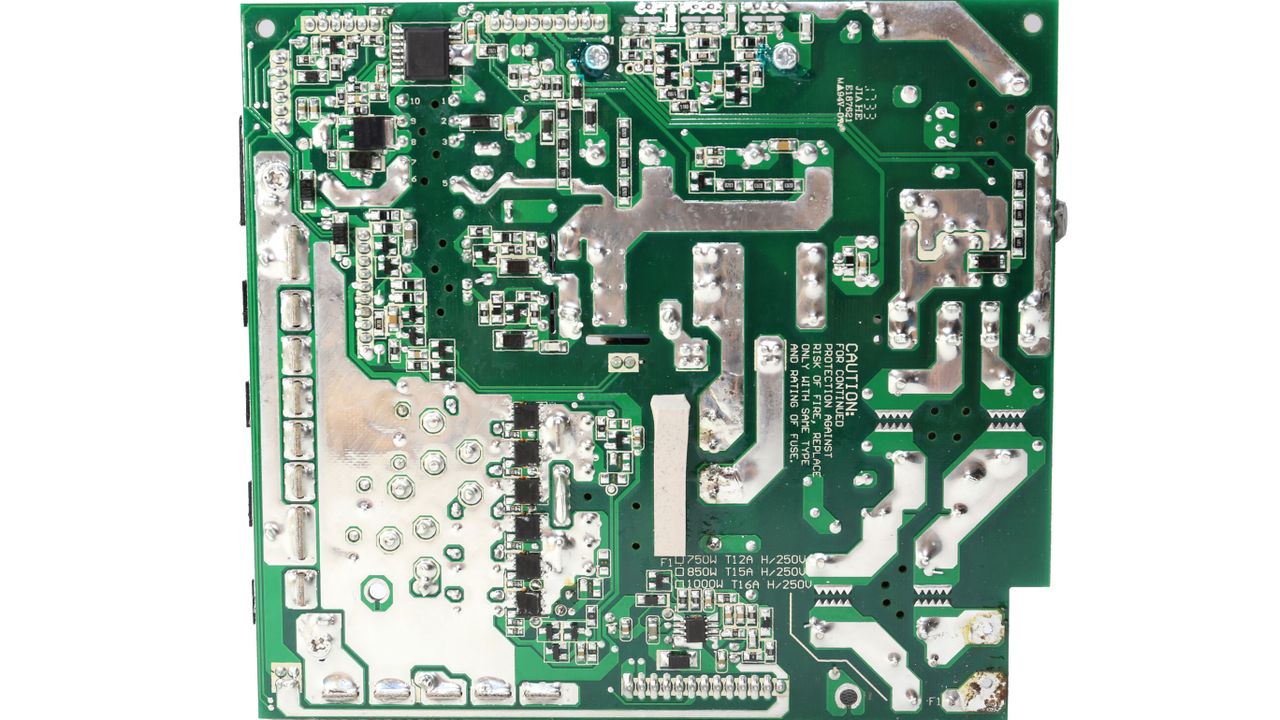

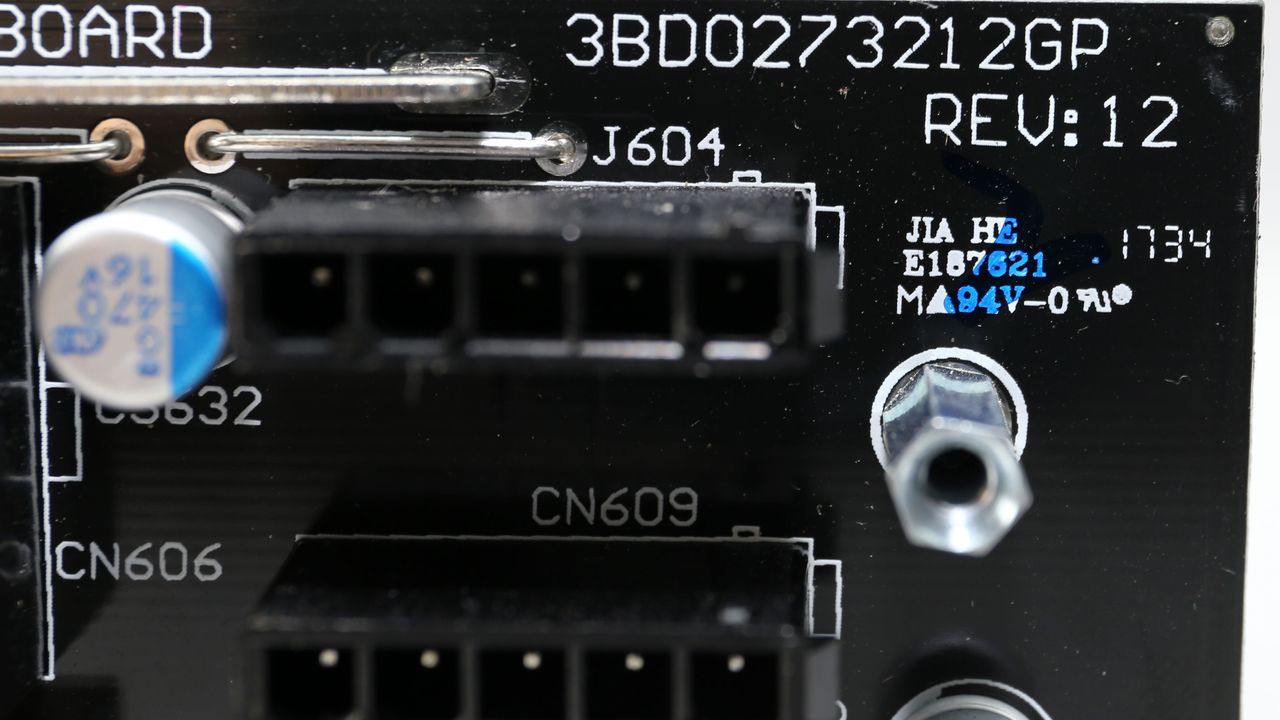

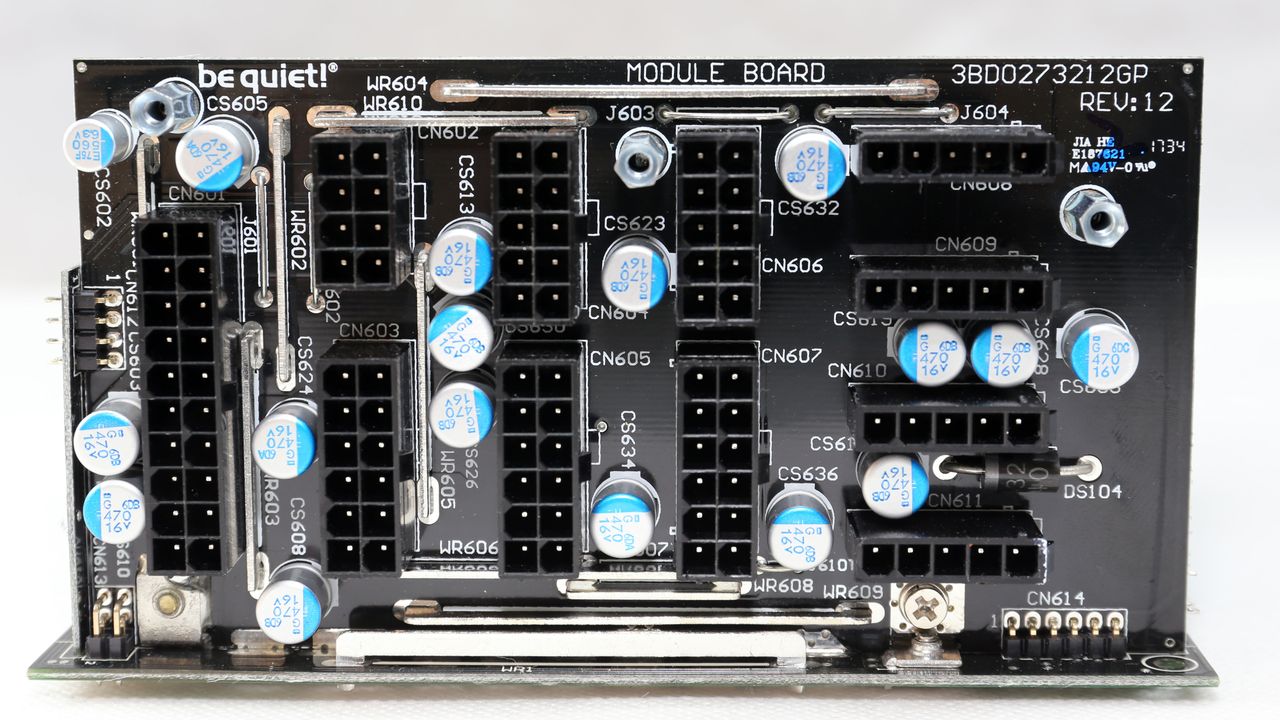

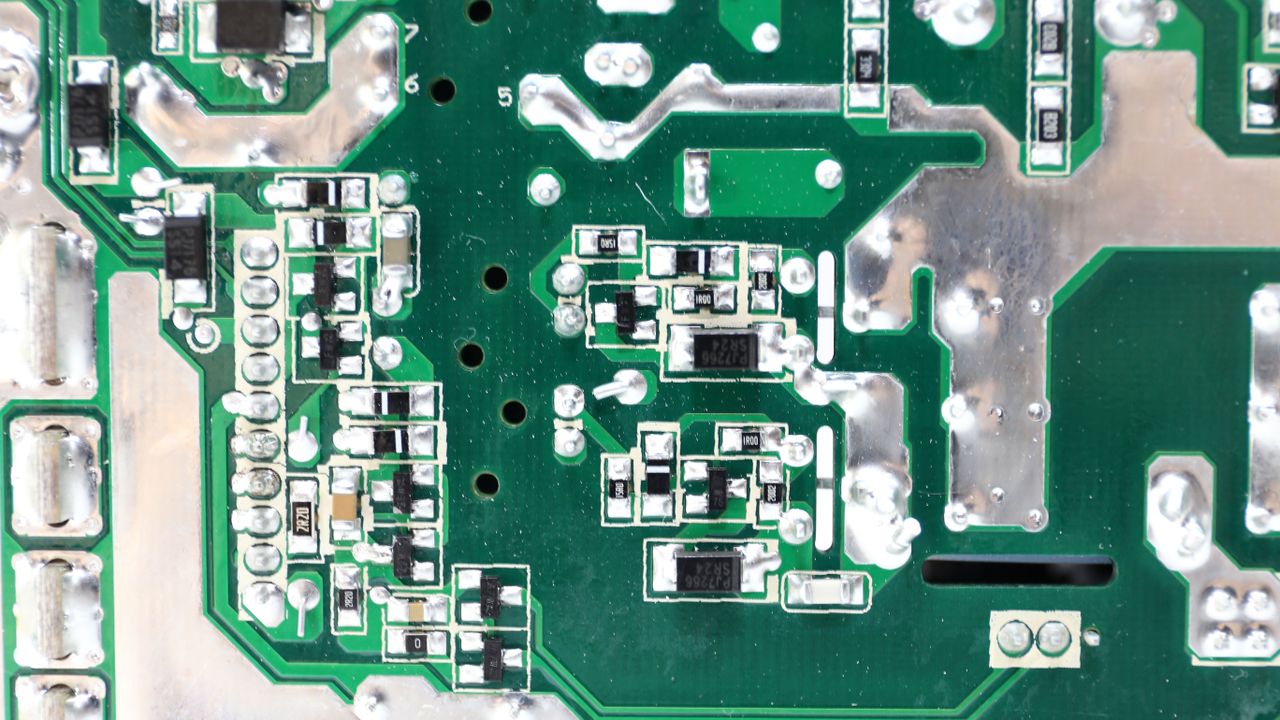

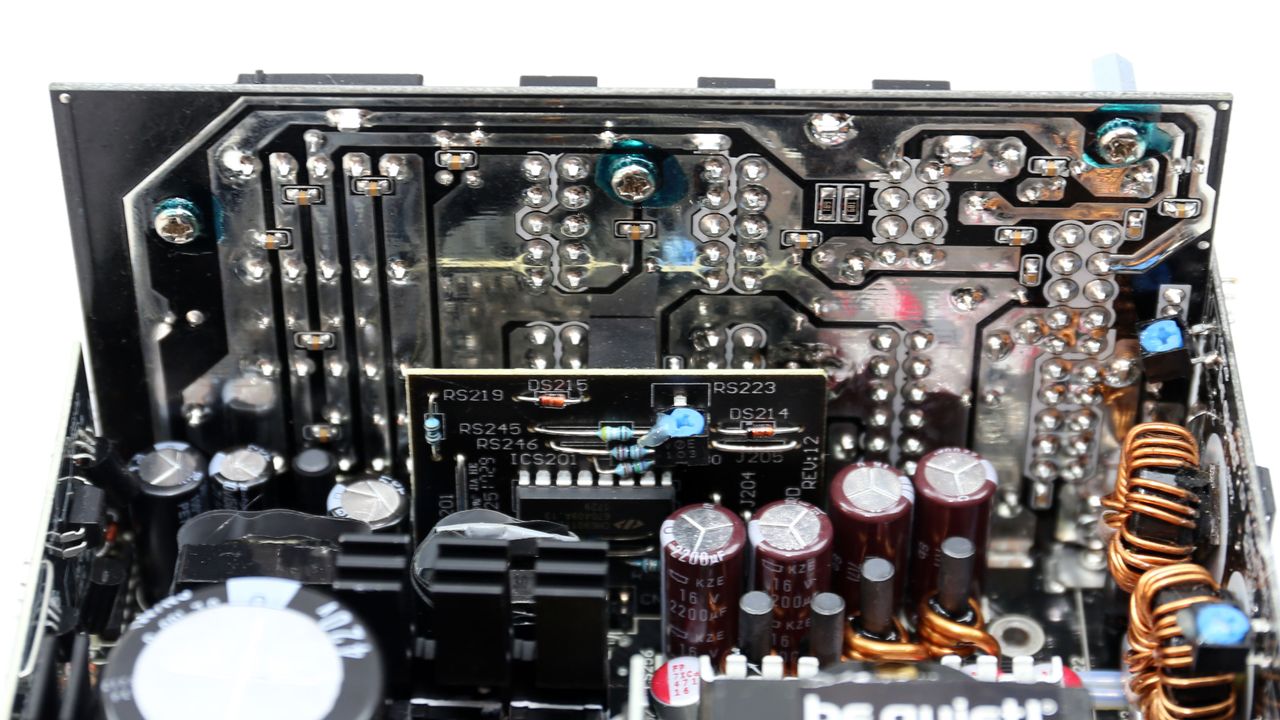

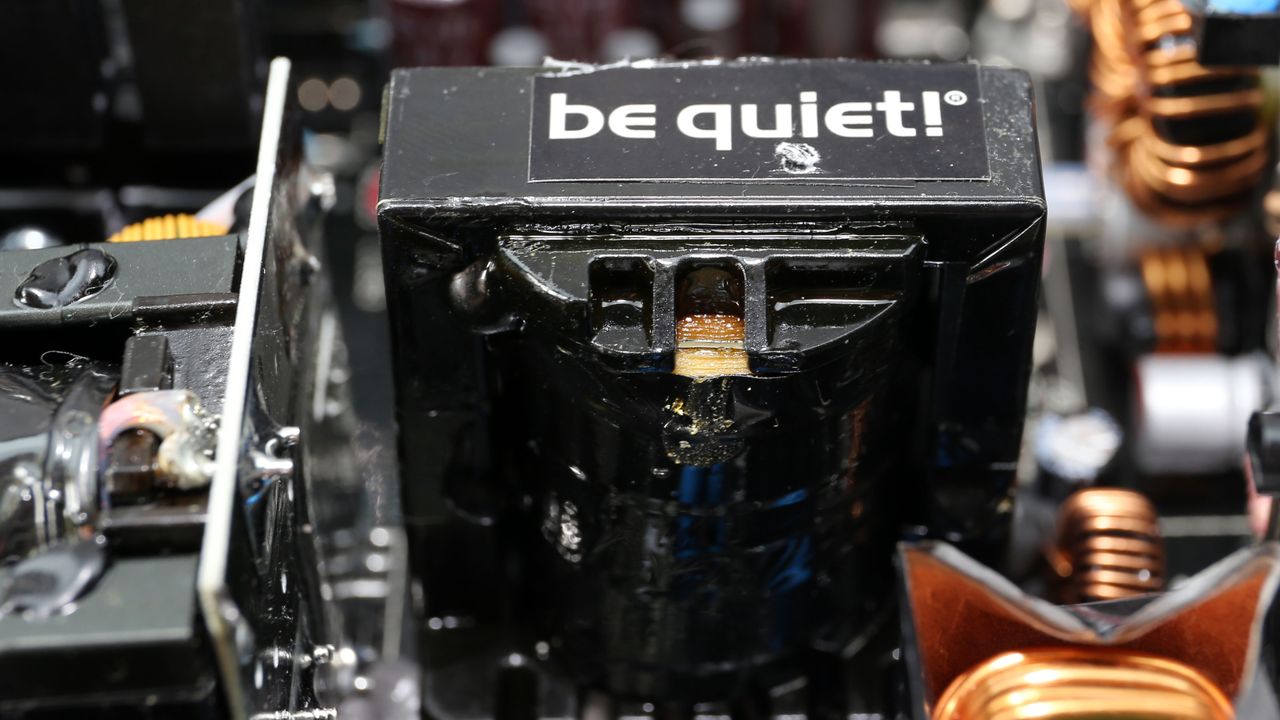

Here are some photos showing the PSU’s major parts.

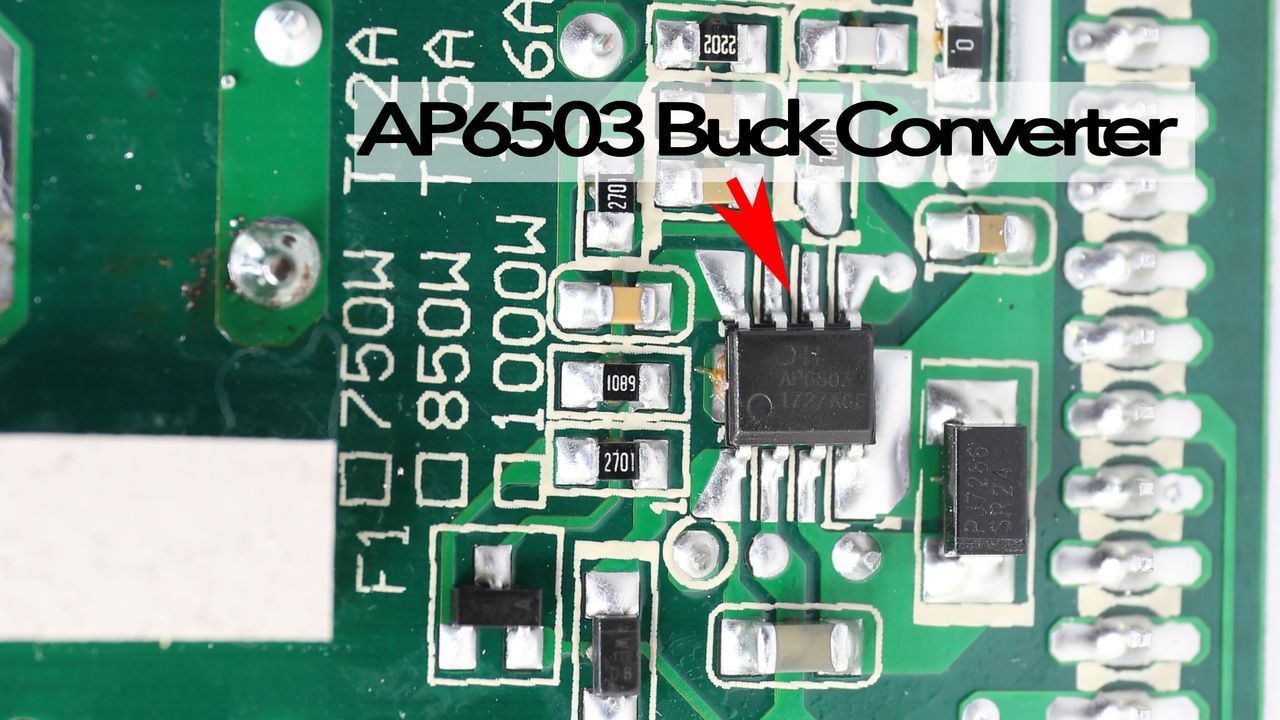

Image 1 of 38

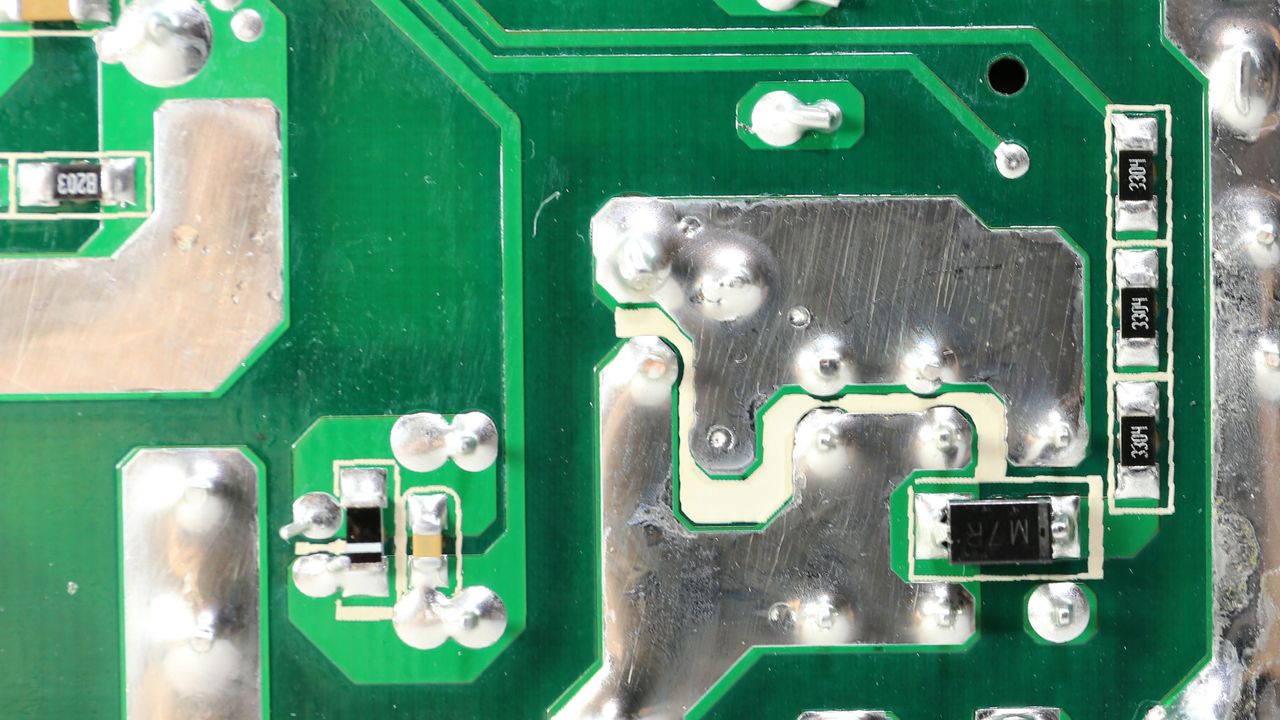

Image 2 of 38

Image 3 of 38

Image 4 of 38

Image 5 of 38

Image 6 of 38

Image 7 of 38

Image 8 of 38

Image 9 of 38

Image 10 of 38

Image 11 of 38

Image 12 of 38

Image 13 of 38

Image 14 of 38

Image 15 of 38

Image 16 of 38

Image 17 of 38

Image 18 of 38

Image 19 of 38

Image 20 of 38

Image 21 of 38

Image 22 of 38

Image 23 of 38

Image 24 of 38

Image 25 of 38

Image 26 of 38

Image 27 of 38

Image 28 of 38

Image 29 of 38

Image 30 of 38

Image 31 of 38

Image 32 of 38

Image 33 of 38

Image 34 of 38

Image 35 of 38

Image 36 of 38

Image 37 of 38

Image 38 of 38
