We are using the following system for our case test bed:
CPU | Intel Core i9-9900K |
---|---|
Motherboard | Asus Maximus XI Hero WiFi |
Memory | Corsair Vengeance LPX 3000 MHz, 16 GB (2x 8GB) |
Graphics | Nvidia GeForce RTX 2070 Super Founder's Edition |
CPU Cooling | Noctua NH-U12S Chromax Black |
Thermal Paste | Noctua NT-H2 Thermal Paste |
Storage | Corsair Force Series MP510 NVMe SSD, 480GB |
Power Supply | Corsair HX750i |

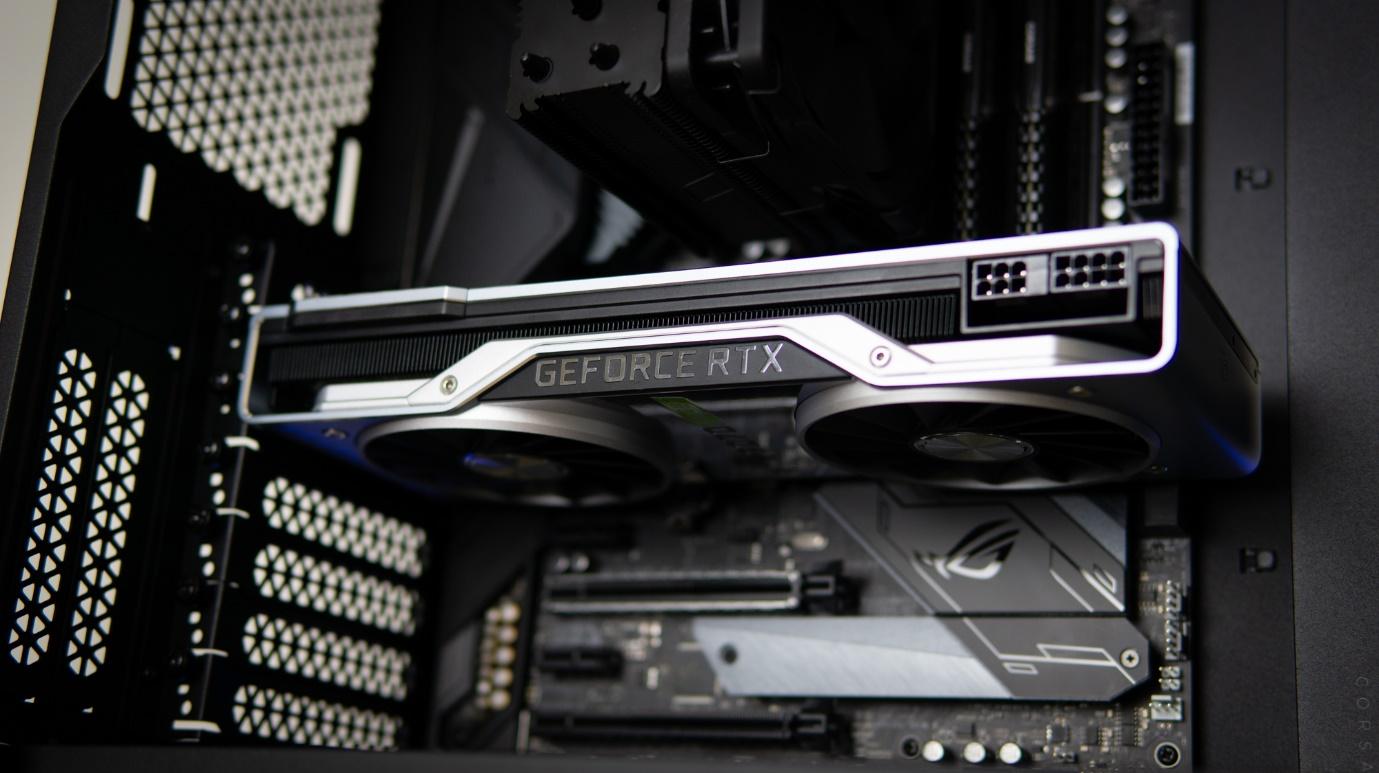

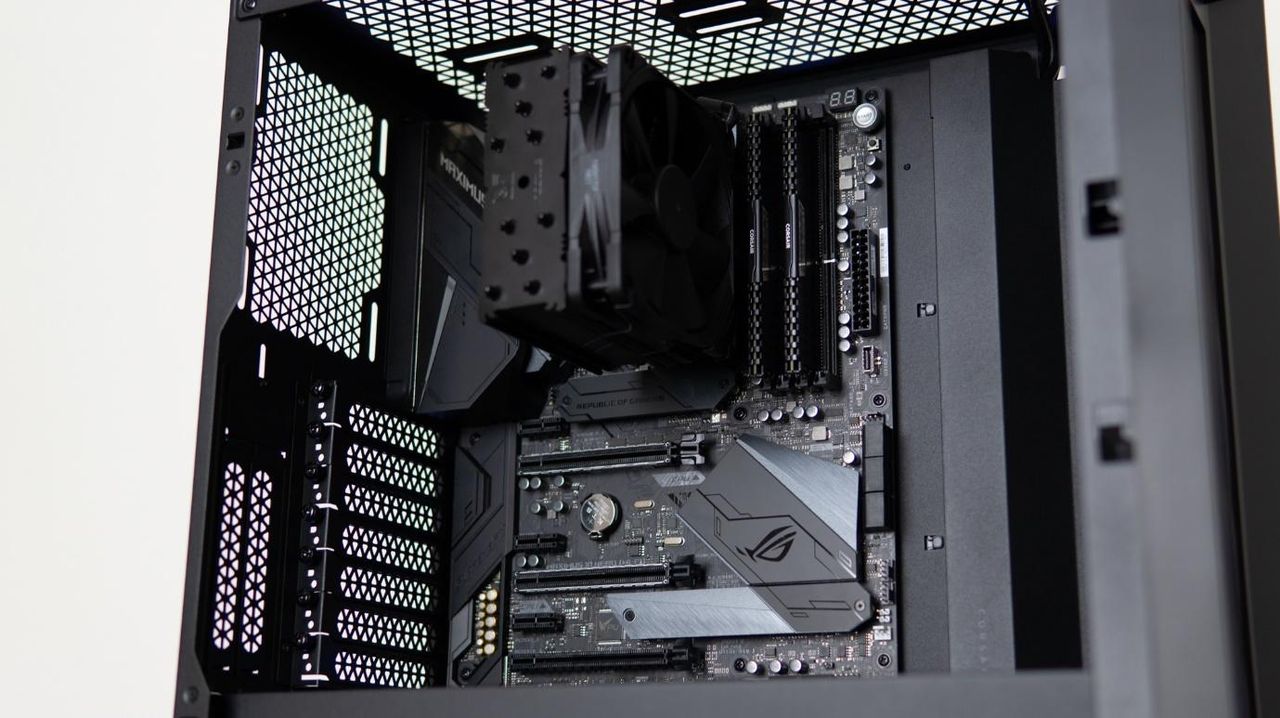

We always appreciate it when a case has a central motherboard standoff that anchors the board, and are happy to report that one is present here. Naturally, motherboard installation was therefore a breeze, without needing to place the case on its side --be sure to install the CPU, memory, and M.2 SSD before installing the motherboard into the case if you’re doing it this way -- and the RTX 2070 Founder’s Edition GPU dropped in just as easily.

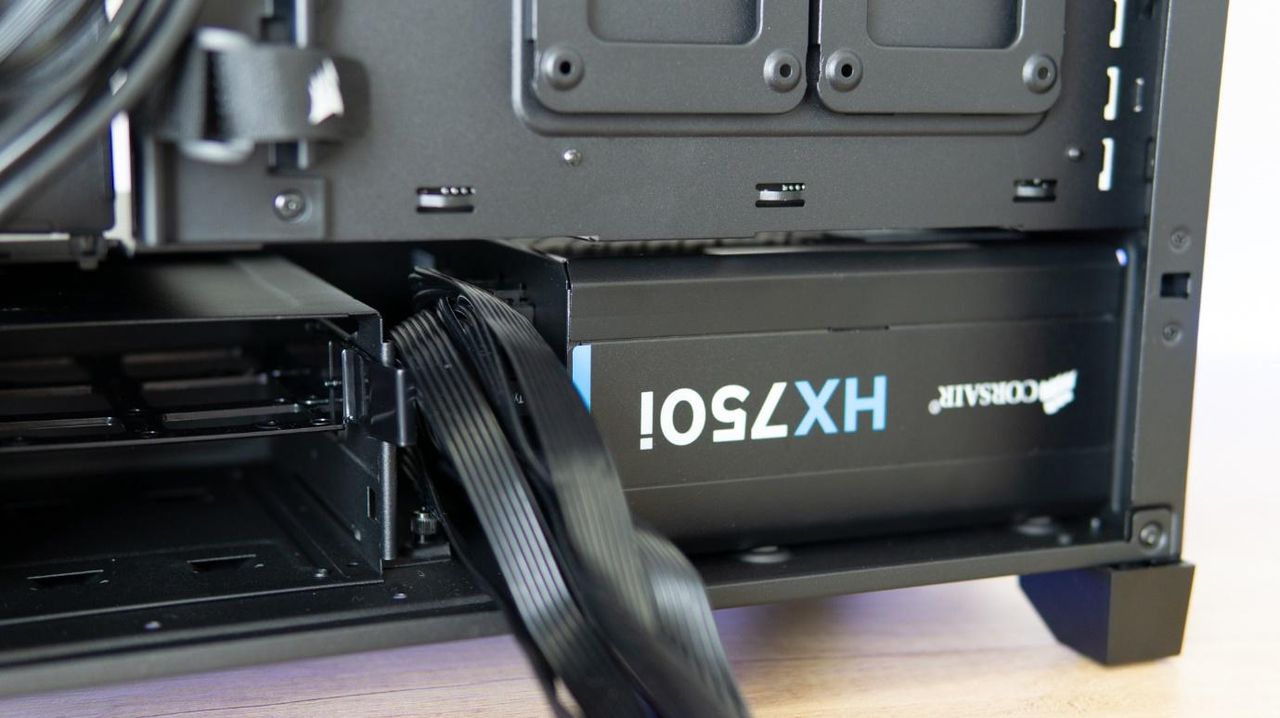

Corsair’s huge HX750i power supply also fit snugl,y with just enough room to spare for the modular connectors, as if Corsair knew people would be pairing this case with its big power supplies. Part of me thinks Corsair knew that the RTX 3000 series were going to be power-hungry when designing this case, and the ability to fit a big power supply could be deal-breaking for shoppers considering builds with Nvidia’s new Ampere GPUs.
Cable Management
Corsair calls the cable management here “RapidRoute Cable Management System.” Since I’m not in marketing, I just call it “plenty of space with tons of Velcro, zip-ties, and correctly-placed cutouts”

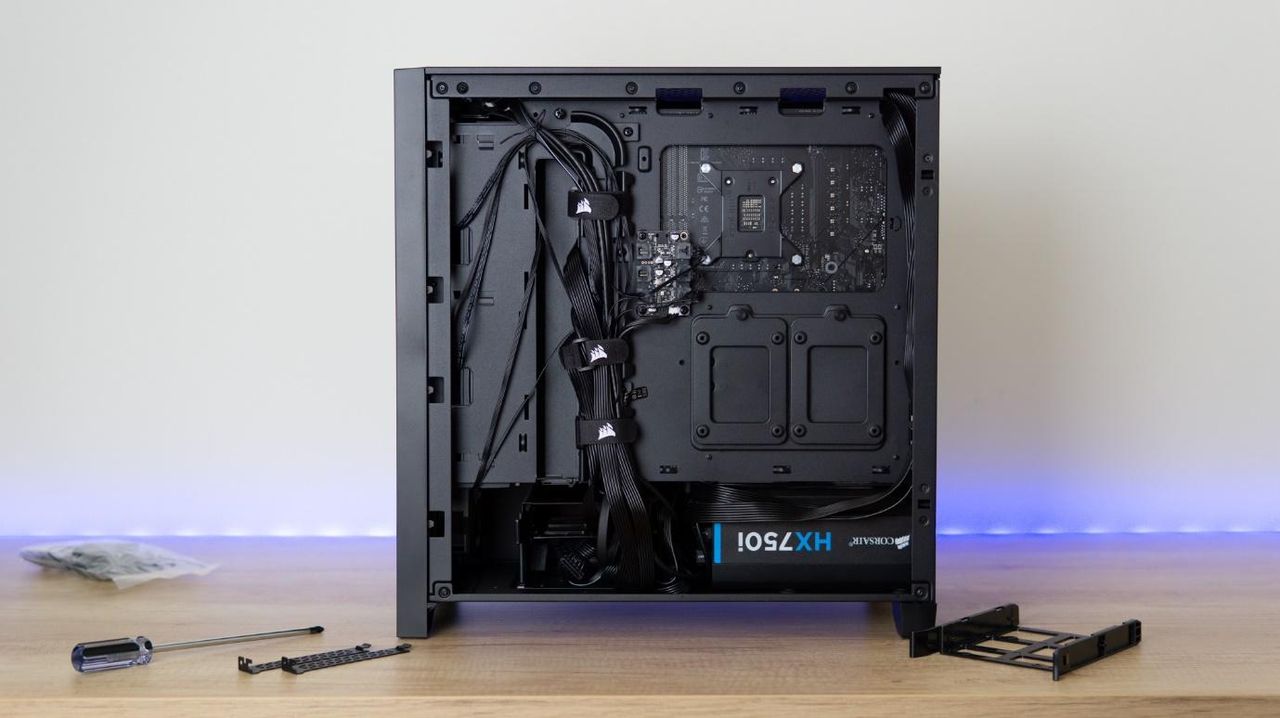

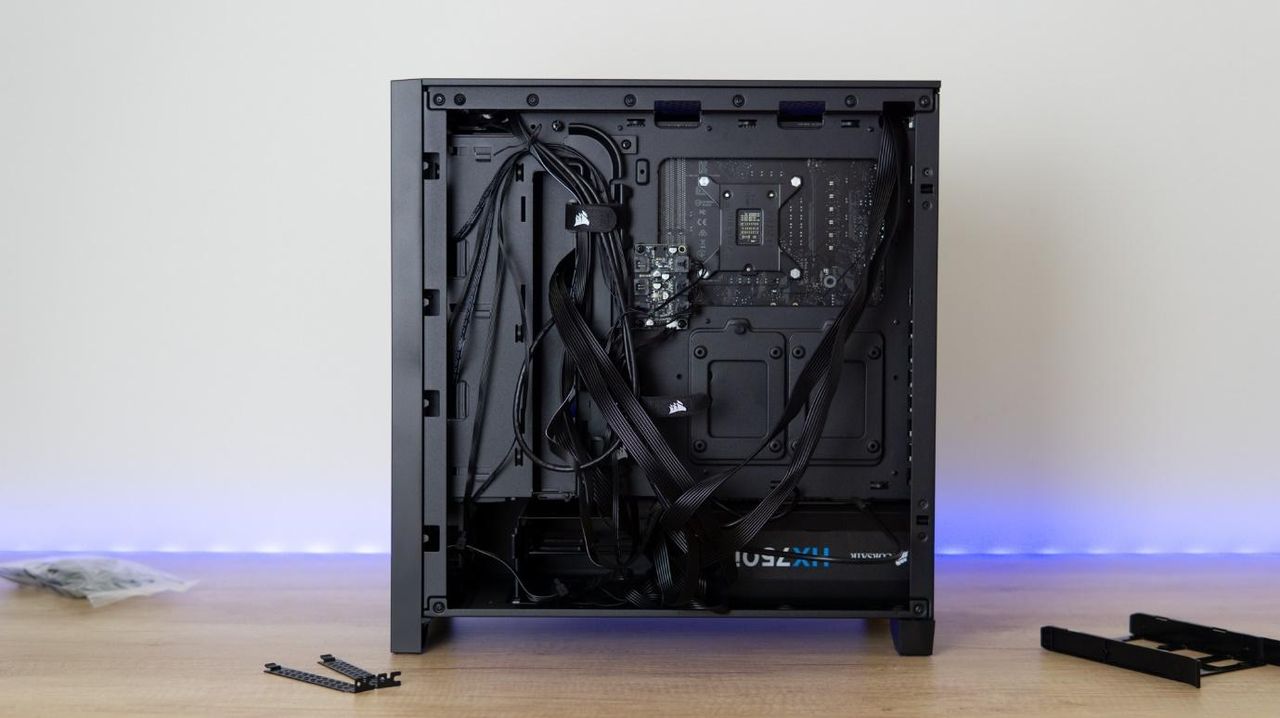

Either way, it’s a good cable management system. The cover in the motherboard compartment ensures you can’t peek to the rear to see the mess, and with tons of Velcro, it’s easy to make adjustments in your cable’s runs. Below are two pics: one right after I plugged all the cables in, and one after I spent no more than 3 minutes tidying up.
Of course, you might want to spend a little more time on your own system, but with enough room here to not bother and a side panel that you press into place (instead of sliding) I called it a day and wrapped up the build.
The end result was a tidy looking main compartment without too much effort, which is all we can really ask for.
