Ripple Measurements
To learn how we measure ripple, please click here.

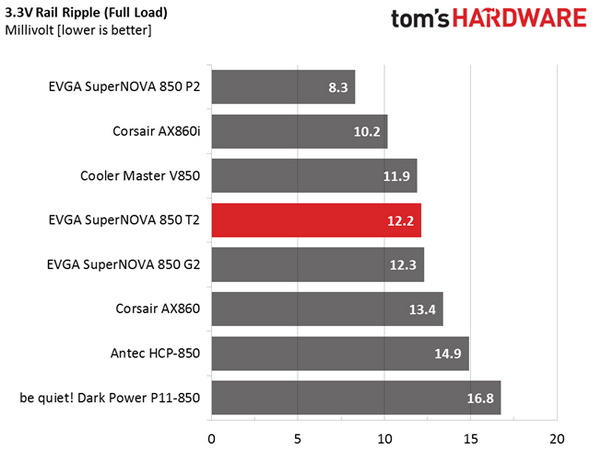

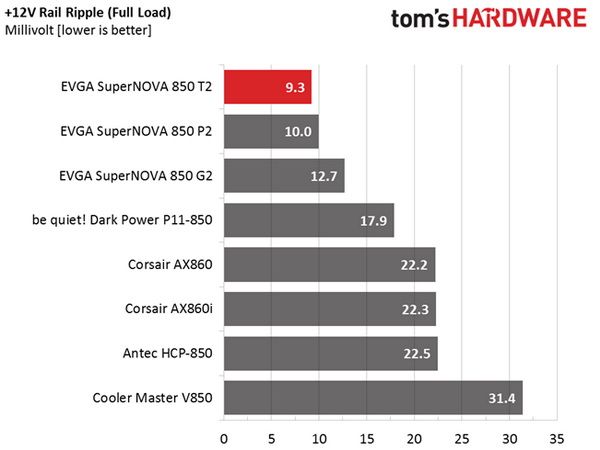

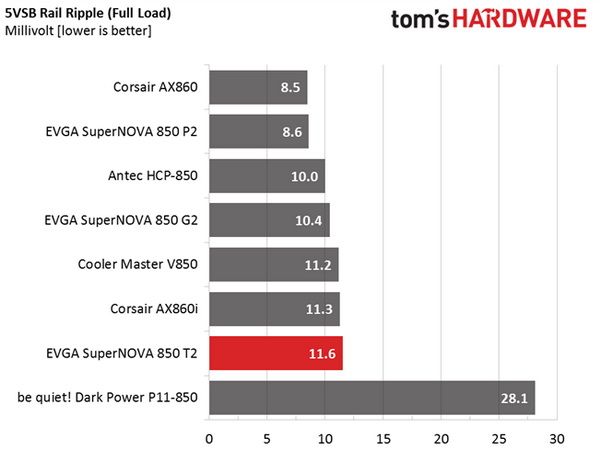

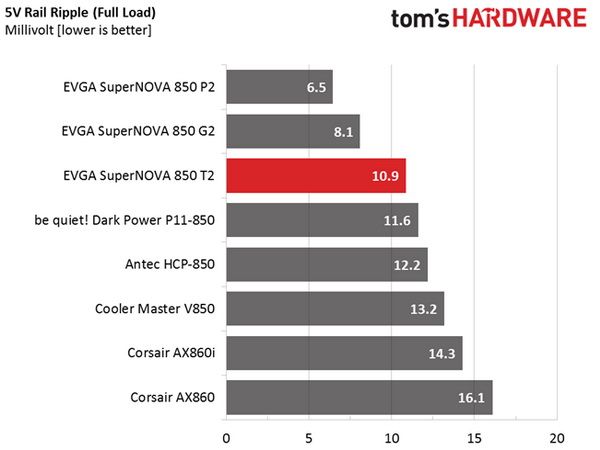

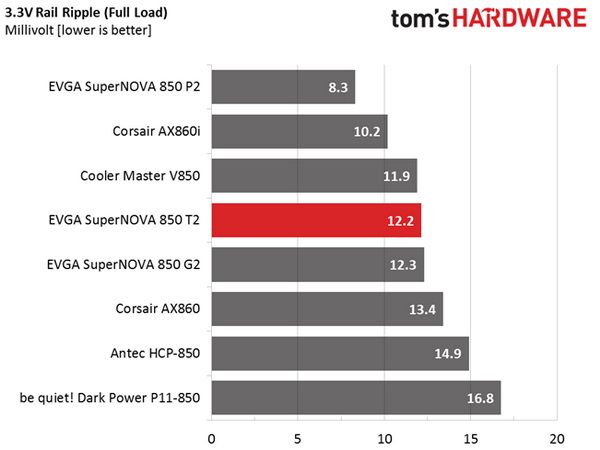

The following table includes the ripple levels we measured on the SuperNOVA 850 T2's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V and 5VSB).
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
|---|---|---|---|---|---|
| 10% Load | 3.7mV | 4.2mV | 4.7mV | 4.5mV | Pass |
| 20% Load | 4.8mV | 4.6mV | 5.6mV | 5.3mV | Pass |
| 30% Load | 6.2mV | 5.4mV | 5.9mV | 6.1mV | Pass |
| 40% Load | 6.1mV | 5.6mV | 6.6mV | 6.7mV | Pass |
| 50% Load | 6.7mV | 6.6mV | 7.6mV | 8.7mV | Pass |
| 60% Load | 7.4mV | 7.1mV | 8.3mV | 9.6mV | Pass |
| 70% Load | 7.0mV | 7.9mV | 10.0mV | 8.1mV | Pass |
| 80% Load | 8.4mV | 8.5mV | 10.6mV | 9.7mV | Pass |
| 90% Load | 7.7mV | 9.3mV | 10.8mV | 10.4mV | Pass |
| 100% Load | 9.3mV | 10.9mV | 12.2mV | 11.6mV | Pass |
| 110% Load | 10.1mV | 11.4mV | 13.2mV | 12.3mV | Pass |
| Cross-Load 1 | 5.6mV | 5.5mV | 6.0mV | 12.2mV | Pass |
| Cross-Load 2 | 8.5mV | 10.6mV | 12.6mV | 10.6mV | Pass |
Again, as we'd expect from a Super Flower platform, ripple suppression is great. If every PSUs fared this well, our important ripple measurements wouldn't be needed.
Ripple Oscilloscope Screenshots

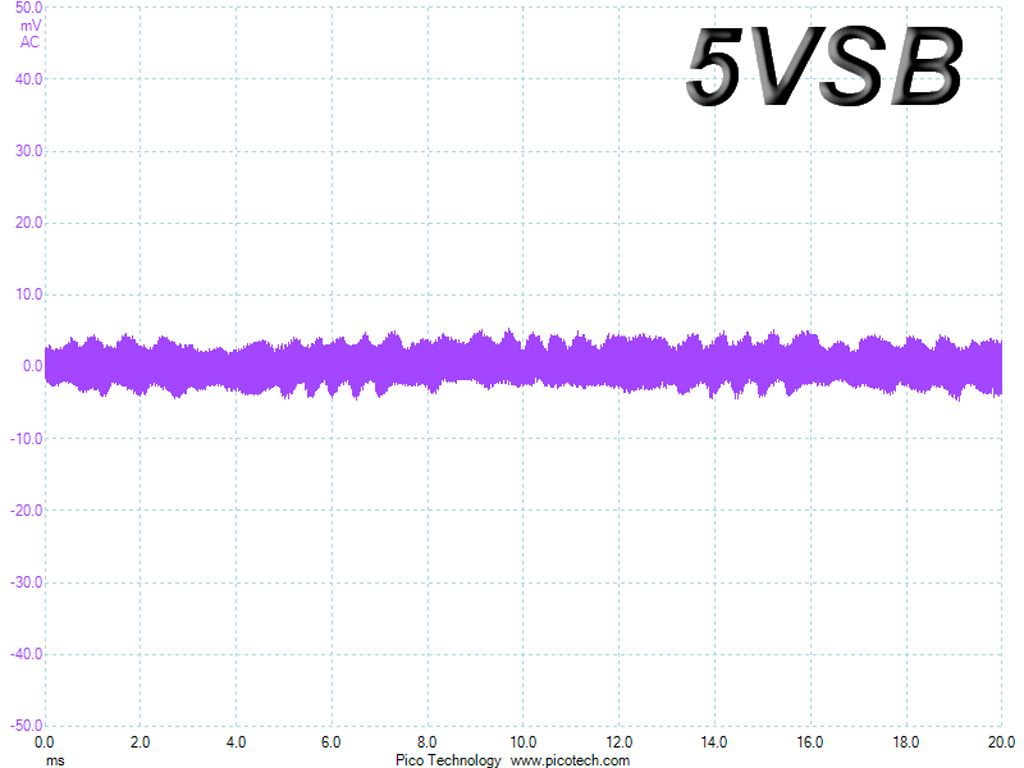

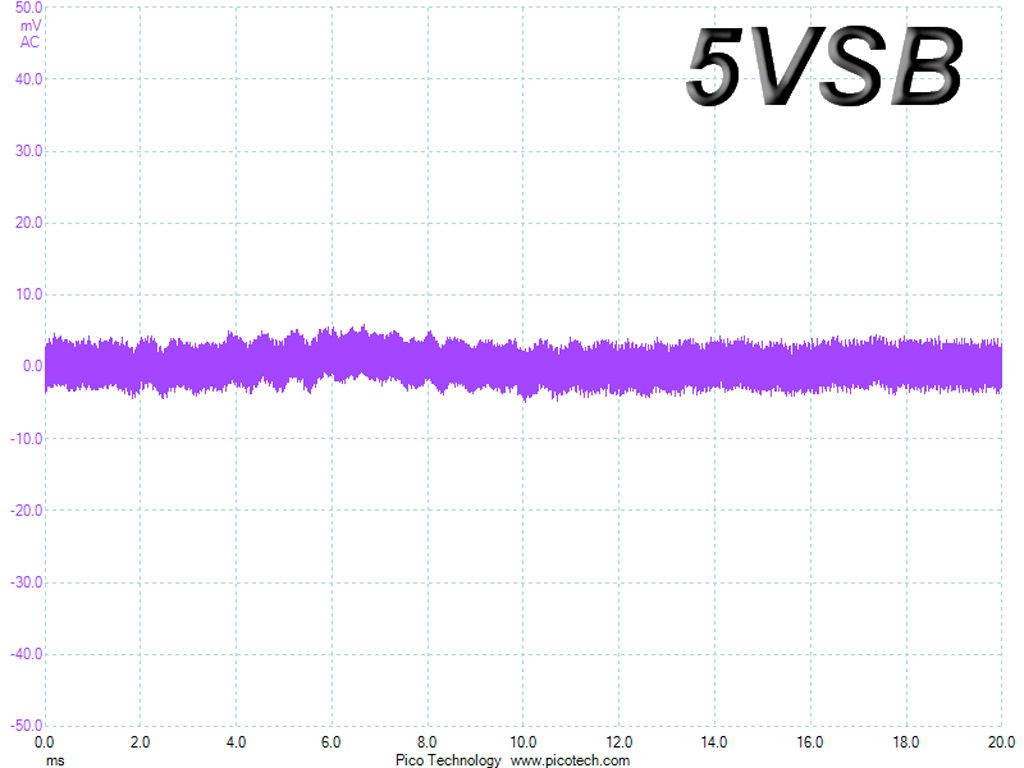

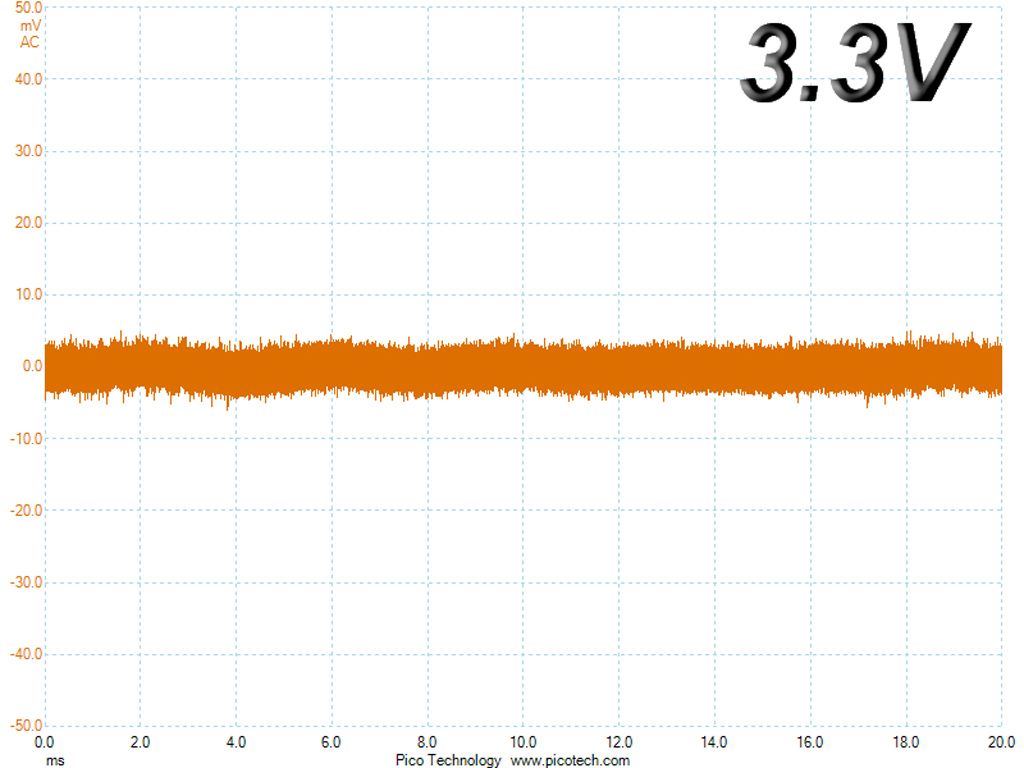

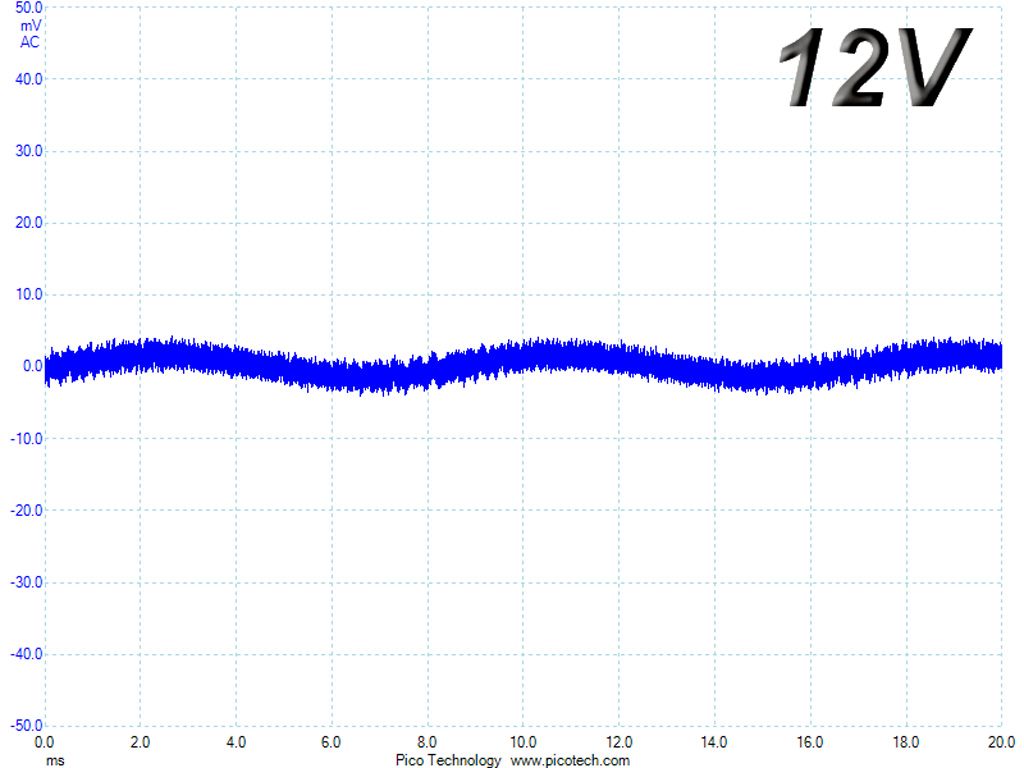

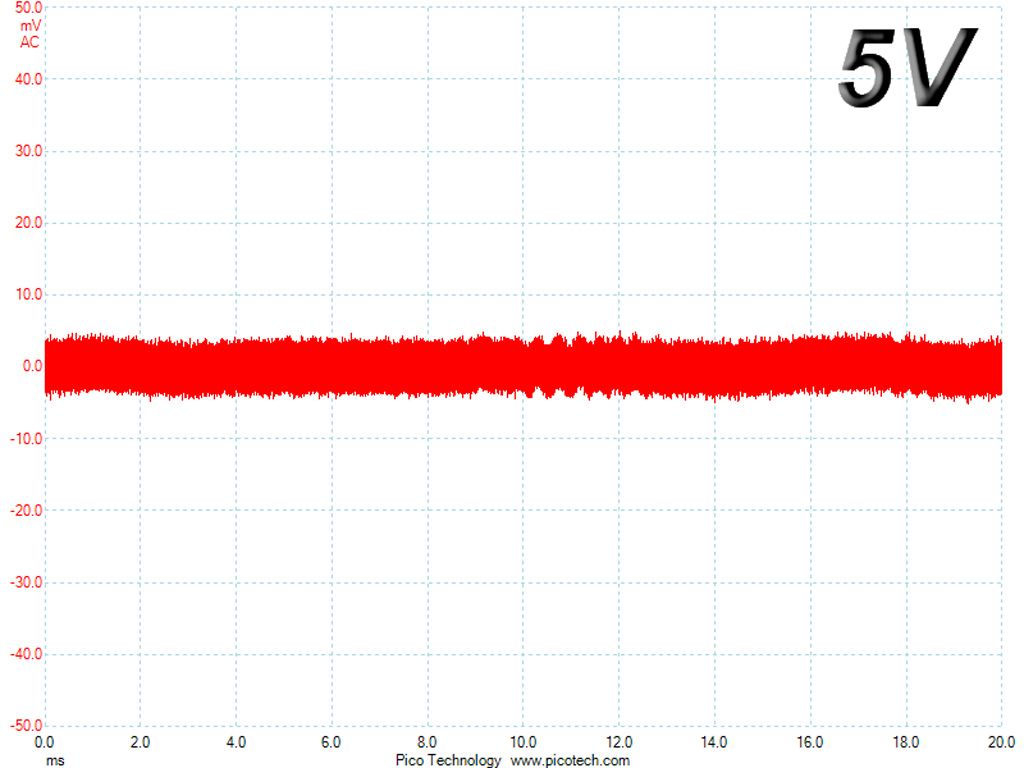

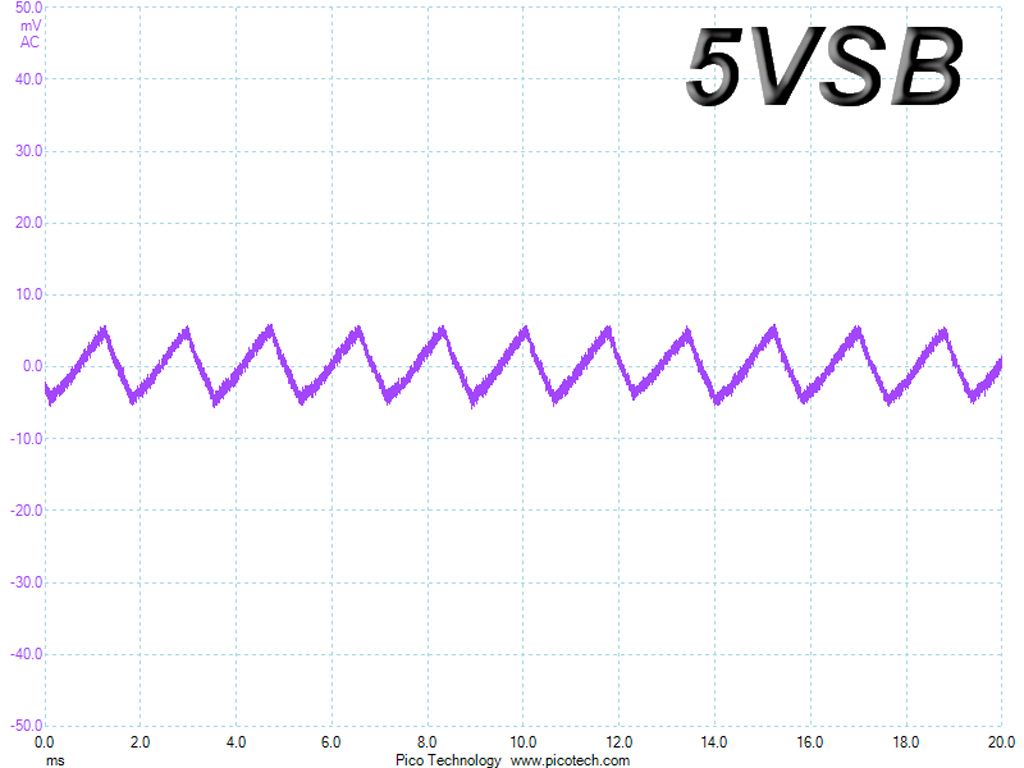

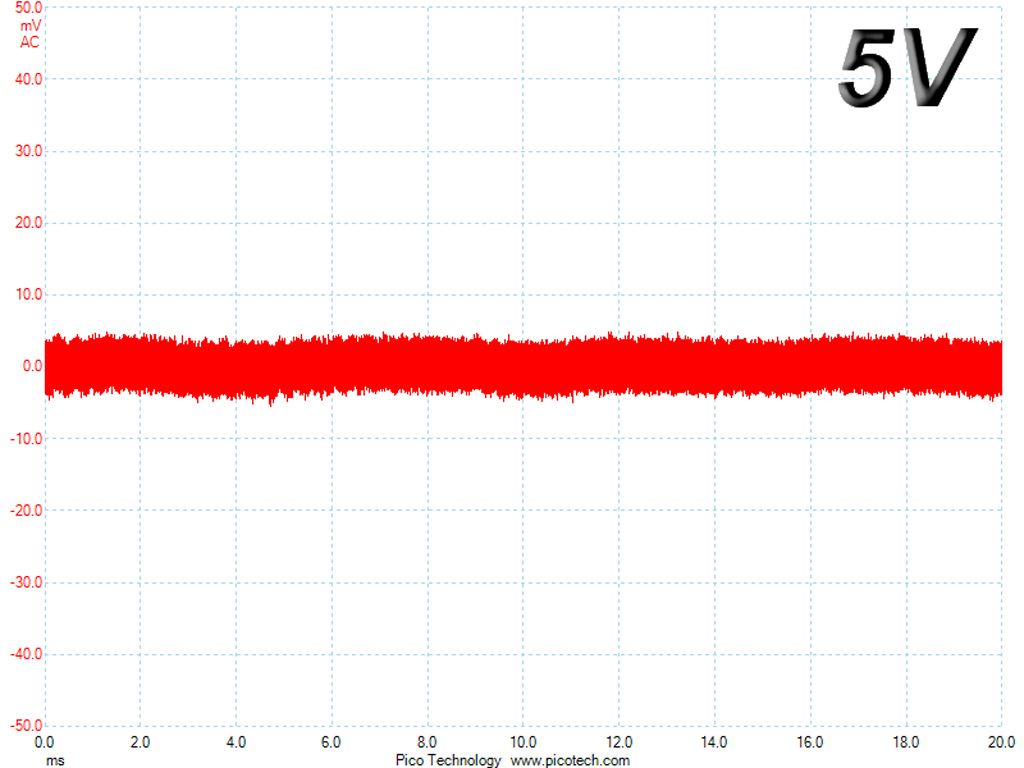

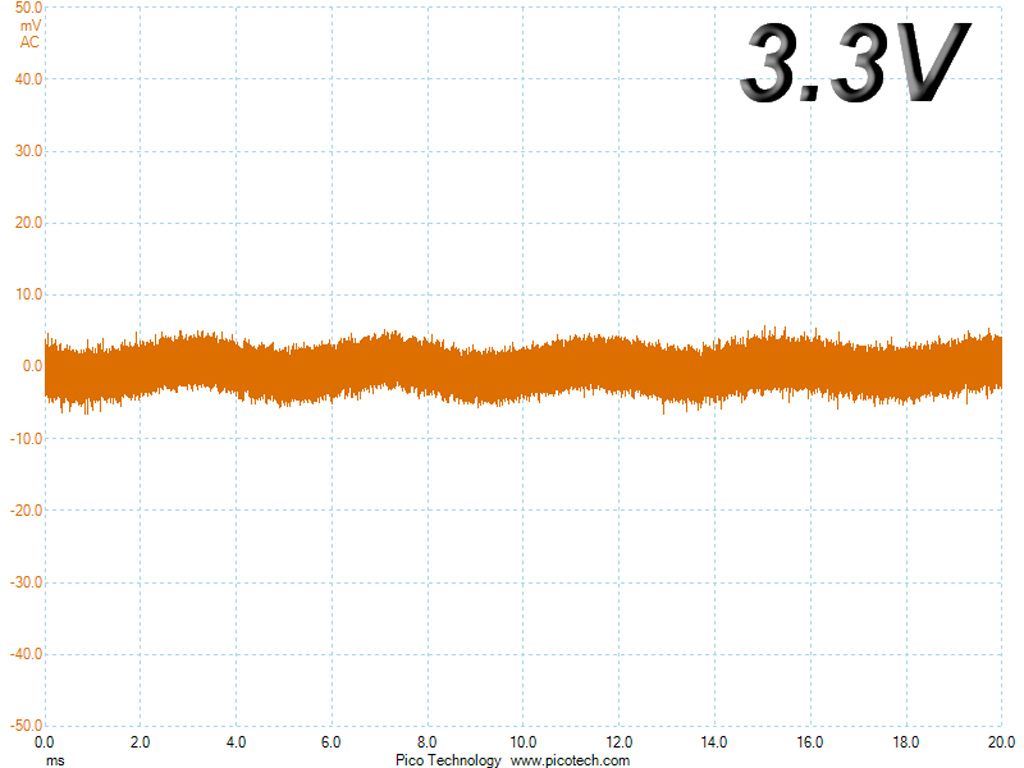

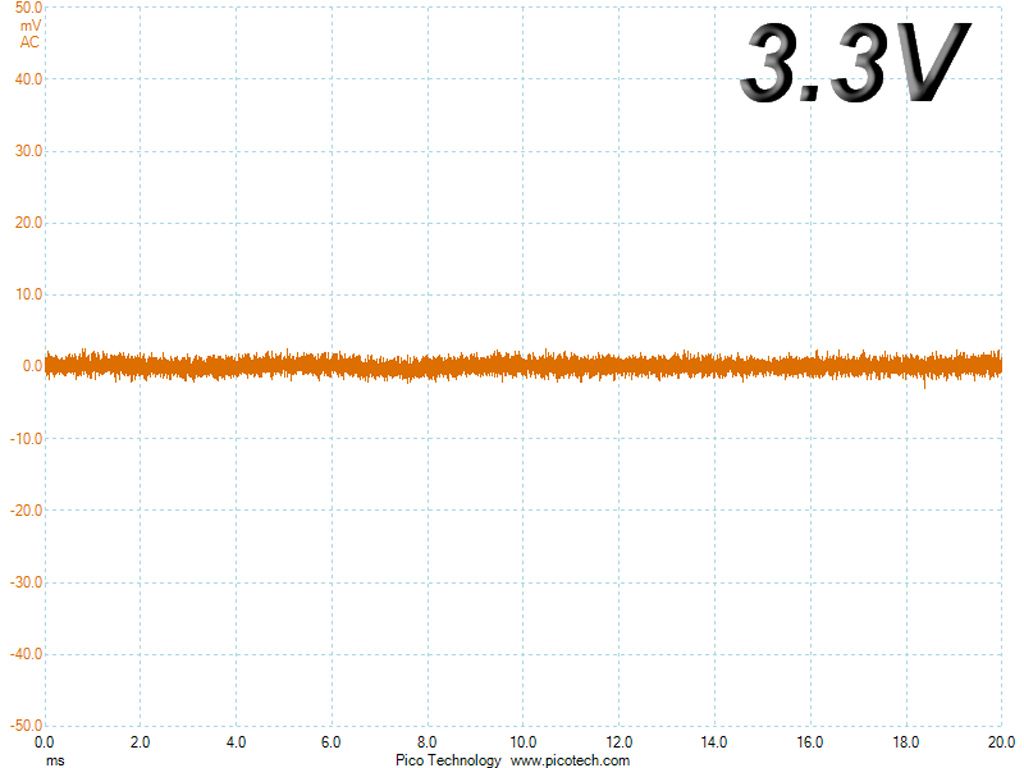

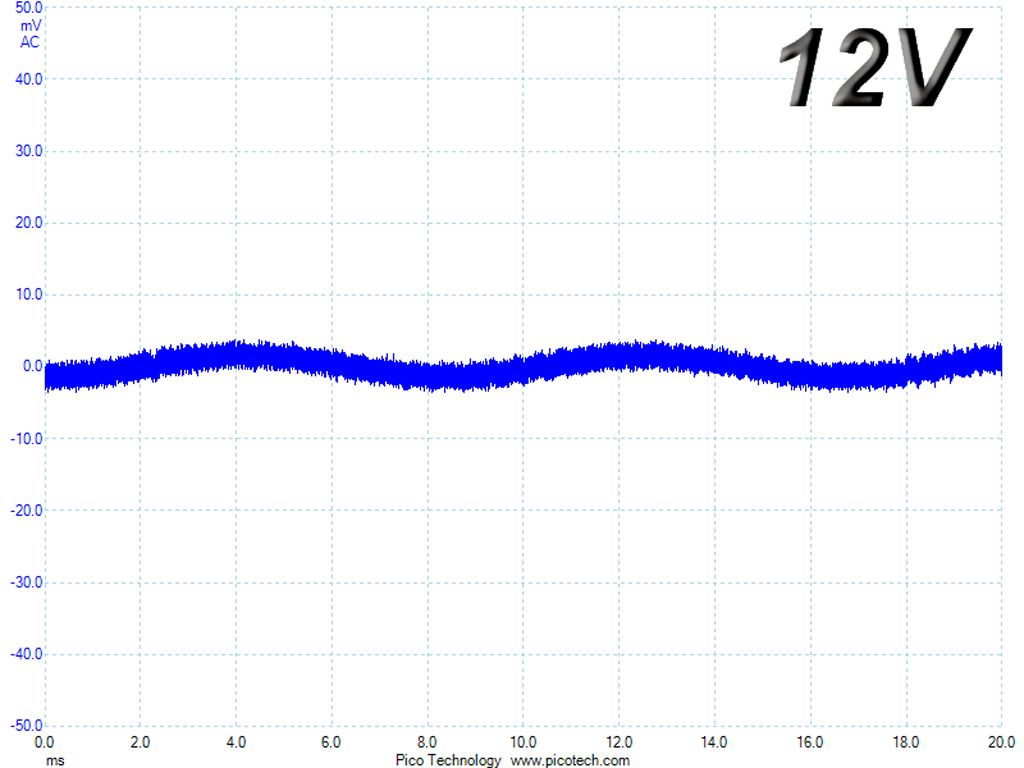

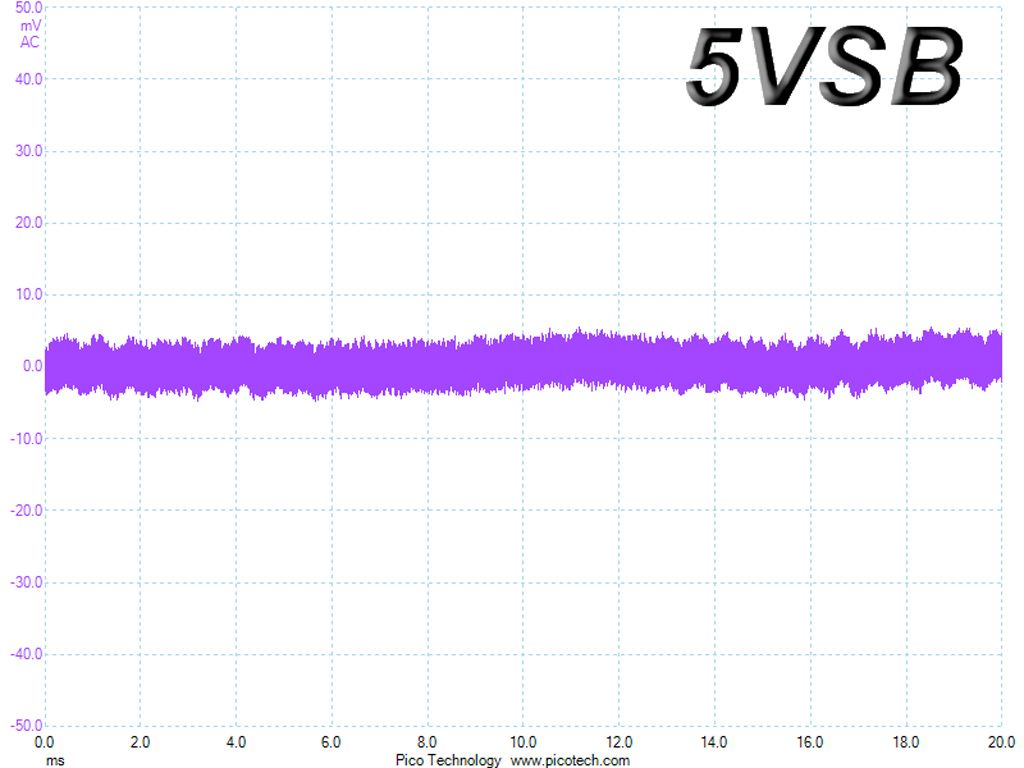

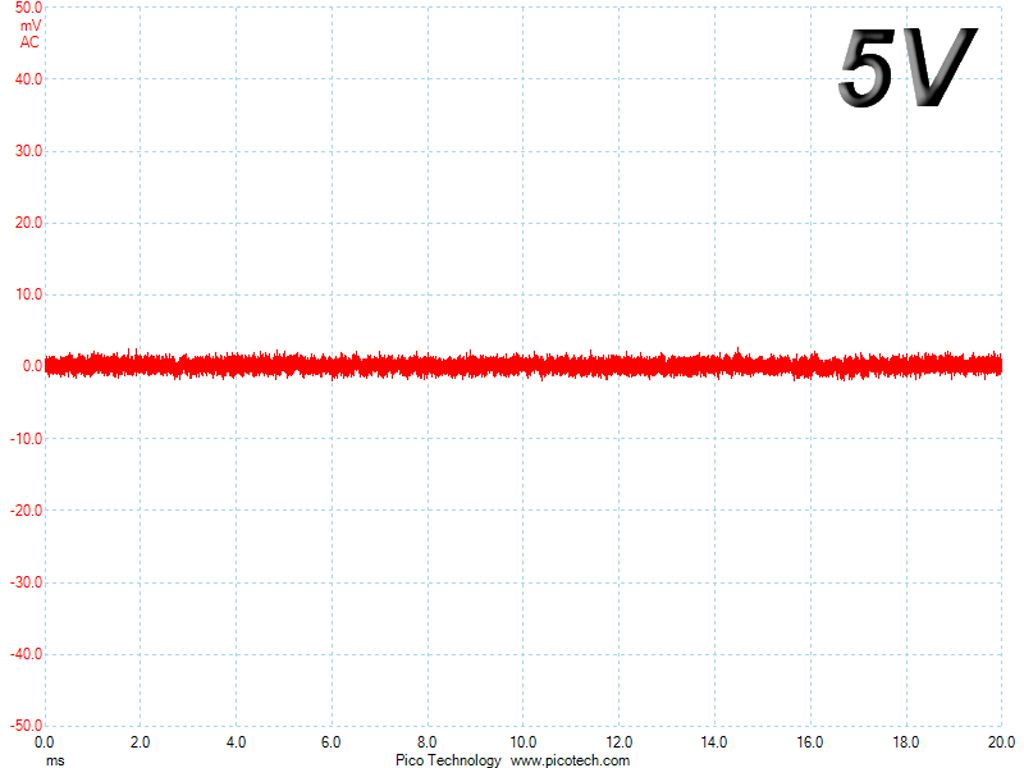

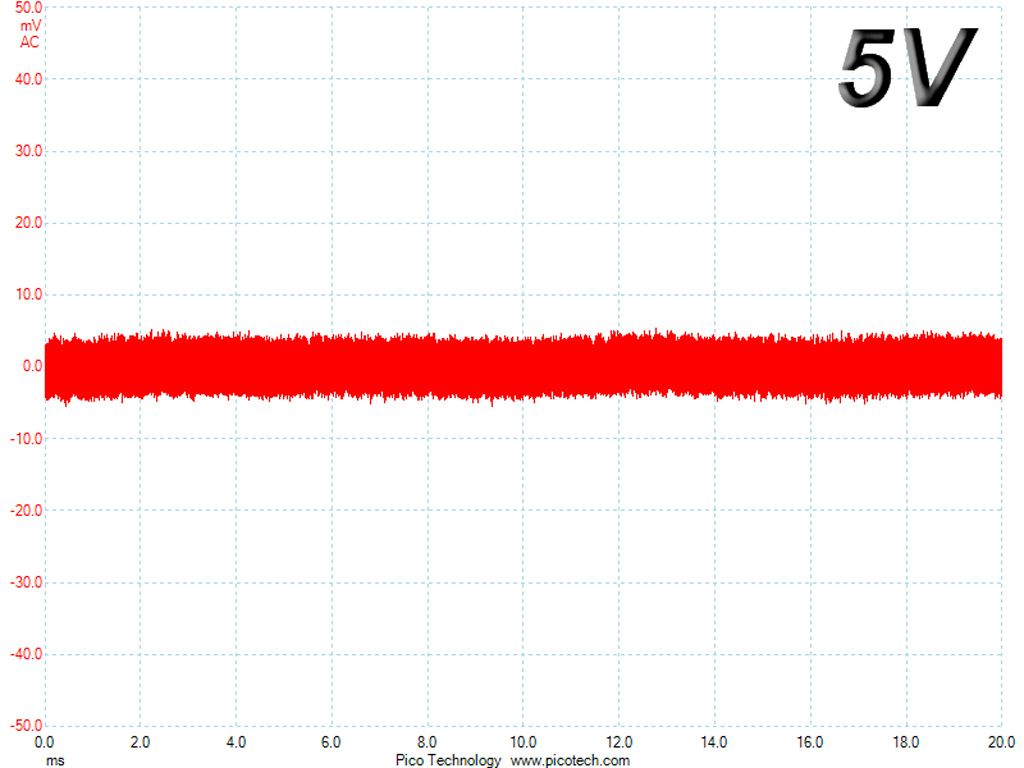

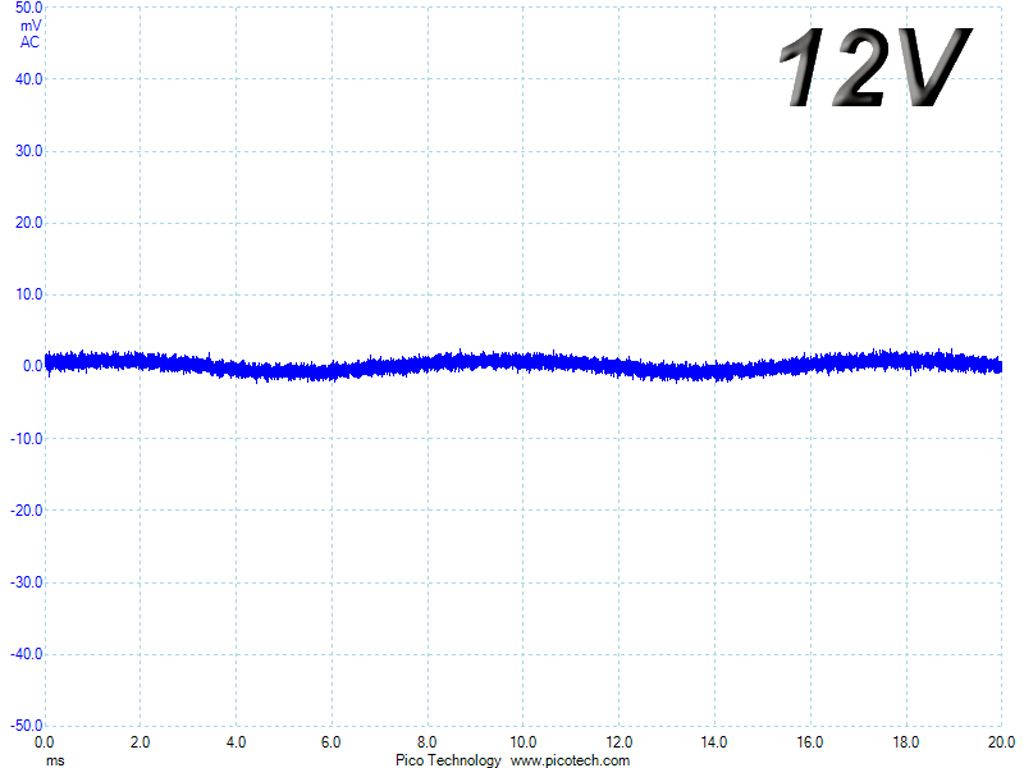

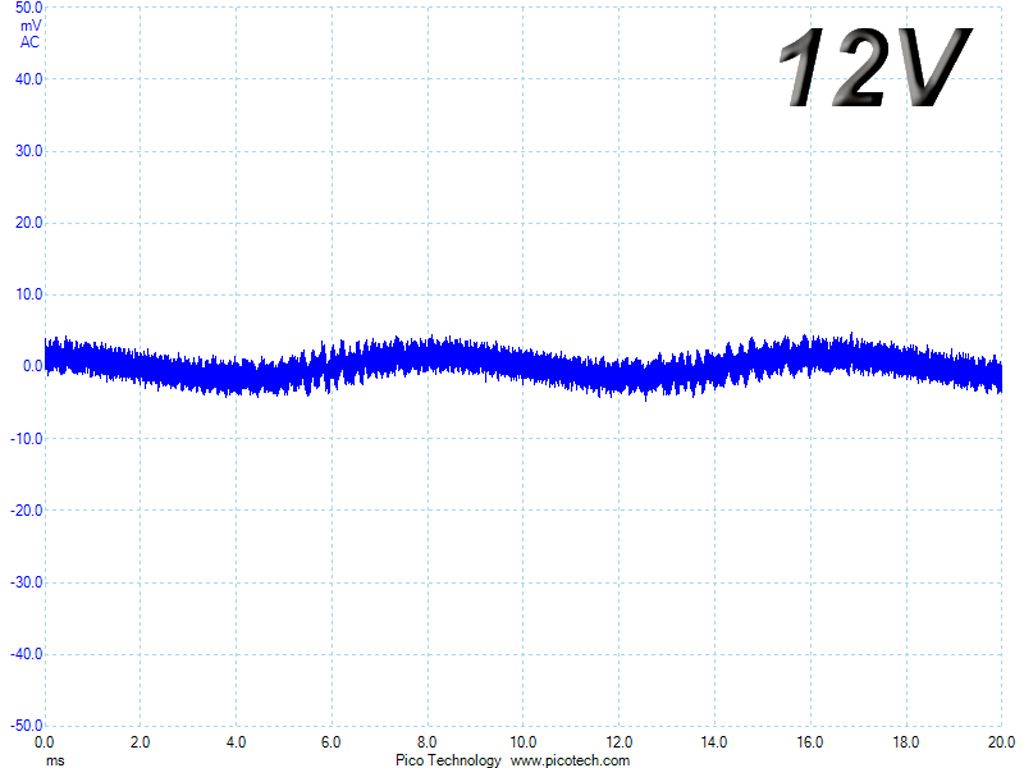

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.
Ripple At Full Load
Ripple At 110-Percent Load
Ripple At Cross-Load 1
Ripple At Cross-Load 2
