EVGA SuperNOVA 850 T2 Power Supply Review

Reviews
By
published

EVGA's T2 series consists of Titanium-rated PSUs with capacities ranging from 750 to 1600W. Today, we're looking at the 850W model, which tries to prove it is worth a premium compared to the company's Platinum-rated 850W offering.

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Cross-Load Tests And Infrared Images

Our cross-load tests are described in detail here.

To generate the following charts, we set our loaders to auto mode through our custom-made software before trying more than 1500 possible load combinations with the +12V, 5V and 3.3V rails. The load regulation deviations in each of the charts below were calculated by taking the nominal values of the rails (12V, 5V and 3.3V) as point zero.

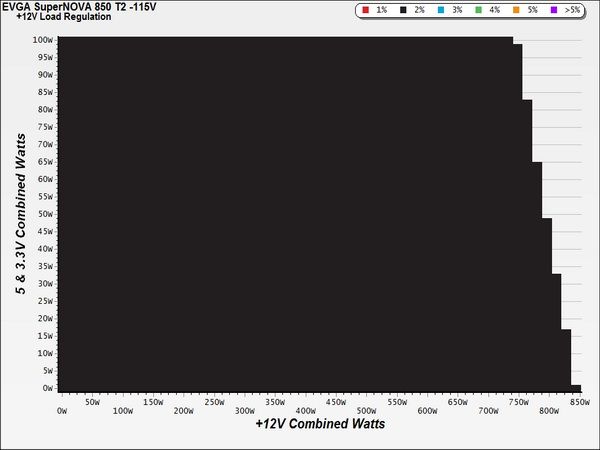

Load Regulation Charts

Image 1 of 3

Efficiency Chart

With 75W load and up, efficiency is constantly above 90%. This is amazing, to say the least.

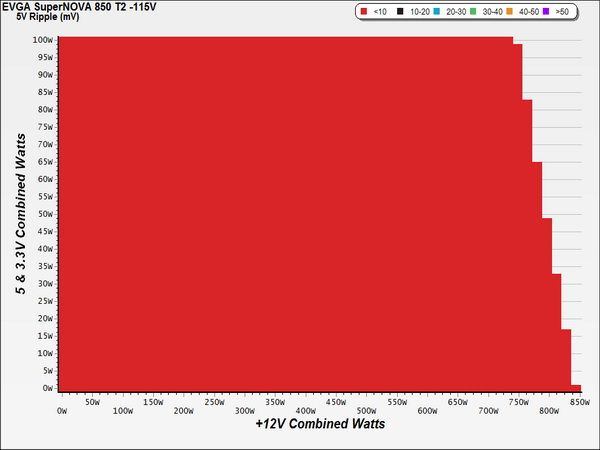

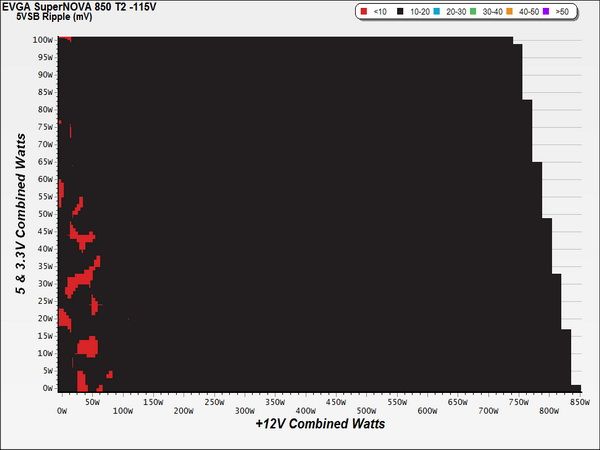

Ripple Charts

Image 1 of 4

Infrared Images

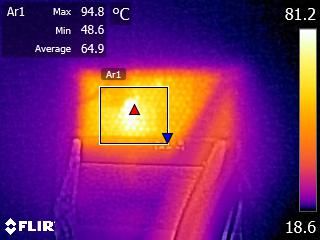

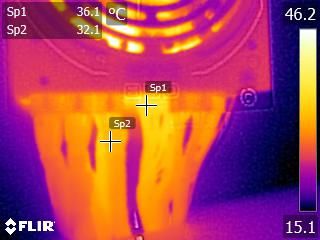

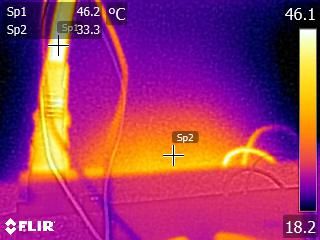

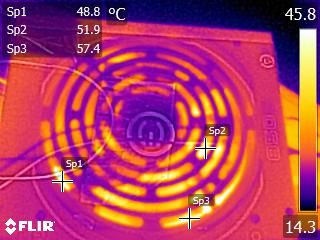

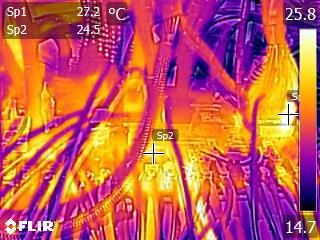

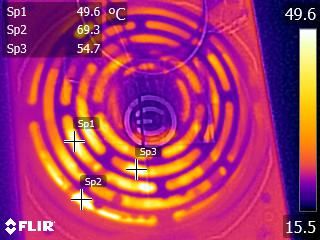

Toward the end of the cross-load tests, we took some photos of the PSU with our modified FLIR E4 camera that delivers 320x240 IR resolution (76,800 pixels).

Image 1 of 6

The temperatures inside the PSU during our demanding cross-load tests, where the PSU operates under full load for a prolonged period, remain at normal levels. Although the fan rarely spins (and once it does, it spins slowly), the internal temps never hit worrisome levels. If they did, the over-temperature protection circuit would kick in to protect the power supply.
