Power Consumption Tests

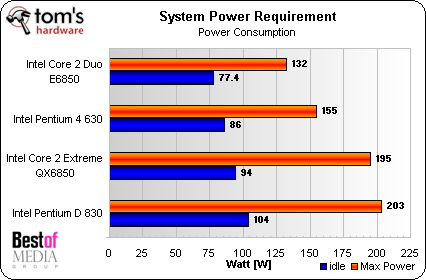

System Min/Max Power Consumption

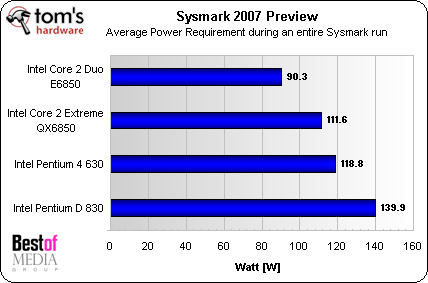

Average Power Consumption for SYSmark 2007

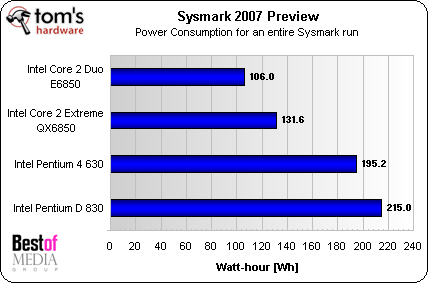

Power Requirements during SYSmark 2007 Run
Current page: Power Consumption TestsPrev Page SYSmark 2007: Productivity Next Page Performance vs. Power Consumption Diagram
Stay on the Cutting Edge
Join the experts who read Tom's Hardware for the inside track on enthusiast PC tech news — and have for over 25 years. We'll send breaking news and in-depth reviews of CPUs, GPUs, AI, maker hardware and more straight to your inbox.
The 'SYSmark Performance per Watt' can be misleading when comparing the dual and quad core processors, particularly when looking at other types of loads that make better use of the additional cores. In particular, look at x264 encoding, where a quad-core processor offers nearly double performance. See the graysky's articles on TechARP for actual charts and tables:Reply
For a load that will use all processors, I believe that testing will show better performance per watt for a quad core compared to a dual (or even single) core because there is little or no additional overhead from the motherboard or powersupply or hard drives when adding an additional core.
It may be easier to understand this by comparing running 2 separate PCs with dual core CPUs in them vs. running a single PC with a quad core CPU. The quad core system won't need another motherboard, power supply, fans, drives, etc. so all those items are areas of power savings.
From the published tests above, the 2 extra cores consume 195-132=63 watts at max load and 94-77=17 watts at idle. That is in contrast to adding a 2nd system identical to the E6850 testbox which used 132 watts at max and 77 at idle.
A simplistic scaling using a spreadsheet, and assuming that performance doubles going from dual to quad cores (reasonable for x264 encodes), shows that:
state cores watts perf/watt perf perf/core perf ratio
Idle 2 77 1.46 112.42 56.21 1
Idle 4 94 2.391914894 224.84 56.21 1.638
Avg 2 90 1.46 131.4 65.7 1
Avg 4 112 2.346428571 262.8 65.7 1.607
Max 2 132 1.46 192.72 96.36 1
Max 4 195 1.976615385 385.44 96.36 1.354
In other words, using the system power numbers given, the quad core can be 35% to 64% more efficient than using a dual core, if given an appropriate load. A look at the Sysmark benchmark scores will show you that it did not scale up very much going from dual to quad.
You said, "You cannot upgrade an existing Pentium D or Pentium 4 system with a Core 2 Duo processor, so you will have to purchase a new motherboard supporting the new processors, as well as DDR2 or DDR3 memory." My wife's P4d is on a Fox 45cmx mobo. The E6850 is listed on the support list. I was thinking of upgrading to the E6850 dual core.Reply
you sure about pentium D 3.00 GHz having TDP of 215 WattReply
