OSD Setup And Calibration

OSD Tour

The PA322UHD’s OSD is vast, and some features are repeated in the main and advanced menus. To keep things efficient, we’re only showing you commonly-used options and the unique calibration system.

Pressing the menu key on the front bezel brings up a small graphical interface.

The sub-menus are represented by icons along the top. The first one adjusts brightness and sets the Eco Mode, which limits the backlight to different peak levels. The Black adjuster changes the black threshold. You should leave it on Min for the greatest dynamic range.

Note that there is no contrast control. A well-engineered monitor shouldn’t need one as long as it doesn’t clip the brightest signals. NEC's PA322UHD does not.

You can position windowed images, adjust the aspect ratio and dial in sharpness from this screen. We saw no evidence of edge enhancement in native-resolution signals, but the 1920x1080 patterns from our AccuPel generator showed some ringing that we couldn’t remove.

Here is the most important menu of all. At the top are five fully customizable picture modes. We concentrated on the sRGB and Adobe RGB presets, which are calibrated at the factory and include a data sheet to that effect. When you move down to the Adjust field, you can change the white point and calibrate hue, saturation and offset (luminance) for all six colors.

We found the color management system most effective for fixing slight luminance errors and tweaking the positions of secondary colors.

You can see that it says Advanced Setting at the bottom. Choosing this option takes you to an extensive service menu that we'll dig into below.

The Advanced menu has all the functions of the main OSD plus many more. As you can see, white and color points can be adjusted by entering x and y coordinates. You can also change the brightness in 1 cd/m2 increments (that control is very accurate). At the bottom is a screen uniformity compensator. It has five levels, or it can be turned off. When you calibrate the PA322UHD, be sure to turn if off for maximum contrast, since it’s on by default.

The second screen has several options, plus a repeat of the CMS. The most important one is Metamerism, a compensation for how the human eye perceives white in standard-gamut monitors. In our tests, it reduced the saturation of the blue primary significantly. This is another option that’s on by default, but should be switched off for accuracy’s sake.

NEC is big on letting users track their power usage. If you enter the cost of your electricity in currency per kilowatt/hour, you’ll know exactly what the carbon footprint of your PA322UHD is.

At the bottom of this menu is a Stand-Alone Calibration feature. You can plug in a calibrator sold separately by NEC and adjust the monitor without a computer. It works just like the HP Z27x we reviewed last fall. You can also calibrate with SpectraView (available separately). For more on that, check out our review of the NEC PA272W.

Returning to the main OSD, the above screen adjusts audio options, Multi-Picture, PIP, USB port selection, input signal detection and the off timer. Audio signals can be carried over both HDMI and DisplayPort, and played through the internal speakers or headphone output.

The Multi-Picture function (PIP and PBP) is extremely flexible. You can display up to four signals in both landscape and portrait orientations. In portrait mode, they stack from top to bottom. No other monitor we know of does this.

The OSD is available in nine languages and can be moved around the screen or locked out in three different ways. One removes it completely from user intervention. The second mode enables just brightness and volume controls. Finally, you can set custom options in the Advanced OSD. Given the system's complexity, this is a good thing.

Here’s where you can view the carbon footprint and energy cost information after you set parameters in the Advanced menu.

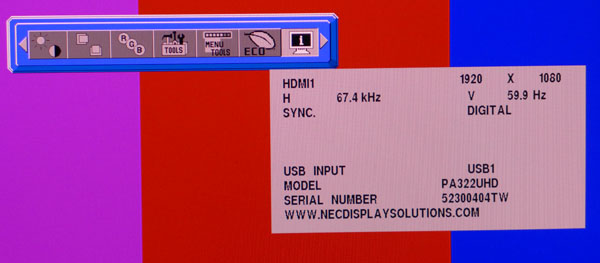

The final sub-menu contains signal information, USB port status and the monitor’s serial number.


There are three ways to calibrate the PA322UHD: SpectraView software, self-calibration with NEC’s i1 Display2-based instrument and traditional OSD adjustments. We chose the latter.

The sRGB and Adobe RGB modes are factory-certified, and we found them to be quite accurate out of the box. Since the ability is there, we used the OSD and Advanced menus to achieve even higher accuracy. The RGB sub-menu has adjustments for white balance plus a full color management system. The controls offer extremely fine resolution and do not interact, making calibration easy and precise. Whether you calibrate or not, it’s important to visit the Advanced menu and turn off the Metamerism option. You’ll see why on page six. Also, turn off the uniformity compensation for maximum contrast.

Please feel free to try our settings. To make the tables less confusing, we omit the options that were left unchanged.

Swipe to scroll horizontally
NEC PA322UHD Calibration Settings - Adobe RGB Mode
White BalanceRed 131, Green 135, Blue 136
OffsetRed +3, Yellow +1, Green +1Cyan +1, Blue -6, Magenta +1
NEC PA322UHD Calibration Settings - sRGB Mode
White BalanceRed 118, Green 122, Blue 123
HueMagenta +1, All Others 0
OffsetRed +4, Yellow +1, Green 0Cyan 0, Blue -6, Magenta +5
